Tri-Lingual Technical Documentation Collection for Yakovlev Yak-18A and Nanchang CJ-6 Primary Trainers

Coverage: Yakovlev Yak-18A (Soviet), Nanchang CJ-6/CJ-6A (Chinese), PT6 variants | Languages: English, Chinese (Simplified), Russian | Engine Documentation: Ivchenko AI-14R (Soviet) and Housai HS-6 (Chinese) radial engines | Organization: Multi-language documentation with English translations, technical specifications, maintenance procedures, and parts catalogs | Research Value: Essential documentation for the 200+ airworthy CJ-6 aircraft and rare surviving Yak-18A examples worldwide

Definitive Collection with Free Lifetime Updates: This is a living collection that we continuously expand and refine. As we acquire additional Yak-18A, CJ-6, or AI-14/HS-6 engine documentation in any language, technical bulletins, or variant-specific materials, we update this collection and provide free lifetime updates to all purchasers. Your one-time purchase guarantees access to all future additions and improvements to this collection.

Historical Note

The Yakovlev Yak-18A represents a significant evolution in the lineage of one of the Soviet Union's most successful and enduring trainer aircraft families. The original Yak-18, first flown in 1946, was designed by Alexander Sergeyevich Yakovlev's design bureau to provide the Soviet Air Force with a modern primary trainer to replace aging wartime designs. The Yak-18A variant, introduced in the mid-1950s, incorporated substantial improvements that transformed it into one of the most capable piston trainers of its era.

What distinguished the Yak-18A was its combination of docile handling characteristics, robust construction, and excellent aerobatic capabilities. Powered by a nine-cylinder Ivchenko AI-14R radial engine producing 260 horsepower, the aircraft featured a tandem cockpit configuration, retractable tailwheel landing gear, and all-metal construction. The design provided student pilots with a forgiving platform for basic flight training while offering sufficient performance for advanced aerobatic instruction—a versatility that made it ideal for comprehensive pilot development programs.

The Yak-18A's service extended far beyond Soviet borders. The aircraft was produced under license in China as the Nanchang CJ-6 (Chuji Jiaolianji-6, meaning "Primary Trainer-6" or 初教-6), with over 2,000 examples built between 1958 and 1986 at the Nanchang Aircraft Manufacturing Company. The Chinese variant featured modifications including a redesigned cockpit canopy, revised instrument panel, and the domestically-produced Housai HS-6 engine (a Chinese-built version of the Soviet Ivchenko AI-14R). While retaining the fundamental design excellence of the Soviet original, the CJ-6 incorporated improvements based on operational experience and Chinese manufacturing capabilities.

The CJ-6 became the primary trainer for the People's Liberation Army Air Force (PLAAF) and served as the foundation of Chinese military pilot training for over three decades. The aircraft was exported to numerous countries including Albania, Bangladesh, Cambodia, North Korea, Tanzania, and Zambia, where it provided reliable and cost-effective primary training. The type's rugged construction and ability to operate from unprepared airstrips made it particularly valuable for air forces in developing nations.

In Soviet and Warsaw Pact service, the Yak-18A trained countless military pilots from the 1950s through the 1980s, providing the foundation for transition to advanced trainers like the Yak-52 and frontline fighters. The aircraft's reliability, ease of maintenance, and forgiving flight characteristics made it an ideal ab-initio trainer, while its aerobatic capabilities allowed advanced students to develop confidence in unusual attitudes and precision maneuvers.

Beyond military training, the Yak-18A achieved remarkable success in civilian aerobatic competition. The type dominated Soviet and international aerobatic championships throughout the 1960s and 1970s, with specially-prepared variants demonstrating exceptional performance in the hands of skilled pilots. The aircraft's strong construction, responsive controls, and excellent power-to-weight ratio made it a formidable competitor, contributing to the Soviet Union's dominance in international aerobatic competition during this period.

Following the collapse of the Soviet Union and the opening of China to Western markets in the 1990s, surplus CJ-6 aircraft became available for export to civilian buyers. Hundreds of CJ-6s were imported to the United States, Canada, Australia, and Europe, where they found new life as warbirds, aerobatic trainers, and sport aircraft. The type's combination of classic radial-engine aesthetics, spirited performance, fully aerobatic capability, and relatively affordable purchase and operating costs created a devoted following among warbird enthusiasts and aerobatic pilots.

The designation "PT6" sometimes appears in Western documentation, though this is not an official Soviet or Chinese designation but rather a reference used in some export contexts or by Western observers attempting to categorize Soviet-designed aircraft types. The proper designations remain Yak-18A for Soviet-built aircraft and CJ-6 for Chinese-built examples.

Total production of the Yak-18 family (including all variants) exceeded 6,500 aircraft, while CJ-6 production surpassed 2,000 examples, making this design lineage one of the most numerous trainers ever built. The type remained in active military service with various air forces into the 1990s, representing an extraordinary operational career spanning more than four decades. Today, the CJ-6 in particular remains one of the most popular and actively flown Eastern Bloc warbirds, with a vibrant international community of owners, operators, and enthusiasts.

Manuals Included in This Collection

This comprehensive tri-lingual collection includes authentic technical documentation in English, Chinese (Simplified), and Russian, covering the complete Yak-18A/CJ-6 family and associated powerplants:

Aircraft Technical Documentation

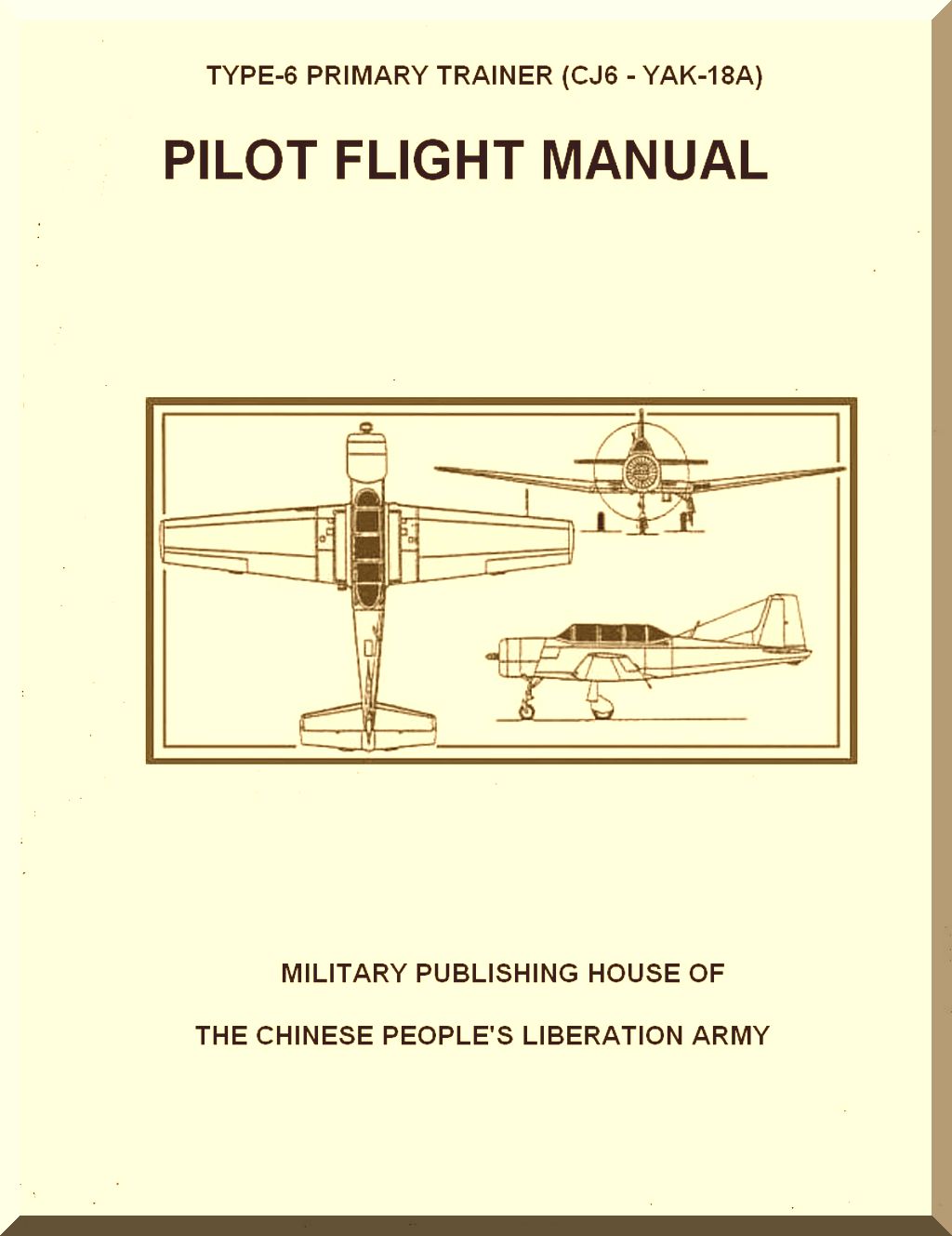

• TYPE-6 PRIMARY TRAINER (CJ6 - YAK-18A) CHUJIAO-6 AIRPLANE - Pilot Flight Manual (English) - Published by Military Publishing House of the Chinese People's Liberation Army - Comprehensive flight operating instructions

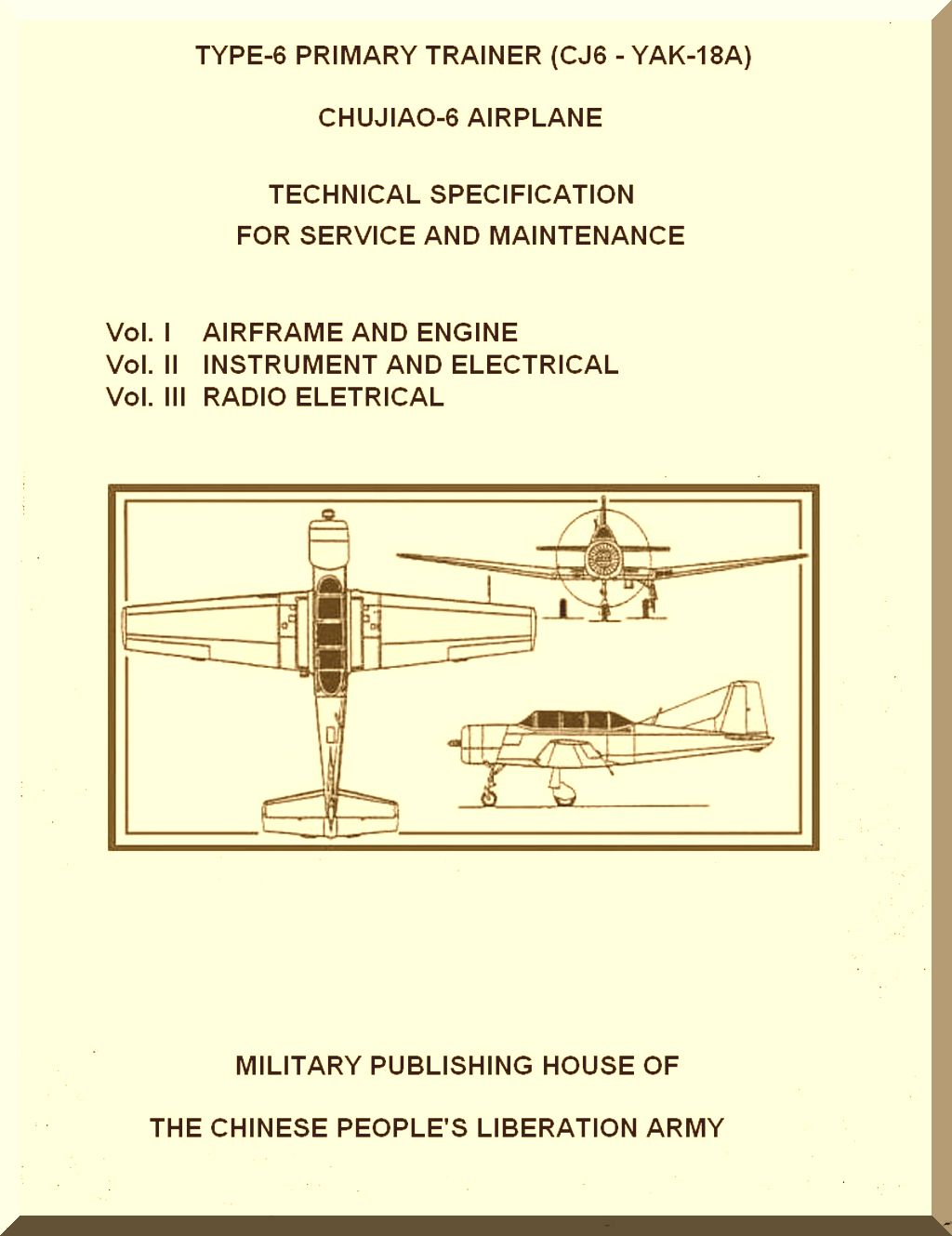

• TYPE-6 PRIMARY TRAINER (CJ6 - YAK-18A) CHUJIAO-6 AIRPLANE - Technical Specification for Service and Maintenance (English) - Three-volume set covering:
  • Vol. I: Airframe and Engine
  • Vol. II: Instrument and Electrical Systems
  • Vol. III: Radio Electrical Systems

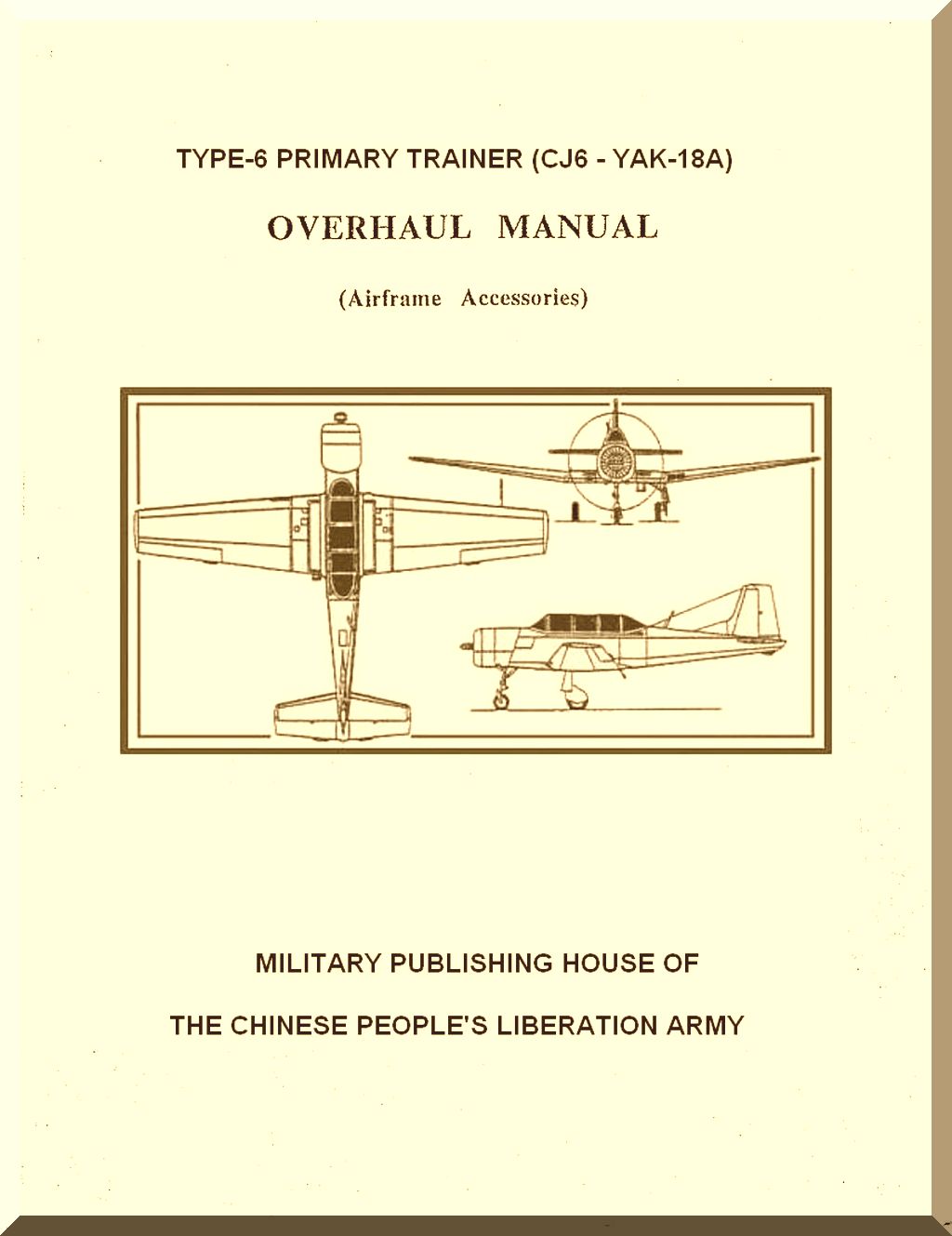

• TYPE-6 PRIMARY TRAINER (CJ6 - YAK-18A) CHUJIAO-6 AIRPLANE - Overhaul Manual (Airframe Accessories) (English) - Published by Military Publishing House of the Chinese People's Liberation Army - Detailed overhaul procedures for airframe components and accessories

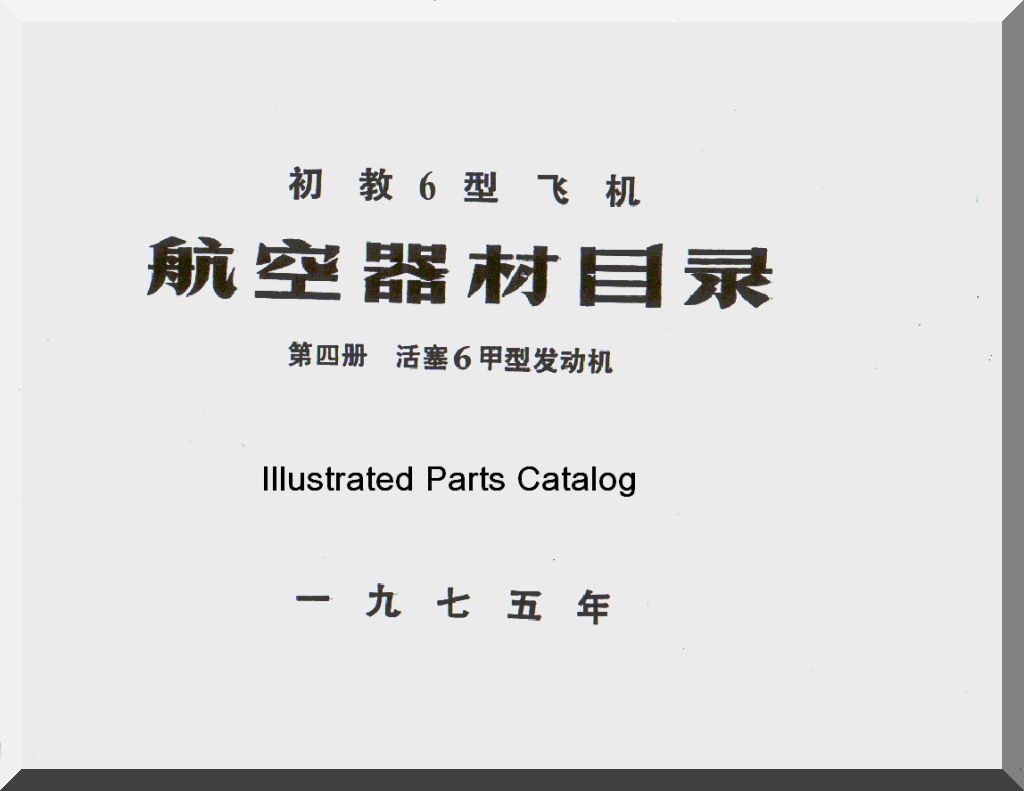

• 初教6型飞机航空器材目录 (CJ-6 Aircraft Illustrated Parts Catalog) (Chinese) - 第四册 活塞6甲型发动机 (Volume 4: Piston 6A Engine) - Published 1975 - Comprehensive parts identification and numbering for CJ-6 airframe and HS-6A engine
• Yakovlev Yak-18A Documentation (Russian/English) - Soviet-origin technical materials and pilot notes

Engine Technical Documentation

• Ivchenko AI-14R Engine Manuals (Russian/English) - Soviet nine-cylinder radial engine documentation including maintenance procedures, overhaul instructions, and technical specifications
• Housai HS-6/HS-6A Engine Documentation (Chinese/English) - Chinese-built version of the AI-14R engine, including parts catalog, maintenance procedures, and technical data
• Engine Overhaul and Maintenance Procedures - Detailed instructions for both AI-14R and HS-6 variants, covering cylinder removal, crankshaft inspection, valve timing, carburetor adjustment, and ignition system maintenance

This collection provides comprehensive coverage across three languages, ensuring that operators worldwide—whether maintaining original Soviet Yak-18A aircraft, Chinese CJ-6 variants, or hybrid configurations—have access to authentic factory documentation in their preferred language.

Engineering Norms and Standards

The Yak-18A and CJ-6 represent classic Soviet design philosophy emphasizing rugged construction, operational simplicity, and maintainability under austere conditions. Understanding the engineering standards that governed their design and production is essential for proper restoration and maintenance:

Airframe Design and Construction

• Structural Design: All-metal semi-monocoque construction with aluminum alloy skin over stamped aluminum formers and stringers. The fuselage structure was designed to Soviet GOST (State Standards) specifications for military trainer aircraft, emphasizing damage tolerance and ease of field repair
• Wing Structure: Two-spar cantilever low-wing design with aluminum ribs and stressed aluminum skin. Wing loading approximately 17.5 lb/sq ft, providing excellent low-speed handling and short-field performance. Ailerons and flaps are fabric-covered on early variants, transitioning to all-metal construction on later production
• Landing Gear: Retractable tailwheel configuration with hydraulically-actuated main gear. Main gear features oleo-pneumatic shock struts with wide track (approximately 2.5 meters) for stable ground handling. Tailwheel is steerable and linked to rudder pedals
• Cockpit Configuration: Tandem seating with student in front, instructor in rear. Both positions equipped with full flight controls. Yak-18A features sliding canopy; CJ-6 has distinctive "bubble" canopy providing improved visibility

Powerplant Specifications

• Ivchenko AI-14R Engine (Soviet): Nine-cylinder air-cooled radial engine, displacement 15.74 liters, producing 260 hp at 2,200 RPM. Compression ratio 6.4:1. Dry weight approximately 240 kg (529 lbs). Features single-speed supercharger and direct fuel injection. Time Between Overhaul (TBO) typically 800-1,000 hours under military operations
• Housai HS-6/HS-6A Engine (Chinese): Chinese-manufactured version of AI-14R with minor modifications. Produces 285 hp at 2,300 RPM (HS-6A variant). Displacement and basic architecture identical to Soviet original. Some detail differences in accessories, carburetor design, and ignition components
• Propeller: Two-blade variable-pitch propeller, diameter 2.4 meters (7.87 feet). Soviet aircraft typically equipped with V-530 propeller; Chinese aircraft use domestically-produced equivalents
• Fuel System: Total fuel capacity 150 liters (39.6 US gallons) in two wing tanks. Gravity feed with engine-driven fuel pump and manual wobble pump for emergency backup. Fuel grade: Soviet B-91/115 aviation gasoline or equivalent (100LL avgas commonly used in civilian operations)

Performance Specifications

• Maximum Speed: 285 km/h (177 mph) at sea level
• Cruise Speed: 220 km/h (137 mph)
• Stall Speed: 85 km/h (53 mph) with flaps
• Service Ceiling: 5,000 meters (16,400 feet)
• Range: 900 km (559 miles) with standard fuel
• Rate of Climb: 5.5 m/s (1,080 ft/min)
• Takeoff Distance: 250 meters (820 feet)
• Landing Distance: 350 meters (1,150 feet)

Weights and Load Factors

• Empty Weight: 1,020 kg (2,249 lbs)
• Maximum Takeoff Weight: 1,420 kg (3,131 lbs)
• Useful Load: 400 kg (882 lbs)
• Load Factors: +6.5g / -3.5g (aerobatic category), +4.5g / -2.0g (utility category)

Systems and Equipment

• Hydraulic System: Engine-driven hydraulic pump operating at 50 kg/cm² (711 psi) for landing gear retraction and flap actuation. Manual emergency extension system for landing gear
• Electrical System: 24-volt DC system with engine-driven generator and battery. Soviet aircraft typically equipped with GSR-3000 generator; Chinese aircraft use domestically-produced equivalents
• Instrumentation: Basic flight instruments including airspeed indicator, altimeter, vertical speed indicator, turn-and-bank indicator, magnetic compass, and engine instruments (tachometer, oil pressure, oil temperature, cylinder head temperature, fuel pressure)
• Radio Equipment: Military variants equipped with VHF radio and intercom system. Civilian conversions typically feature modern avionics installations

Manufacturing Standards

• Soviet Production: Yakovlev aircraft built to Soviet GOST standards and military specifications (VVS requirements). Quality control procedures emphasized interchangeability of parts across production batches and ease of field maintenance
• Chinese Production: Nanchang CJ-6 aircraft built to Chinese military standards (GJB specifications) based on Soviet GOST standards with local adaptations. Chinese manufacturing incorporated some design improvements and component substitutions based on domestic industrial capabilities
• Materials: Airframe constructed primarily from aluminum alloys (Soviet D16 equivalent to 2024-T3, Chinese LY12 equivalent). High-stress components use steel alloys. Fabric-covered control surfaces use Grade A cotton fabric with nitrate or butyrate dope finish

Restoration & Operational Considerations

The Nanchang CJ-6 and Yakovlev Yak-18A represent one of the most accessible and actively flown categories of Eastern Bloc warbirds, with a vibrant international community and substantial airworthy fleet. Understanding the current operational landscape is essential for anyone involved in acquisition, restoration, or operation of these aircraft:

Current Airworthy Fleet and Survivors

• CJ-6 Airworthy Population: Over 200 Nanchang CJ-6/CJ-6A aircraft are currently airworthy and in private ownership worldwide, representing one of the largest populations of actively flying Eastern Bloc warbirds
• Geographic Distribution: The highest concentrations of airworthy CJ-6s are in the United States (estimated 100-150 aircraft), Europe (30-50 aircraft), Australia and New Zealand (20-30 aircraft), and China (unknown number still in military training or civilian use)
• Yak-18A Survivors: Only an estimated 40 original Yakovlev Yak-18A aircraft exist worldwide, with limited numbers airworthy—approximately 5 in the United States and 3 in Europe. The Yak-18A is significantly rarer than its Chinese-built cousin, making surviving examples highly valuable
• Production Context: Of the 2,000+ CJ-6 aircraft produced and 6,500+ Yak-18 family aircraft built, the surviving airworthy fleet represents a small but significant percentage, sustained by active restoration efforts and strong community support
• Active Restoration Projects: Many CJ-6 aircraft are frequently restored to high standards for warbird enthusiasts, with restoration shops in the US, Europe, and China specializing in these aircraft. The availability of parts and technical expertise has created a sustainable restoration ecosystem
• Military Service: Some CJ-6 aircraft reportedly remain in active military training service in China and possibly other nations, though most have been retired and replaced by modern trainers

Acquisition and Import Considerations

• Availability: CJ-6 aircraft are relatively available on the warbird market, with prices ranging from $40,000-$80,000 USD for flyable examples to $15,000-$30,000 for restoration projects. Yak-18A aircraft are significantly rarer and command premium prices when available
• Import History: The majority of CJ-6 aircraft in Western countries were imported during the 1990s and early 2000s when surplus Chinese military trainers became available for export. Import regulations vary by country, with some nations requiring demilitarization or specific airworthiness certifications
• Registration Categories: In the United States, CJ-6 aircraft typically operate under FAA Experimental-Exhibition, Experimental-Amateur Built (if substantially modified), or Limited category certificates. Other countries have similar experimental or permit-to-fly categories for ex-military aircraft

Restoration Challenges and Considerations

• Parts Availability: CJ-6 parts availability is relatively good compared to rarer warbirds, with several specialty suppliers in the US, Europe, and China offering new-old-stock (NOS) parts, remanufactured components, and fabricated replacements. Common wear items like tires, brakes, and engine accessories are generally available
• Engine Overhaul: The Housai HS-6 engine can be overhauled by specialized shops familiar with Soviet-design radial engines. Several facilities in the US and Europe offer HS-6 and AI-14R overhaul services, typically costing $15,000-$25,000 depending on condition and required work. Engine TBO is typically 800-1,200 hours depending on operating conditions
• Propeller Overhaul: Chinese variable-pitch propellers require specialized overhaul facilities. Some operators have converted to Western propellers (e.g., Hartzell or McCauley) under STCs or experimental permits, though this requires engineering analysis and approval
• Airframe Condition: Many imported CJ-6 aircraft require significant airframe restoration due to corrosion from outdoor storage, fabric deterioration on control surfaces, and wear from intensive military training operations. Thorough pre-purchase inspections are essential
• Documentation Challenges: Original Chinese military logbooks and maintenance records are often unavailable or written entirely in Chinese, requiring translation and interpretation. Establishing airworthiness history can be challenging for imported aircraft
• Fuel System Modifications: Many CJ-6 aircraft have been modified to operate on 100LL avgas instead of the original Soviet/Chinese fuel specifications. Fuel system modifications may include carburetor rejetting, ignition timing adjustments, and fuel tank sealing upgrades
• Avionics Upgrades: Most civilian CJ-6 operators install modern avionics including VHF radios, transponders, GPS navigation, and modern instruments, replacing the original Soviet/Chinese military equipment. Panel modifications require careful planning to maintain structural integrity
• Fabric Covering: Control surfaces (ailerons, elevators, rudder) on many CJ-6 aircraft are fabric-covered and require periodic re-covering using modern aircraft fabric systems (Ceconite, Poly-Fiber, or Stewart Systems). Proper fabric work is critical for airworthiness and longevity

Operational Considerations

• Operating Costs: The CJ-6 is one of the most affordable warbirds to operate, with fuel consumption of approximately 12-15 gallons per hour, relatively inexpensive parts, and straightforward maintenance. Annual operating costs (excluding major overhauls) typically range from $5,000-$10,000 for recreational use
• Pilot Qualification: Operating a CJ-6 requires tailwheel endorsement and ideally some radial-engine experience. The aircraft is generally forgiving and suitable for pilots transitioning from conventional tricycle-gear aircraft, though proper training is essential. Insurance requirements vary but typically mandate tailwheel experience and dual instruction in type
• Flight Characteristics: The CJ-6 is known for docile handling, excellent visibility (particularly the bubble-canopy variant), responsive controls, and forgiving stall characteristics. The aircraft is fully aerobatic and popular for aerobatic training and competition. Ground handling requires attention due to tailwheel configuration and moderate engine torque
• Maintenance Philosophy: The CJ-6 was designed for ease of maintenance under austere conditions, with good access to major components, simple systems, and robust construction. Owner-assisted maintenance is common under experimental certificates, reducing operating costs
• Fuel Requirements: Most CJ-6 aircraft operate satisfactorily on 100LL avgas, though some operators prefer unleaded automotive gasoline (mogas) with appropriate STCs or experimental permits. Fuel system cleanliness and proper carburetor adjustment are critical for reliable operation

Operational Activities

• Warbird Community: CJ-6 aircraft are popular participants in warbird fly-ins, airshows, and formation flying events. The type's distinctive appearance, radial engine sound, and aerobatic capabilities make it a crowd favorite
• Aerobatic Training and Competition: Many CJ-6 operators use their aircraft for aerobatic training and competition, taking advantage of the type's excellent aerobatic capabilities, strong construction, and relatively low operating costs compared to purpose-built aerobatic aircraft
• Flight Training: Some flight schools and warbird organizations use CJ-6 aircraft for tailwheel training, radial-engine transition training, and formation flying instruction
• Formation Flying: CJ-6 aircraft frequently fly in formation at airshows and commemorative events, often representing Chinese or Soviet military aviation heritage

Community and Resources

• CJ-6 Owner Groups: Active online communities and owner groups provide technical support, parts sourcing information, maintenance advice, and operational guidance. Forums such as the CJ-6 Pilots Group and various warbird forums maintain extensive knowledge bases
• Type-Specific Expertise: Several maintenance facilities and individual mechanics in the US, Europe, and Australia specialize in CJ-6 maintenance and restoration, offering expertise unavailable from general aviation shops
• Parts Suppliers: Specialty vendors including Aero Trader, CJ-6 Parts, and various international suppliers provide parts, technical support, and restoration services specifically for CJ-6 and Yak-18A aircraft
• Technical Documentation: This tri-lingual collection from Online Aviation Library provides essential factory documentation in English, Chinese, and Russian, supporting the diverse international community of CJ-6 and Yak-18A operators

Tri-Lingual Documentation Value

• English Documentation: Essential for Western operators in the US, Canada, Australia, Europe, and other English-speaking regions, providing accessible reference material for maintenance, restoration, and flight operations
• Chinese Documentation: Critical for operators working with Chinese-built CJ-6 aircraft, providing authentic factory specifications, parts numbers, and maintenance procedures as originally published by Nanchang Aircraft Manufacturing Company and the Chinese People's Liberation Army
• Russian Documentation: Valuable for operators of original Soviet Yak-18A aircraft and for understanding the design heritage and engineering standards that influenced the CJ-6 development
• Cross-Reference Capability: The multi-language documentation allows operators to cross-reference specifications, parts numbers, and procedures across Soviet and Chinese variants, essential for hybrid aircraft or when sourcing parts from multiple sources

This collection provides the foundational technical documentation essential for anyone involved in CJ-6 or Yak-18A acquisition, restoration, maintenance, or operation. The tri-lingual coverage ensures that operators worldwide have access to authentic factory documentation in their preferred language, supporting the vibrant international community that keeps these classic trainers flying.

Format and Delivery

Format: Digital download - Instant access upon purchase
File Organization: Structured folder hierarchy by aircraft type, document type, and language
File Types: High-quality PDF scans preserving original document formatting, diagrams, and specifications
Languages: English, Chinese (Simplified), Russian
Licensing: Personal use for research, restoration, maintenance, and historical study

Disclaimer

This item is sold for historical and reference purposes only. These are either original or copies of manuals and technical documents used when these aircraft were in active military service, now transferred into electronic format. These manuals and technical documents are not meant to be used for current update material for certification or repair of airworthy aircraft, but make an excellent reference for historians, researchers, restorers, collectors, modelers, and aviation enthusiasts.

For airworthy CJ-6 and Yak-18A aircraft, always consult current airworthiness requirements, approved maintenance procedures, and applicable regulations from appropriate aviation authorities in your jurisdiction. The information is for reference only, and we do not guarantee the completeness, accuracy, or currency of all materials for current airworthiness compliance.
