Vought F4U-1 & F4U-4 Corsair Aircraft Blueprints Assembly Drawings - Digital Download
Collection of engineering drawings for the legendary F4U-1 Corsair airframe in PDF and TIFF formats. Perfect for aviation historians, restorers, modelers, and enthusiasts.
What's Included

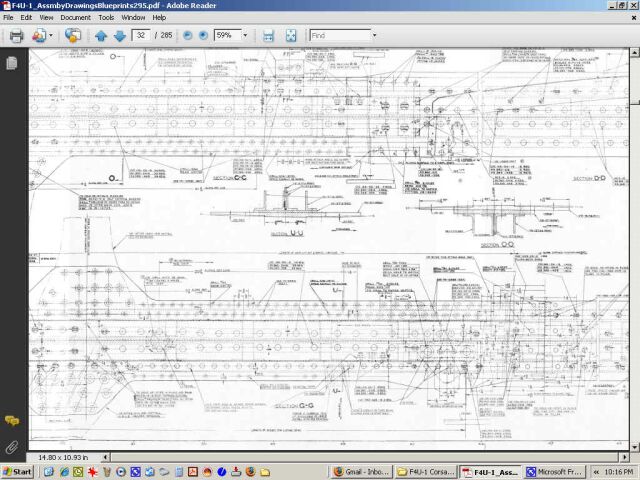

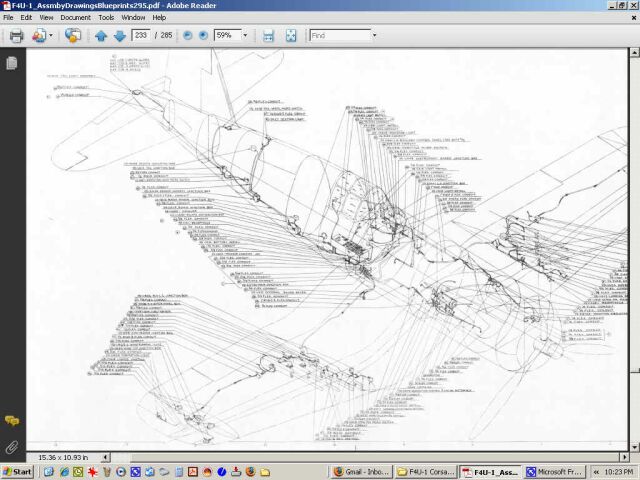

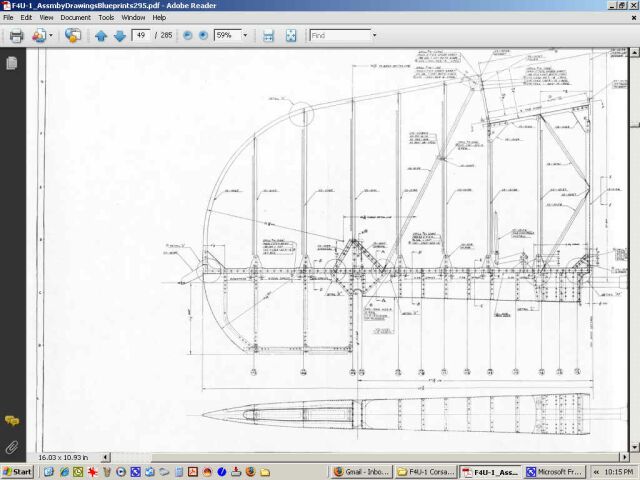

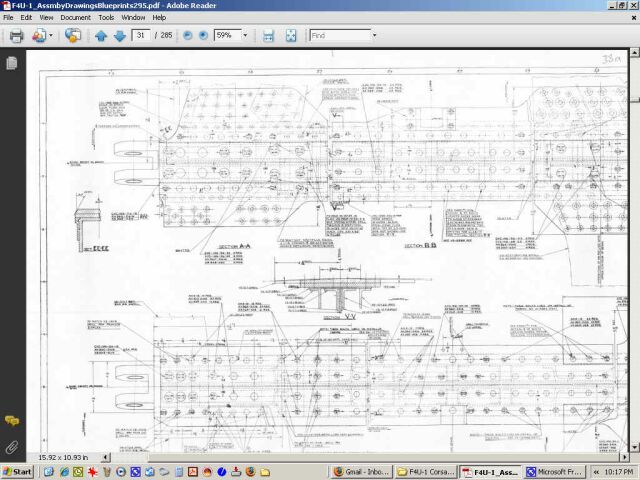

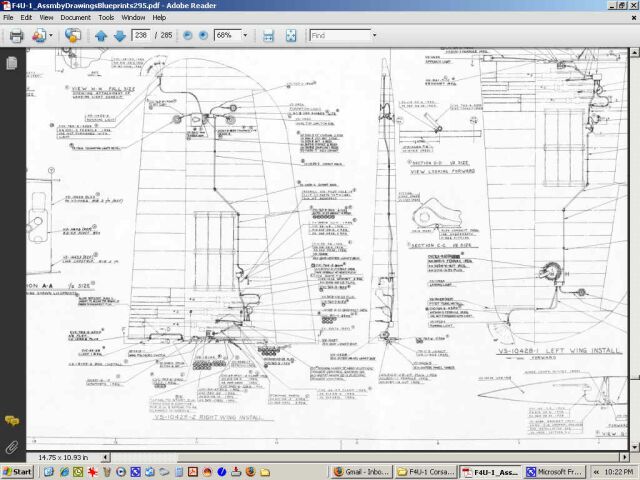

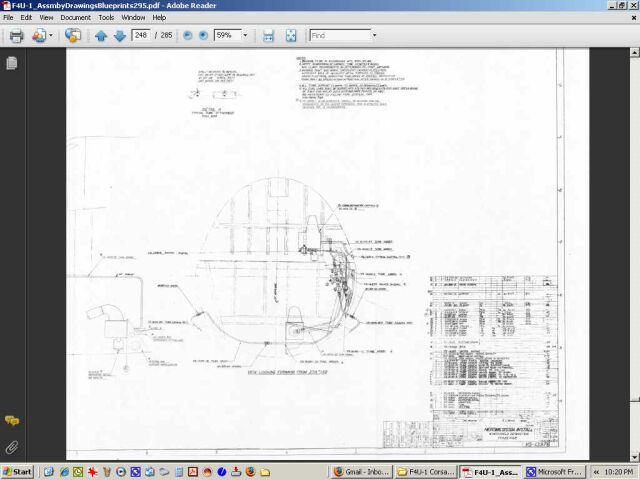

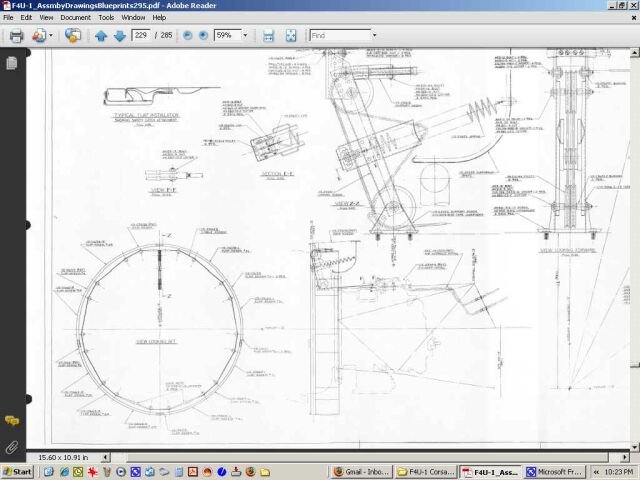

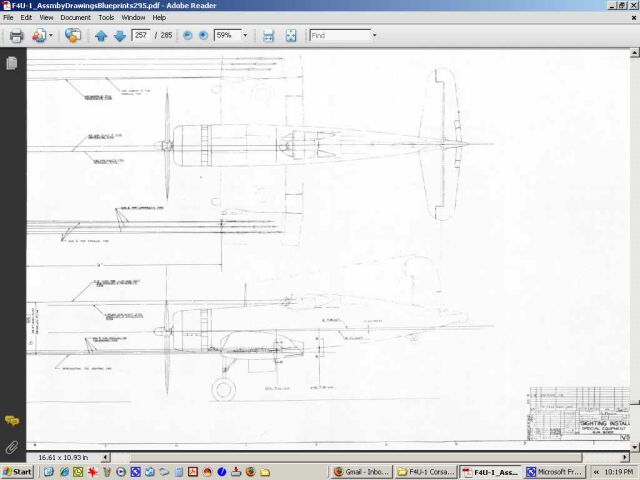

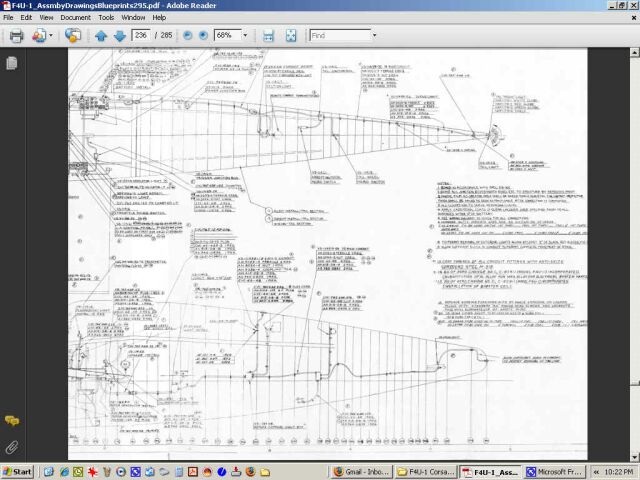

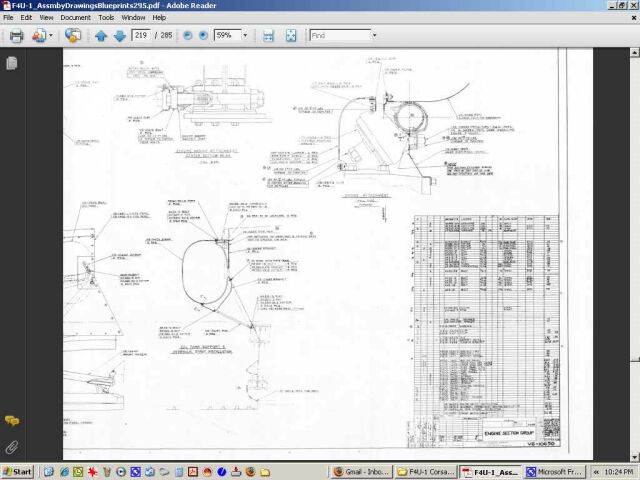

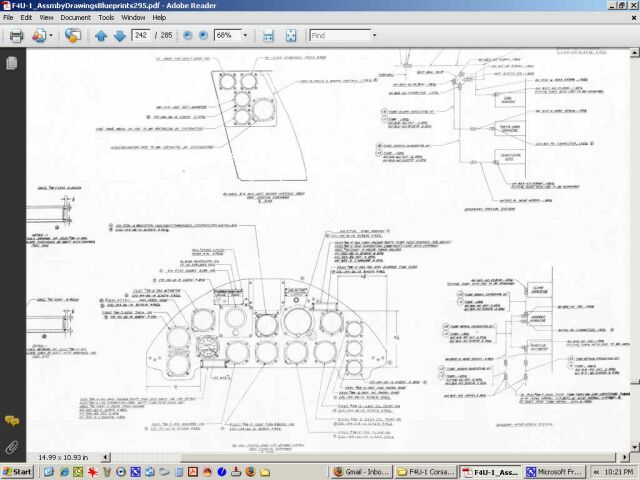

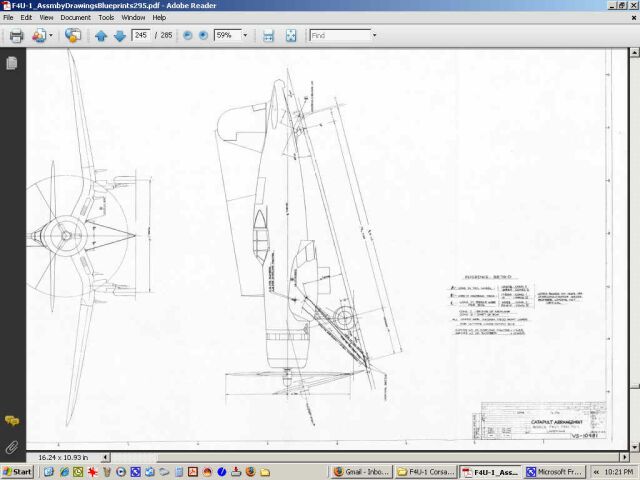

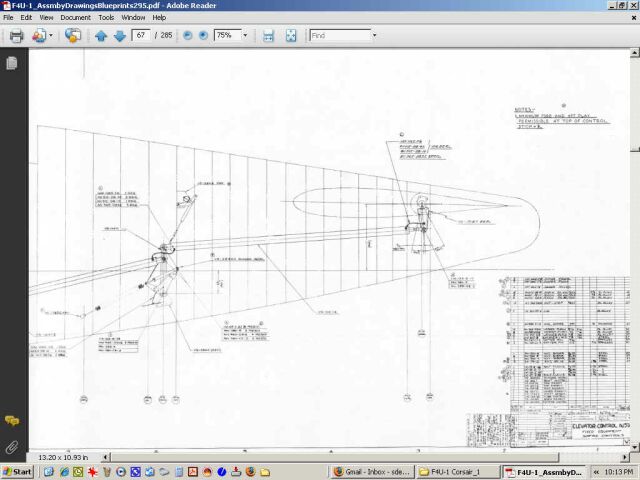

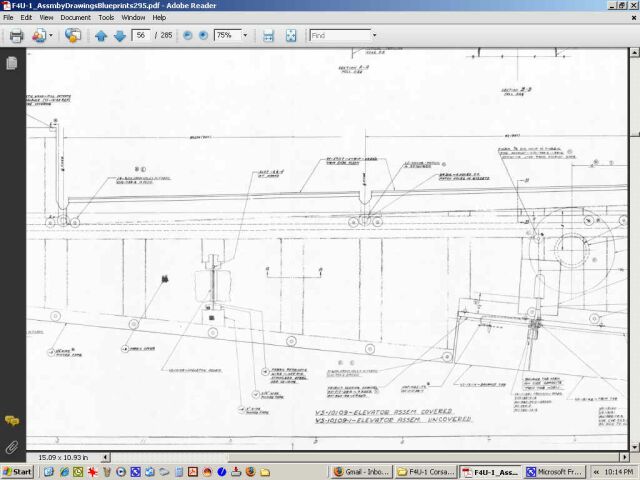

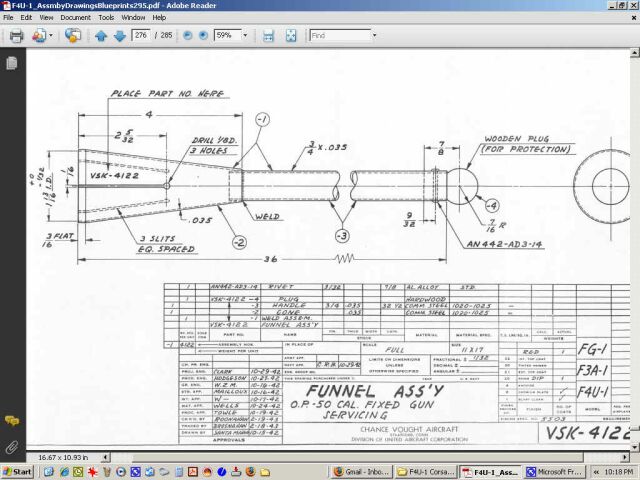

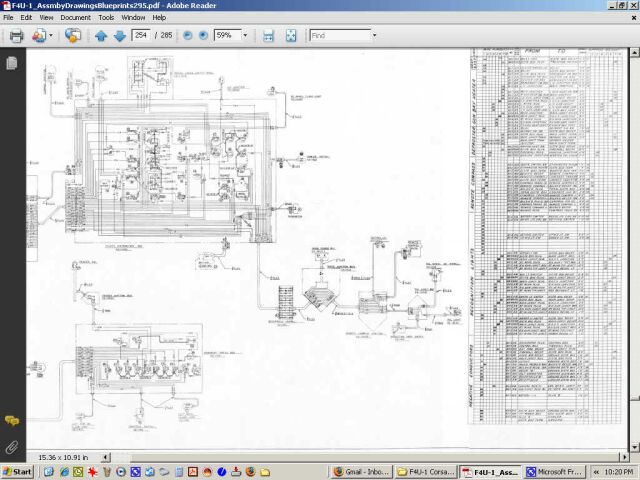

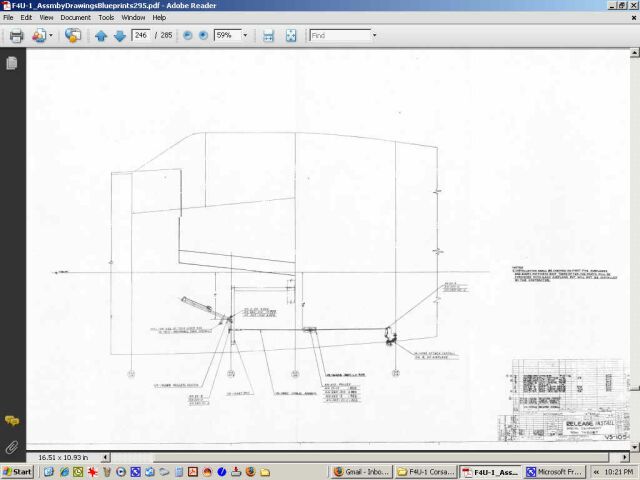

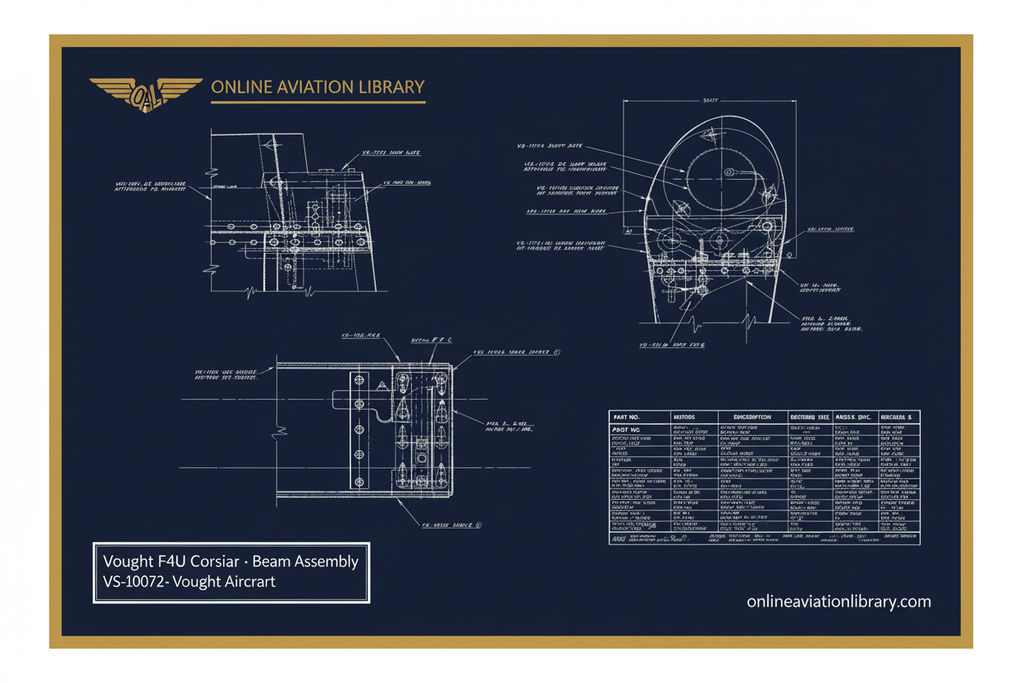

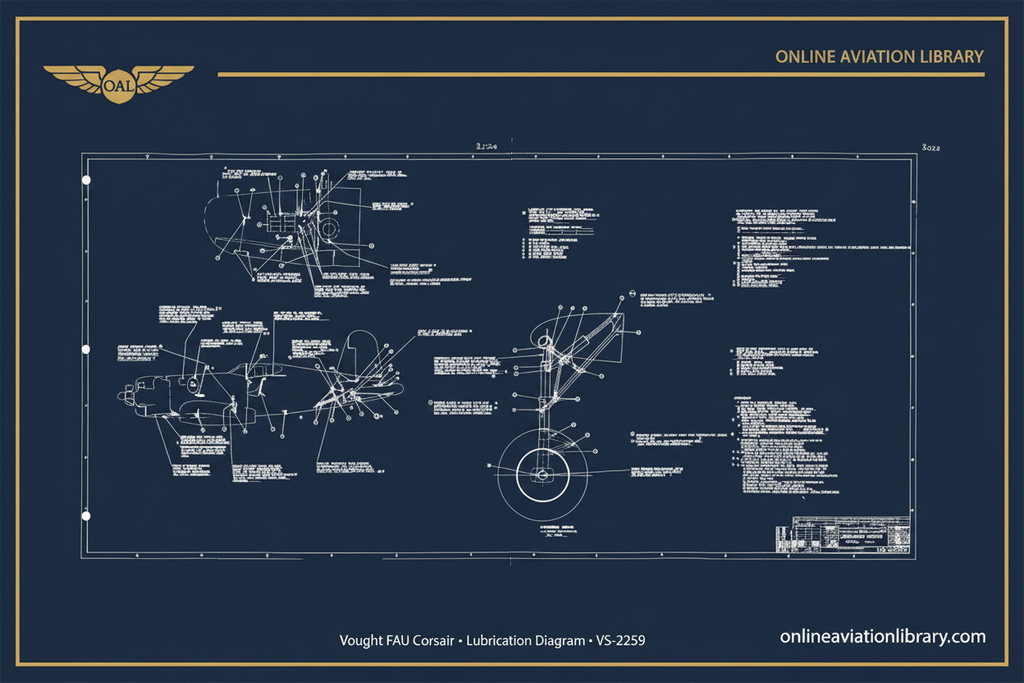

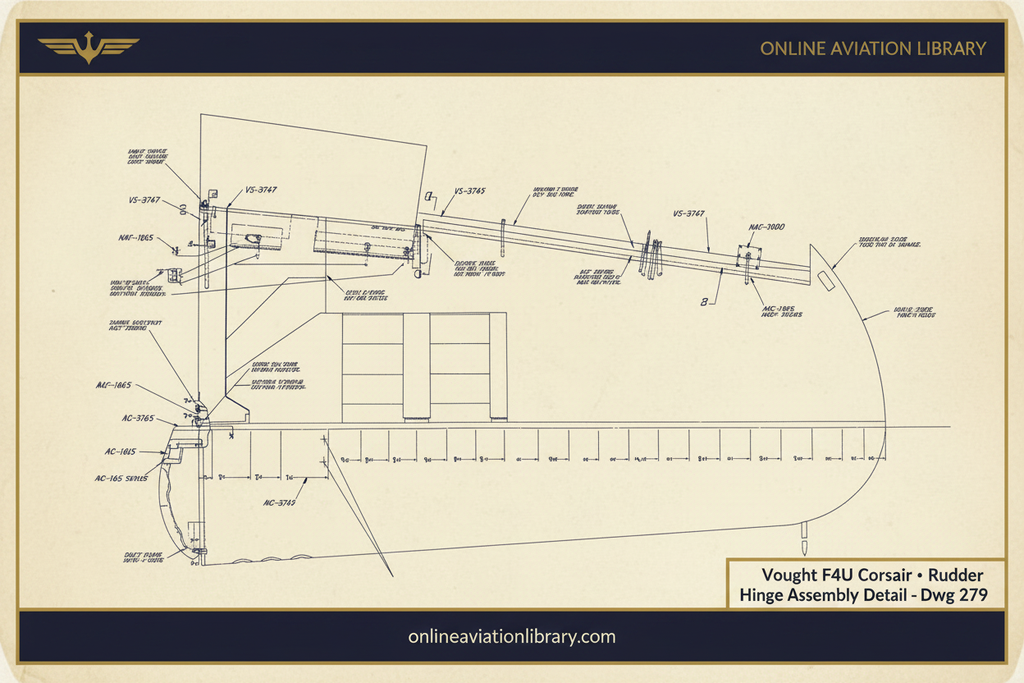

- 285 engineering drawings of the F4U-1 airframe
- Available in PDF and TIFF formats
- Assembly and structural documentation
Technical Specifications
- Format: Adobe PDF (compressed in RAR archive)
- Delivery: Instant digital download
- Quality: High-resolution engineering drawings
Please Note: This set is incomplete and not exhaustive but provides valuable documentation.
Extraction Instructions
Files are compressed in RAR format. Download free extraction software at rarlab.com
Disclaimer: Sold for historical and reference purposes only. These original or reproduced manuals and blueprints are transferred to electronic format from active-duty archives. Not intended for current certification or repair work. Ideal for scholars, collectors, modelers, and aviation enthusiasts. We provide civil manuals and blueprints on obsolete aircraft, engines, and helicopters for proprietary reasons. Information is for reference only; completeness and accuracy are not guaranteed.
All trade names, trademarks, and manufacturer names are property of their respective owners. Reference to commercial products does not imply endorsement or affiliation.
