Supermarine Spitfire Mk.XI through Mk.XXIV - Engineering Blueprints Collection

Structured digital blueprint collection for the legendary Supermarine Spitfire late-war variants, covering Mk.XI through Mk.XXIV produced 1942-1948.

Definitive Collection with Free Lifetime Updates

This is a living collection that we continuously expand and refine. As we acquire additional Spitfire blueprints, technical drawings, or variant-specific materials, we update this collection and provide free lifetime updates to all purchasers. Your one-time purchase guarantees access to all future additions and improvements to this collection.

Historical Note

The Supermarine Spitfire stands as one of aviation's most iconic fighter designs, serving as the RAF's primary interceptor throughout World War II and beyond. The late-war variants (Mk.XI through Mk.XXIV) represented the pinnacle of Spitfire development, incorporating progressively more powerful Rolls-Royce Griffon engines, enhanced armament, and refined aerodynamics. The photo-reconnaissance Mk.XI served with distinction from 1942, while the Mk.XIV introduced the Griffon 65 engine and five-blade propeller. The final production variants—Mk.XVIII, Mk.21, and Mk.24—featured strengthened airframes, increased fuel capacity, and improved high-altitude performance. Over 20,000 Spitfires were produced across all variants, with these late-war models serving in combat through 1945 and remaining in RAF service into the 1950s. Today, surviving examples remain prized warbirds and museum centerpieces worldwide.

Blueprints Included in This Collection

• General Arrangement Drawings (Mk.XI through Mk.XXIV variants)
• Structural Details: Fuselage, Wings, and Tail Assemblies
• Powerplant Installations: Rolls-Royce Griffon Engine Configurations

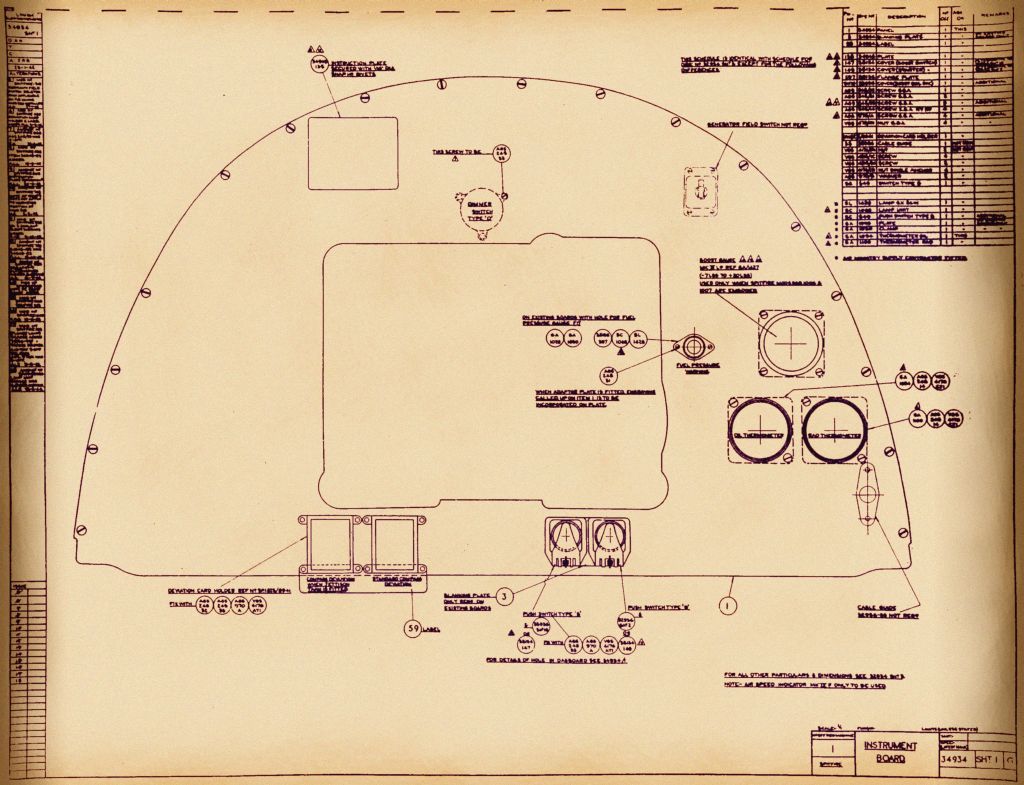

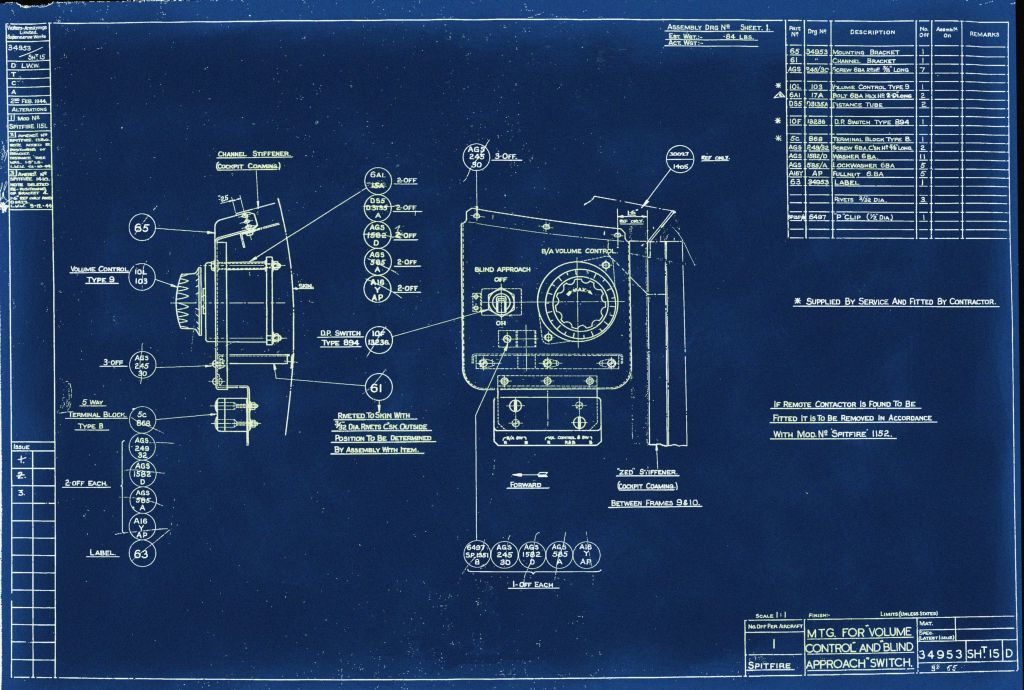

• Cockpit Layouts and Instrumentation Details
• Landing Gear, Control Surfaces, and Mechanical Systems
• Armament Configurations and Installations

This collection provides comprehensive engineering documentation including general arrangement drawings, structural details, systems schematics, and component assemblies, organized in a structured folder hierarchy by aircraft section and system.

Engineering Norms and Standards

Documentation reflects British Air Ministry specifications and type certification requirements, Supermarine Aviation Works (Vickers-Armstrongs) engineering practices from the 1942-1948 production period, and RAF technical standards for operational aircraft including maintenance and inspection procedures.

Format and Delivery

Digital download via secure cloud link. High-resolution PDF format with organized folder structure and comprehensive indexing. Large file size - high-speed internet recommended.

Legal Notice

This documentation is provided by Online Aviation Library, operated by Sicuro Publishing, under a structured licensing framework. Sicuro Publishing does not distribute controlled content—we provide documentation structuring, compliance architecture, and publishing systems for content legally owned by our clients and licensing partners.

These materials are sold for historical reference, research, and archival purposes only. The Spitfire Mk.XI through Mk.XXIV variants are no longer in active production or commercial service. This collection serves historians, museum professionals, restoration specialists, scale modelers, and researchers requiring primary source technical documentation.

The compilation, structure, indexing, and presentation are © Sicuro Publishing, registered in the Canadian Copyright Database. Underlying historical factory materials remain the property of their original creators or successor entities.
