Structured digital documentation collection for the Pratt & Whitney R-4360 Wasp Major, the largest-displacement aviation piston engine ever mass-produced in the United States. This authoritative collection provides service manuals, overhaul instructions, parts catalogs, and maintenance documentation spanning 1944–1960 for all major variants of this legendary 28-cylinder powerplant.

Definitive Collection with Free Lifetime Updates: This is a living collection that we continuously expand and refine. As we acquire and digitize additional R-4360 Wasp Major documentation, technical bulletins, variant-specific materials, and specialized operational guides, we update this collection and provide free lifetime updates to all purchasers. Your one-time purchase guarantees access to all future additions and improvements to this collection.

Historical Note

The Pratt & Whitney R-4360 Wasp Major represents the absolute pinnacle of piston aircraft engine development, standing as the largest-displacement aviation piston engine ever mass-produced in the United States and one of the most powerful reciprocating engines ever to enter production service. This engineering masterpiece bridged the gap between piston and turbine propulsion, powering some of the largest and most ambitious aircraft of the late 1940s and early 1950s.

Design Origins and Development (1941–1944): The R-4360 Wasp Major was developed by Pratt & Whitney as an evolution of the R-2180-A Twin Hornet, designed to meet military requirements for engines producing over 3,000 horsepower. The prototype first ran on April 28, 1941, demonstrating the feasibility of a four-row radial configuration. The engine's designation reflected its displacement: 4,360 cubic inches (71.5 liters), achieved through 28 cylinders arranged in four rows of seven cylinders each in a distinctive "corncob" spiral pattern. This unique configuration allowed for improved cooling compared to traditional two-row radials while maintaining manageable frontal area.

Wartime Development and Post-War Production (1944–1955): Although developed during World War II, the R-4360 arrived too late to see combat service, with production engines first running in 1944 as the war neared its conclusion. However, the engine found its true calling in the immediate post-war era, powering the next generation of strategic bombers and long-range transport aircraft. Between 1944 and 1955, Pratt & Whitney manufactured 18,697 R-4360 engines across numerous variants, making it one of the most successful large radial engines despite its late introduction.

Military Applications and Strategic Significance: The R-4360 Wasp Major powered some of the most significant military aircraft of the early Cold War era. The Convair B-36 Peacemaker, America's first true intercontinental strategic bomber, relied on six R-4360 engines (later supplemented by four jet engines in the B-36D and subsequent variants) to achieve unprecedented range and payload capacity. The Boeing B-50 Superfortress, an advanced development of the B-29, used four R-4360-35 engines producing 3,500 horsepower each, enabling the historic first non-stop around-the-world flight by the B-50 "Lucky Lady II" in 1949—a 94-hour, 23,452-mile journey that demonstrated American strategic reach during the early Cold War. The Douglas C-124 Globemaster II heavy transport and Fairchild C-119 Flying Boxcar tactical transport also relied on R-4360 power for their heavy-lift missions.

Civilian Aviation Applications: In civilian service, the R-4360 powered the luxurious Boeing 377 Stratocruiser, a double-deck airliner derived from the C-97 military transport. The Stratocruiser represented the height of piston-engine airliner comfort, featuring sleeping berths, a lower-deck lounge, and pressurized cabin comfort for transcontinental and transoceanic routes. However, the R-4360's complexity and high maintenance requirements made it costly to operate in commercial service, contributing to the rapid adoption of turbine engines in the late 1950s.

Variants and Power Development: The R-4360 family encompassed numerous variants with power outputs ranging from 3,000 to 4,300 horsepower. Early versions like the R-4360-4 produced approximately 3,000 horsepower, while the R-4360-51 VDT (Variable Discharge Turbine) variant achieved an extraordinary 4,300 horsepower through advanced turbo-compounding technology. The R-4360-B6, producing 3,500 horsepower, became the standard commercial variant used in Boeing 377 Stratocruisers. Military variants included the -20, -35, -41, -59, -63, and -65 series, each optimized for specific aircraft installations and operational requirements. The TSB (Turbo-Supercharged Bomber) series featured advanced turbo-supercharging for high-altitude performance.

Engineering Excellence and Complexity: The R-4360 represented an engineering tour de force, incorporating 28 cylinders, 56 spark plugs (two per cylinder), seven magnetos, and an intricate cooling system to manage the tremendous heat generated by 4,300+ horsepower. The engine weighed between 3,390 and 3,870 pounds dry, with bore and stroke of 5.75 inches by 6.00 inches, compression ratios of 6.7:1 or 7:1 depending on variant, and fuel requirements of 100/130 or 115/145 grade aviation gasoline. The spiral cylinder arrangement provided superior cooling compared to traditional radial layouts, though the engine's complexity demanded meticulous maintenance and highly skilled mechanics.

Operational Challenges and Legacy: Despite its impressive power output, the R-4360's operational complexity and maintenance demands ultimately limited its service life. The engine required extensive ground support, frequent inspections, and specialized tooling for overhaul. As turboprop and turbojet engines matured in the mid-1950s, offering comparable power with far less complexity and better fuel efficiency, the R-4360 was rapidly phased out of both military and civilian service. Production ended in 1955 as the aviation industry transitioned decisively to turbine propulsion.

Current Status and Preservation: Today, the R-4360 Wasp Major exists primarily in museum collections and a handful of airworthy examples. A few modified air racing aircraft, most notably Hawker Sea Fury racers like "Dreadnought," continue to operate R-4360 engines in highly modified configurations, demonstrating the engine's enduring power potential. Several B-36 Peacemakers, Boeing 377 Stratocruisers, and other R-4360-powered aircraft are preserved in museums worldwide, with occasional ground runs or taxi demonstrations. The current Type Certificate holder is Pratt & Whitney, with specialist facilities like Covington Aircraft providing support for the few remaining airworthy examples. Historical Service Bulletins and Airworthiness Directives remain active for certificated installations.

The Pratt & Whitney R-4360 Wasp Major stands as a monument to the ultimate development of piston aircraft engine technology—a magnificent achievement that arrived at the twilight of the reciprocating engine era, demonstrating what was possible just before turbine engines revolutionized aviation forever.

Manuals Included in This Collection

• Pratt & Whitney R-4360-4 Aircraft Engine Preliminary Instructions Manual (1944)
• Pratt & Whitney R-4360-59B, -65 Aircraft Engine Overhaul Manual (1959)
• Pratt & Whitney R-4360-59B, -65 Aircraft Engine Handbook Service Instructions Manual (1952)

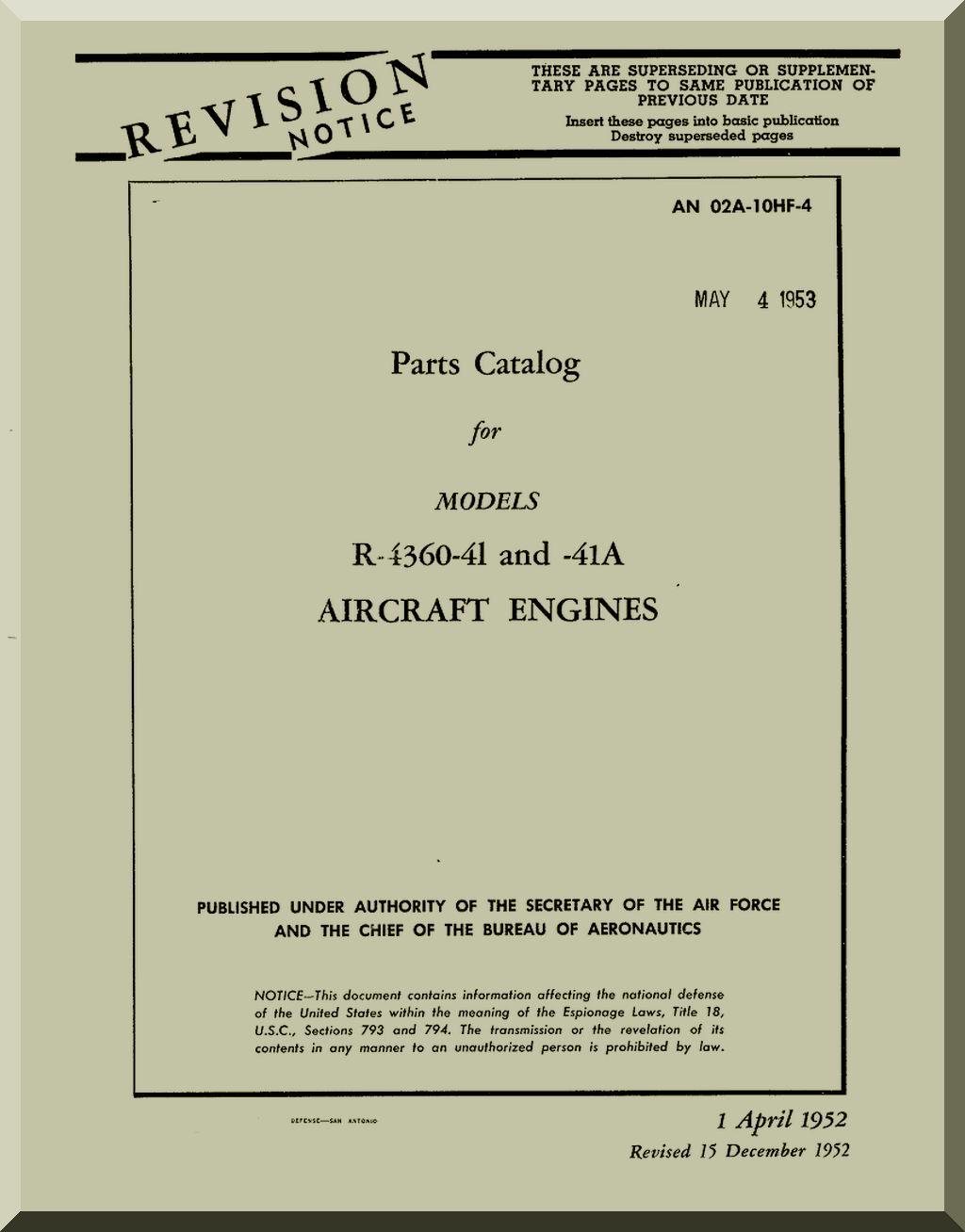

• Pratt & Whitney R-4360-41 and -41A Aircraft Engine Parts Catalog Manual (1952)
• Pratt & Whitney R-4360-59B, -65 Aircraft Engine Service Manual (1956)

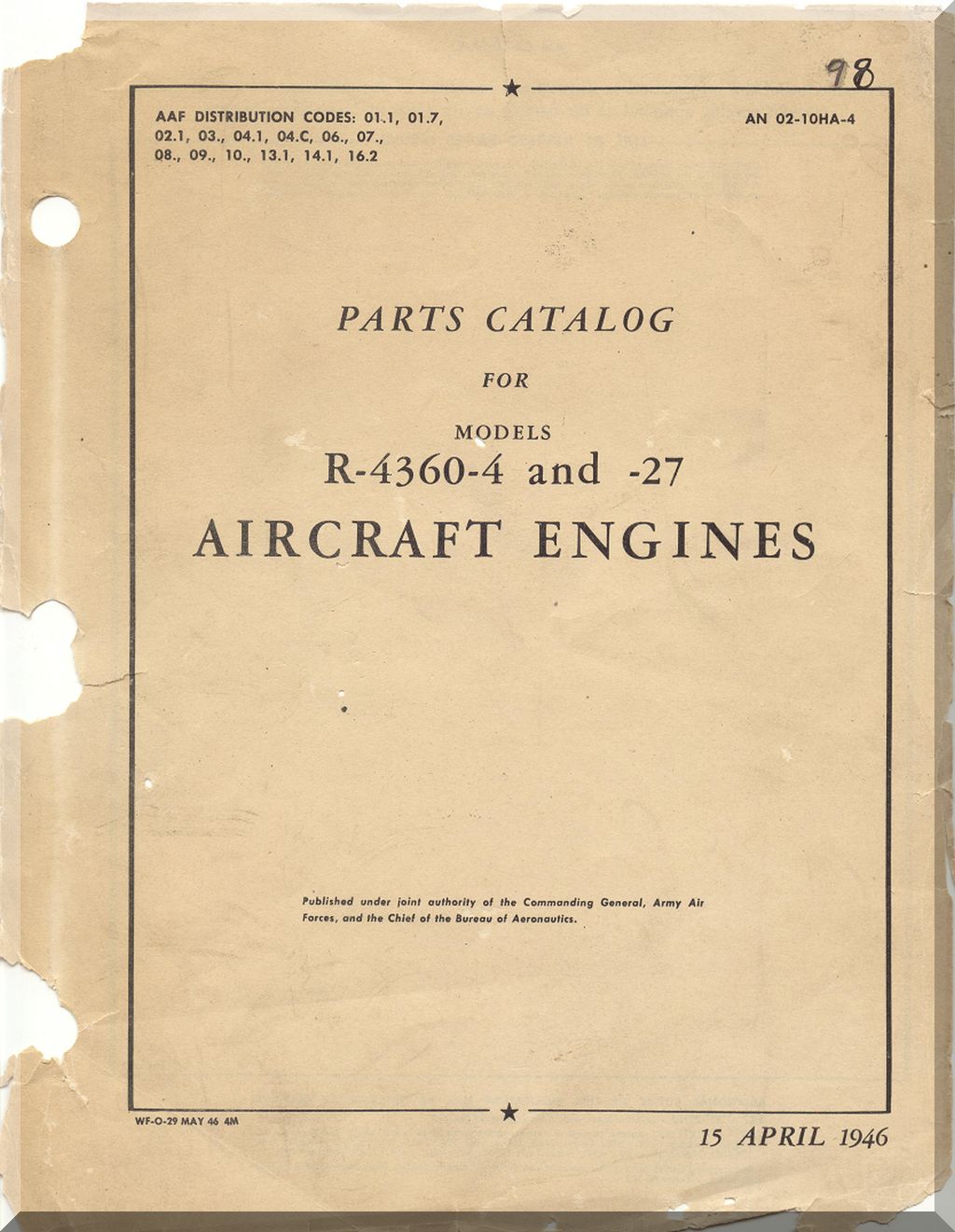

• Pratt & Whitney R-4360-4 and -27 Aircraft Engine Parts Catalog Manual (1946)

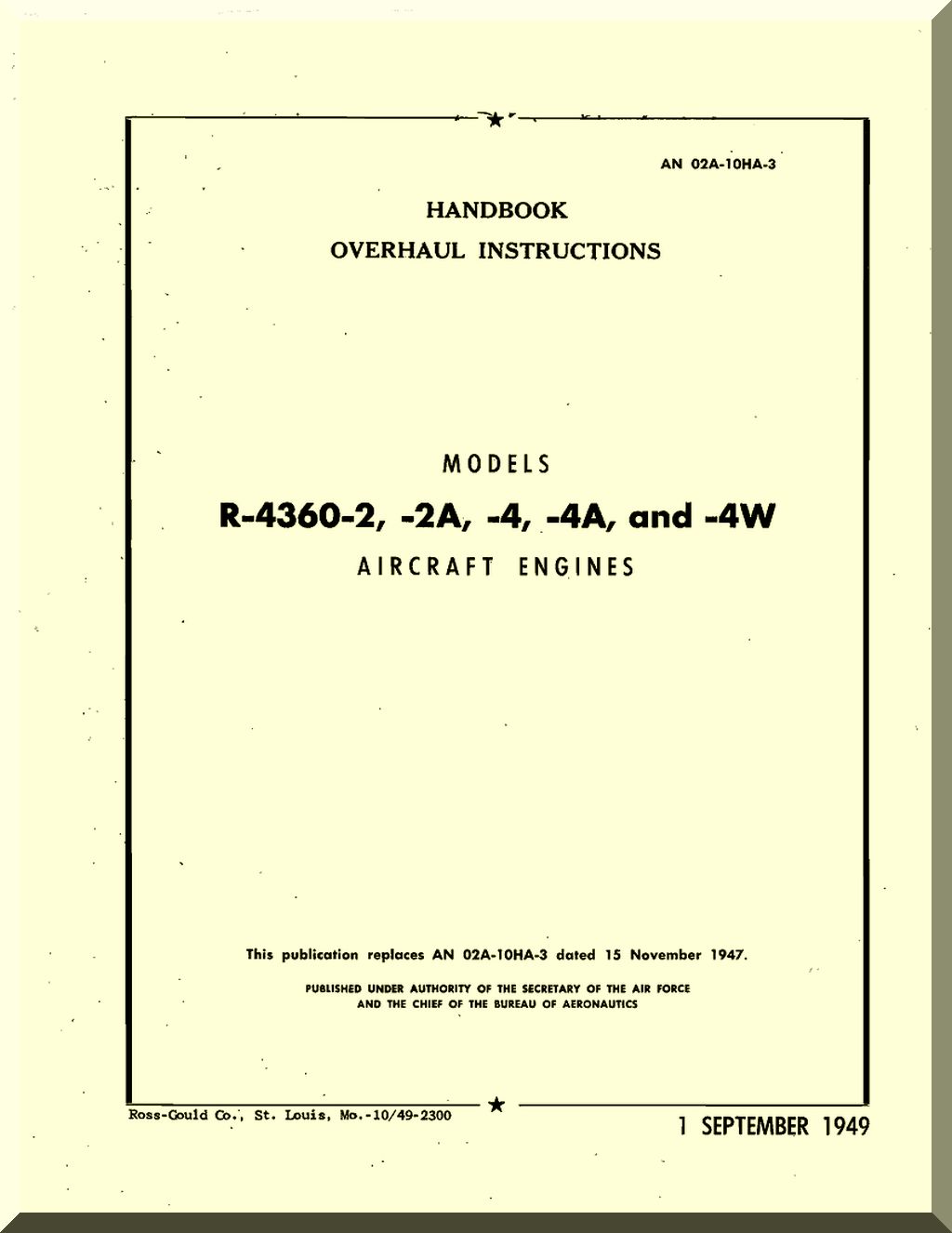

• Pratt & Whitney R-4360-2, -2A, -4, -4A and -4W Aircraft Engine Overhaul Manual (1949)
• Pratt & Whitney R-4360-59, -61 Aircraft Engine Service Manual (1952)
• Pratt & Whitney R-4360-2, -2A, -4, -4A and -4W Aircraft Engine Parts Catalog Manual (1949)
• Pratt & Whitney R-4360-20, -20A, -20W, -20WA, -22W, -35, -35A, -35B, -35C, -49 and -49A Aircraft Engine Parts Catalog Manual (1953)
• Pratt & Whitney R-4360-63 Aircraft Engine Service Manual (1953)
• Pratt & Whitney R-4360-63A Aircraft Engine Illustrated Parts Catalog Manual (1959)
• Pratt & Whitney R-4360-63A Aircraft Engine Service Manual (1954)
• Pratt & Whitney R-4360-59B, -65 Aircraft Engine Parts Manual (1959)
• Pratt & Whitney R-4360 TSB2G Aircraft Engine Maintenance Manual (1947)
• Pratt & Whitney R-4360 Aircraft Engine Overhaul Exhaust System Assemblies Manual (1960)
• Pratt & Whitney R-4360 TSB1G Aircraft Engine Preliminary Instructions Manual

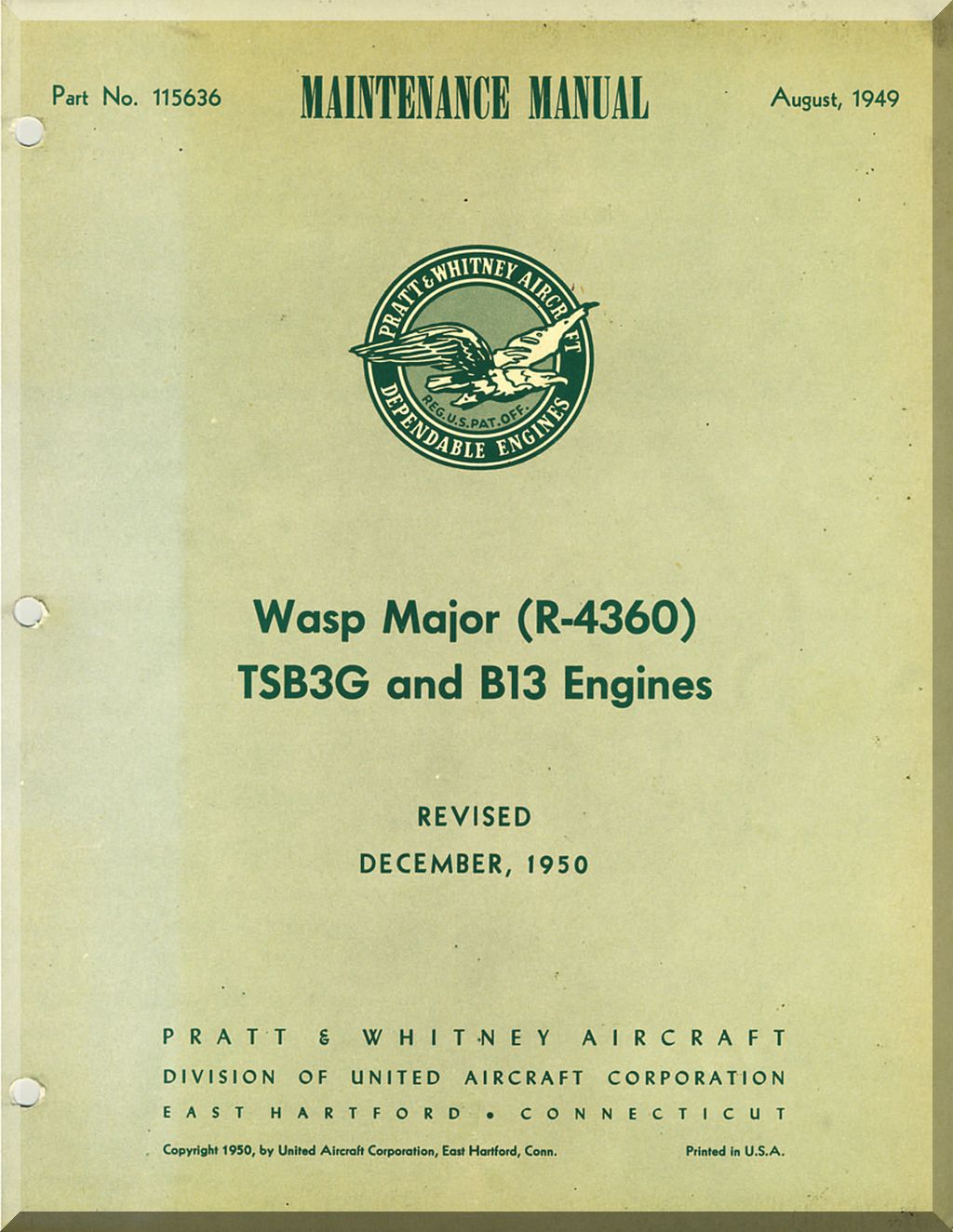

• Pratt & Whitney R-4360 TSB3-G B13 Aircraft Engine Maintenance Manual (1950)
• Pratt & Whitney R-4360 TSB3-G B13 Aircraft Engine Overhaul Manual (1950)

This collection provides exhaustive coverage of all major R-4360 Wasp Major variants including the -2, -2A, -4, -4A, -4W, -20, -20A, -20W, -20WA, -22W, -27, -35, -35A, -35B, -35C, -41, -41A, -49, -49A, -59, -59B, -61, -63, -63A, and -65 models, plus the specialized TSB (Turbo-Supercharged Bomber) series including TSB1G, TSB2G, and TSB3-G B13 variants. Documentation spans from early wartime preliminary instructions (1944) through final production service manuals and parts catalogs (1960), capturing the engine's full development and operational evolution across military and civilian applications.

Engineering Norms and Standards

Military Specifications and Certifications: The R-4360 series was developed under U.S. Army Air Forces and later U.S. Air Force specifications for high-power radial engines. Military variants were certified under AN (Army-Navy) specifications and military type certificates, with documentation classified under various security levels during the Cold War era. These manuals reference military standardized part numbers, procurement specifications, and maintenance procedures that governed operation of B-36, B-50, C-124, and C-119 powerplants.

Civilian Type Certificate Standards: Civilian variants of the R-4360 received FAA Type Certificate approval for installation in certificated aircraft including the Boeing 377 Stratocruiser. The current Type Certificate holder is Pratt & Whitney, which maintains the legal airworthiness authority for R-4360 engines on certificated aircraft. Historical Airworthiness Directives and Service Bulletins remain active for the few airworthy examples still operating.

Pratt & Whitney Engineering Practices: The R-4360 incorporated Pratt & Whitney's most advanced radial engine design philosophy, including the revolutionary four-row "corncob" cylinder arrangement with 28 cylinders in a 7-7-7-7 spiral pattern for optimized cooling, dual ignition system with 56 spark plugs (two per cylinder) and seven magnetos for maximum reliability, forged aluminum alloy cylinder heads with deep cooling fins and sodium-filled exhaust valves for heat management, articulated connecting rod system with one master rod and six articulated rods per row, advanced turbo-supercharging systems (TSB variants) for high-altitude performance, and Variable Discharge Turbine (VDT) technology in the -51 variant for turbo-compounding and maximum power extraction. The engine utilized single-piece forged crankshafts, pressure-lubricated plain bearings, and sophisticated baffling systems to manage airflow across all four cylinder rows.

Technical Specifications: The R-4360 Wasp Major is a 28-cylinder, four-row air-cooled radial engine with 4,362.5 cubic inches (71.5 liters) displacement, bore and stroke of 5.75 inches × 6.00 inches (146 mm × 152 mm), compression ratios ranging from 6.7:1 to 7:1 depending on variant and fuel grade, power output ranging from 3,000 horsepower (early -4 variant) to 4,300 horsepower (R-4360-51 VDT with turbo-compounding), dry weight of 3,390 to 3,870 pounds (1,538 to 1,755 kg) depending on accessories and variant, fuel requirements of 100/130 or 115/145 grade aviation gasoline, and operational redline of 2,700 to 2,800 RPM depending on variant. The engine featured 56 spark plugs, seven magnetos, and complex accessory drive systems for hydraulic pumps, generators, and supercharger drives.

Maintenance and Overhaul Standards: These manuals document Pratt & Whitney's prescribed maintenance intervals, inspection procedures, overhaul tolerances, and parts replacement criteria as established during the engine's production and service life from 1944 through 1960. They include detailed torque specifications, clearance measurements, wear limits, cylinder compression requirements, magneto timing procedures, and assembly sequences that defined proper maintenance practice for military and civilian operators. The complexity of the R-4360 demanded highly skilled mechanics and specialized tooling, with overhaul intervals typically ranging from 1,000 to 1,500 hours depending on variant and operational conditions.

Specialized Documentation

Air Racing Modifications and Performance Enhancements: While these historical manuals document original factory specifications, several R-4360 engines continue to operate in highly modified air racing configurations. Hawker Sea Fury racers and other unlimited-class racing aircraft have adapted R-4360 engines with extensive modifications including increased compression ratios, modified supercharger drives, custom exhaust systems, alcohol-based racing fuels, and advanced ignition systems. These racing installations can produce well over 4,500 horsepower in sprint configurations, far exceeding original military specifications. Air racing teams maintain proprietary modification data and operational procedures specific to their installations.

Museum Operations and Ground Run Procedures: Several museums maintain R-4360 engines in ground-runnable condition for demonstration purposes, particularly on preserved B-36 Peacemakers and Boeing 377 Stratocruisers. These installations follow modified operational procedures emphasising safety and preservation rather than flight operations, including limited run times, reduced power settings, and specialised pre-run inspections. Museum operators have developed unique maintenance protocols for engines that may run only a few hours per year but must remain in safe operating condition.

Service Bulletins and Airworthiness Directives: Current Type Certificate holder Pratt & Whitney maintains the official airworthiness authority for R-4360 engines on certificated aircraft. Operators of the few remaining airworthy examples should consult Pratt & Whitney for historical Service Bulletins, Airworthiness Directives, and continuing airworthiness requirements. Specialist overhaul facilities including Covington Aircraft provide expert support for R-4360 overhaul, parts sourcing, and technical consulting for airworthy installations and museum preservation projects.

Operational Notes and Pilot Guidance: The R-4360's operational characteristics demanded careful pilot technique and thorough pre-flight procedures. Ground operations required extensive warm-up periods to ensure proper oil circulation across all 28 cylinders, with careful monitoring of cylinder head temperatures across all four rows. Engine start procedures involved manual propeller rotation to clear lower cylinders of accumulated oil (preventing hydraulic lock), priming procedures for cold starts, and sequential magneto checks across all seven ignition units. In-flight operations required constant attention to cylinder head temperatures, manifold pressure limits, and fuel mixture management, particularly during high-power climb configurations. The engine's complexity meant that any abnormal indication required immediate attention and conservative power management.

Where to Find Additional Documentation

Official Support: Pratt & Whitney (now part of Raytheon Technologies/RTX Corporation) is the current Type Certificate holder for the R-4360 Wasp Major series. Contact Pratt & Whitney's historical engine support division for current Service Bulletins, Airworthiness Directives, parts availability information, and continuing airworthiness guidance for certificated aircraft installations. Their technical archives maintain the official engineering authority for these engines.

Historical Archives and Community Resources: The vintage aviation and warbird community provides extensive support for R-4360 operators and preservationists through specialised organisations and archives. The B-36 Peacemaker Museum and other military aviation museums maintain technical libraries and operational histories of R-4360-powered aircraft. The Commemorative Air Force and Warbirds of America chapters offer peer-to-peer technical discussions among operators of large radial engines. Online forums including Warbird Information Exchange (WIX) and vintage aircraft forums provide community knowledge sharing. The Air Racing community, particularly Reno Air Races participants, maintains extensive operational experience with modified R-4360 installations in unlimited-class racing aircraft.

Specialty Vendors and Overhaul Facilities: Several specialised facilities provide R-4360 overhaul services, parts sourcing, and technical support for the few remaining airworthy examples. Covington Aircraft is recognised as a leading specialist in large radial engine overhaul, offering R-4360 services, parts manufacturing, and technical consulting. Online Aviation Library provides curated historical documentation collections including these factory manuals, parts catalogs, technical orders, and service bulletins. Additional specialty vendors supply reproduction parts, modern ignition components, and preservation materials for museum installations and airworthy aircraft.

Format and Delivery

Delivery: Instant digital download upon purchase. Download links are provided immediately via email and through your Online Aviation Library account.

Format: High-resolution PDF files scanned from original Pratt & Whitney factory manuals, military technical orders, and service documentation. These are authentic historical documents preserved in digital format, maintaining original page layouts, technical illustrations, cutaway diagrams, parts breakdowns, and specification tables.

Compatibility: Compatible with all modern devices including Windows PC, Mac, iPad, Android tablets, and smartphones. Files can be stored locally, backed up to cloud storage, or printed for workshop reference.

Organisation: Manuals are clearly labelled by variant, document type (Service Manual, Overhaul Manual, Parts Catalog, Maintenance Manual, Preliminary Instructions), and publication date for easy reference and archival organisation.

Print-Friendly: Optimised for printing if you prefer physical copies for hangar, museum workshop, or research use. High-resolution scans ensure clear reproduction of technical diagrams, exploded-view parts illustrations, and detailed specification tables.

Searchable: PDF format allows keyword searching within documents for rapid location of specific procedures, part numbers, torque specifications, or technical data.
