Piper PA-11 to PA-22 Assembly & Installation Engineering Blueprints Collection
Structured digital blueprint collection featuring assembly and installation engineering drawings for Piper Aircraft models spanning PA-11 through PA-22, covering the classic postwar Piper light aircraft family.
Definitive Collection with Free Lifetime Updates
This is a living collection that we continuously expand and refine. As we acquire additional assembly and installation drawings for these Piper models, we update this collection and provide free lifetime updates to all purchasers. Your one-time purchase guarantees permanent ownership and access to all future additions and improvements to this collection.
Historical Note
The Piper PA-11 through PA-22 series represents the evolution of Piper's classic light aircraft designs from the immediate postwar era through the 1950s. This family includes the PA-11 Cub Special (1947), PA-12 Super Cruiser (1946), PA-14 Family Cruiser (1948), PA-15/17 Vagabond (1948), PA-16 Clipper (1949), PA-18 Super Cub (1949), PA-20 Pacer (1950), and PA-22 Tri-Pacer/Caribbean (1950). These aircraft established Piper as a dominant force in general aviation, with thousands produced and many remaining airworthy today. The designs share common engineering principles, construction techniques, and component systems, making this assembly and installation documentation valuable across the entire model range.
Blueprints Included in This Collection

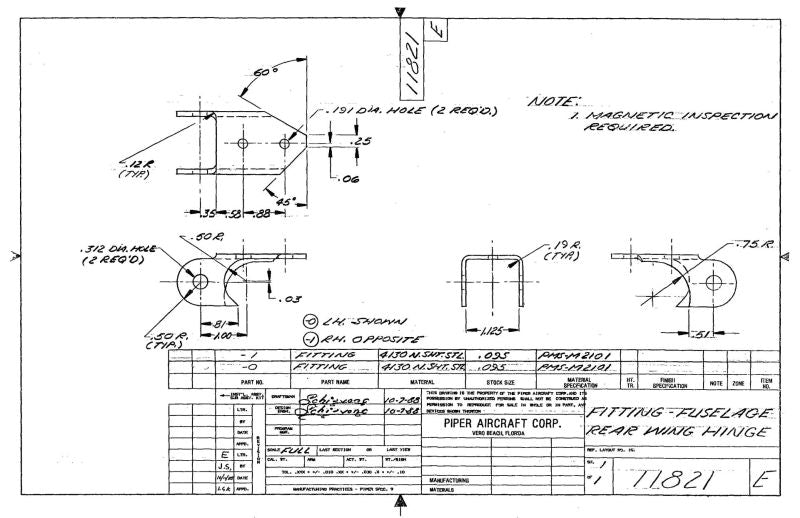

- 481 engineering drawing sheets from original manufacturing microfilms
- Assembly and installation drawings covering PA-11, PA-12, PA-14, PA-15, PA-16, PA-17, PA-18, PA-20, and PA-22 models

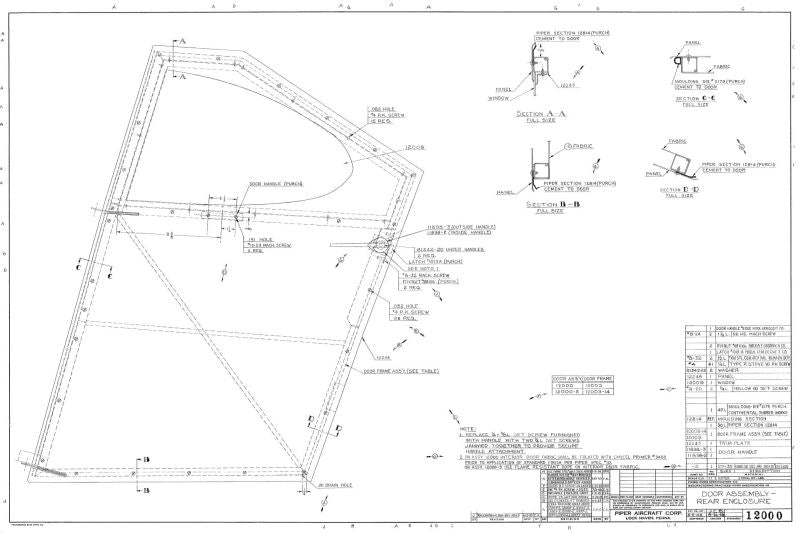

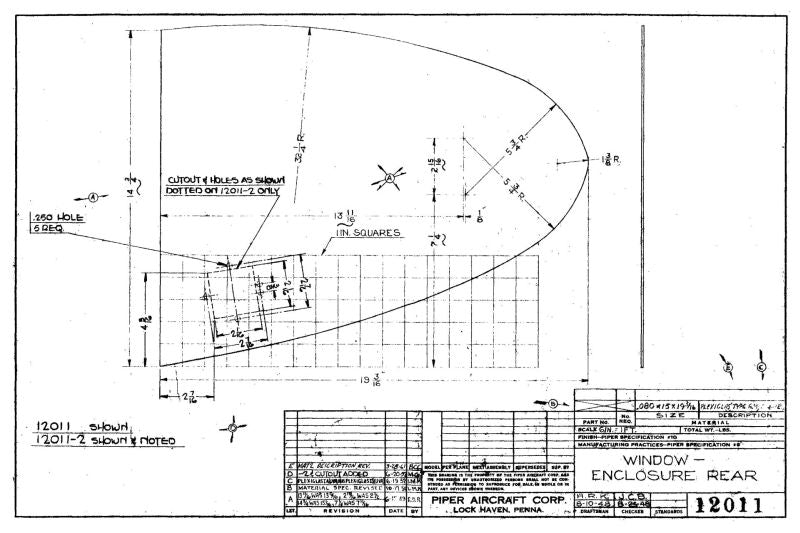

- Airframe assembly procedures and control installations

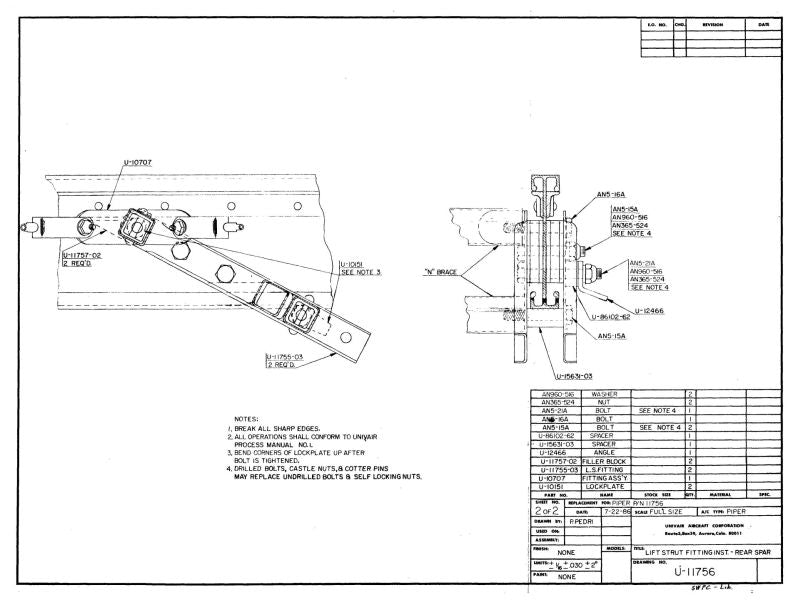

- Wing structures and landing gear assemblies
- Powerplant installation components

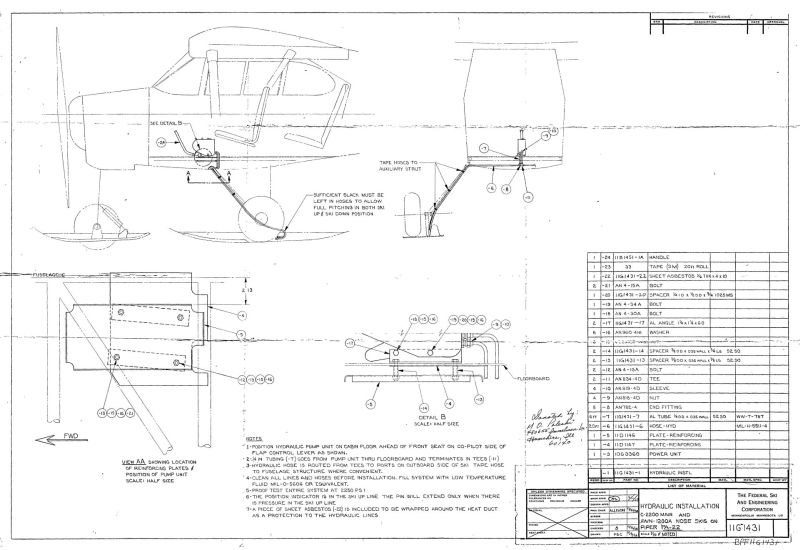

- Fuel system and electrical system installations
- Available in TIFF and Adobe PDF formats
Important Note: This collection focuses on assembly and installation drawings. Coverage varies by model—some models have extensive documentation while others have more limited representation. This reflects the original microfilm archive content and shared component designs across the PA-11 through PA-22 family.
Engineering Norms and Standards
Documentation reflects CAR 3 (Civil Air Regulations) certification standards, Piper Aircraft Corporation engineering and assembly practices from the 1946-1960 production period, and installation specifications for components and systems common across the PA-11 through PA-22 family.
Specialized Documentation
This collection includes assembly and installation drawings applicable across multiple Piper models from this era. For current Service Bulletins, Airworthiness Directives, and model-specific technical data, consult Piper Aircraft, Inc., the current Type Certificate holder for these aircraft.
Where to Find Additional Documentation
Official Support: Piper Aircraft, Inc. holds Type Certificates for the PA-11 through PA-22 series and provides current airworthiness support, Service Bulletins, and parts information for aircraft still in service.
Historical Archives: The Short Wing Piper Club, International Piper Cub Society, and dedicated online forums maintain extensive operator knowledge, modification databases, and restoration guidance for these classic Piper aircraft.
Specialty Vendors: Online Aviation Library and similar documentation providers offer structured historical archives, while Piper Aircraft, Inc. provides current production support materials.
Format and Delivery
Digital download via secure cloud link. TIFF and Adobe PDF formats compressed in RAR archive. High-resolution scans from original manufacturing microfilms with organized folder structure.
Extraction Instructions: Files are compressed in RAR format. Free extraction software available at rarlab.com
Legal Notice
This documentation is provided by Online Aviation Library, operated by Sicuro Publishing, under a structured licensing framework. Sicuro Publishing does not distribute controlled content—we provide documentation structuring, compliance architecture, and publishing systems for content legally owned by our clients and licensing partners.
These materials are sold for historical reference and research purposes only. They are NOT intended for current certification or airworthiness compliance. For aircraft in active service, consult Piper Aircraft, Inc. (Type Certificate holder) and regulatory authorities for current approved data, Service Bulletins, and Airworthiness Directives.
Your purchase grants permanent ownership of this structured collection with free lifetime updates.
The compilation, structure, indexing, and presentation are © Sicuro Publishing, registered in the Canadian Copyright Database. Underlying historical factory materials remain the property of their original creators or current rights holders.
This set focuses on assembly and installation drawings. Coverage varies by model and is not exhaustive. Information is for reference only.
Reference to commercial products, trade names, or manufacturers does not imply endorsement or affiliation. All trademarks are the property of their respective owners.
