This comprehensive collection provides authentic technical documentation for the North American F-100 Super Sabre, the first U.S. fighter capable of maintaining supersonic speeds in level flight. From flight manuals to structural repair guides, this definitive archive covers all major variants including the F-100A, F-100C, F-100D, and F-100F configurations.

Definitive Collection with Free Lifetime Updates: This is a living collection that we continuously expand and refine. As we acquire additional F-100 Super Sabre documentation, technical bulletins, or variant-specific materials, we update this collection and provide free lifetime updates to all purchasers. Your one-time purchase guarantees access to all future additions and improvements to this collection.

Historical Note

The North American F-100 Super Sabre holds a unique place in aviation history as the first operational fighter capable of sustained supersonic flight in level flight, ushering in the "Century Series" of fighters. First flown in 1953 and entering service in 1954, the Super Sabre was developed as a successor to the legendary F-86 Sabre, incorporating swept-wing technology pushed to new limits to achieve supersonic performance.

Powered by the Pratt & Whitney J57 turbojet engine (approximately 10,200 lbs dry thrust and 16,000 lbs with afterburner), the F-100 could reach Mach 1.3 at altitude, with a service ceiling of approximately 39,600-50,000 feet and a rate of climb exceeding 21,600 feet per minute. Over 2,294 F-100s were built across all variants, serving with the U.S. Air Force and allied nations including France, Denmark, Turkey, and Taiwan.

The Super Sabre saw extensive combat service in the Vietnam War, where it flew more sorties than the P-51 Mustang flew in World War II. The F-100D evolved from an air superiority fighter into a dedicated strike platform, excelling in ground attack and close air support missions. Of the 2,294 aircraft built, 242 were lost in Vietnam, with the vast majority lost to anti-aircraft artillery and small arms fire. The aircraft continued serving in various roles until the early 1980s, demonstrating remarkable longevity for a first-generation supersonic fighter.

Manuals Included in This Collection

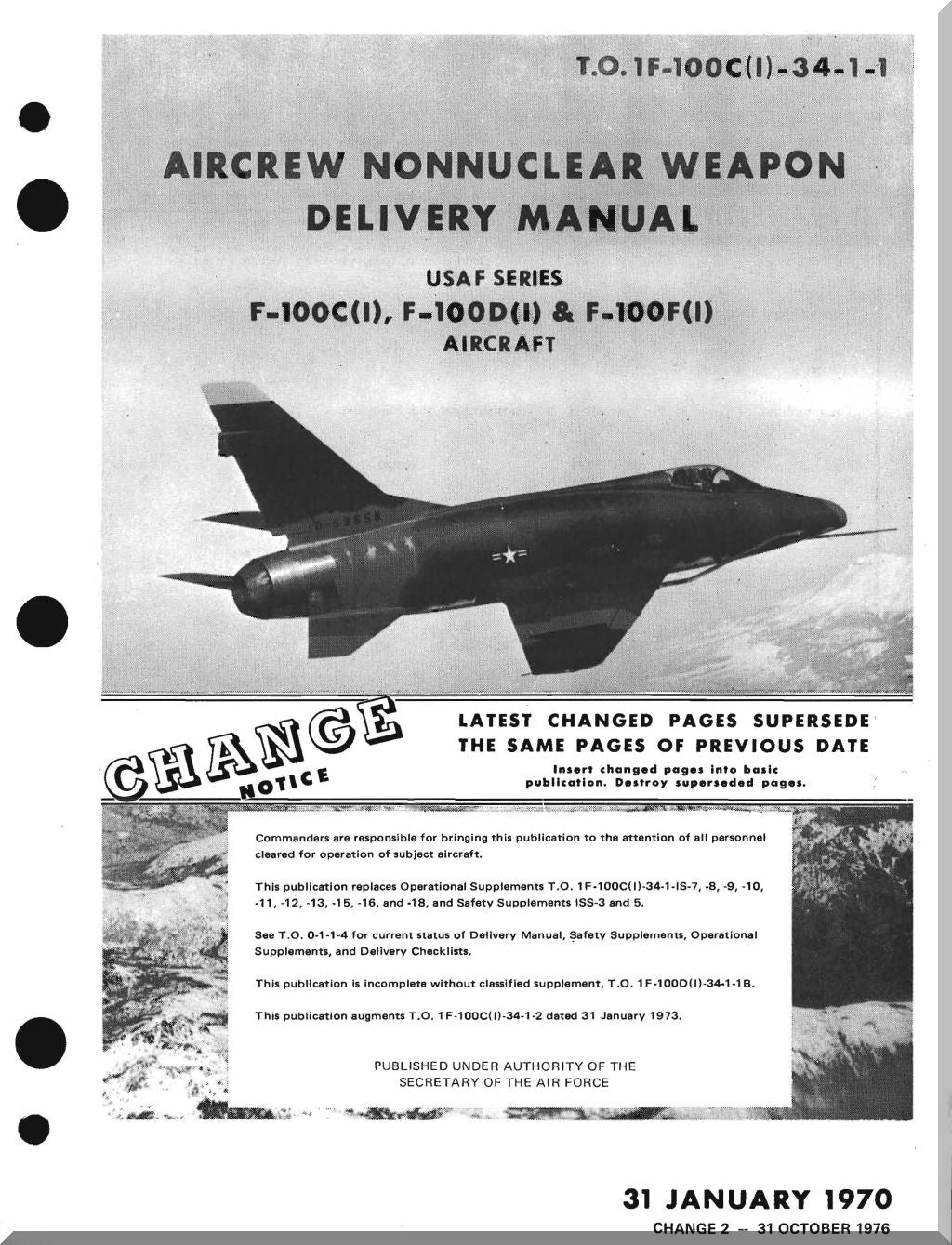

• North American Aviation F-100 C, D, F Aircraft Aircrew Non Nuclear Weapon Delivery Manual - 1F-100 C(I)-34-1-1 - 1970

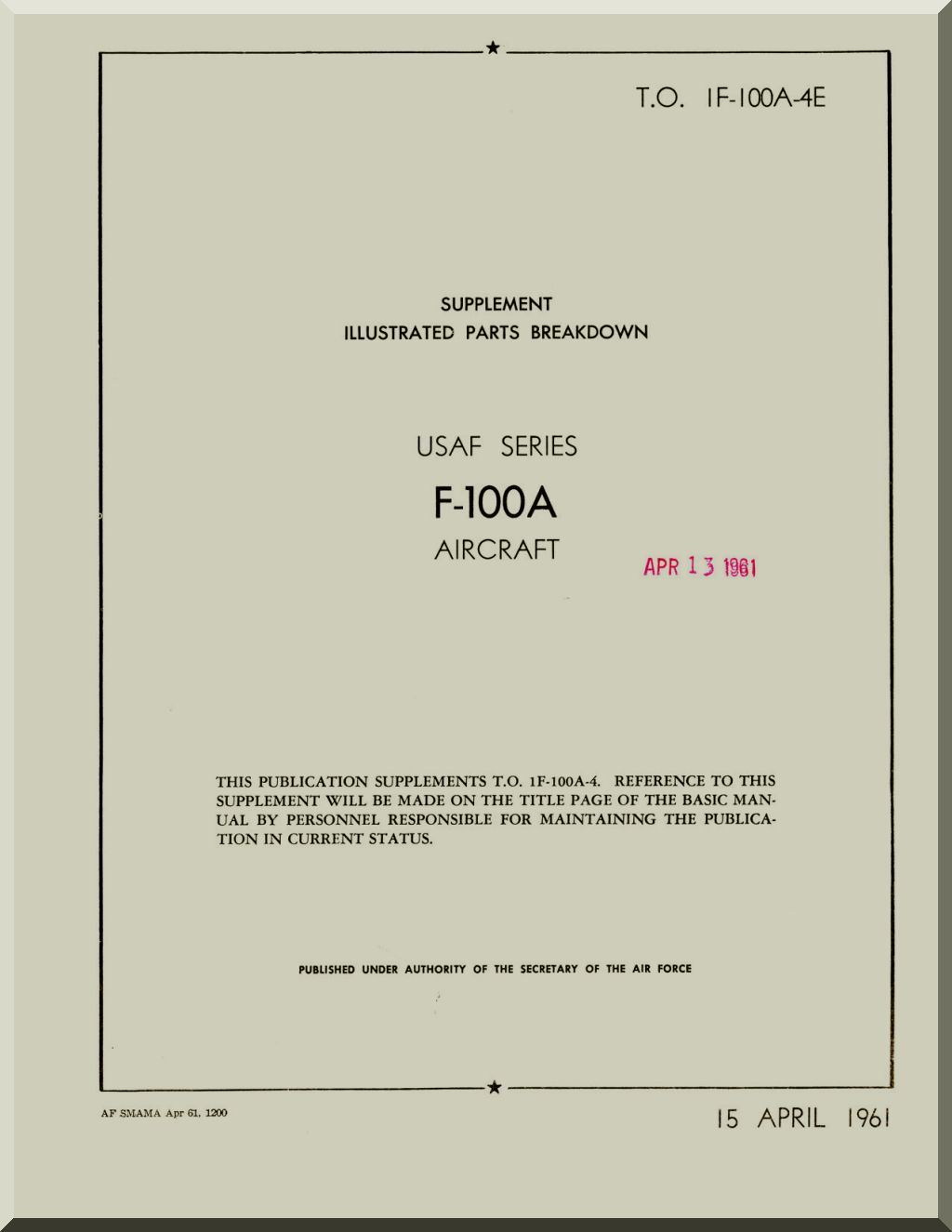

• North American Aviation F-100 A Aircraft Supplement Illustrated Parts Breakdown Manual - 1F-100A-4E - 1961
• North American Aviation F-100 A Aircraft List of Applicable Publications Manual 1F-100A-01 - 1961

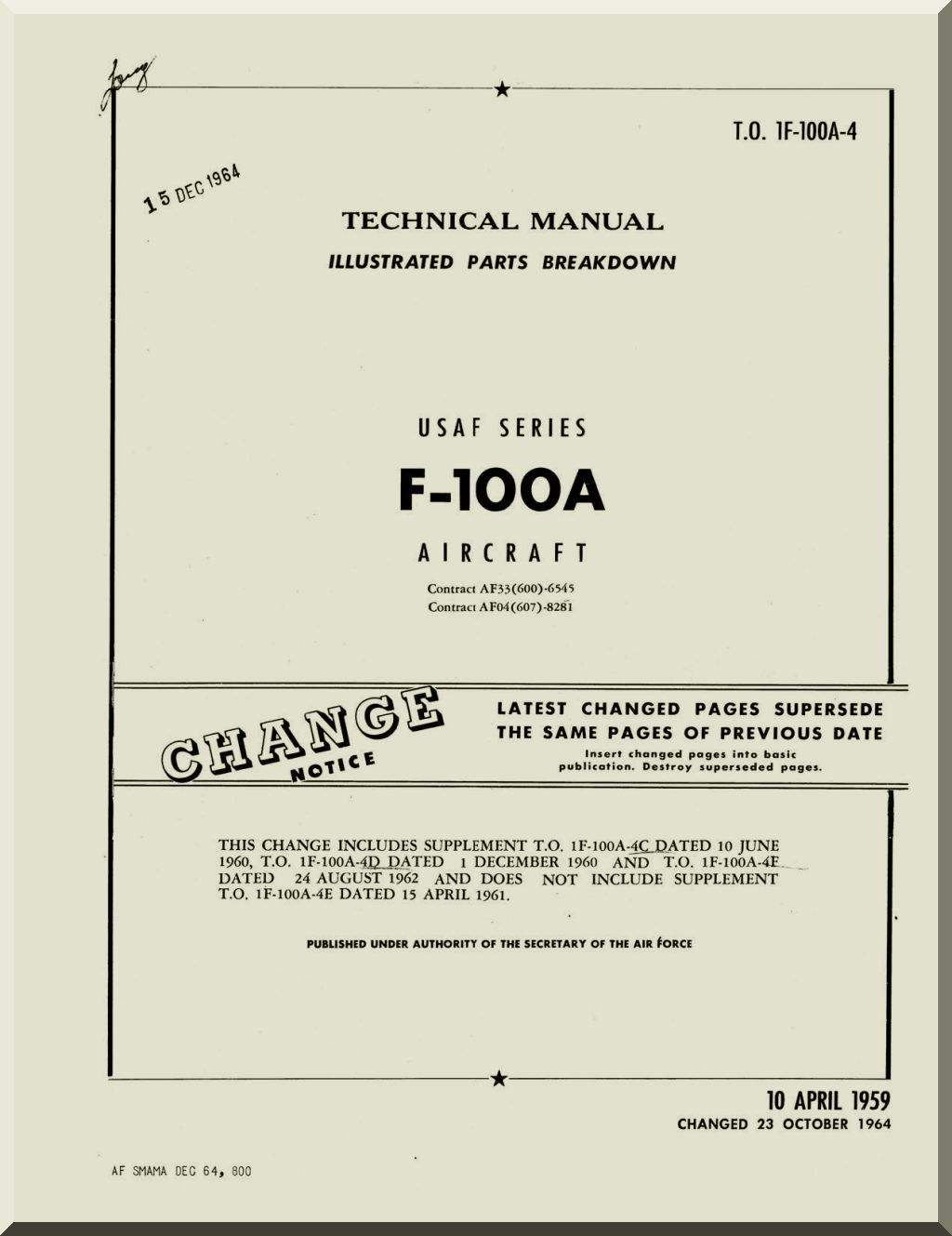

• North American Aviation F-100 A Aircraft Illustrated Parts Breakdown Manual 1F-100A-4 - 1964
• North American Aviation F-100 D Aircraft Basic Weight Checklist and Loading Data Manual - TO 1F-100D-5S-18, 1974
• North American Aviation F-100 D Aircraft Scheduled Inspection and Maintenance Requirements - TO 1F-100C-65-24, 1978
• North American Aviation F-100 D, F Aircraft Flight Manual - TO 1F-100D(I)-1, 1964
• North American Aviation F-100 D Aircraft Standard Operating Procedures Manual, 1958
• North American Aviation F-100 D, F Aircraft Structural Repair Manual - TO 1F-100D-3, 1957
• North American Aviation F-100 C Aircraft Organizational Maintenance Manual - Hydraulic Operated Systems TO 1F-100C-2-4, 1958
• North American Aviation F-100 D Aircraft Organizational Maintenance Manual - Electrical Systems TO 1F-100D-2-6, 1962
• North American Aviation F-100 D Aircraft Illustrated Parts Breakdowns Manual TO 1F-100D(I)-4, 1973

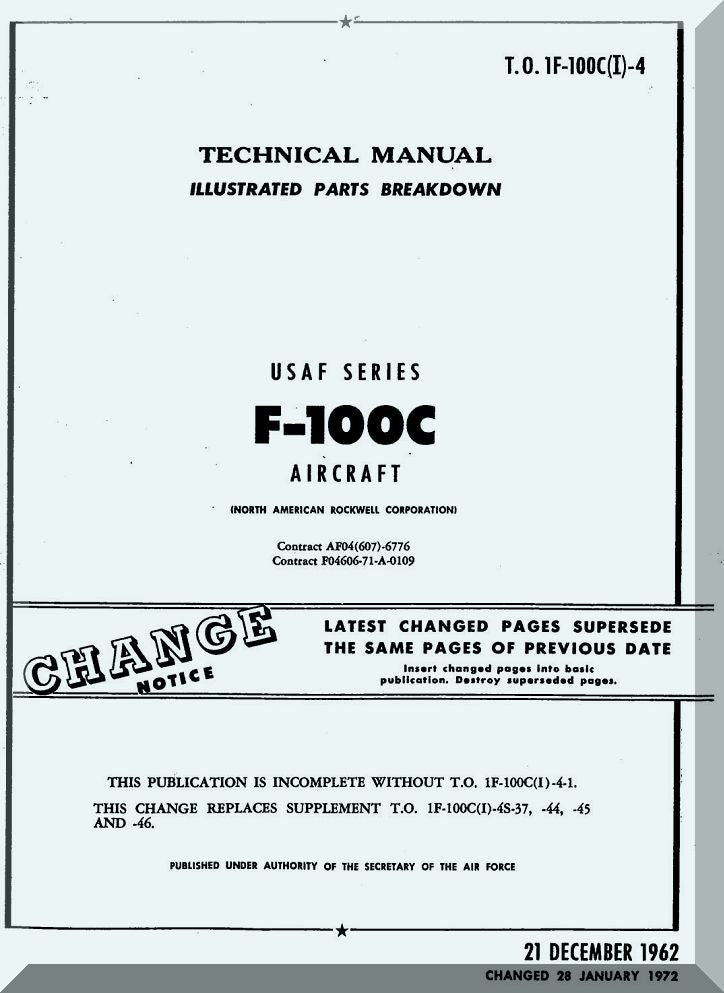

• North American Aviation F-100 C Aircraft Illustrated Parts Breakdowns Manual TO 1F-100C(I)-4, 1962
• North American Aviation F-100C Aircraft Flight Handbook Manual - TO 1F-100C-1, 1960
• North American Aviation F-100 D Aircraft Organizational Maintenance - General Airplane - Manual - TO 1F-100D-2-1, 1959

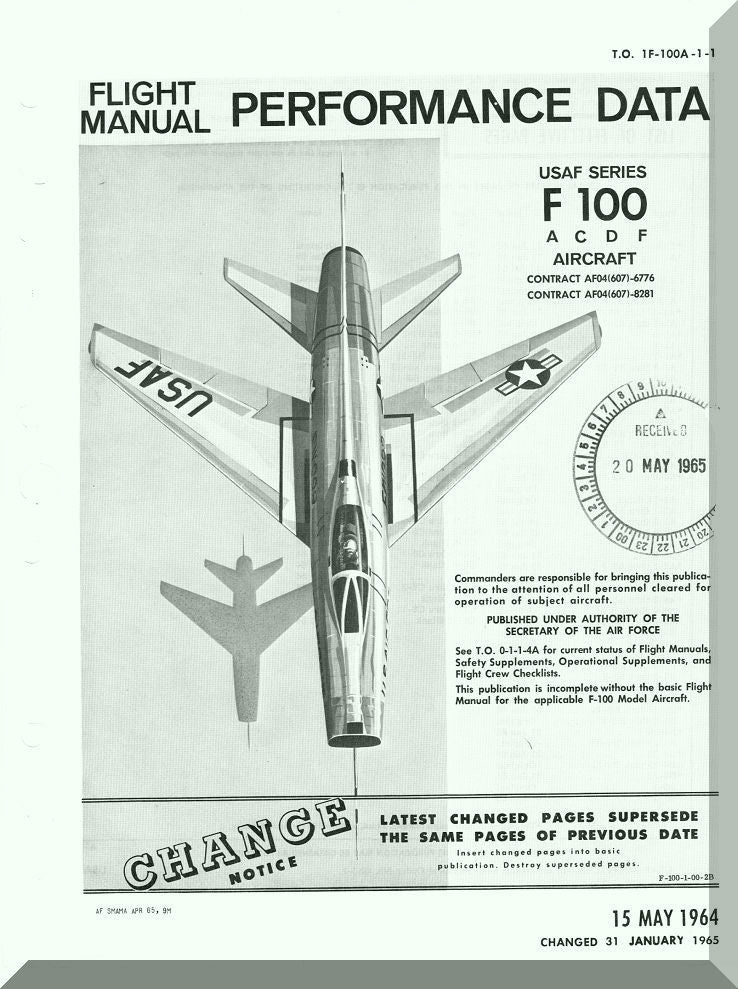

• North American Aviation F-100 A C D F Aircraft Flight Manual - Performance Data - TO 1F-100A-1-A, 1964
• North American Aviation F-100 D, F Aircraft Flight Manual - TO 1F-100D-1, 1967
• North American Aviation F-100 A Aircraft Organizational Maintenance - Engine and Accessories - Manual - TO 1F-100A-3-3, 1958
• North American Aviation F-100 A Aircraft Flight Handbook Manual - TO 1F-100A-1, 1968
• North American Aviation F-100A Aircraft Flight Handbook Manual - TO 1F-100A(I)-1, 1971

This collection provides comprehensive coverage of F-100A, F-100C, F-100D, and F-100F variants, with documentation spanning flight operations, maintenance procedures, parts breakdowns, structural repair, weapons delivery, and performance data from USAF technical orders spanning 1957 through 1978.

Technical Overview

Aerodynamic Design & Stability Challenges

The F-100 Super Sabre required significant engineering adaptations to bridge the gap between subsonic and supersonic flight. Initial production models suffered from severe directional instability, leading to violent yaw and roll coupling. The most notorious issue was the "Sabre Dance" - a dangerous phenomenon that occurred when the wingtips stalled first at high angles of attack during takeoff or landing, causing the nose to pitch up uncontrollably.

Stability studies identified "inertial coupling" as a major hazard, where rapid rolling maneuvers could trigger uncontrollable divergence in pitch and yaw. Between 1954 and 1960, the NACA High-Speed Flight Station conducted extensive flight tests at Edwards AFB to investigate these stability and control features. Chief test pilot George Welch died in 1954 when his F-100A disintegrated during a high-G pullout from a supersonic dive, highlighting the need for more rigorous structural testing.

Design Refinements & Control Systems

To improve control and stability, the F-100D was modified with a wingspan extended by 26 inches (providing an additional 9 square feet of wing area) and vertical tail area increased by 27%. The aircraft used a hydraulically-powered, irreversible control system and a one-piece slab tailplane (stabilator) set low on the fuselage to maintain longitudinal control at supersonic speeds. NACA Research Memorandum NACA-RM-L56D24 details the use of a stick-pusher to prevent pilots from entering the dangerous "pitch-up region" at supersonic speeds.

Engine Structural Integration - Pratt & Whitney J57

The J57 turbojet and its afterburner occupied roughly 24 feet of the internal fuselage. A unique oval-lip nose ram inlet was used to feed the engine. To achieve supersonic speeds, designers used a 60-lb retractable tail bumper instead of a fixed one and integrated twin nose wheels that folded backward below the air intake duct.

The engine's constant speed drive (CSD) for electrical power was notoriously unreliable, eventually requiring its own dedicated oil system to prevent damage to other airframe components. The F-100 was one of the first aircraft to make extensive use of titanium in the rear fuselage and engine bay to withstand high operating temperatures from the J57 and its afterburner. Many F-100s had their original J57 afterburners replaced with more advanced units from retired Convair F-102 Delta Daggers to improve reliability and performance.

Wing Center Section & Structural Modifications

After a series of structural failures, including an aircraft lost due to wing separation, the USAF initiated a reinforcement program in 1967 involving external bracing strips added to the wings to counter fatigue and high-G stress. The airframe's design life was originally 3,000 flying hours; Service Life Extension Programs (SLEP) were implemented to extend this to 7,000 hours.

During "C" model production, the airfoil was redesigned into a fuel-carrying "wet wing" to support air-to-ground missions. The F-100D featured a strengthened wing with inboard landing flaps to support higher takeoff weights and improve landing safety, reducing touchdown speeds to approximately 150 knots.

Performance Specifications

Evolution as a Strike Platform

The F-100D evolved from an air superiority fighter into a dedicated fighter-bomber optimized for ground attack and nuclear delivery. While the F-100A was an air superiority fighter, the F-100D was redesigned primarily for ground attack with secondary fighter capabilities. Internal fuel capacity was increased in the wings, and a probe-and-drogue in-flight refueling system was added to extend penetration range for deep strike missions.

Avionics & Targeting Upgrades

The F-100D was equipped with the Minneapolis-Honeywell MB-3 autopilot, the first for a supersonic jet, allowing pilots to focus on navigation and weapons arming during the approach to a target. An improved electronic Low-Altitude Bombing System (LABS) was fitted specifically for the delivery of Mk-7, Mk-38, or Mk-43 nuclear bombs.

Project High Wire (1962–1965) was a massive standardization program for approximately 700 aircraft that completely rewired the fleet, standardized cockpits, and upgraded weapons control and release panels to support a wider variety of non-nuclear weapons at a cost of $150 million. Some airframes were fitted with Combat Skyspot X-band radar transmitters to enable ground-directed bombing during night or inclement weather. Aircraft were upgraded with the AN/APR-25/26 Radar Homing and Warning (RHAW) system to detect enemy radar signals, essential for survivability in high-threat strike environments.

Ordnance & Strike Capabilities

Six underwing hardpoints featured forced ejection pylons (rather than gravity release) capable of carrying up to 7,040 lbs (3,200 kg) of ordnance. Sixty-five aircraft were modified in 1959 to fire the AGM-12 Bullpup radio-guided air-to-ground missile, with later versions supporting the improved GAM-83A Bulldog air-to-surface missile. Typical strike configurations included six 750-lb M117 bombs, four 1,000-lb Mk-83 bombs, or various rocket pods and napalm canisters.

Vietnam War Operations

The F-100D flew more sorties in Vietnam than the P-51 Mustang flew in WWII, serving as the primary platform for "SkySpot" missions where ground-based radar directed the aircraft to drop ordnance through cloud cover with high precision. Pilots praised the F-100D for its stability as a gun platform, with the four 20mm M39 cannons highly effective for strafing runs, though high-speed passes often necessitated a "one-pass" tactic due to vulnerability to small arms fire.

The most significant evolution was the Fast Forward Air Control (Fast FAC) mission. Using the two-seat F-100F, "Misty" pilots flew at high speeds and low altitudes to mark targets for other strike aircraft, proving that a supersonic jet could successfully perform the FAC role despite high fuel burn and limited loiter time.

Combat Losses & Survivability

Out of 2,294 F-100s built, 242 were lost in Vietnam. The vast majority (nearly 200) were lost to Anti-Aircraft Artillery (AAA) and small arms fire rather than MiGs or Surface-to-Air Missiles (SAMs). Approximately 45 losses were attributed to operational accidents or mechanical failures, often related to the engine or hydraulic systems being damaged by ground fire.

The F-100D lacked self-sealing fuel tanks in certain sections and had a complex, centralized hydraulic system, meaning even a single lucky hit from a rifle-caliber bullet could cause total loss of control or catastrophic fire. Later in the war, some airframes received field-modification fire suppression kits and improved RHAW gear. Pilots transitioned from level-flight bombing to 45-degree dive-bombing profiles to improve survivability.

Engineering Norms and Standards

The F-100 Super Sabre was developed under U.S. Air Force specifications and MIL-SPEC requirements for supersonic fighters, with comprehensive technical documentation maintained through USAF Technical Orders (TO). The aircraft was designed to meet stringent requirements for supersonic performance, weapons delivery, and operational reliability. North American Aviation applied rigorous military engineering practices throughout the aircraft's production and service life, with extensive flight testing, NACA research programs, and modification programs addressing stability and control challenges inherent in first-generation supersonic fighter design.

Format and Delivery

All manuals are provided as high-resolution PDF files, suitable for digital reference, printing, or archival purposes. Instant download delivery upon purchase completion.
