Messerschmitt Bf 109 F Aircraft Engineering Blueprints Collection

Collection of original Messerschmitt factory engineering drawings for the Bf 109 F variant — 1,085 drawing sheets covering the principal structural assemblies and systems.

Continuously Expanding Historical Collection — Free Lifetime Updates

This is a living collection that we continuously expand and refine. As we acquire additional authentic Bf 109 F documentation, we update this collection and provide free lifetime updates to all purchasers. Your one-time purchase guarantees permanent ownership and access to all future additions.

What's Included

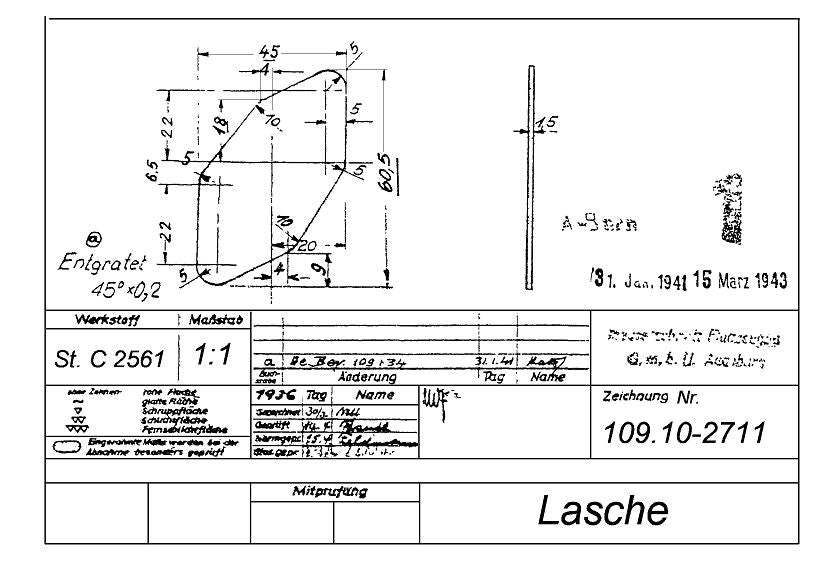

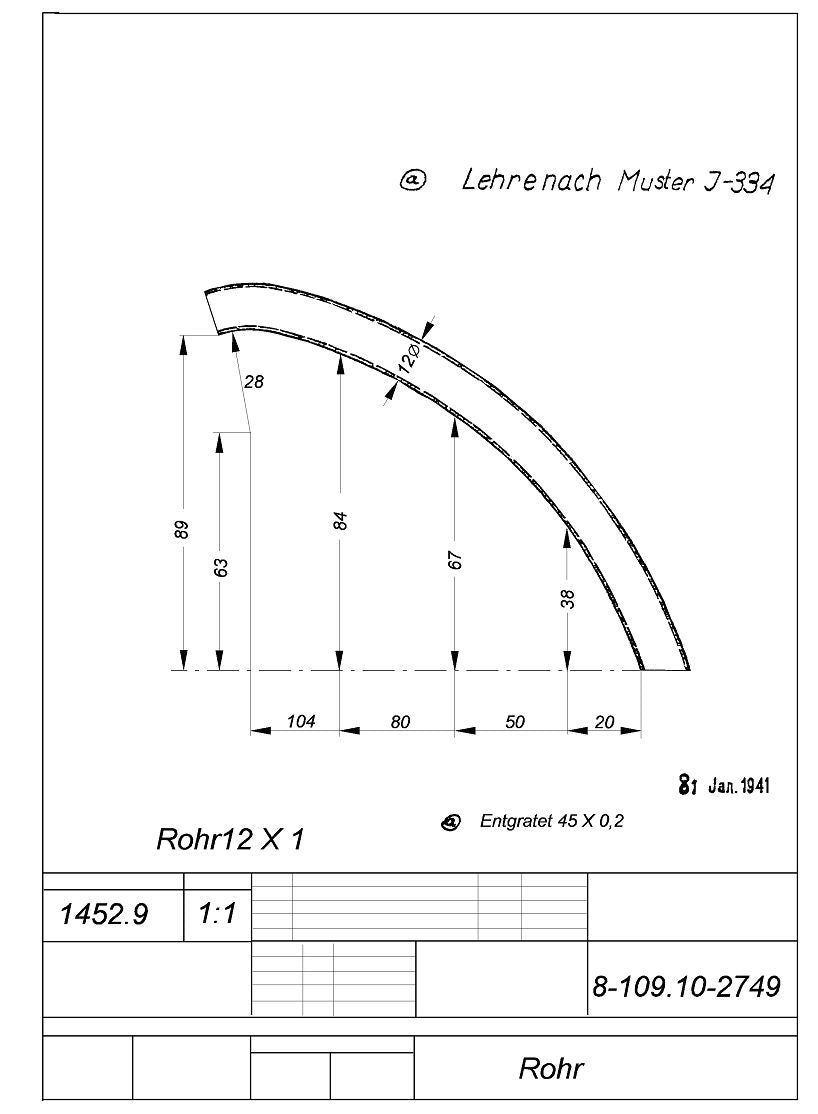

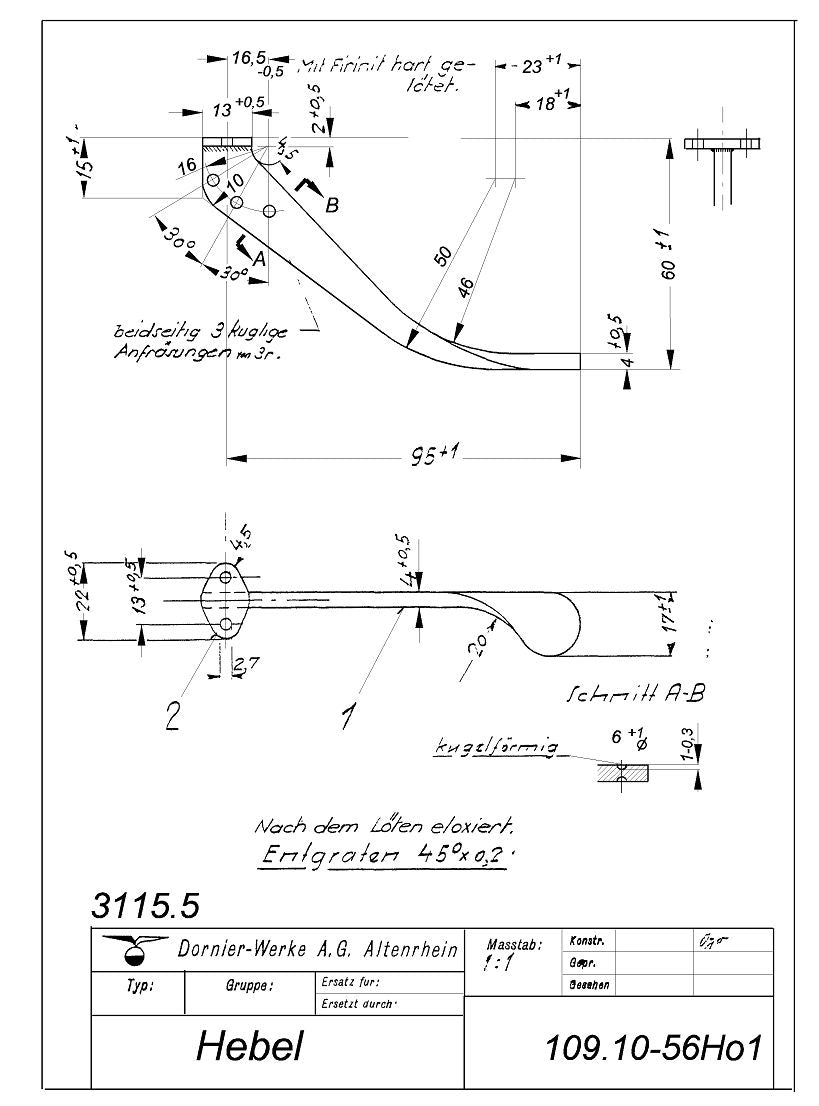

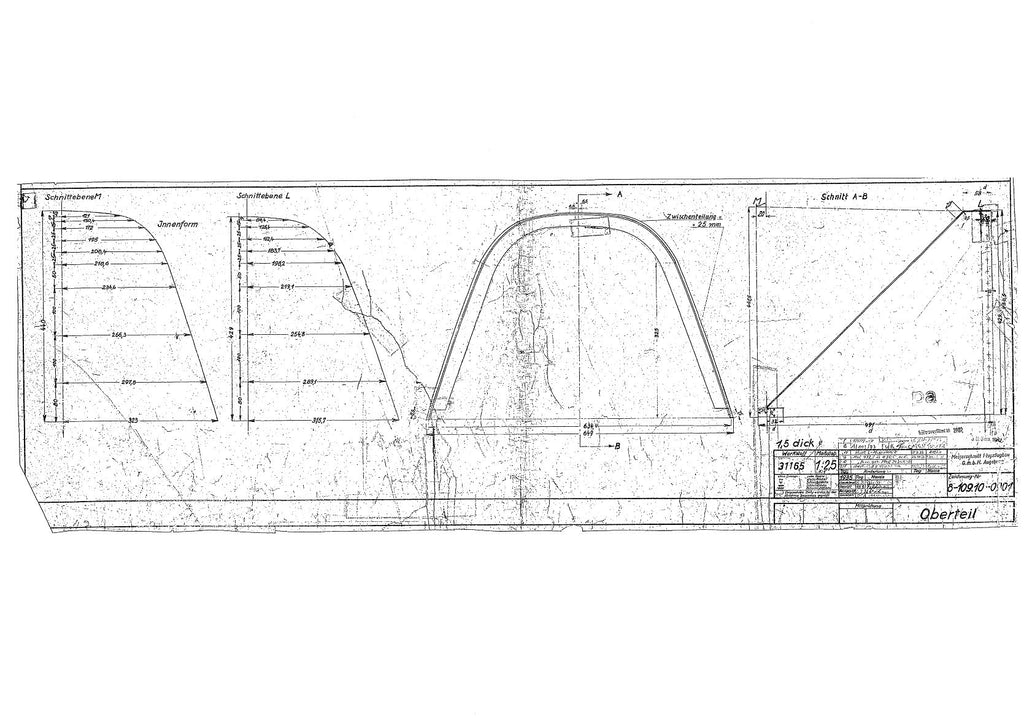

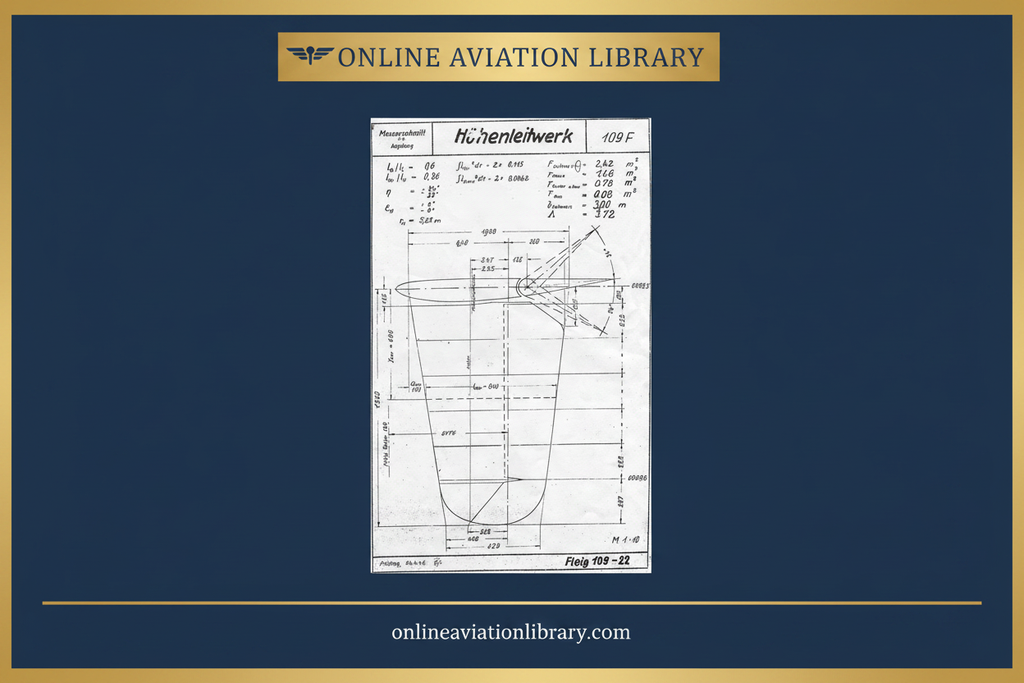

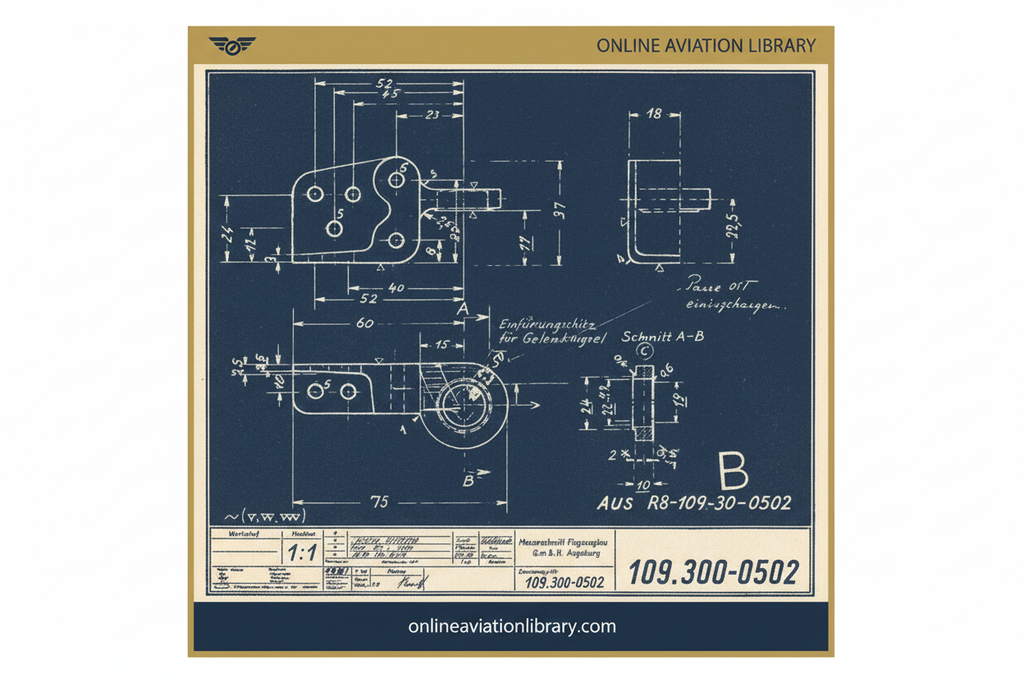

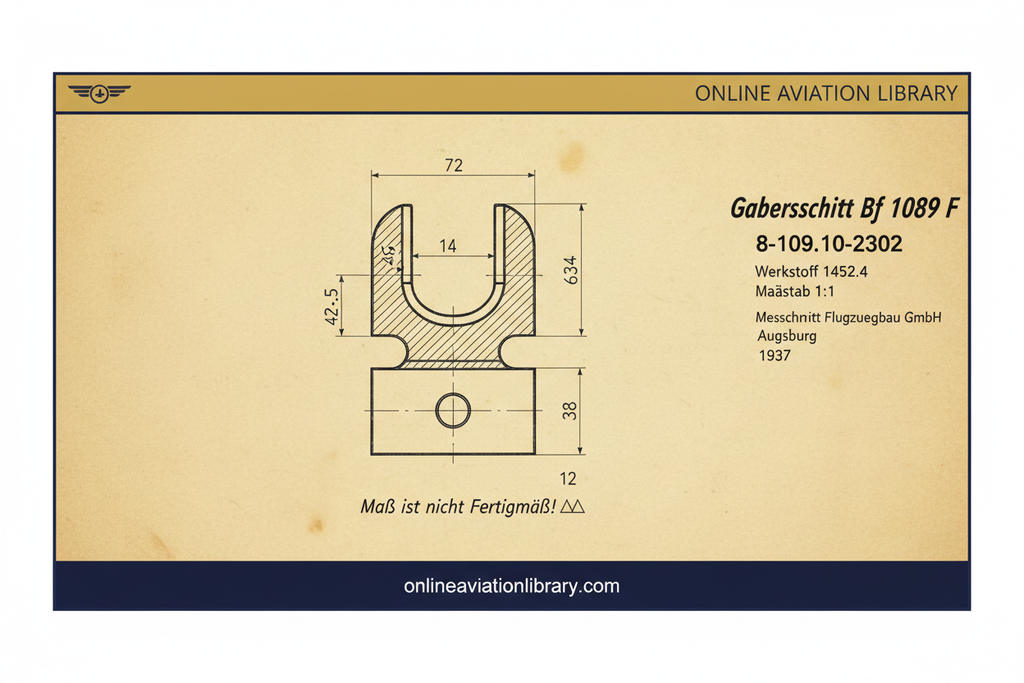

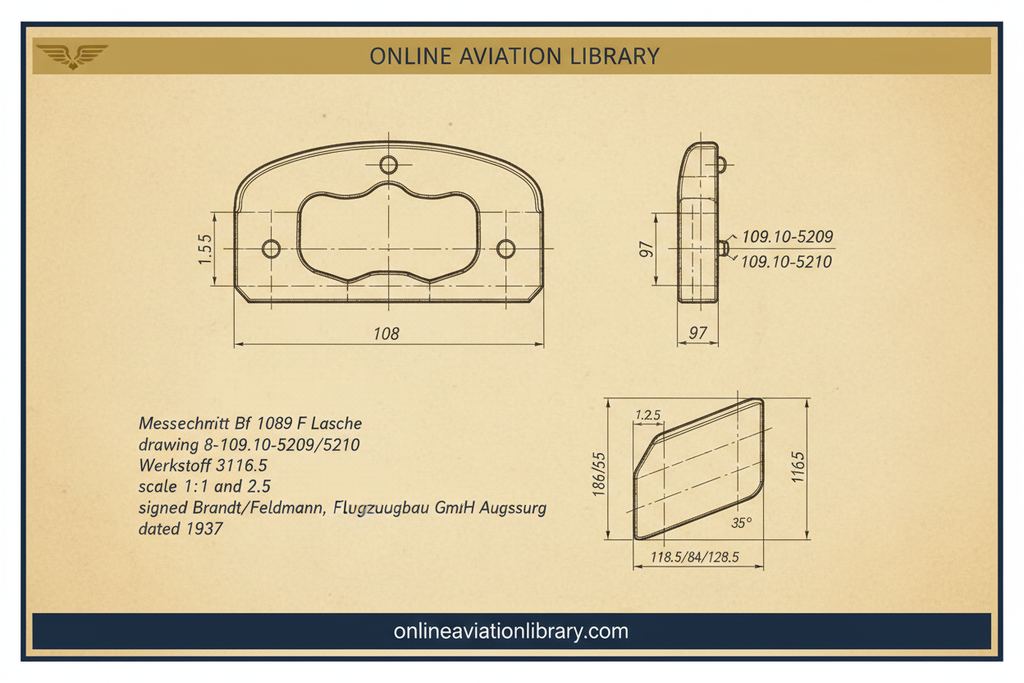

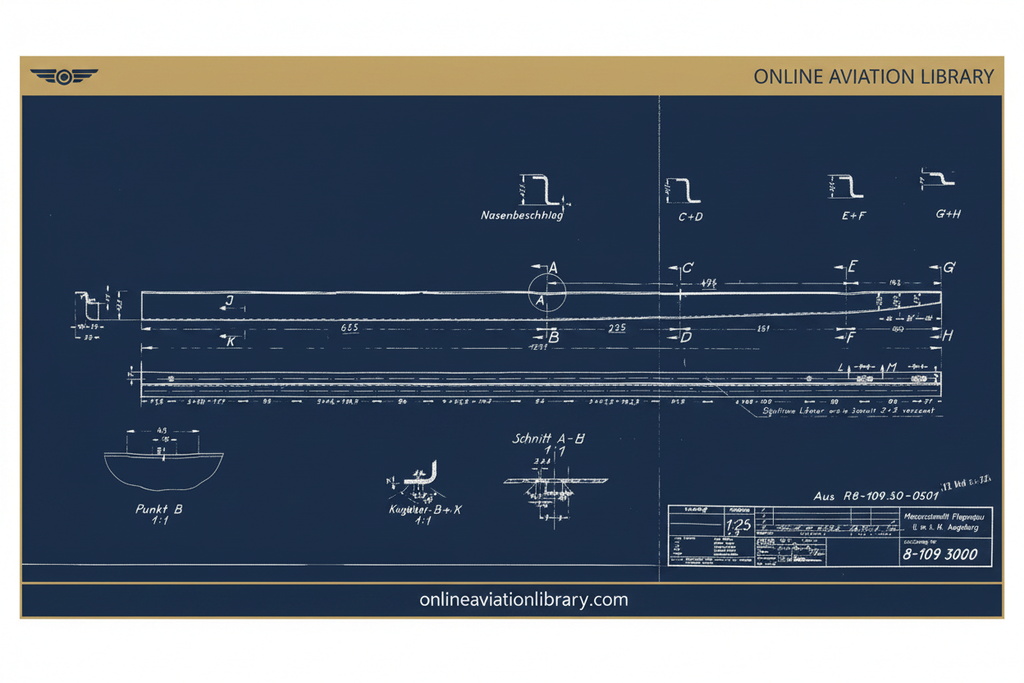

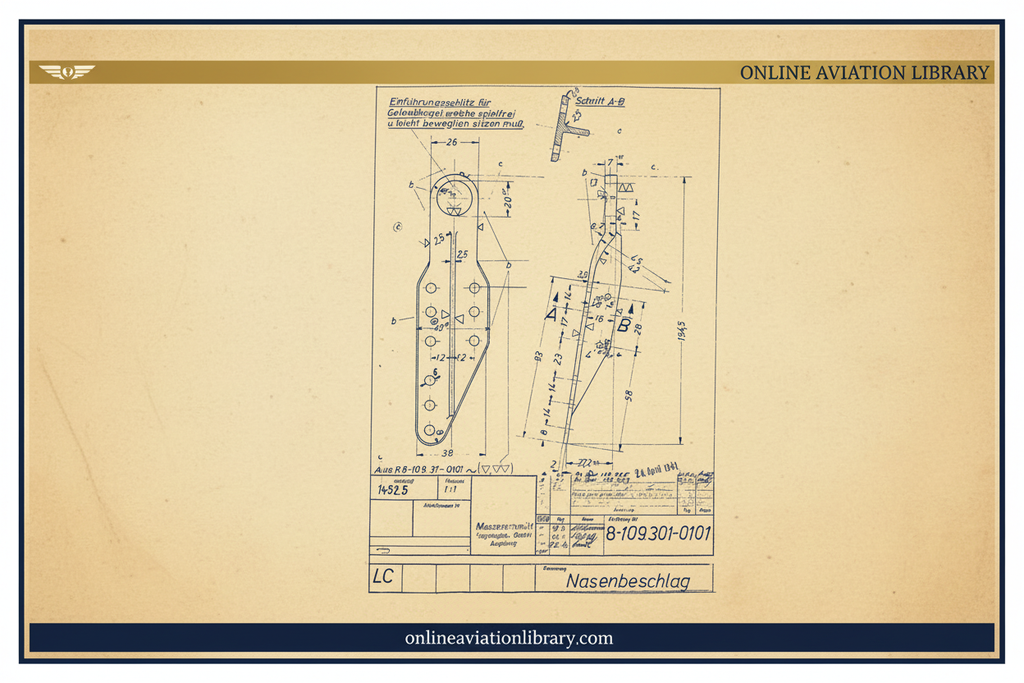

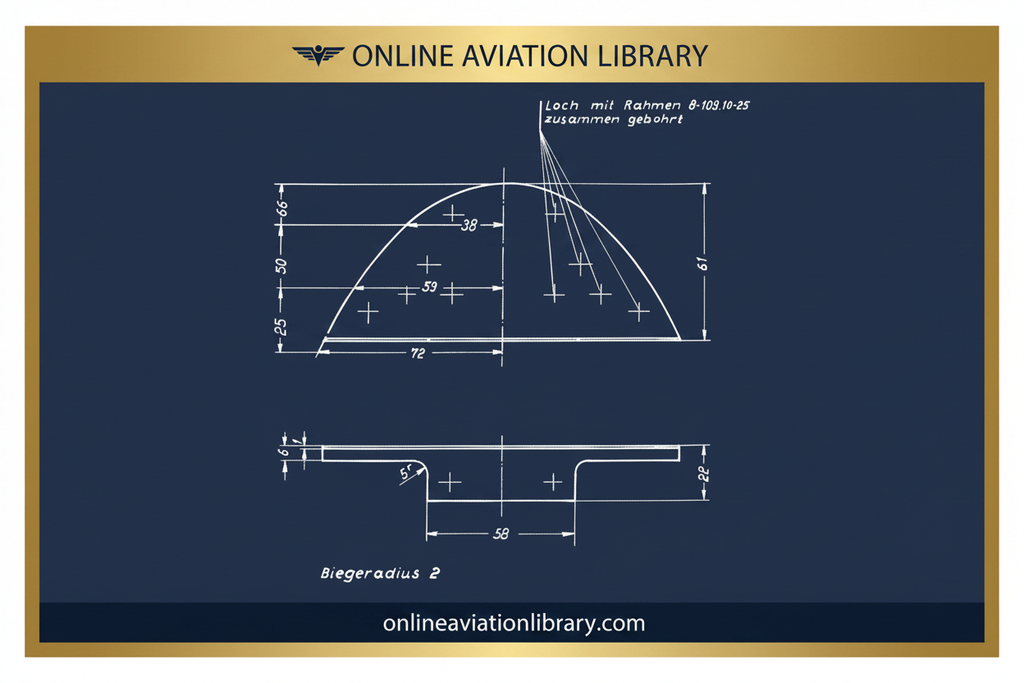

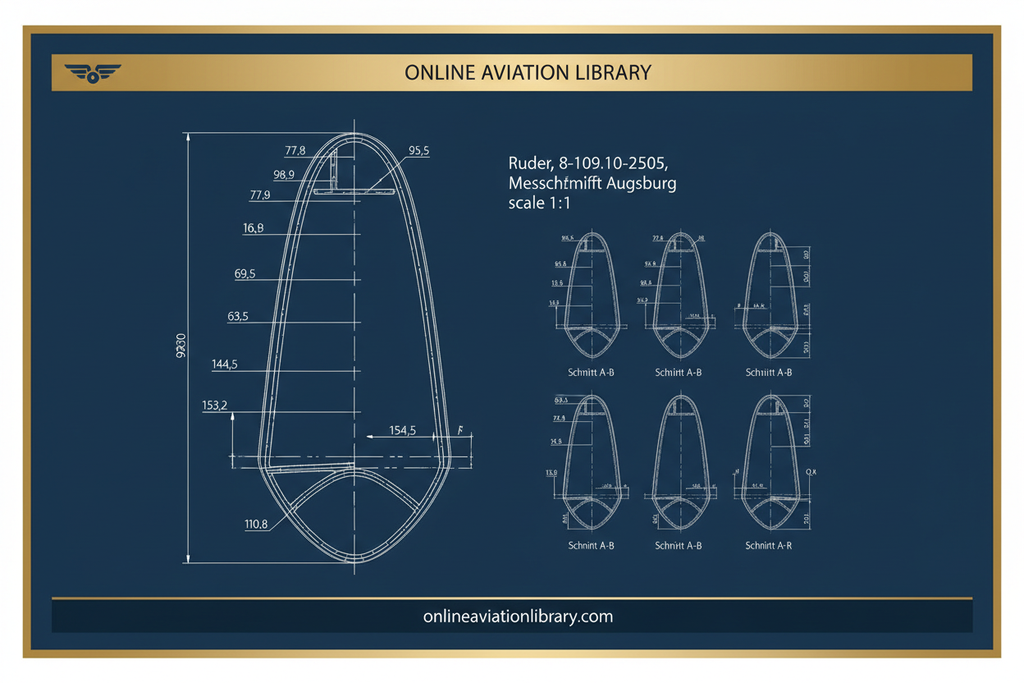

• High-resolution reproductions of original Messerschmitt factory engineering drawings (1,085 sheets)
• Structural manufacturing drawings covering numerous aircraft assemblies and components
• Original dimensions, production notes and engineering details where present in the surviving documents
• Digitally restored PDF files suitable for research, study and reference

Perfect For

• Aviation historians and researchers
• Scale model builders and RC aircraft enthusiasts
• Aircraft restoration projects
• Educational purposes and technical study
• World War II history enthusiasts
• German aviation collectors

Format and Delivery Digital download via secure cloud link. Adobe PDF format compressed in RAR archive. Extraction Instructions: Files are compressed in RAR format. Free extraction software available at rarlab.com

Important Note for Scale Modellers Original factory manufacturing drawings do not always include complete aircraft lofting information, fuselage station diagrams or former geometry. Where such original documentation has not survived or is unavailable, it cannot be included in the collection. Any newly acquired original material is supplied free of charge to all previous purchasers.

Nature of the Collection This collection reproduces surviving historical Messerschmitt factory documentation. As with many WWII archives, some original drawings, lofting data, station diagrams or manufacturing records may no longer exist or may not yet have been located. The collection reflects the documentation currently available and is expanded whenever additional authentic material becomes available.

Our Editorial Philosophy Preservation before reconstruction. Authenticity before completeness. Original evidence before modern interpretation.

Our mission is to collect, structure, preserve and publish surviving original aviation documentation — not to reconstruct or invent engineering data that no longer exists.

Documentation reference for restoration research.

Assembly Group Matrix / Baugruppen-Aufstellung

Coverage index showing which assembly groups are documented for the Bf 109 F variant, as per the original Messerschmitt factory documentation (Baugruppen-Aufstellung Bf 109). This is a structural coverage index — not a list of individual drawing sheets.
Übersicht der dokumentierten Baugruppen für die Bf 109 F-Variante gemäß der originalen Messerschmitt-Werksdokumentation. Dies ist ein struktureller Deckungsindex — keine Liste einzelner Zeichnungsblätter.
