Lockheed C-69, C-121, R7V-1 Constellation Military Variants Manuals Collection
Access the comprehensive technical documentation for the military variants of aviation's most elegant airliner—the Lockheed Constellation. This digital collection includes essential flight manuals, maintenance guides, parts catalogs, wiring diagrams, and technical orders covering the C-69, C-121, and R7V-1 military variants that served with distinction from World War II through the Cold War era.
What's Included

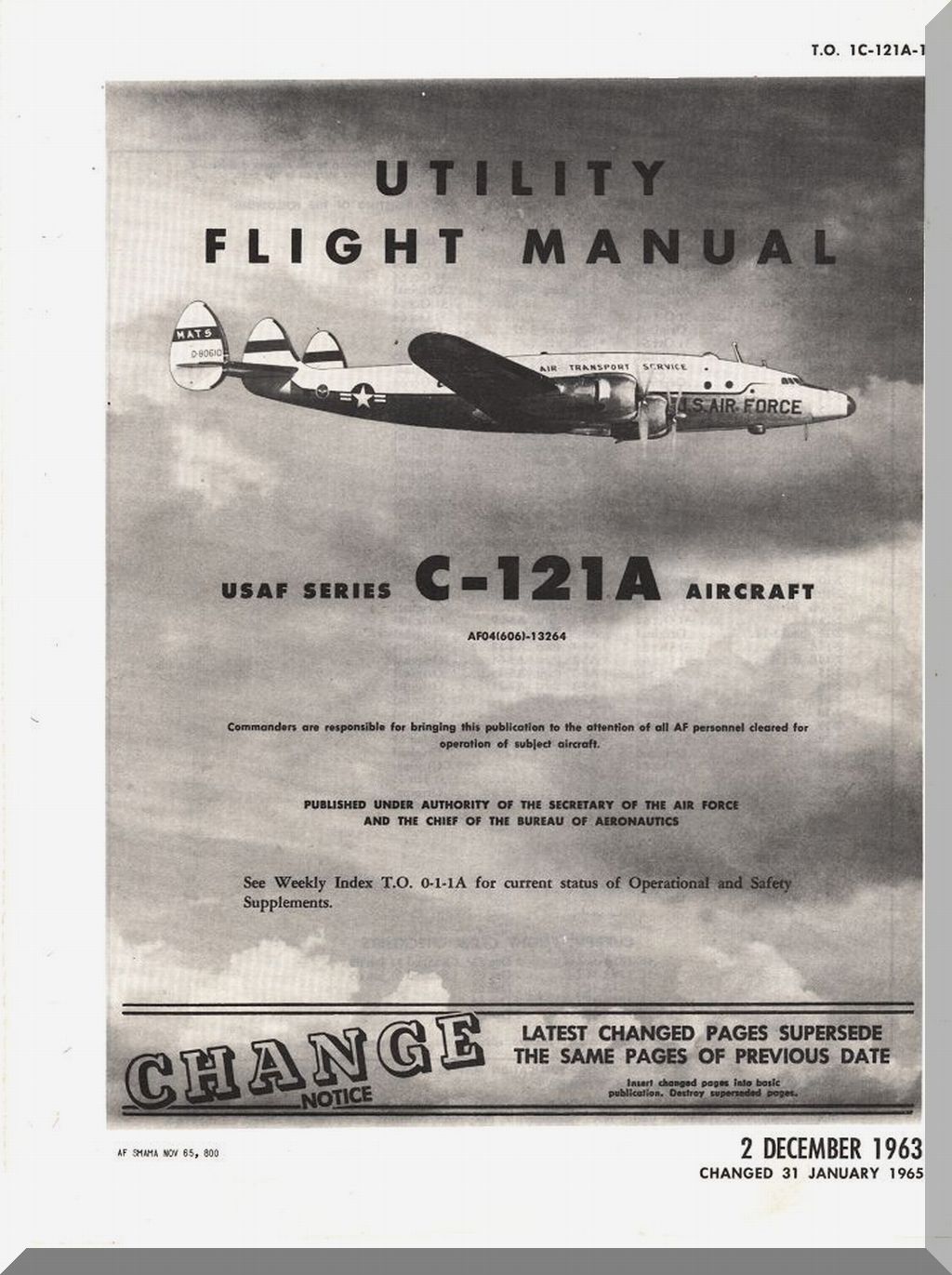

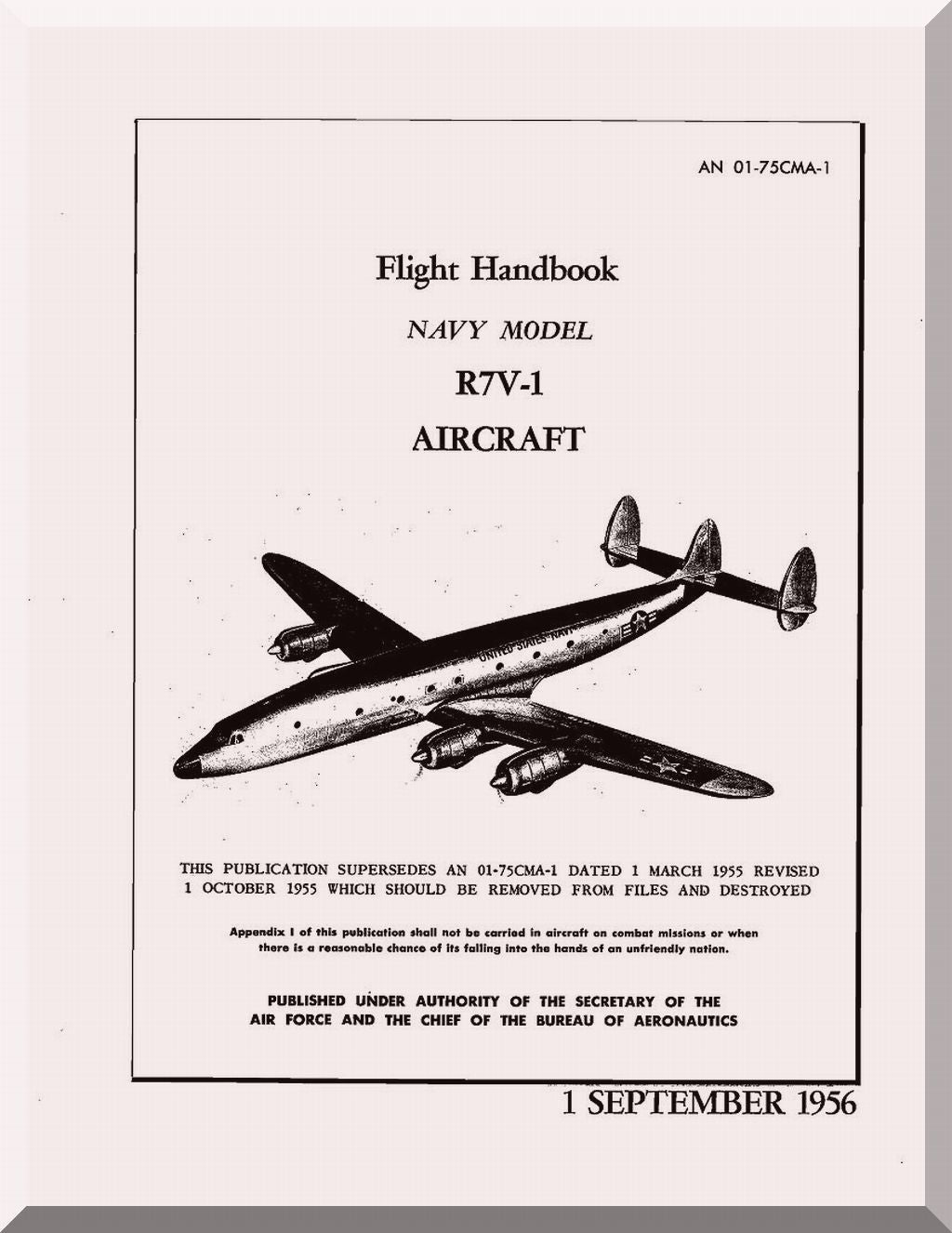

- Flight Manuals: Comprehensive pilot operating handbooks with performance charts, procedures, and operational limitations for C-69, C-121, and R7V-1 variants

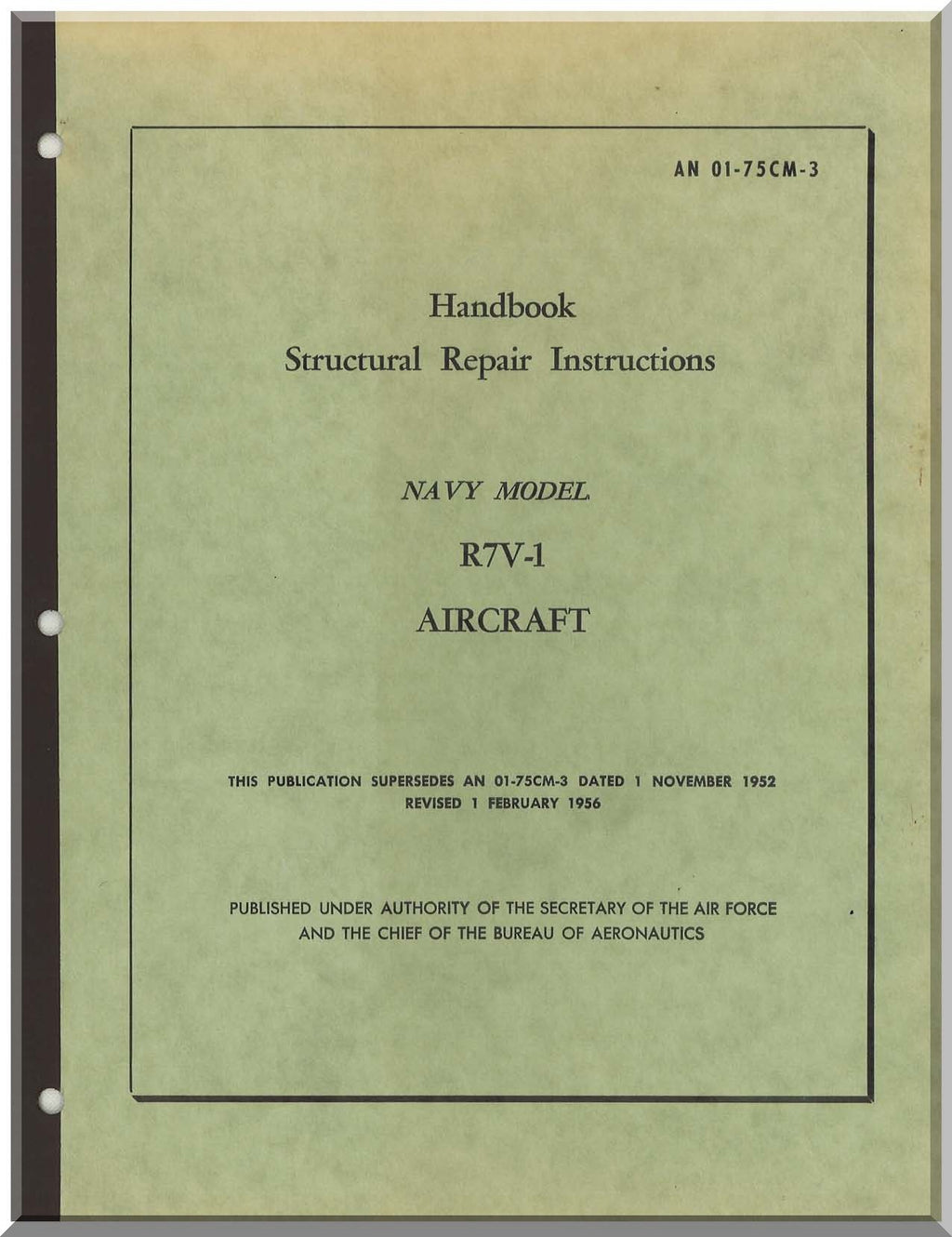

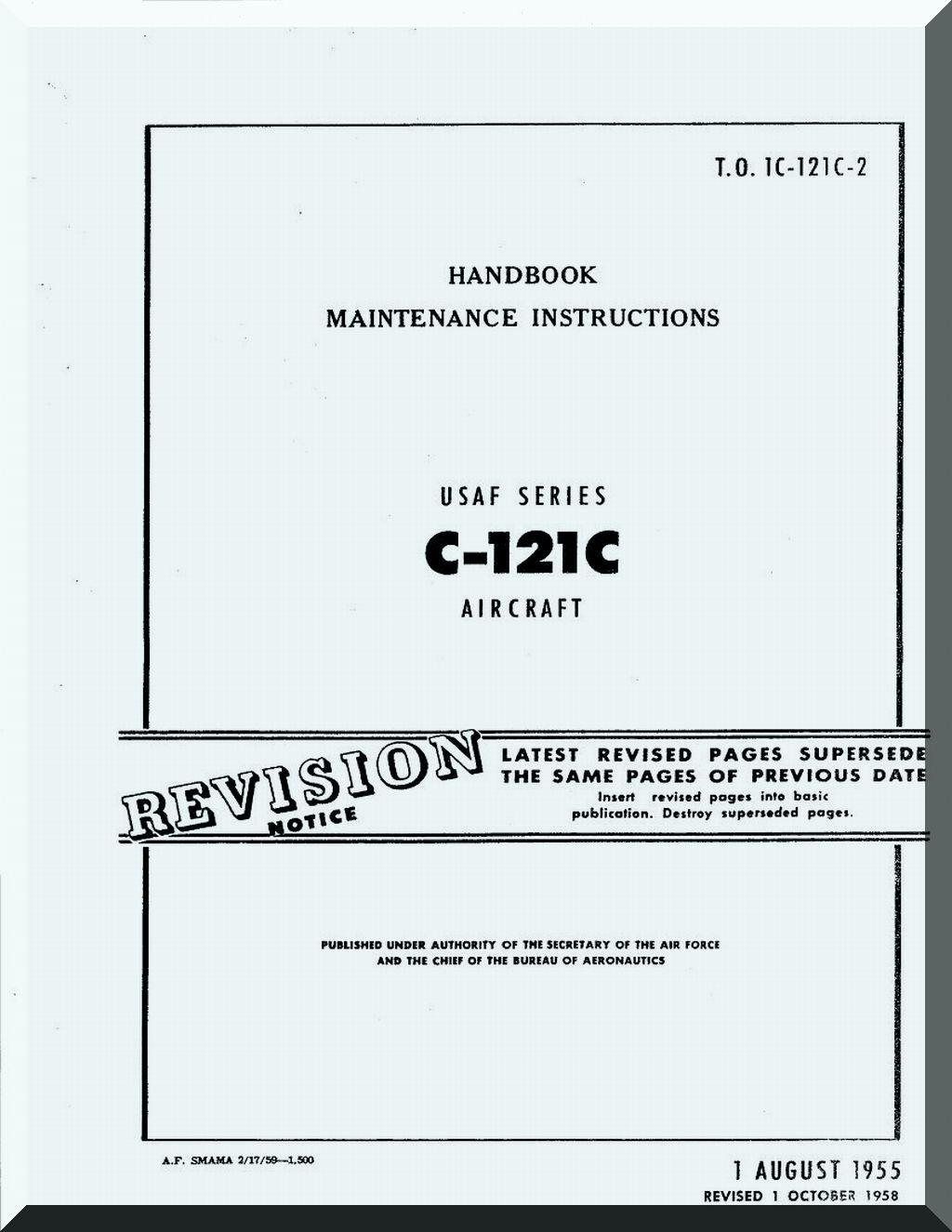

- Maintenance Documentation: Detailed service instructions, inspection schedules, and overhaul procedures

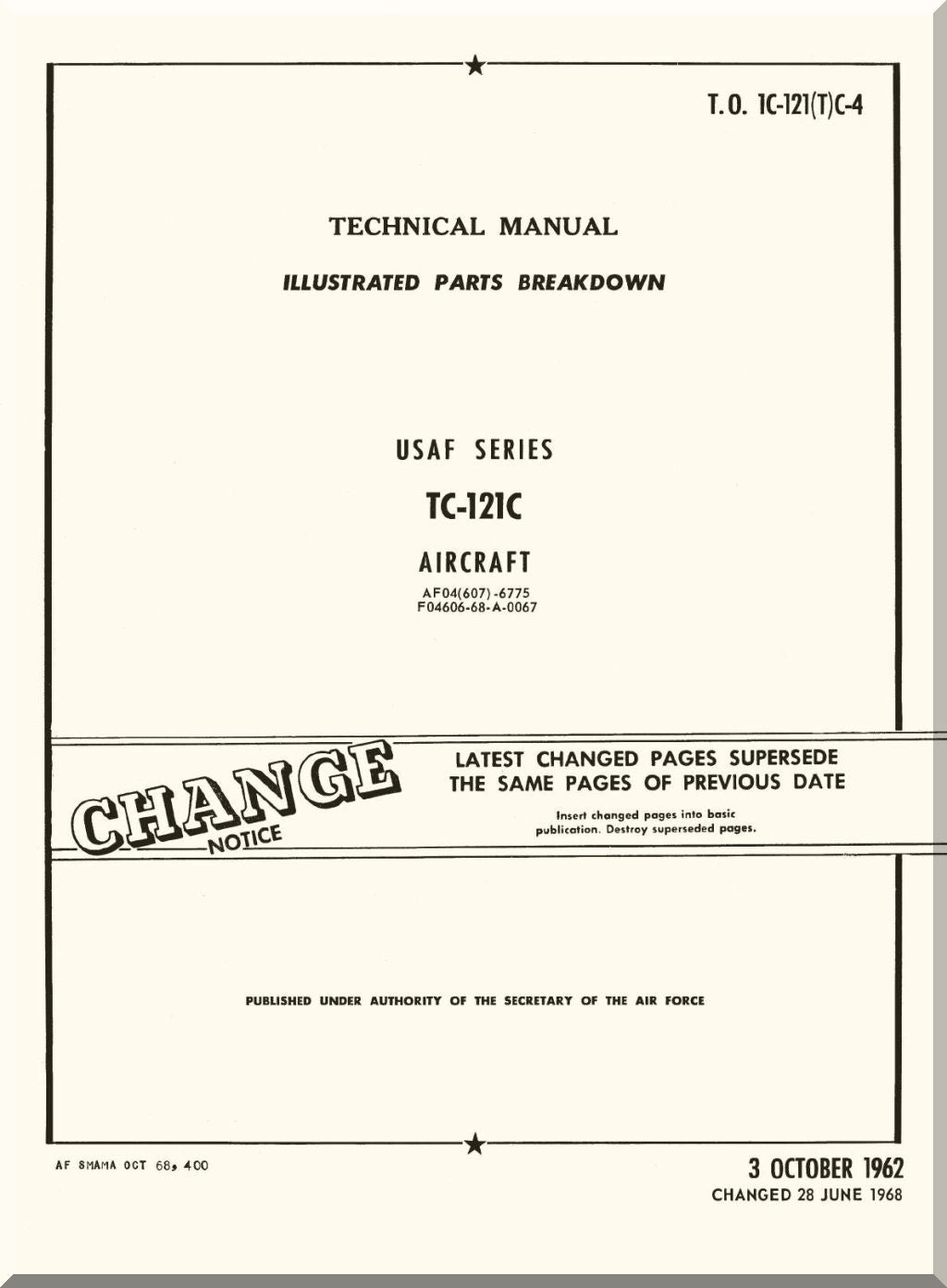

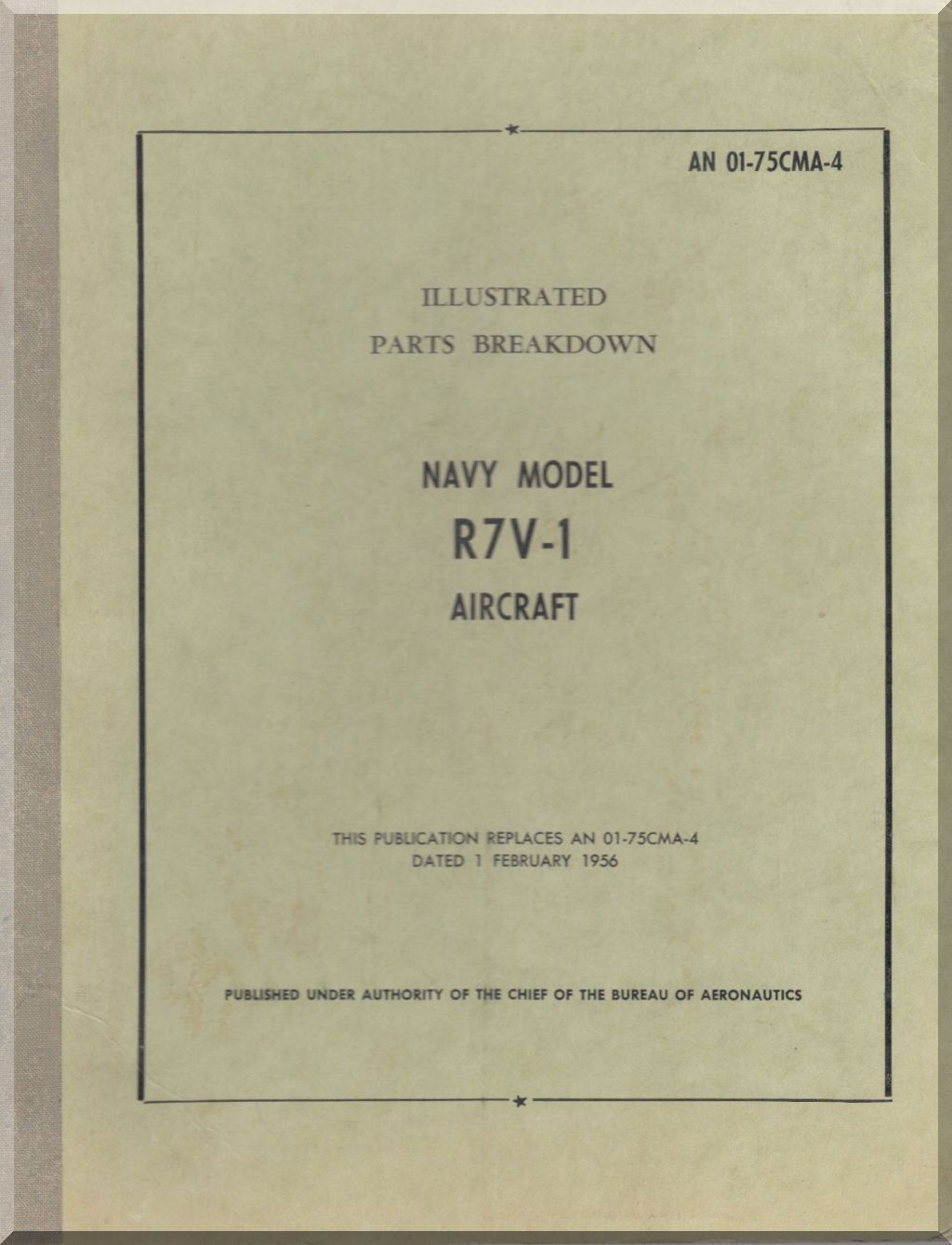

- Parts Catalogs: Illustrated parts breakdowns with part numbers and assembly diagrams
- Wiring Diagrams: Electrical system schematics and troubleshooting guides
- Technical Orders: Military specifications, modifications, and service bulletins
Historical Significance
The military Constellation variants represent a fascinating chapter in aviation history, where one of the world's most beautiful airliners was transformed into a versatile military workhorse. The story began in 1943 when the U.S. Army Air Forces commandeered the entire initial production run of Lockheed's revolutionary new airliner, designating it the C-69.

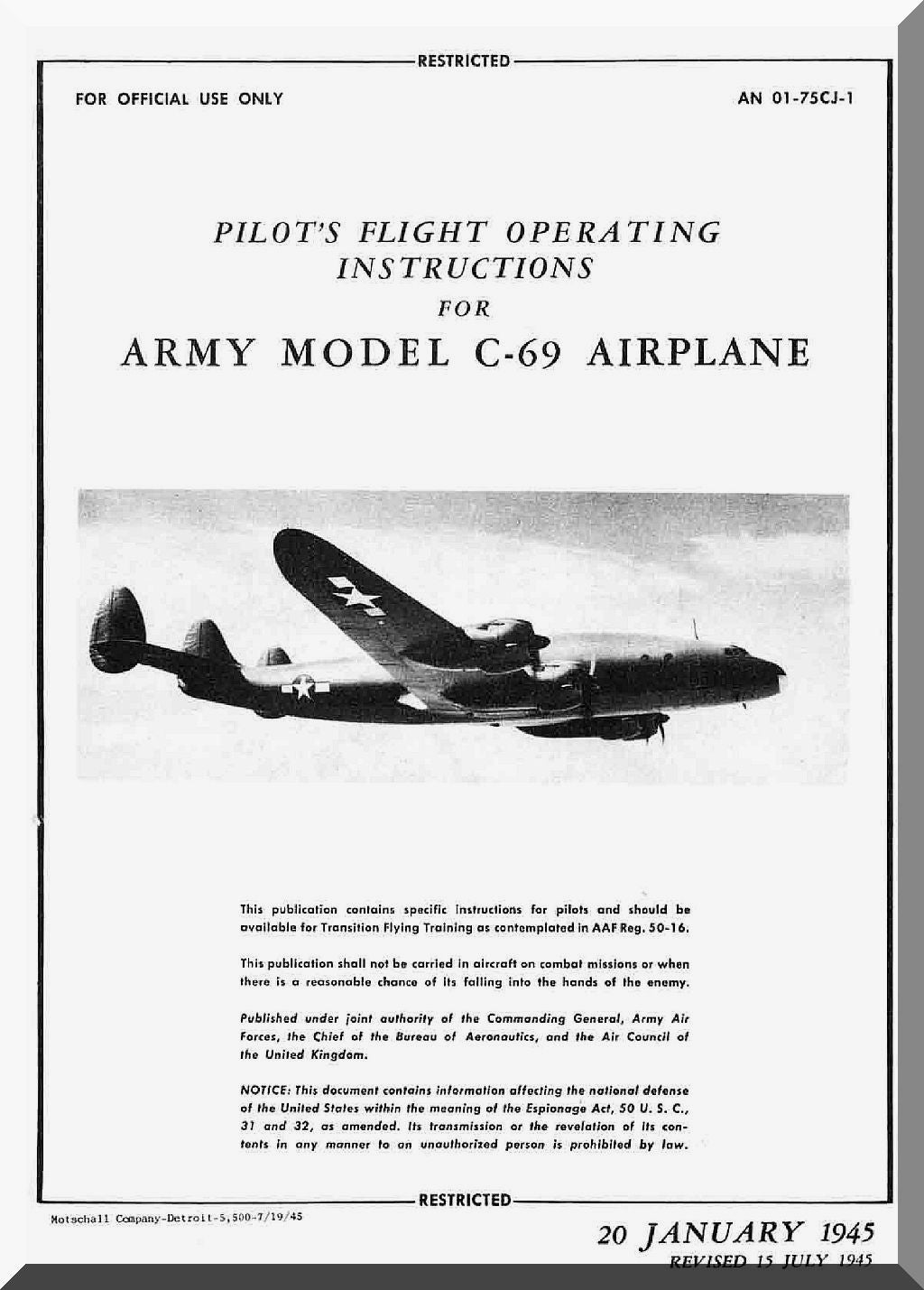

C-69 Constellation: The original military variant served as a long-range transport during the final years of World War II. With its distinctive triple-tail design and powerful Wright R-3350 engines, the C-69 could carry troops, cargo, or VIPs across oceans with unprecedented speed and range. General Douglas MacArthur's personal C-69, named "Bataan," became one of the most famous aircraft of the era. Only 22 C-69s were completed before war's end, with most converted to civilian use afterward.

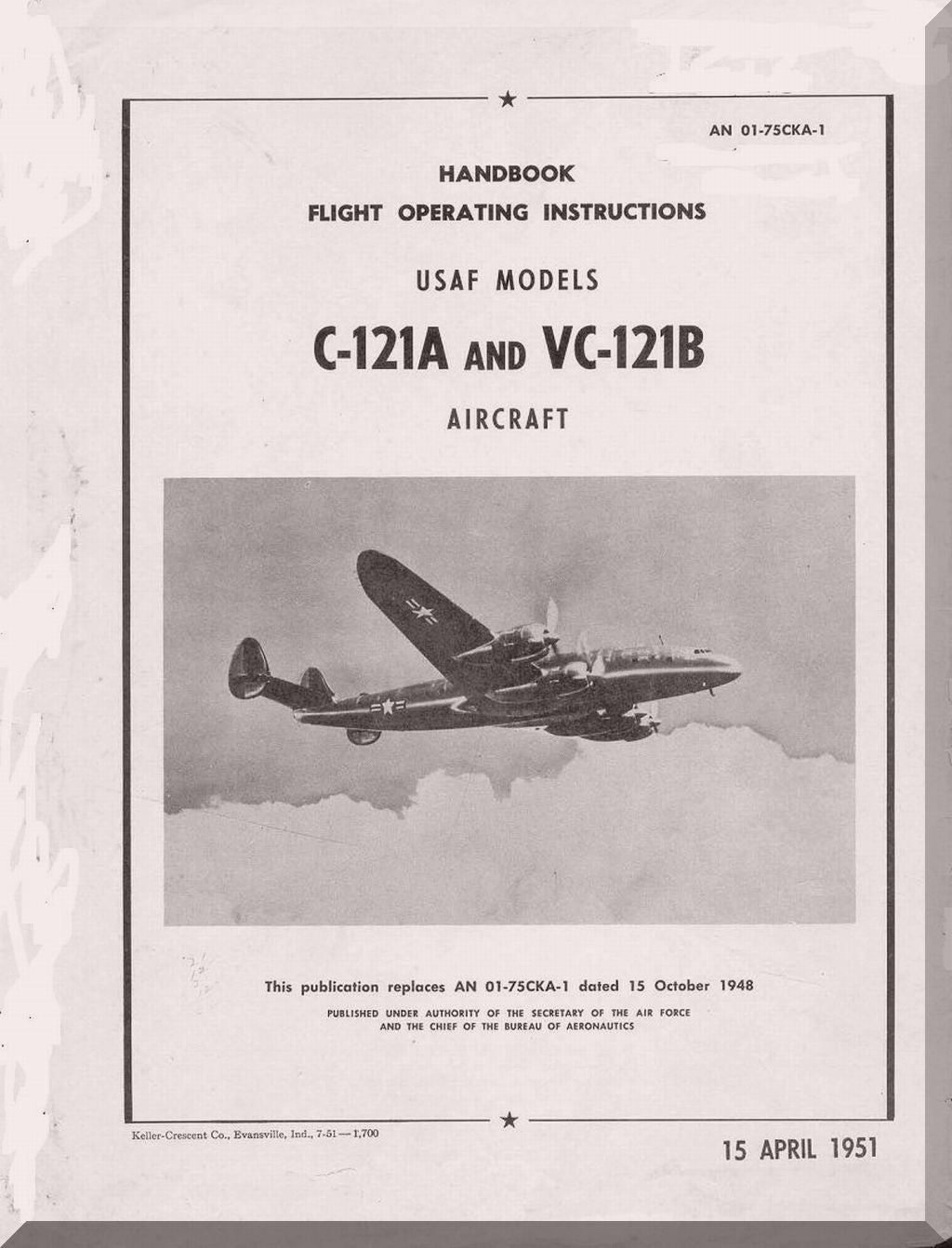

C-121 Constellation: The Korean War and Cold War tensions brought the Constellation back to military service in the early 1950s. The C-121 variants, based on the Super Constellation airframe, served multiple critical roles. The C-121A and C-121C operated as VIP transports and cargo haulers, while the specialized EC-121 Warning Star became the backbone of America's airborne early warning network. Equipped with massive radar domes above and below the fuselage, EC-121s provided radar coverage over the Pacific and Atlantic, detecting potential Soviet bomber threats. These aircraft also served with distinction in Vietnam, providing airborne command and control and detecting enemy aircraft infiltrations.
R7V-1 Constellation: The U.S. Navy's version of the Super Constellation, designated R7V-1, entered service in 1953. These aircraft served primarily as long-range transports, carrying personnel and cargo across the Pacific to support naval operations. The Navy also operated the WV-2 Warning Star variant (later redesignated EC-121) for airborne early warning missions, protecting carrier battle groups and coastal approaches.
Military Constellations served from 1943 until the late 1970s, with EC-121 Warning Stars being among the last to retire. These aircraft flew critical missions during three wars, maintained constant vigilance during the Cold War, and transported countless military personnel and cargo around the globe. Today, surviving military Constellations are treasured museum pieces and warbird restorations, celebrated for their beauty, capability, and distinguished service record.
Perfect For
- Aircraft restoration projects and vintage military transport maintenance
- Aviation historians researching WWII, Korean War, and Cold War aviation
- A&P mechanics working on Constellation airframes and systems
- Museums and educational institutions preserving military aviation heritage
- Collectors of military transport and early warning aircraft documentation
- Warbird enthusiasts and vintage aircraft operators
Digital Download Benefits
Receive instant access to your manuals as high-quality PDF files. Search, bookmark, and reference critical technical information whenever you need it. Print specific sections for hangar use or keep the entire collection on your tablet for easy field access.
Preserve aviation history. Support your restoration. Download your military Constellation manuals today.
