Grumman TBF-1 & TBM Avenger — Aircraft Blueprints & Engineering Drawings

The Grumman TBF-1 Avenger was the primary carrier-based torpedo bomber for the U.S. Navy during World War II. Its structural design, powerplant reliability, and stable handling qualities were rigorously tested and documented across wartime engineering reports. This archival collection presents the core primary-source technical and operational documentation for this historic naval aircraft.

Collection Contents

From the original manufacturing drawings, converted first to microfilm and now to electronic format:

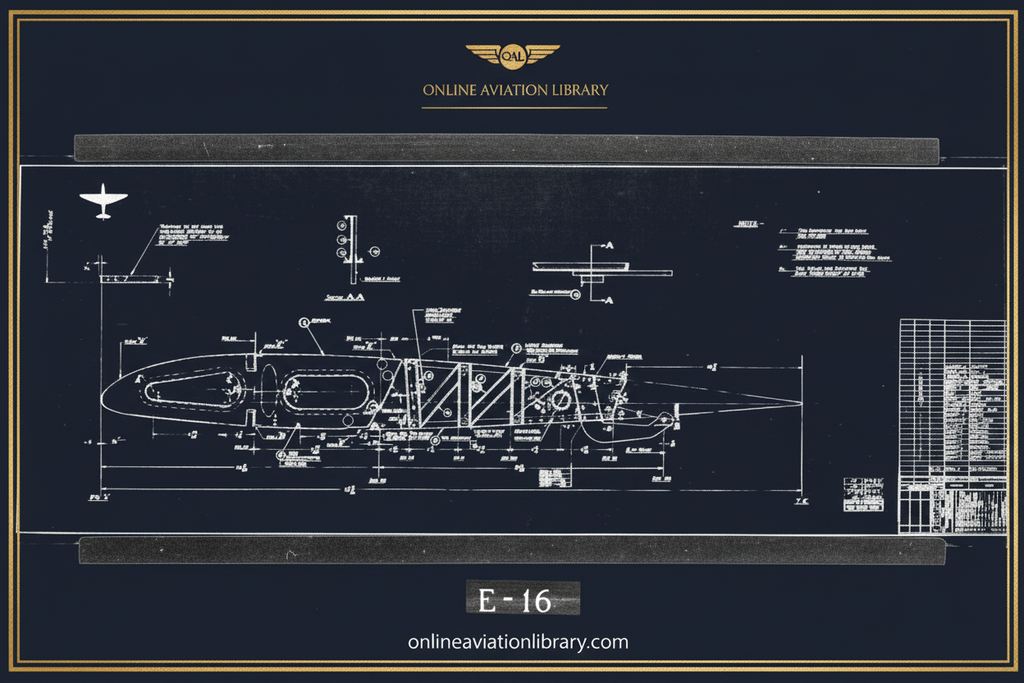

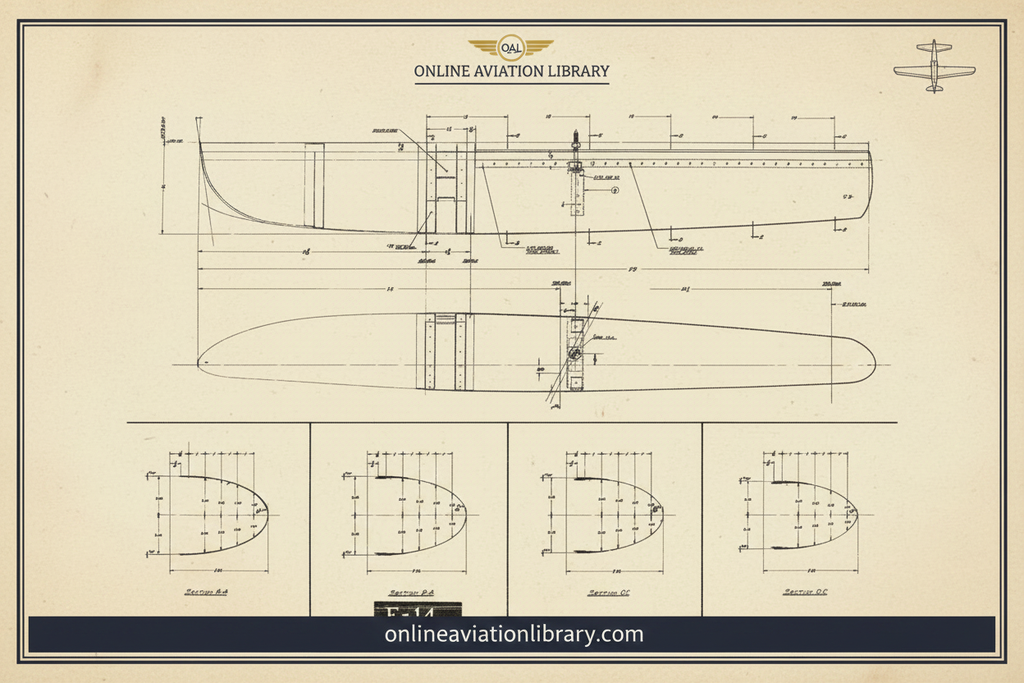

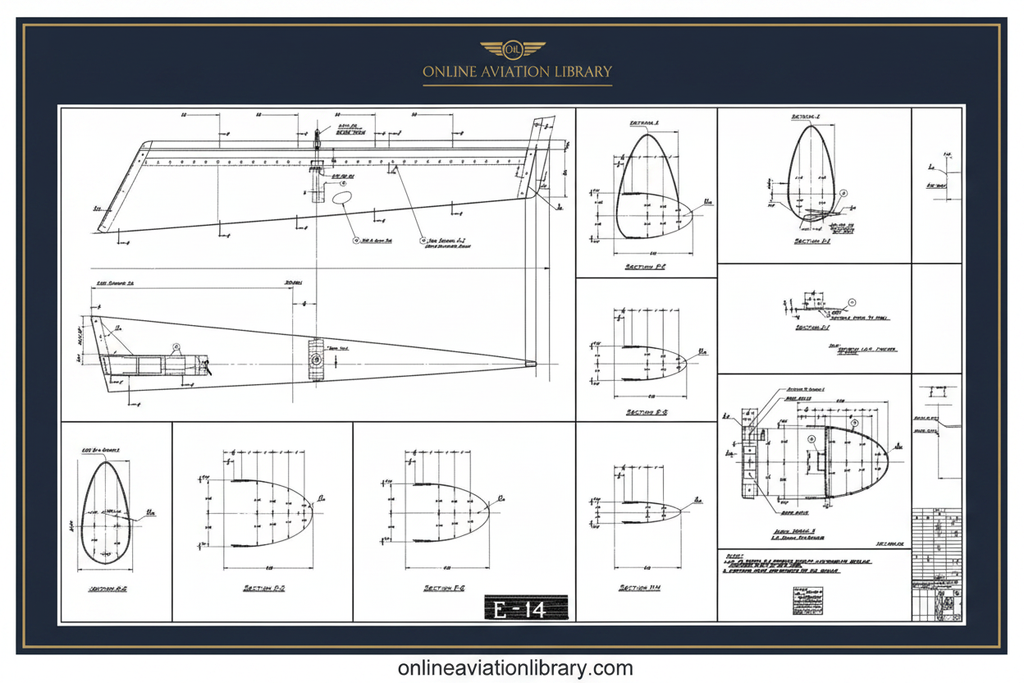

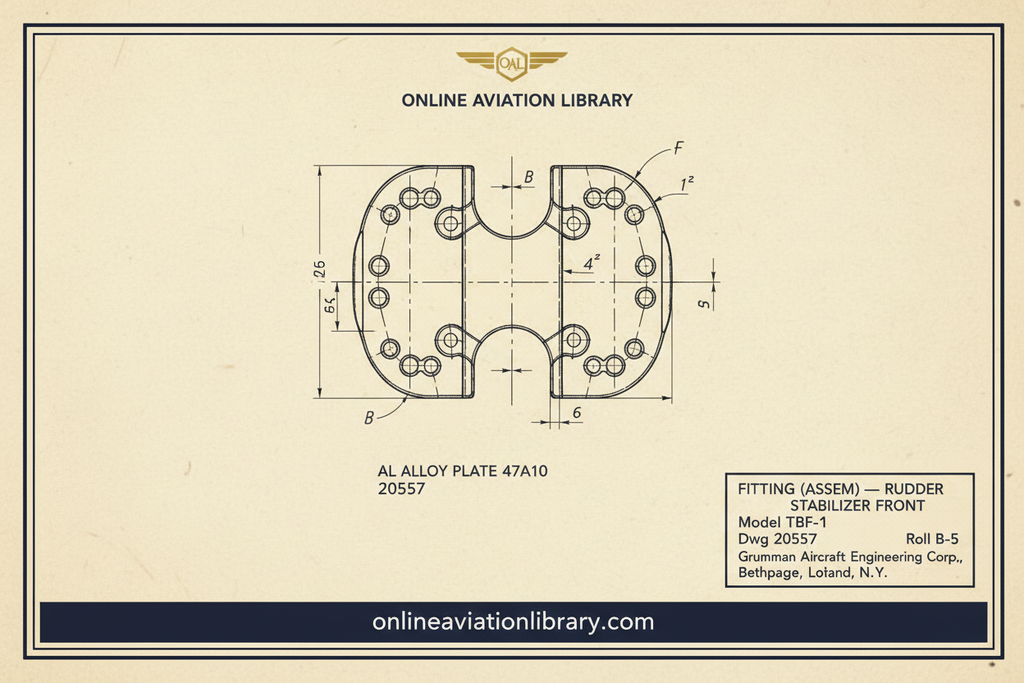

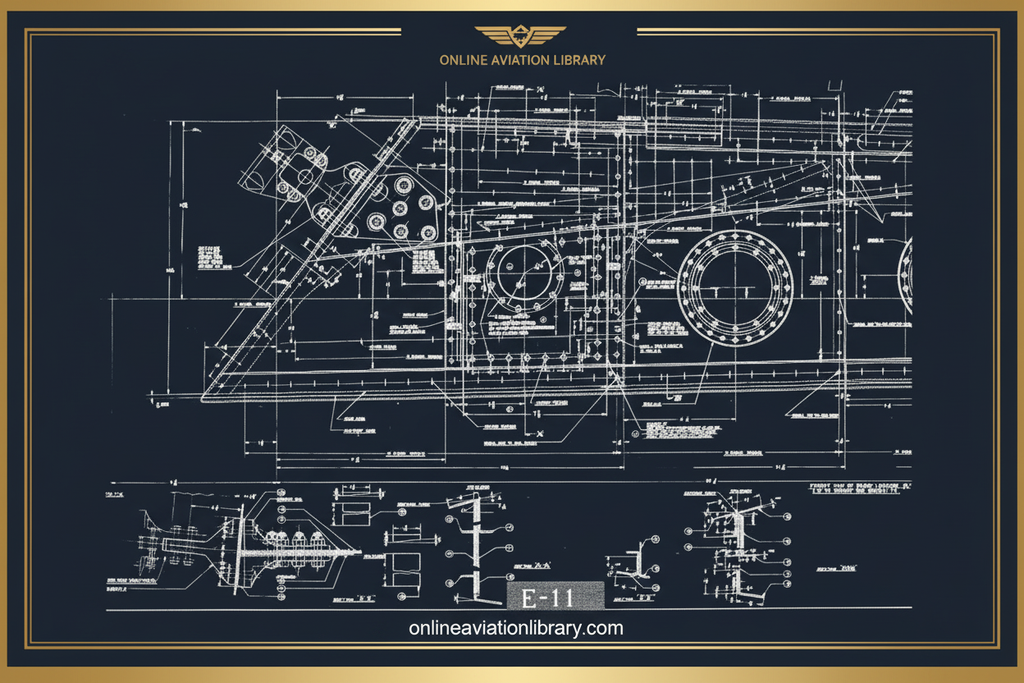

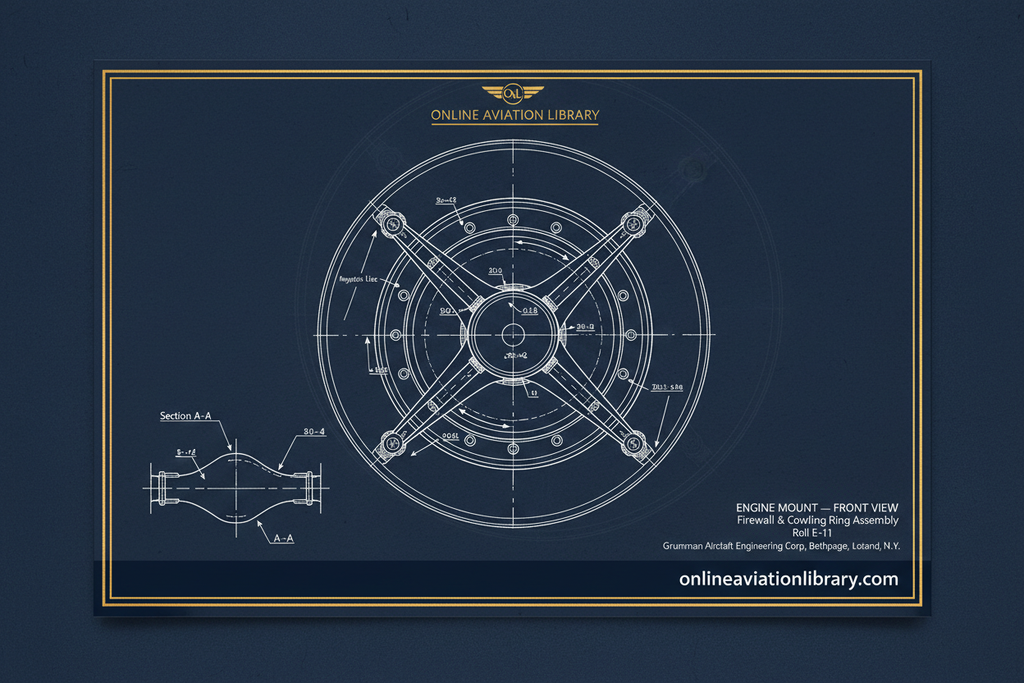

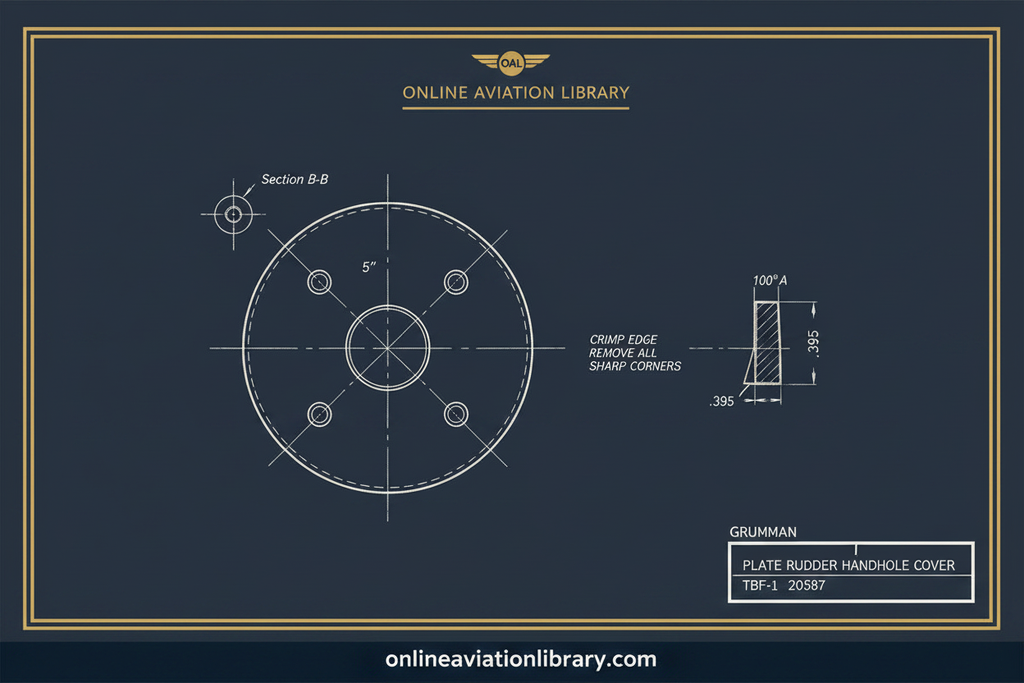

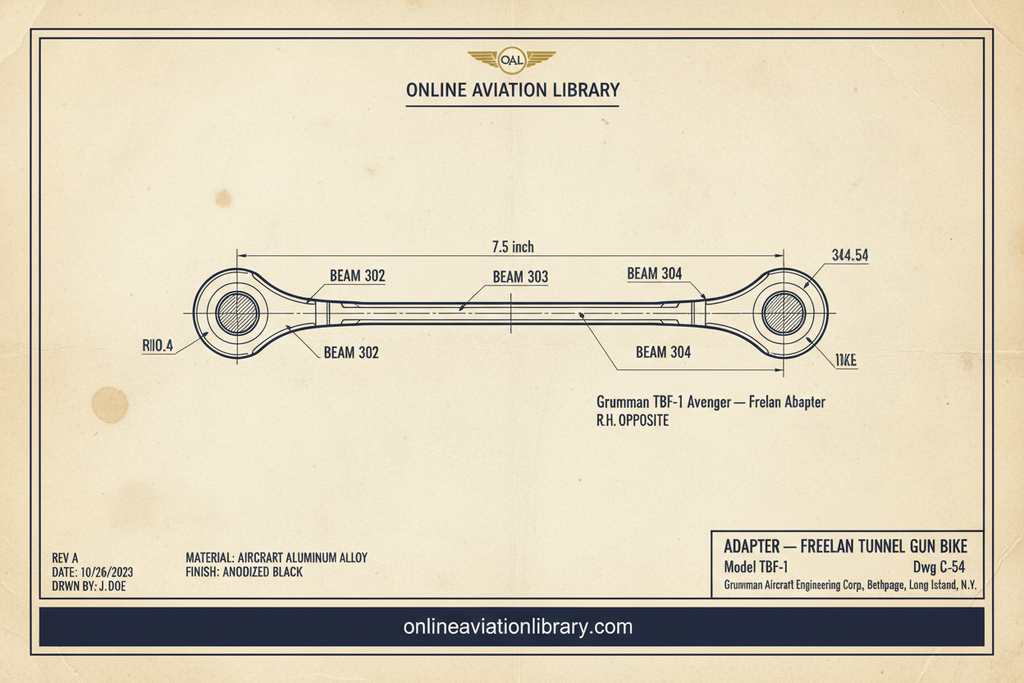

• Airframe Engineering Drawings (Blueprints): 6,704 engineering drawing sheets from 11 microfilm reels
• Includes: Index of Drawing Numbers
• File Set: Grumman TBF-TBM Avenger [22.1 GB, 6,704 Files] — Manuals, Rolls A, B, C, D, E, F, XA, XB, XC

Note: This set of engineering drawings is not exhaustive.

1. Aerodynamic Reports

Wartime flight testing and wind-tunnel data from the National Advisory Committee for Aeronautics (NACA) documented the following aerodynamic characteristics of the TBF-1:

• Airfoil Design: High-lift NACA 23015 profile at the root, tapering to NACA 23009 at the wingtips.
• Leading Edge Slots: Fixed aerodynamic slots in the outer wing panels guided clean airflow over the ailerons, reducing tip-stall tendencies and maintaining roll control during high angle-of-attack maneuvers and low-speed carrier approaches.
• Tail Surface Revisions: NACA Wartime Report WRL-702 detailed wind-tunnel investigations of a revised, enlarged horizontal tail surface to eliminate aerodynamic buffeting caused by the aircraft’s thick fuselage and greenhouse canopy.

2. Engine Technical Notes

The TBF-1 was powered by the Wright R-2600-8 Cyclone 14 — a heavy-duty, double-row radial piston engine:

• Model: Wright R-2600-8 Cyclone 14 (14 cylinders, air-cooled)
• Displacement: 2,603 cubic inches (42.6 L)
• Supercharger: Single-stage, two-speed centrifugal blower (gear ratios 7.06:1 and 10.06:1)
• Takeoff Power: 1,700 hp at 2,600 RPM
• Military/Max Power: 1,500 hp at 2,400 RPM at 5,800 ft
• Propeller: 3-blade Hamilton Standard Hydromatic (or early Curtiss Electric cuffed units), 16:9 reduction gear ratio

3. Handling and Stability Studies

Initial flight tests of the XTBF-1 prototypes revealed CG deficiencies and poor directional stability. Two permanent structural corrections were engineered:

• Engine Relocation: The R-2600 engine was shifted 11 inches forward to re-balance the center of gravity.
• Dorsal Fin Extension: A swept dorsal fin fillet was added to the upper fuselage spine to stabilize yaw.
• Pilot Feedback: Official U.S. Navy evaluations described the aircraft as exceptionally stable — “flying like a truck” — providing a steady platform for precise torpedo drops and night bombing operations.

4. Performance Data Sheets

Per the official U.S. Navy Standard Aircraft Characteristics Performance Sheets, a fully loaded TBF-1:

5. Engineering Bulletins

• The “P-K Avenger” Disassembly: Bulletins detailed a special model built with Parker-Kalon sheet-metal screws, used as a master engineering template to help General Motors’ Eastern Aircraft Division convert auto plants to TBM production.
• Wing Rivet Redesign: Urgent bulletins addressed structural wing failures in GM-built variants traced to altered rivet alignments. Engineering directives enforced a strict return to Grumman’s original blueprint strength requirements.
• Hydraulic Subsystem Upgrades: Modifications detailed updates to the landing gear, bomb bay doors, and wing-folding mechanisms — managing hydraulic pressure stresses during carrier catapult launches and arrested landings.

⚠️ Regulatory Notice: Under FAA 14 CFR § 43.13 and EASA Part-M, any mechanic performing maintenance on an active aircraft must use current, manufacturer-approved revision-controlled data. This archival document does not satisfy that requirement.

This is an archival, static-copy edition fixed at its original publication date. Intended for historical reference, flight simulation, museum restoration, and educational use only. Not approved for active airworthiness maintenance under FAA 14 CFR § 43.13, EASA Part-M, or equivalent international regulations. Operators of active aircraft must use current, revision-controlled publications from the Type Certificate holder or an authorized distributor.
