Grumman Goose JRF-4 / JRF-5 / JRF-6B Aircraft Engineering Blueprints Collection
Comprehensive collection of approximately 1,800 authentic engineering drawings for the Grumman Goose JRF-4, JRF-5, and JRF-6B variants, transferred from original microfilm archives. This documentation originates from a Florida-based company specializing in Grumman Goose PT-6 turbine engine conversions and STC certification work.
Definitive Collection with Free Lifetime Updates
This is a living collection that we continuously expand and refine. As we acquire additional Grumman Goose documentation, technical drawings, or variant-specific materials, we update this collection and provide free lifetime updates to all purchasers. Your one-time purchase guarantees permanent ownership and access to all future additions and improvements to this collection.
Historical Note
The Grumman G-21 Goose holds a distinguished place in aviation history as one of the most versatile and beloved amphibious aircraft ever built. First flown in 1937, the Goose was originally designed as a luxurious eight-seat "commuter" aircraft for wealthy businessmen traveling between New York and their Long Island estates. However, its exceptional amphibious capabilities, rugged construction, and reliability quickly caught the attention of military planners worldwide.
During World War II, the Goose proved indispensable in both the Atlantic and Pacific theaters. The U.S. Navy and Coast Guard operated hundreds of JRF variants for anti-submarine patrol, air-sea rescue, transport, and utility missions. The aircraft's ability to operate from water, land, or ice made it invaluable in the Aleutian Islands campaign, where it rescued downed airmen from frigid waters and delivered supplies to remote outposts. Countless Allied aircrew owed their lives to Goose aircraft that plucked them from the ocean after ditching or being shot down.
The JRF-4, JRF-5, and JRF-6B variants represented progressive improvements in equipment, engines, and mission capability. Production continued throughout the war, with Grumman delivering over 345 Goose aircraft to military operators between 1937 and 1945.
Following the war, surplus Goose aircraft found enthusiastic civilian buyers and enjoyed a remarkable second career. Bush pilots in Alaska and Canada prized the Goose for its ability to reach remote communities accessible only by water. Today, the Grumman Goose remains highly sought after by collectors and operators, with dozens still flying worldwide, many upgraded with modern PT-6 turbine engines for improved performance and reliability.
Blueprints Included in This Collection
- Approximately 1,800 authentic engineering drawings
- Fuselage structure and assembly drawings

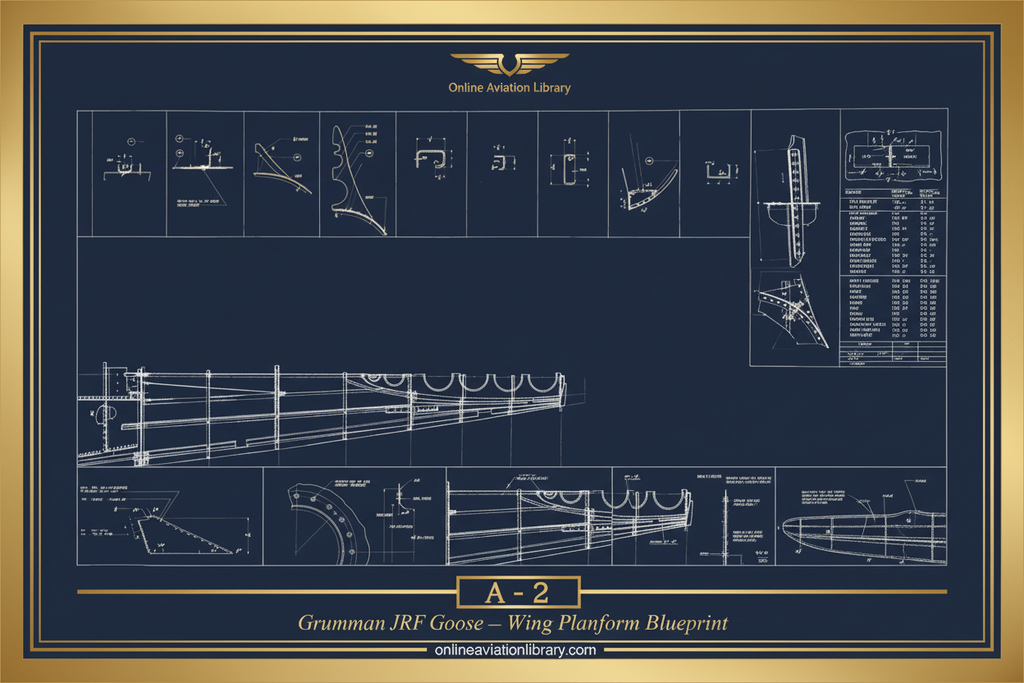

- Wing construction and spar details
- Empennage and control surfaces
- Landing gear systems and hull structure
- Engine mounts and nacelle assemblies
- Cockpit and cabin layouts
- Electrical and hydraulic system routing
- Hardware specifications and installation details
- Assembly sequences and manufacturing notes
This documentation originates from a Florida company specializing in Grumman Goose PT-6 turbine conversions and STC certification work, providing authentic technical specifications and construction details essential for accurate restoration and modification projects.
Engineering Norms and Standards
Documentation reflects U.S. Navy Bureau of Aeronautics specifications, Grumman Aircraft engineering practices from the 1937-1945 production period, and military technical requirements for amphibious operations.
Format and Delivery
Digital download via secure cloud link. High-resolution PDF format, organized for easy navigation and reference. Transferred from original microfilm archives.
