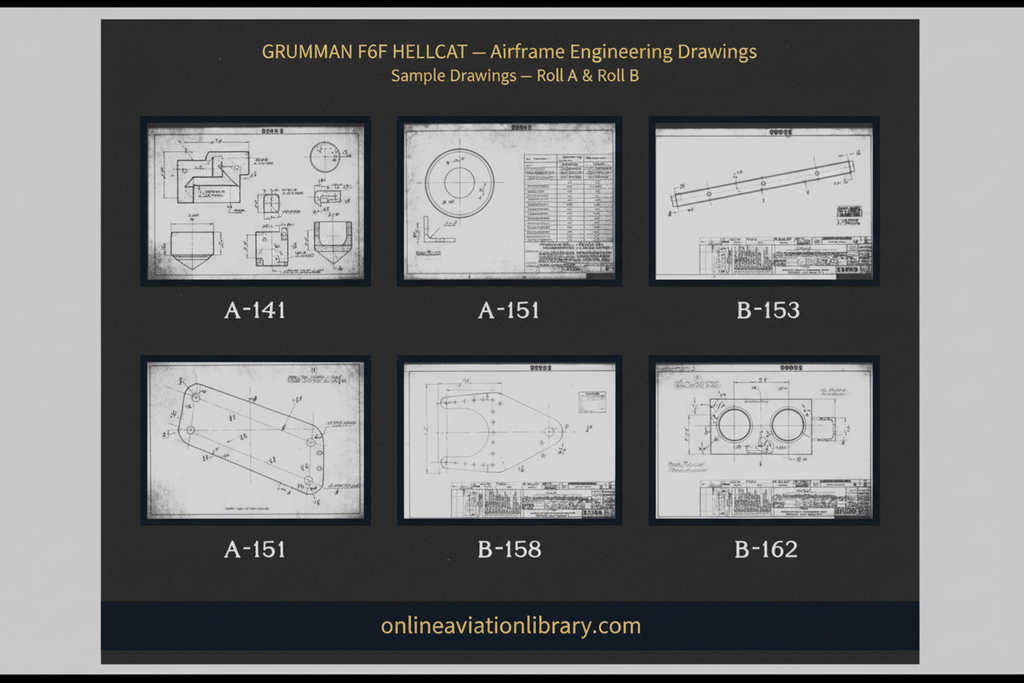

Grumman F6F Hellcat — Airframe Engineering Drawings
6,300+ Engineering Drawing Sheets | 12 Microfilm Rolls | TIFF Graphic Format

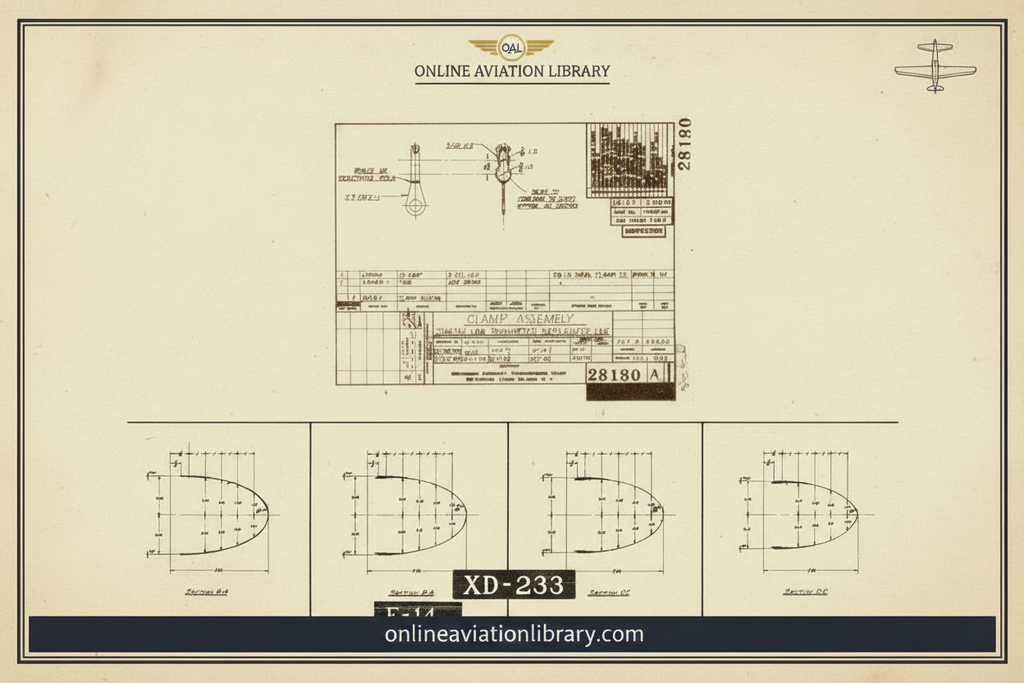

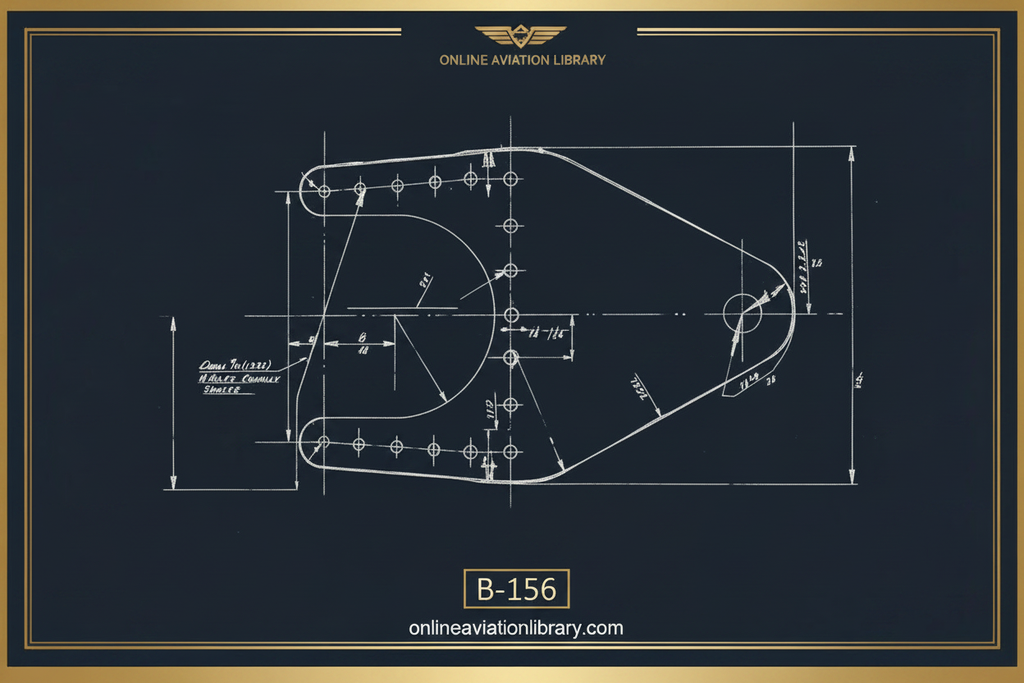

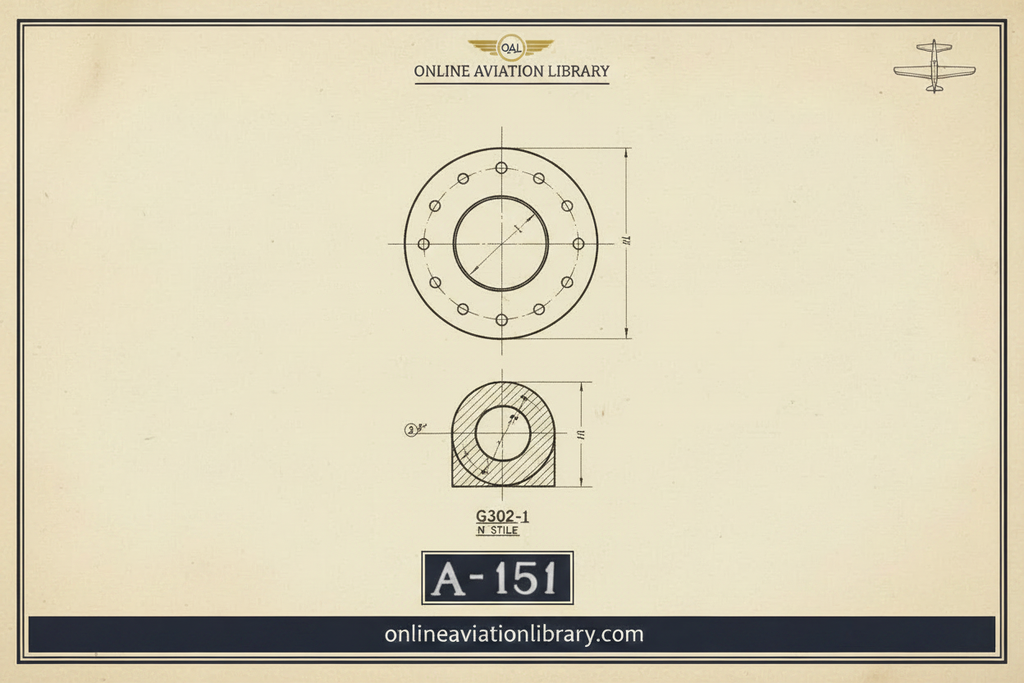

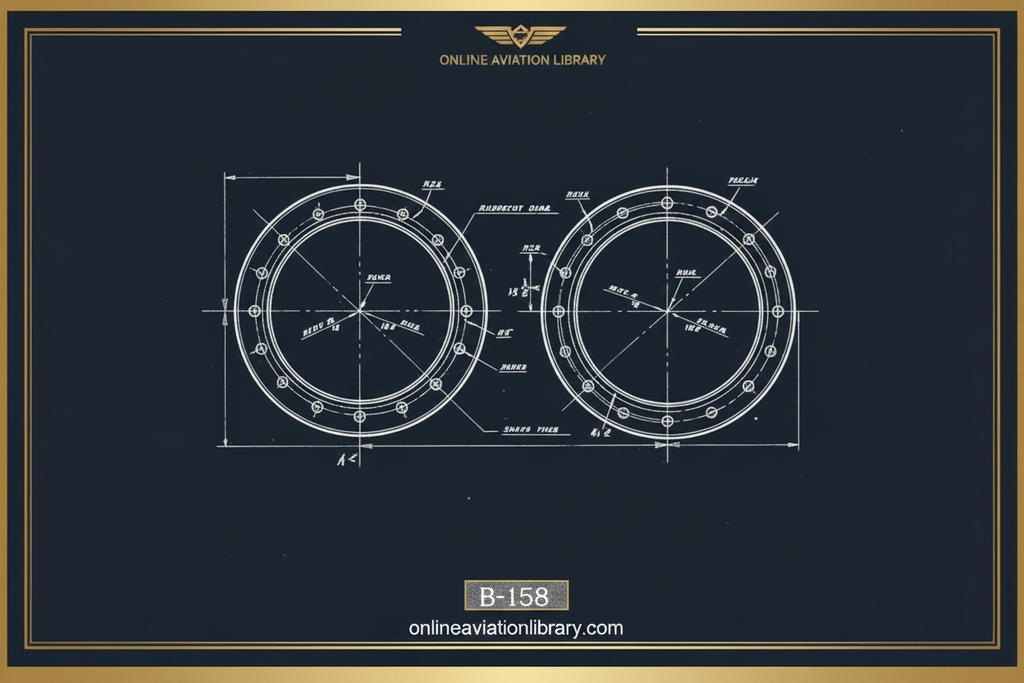

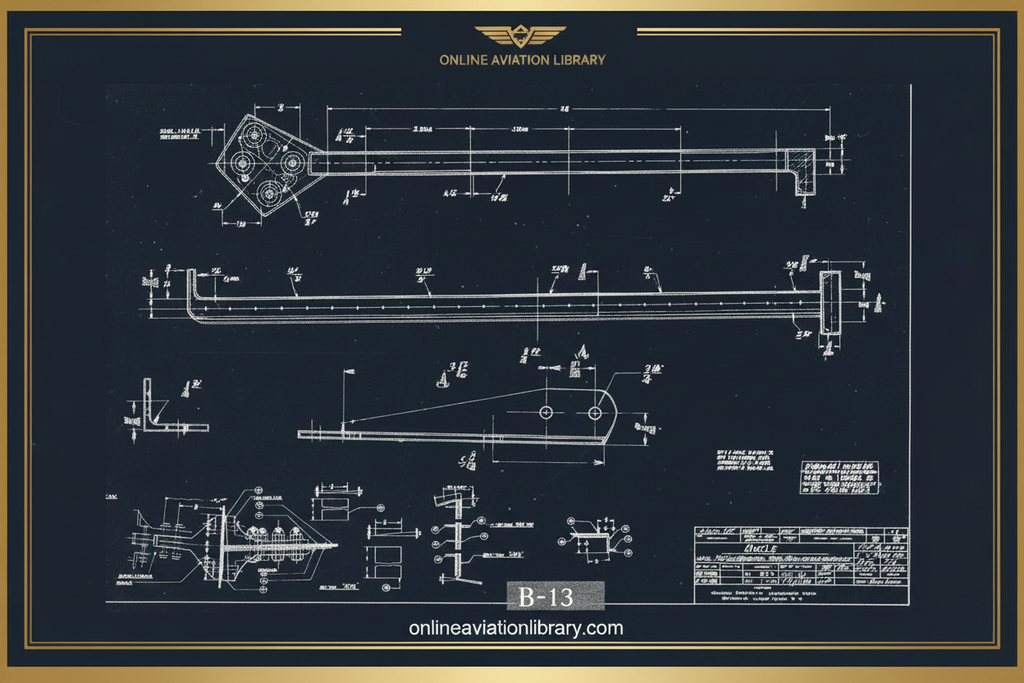

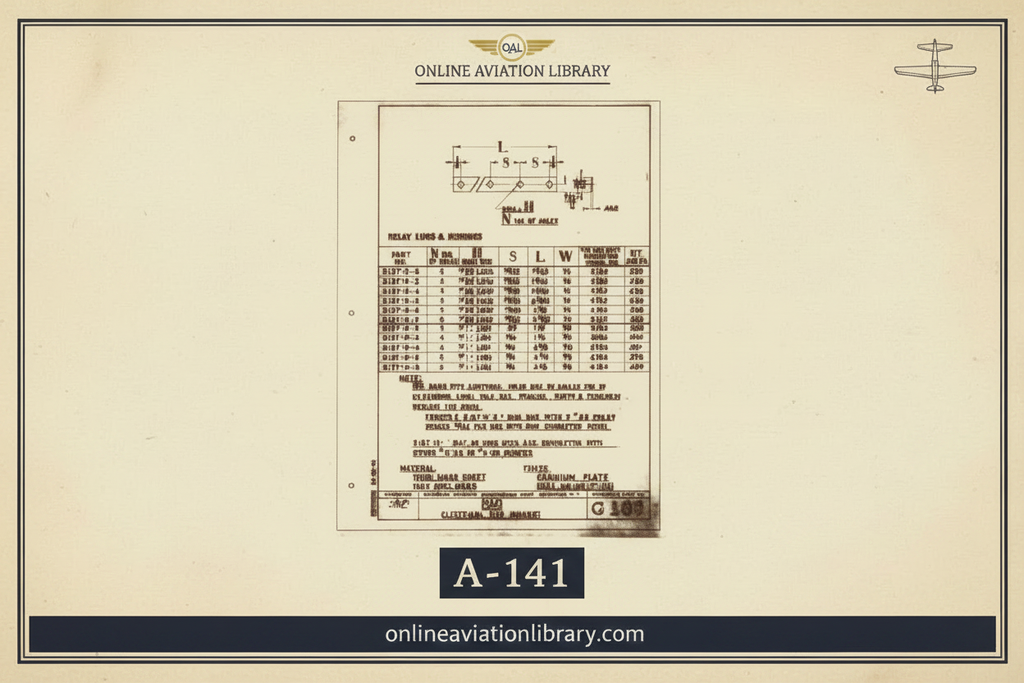

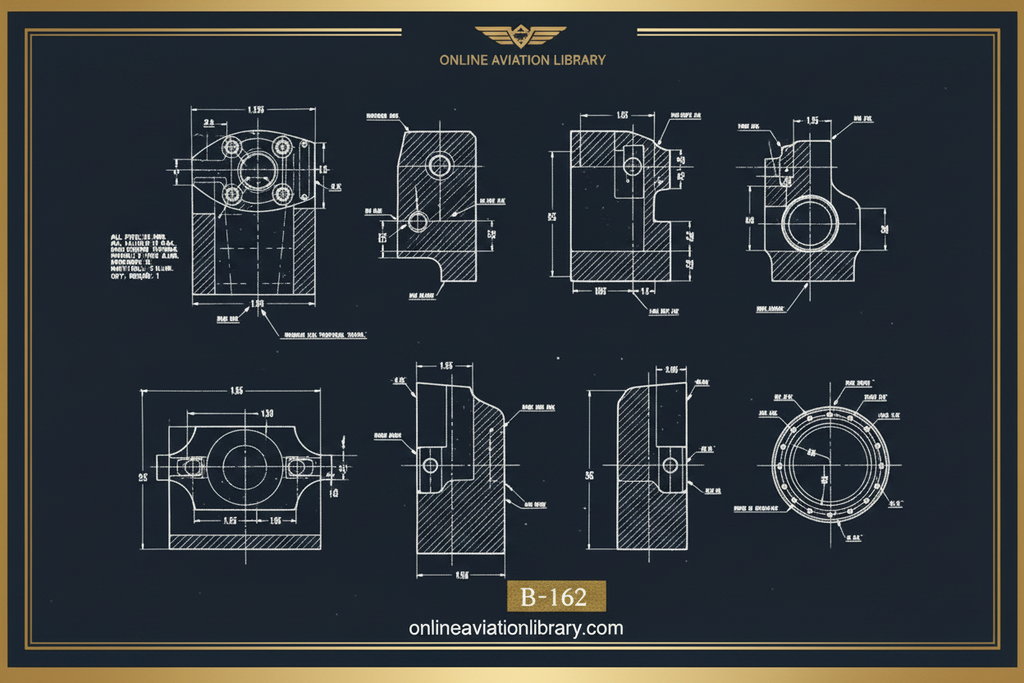

This archival set presents over 6,300 engineering drawing sheets sourced from 12 original microfilm rolls of Grumman F6F Hellcat factory documentation, converted first to microfilm and subsequently digitised to high-resolution TIFF format. Rolls covered: XA, XB, XC, XD, XE, XF, XG, A, B, C, D, E.
Note: This set is not exhaustive of all F6F documentation in existence. It represents the archival holdings digitised from these specific microfilm rolls.
Aerodynamic Engineering

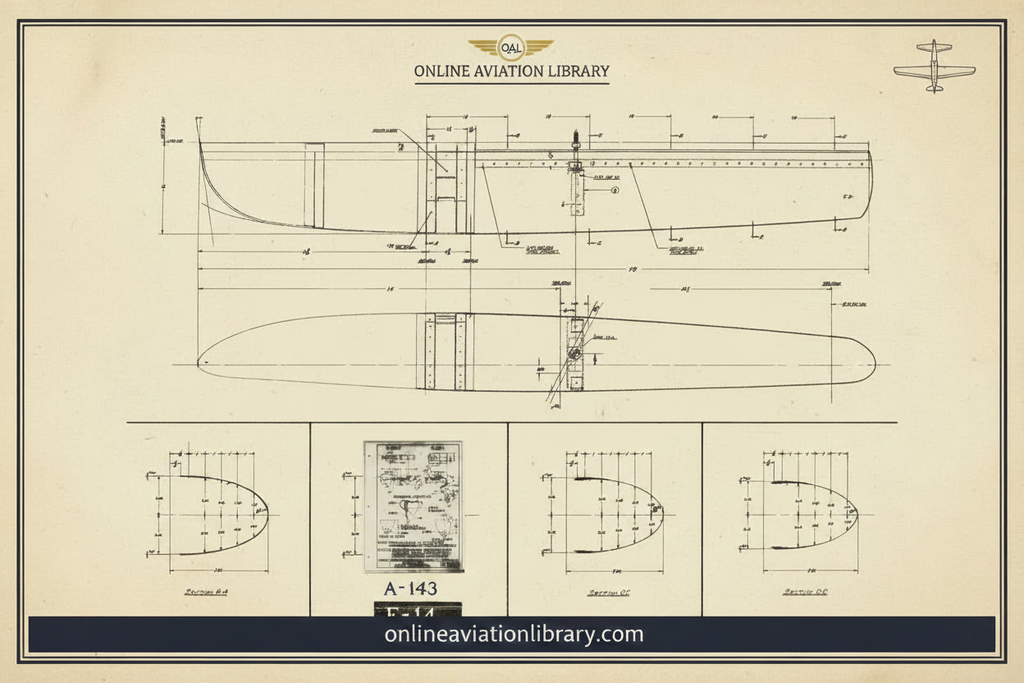

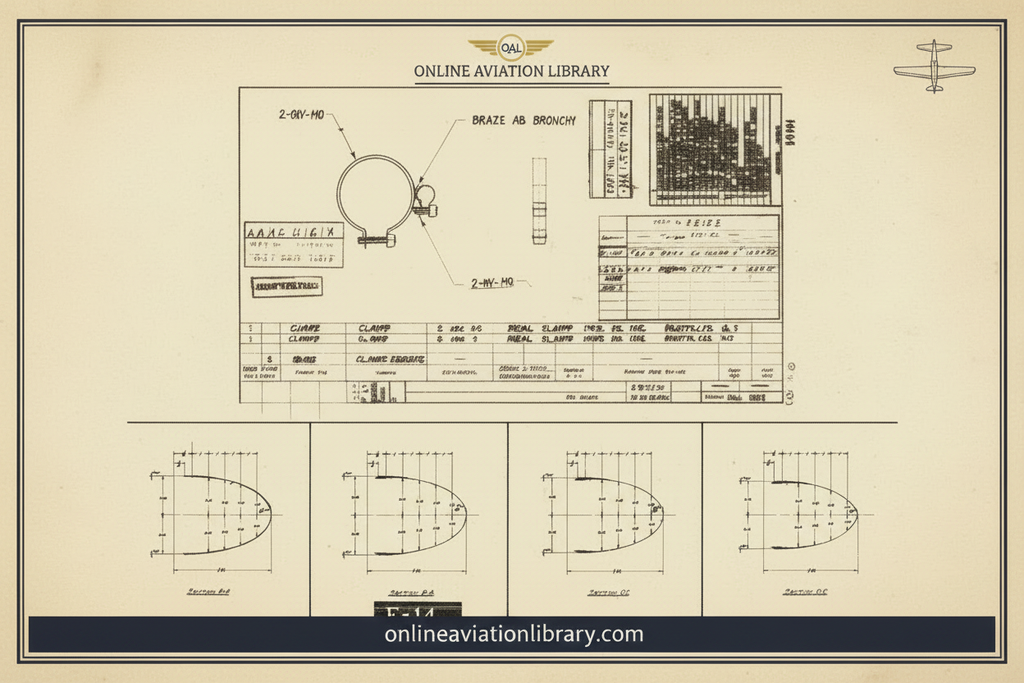

Wartime aerodynamic evaluations focused on minimising profile drag from the Hellcat's large fuselage cross-section and optimising its massive square-plan wings. Wing Ordinate Data Drawings trace exact X, Y, and Z coordinate metrics shaping the wings from the 35% chord line to the tips. Wind tunnel data drove aerodynamic revisions between early and late production lines — early F6F-3 variants carried protruding fairings over wing-mounted machine guns and forward antenna masts, later eliminated to smooth airflow. The Hellcat's wing area — the largest among contemporary single-engine fighters — delivered exceptional low-speed lift at the cost of parasitic drag, requiring a unique 3-degree positive wing angle relative to the thrust line.
Engine Technical Notes — Pratt & Whitney R-2800 Double Wasp
The F6F series was powered exclusively by variants of the Pratt & Whitney R-2800 Double Wasp — an 18-cylinder, two-row air-cooled radial delivering 2,300 lbs of engineering excellence. The base R-2800-10 produced 2,000 BHP at 2,700 RPM at takeoff; R-2800-10W variants with water injection reached approximately 2,200 hp at 60" Hg manifold pressure in emergency combat conditions. A complex two-stage, two-speed auxiliary supercharger system is documented in the Hellcat FN360 Performance Logs, including notes on manifold pressure variations shared with the F4U Corsair due to the auxiliary butterfly control capsule system.
Handling & Stability Studies
The F6F was renowned as an exceptionally stable platform — ideal for rapidly trained wartime pilots. The initial F6F-3 suffered from excessive longitudinal stability: pitch was rigid and unassisted ailerons were notoriously heavy above 200 knots. The F6F-5 introduced trailing-edge aileron spring tabs, using air pressure forces to deflect control surfaces automatically and dramatically improving roll rate at high speed. In contrast to the F4U Corsair, the Hellcat's benign stall characteristics and excellent low-speed forward visibility made it the preferred carrier landing platform of the war.
Performance Data — F6F-3 & F6F-5
| Metric | F6F-3 | F6F-5 |
|---|---|---|
| Gross Operational Weight | 11,506 lbs | ~12,500 lbs |
| Maximum High Speed | 379 mph @ 23,500 ft | 380–386 mph @ 23,400 ft |
| Sea Level Velocity | 312 mph | 311–320 mph |
| Maximum Rate of Climb | 2,330–2,500 FPM | 2,980–3,410 FPM |
| Service Ceiling | 36,400 ft | 37,300 ft |
| Power-Off Stall Speed | 78.4 mph | ~80.0 mph (~73 KIAS) |
Source: Grumman Aircraft Engineering Corporation Report No. 2422B and Standard Aircraft Characteristics data.
Engineering Bulletins & Field Modifications
Factory directives and field modification sheets documented in this set include: Quick Engine Change (QEC) module standardisation allowing complete power plant swaps as a single assembly; mid-production deletion of lower cowl flaps retaining only two upper cowl flaps; and tail structure reinforcement bulletins ordering a strengthened empennage to withstand high-G stress loads following structural testing.
Production History & Surviving Aircraft
A total of 12,275 Grumman F6F Hellcats were built during World War II, making it one of the most prolific carrier fighters of the conflict. Today, only approximately 30 to 50 airframes survive globally — and of those, just three to six remain fully airworthy. The remainder are either on static display in museums or undergoing lengthy restorations.
The original wartime unit cost to the U.S. government was approximately $35,000 per aircraft by 1945 (flyaway cost, including factory-installed armament and the Pratt & Whitney engine). Initial production contracts were priced closer to $50,000, with assembly-line efficiencies driving the cost down over the production run.
Today, restored airworthy F6F Hellcats command $2,500,000 to over $4,000,000 on the warbird market. Collector value is driven by airframe originality, documented combat history, and restoration quality — making these among the most coveted WWII warbirds in existence.
The engineering drawings in this collection represent the factory-level technical foundation of every one of those 12,275 aircraft — the precise dimensional data, structural specifications, and systems documentation from which each Hellcat was built.
This is an archival, static-copy edition fixed at its original publication date. Intended for historical reference, flight simulation, museum restoration, and educational use only. Not approved for active airworthiness maintenance under FAA 14 CFR § 43.13, EASA Part-M, or equivalent international regulations. Operators of active aircraft must use current, revision-controlled publications from the Type Certificate holder or an authorised distributor.
⚠️ Regulatory Notice: Under FAA 14 CFR § 43.13 and EASA Part-M, any mechanic performing maintenance on an active aircraft must use current, manufacturer-approved revision-controlled data. This archival document does not satisfy that requirement.
