Fieseler Fi 156 “Storch” — Original Engineering Construction Drawings Archive

Fieseler Werke GmbH, Kassel — Digital Structured Edition, 2026

The Aircraft

The Fieseler Fi 156 Storch is one of the most legendary aircraft of the Second World War — a masterpiece of STOL (Short Take-Off and Landing) engineering that has never been surpassed in its class. Designed in 1935 by Gerhard Fieseler, Reinhold Mewes, and Erich Bachem in response to a German Air Ministry requirement for a versatile liaison aircraft, the prototype Fi 156 V1 first flew on 24 May 1936. Its full-span leading-edge slats and large slotted flaps gave it a stall speed of just 50 km/h (31 mph) — allowing take-off in 45 m (150 ft) and landing in just 18 m (60 ft) with a slight headwind.

Generals including Erwin Rommel relied on the Storch daily for battlefield coordination and troop reconnaissance. Its most celebrated missions remain two of the most daring flights of the entire war: the 1943 Gran Sasso rescue of Benito Mussolini from a mountain-top prison, and test pilot Hanna Reitsch’s April 1945 landing near the Brandenburg Gate in besieged Berlin under heavy fire.

Approximately 2,900 were built between 1937 and 1949. Production was later licensed to Morane-Saulnier in France (M.S. 500 Criquet) and to Czechoslovakia (Mráz K-65 Čáp). Today, only approximately 4 original airworthy Fieseler-built examples survive worldwide, with an estimated 30 total flying examples including licensed variants. Authentic restored warbirds command between $450,000 and $600,000 on the open market — a direct reflection of their irreplaceable historical and engineering significance.

Technical Data — Fi 156 C-2

• Crew: 2–3 (pilot, observer, optional rear gunner)
• Length: 9.9 m (32 ft 6 in)
• Wingspan: 14.25 m (46 ft 9 in)
• Height: 3.03 m (10 ft)
• Max Takeoff Weight: 1,317 kg (2,904 lbs)
• Powerplant: 1 × Argus As 10C-3, air-cooled inverted V8, 240 hp
• Maximum Speed: 175 km/h (109 mph)
• Cruising Speed: 150 km/h (93 mph)
• Range: 380–400 km (235–250 miles)
• Service Ceiling: 5,270 m (17,300 ft)
• STOL Performance: Take-off in 45 m · Landing in 18 m · Stall speed 50 km/h

The Archive — What This Collection Contains

This is a professionally structured digital archive of original Fieseler Fi 156 engineering construction drawings, digitised from physical originals at 300 DPI and reclassified using modern engineering methodology.

• 3,242 indexed technical drawing sheets (final verification in progress)
• 78 system groups analysed and classified
• Drawing types: Assembly drawings · Structural drawings · Detail part drawings
• Original German title blocks preserved throughout
• Large-format archival scans at 300 DPI
• Format: TIFF (archival) · Organised digital file structure
• Total archive size: approximately 80–100 GB

Drawing Number Structure

Each drawing is indexed according to the original German drawing number format:

Example: 8.156.17.0301

• 8 → Manufacturer / Project Code (Fieseler)
• 156 → Aircraft Type (Fi 156)
• 17 → System Group
• 0301 → Sequential Component Number

Aircraft System Categories Covered

• LG — Landing Gear

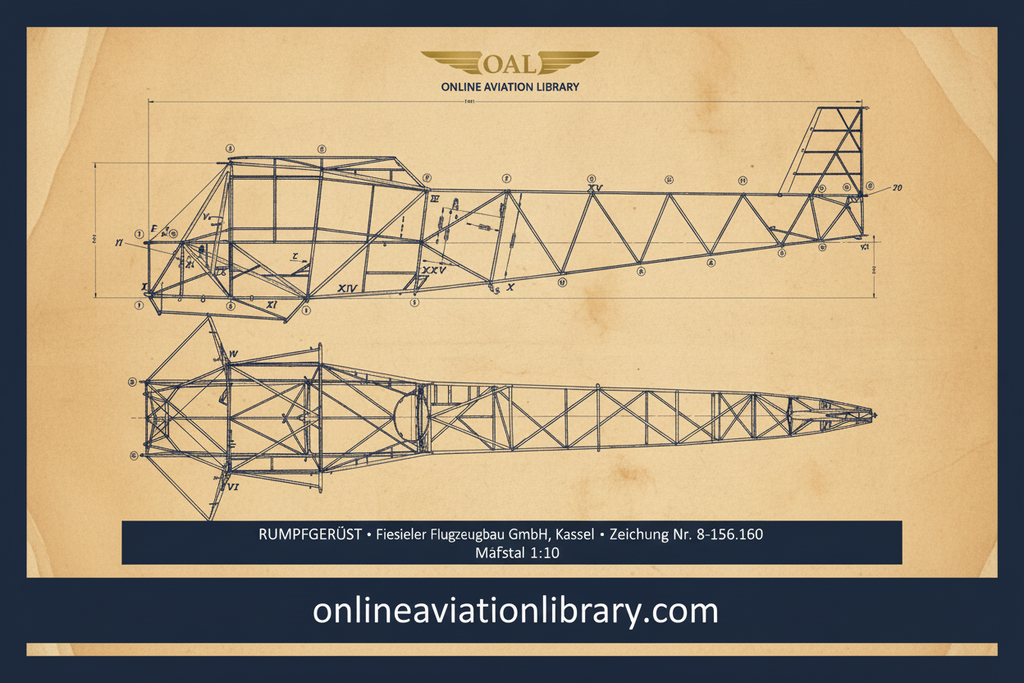

• FW — Fuselage Structure

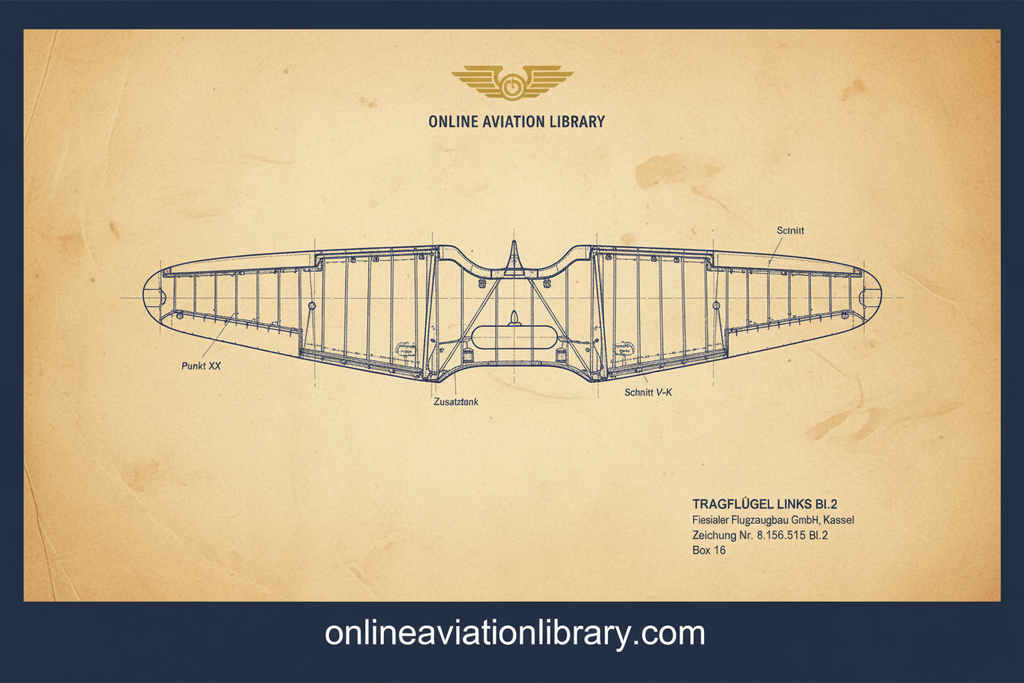

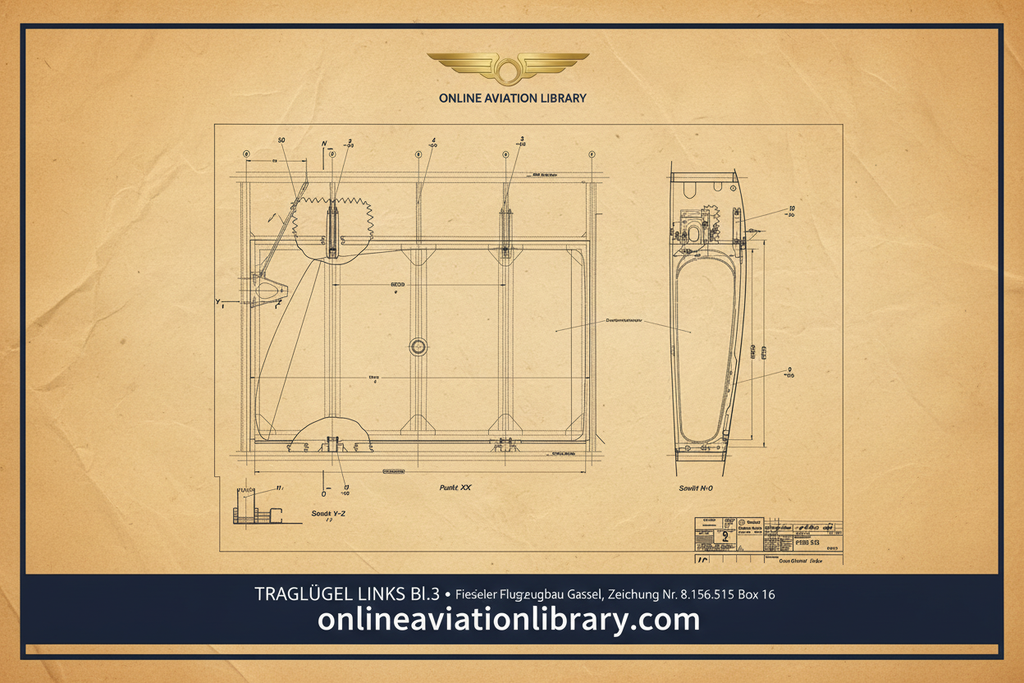

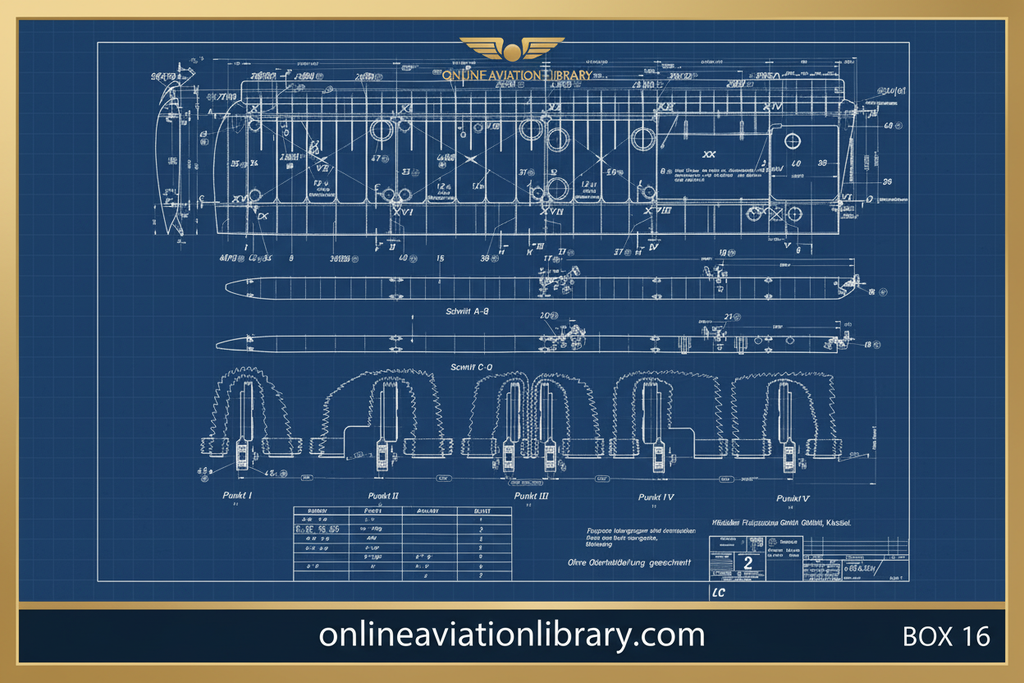

• WG — Wing Structure
• CT — Control System
• EN — Engine Installation
• EL — Electrical System
• IN — Interior Equipment
• HY — Hydraulic Components

Intended Use — Re-Engineering and Manufacture

This archive is specifically suited for re-engineering and manufacture use. With only approximately 4 original airworthy Fieseler-built Storch aircraft surviving worldwide, this drawing archive represents the most authoritative dimensional and structural reference available for anyone engaged in serious restoration, licensed reproduction, or replica manufacturing.

Primary applications:

• Aircraft restoration workshops — dimensional reference for structural components
• Licensed reproduction manufacturing — factory-level engineering data
• Replica builders (Son of Storch, Slepcev Storch) — original geometry reference
• Aviation museums — technical documentation and display accuracy
• Engineering historians and technical collectors
• Professional archival and licensing presentations

Delivery Includes

• Digital archive package — structured folder system
• Archive summary documentation
• Licensed digital copy
• Customer-specific digital watermark identification
• Drawing index with system group classification

Note: All drawings remain intellectual property of the archive holder. Reproduction or redistribution requires written authorisation. Detailed catalogues may be provided under professional agreement.

⚠️ Regulatory Notice: Under FAA 14 CFR § 43.13 and EASA Part-M, any mechanic performing maintenance on an active aircraft must use current, manufacturer-approved revision-controlled data. This archival document does not satisfy that requirement.

This is an archival, static-copy edition fixed at its original publication date. Intended for historical reference, restoration support, re-engineering, licensed reproduction manufacturing, and educational use. Not approved for active airworthiness maintenance under FAA 14 CFR § 43.13, EASA Part-M, or equivalent international regulations. Operators of active aircraft must use current, revision-controlled publications from the Type Certificate holder or an authorised distributor.
