A curator's collection honoring one of Italy's finest fighter aircraft—the FIAT G.55 Centauro. This special archive combines authentic engineering blueprints scanned directly from original paper documents (no microfilm intermediaries) with beautifully rendered CAD/AutoCAD wing structure drawings, offering both historical authenticity and modern technical clarity for this underappreciated masterpiece of Italian aviation engineering.

Definitive Collection with Free Lifetime Updates: This is a living collection that we continuously expand and refine. As we acquire additional FIAT G.55 Centauro engineering drawings, technical documentation, or variant-specific materials, we update this collection and provide free lifetime updates to all purchasers. Your one-time purchase guarantees access to all future additions and improvements to this collection.

Historical Note: The FIAT G.55 Centauro

The FIAT G.55 Centauro (Centaur) stands as one of the most capable and sophisticated fighter aircraft produced by Italy during World War II, yet it remains tragically underrecognized in aviation history. Designed by Giuseppe Gabrielli and first flown in April 1942, the G.55 was powered by the license-built Daimler-Benz DB 605A engine (FIAT RA.1050 RC.58 Tifone) producing 1,475 hp, giving it performance that rivaled contemporary Allied and German fighters. The Centauro featured exceptional handling characteristics, heavy armament (three 20mm MG 151/20 cannons and two 12.7mm Breda-SAFAT machine guns), robust construction, and elegant aerodynamic design. Luftwaffe test pilots who evaluated the G.55 alongside the Macchi C.205 and Reggiane Re.2005 ranked it as the best of Italy's "Serie 5" fighters. Production began in 1943, but Italy's armistice and subsequent civil war limited production to approximately 274 aircraft, split between Aeronautica Nazionale Repubblicana (ANR) units serving with the Axis and a few examples with Co-Belligerent Air Force units supporting the Allies. Post-war, the G.55 served with the Italian Air Force until 1950 and was exported to Argentina and Egypt, where it saw combat during the 1948 Arab-Israeli War. The G.55 Centauro represents the pinnacle of Italian piston-engine fighter design—a sophisticated, powerful, and beautiful aircraft that deserved far greater recognition than history afforded it.

Engineering Drawings Included in This Collection

• Original paper blueprints scanned directly to digital format (no microfilm degradation)
• CAD/AutoCAD wing structure drawings providing modern technical clarity and precision

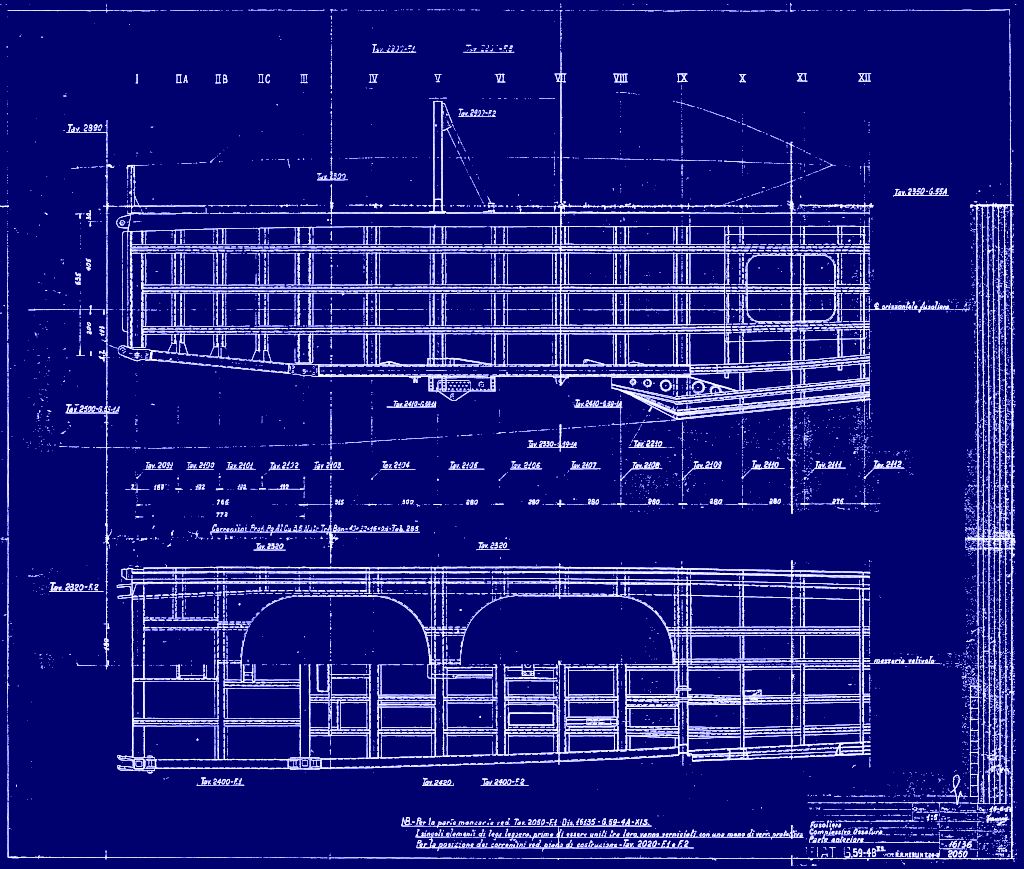

• Airframe structural blueprints and assembly details
• Wing construction, spar arrangements, and aerodynamic profiles
• Fuselage frame and skin attachment specifications
• Control surfaces and actuation systems
• Landing gear assembly and retraction mechanisms
• Engine mounting and cowling configurations
• Cockpit layout and canopy structure
• Technical specifications, dimensions, and component details

This collection combines the authenticity of original paper-sourced blueprints with the technical precision of modern CAD wing drawings, offering researchers, modelers, and historians both historical documentation and contemporary engineering visualization. The direct paper-to-digital scanning preserves original line quality and annotations without the resolution loss typical of microfilm transfers.

Engineering Norms and Standards

These blueprints reflect Italian aviation engineering standards and military specifications from the 1942-1945 production period, including Regia Aeronautica technical requirements, Direzione Generale Costruzioni Aeronautiche (DGCA) specifications, and FIAT Aviazione's rigorous internal engineering practices developed at their Turin facilities. The drawings document the design standards, materials specifications (including extensive use of light alloys and stressed-skin construction), and manufacturing processes that made the G.55 one of the most advanced Italian aircraft of the war. The included CAD wing drawings demonstrate modern reinterpretation of these historical engineering principles.

Special Features of This Collection

Direct Paper-to-Digital Scanning: Unlike many archival blueprints that pass through microfilm intermediaries (with attendant resolution loss and contrast degradation), these drawings were scanned directly from original paper documents, preserving maximum detail, line clarity, and annotation legibility.

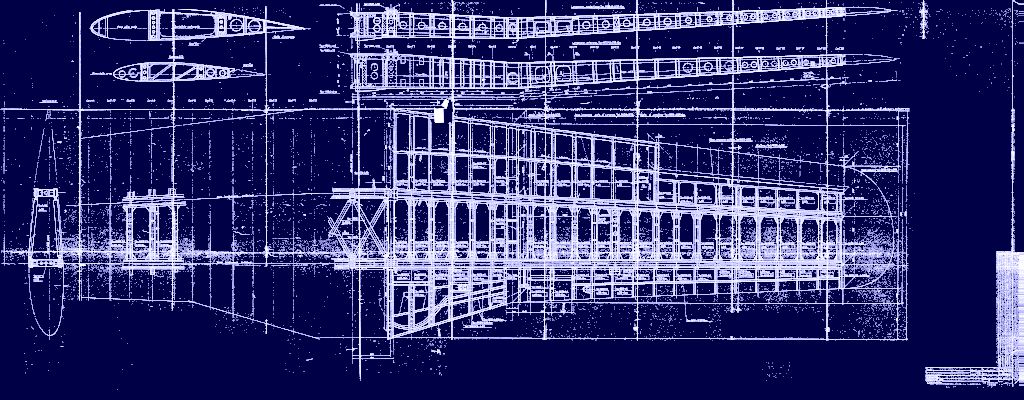

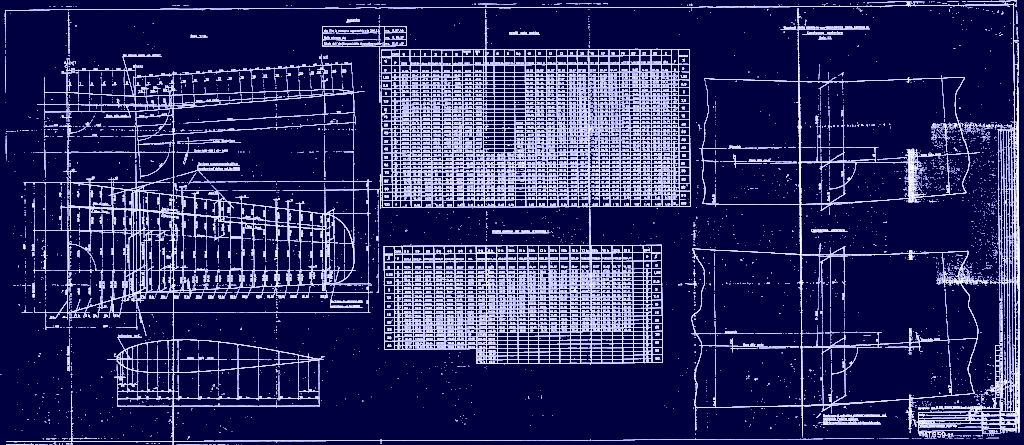

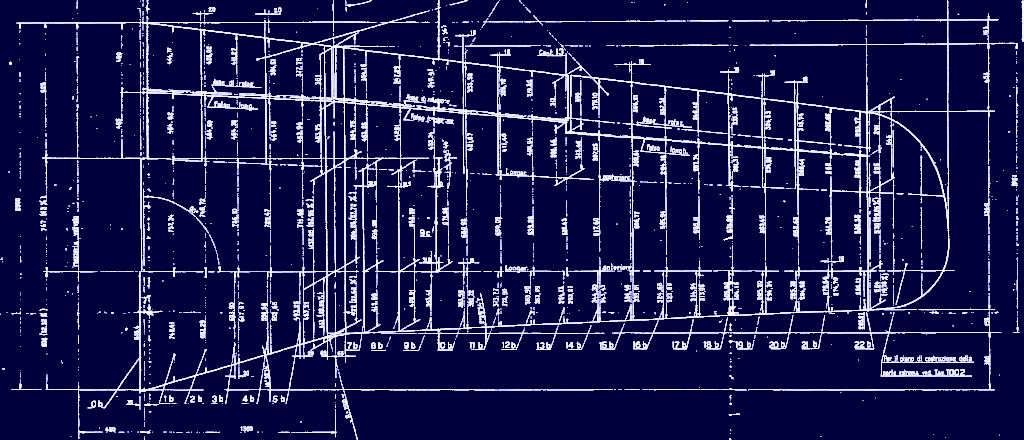

CAD/AutoCAD Wing Drawings: This collection includes beautifully rendered CAD wing structure drawings that complement the historical blueprints. These modern technical illustrations provide clear visualization of wing construction, spar arrangements, rib spacing, and structural load paths—invaluable for scale modeling, engineering study, and understanding the sophisticated aerodynamic design that gave the Centauro its exceptional performance.

Underappreciated Masterpiece: While the global marketplace may not fully recognize Italian WWII aviation, this collection preserves the engineering legacy of one of the war's finest fighters. For enthusiasts of Italian aviation history, the G.55 represents a passion project—a tribute to Giuseppe Gabrielli's genius and Italy's aeronautical excellence.

Format and Delivery

• Format: High-resolution PDF files including original scanned blueprints and CAD/AutoCAD wing drawings (compressed in RAR archive)
• Scanning Source: Direct paper-to-digital (no microfilm intermediary)
• Delivery: Instant digital download upon purchase
• Extraction: Files are compressed in RAR format. Free extraction software available at rarlab.com
• Compatibility: Works on all devices with PDF reader software
• Print Quality: Suitable for large-format printing for detailed study and modeling reference

Disclaimer: This item is sold for historical and reference only. These are either original or copies of manuals and blueprints used when these aircraft were in active duty, now transferred into electronic format. These manuals and blueprints are not meant to be used for current update material for certification/repair, but make an excellent reference for the scholar, collector, modeler or aircraft buffs. For proprietary reasons, we generally only provide civil manuals and blueprints on obsolete aircraft/engines/helicopters. The information is for reference only, and we do not guarantee the completeness, accuracy or currency of any manuals.

Reference herein to any specific commercial products by trade name, trademark, manufacturer, or otherwise, is not meant to imply or suggest any endorsement by, or affiliation with that manufacturer or supplier. All trade names, trademarks and manufacturer names are the property of their respective owners.

This digital compilation, structure, indexing and presentation are © Sicuro Publishing.
