The Fairchild Ranger L-440 / 6-440 was the primary powerplant for thousands of American and Allied basic trainers during World War II, most notably the Fairchild PT-19 and PT-26 Cornell. This structured collection brings together the essential service, overhaul, parts, and operating manuals for all major variants of this legendary inverted in-line engine, providing restorers, A&P mechanics, and warbird enthusiasts with the technical foundation needed for maintenance, restoration, and historical research.
Definitive Collection with Free Lifetime Updates: This is a living collection that we continuously expand and refine. As we acquire additional Fairchild Ranger documentation, technical bulletins, or variant-specific materials, we update this collection and provide free lifetime updates to all purchasers. Your one-time purchase guarantees access to all future additions and improvements to this collection.
Historical Note
The Fairchild Ranger L-440 (also designated 6-440C) was certificated in July 1939 by the Ranger Aircraft Engine Division of the Fairchild Engine and Airplane Corporation. The design evolved from the Cirrus air-cooled, in-line engine of 1928, specifically succeeding the earlier Ranger 6-410 model. With its distinctive inverted in-line configuration—six cylinders arranged upside-down to improve pilot visibility—the Ranger became one of the most important training engines of World War II.
During the war, over 15,000 Ranger L-440 and 6-440C engines were built, powering the Fairchild PT-19, PT-26 (Cornell), UC-61 (Forwarder), and UC-86 military trainers that trained thousands of Allied pilots. The engine was also used in civilian aircraft including the Fairchild 24R, Grumman G-44 Widgeon, and various light aircraft. Key variants included the 6-440C-2 (L-440-1) producing 175 hp at 6:1 compression, the 6-440C-3 at 180 hp with 6.2:1 compression, and the high-performance 6-440C-5 (L-440-5) delivering 200–220 hp at 7.5:1 compression on 87 octane fuel.
After the war, surplus Ranger engines found new life in private aviation and were notably repurposed for dirt track and drag racing cars during the 1950s and 1960s. Today, the Ranger L-440 / 6-440 remains airworthy in vintage Fairchild PT-19, PT-26, and Fairchild 24R aircraft maintained by collectors and museums worldwide, representing an important chapter in aviation training history.
Manuals Included in This Collection

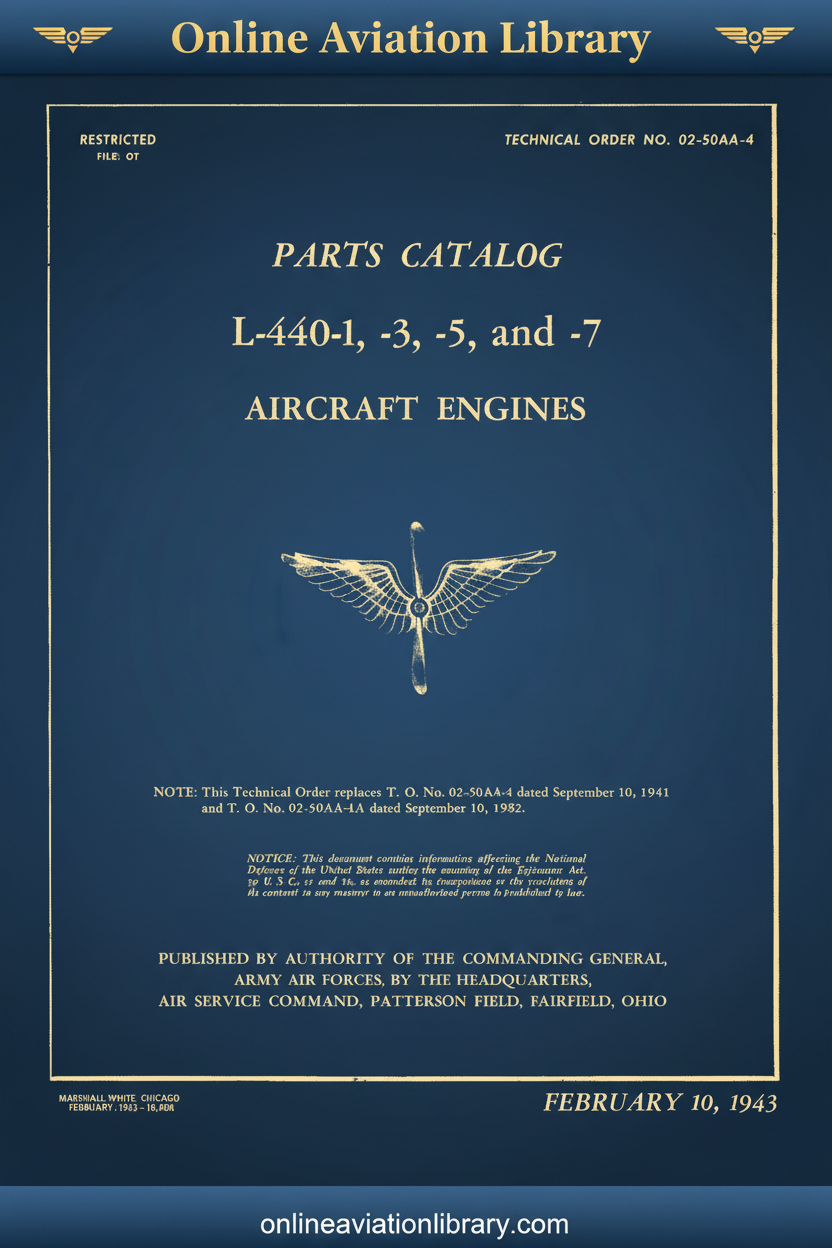

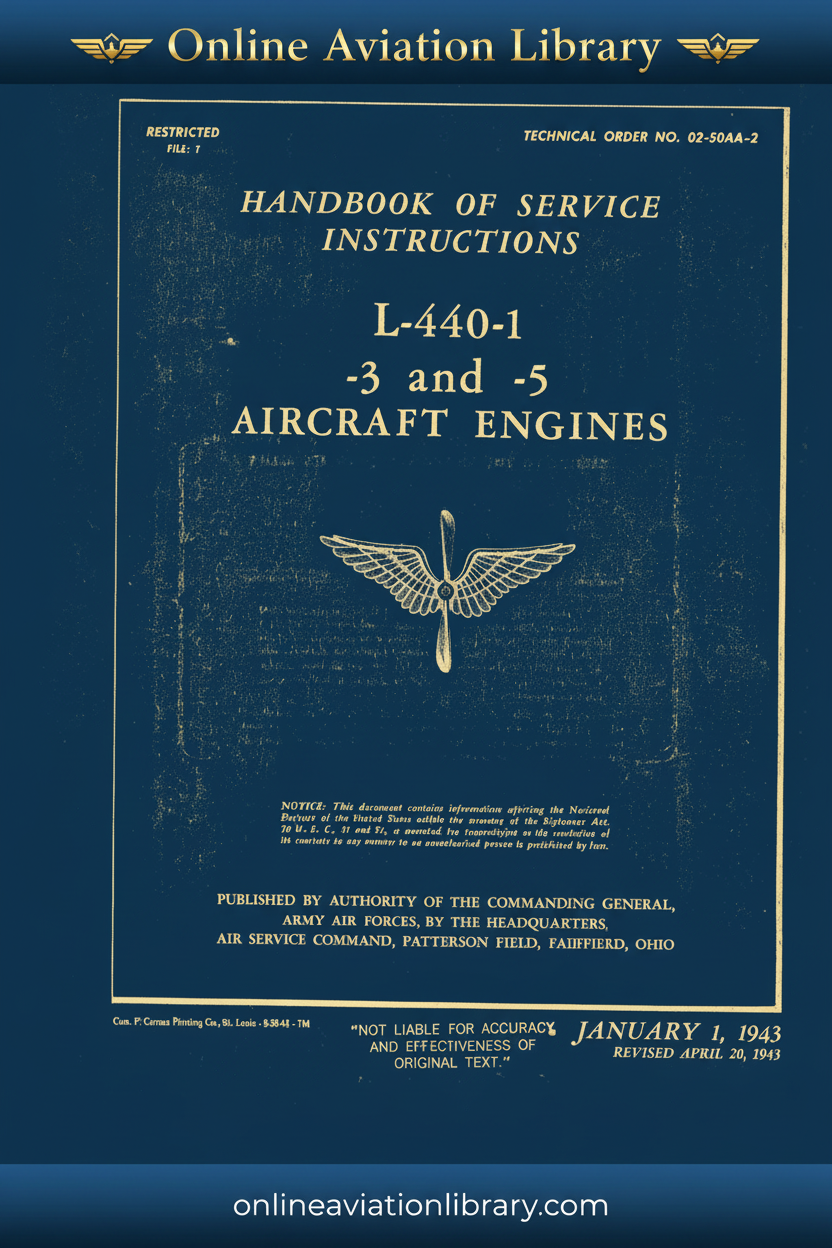

- Ranger L-440 C-1 -3 -7 Aircraft Engine Parts Catalog Manual - 1943

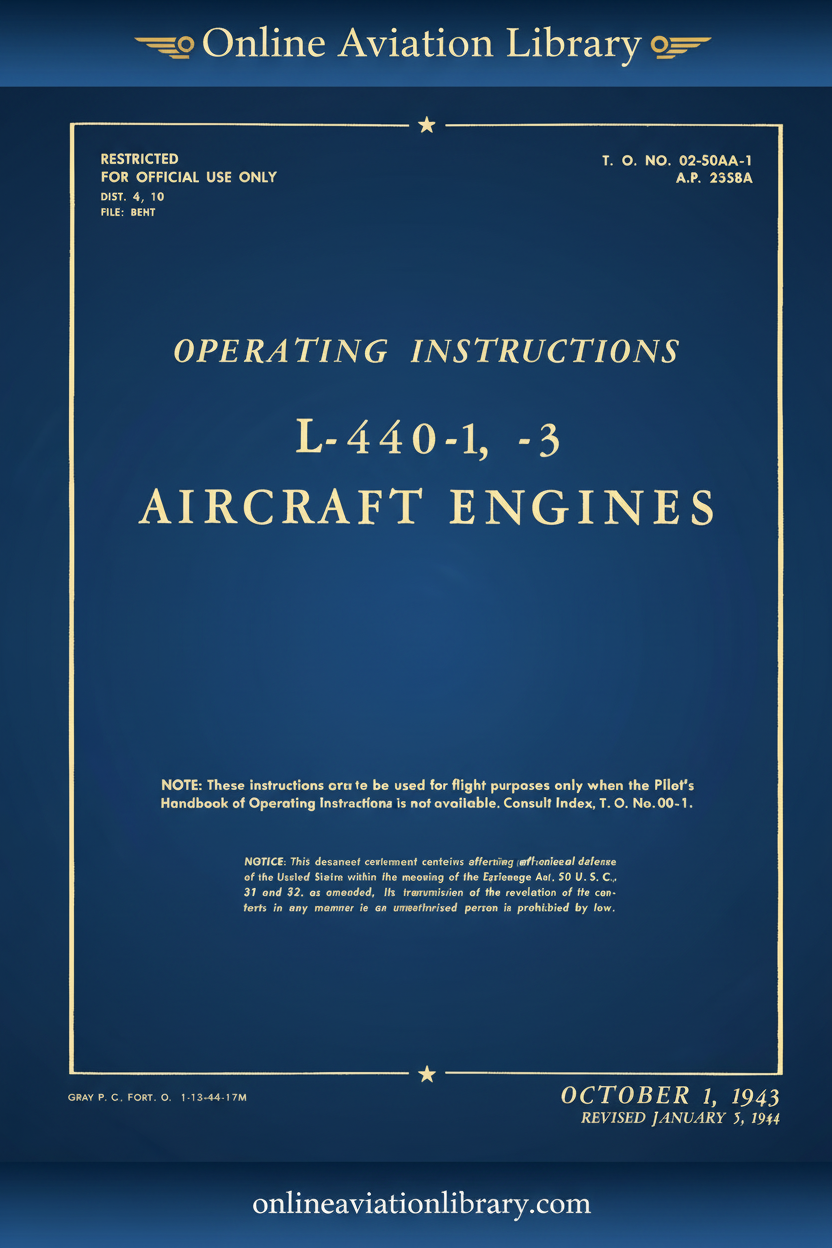

- Ranger L-440 C-1 -3 Aircraft Engine Operating Manual - 1944
- Ranger L-440 C-1 -3 -5 -7 -9 -11 Aircraft Engine Overhaul Manual - 1944
- Ranger L-440 C-1 -3 -5 Aircraft Engine Maintenance Manual - 1943

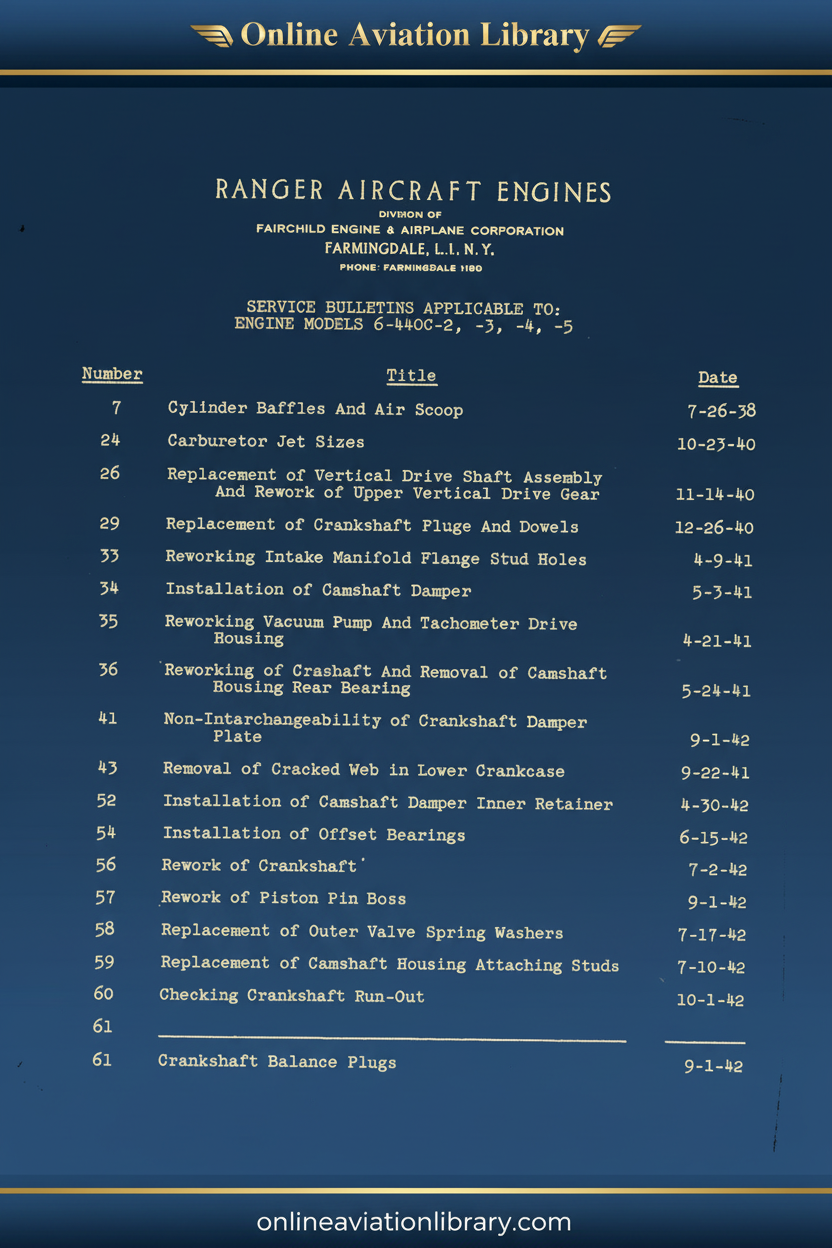

- Ranger 6-440 C-2 -3 -4 -5 Aircraft Engine Service Bulletins Collections Manual

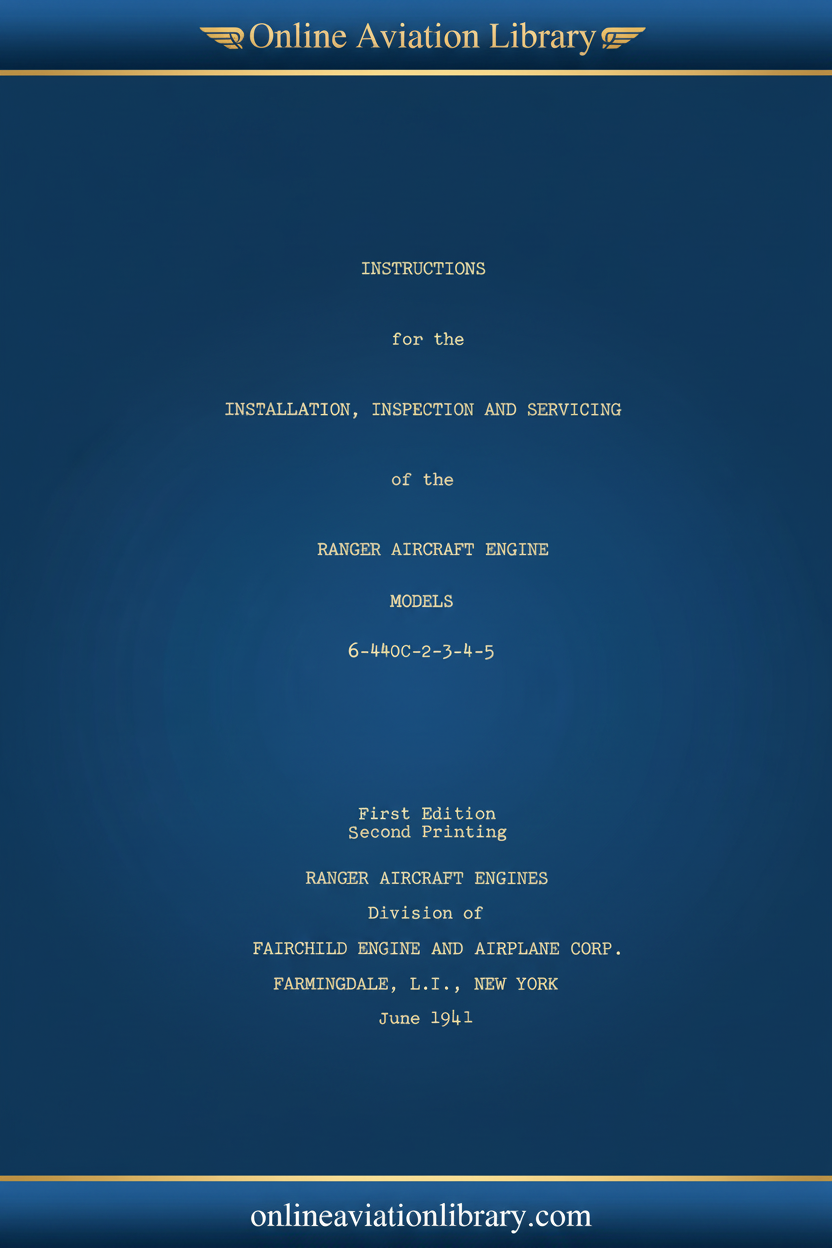

- Ranger 6-440 C-2 -3 -4 -5 Aircraft Engine Service Manual - 1941
- Ranger 6-440 C-2 -3 -4 -5 Aircraft Engine Operating Maintenance Manual

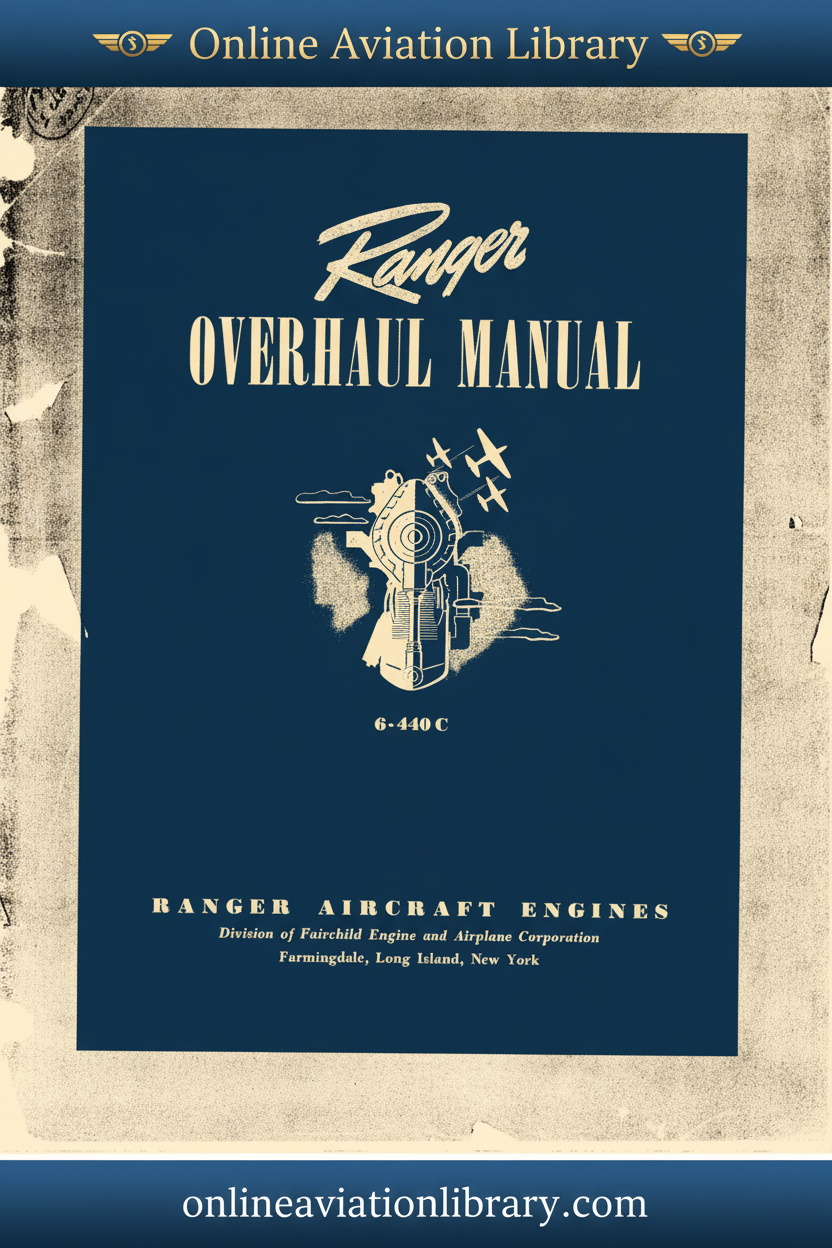

- Ranger 6-440 C-2 -3 -4 -5 Aircraft Engine Overhaul Manual

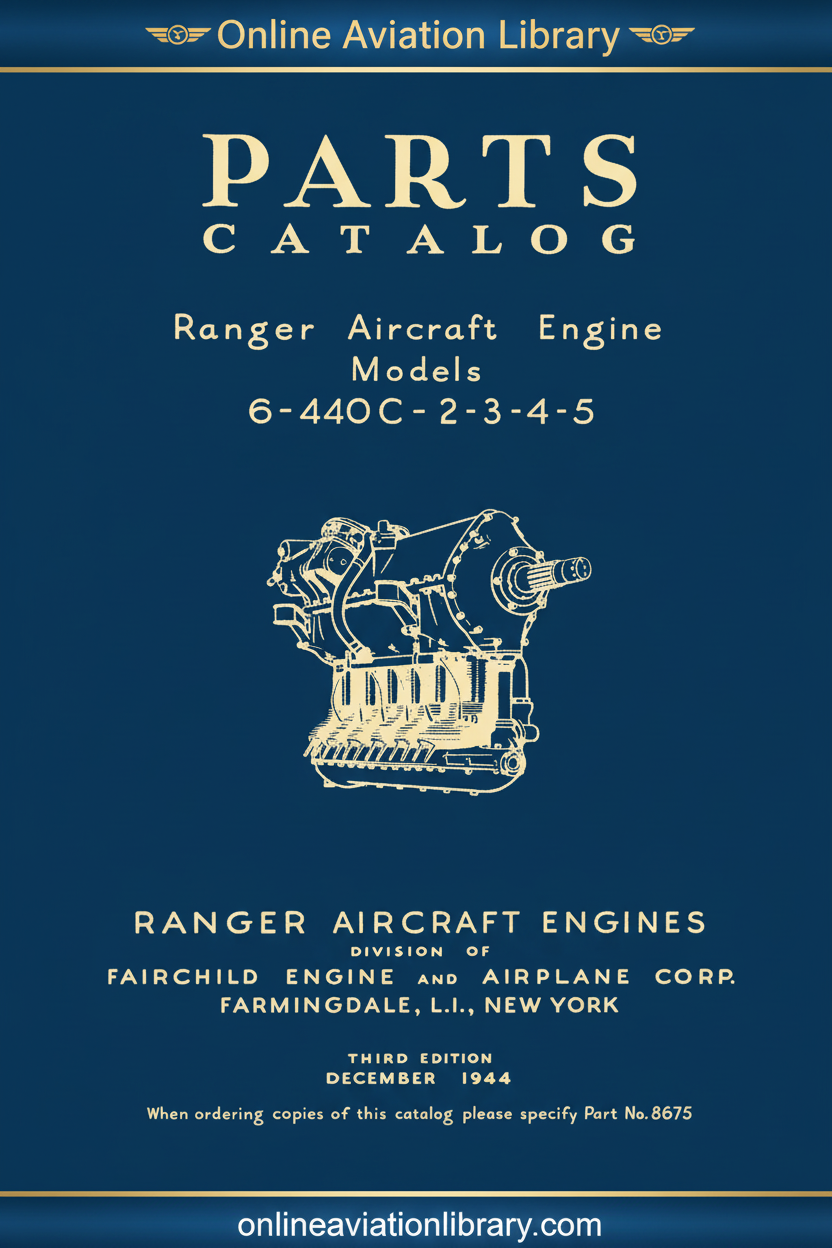

- Ranger 6-440 C-2 -3 -4 -5 Aircraft Engine Parts Catalog Manual - 1944
This collection provides comprehensive coverage of both the L-440 and 6-440C designation systems across all major variants (C-1, C-2, C-3, C-4, C-5, C-7, C-9, C-11), spanning the critical wartime production period from 1941 through 1944. The documentation includes detailed parts catalogs, operating procedures, maintenance schedules, overhaul instructions, and service bulletins essential for maintaining these historic engines.
Engineering Norms and Standards
The Fairchild Ranger L-440 / 6-440 was designed and manufactured to rigorous military and civilian aviation standards of the late 1930s and early 1940s:
Military Specifications: The engine met U.S. Army Air Corps specifications for primary and basic trainer powerplants, with extensive testing and qualification for military service. Wartime production followed strict military acceptance standards for materials, tolerances, and quality control.
Type Certificate: The Ranger L-440 series was certificated under Civil Aeronautics Administration (CAA) regulations, the predecessor to modern FAA certification. The original Type Certificate was held by Fairchild, with support now residing largely with vintage parts suppliers and specialized maintenance shops serving the warbird community.
Technical Specifications:
- Engine Type: Air-cooled, inverted, in-line piston engine
- Configuration: 6 cylinders in inverted in-line arrangement
- Displacement: 441 cubic inches (7.2 liters)
- Horsepower Range: 175 hp to 220 hp (depending on variant)
- Bore and Stroke: 4.125 in (105 mm) × 5.5 in (140 mm)
- Compression Ratio: 6:1 (C-2) to 7.5:1 (C-5)
- Dry Weight: Approximately 355 to 376 lbs
- Fuel Type: 65 octane (early models), 87 octane (high-compression variants)
- Notable Features: Inverted layout for improved pilot visibility, seven main bearings, magnesium components
Fairchild Engineering Practices: The manuals reflect Fairchild's systematic approach to engine design, with detailed specifications for tolerances, materials, inspection procedures, and overhaul intervals. The inverted configuration was a deliberate engineering choice to lower the thrust line and improve forward visibility in trainer aircraft.
Specialized Documentation

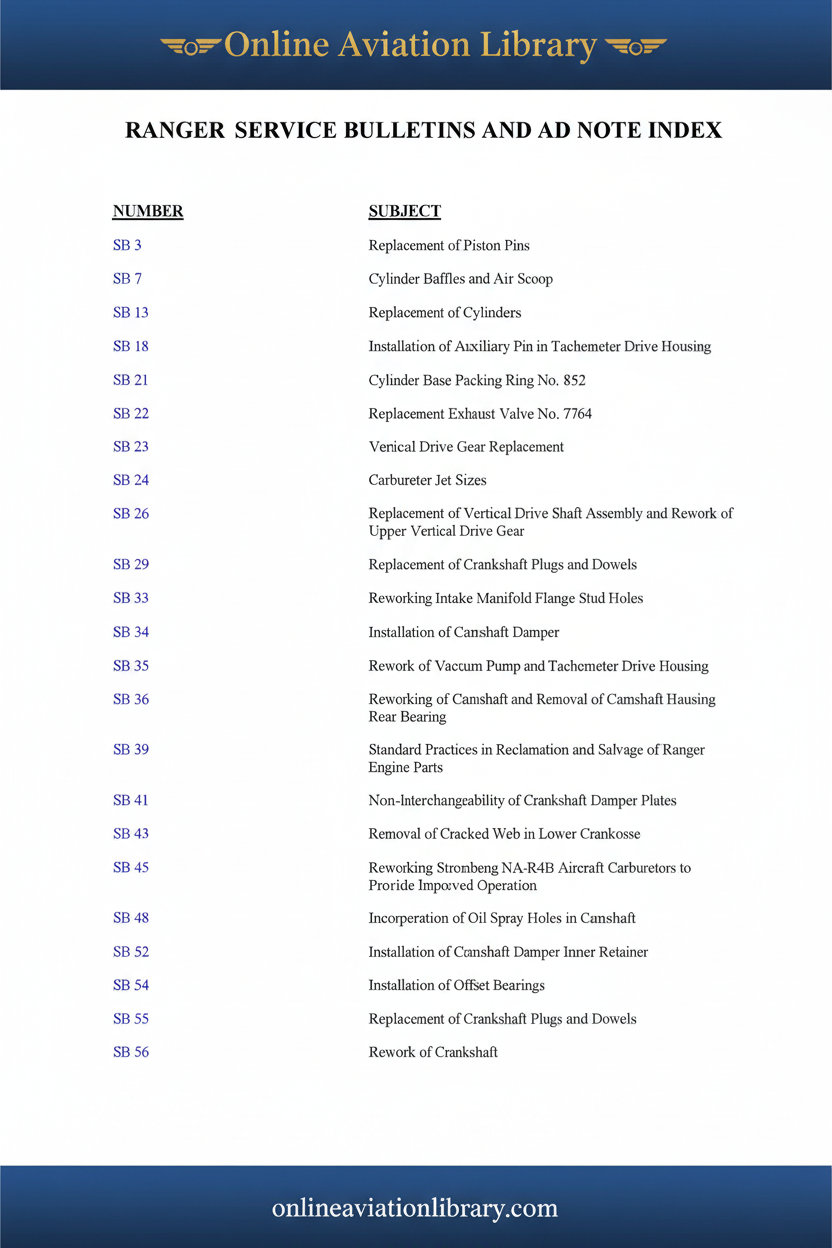

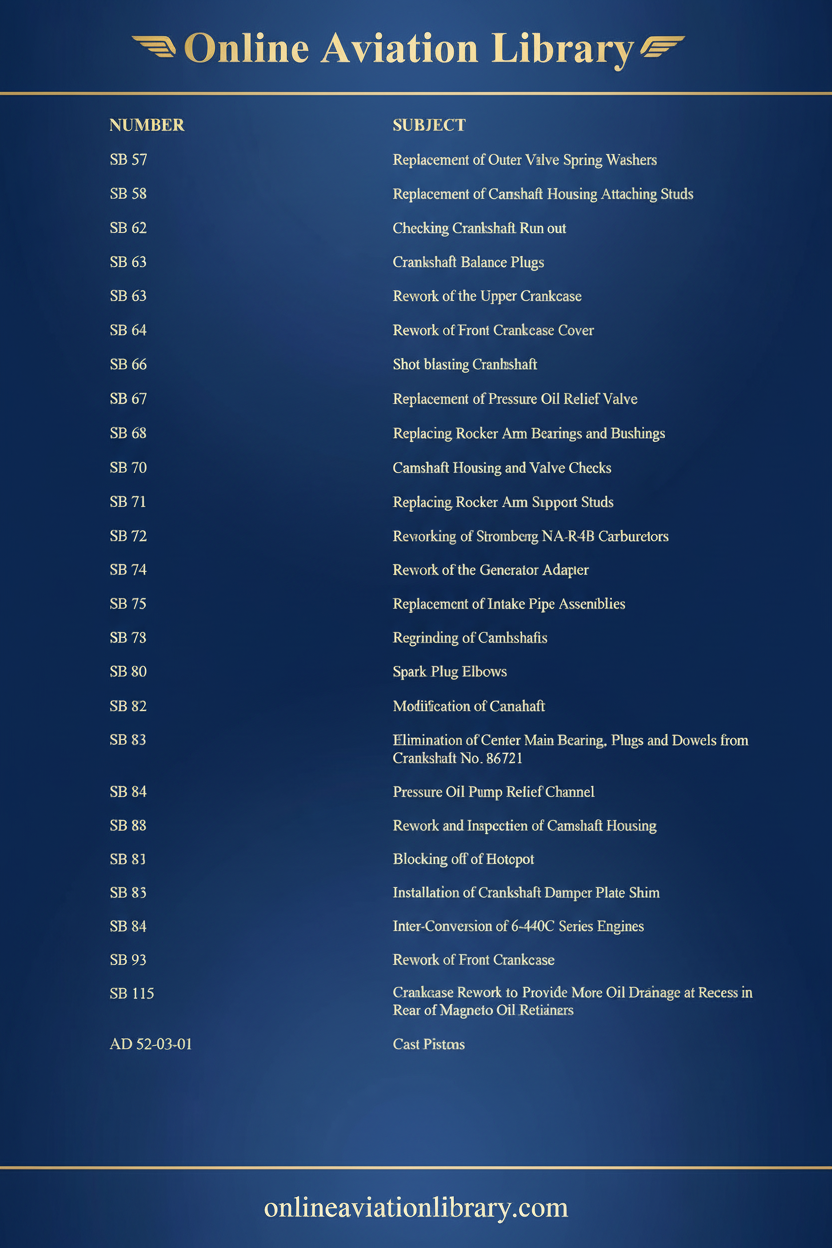

Service Bulletins and Airworthiness Directives: Active Service Bulletins and Airworthiness Directives exist for vintage Ranger engines, focusing primarily on crankshaft inspections, cylinder condition monitoring, and bearing wear. This collection includes the Service Bulletins Collections Manual covering variants C-2 through C-5. Owners of airworthy Ranger-powered aircraft should consult with specialized vintage engine maintenance shops and the FAA for current airworthiness requirements.
Operational Notes: The Ranger L-440 / 6-440 is still flying today in vintage Fairchild PT-19, PT-26, and Fairchild 24R aircraft maintained by collectors and museums. Primary use today includes active flying in the warbird community and museum/historical display. Specialized parts suppliers and overhaul shops continue to support these engines for the vintage aviation community.
Where to Find Additional Documentation
Official Support: While Fairchild was the original Type Certificate holder, current support for the Ranger L-440 / 6-440 resides primarily with specialized vintage aircraft engine maintenance shops and parts suppliers who serve the warbird and vintage aviation community.
Historical Archives: The vintage aviation community maintains extensive resources for Ranger engine operators:
- Fairchild PT-19/PT-26 type clubs and owner associations
- Warbird and vintage aircraft forums with dedicated Ranger engine sections
- Aviation museums with PT-19/PT-26 collections and technical libraries
- Vintage aircraft maintenance specialists with Ranger expertise
Specialty Vendors: Online Aviation Library provides this curated collection of historical Ranger engine documentation. Additional technical resources, parts catalogs, and service information may be available through specialized vintage aircraft engine overhaul shops and warbird parts suppliers.
Format and Delivery
This collection is delivered as an instant digital download immediately upon purchase. All manuals are provided in high-quality PDF format, fully searchable and compatible with all modern devices (Windows, Mac, tablets, smartphones). The files are organized in a clear folder structure by manual type and variant, with descriptive filenames for easy reference. All documents are print-friendly for shop use.
