Citabria-Style Homebuilt Aircraft Plans - Digital Download
This collection contains 28 engineering drawings created by an experienced aircraft mechanic in 1995 for building a Citabria-style homebuilt aircraft. These are NOT factory Champion/Bellanca blueprints, but rather clear, well-drafted plans designed specifically for homebuilders who want to construct a look-alike aircraft inspired by the classic Citabria design. Perfect for experimental aircraft builders, aviation enthusiasts, and those interested in tube-and-fabric construction techniques.
What These Plans Are
These are homebuilt aircraft plans drawn by a mechanic in 1995 (as shown in the title blocks) to enable construction of a Citabria-style aircraft. They show construction methods, dimensions, and assembly details for building a similar-looking aircraft using readily available materials and parts. The drawings are clear, easy to understand, and designed with the homebuilder in mind.
Important: These are not factory engineering drawings from Champion Aircraft, Bellanca, or American Champion. They are homebuilt replica plans for constructing a Citabria-style experimental aircraft. There are differences from the factory Citabria design.
Drawings Included in This Collection
- 28 Drawing Sheets Total - Approximately 2.5' x 3' sheet size

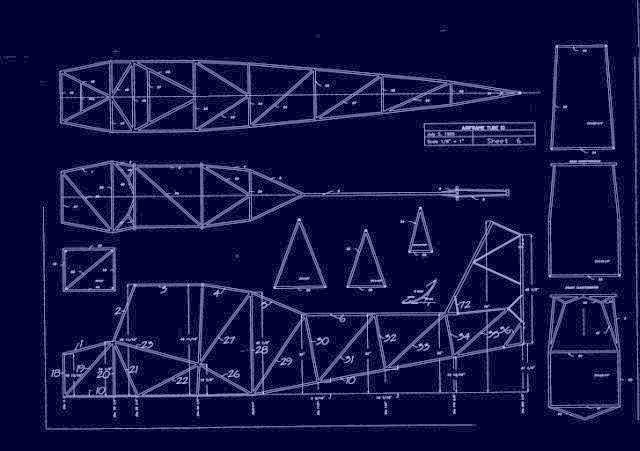

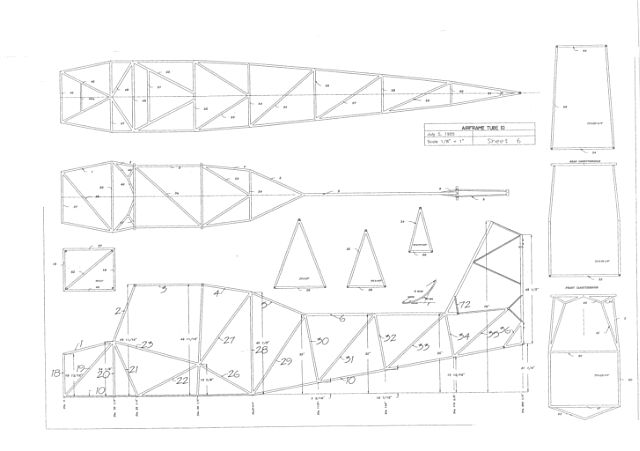

- Fuselage Assembly - Truss construction, tube sizing, layout, and dimensions
- Tail Assembly - Empennage structure and components

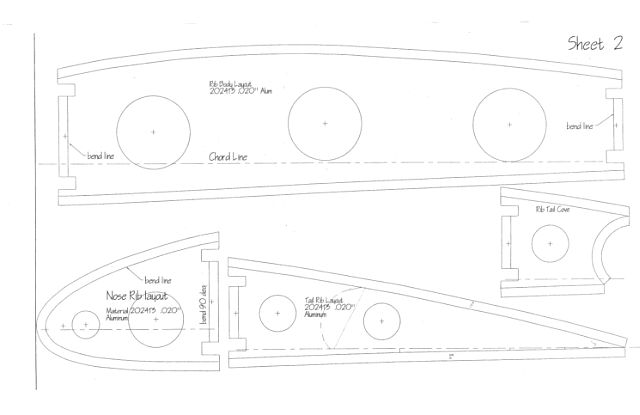

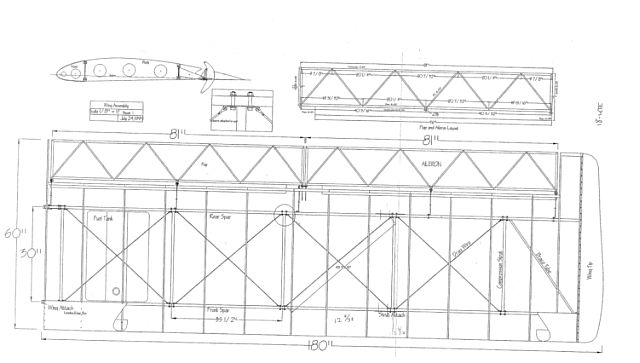

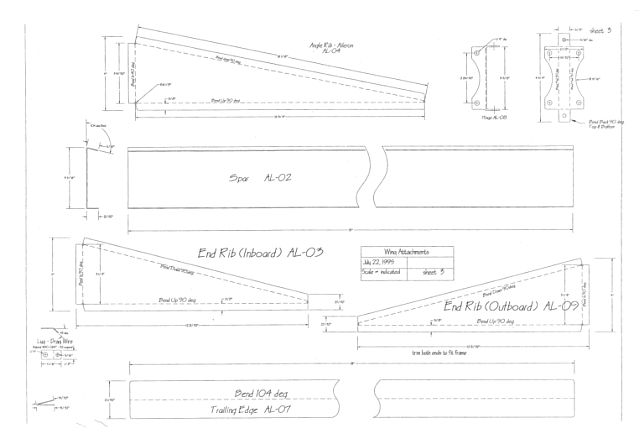

- Wing Construction - Aluminum ribs, wood spars (limited aluminum spar detail shown)

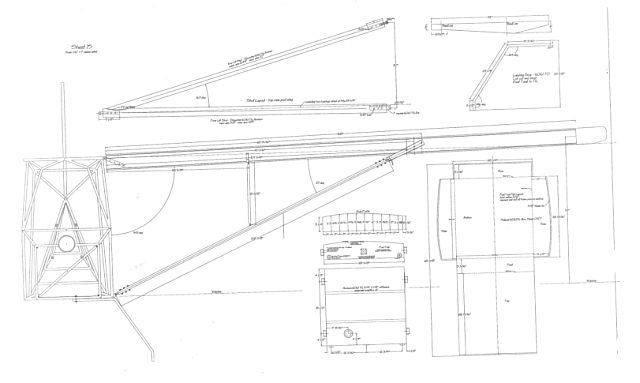

- Wing Layout - Aileron and flap construction details
- Landing Gear Layout - Gear configuration and mounting

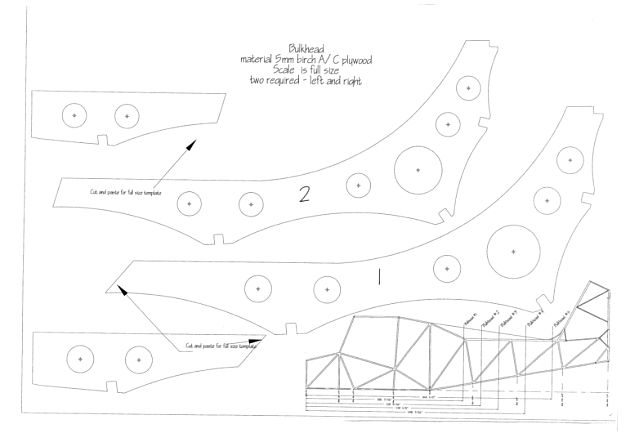

- Fuselage Bulkheads - Full-size layouts and locations
- Control Systems - Torque tube assembly, pedals, and linkages

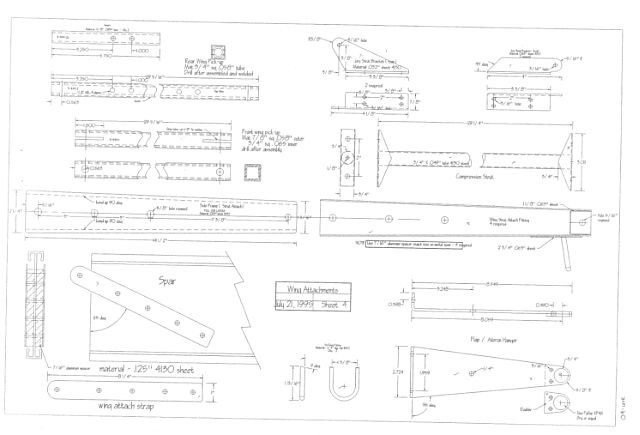

- Struts and Fittings - Various assemblies for construction

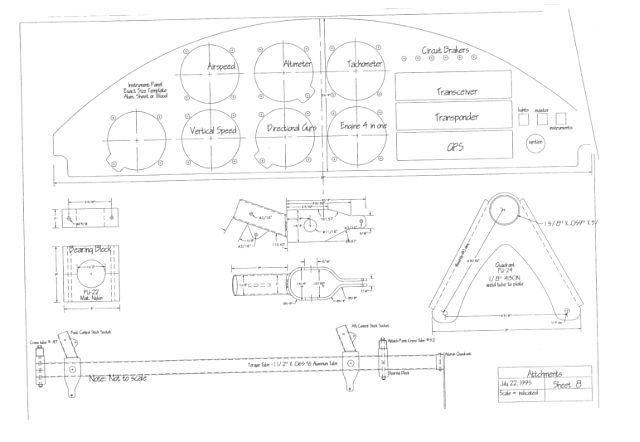

- Panel Layout - Instrument panel configuration

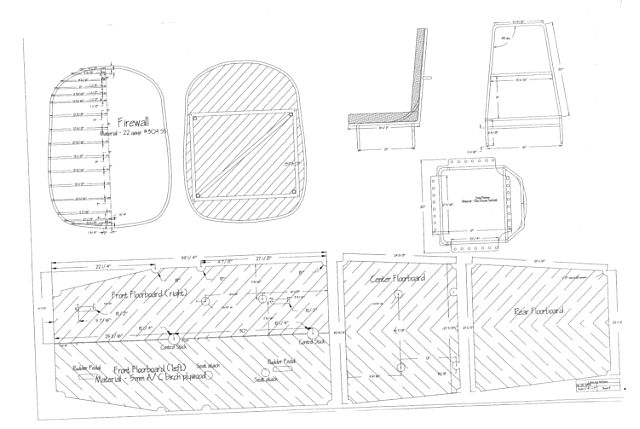

- Firewall - Engine compartment bulkhead
- Miscellaneous Fittings - Various construction assemblies
Note: Engine mount is not included in these drawings, but is available separately through Wag-Aero. Many prefabricated parts (cowls, gear, pre-formed components) are now available through Wag-Aero and other suppliers to simplify construction of a Citabria-style project.
About Citabria-Style Aircraft
The Citabria ("airbatic" spelled backwards) is a classic American aerobatic and training aircraft known for its rugged tube-and-fabric construction, excellent handling characteristics, and forgiving flight behavior. The design has inspired numerous homebuilt projects over the decades, with builders attracted to its simple, proven construction methods and versatile performance.
These plans enable construction of a similar-looking aircraft using traditional tube-and-fabric techniques. The availability of compatible parts from suppliers like Wag-Aero makes such projects more accessible to homebuilders than ever before.
Perfect For:
- Experimental aircraft builders and homebuilders
- Aviation enthusiasts interested in tube-and-fabric construction
- Builders seeking a Citabria-style project with parts availability
- Aviation mechanics and technicians
- Engineering students studying aircraft construction methods
- Researchers interested in homebuilt aircraft design
Drawing Quality and Clarity
The drawings are very clear and easy to understand, with good detail shown in the preview images. They were created specifically for homebuilders, with practical construction information and dimensions clearly indicated. Sheet size is approximately 2.5' x 3', providing ample detail for construction reference.
Format and Delivery
Format: High-resolution digital files (PDF)
Delivery: Instant digital download
Sheets: 28 drawing sheets
Original Date: Drawn in 1995 (as shown in title blocks)
Quality: Clear, readable drawings suitable for printing and construction reference
Important Legal and Safety Information
Experimental Aircraft Construction: Building an aircraft from these plans would result in an experimental/amateur-built aircraft subject to FAA regulations under 14 CFR Part 21, Subpart H. Builders must comply with all applicable regulations, including the requirement that the major portion of the aircraft be fabricated and assembled by persons who undertook the construction project solely for their own education or recreation.
Not Factory Plans: These are homebuilt replica plans, not factory engineering drawings. There are differences from the factory Citabria design. Builders are responsible for ensuring their aircraft meets all applicable safety and airworthiness requirements.
Parts and Materials: Builders should source appropriate aviation-grade materials and components. Wag-Aero and other suppliers offer compatible parts that can be integrated into such projects.
Disclaimer
This item is sold for reference and educational purposes only. These drawings are homebuilt aircraft plans created by a mechanic in 1995, not factory engineering documentation. They are not intended as the sole source for aircraft construction or certification. Anyone undertaking aircraft construction must comply with all applicable FAA regulations, use appropriate aviation-grade materials, and consult qualified aviation professionals throughout the build process. We do not guarantee the completeness, accuracy, or suitability of these plans for any specific purpose.
Reference herein to any specific commercial products by trade name, trademark, manufacturer, or otherwise (including Citabria, Champion, Bellanca, American Champion, Wag-Aero), is not meant to imply or suggest any endorsement by, or affiliation with those manufacturers or suppliers. All trade names, trademarks, and manufacturer names are the property of their respective owners.
