Beechcraft T-34A Aircraft Engineering Blueprints - Digital Download

Substantial collection of 2,864 engineering drawing sheets for the Beechcraft T-34A Mentor, converted from original microfilm to electronic format. This collection provides valuable technical documentation for one of the most successful military training aircraft in aviation history, ideal for aviation historians, restorers, modelers, and enthusiasts seeking authentic reference material at an accessible price point.

Important Note: This collection represents a substantial set of T-34A engineering documentation, though it is not exhaustive or complete. The drawings included provide valuable insight into the aircraft's design and construction, making this an excellent resource for research, restoration reference, and historical study.

Historical Note

The Beechcraft T-34 Mentor stands as one of the most successful military training aircraft in aviation history. Developed in the late 1940s as a private venture by Beechcraft, the T-34 was designed to replace the aging North American T-6 Texan as the U.S. military's primary trainer. Based on the proven Beechcraft Bonanza design, the T-34 combined modern all-metal construction with excellent handling characteristics and economical operation.

Military Service and Production

The U.S. Air Force adopted the aircraft as the T-34A Mentor in 1953, with the U.S. Navy following with the T-34B variant. The Mentor quickly proved its worth as a primary trainer, offering student pilots a stable, forgiving platform for learning basic flying skills while providing enough performance to prepare them for transition to more advanced aircraft. The T-34's tricycle landing gear, enclosed cockpit, and modern systems represented a significant advancement over the taildragger T-6.

Production of the original piston-powered T-34A and T-34B variants continued through the 1950s, with approximately 450 T-34As built for the Air Force and 423 T-34Bs for the Navy. The aircraft also saw extensive export success, with numerous allied air forces adopting the Mentor for their training programs. Countries including Argentina, Colombia, Japan, Philippines, and many others operated T-34s, with some remaining in service well into the 21st century.

Turboprop Evolution

The design's excellence led to the turboprop-powered T-34C variant in the 1970s, which extended the Mentor's service life for decades. The T-34C remained the U.S. Navy's primary trainer until 2008, giving the basic design a remarkable 55-year service life with the U.S. military.

Legacy and Civilian Use

Today, many surplus T-34A and T-34B Mentors have found their way into civilian hands, where they are prized as warbirds and aerobatic aircraft. Their robust construction, excellent handling, and relatively economical operation make them popular among enthusiasts. Restored examples typically command prices ranging from $150,000 to $350,000 depending on condition and equipment.

Engineering Blueprints Included in This Collection

• 2,864 Engineering Drawing Sheets - Substantial airframe documentation
• Converted from Original Microfilm - Authentic factory engineering drawings
• Index of Drawing Numbers Included - Organized for navigation
• TIFF Graphic Format - High-resolution scans suitable for detailed study

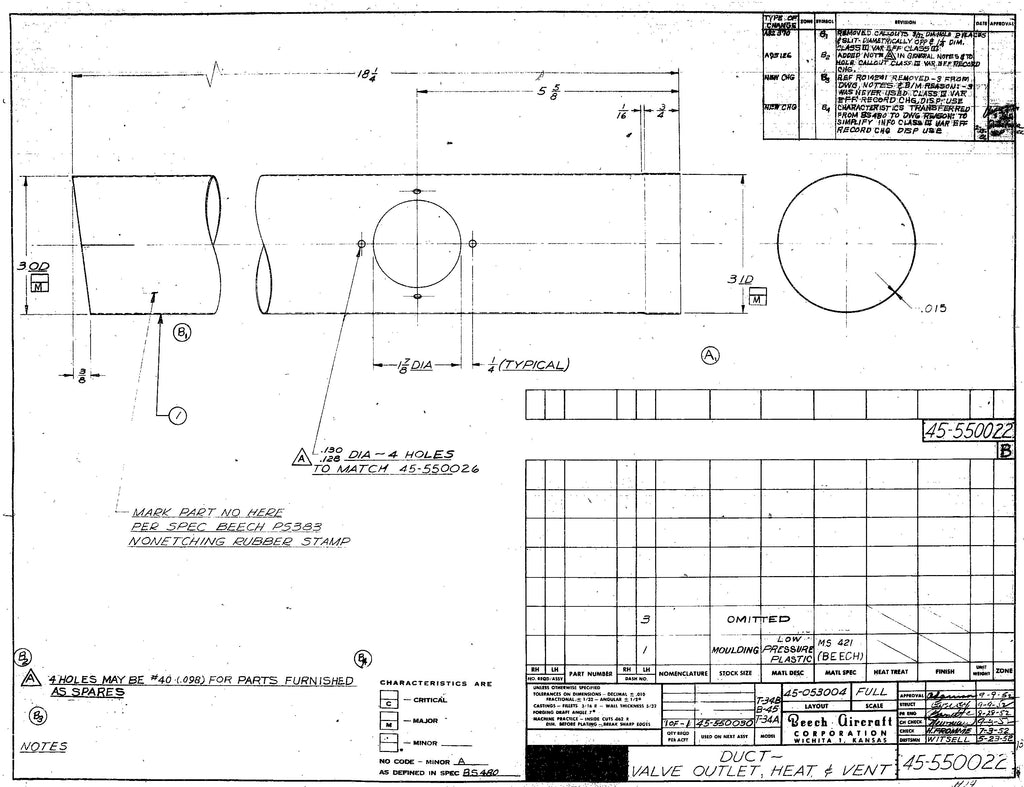

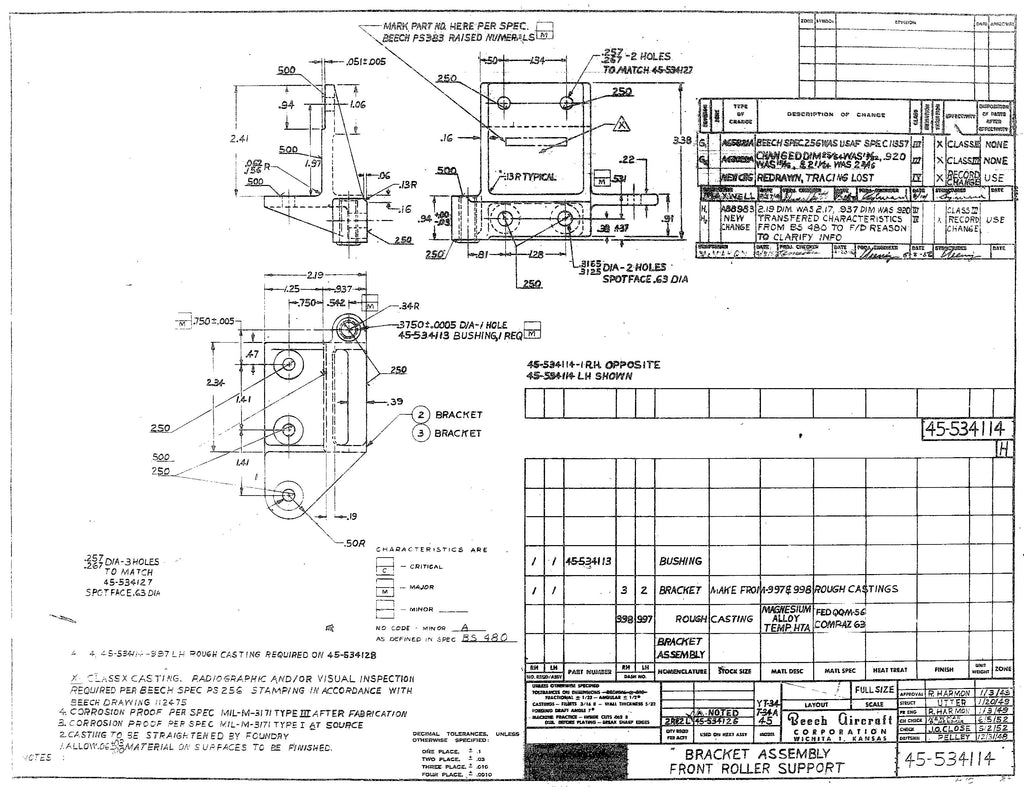

• Airframe Engineering Drawings - Structural components, assemblies, and construction details

This collection provides substantial coverage of T-34A airframe engineering documentation, offering valuable reference material for understanding the aircraft's design and construction. While not exhaustive, the 2,864 sheets included represent a significant resource for researchers, restorers, and enthusiasts.

Engineering Norms and Standards

The T-34A was designed and manufactured under U.S. military specifications of the early 1950s, incorporating lessons learned from WWII and Korean War training operations. Beechcraft engineering practices emphasized robust all-metal construction, ease of maintenance, and pilot-friendly handling characteristics. Materials specifications followed contemporary military standards (AN, MS) for aircraft-grade aluminum alloys and steel components. The design drew heavily on Beechcraft's successful Bonanza lineage while adapting it for military training requirements.

Ideal For

• Aviation historians researching Cold War-era military training aircraft
• Restorers working on T-34A Mentor projects seeking reference documentation
• Scale modelers requiring accurate technical references
• Aerospace engineering students studying classic aircraft design
• Museums documenting military aviation heritage
• Collectors seeking affordable access to substantial T-34A technical documentation
• Enthusiasts of military training aircraft and Beechcraft designs

Value Proposition

This collection offers accessible pricing for a substantial set of T-34A engineering documentation. While not complete, the 2,864 drawing sheets provide valuable insight into the aircraft's design and construction at a price point that makes authentic factory engineering documentation available to a wider audience of researchers, restorers, and enthusiasts.

Format and Delivery

Format: Adobe PDF and TIFF files (compressed in RAR archive)
Delivery: Instant digital download upon purchase
Quality: High-resolution scans from original microfilm
Organization: Index of drawing numbers included
File Size: Large archive (extraction software required)

Extraction Instructions: Files are compressed in RAR format. Download free extraction software at rarlab.com

Disclaimer

This item is sold for historical and reference purposes only. These are either original or copies of manuals and blueprints used when these aircraft were in active duty, now transferred into electronic format. These manuals and blueprints are not meant to be used for current update material for certification or repair, but make an excellent reference for the scholar, collector, modeler, or aircraft enthusiast. For proprietary reasons, we generally only provide civil manuals and blueprints on obsolete aircraft, engines, and helicopters. The information is for reference only, and we do not guarantee the completeness, accuracy, or currency of any manuals.

Reference herein to any specific commercial products by trade name, trademark, manufacturer, or otherwise, is not meant to imply or suggest any endorsement by, or affiliation with that manufacturer or supplier. All trade names, trademarks, and manufacturer names are the property of their respective owners.
