Arado Ar 234 Blitz - Comprehensive Technical Documentation Collection

This definitive digital archive contains authentic technical documentation for the groundbreaking Arado Ar 234 Blitz (Lightning), the world's first operational jet-powered bomber and reconnaissance aircraft—a revolutionary design that fundamentally changed military aviation and directly influenced the development of all modern jet bombers. These original Luftwaffe manuals, operating instructions, flight test reports, technical investigations, and engineering documentation covering the B and V variants represent the actual materials used by pilots, ground crews, engineers, and test pilots during the aircraft's development and operational service from 1943-1945.

Definitive Collection with Free Lifetime Updates: This is a living collection that we continuously expand and refine. As we acquire additional Arado Ar 234 documentation, technical bulletins, variant-specific materials, flight test reports, or engineering studies, we update this collection and provide free lifetime updates to all purchasers. Your one-time purchase guarantees access to all future additions and improvements to this collection.

Historical Note

The Arado Ar 234 Blitz (Lightning) holds a distinguished and revolutionary place in aviation history as the world's first operational jet bomber and reconnaissance aircraft—a technological breakthrough that ushered in the jet age of military aviation and fundamentally influenced the design of every jet bomber that followed. Designed by Arado Flugzeugwerke under the direction of Professor Walter Blume and chief designer Rudolf Thiel, the Ar 234 represented a quantum leap in aircraft technology, combining revolutionary turbojet propulsion with advanced aerodynamics, sophisticated systems, and operational capabilities that rendered conventional piston-engine interceptors virtually helpless.

Development of the Ar 234 began in 1941 when the Reichsluftfahrtministerium (RLM - Reich Aviation Ministry) issued specification E.370 for a fast reconnaissance aircraft powered by the new turbojet engines under development by Junkers and BMW. The specification called for an aircraft capable of speeds exceeding 700 km/h at high altitude—performance that would make it immune to interception by any existing fighter aircraft. Arado's response was a sleek, streamlined design featuring a high-mounted wing, pressurized cockpit, and twin turbojet engines mounted in nacelles beneath the wings.

The first prototype, Ar 234 V1 (Versuchsmuster - experimental model), made its historic maiden flight on June 15, 1943, from Rheine airfield in northwestern Germany, piloted by Flugkapitän Selle. This first flight marked a pivotal moment in aviation history—the beginning of operational jet bomber development. The early prototypes featured a revolutionary jettisonable takeoff trolley and landing skids instead of conventional landing gear, as engineers were concerned about the weight penalty and aerodynamic drag of retractable undercarriage. While innovative, this system proved impractical for operational use, and subsequent prototypes incorporated conventional tricycle landing gear.

The Ar 234B production variant, which entered operational service in September 1944, featured twin Junkers Jumo 004B turbojet engines, each producing 8.8 kN (1,980 lbf) of thrust. This powerplant combination gave the aircraft a maximum speed exceeding 740 km/h (460 mph) at altitude—making it virtually immune to interception by Allied piston-engine fighters like the P-51 Mustang or Spitfire, which could barely reach 700 km/h in level flight and were significantly slower at the Ar 234's operating altitudes.

The aircraft's performance capabilities were extraordinary for 1944. Maximum speed of 742 km/h (461 mph) at 6,000 meters, cruise speed of approximately 700 km/h (435 mph), service ceiling of 10,000 meters (32,800 feet), range of 1,630 km (1,013 miles) with standard fuel, combat radius of approximately 1,000 km with bomb load, and the ability to carry up to 1,500 kg (3,300 lbs) of bombs internally or on external racks. These capabilities represented a revolutionary advance over conventional bombers of the era.

The Ar 234 entered operational service with Sonderkommando Götz in September 1944, initially flying reconnaissance missions over Allied-held territory. The aircraft's incredible speed and high-altitude capability made it invaluable for photographic reconnaissance—it could penetrate deep into Allied airspace, photograph strategic targets, and return to base before Allied fighters could even reach interception altitude. Reconnaissance units including 1.(F)/123 and 1.(F)/100 operated the Ar 234 with remarkable success, providing intelligence that no other aircraft could obtain.

During the Battle of the Bulge in December 1944, Ar 234 reconnaissance aircraft provided invaluable photographic intelligence of Allied positions, troop movements, and supply concentrations. The aircraft's ability to operate with virtual impunity over Allied-controlled territory gave German commanders unprecedented situational awareness during this critical offensive. Allied fighter pilots reported frustration at being unable to intercept the high-speed German jets that appeared on reconnaissance missions with increasing frequency.

The bomber variant, designated Ar 234B-2 Blitz, saw combat action during the final months of the war, conducting high-speed bombing raids against strategic targets including bridges, rail yards, and troop concentrations. The most famous Ar 234 bombing missions targeted the Ludendorff Bridge at Remagen in March 1945, after American forces captured this critical Rhine crossing intact. Despite determined efforts by Ar 234 bombers and other Luftwaffe aircraft, the bridge remained in Allied hands long enough to facilitate the crossing of substantial forces into Germany.

The Ar 234B featured several groundbreaking technological innovations that would influence jet aircraft design for decades. The pressurized cockpit allowed operations at altitudes exceeding 10,000 meters, where the thin air provided both performance advantages and protection from interception. An advanced autopilot system allowed the single pilot to operate the Lotfe 7K bombsight during bombing runs—a remarkable capability for a single-seat bomber. A periscopic gunsight controlled the rear-firing defensive armament (two MG 151/20 20mm cannons), allowing the pilot to engage pursuing fighters without turning the aircraft. Rocket-assisted takeoff (RATO) capability using Walter HWK 109-500 Starthilfe rockets enabled operations from short or damaged runways with full bomb loads.

Multiple variants were developed to exploit the Ar 234's revolutionary capabilities. The Ar 234B-1 was the initial reconnaissance variant with cameras installed in the rear fuselage. The Ar 234B-2 was the bomber variant with bomb racks and bombing equipment. The Ar 234C featured four BMW 003A-1 turbojet engines in paired nacelles for improved performance and redundancy. Advanced variants under development included the Ar 234C-3 multi-role fighter-bomber with enhanced armament and the Ar 234P night fighter variant with radar and heavy cannon armament, though few were completed before war's end.

Approximately 210 Arado Ar 234 aircraft were produced between June 1944 and the end of the war in May 1945—a remarkable achievement given the chaotic conditions in German industry during this period, with Allied bombing disrupting production, critical materials in short supply, and transportation infrastructure collapsing. That any Ar 234s reached operational units is testament to the determination of German engineers and workers to field this revolutionary weapon.

After Germany's surrender in May 1945, Allied technical intelligence teams thoroughly evaluated captured Ar 234 aircraft, recognizing immediately that they represented a revolutionary advance in military aviation technology. Several aircraft were shipped to the United States and Britain for detailed study and flight testing. American and British engineers examined every aspect of the design—aerodynamics, engine installation, systems integration, cockpit layout, and operational procedures—seeking to understand how German engineers had achieved such remarkable performance.

The Ar 234's influence on postwar jet bomber development was profound and direct. The aircraft's clean aerodynamic design with high-mounted wings, streamlined fuselage, and podded engines became the template for the first generation of Allied jet bombers. The English Electric Canberra, which entered RAF service in 1951 and became one of the most successful jet bombers ever built, clearly showed Ar 234 influence in its configuration. The Soviet Ilyushin Il-28, which first flew in 1948, adopted a similar layout. American designs including the Martin B-57 (license-built Canberra) and ultimately the Boeing B-47 Stratojet incorporated lessons learned from studying the Ar 234.

The Ar 234 proved conclusively that jet propulsion could create an aircraft with performance advantages so significant that it rendered conventional defenses obsolete. This realization drove the rapid development of jet fighters, jet bombers, and ultimately the complete transformation of military aviation in the postwar period. Every modern jet bomber—from the B-47 and B-52 to the Tu-16 and beyond—owes a debt to the pioneering Arado Ar 234 Blitz.

Today, only a handful of Ar 234 aircraft survive in museums worldwide, preserved as priceless artifacts of aviation's revolutionary transition to jet propulsion. The Smithsonian National Air and Space Museum's Steven F. Udvar-Hazy Center in Virginia displays an Ar 234B-2 bomber variant, while the Deutsches Museum in Munich preserves another example. These surviving aircraft stand as testament to the Ar 234's pioneering role in ushering in the jet age of military aviation and the remarkable engineering achievement it represented.

These original technical manuals, flight test reports, and engineering documentation represent authentic primary-source materials used throughout the Ar 234's development and operational service. They guided Luftwaffe pilots through the complexities of operating the world's first jet bomber, provided ground crews with maintenance procedures for revolutionary turbojet engines and advanced systems, documented the aircraft's performance characteristics and operational limitations, and recorded the flight test data that validated this groundbreaking design. For historians, aviation researchers, restorers, and enthusiasts, these documents offer unparalleled insight into the operation, maintenance, and development of this historically significant aircraft that changed military aviation forever.

Manuals Included in This Collection

Variant B (3 manuals):

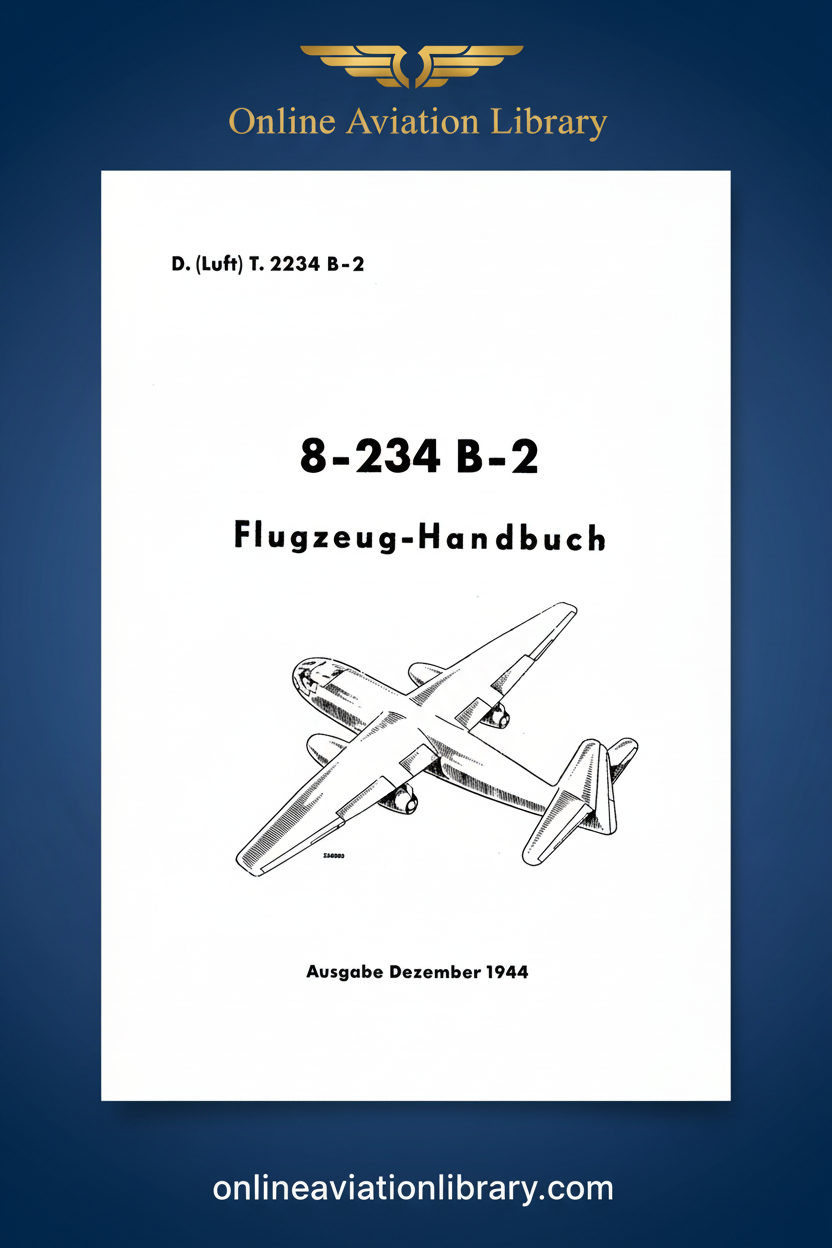

• Ar 234 B-2 - Aircraft Handbook - Flugzeug-Handbuch D.(Luft) T. 2234 B-2 - Comprehensive technical manual covering all aircraft systems, powerplant operation, fuel systems, electrical systems, hydraulics, pressurization, armament, and equipment for the bomber variant

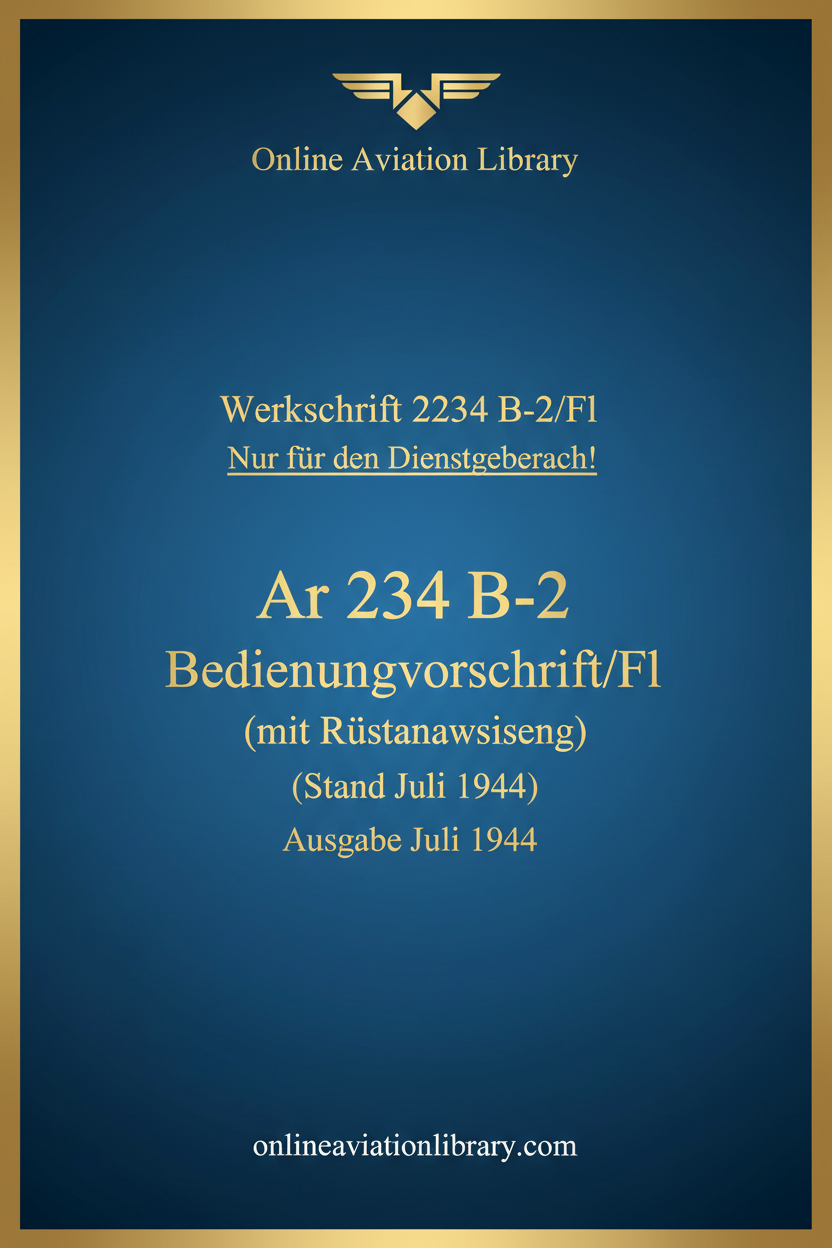

• Ar 234 B-2 - Flight Operating Instructions Manual - Bedienungsvorschrift FI - Detailed flight operating procedures including normal operations, emergency procedures, performance data, operating limitations, and pilot guidance for jet operations

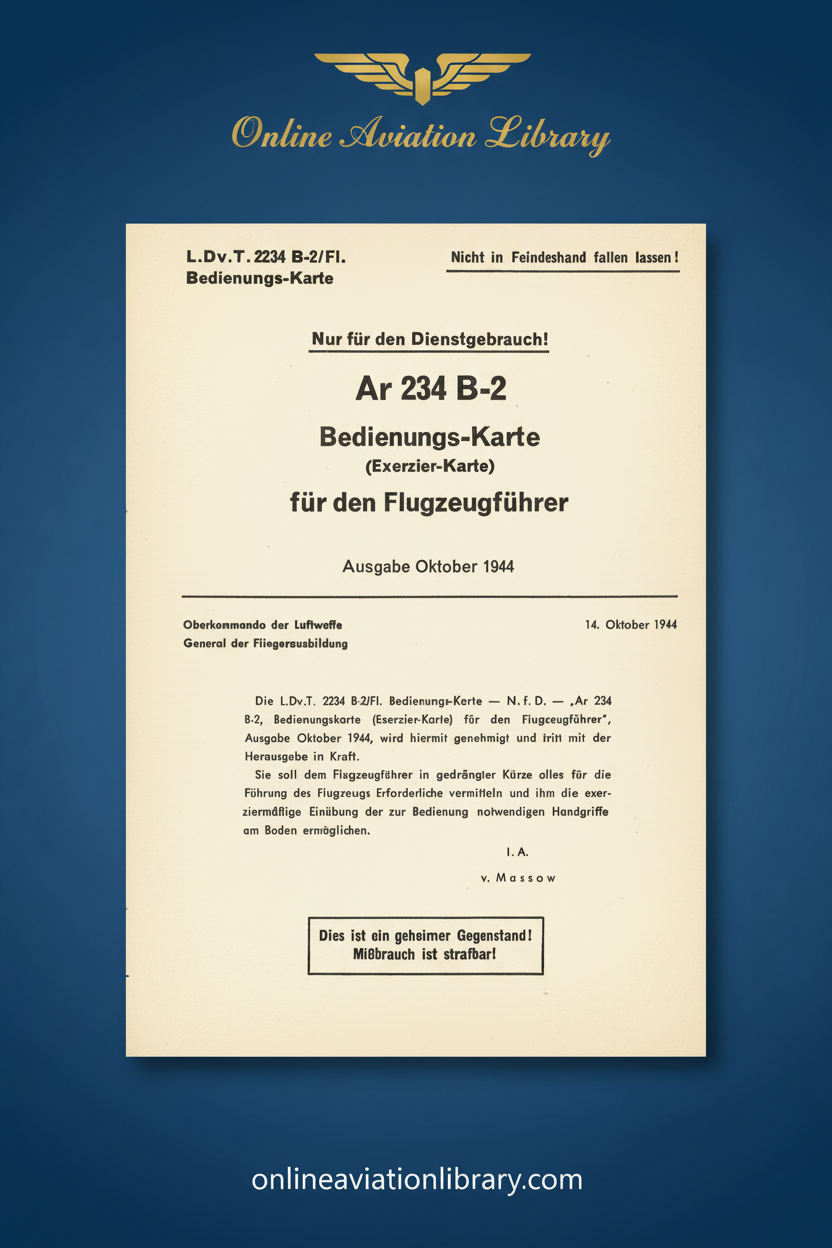

• Ar 234 B-2 - Aircraft Operating Card - Bedienungskarte - Quick-reference cockpit card providing essential procedures, limitations, and emergency actions for pilot reference during flight operations

Variant V (1 manual):

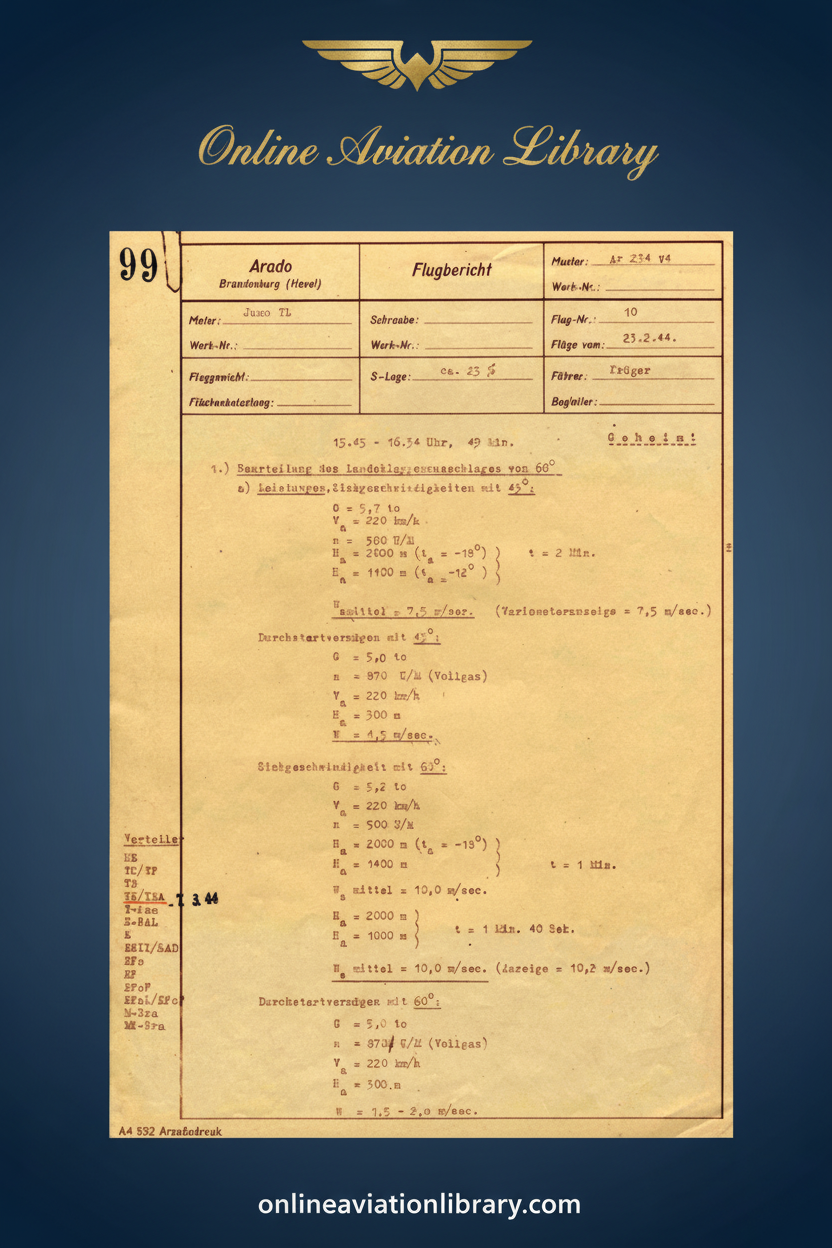

• Ar 234 V4 - Flight Test Report - 23 February 1944 - Flugbericht - Original flight test documentation from prototype testing, providing invaluable insight into the aircraft's development, performance validation, and test pilot evaluations during the critical development phase

Non-Variant Specific (2 documents):

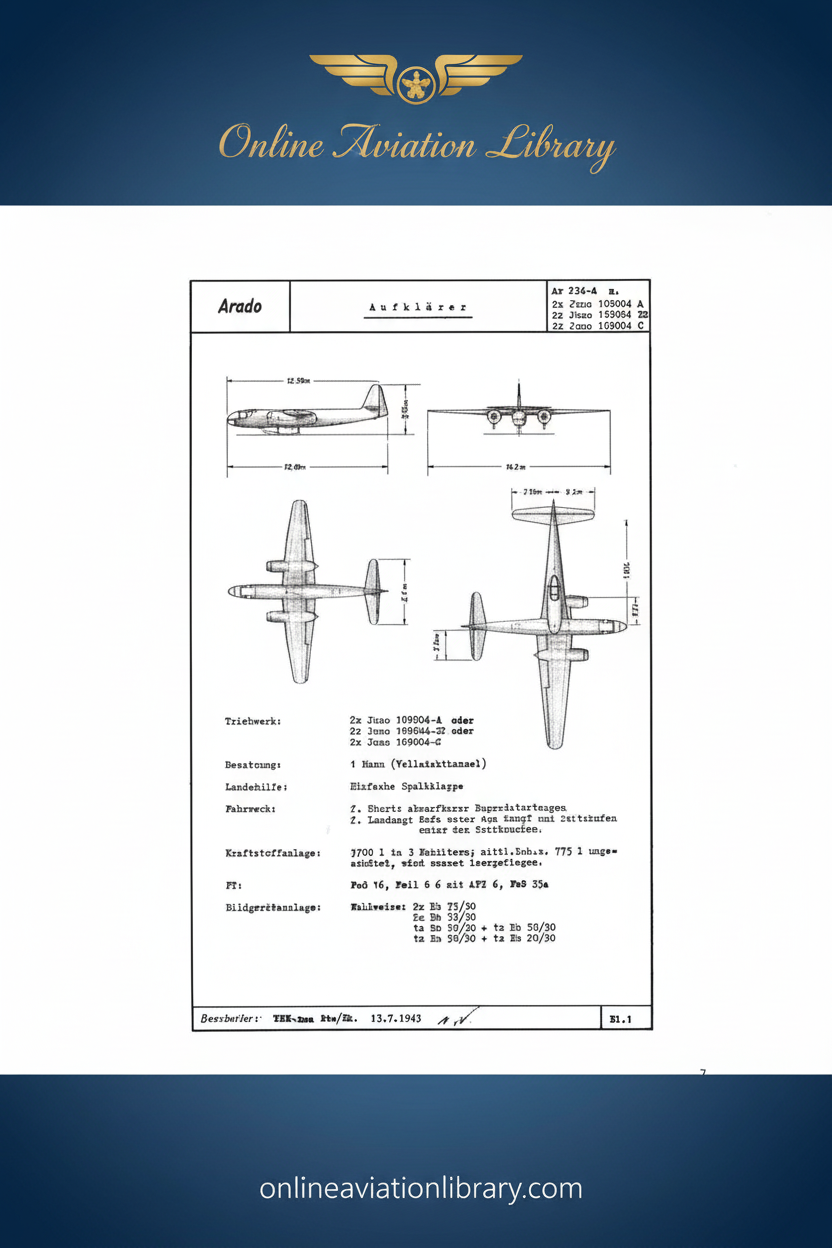

• Ar 234 - Aircraft Technical Document Bundle - Dokumente Konvolut - Collection of technical documents, specifications, and engineering materials providing comprehensive technical reference

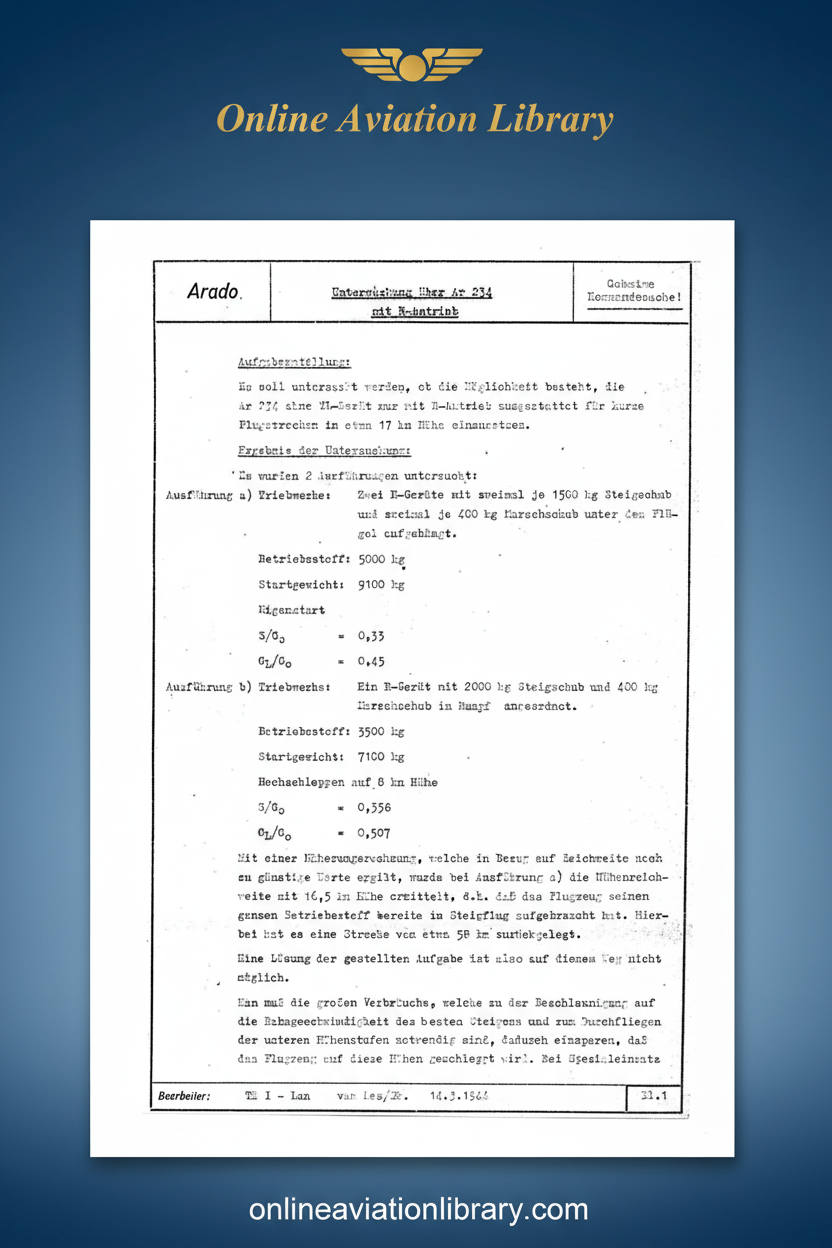

• Ar 234 - Rocket Propulsion Configuration Technical Report - R-Antrieb - Engineering study and technical report documenting the development and implementation of rocket-assisted takeoff (RATO) systems for short-field operations with full bomb loads

This collection provides comprehensive technical coverage of the Arado Ar 234 Blitz, documenting both the operational B-2 bomber variant and the V-series prototypes that pioneered jet bomber development. The materials span from 1944 flight testing through operational service documentation, capturing the aircraft's revolutionary technology, operational procedures, and engineering innovations. The documentation includes detailed specifications for airframe structure, turbojet powerplant operation (Junkers Jumo 004B engines), fuel and oil systems, pressurization systems, autopilot and bombing systems, defensive armament, rocket-assisted takeoff systems, flight test data, and operational limitations—essential reference material for understanding the complete technical scope of the world's first operational jet bomber.

Engineering Norms and Standards

The Arado Ar 234 was designed and constructed in accordance with German military aviation engineering standards and Luftwaffe technical requirements of the early to mid-1940s, while simultaneously pioneering entirely new standards for jet-powered aircraft. The aircraft was developed under the specifications of the Reichsluftfahrtministerium (RLM - Reich Aviation Ministry), which governed military aviation development, certification, and operational standards in Germany during this period.

Key engineering standards and practices reflected in these manuals include:

• Luftwaffe Dienstvorschrift (L.Dv.) and D.(Luft)T. Standards: Military technical documentation standards governing aircraft handbooks, operating instructions, and technical reports—adapted for the unique requirements of jet-powered aircraft
• RLM Jet Aircraft Specifications: Pioneering airworthiness standards, structural load requirements, and operational performance criteria established specifically for turbojet-powered aircraft—representing the cutting edge of aviation engineering in 1943-1945
• Arado Engineering Practices: Company-specific design standards, manufacturing procedures, quality control measures, and technical documentation formats developed by Arado Flugzeugwerke—emphasizing advanced aerodynamics, systems integration, and operational effectiveness
• Turbojet Powerplant Integration Standards: Revolutionary engine installation practices, fuel system design for jet engines, starting procedures, thrust management, and maintenance procedures for Junkers Jumo 004B turbojet engines—pioneering standards that would influence all subsequent jet aircraft development
• High-Speed Aerodynamics Standards: Design practices for aircraft operating at speeds approaching the compressibility regime, including streamlined fuselage design, wing sweep considerations, and drag reduction techniques
• Pressurization System Standards: Design and operational standards for pressurized cockpits enabling high-altitude operations exceeding 10,000 meters
• Advanced Systems Integration: Standards for autopilot systems, bombsight integration, periscopic gunsight systems, and rocket-assisted takeoff equipment—representing unprecedented levels of systems sophistication for the era
• Flight Test Standards: Rigorous test procedures for validating revolutionary aircraft performance, documenting jet engine behavior, and establishing safe operating procedures for entirely new flight regimes

These technical manuals and flight test reports reflect the pioneering engineering work required to create the world's first operational jet bomber. The documentation demonstrates the challenges of integrating revolutionary turbojet propulsion with advanced aerodynamics, sophisticated systems, and operational requirements—challenges that German engineers overcame to create an aircraft that fundamentally changed military aviation. The flight test report from February 1944 provides fascinating insight into the methodical validation of this groundbreaking design during its critical development phase.

For researchers, historians, and technical enthusiasts, these documents represent authentic primary sources for understanding the engineering breakthroughs, operational standards, and technical challenges that characterized the birth of the jet age in military aviation.

Format and Delivery

Format: High-resolution PDF digital download
Language: German (original Luftwaffe documentation)
Delivery: Instant download link provided upon purchase
Compatibility: All devices and PDF readers
Organization: Clearly labeled files organized by variant and document type
