Structured digital documentation collection for the Wright R-3350 Cyclone 18, the most operationally significant twin-row radial engine of the late piston era — the powerplant that carried the B-29 Superfortress over Japan and the Super Constellation across the Atlantic. This authoritative collection brings together 27 factory manuals, technical orders, parts catalogs, and maintenance documentation spanning the engine's full production and service life from the early 1940s through 1957.

Living Collection with Free Lifetime Updates: As we acquire and digitize additional R-3350 documentation, technical bulletins, and variant-specific materials, we update this collection and provide free lifetime updates to all purchasers. Your one-time purchase guarantees access to all future additions.

Historical Note

The Wright R-3350 Cyclone 18 stands as one of the defining powerplants of mid-twentieth century aviation — an engine that shaped the outcome of the Pacific War, powered the golden age of long-range air travel, and pushed piston engine technology to its absolute limits before the jet age rendered it obsolete.

Design Origins and Development (1937–1943): Developed by the Wright Aeronautical Division of Curtiss-Wright Corporation, the R-3350 evolved from the proven R-1820 Cyclone 9 and shared bore and stroke dimensions with the R-2600 14-cylinder engine. The prototype first ran in May 1937, and the engine entered operational use around 1943–1944. Its 18-cylinder twin-row configuration — nine cylinders per row — delivered displacement of 3,350 cubic inches (54.9 liters) with bore and stroke of 6.125 in × 6.3125 in (155.6 mm × 160.3 mm) and a compression ratio of 6.85:1.

Wartime Service and the B-29 (1943–1945): The R-3350 achieved legendary status as the powerplant of the Boeing B-29 Superfortress, the most technically advanced bomber of World War II. Four R-3350 engines per aircraft — each producing up to 2,200 horsepower with turbocharging — enabled the B-29 to conduct high-altitude strategic bombing missions across the Pacific. Early production engines suffered from chronic overheating and fire risk, problems resolved through improved baffling, revised cylinder head designs, and refined operating procedures. The engine also powered the Consolidated Vultee B-32 Dominator and the Douglas A-1 Skyraider, one of the most effective close air support aircraft of the Korean and Vietnam Wars.

Post-War Development and the Turbo-Compound (1945–1957): The most significant post-war development was the Turbo-Compound variant, which added three Power Recovery Turbines (PRTs) geared to the crankshaft, recovering exhaust energy and adding approximately 550 horsepower at takeoff while dramatically improving fuel efficiency. Power output exceeded 3,700 horsepower in later variants — a 68% increase over early wartime models. Between 1940 and 1960, Wright Aeronautical manufactured approximately 29,181 to over 30,000 R-3350 engines across all variants.

Military Applications: Boeing B-29 Superfortress (strategic bomber, Pacific Theater), Consolidated Vultee B-32 Dominator (heavy bomber), Douglas A-1 Skyraider (carrier-based attack, Korea and Vietnam), Fairchild C-119 Flying Boxcar (tactical transport), Lockheed C-121 Constellation (VIP and maritime patrol), and Martin P5M Marlin (maritime patrol flying boat).

Civilian Aviation — The Golden Age of Piston Airliners: The Turbo-Compound R-3350 powered the final generation of long-range piston airliners: the Lockheed L-1049 Super Constellation, L-1649A Starliner, and Douglas DC-7. The DC-7 used Turbo-Compound R-3350 engines to achieve non-stop transatlantic service — the pinnacle of piston airliner development before the jet age.

Engineering Excellence: Key features included "W" finning on cylinder barrels for improved cooling, sodium-cooled exhaust valves, direct fuel injection on later models replacing carburettors, the Turbo-Compound Power Recovery Turbine system, and advanced turbo-supercharging for high-altitude performance. Power ranged from 2,200 hp (early) to 3,700+ hp (Turbo-Compound); dry weight from 2,670 lbs to 3,775 lbs; fuel 100/130 octane aviation gasoline.

Current Status: The R-3350 Cyclone 18 is still flying. Airworthy examples operate in warbird restorations including the Boeing B-29 Superfortress ("Fifi" and "Doc"), Douglas A-1 Skyraider, Lockheed Super Constellation ("Connie"), and Hawker Sea Fury unlimited-class air racers. Active FAA Airworthiness Directives remain in force covering fuel pumps, cylinders, and ignition components.

Manuals Included in This Collection

• Wright Aircraft Engine Turbocompounds Manual (1957)

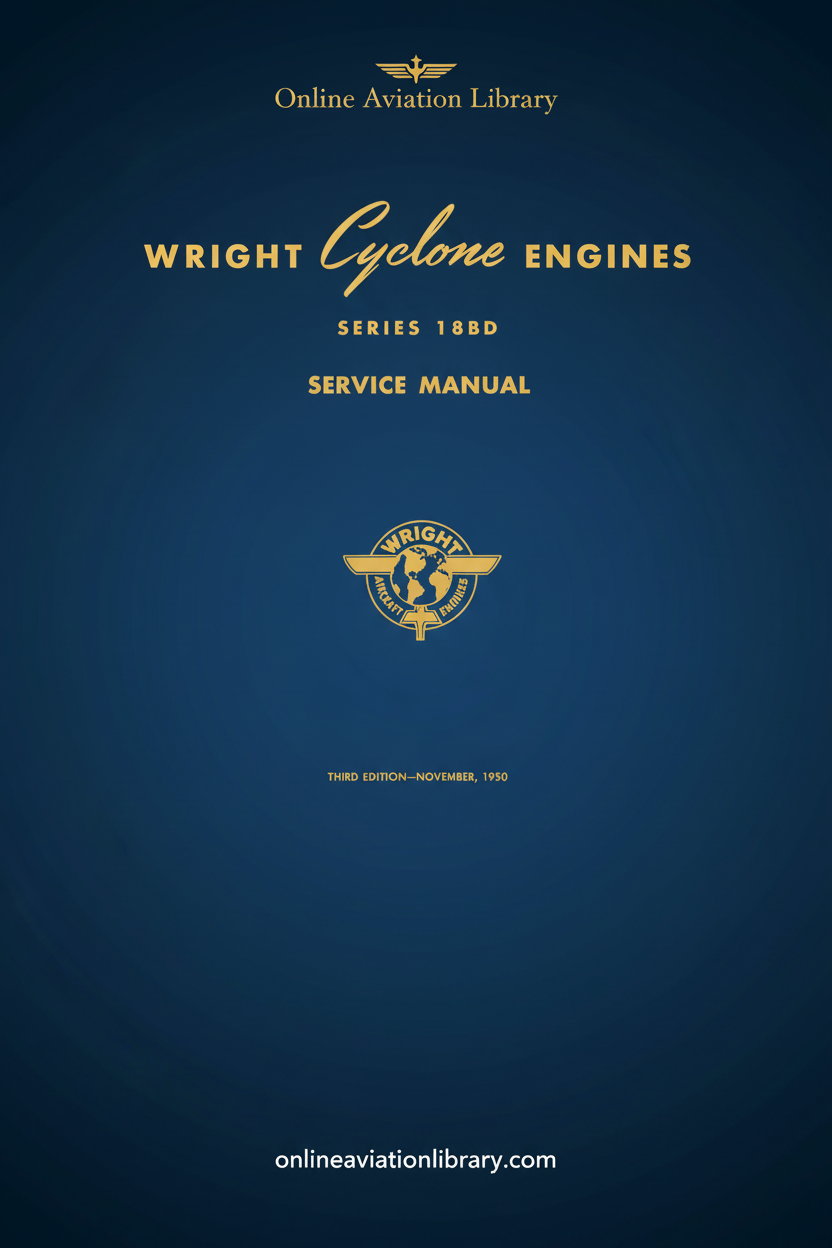

• Wright R-3350 Cyclone 18 BD Aircraft Engine Service Manual

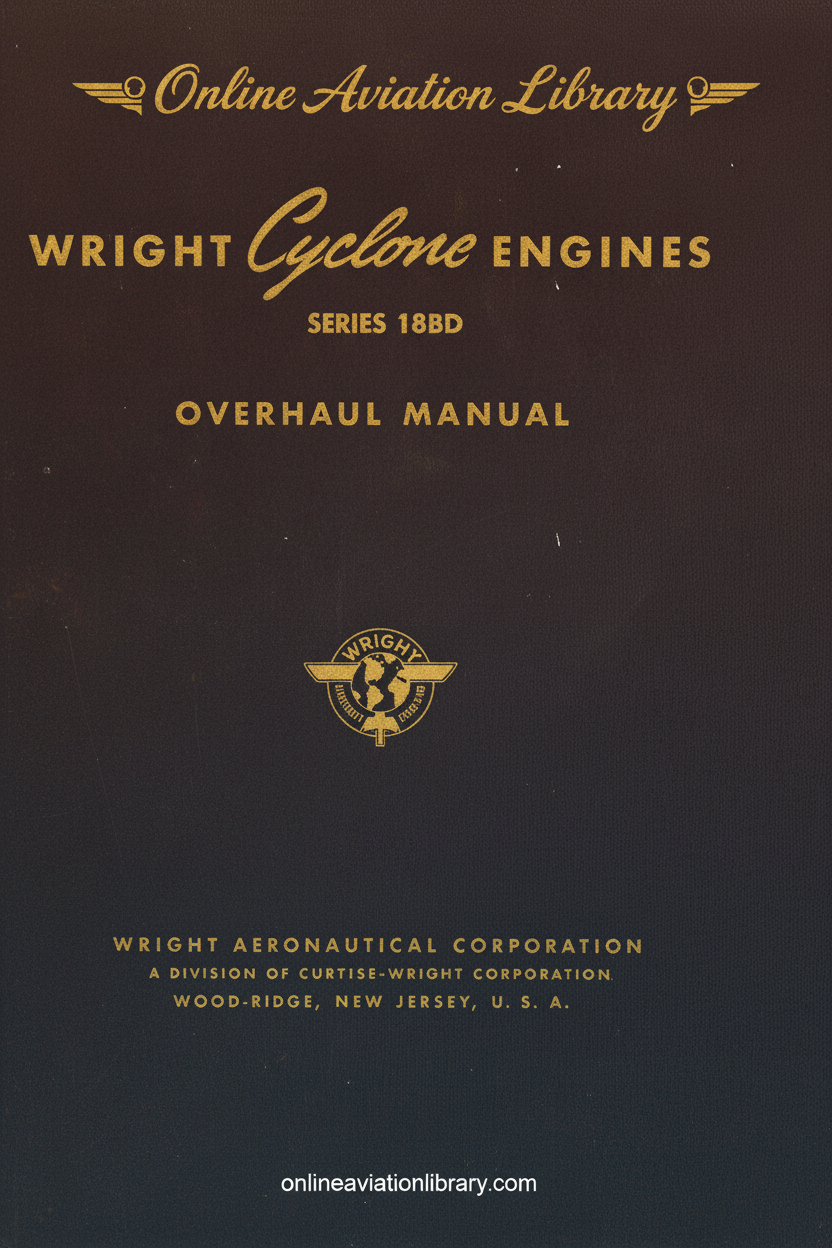

• Wright Cyclone 18 BD Aircraft Engine Overhaul Manual
• Wright R-3350 Aircraft Engine Operating Seminar Manual (1954)

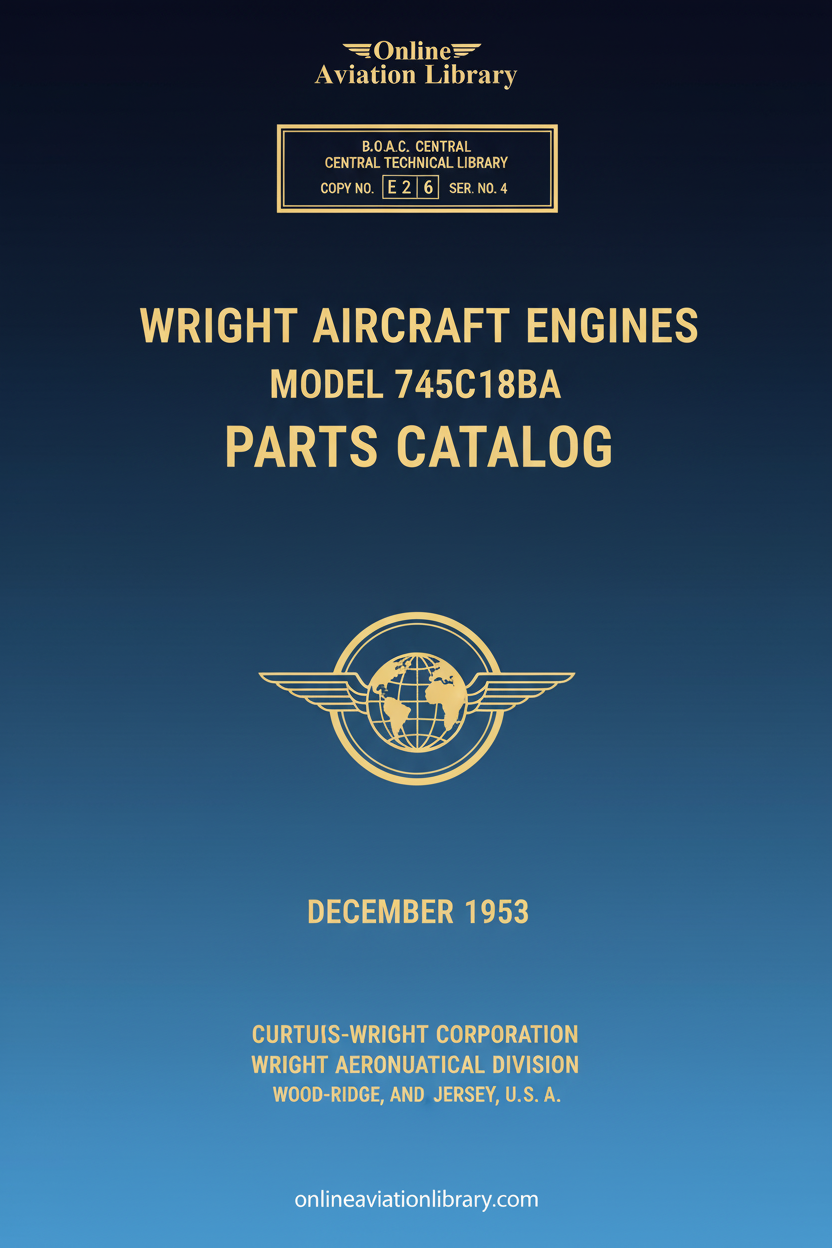

• Wright R-3350 Cyclone 745 18 BA Aircraft Engine Illustrated Parts Catalog Manual (1953)
• Wright R-3350 Cyclone 18 BA Aircraft Engine Fuel Injection Manuals
• Wright R-3350 Cyclone 18 BB Aircraft Engine Table of Limits Manual
• Wright R-3350 Cyclone 18 BA Aircraft Engine Parts Reference Charts Manual
• Wright R-3350-35A Cyclone Aircraft Engine Operating Instructions Manual
• Wright Cyclone R-3350 18 BA Aircraft Engine Installation Data Manual
• Wright Cyclone R-3350 Aircraft Engine Maintenance Notes Manual
• Wright R-3350 Cyclone -13, -18, -21, -23, -33, -35 Aircraft Engine Service Manual (1943)

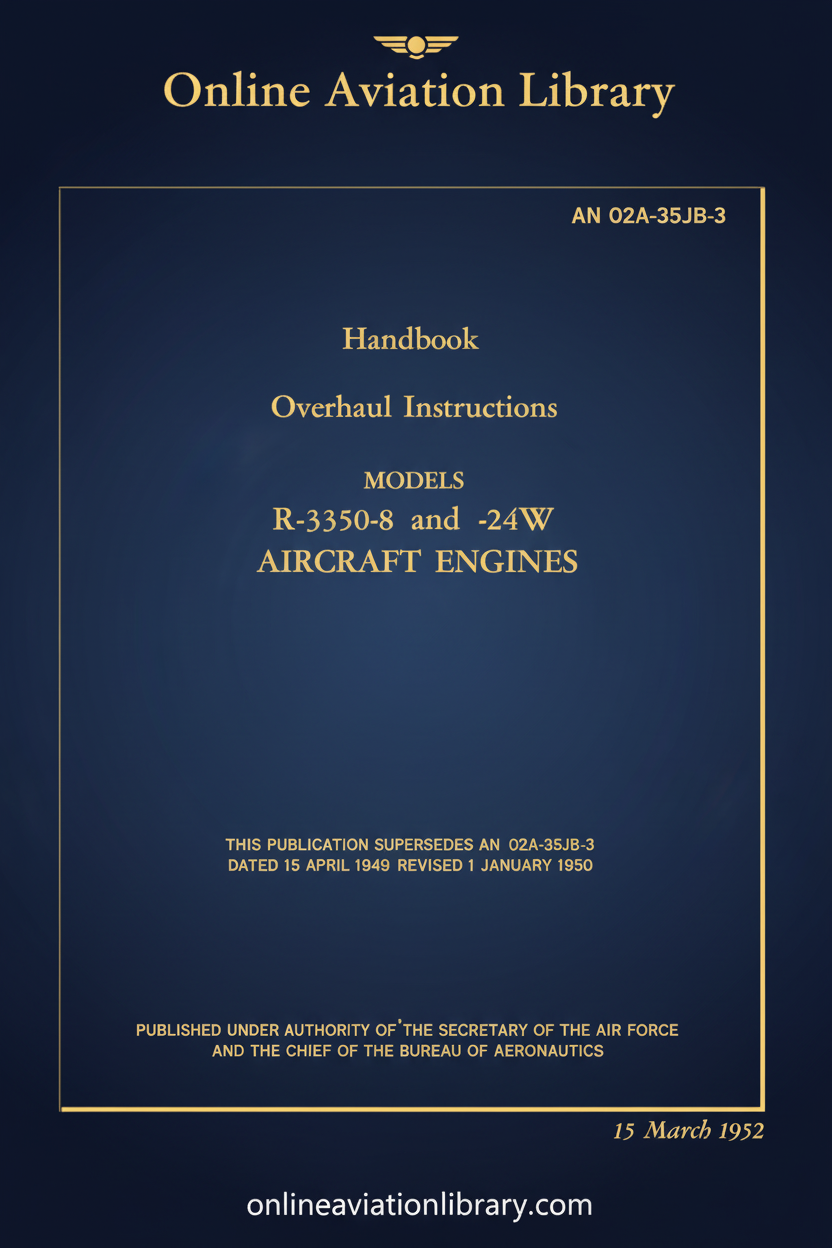

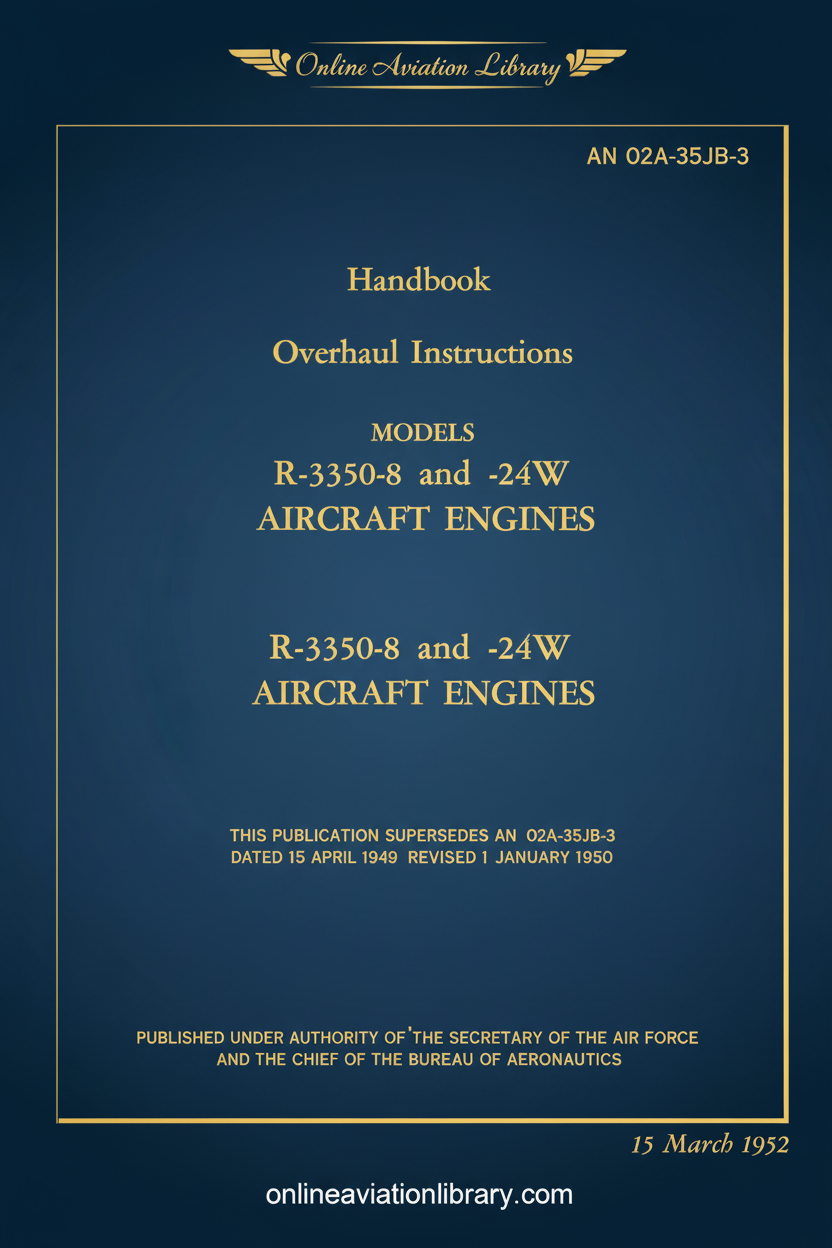

• Wright R-3350-8 and -24W Aircraft Engine Handbook Overhaul Instructions Manual

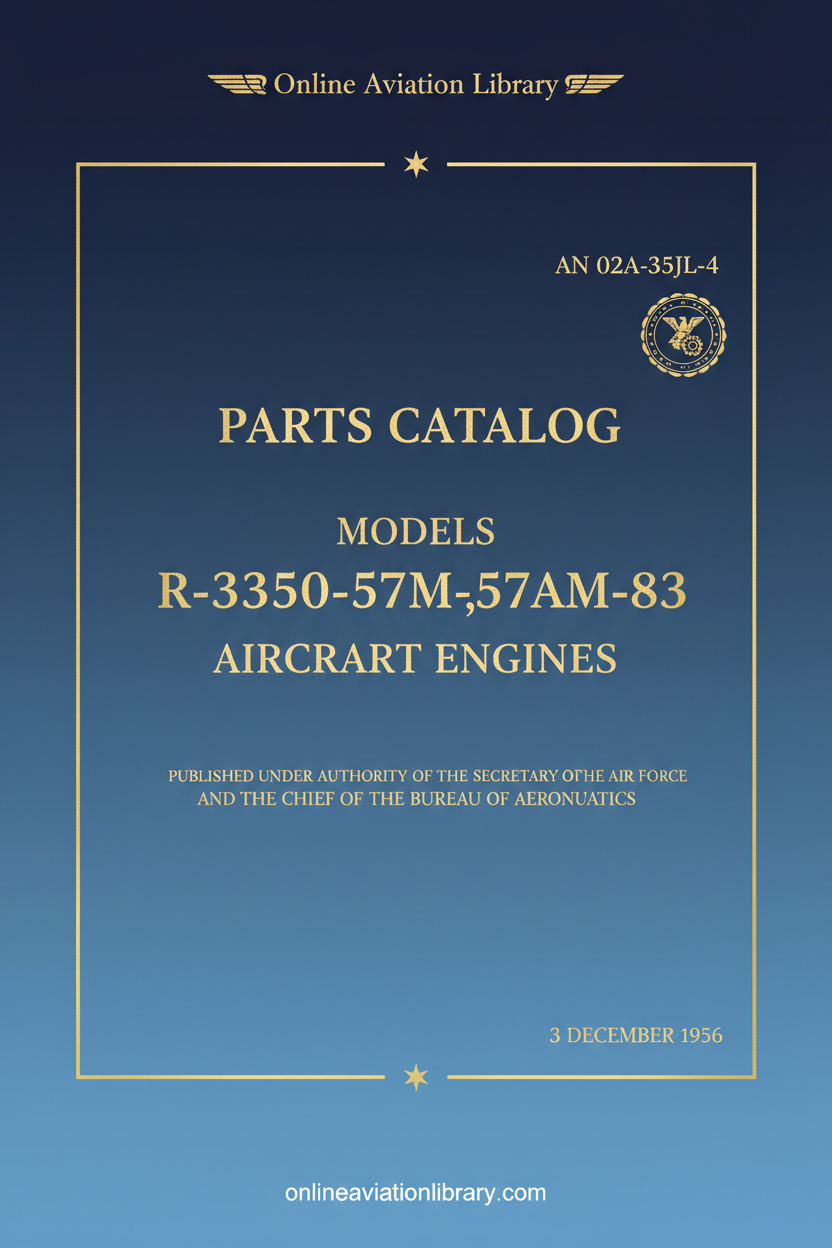

• Wright R-3350-57M, -57AM, -83 Aircraft Engine Parts Catalog Manual
• Wright R-3350-57M, -57AM, -83 Aircraft Engine Handbook Overhaul Instructions Manual

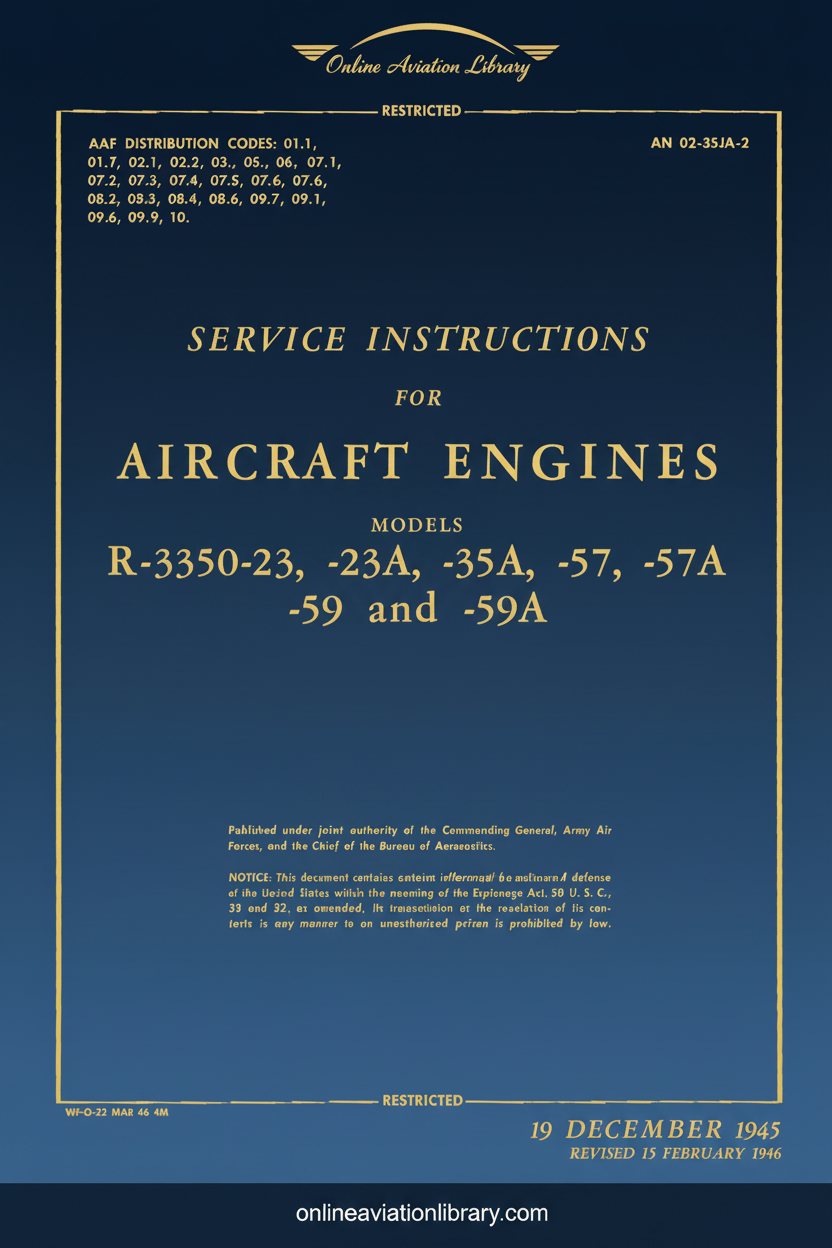

• Wright R-3350-23, -23A, -35A, -57, -57A, -59, -59A Aircraft Engine Handbook Service Instructions Manual
• Wright R-3350-18, -19, -21, -23A, -35, -35A, -41, -57, -57A, -59 Aircraft Engine Overhaul Instructions Manual
• Wright R-3350-13, -21, -23, -23DW, -23A, -35, -37 Aircraft Engine Parts Catalog Manual

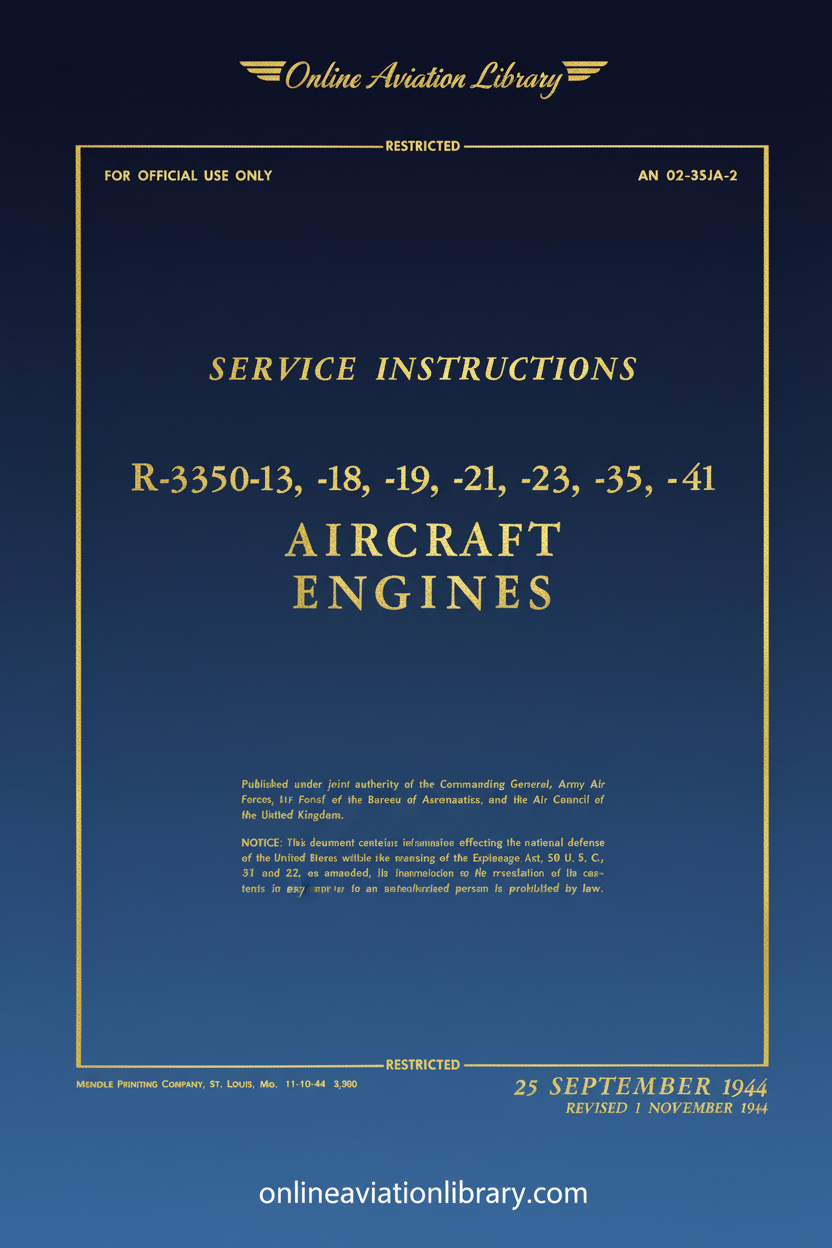

• Wright R-3350-13, -18, -19, -21, -23, -35, -41 Aircraft Engine Handbook Service Instructions Manual

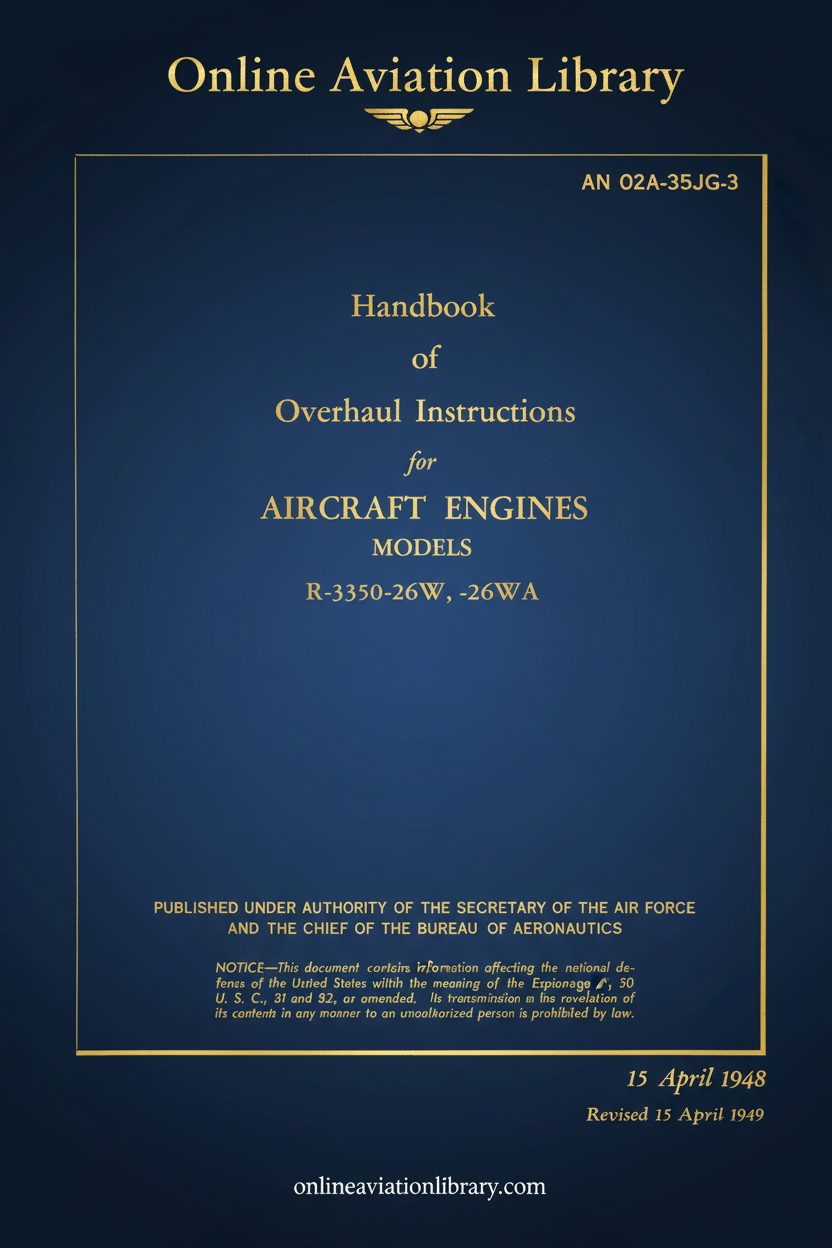

• Wright R-3350-26W, -26WA Aircraft Engine Overhaul Instructions Manual — T.O. 02-35JG-3 (1948)

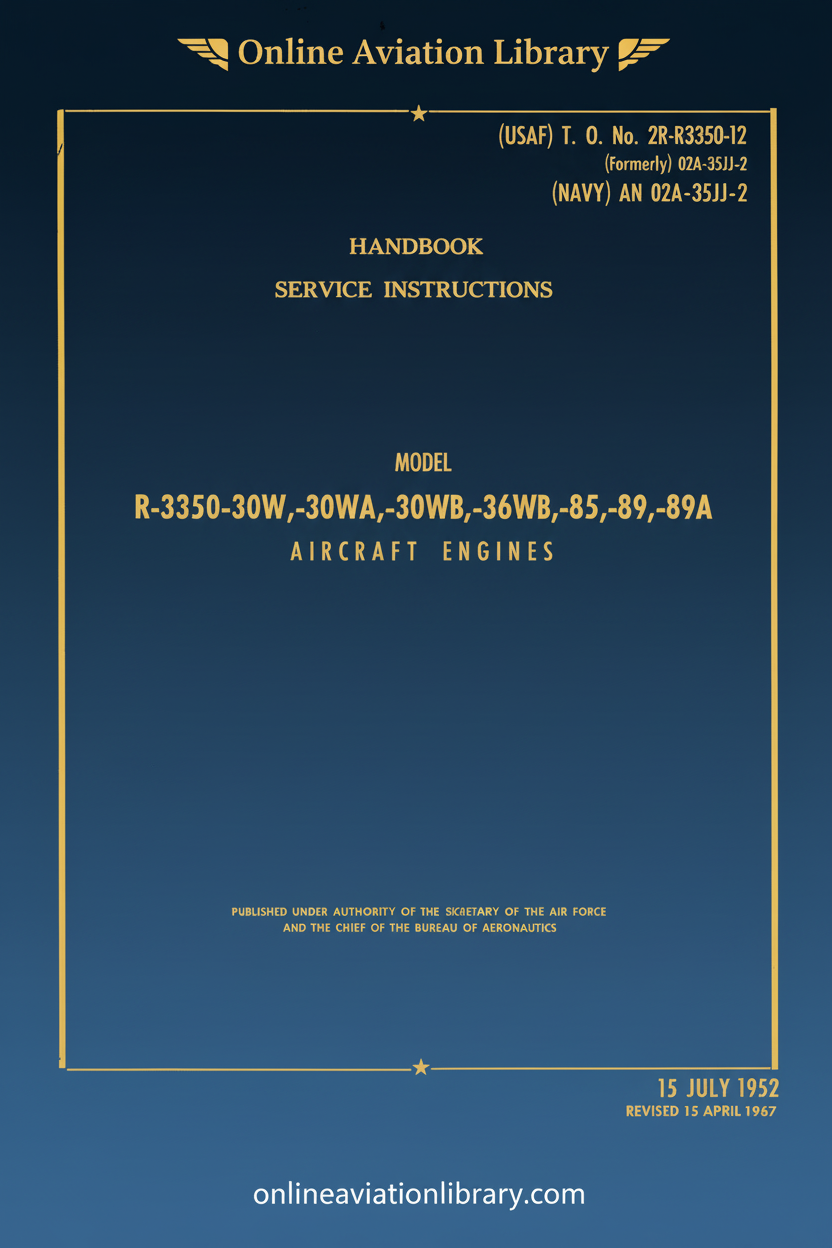

• Wright R-3350-30W, -30WA, -30WB, -36WB, -85, -89, -89A Aircraft Engine Handbook Service Instructions Manual
• Wright R-3350 TC18EA Aircraft Engine Cutaway and Schematic Views Manual

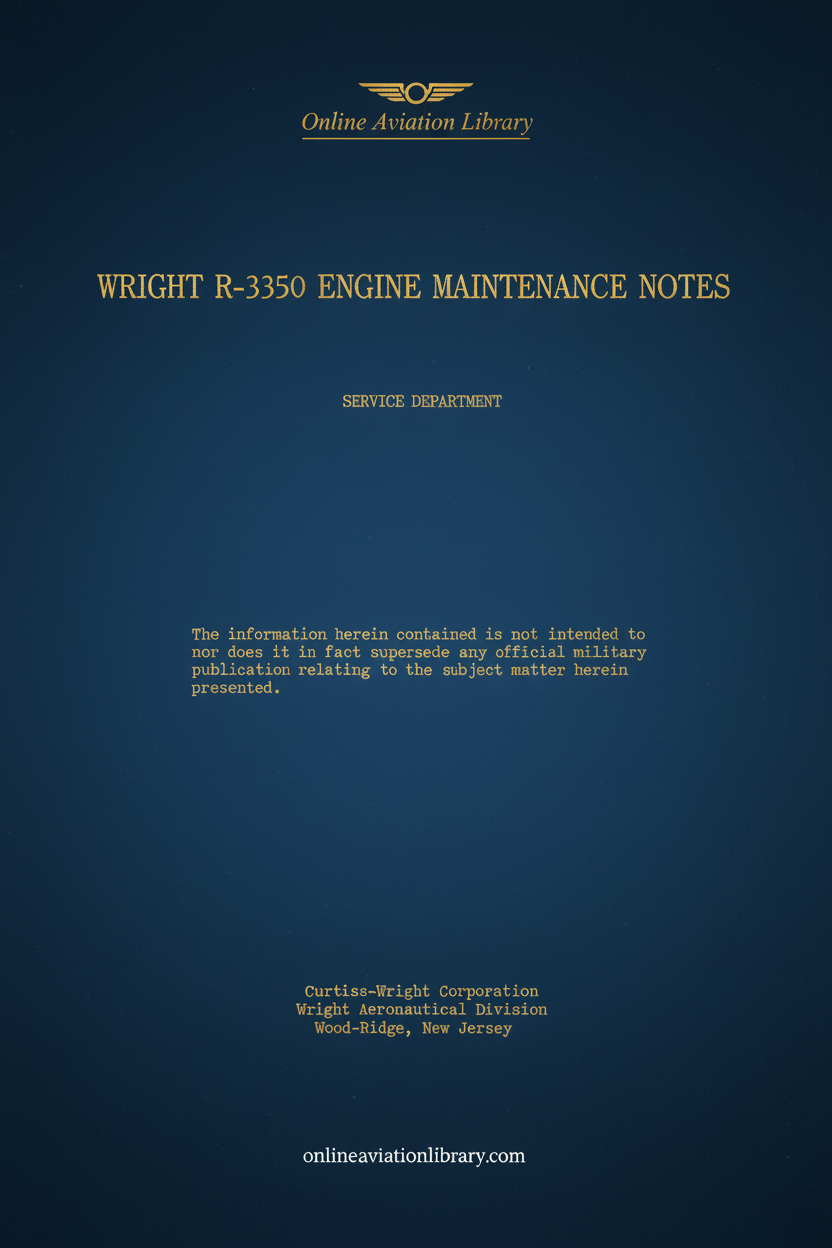

• Wright R-3350 Aircraft Engine Maintenance Notes Manual
• Wright R-3350-30W Aircraft Engine Overhaul Manual (1951)

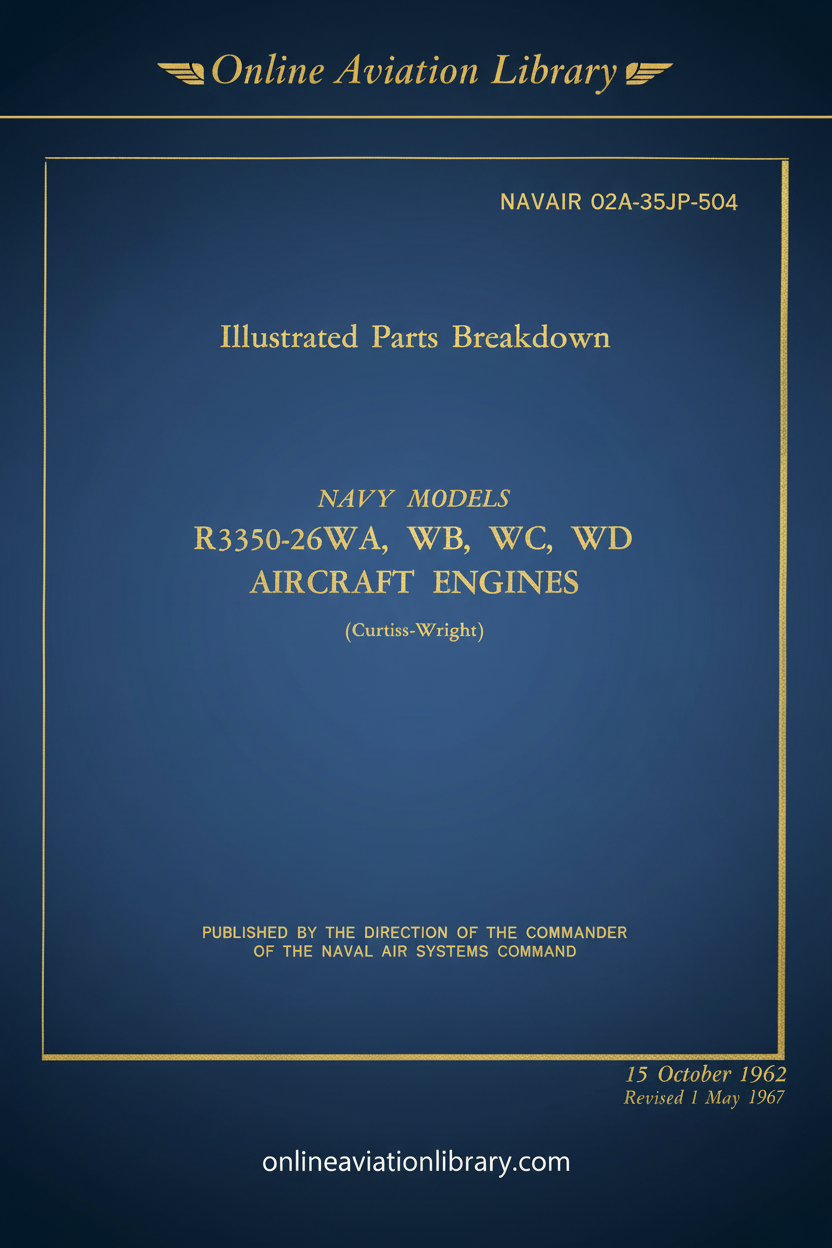

• Wright R-3350-26WA, -WB, -WC, -WDA Aircraft Engine Illustrated Parts Breakdown Manual
• Wright R-3350 Cyclone 18 BA Aircraft Engine Service Manual
• Wright R-3350-32W Aircraft Engine Cutaway Manual

Exhaustive variant coverage including the -8, -13, -18, -19, -21, -23, -23A, -23DW, -24W, -26W, -26WA, -26WB, -26WC, -26WDA, -30W, -30WA, -30WB, -32W, -33, -35, -35A, -36WB, -37, -41, -57, -57A, -57AM, -57M, -59, -59A, -83, -85, -89, -89A series, plus the Cyclone 18 BA, BB, BD, and TC18EA Turbo-Compound variants. Documentation spans from early wartime service instructions (1943) through Turbo-Compound overhaul and parts manuals (1957).

Engineering Norms and Standards

Military Specifications: R-3350 variants were developed and certified under U.S. Army Air Forces and U.S. Air Force specifications. Military documentation references AN (Army-Navy) standardized part numbers and Technical Orders (T.O.) carrying the authority of the issuing military command, governing B-29, B-32, A-1, C-119, and C-121 powerplant operations.

Civilian Type Certificate Standards: Turbo-Compound variants received CAA/FAA Type Certificate approval for the Lockheed L-1049 Super Constellation, L-1649A Starliner, and Douglas DC-7. Active FAA Airworthiness Directives remain in force for certificated R-3350 installations covering fuel pump assemblies, cylinder assemblies, and ignition system components.

Wright Aeronautical Engineering Practices: Twin-row 18-cylinder configuration with staggered rows for optimised cooling; "W" finning on cylinder barrels; sodium-cooled exhaust valves; direct fuel injection on later variants; three Power Recovery Turbines on Turbo-Compound variants geared to the crankshaft via fluid couplings; two-speed supercharger drives for altitude performance. Forged steel crankshafts, master-and-articulated rod assemblies, and pressure-lubricated plain bearings throughout.

Technical Specifications: 18-cylinder twin-row air-cooled radial; 3,350 cu in (54.9 L) displacement; bore 6.125 in × stroke 6.3125 in (155.6 mm × 160.3 mm); compression ratio 6.85:1; power 2,200 hp (early) to 3,700+ hp (Turbo-Compound); dry weight 2,670–3,775 lbs; fuel 100/130 octane aviation gasoline; operational RPM up to 2,900 depending on variant.

Maintenance and Overhaul Standards: These manuals document Wright Aeronautical's prescribed maintenance intervals, inspection procedures, overhaul tolerances, and parts replacement criteria. They include torque specifications, clearance measurements, wear limits, cylinder compression requirements, magneto timing procedures, PRT inspection criteria, and assembly sequences for military and airline operators.

Format and Delivery

Delivery: Instant digital download upon purchase. Download links provided immediately via email and through your Online Aviation Library account.

Format: High-resolution PDF files scanned from original Wright Aeronautical factory manuals and military technical orders. Authentic historical documents maintaining original page layouts, technical illustrations, cutaway diagrams, parts breakdowns, and specification tables.

Compatibility: Compatible with all modern devices including Windows PC, Mac, iPad, Android tablets, and smartphones. Files can be stored locally, backed up to cloud storage, or printed for workshop reference.

Organisation: Manuals clearly labelled by variant, document type, and publication date for easy reference and archival organisation.

Searchable: PDF format allows keyword searching for rapid location of specific procedures, part numbers, torque specifications, or technical data.
