Westinghouse J34 Aircraft Engine Manuals Collection

A structured digital archive of overhaul, service, and illustrated parts documentation for the Westinghouse J34 axial-flow turbojet engine family. This collection covers variants WE-7 through WE-48, spanning the full production and operational lifecycle of one of the U.S. Navy's primary Korean War-era jet powerplants.

Definitive Collection with Free Lifetime Updates: This is a living collection that we continuously expand and refine. As we acquire additional Westinghouse J34 documentation, technical bulletins, or variant-specific materials, we update this collection and provide free lifetime updates to all purchasers. Your one-time purchase guarantees access to all future additions and improvements to this collection.

Historical Note

The Westinghouse J34 was developed by the Westinghouse Aviation Gas Turbine Division (AGT) as a scaled-up derivative of the earlier J30 (Westinghouse 19C), entering service in 1947. It became a cornerstone powerplant for U.S. Navy jet aviation during the late 1940s and through the Korean War, powering the McDonnell F2H Banshee, Douglas F3D Skyknight, Vought F7U Cutlass, and serving as an auxiliary boost engine on the Lockheed P-2 Neptune. Approximately 5,000 units were produced between 1945 and 1960.

The F3D Skyknight, powered by twin J34s, achieved the first jet-vs-jet night kill in aviation history during the Korean War — a milestone that cemented the engine's operational significance.

Afterburner Variants and Development

The J34 was among the earliest American turbojets to incorporate afterburning for thrust augmentation — a critical capability given the limitations of early axial-flow engines during short carrier takeoffs and high-speed intercepts. Solar Aircraft Company was the primary developer of afterburner units for the J34 (company designation 24C), employing a vapor-type burner to minimize flame length and maximize exhaust velocity.

While standard dry J34 variants produced 3,000–3,250 lbs of thrust, afterburning configurations achieved significantly higher output:

• J34-WE-22: Basic 3,000 lb thrust model.
• J34-WE-30 (McDonnell XF-88 Voodoo): Afterburning variant reaching up to 4,200–4,900 lbs thrust.
• J34-WE-32 (Vought F7U-1 Cutlass): Afterburning variant; notorious for reliability issues and underperformance, contributing to the F7U-1 reputation as the Ensign Killer during carrier approaches.
• J34-WE-34/36: Improved efficiency models for F2H/F3D operations.
• J34-WE-48: Final production variant incorporating Rolls-Royce improvements, fitted to the North American T-2A Buckeye trainer.

Speed Record Legacy

The J34 found a celebrated second life as a powerplant for record-breaking speed machines, favored for its lightweight axial design and widespread post-war surplus availability. Its Stellite turbine blades — capable of withstanding temperatures up to 1,000 degrees Celsius in short bursts — made it ideal for the extreme thermal demands of speed runs.

• World Water Speed Record: In 1978, Ken Warby used a single J34 (assembled from three surplus engines) in the Spirit of Australia to set the world water speed record of 317.59 mph (511.11 km/h). This record remains unbroken to this day.
• Land Speed and Jet Dragsters: The J34 has been used in jet dragsters and land speed vehicles by private operators exploiting its compact form and high thrust-to-weight ratio.
• Other Applications: The engine's compact dimensions led to its use in the Shockwave jet truck and specialized snow-melting machines, including the Snowzilla.

Manuals Included in This Collection

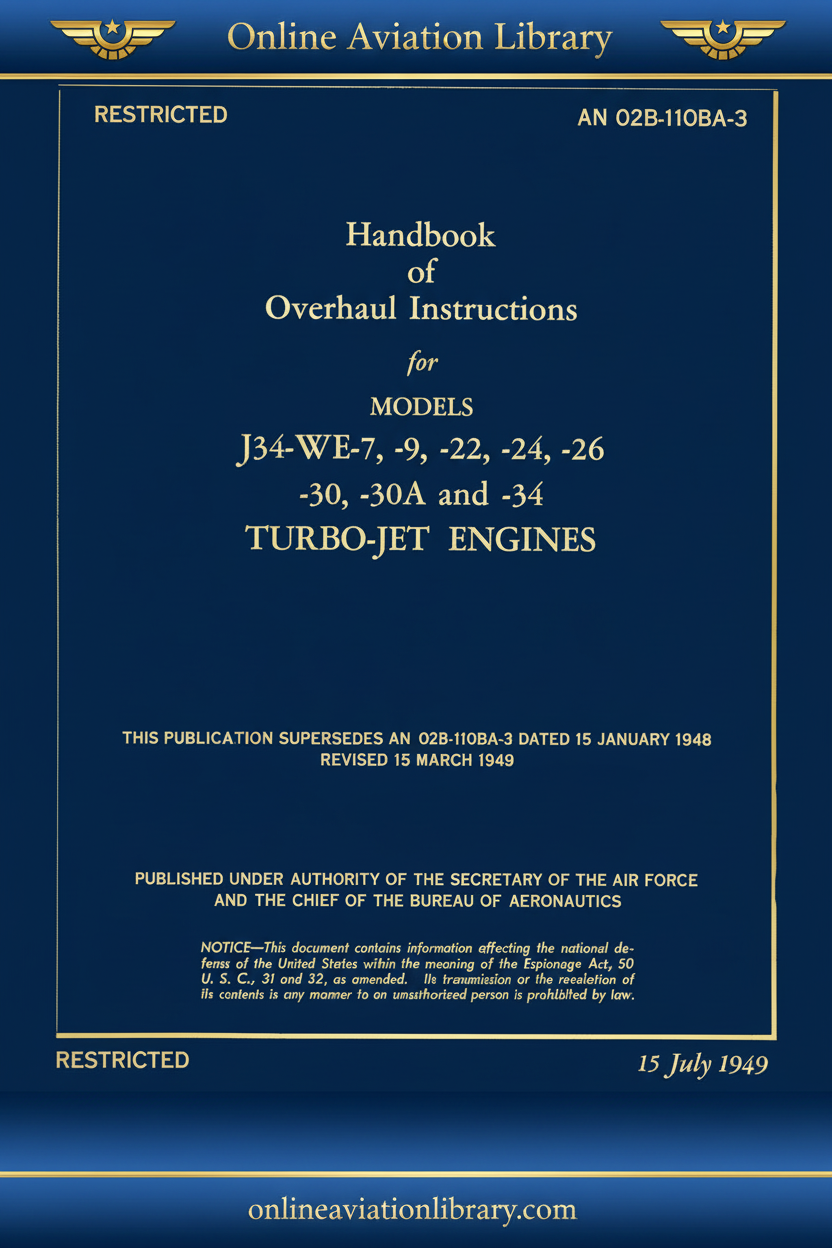

• Westinghouse J34-WE-7, -9, -22, -24, -26, -30, -30A and -34 Aircraft Engine Overhaul Manual

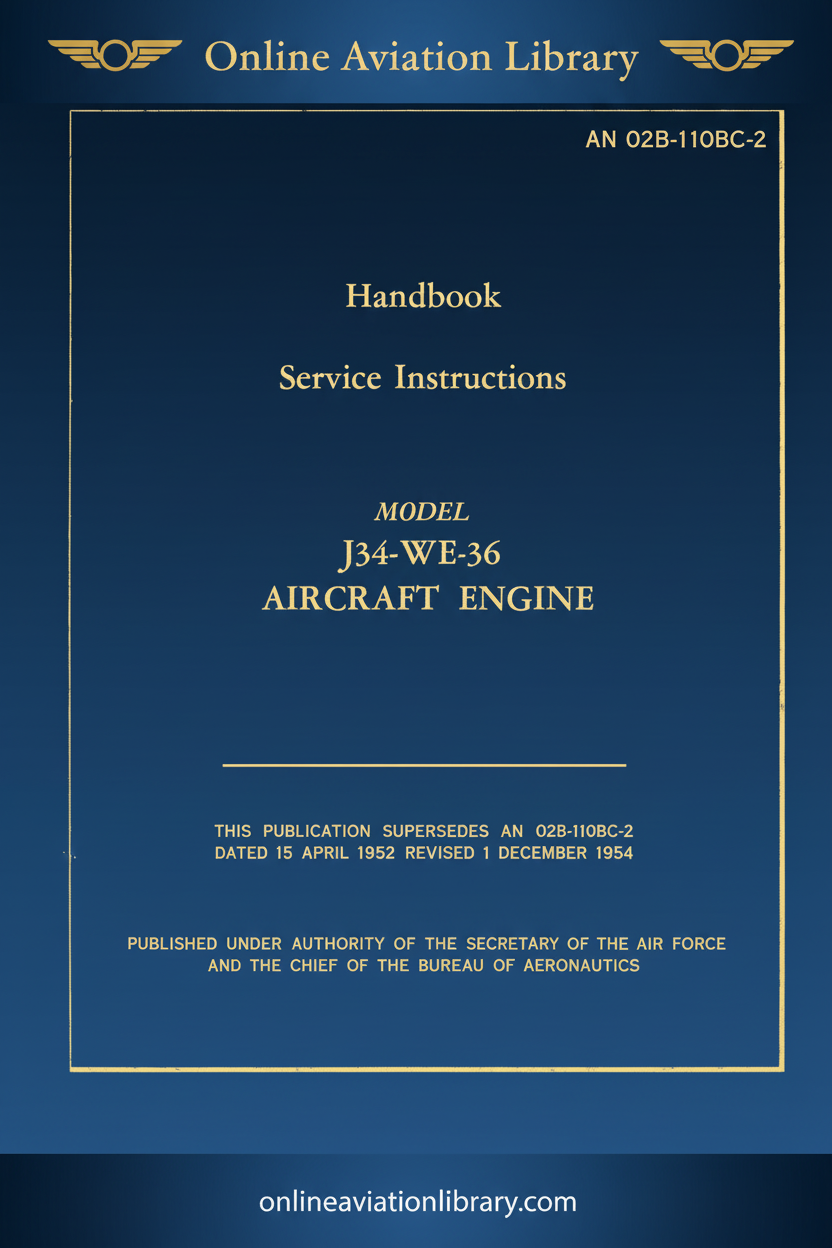

• Westinghouse J34-WE-36 Aircraft Engine Service Manual

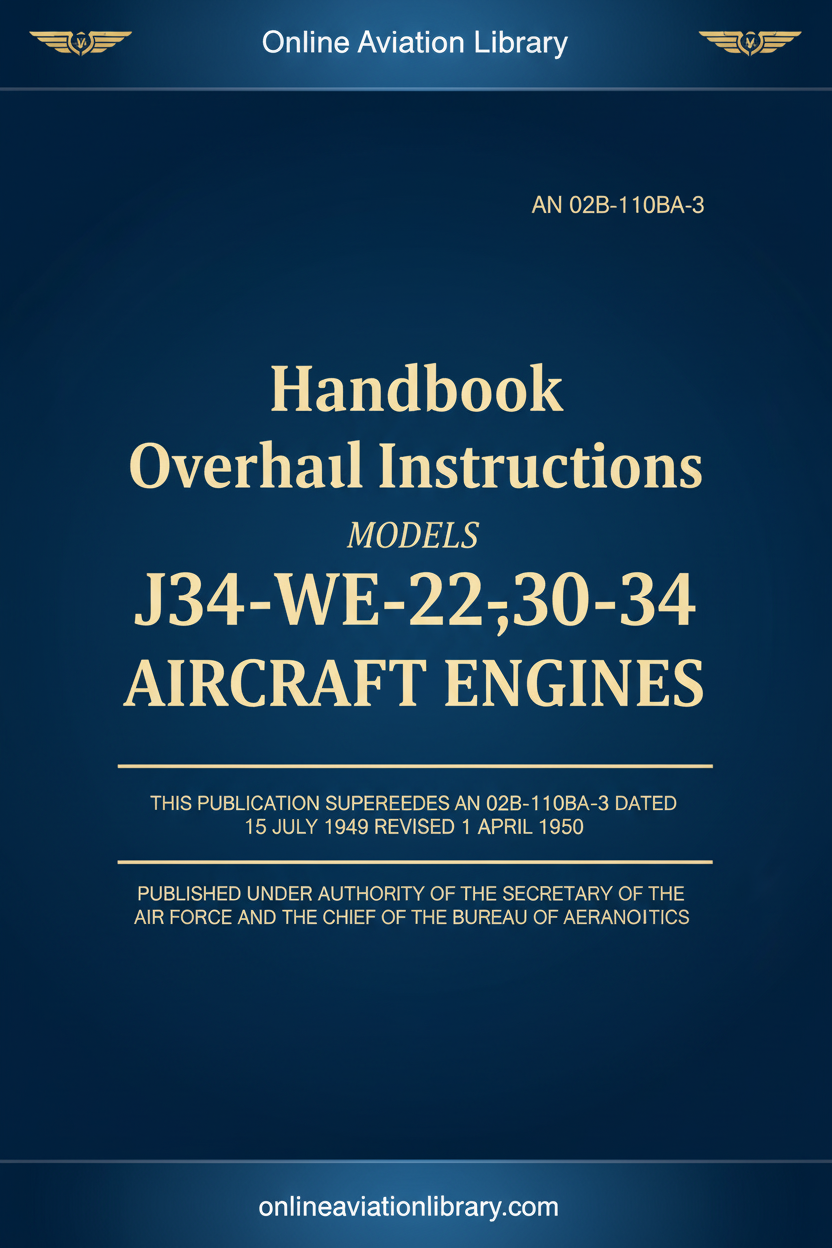

• Westinghouse J34-WE-22, -30, -34 Aircraft Engine Overhaul Manual

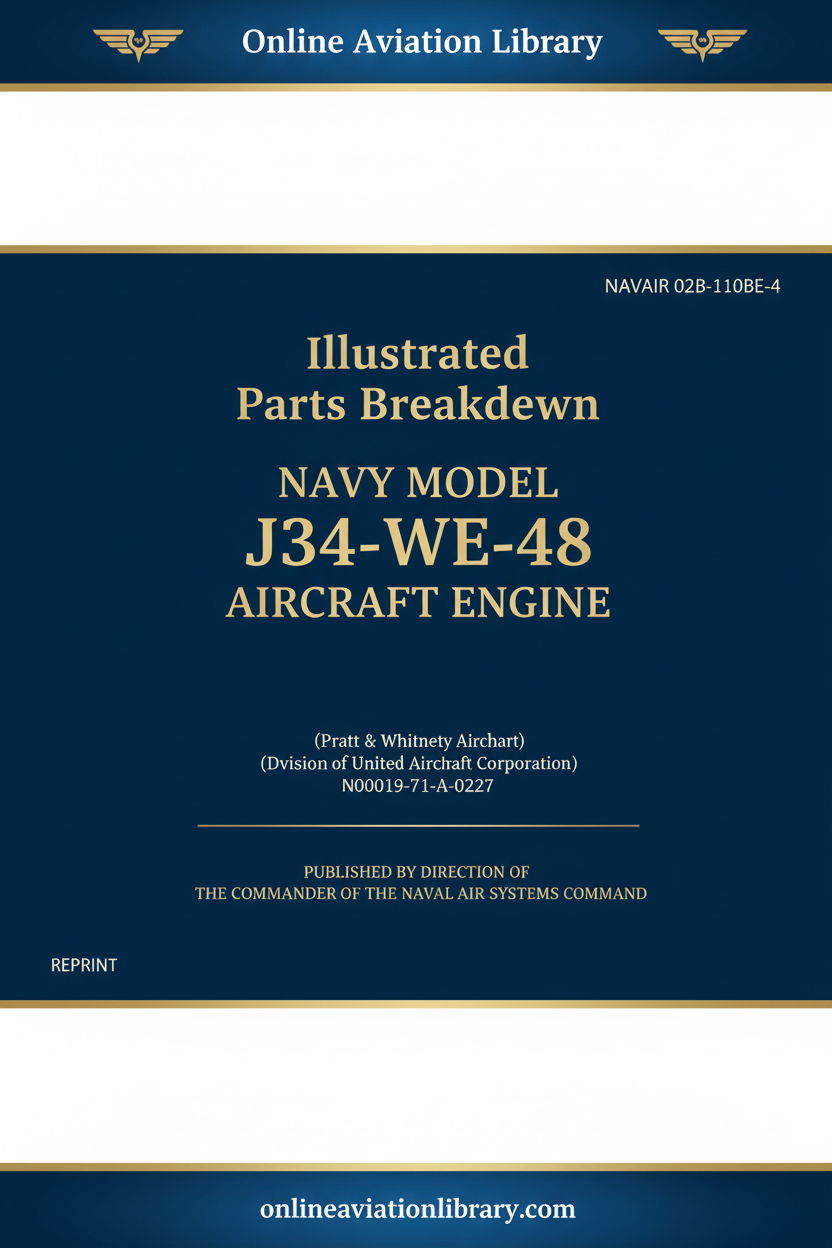

• Westinghouse J34-WE-48 Aircraft Engine Illustrated Parts Manual
• Westinghouse Jet Engine Progress for Defence — Aircraft Engine Technical Brochure

This collection spans the full J34 variant range from early production models through the final WE-48 configuration, covering overhaul procedures, service instructions, illustrated parts breakdowns, and manufacturer technical documentation across the engine's active production and service life.

Engineering Norms and Standards

Documentation in this collection reflects Westinghouse AGT engineering practices and U.S. military procurement standards of the 1945–1960 period. Manuals conform to applicable MIL-SPEC overhaul and maintenance documentation requirements of the era. The J34's 11-stage axial compressor, double annular combustion chamber, and afterburner configurations are covered in detail across the variant-specific overhaul manuals. Compression ratio of approximately 4.35:1, dry weight of 1,185–1,230 lbs, and JP-4 fuel compatibility (with select variants modified for 115/145 aviation gasoline) are documented throughout. Engineering norms for the WE-48 variant reflect Rolls-Royce-influenced improvements incorporated into the final production series.

Specialized Documentation

The Technical Brochure (Westinghouse Jet Engine Progress for Defence) provides manufacturer-level context on the J34's development trajectory, variant engineering rationale, and performance envelope — a rare primary source document for researchers and restoration specialists. The WE-48 Illustrated Parts Manual provides component-level detail for the T-2A Buckeye configuration.

Where to Find Additional Documentation

Official Support: The J34 is an obsolete military engine with no active Type Certificate holder. Technical data originated from Westinghouse AGT; successor documentation may be held by Northrop Grumman archives or U.S. Navy historical records.

Historical Archives: The Tailhook Association, Naval Aviation Museum (Pensacola), and warbird restoration communities maintain operational histories and supplementary technical records for F2H, F3D, and F7U airframes.

Specialty Vendors: Online Aviation Library and similar archival documentation providers maintain curated collections of period military engine documentation.

Format and Delivery

Instant digital download. All documents delivered as high-resolution PDFs, organized by variant and document type. Compatible with all major PDF readers on desktop, tablet, and mobile. Print-friendly formatting throughout.

Disclaimer: This collection is provided for historical reference and research purposes only. These are period military documents; consult current airworthiness authorities for any operational use. No guarantee of airworthiness applicability is expressed or implied. Trade names and designations are the property of their respective owners. This digital compilation, structure, indexing and presentation are copyright Sicuro Publishing.
