Vultee Valiant BT-13/BT-15 Aircraft Manuals Collection

Access the comprehensive technical documentation for the legendary Vultee BT-13 and BT-15 Valiant basic trainer aircraft - the "Vibrator" that taught more American pilots to fly than any other aircraft in history. This extensive collection covers flight operations, airframe engineering, powerplant systems, electrical systems, structural repair, and the training philosophy that made this aircraft the foundation of WWII pilot training with over 11,500 aircraft produced.

Definitive Collection with Free Lifetime Updates: This is a living collection that we continuously expand and refine. As we acquire additional Vultee Valiant documentation, technical bulletins, variant-specific materials, or supplementary engineering references, we update this collection and provide free lifetime updates to all purchasers. Your one-time purchase guarantees access to all future additions and improvements to this collection.

Historical Note - The "Vibrator" That Built an Air Force

The Vultee BT-13 Valiant, affectionately (and sometimes not-so-affectionately) known as the "Vibrator" by the thousands of pilots who trained in it, stands as one of the most important aircraft in American aviation history. As the standard basic trainer for the United States Army Air Forces during World War II, the Valiant played an indispensable role in preparing Allied pilots for combat, serving as the crucial intermediate step between primary trainers like the Ryan PT-22 and advanced combat aircraft like the North American AT-6 Texan.

First flown in March 1939 and entering production in 1940, the BT-13 represented a significant step up in complexity and performance from primary trainers. Student pilots who had mastered basic flying skills in simple, low-powered primary trainers now faced a more powerful, heavier, faster aircraft with more complex systems - preparing them for the transition to high-performance fighters and bombers. The Valiant introduced students to higher speeds (maximum speed 180 mph), more powerful engines (450 hp Pratt & Whitney R-985 or Wright R-975 radial), retractable landing gear procedures (though the BT-13's gear was fixed, students practiced the procedures), formation flying, night operations, instrument flying, and the challenges of managing a more complex aircraft.

Between 1940 and 1944, Vultee Aircraft Corporation manufactured over 11,500 Valiants in multiple variants, making it one of the most-produced American training aircraft of WWII. The BT-13 and BT-13A featured the Pratt & Whitney R-985-AN-1 Wasp Junior radial engine producing 450 horsepower, while the BT-13B incorporated minor improvements. The BT-15 variant used the Wright R-975-11 radial engine (also 450 hp) to diversify engine supply sources during wartime production - both variants were operationally identical despite different powerplants.

The Valiant earned its legendary nickname "Vibrator" from the distinctive sound and vibration produced by its engine and airframe during flight. The combination of the radial engine's firing impulses, propeller harmonics, and airframe resonance created a characteristic vibration that pilots could feel throughout the aircraft - particularly noticeable during certain power settings and airspeeds. Despite this quirk (which some pilots found endearing and others merely tolerated), the aircraft proved to be an outstanding training platform with generally forgiving handling characteristics, adequate performance, and robust construction that withstood the punishment of student pilot training.

The aircraft featured all-metal construction (a significant advancement over fabric-covered trainers), a two-seat tandem cockpit with full dual controls, fixed landing gear with robust shock absorption, and a distinctive low-wing monoplane design that provided excellent stability and ground handling. The enclosed canopy protected crews from the elements while maintaining good visibility, and the relatively spacious cockpit accommodated pilots of various sizes comfortably. The aircraft's systems were complex enough to teach proper procedures but not so complex as to overwhelm students making the transition from primary trainers.

Nearly every American military pilot who flew in World War II logged significant hours in the Valiant during their basic training phase. The typical training syllabus included 70-75 hours of flight time in the BT-13, covering takeoffs and landings, stalls and spins, aerobatics, formation flying, cross-country navigation, night flying, and instrument procedures under the hood. Students who successfully completed basic training in the Valiant moved on to advanced trainers like the AT-6 Texan before transitioning to operational fighters, bombers, or transport aircraft.

Beyond U.S. service, the Valiant was supplied to Allied nations under the Lend-Lease program. Canada received hundreds of aircraft designated the "Yale" (a play on "Valiant"), which served with the Royal Canadian Air Force and British Commonwealth Air Training Plan. China, Brazil, and several other Latin American countries also operated Valiants for pilot training. The aircraft's rugged construction and relatively simple maintenance requirements made it suitable for operation in diverse climates and conditions worldwide.

After the war, surplus Valiants flooded the civilian market at bargain prices ($500-$1,500), where they found new life in various roles. Many were converted to agricultural aircraft for crop dusting and spraying, where their robust construction and reliable engines proved valuable. Others became personal sport aircraft, though the Valiant's relatively high fuel consumption and maintenance requirements made it less popular than smaller trainers for recreational flying. Some were used for banner towing, pipeline patrol, and other commercial operations.

Today, numerous BT-13s remain airworthy in private hands, cherished by warbird enthusiasts for their historical significance, classic lines, and authentic WWII training experience. The Valiant's distinctive sound and vibration, once merely tolerated by wartime student pilots, are now celebrated as part of the aircraft's character and charm. Well-maintained examples command significant prices and fly regularly at airshows and warbird gatherings, serving as living reminders of the massive pilot training effort that helped win World War II.

These original technical manuals represent authentic documentation used by military and civilian mechanics, pilots, and maintenance personnel throughout the aircraft's service life from 1940 through the present day. They provide invaluable information for current owners, restorers, aviation historians, and enthusiasts seeking to understand and preserve this distinguished aircraft that trained a generation of combat pilots.

Manuals Included in This Collection:

Flight Manuals and Operating Instructions:

• Vultee BT-13A SNV-1 Aircraft Pilot Flight Operating Instructions Manual

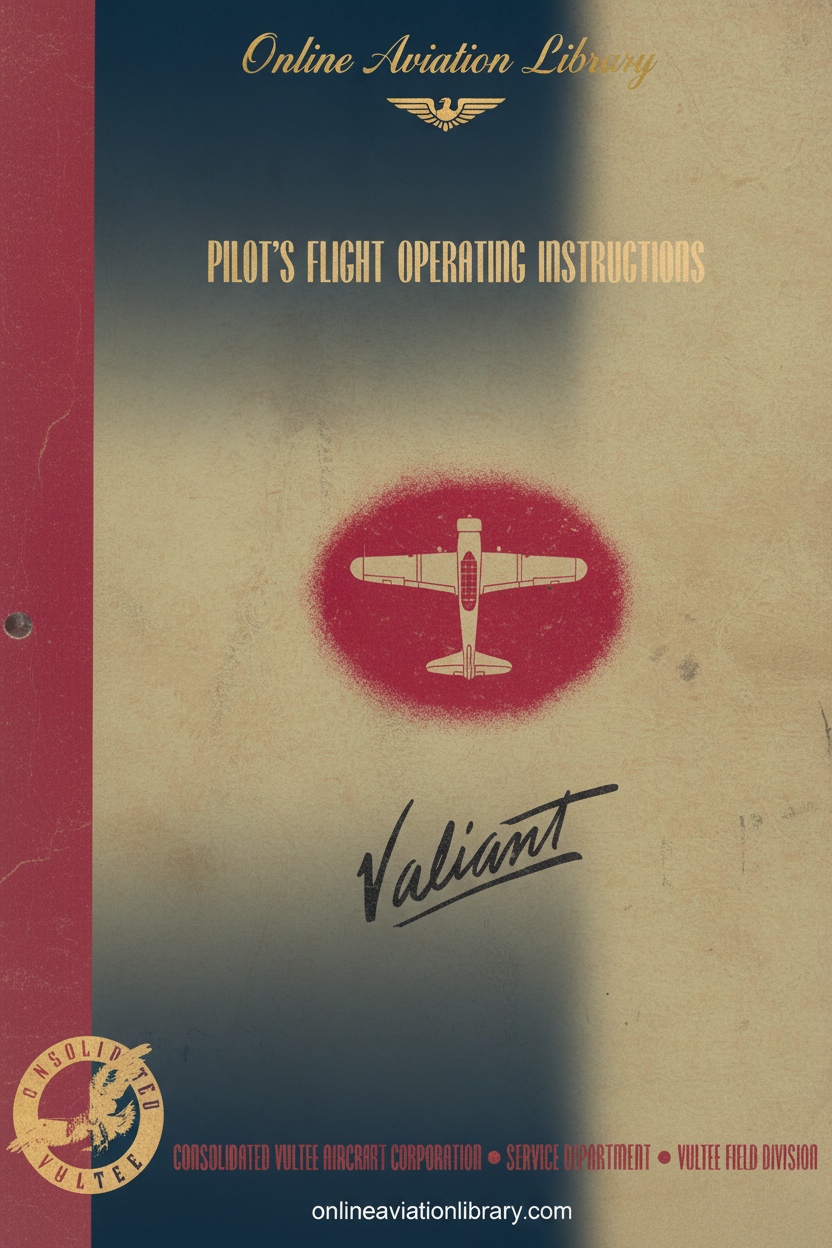

• Vultee Valiant Aircraft Pilot Flight Operating Instructions Manual
• Vultee BT-15 Preliminary Operating Flight Instruction Manual (1941)

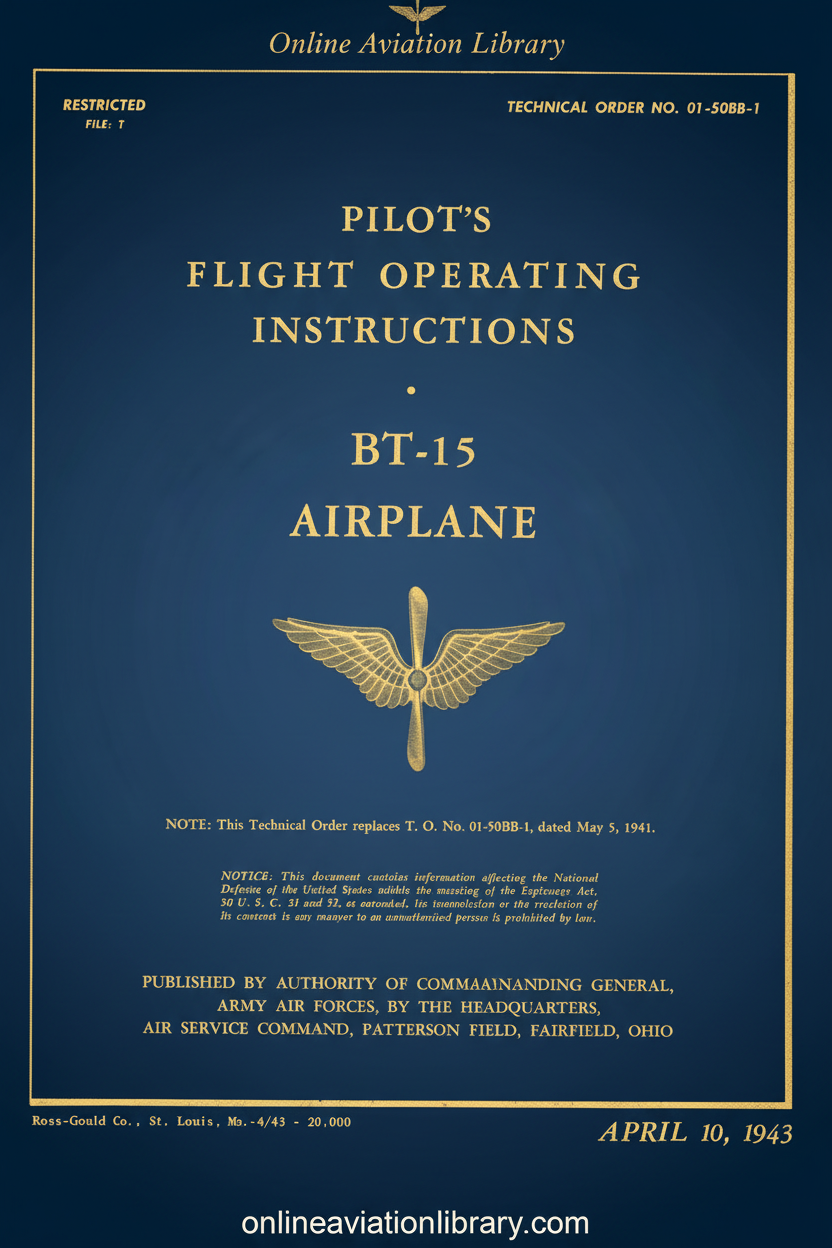

• Vultee BT-15 Airplane Pilot's Flight Operating Instruction Manual - 01-50BB-1 (1943)
• Vultee BT-13A, SNV-1 Pilot Flight Operating Instructions Manual - T.O. 01-50BC-1-95 (1945)
• Vultee Valiant BT-13A, B BT-15 SNV-1, -2 Aircraft Pilot Flight Operating Manual (1945)
• Vultee BT-13B SNV-2 Preliminary Handbook of Pilot's Flight Operating Instructions Manual - AN 01-50BD-1 (1943)
• Vultee BT-13A Military Basic Flight Training Aerobatic Manoeuvres Manual

Maintenance and Service Manuals:

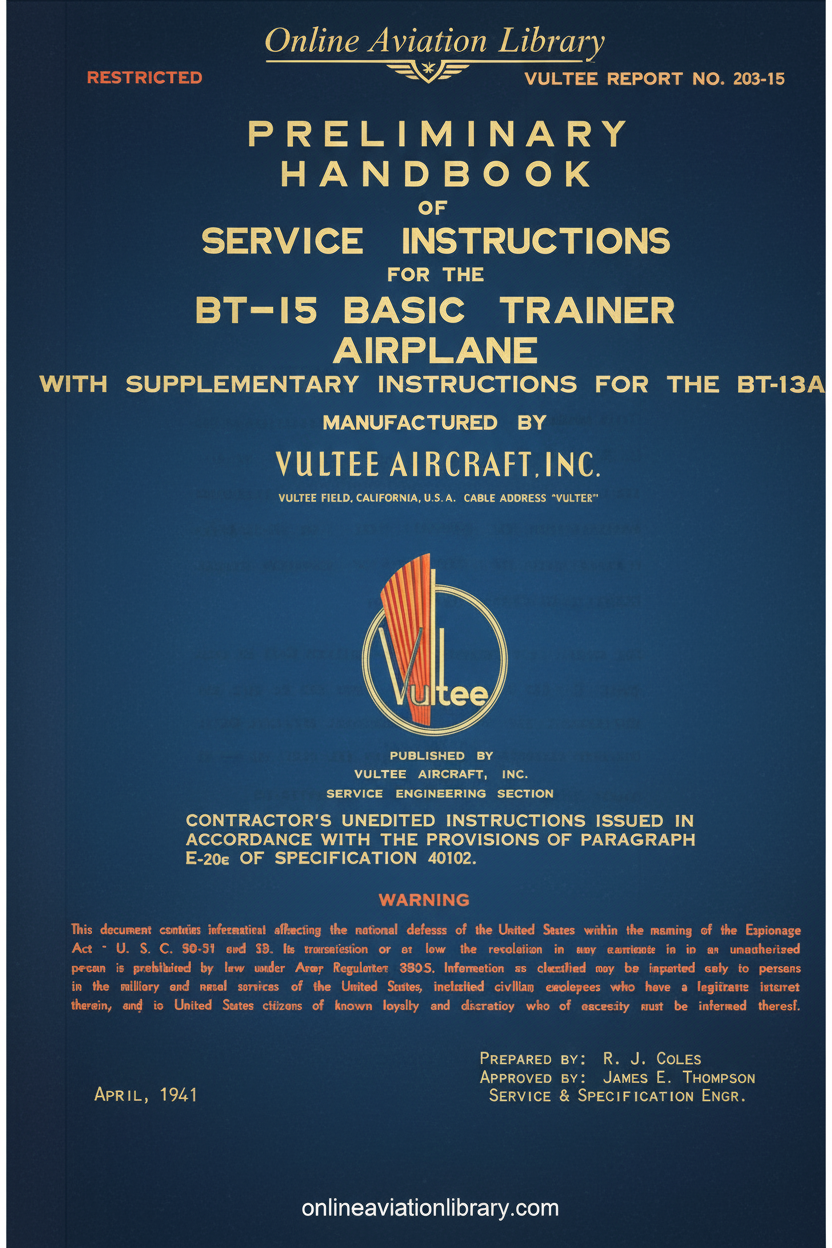

• Vultee BT-15 Preliminary Service Instruction Manual (1941)
• Vultee BT-15 Airplane Preliminary Handbook of Service Instruction Manual
• Vultee BT-13A, BT-15 Airplane Service Instructions Manual - T.O. 01-50BB-2 (1939)

Structural Repair and Technical Documentation:

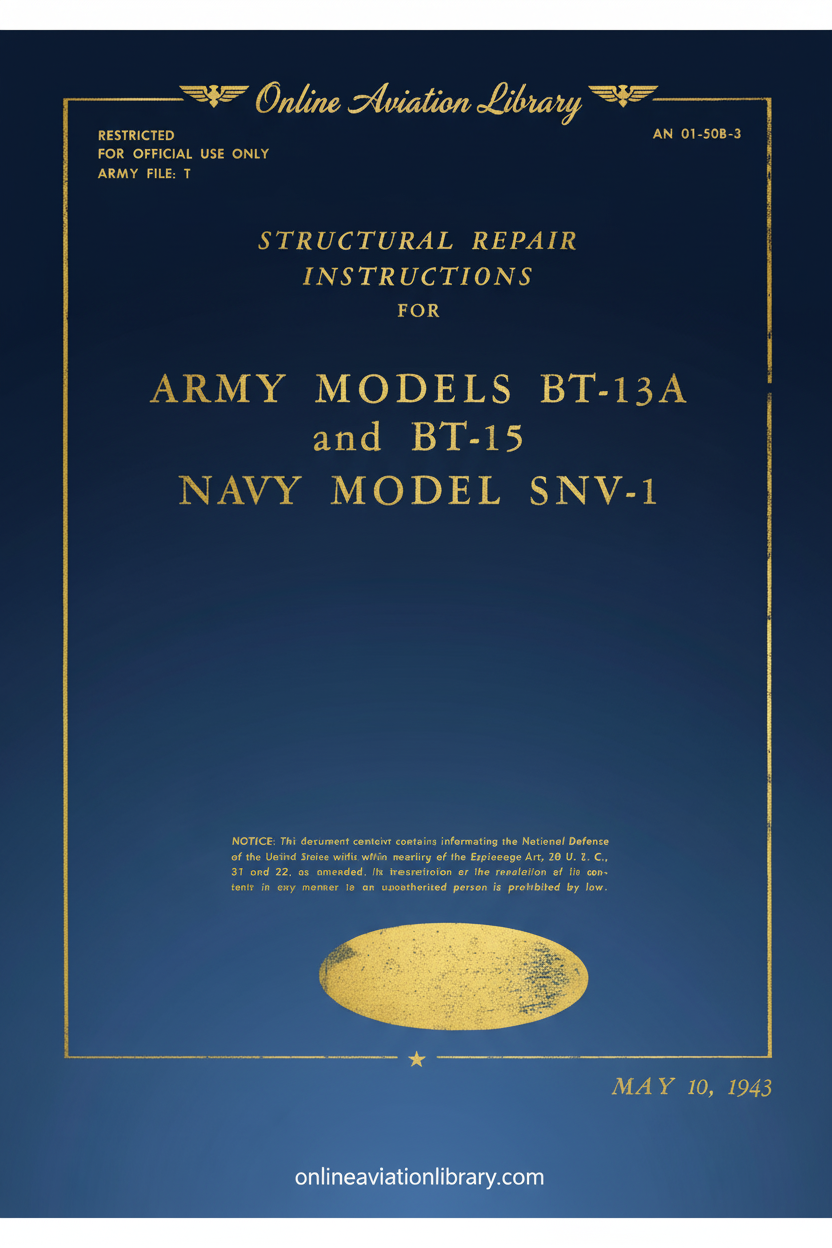

• Vultee BT-15 Airplane Structural Repair Manual - AN 01-508-2 (1943)

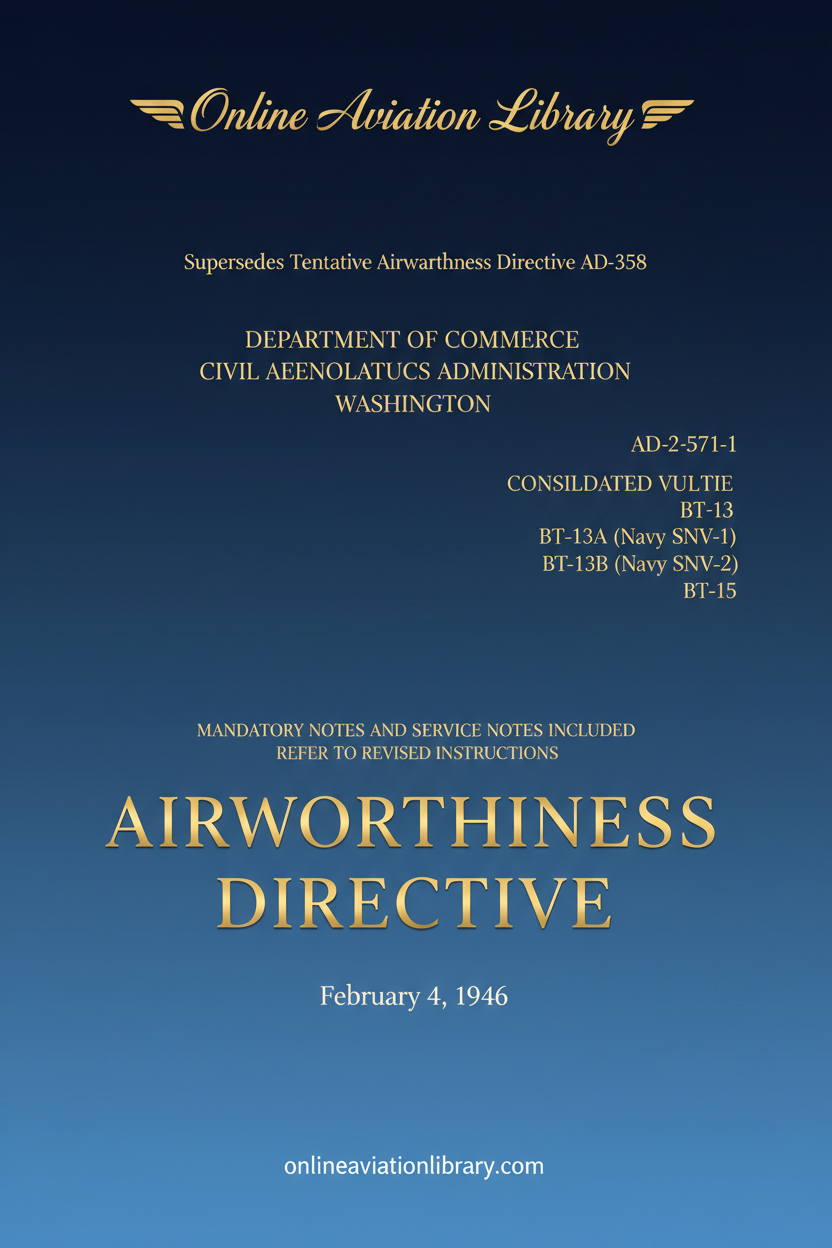

• Vultee BT-15 Airplane Service Bulletins and Airworthiness Directive Collection Manual

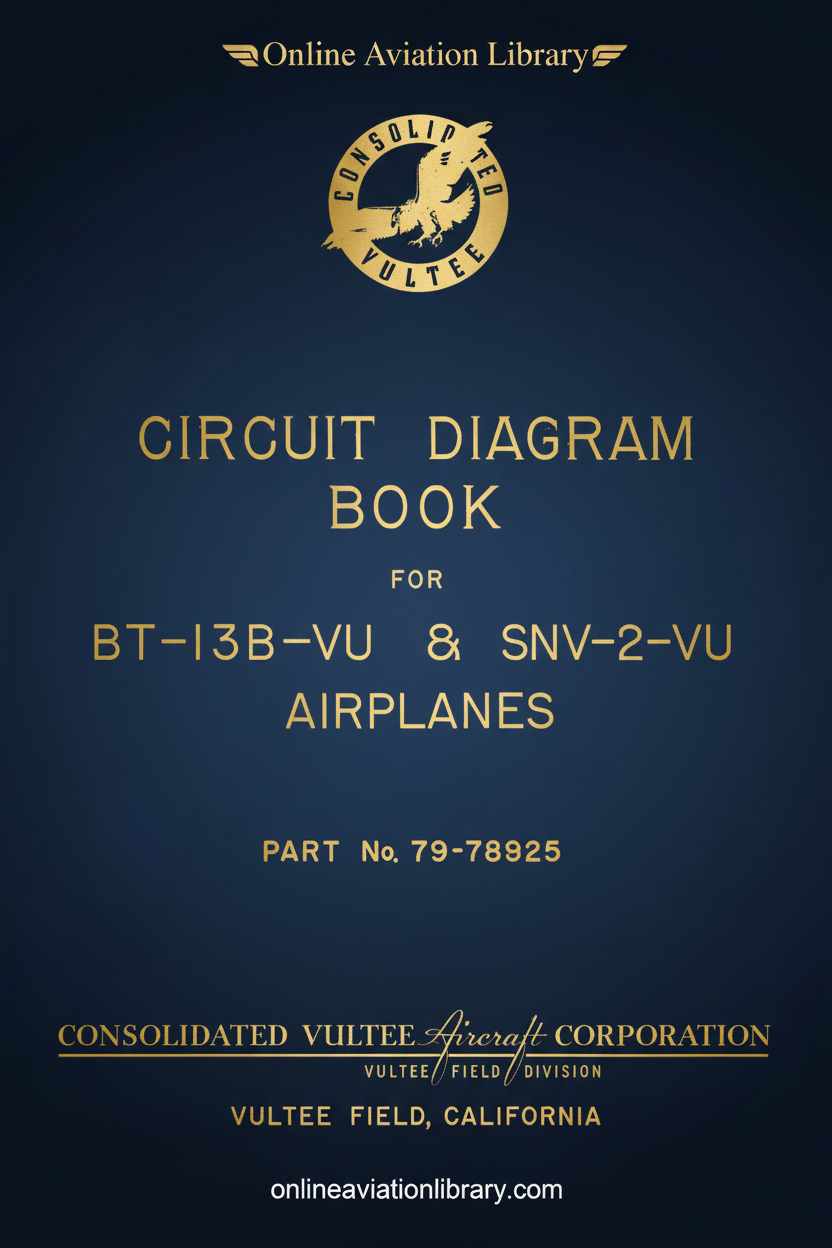

• Vultee BT-13 B-Vu & SNV-2-VU Airplane Circuit Diagram Manual - Part no 79-78925 (1942)

Parts Catalogs and Specifications:

• Vultee BT-13A, BT-15, SNV-1 Airplane Parts Catalog Manual - T.O. 01-50BC-4 (1944)

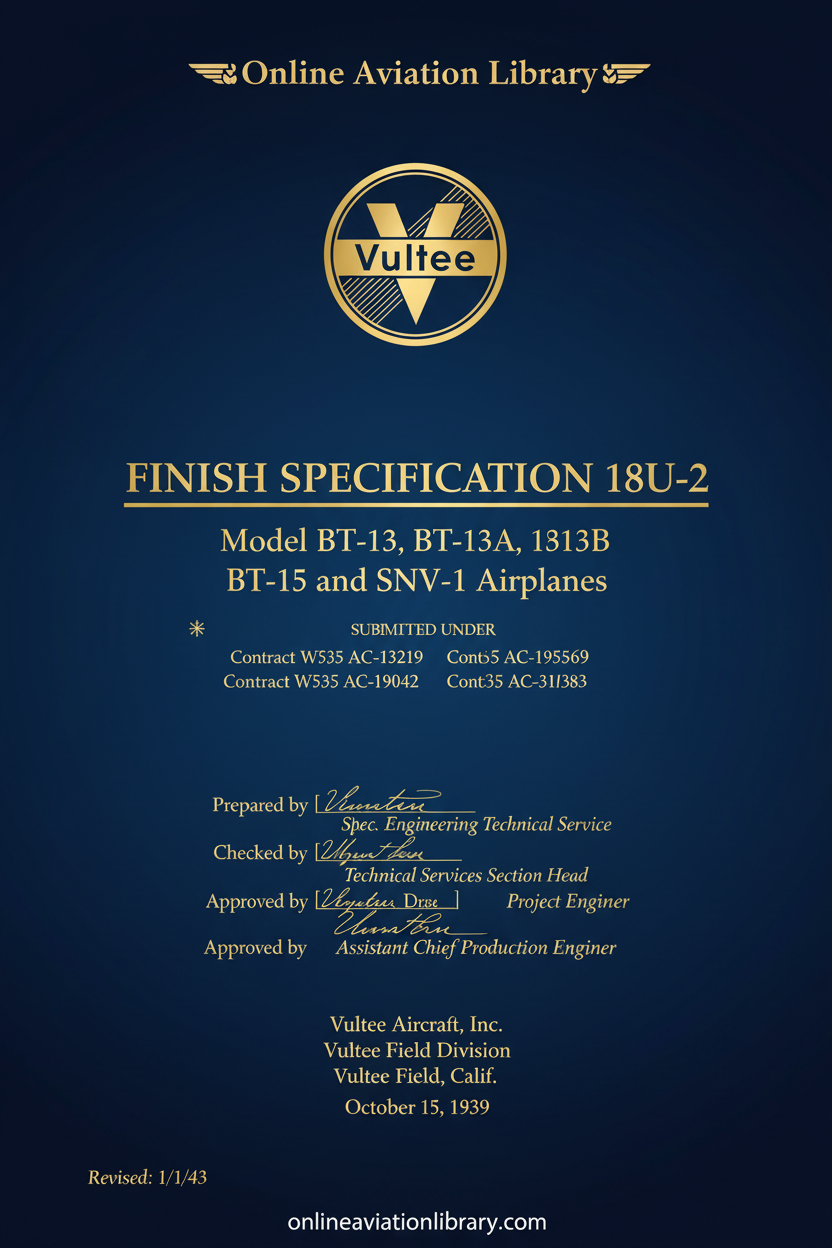

• Vultee BT-13 BT-15 SNV-1 Aircraft Finish Specification Manual (1939)

Why the Valiant Was the Perfect Basic Trainer - Engineering for Mass Production and Training Success:

All-Metal Construction - Durability for Intensive Training:

The Valiant's all-metal construction represented a significant advancement over fabric-covered trainers and was specifically chosen for durability under intensive training operations. The airframe employed semi-monocoque aluminum alloy construction with formed aluminum skin panels riveted to internal frames and stringers, providing exceptional strength-to-weight ratio and resistance to the punishment of student pilot operations. Unlike fabric-covered aircraft that required periodic re-covering and were vulnerable to weather damage, the Valiant's metal construction could withstand years of intensive use with minimal structural maintenance.

The wing structure featured multi-spar construction with heavy-gauge aluminum ribs and skin panels, designed to withstand the loads imposed by aerobatic maneuvers, hard landings, and occasional over-stressing by inexperienced pilots. The fuselage structure was similarly robust, with heavy frames at critical load points and reinforced areas around the landing gear attachment, engine mount, and tail surfaces. This generous structural design provided substantial safety margins that protected students (and the aircraft) from the consequences of pilot errors.

The fixed landing gear was massively constructed with long-stroke oleo-pneumatic shock struts capable of absorbing the violent impacts of student pilot landings - bounced landings, hard touchdowns, and occasional porpoising were routine occurrences that the Valiant's landing gear absorbed without structural damage. The wide track (approximately 9 feet) provided excellent stability during ground operations and reduced the tendency for ground loops, though the tailwheel configuration still required proper rudder control and directional awareness.

Powerplant - Pratt & Whitney R-985 and Wright R-975 Radial Engines:

The Valiant's powerplant selection was critical to its training mission success. The Pratt & Whitney R-985-AN-1 Wasp Junior (BT-13/13A/13B) and Wright R-975-11 (BT-15) nine-cylinder radial engines both produced 450 horsepower - significantly more power than primary trainers but manageable for students transitioning from 200-250 hp aircraft. This power increase taught students to manage higher performance while maintaining safety margins adequate for training operations.

The radial engine configuration provided several training advantages: excellent visibility over the nose (the radial's compact installation allowed good forward visibility compared to inline engines), reliable cold-weather starting, and tolerance for student pilot errors in mixture and throttle management. The engine's distinctive sound and vibration (source of the "Vibrator" nickname) provided sensory feedback about engine operation, teaching students to monitor engine health by sound and feel as well as instruments.

Engine management procedures were more complex than primary trainers, introducing students to cowl flaps for cooling control, mixture management for different altitudes, and proper warm-up and cool-down procedures. The constant-speed propeller (on most variants) taught students propeller pitch control and the relationship between manifold pressure, RPM, and power output - essential knowledge for operating high-performance aircraft. These procedures built habits and understanding that transferred directly to combat aircraft operations.

Flight Characteristics - Forgiving Yet Challenging:

The Valiant's flight characteristics were carefully balanced between forgiving behavior that kept students safe and challenging characteristics that taught proper technique. Stall behavior was generally benign with adequate warning through buffet and control mushiness, though the stall break was more pronounced than primary trainers - teaching students to recognize and respond to stall onset before reaching the break. Recovery was straightforward but required proper technique: reduce angle of attack, add power smoothly, maintain coordinated flight.

Spin characteristics were more demanding than primary trainers, requiring proper recovery technique and respect for the aircraft's behavior. The Valiant would enter spins when mishandled (particularly during stall practice with crossed controls), and recovery required prompt, correct inputs: opposite rudder to stop rotation, forward stick to break the stall, neutralize controls as rotation stops, recover from the dive without over-stressing the aircraft. Improper recovery technique could result in inverted spins or accelerated spins - teaching students that advanced aircraft demanded precise technique.

Control forces were heavier than primary trainers, requiring more physical effort and teaching students to use proper body position and control technique rather than arm strength alone. The aircraft's higher wing loading (approximately 17 lbs/sq ft) resulted in higher approach and landing speeds (approximately 75-80 mph) compared to primary trainers, requiring students to develop better speed control and landing technique. The increased inertia and momentum taught students to plan ahead and anticipate the aircraft's behavior rather than reacting to situations.

Systems Complexity - Preparing for Advanced Aircraft:

The Valiant introduced students to systems complexity that bridged the gap between simple primary trainers and complex combat aircraft. The electrical system included a generator, battery, voltage regulator, and electrical loads (lights, instruments, radio), teaching students electrical system management and troubleshooting. The vacuum system powered gyroscopic instruments (artificial horizon, directional gyro), introducing students to instrument flying and the importance of monitoring system pressures.

The fuel system incorporated multiple tanks with selector valves, fuel quantity gauges, and fuel pressure monitoring - teaching students fuel management procedures and the consequences of improper tank selection or fuel exhaustion. The hydraulic system (on some variants) operated flaps and other systems, introducing students to hydraulic system operation and emergency procedures for hydraulic failures.

Radio communication equipment taught students proper radio procedures, navigation using radio aids, and communication with air traffic control - essential skills for military operations. The instrument panel layout was more complex than primary trainers, with engine instruments, flight instruments, navigation instruments, and system gauges requiring students to develop proper scan patterns and instrument interpretation skills.

Training Curriculum - Building Combat Pilots:

The Valiant was integral to a standardized basic training curriculum that built upon primary training fundamentals and prepared students for advanced training. The typical syllabus included 70-75 hours of flight time covering: precision takeoffs and landings, slow flight and stalls, spins and spin recovery, aerobatics (loops, rolls, chandelles, lazy eights), formation flying (two-ship and four-ship formations), cross-country navigation (pilotage and dead reckoning), night flying operations, and instrument flying under the hood.

Formation flying training was particularly important, teaching students to maintain position relative to other aircraft, respond to lead aircraft maneuvers, and operate safely in close proximity to other aircraft - essential skills for bomber formations and fighter tactics. Night flying introduced students to the challenges of operating without visual references, relying on instruments and limited external cues. Instrument training under the hood taught students to maintain aircraft control solely by reference to instruments, preparing them for weather flying and instrument approaches.

Aerobatic training built confidence and aircraft control skills at the edges of the flight envelope. Students learned that the Valiant would respond predictably even in unusual attitudes, building trust in their aircraft and their own abilities. Cross-country navigation taught planning, fuel management, weather assessment, and decision-making - skills that would prove critical during combat missions over unfamiliar territory.

Production Scale - Industrial Achievement:

The production of over 11,500 Valiants between 1940 and 1944 represented a remarkable industrial achievement. Vultee's factories in California employed thousands of workers producing aircraft at rates that would have been unimaginable in peacetime. The standardized design, interchangeable parts, and production line techniques allowed rapid manufacturing while maintaining quality standards. The decision to produce both P&W R-985 and Wright R-975 powered variants ensured that engine supply shortages wouldn't halt production - a pragmatic wartime decision that demonstrated flexible engineering.

Engineering Norms and Standards:

The Vultee BT-13/BT-15 Valiant was designed and built to U.S. Army Air Corps specifications for basic training aircraft. This collection reflects the engineering practices, quality standards, and certification requirements of early 1940s military aviation during the massive WWII training expansion.

Documentation follows U.S. Army Air Forces Technical Order (T.O.) formatting standards and Navy Bureau of Aeronautics (BuAer) standards for SNV variants. The manuals incorporate military specifications for materials, manufacturing processes, inspection procedures, and maintenance practices. Structural design followed military airworthiness requirements with emphasis on durability, ease of maintenance, and safety for training operations.

Maintenance procedures documented in these manuals follow military organizational and intermediate maintenance concepts, with detailed inspection intervals, technical order compliance requirements, and approved repair techniques that kept these aircraft flying safely through intensive training operations and subsequent civilian service.

Format and Delivery:

Instant Digital Download - Access your comprehensive Vultee Valiant manual collection immediately after purchase via secure download link. High-resolution PDF format preserves all technical diagrams, circuit diagrams, structural repair procedures, and engineering specifications from original 1940s-era documentation. Compatible with all modern devices and PDF readers. No shipping costs, no waiting.

Disclaimer:

This item is sold for historical and reference only. These are either original or copies of manuals and blueprints used when these aircraft were in active duty, now transferred into electronic format. These manuals and blueprints are not meant to be used for current update material for certification/repair, but make an excellent reference for the scholar, collector, modeler, or aircraft buffs. For proprietary reasons, we generally only provide civil manuals and blueprints on obsolete aircraft/engines/helicopters. The information is for reference only, and we do not guarantee the completeness, accuracy or currency of any manuals.

Reference herein to any specific commercial products by trade name, trademark, manufacturer, or otherwise, is not meant to imply or suggest any endorsement by, or affiliation with that manufacturer or supplier. All trade names, trademarks and manufacturer names are the property of their respective owners.
