Republic P-47 Thunderbolt Engineering Drawings - Comprehensive Blueprints Collection
Discover the most extensive collection of authentic Republic P-47 Thunderbolt engineering drawings available - 15,121 original blueprints spanning the legendary D-25+ and N-10 series variants. This remarkable archive represents the complete airframe engineering documentation from Republic Aviation Corporation, meticulously preserved from original manufacturing drawings converted from microfilm to high-quality electronic format.
Definitive Collection with Free Lifetime Updates
This is a living collection that we continuously expand and refine. As we acquire additional P-47 Thunderbolt documentation, technical bulletins, or variant-specific materials, we update this collection and provide free lifetime updates to all purchasers. Your one-time purchase guarantees permanent ownership and access to all future additions and improvements to this collection.
What's Included in This Collection
This comprehensive digital archive contains 15,121 engineering drawings from Republic Aviation Corporation, organized across 22 microfilm rolls (Rolls A through X) with revision date November 1944. The collection totals 5.74 GB of high-resolution technical drawings in both TIFF and Adobe PDF formats, providing exceptional clarity and detail for professional use.

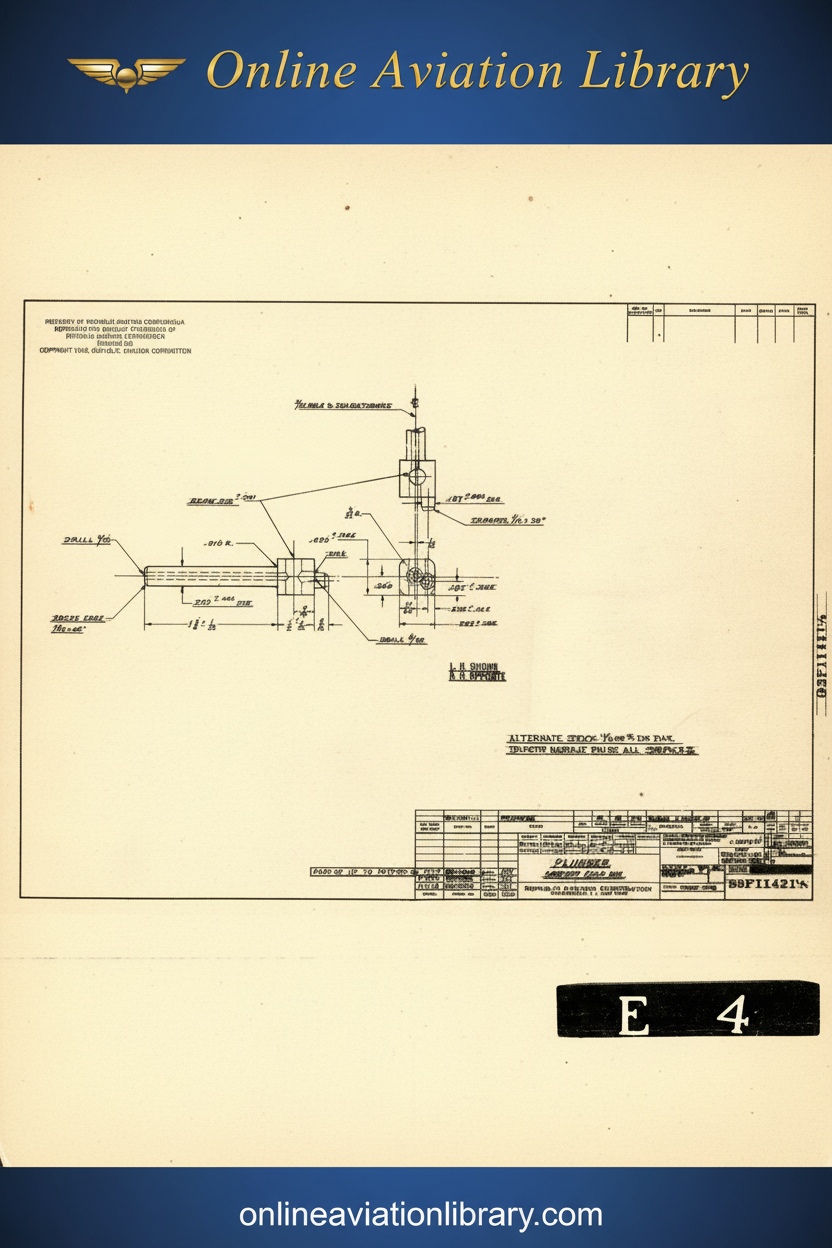

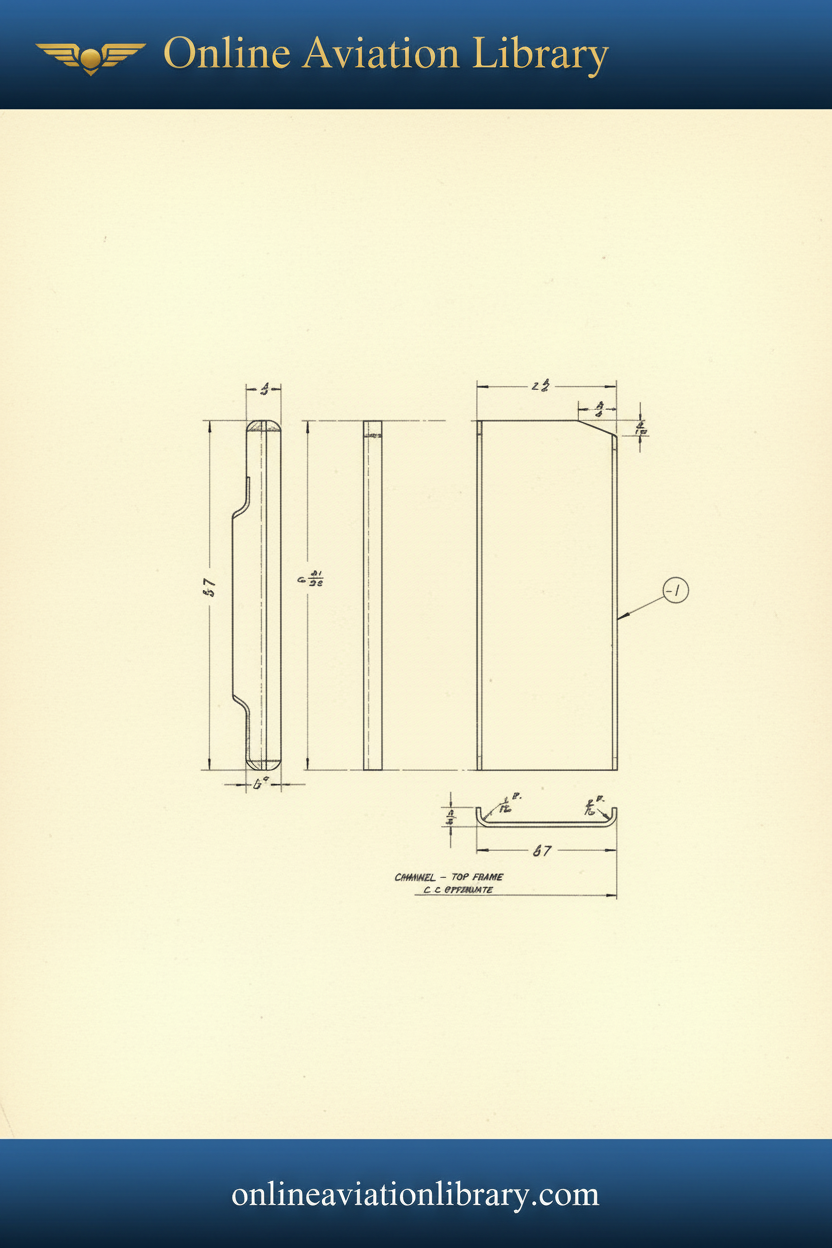

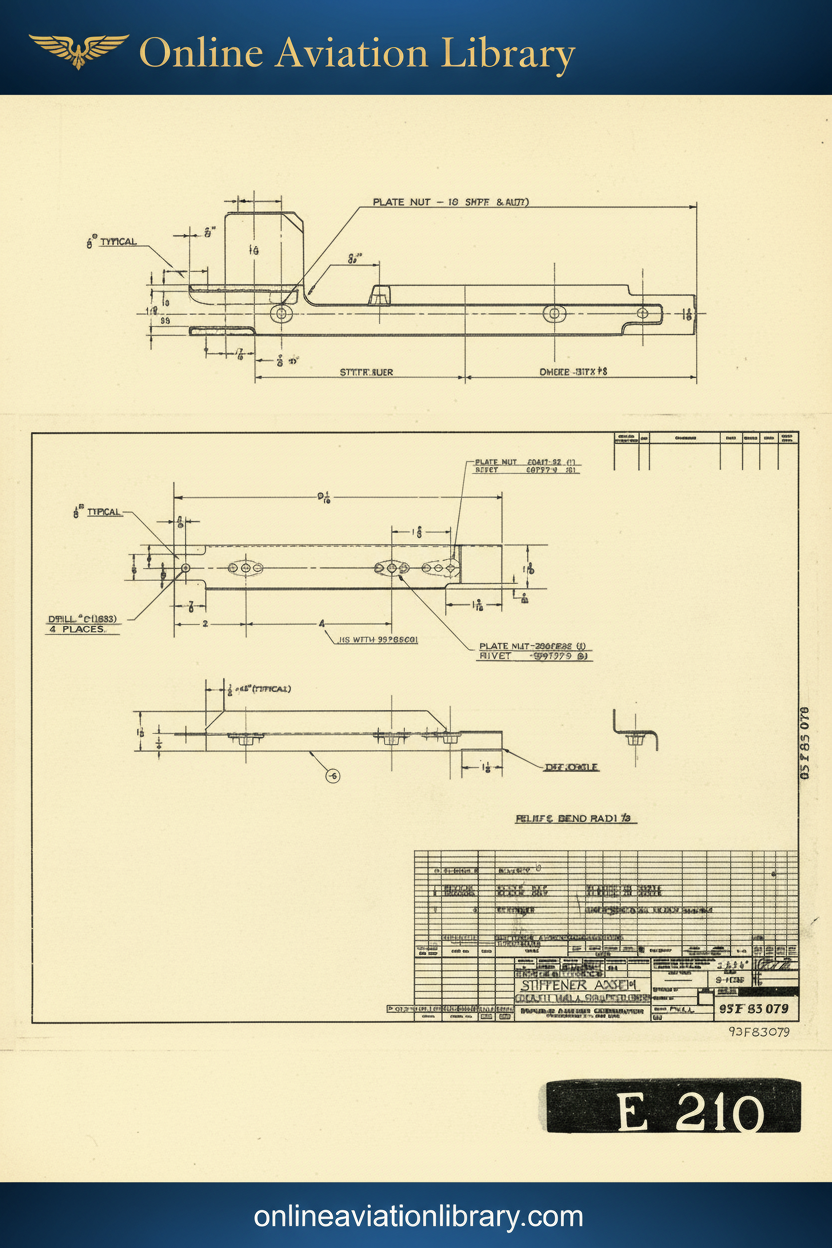

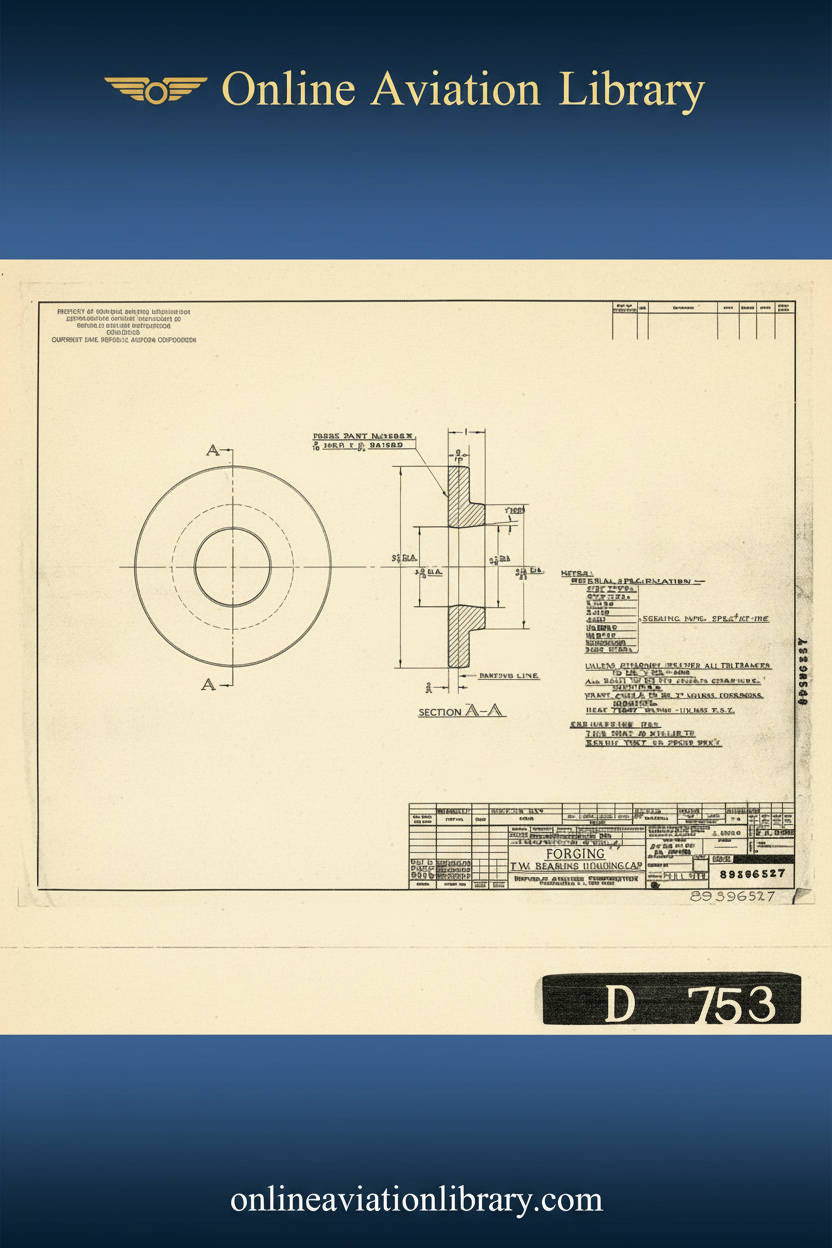

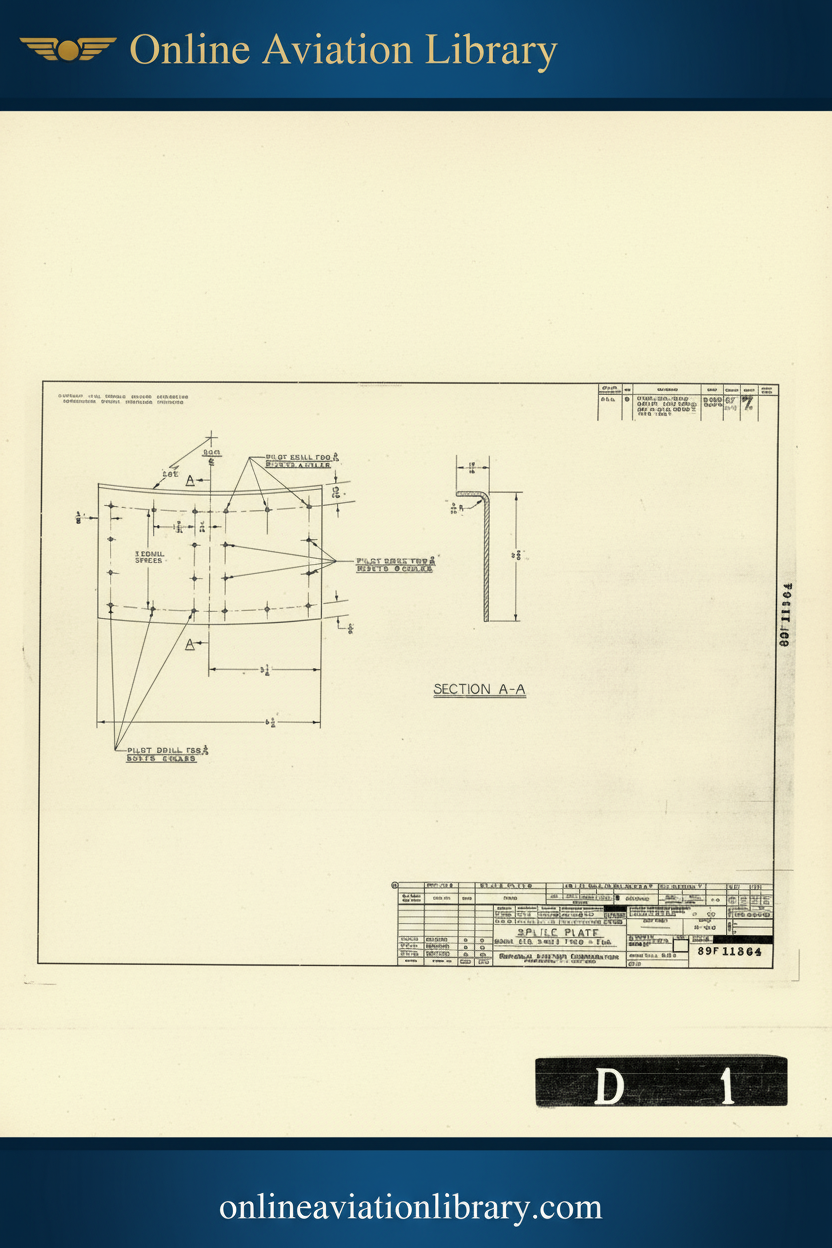

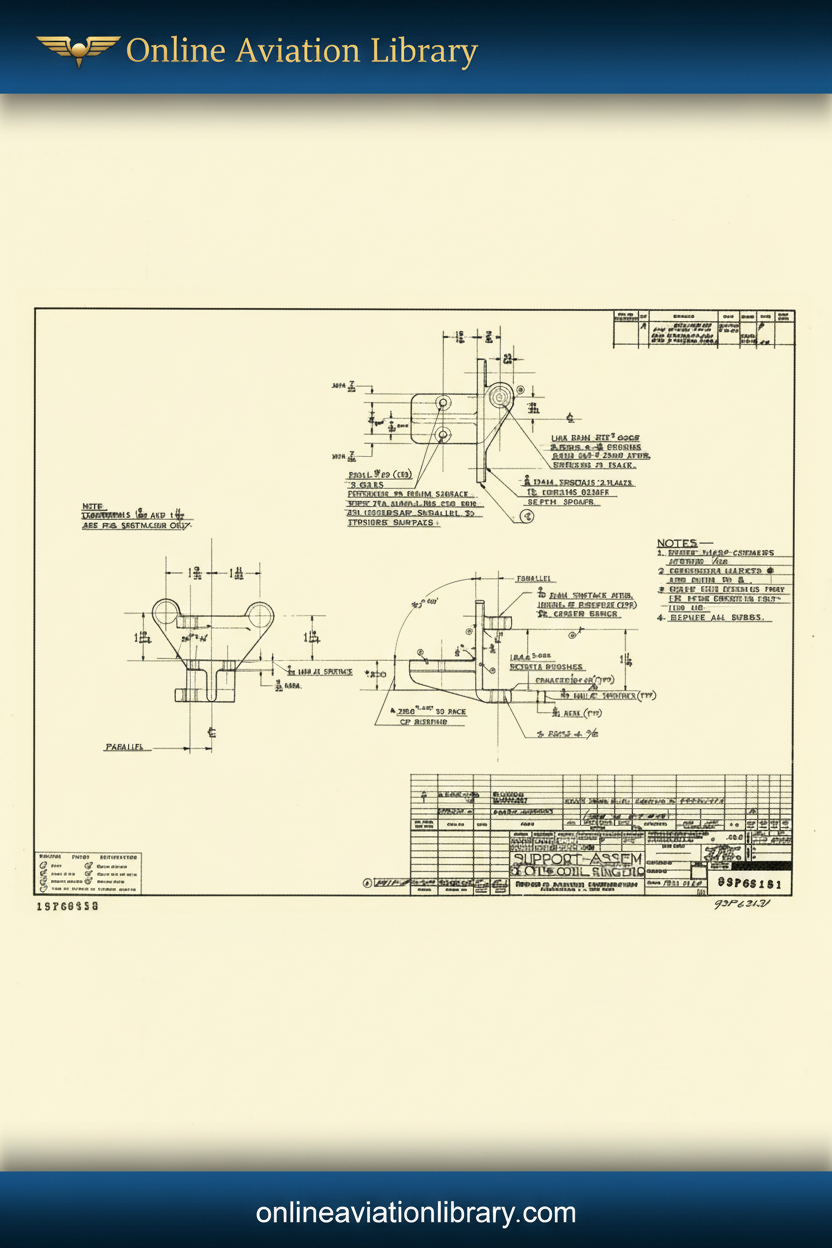

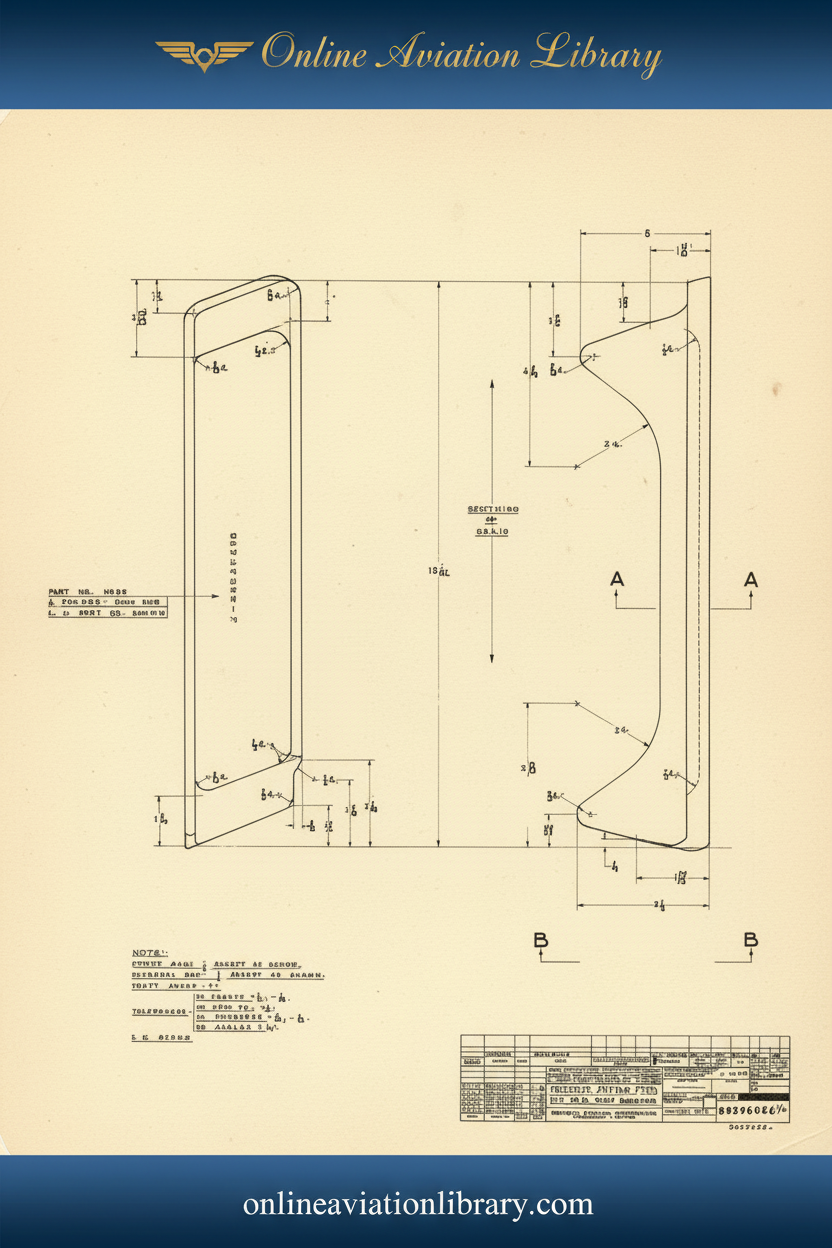

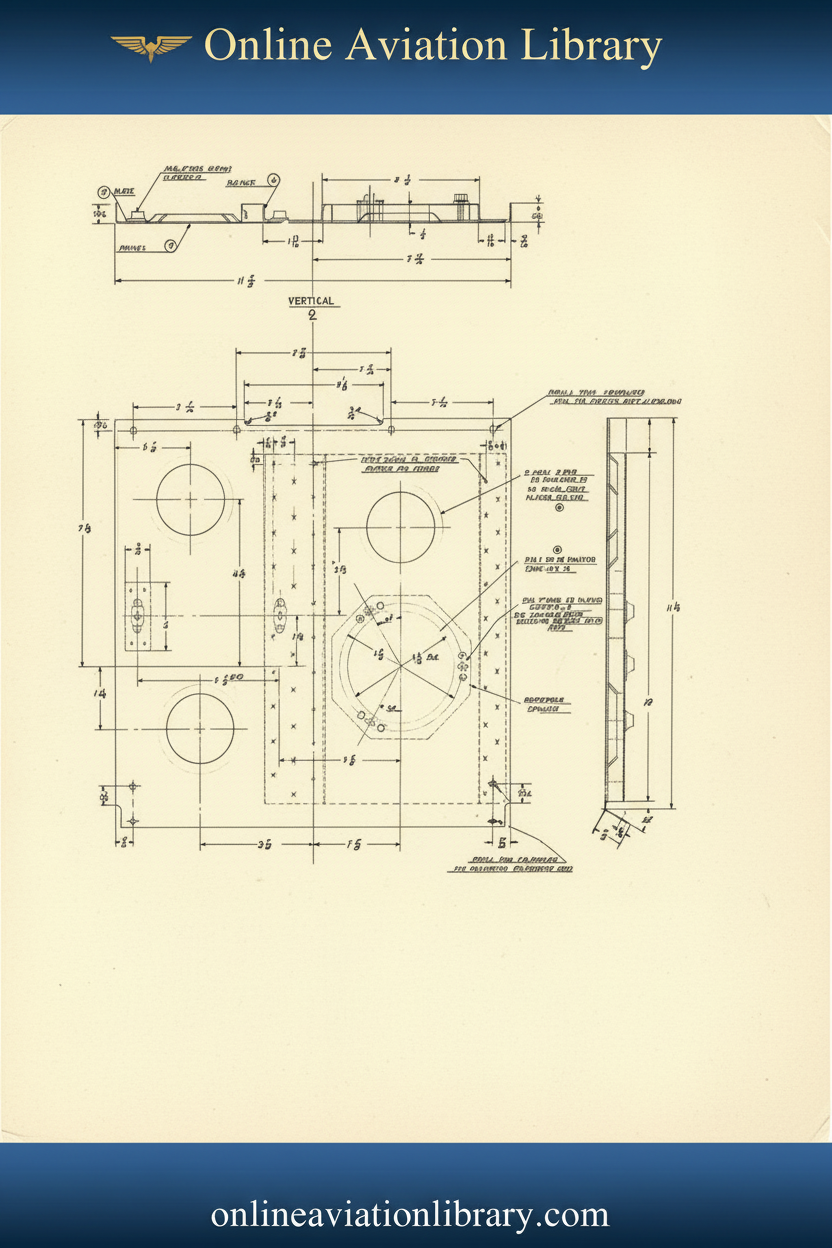

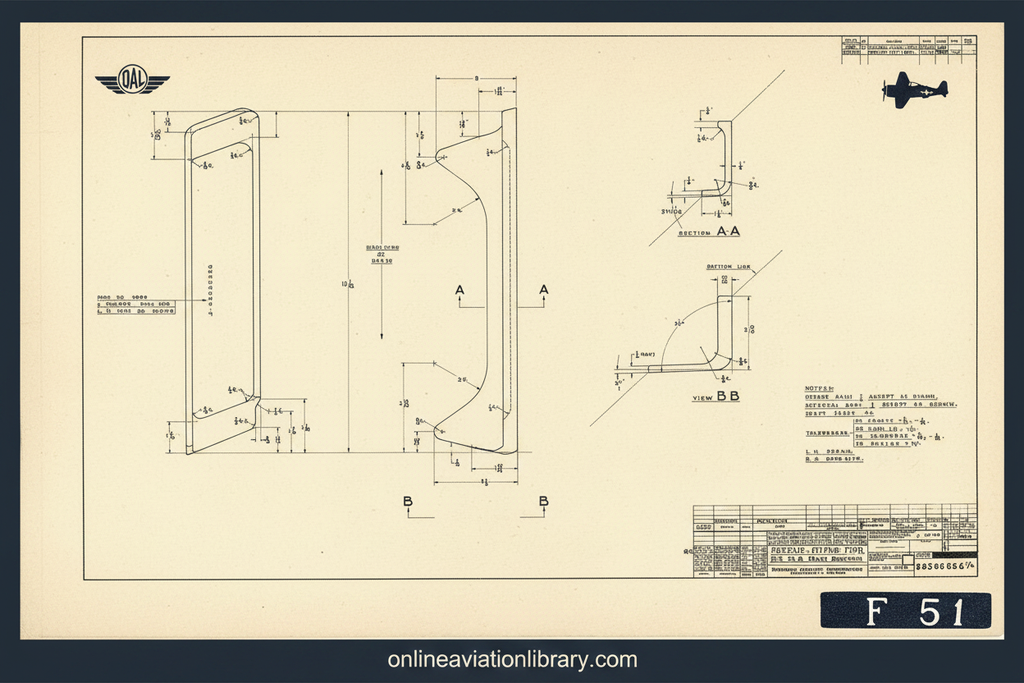

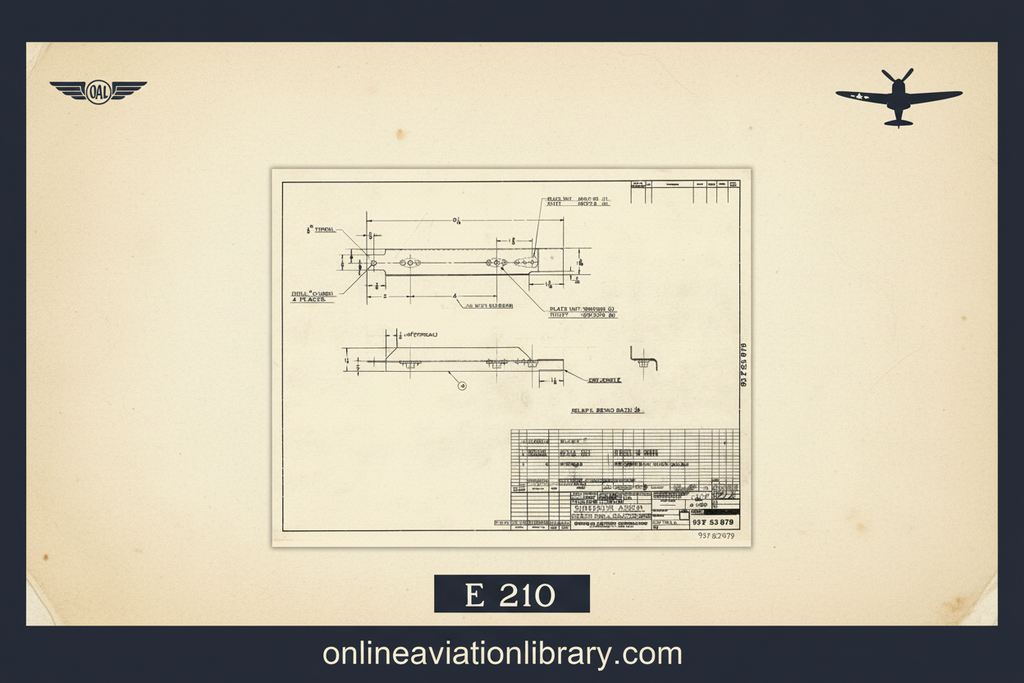

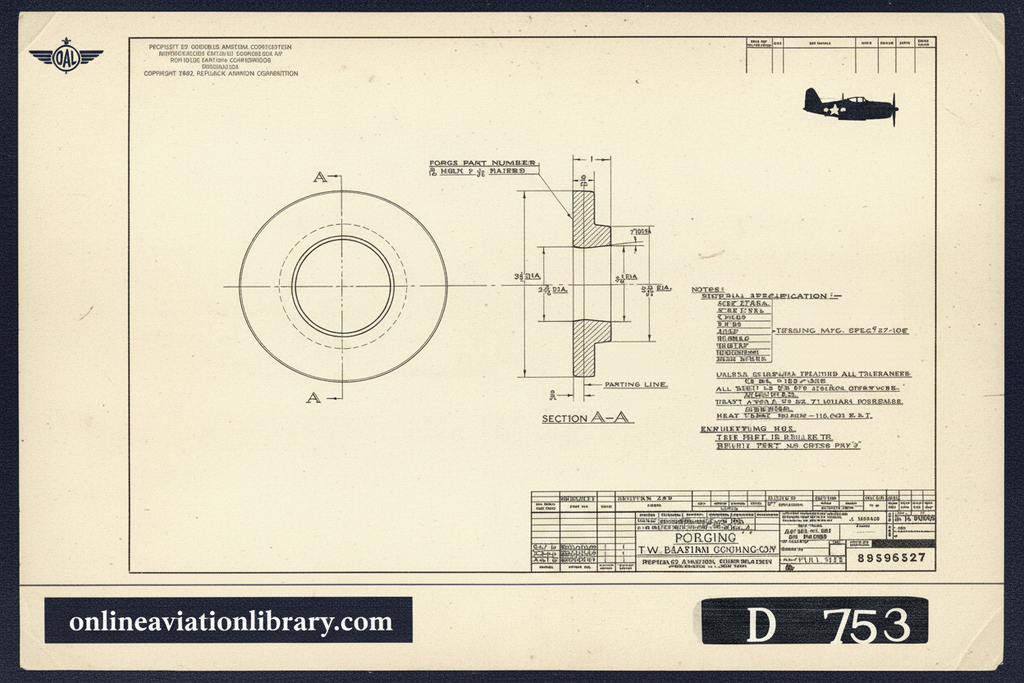

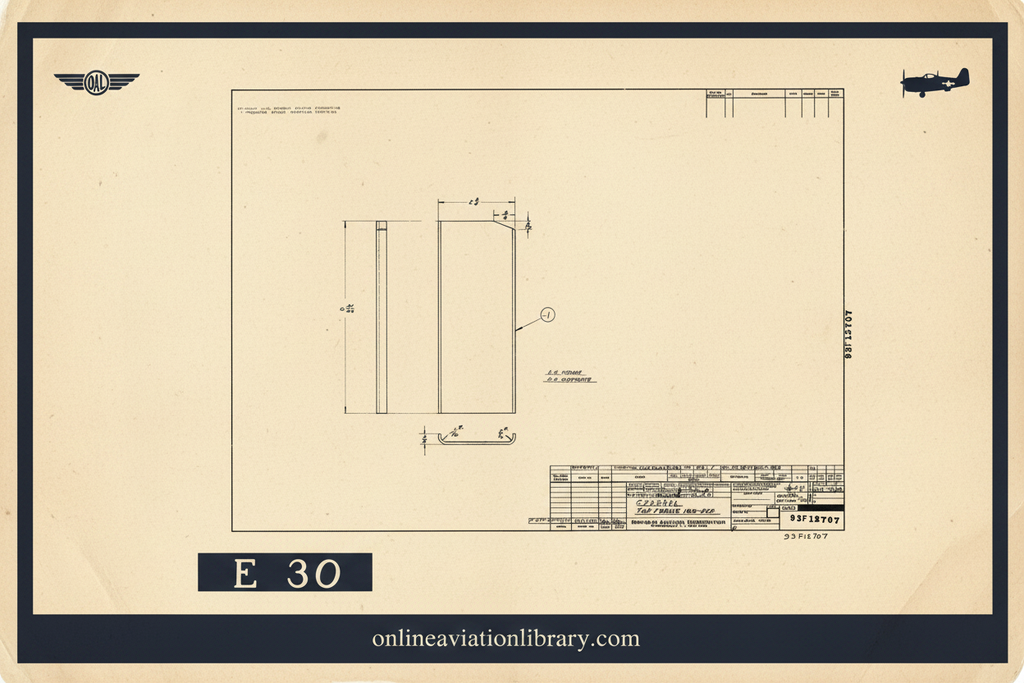

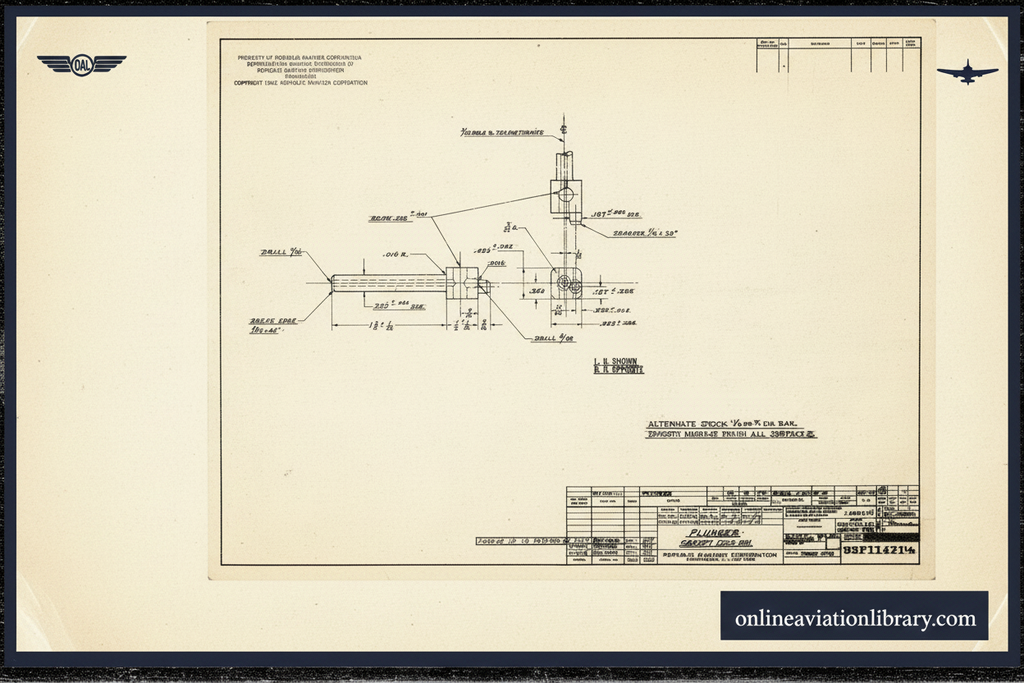

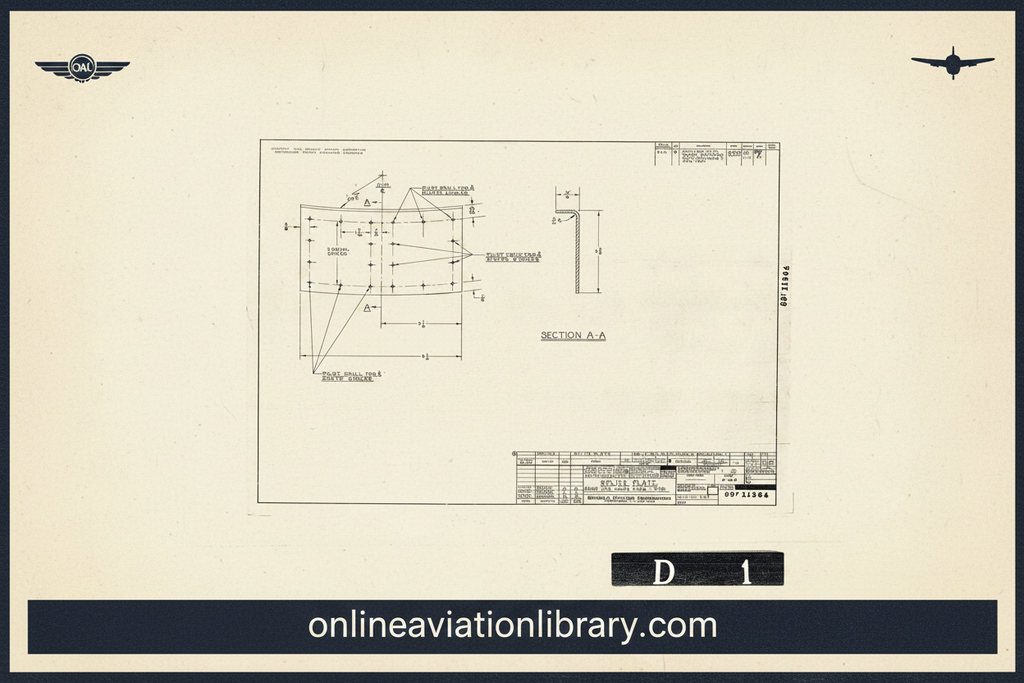

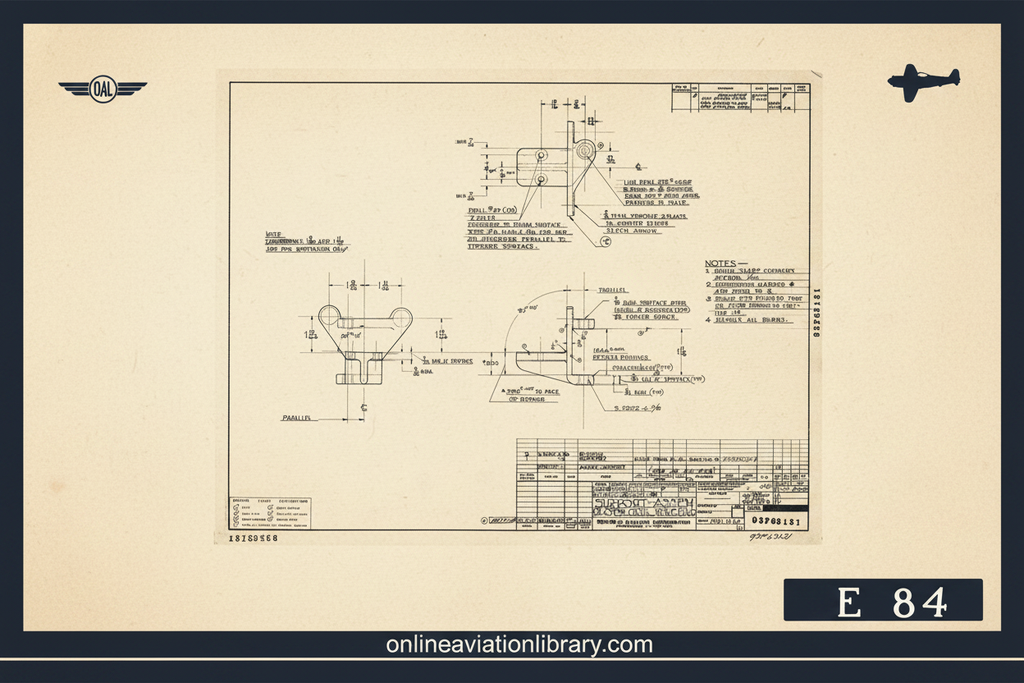

The archive includes detailed structural drawings, assembly diagrams, component specifications, fuselage frames, wing structures, control systems, landing gear assemblies, cowling and fairing details, cockpit components, armament installations, and powerplant mounting systems. You'll also find the complete Index of Drawing Numbers - an invaluable reference tool for navigating this extensive collection.
Coverage includes: Republic P-47D-25 and later D-series variants, P-47N-10 series, complete airframe engineering documentation covering all major assemblies, sub-assemblies, and detail parts from one of WWII's most important fighter aircraft.
Historical Note: Republic P-47 Thunderbolt Legacy
The Republic P-47 Thunderbolt stands as one of the most important and successful fighter aircraft of World War II. Designed by Alexander Kartveli and the engineering team at Republic Aviation Corporation, the P-47 first flew in May 1941 and entered service in 1942, ultimately becoming the most-produced American fighter aircraft of the war with over 15,600 built.
Nicknamed "The Jug" for its distinctive barrel-shaped fuselage, the P-47 was the largest and heaviest single-engine fighter of its era. Powered by the massive Pratt & Whitney R-2800 Double Wasp radial engine producing 2,000+ horsepower, the Thunderbolt could reach speeds over 430 mph and operate at altitudes exceeding 40,000 feet. Its rugged construction, heavy armament of eight .50-caliber machine guns, and ability to carry significant bomb loads made it equally effective as both a high-altitude escort fighter and devastating ground-attack aircraft.
The P-47 served with distinction in every theater of WWII. In the European Theater, Thunderbolts escorted heavy bomber formations deep into Germany, engaged Luftwaffe fighters, and conducted devastating ground-attack missions against German armor, trains, and infrastructure during the Allied advance across Europe. In the Pacific Theater, P-47s provided crucial air support for island-hopping campaigns and proved highly effective against Japanese ground targets.
The D-25 and later D-series variants featured improved cockpit visibility with bubble canopies, increased fuel capacity, and refined aerodynamics. The P-47N series, designed specifically for Pacific operations, incorporated extended-span wings for improved range and maneuverability. These late-war variants represented the pinnacle of Thunderbolt development, combining combat-proven reliability with enhanced performance.
P-47 pilots achieved remarkable success, with Thunderbolt units credited with destroying thousands of enemy aircraft in air combat and tens of thousands of ground targets including locomotives, vehicles, and fortifications. The aircraft's legendary toughness allowed pilots to return home despite sustaining battle damage that would have downed lesser fighters. Famous P-47 aces included Robert S. Johnson (28 victories) and Francis "Gabby" Gabreski (28 victories in P-47s).
Today, the P-47 Thunderbolt remains an icon of American aviation engineering and WWII history. Surviving examples are treasured by museums and warbird collectors worldwide, with several airworthy Thunderbolts thrilling airshow audiences. These original Republic Aviation engineering drawings represent the authentic technical documentation used to manufacture these legendary fighters - invaluable resources for restoration projects, historical research, aerospace engineering study, scale modeling, and preserving the legacy of one of aviation's greatest combat aircraft.
Perfect For
Aircraft restorers working on authentic P-47 restorations, aviation historians researching WWII fighter development, aerospace engineers studying vintage aircraft design and construction, scale modelers seeking accurate technical references for P-47 projects, museums and educational institutions, collectors of aviation documentation, and enthusiasts of WWII warbirds and American fighter aircraft.
Technical Specifications
Total Drawings: 15,121 engineering blueprints
Microfilm Rolls: 22 rolls (A, B, C, D, E, F, G, H, J, K, L, M, N, P, Q, R, S, T, U, V, W, X)
Revision Date: November 1944
File Formats: TIFF and Adobe PDF (high-resolution scans)
Total File Size: 5.74 GB
Aircraft Coverage: Republic P-47D-25+ and P-47N-10 series airframe
Special Inclusions: Complete Index of Drawing Numbers
Delivery: Instant digital download (2 RAR archive files)
Source: Original Republic Aviation Corporation manufacturing drawings
Download Instructions
This collection is delivered as 2 separate RAR archive files for easier downloading and management.
Step 1: After purchase, you will receive an email with download links for both RAR files (Part 1 and Part 2).
Step 2: Download both RAR files to the same folder on your computer. Both files are required.
Step 3: Extract the files using WinRAR (Windows), The Unarchiver (Mac), or any RAR-compatible extraction software.
Step 4: When extracting, start with Part 1 - the extraction software will automatically combine both parts.
Step 5: Once extracted, you'll have access to all 15,121 engineering drawings organized by microfilm roll designation.
Important: Ensure you have at least 6 GB of free storage space before downloading. We recommend a high-speed internet connection for optimal download experience. Keep your download links saved - you can re-download the files if needed.
Free extraction software: WinRAR (Windows - winrar.com), The Unarchiver (Mac - free from App Store), 7-Zip (Windows - free alternative)
Legal Notice
This documentation is provided by Online Aviation Library, operated by Sicuro Publishing, under a structured licensing framework. Sicuro Publishing does not distribute controlled content—we provide documentation structuring, compliance architecture, and publishing systems for content legally owned by our clients and licensing partners.
These materials are sold for historical reference, research, and archival purposes only. The Republic P-47 Thunderbolt is no longer in active production. This collection serves historians, museum professionals, restoration specialists, aerospace engineers, scale modelers, and researchers requiring primary source technical documentation.
Your purchase grants permanent ownership of this structured collection with free lifetime updates. While others may offer temporary access, you own this archive forever.
The compilation, structure, indexing, and presentation are © Sicuro Publishing, registered in the Canadian Copyright Database. Underlying historical factory materials remain the property of their original creators or successor entities.
These drawings are not meant to be used for current certification or repair work. Information is for reference only, and we do not guarantee completeness, accuracy, or currency of any drawings. This collection represents extensive but not exhaustive coverage.
Reference to commercial products, trade names, or manufacturers does not imply endorsement or affiliation. All trademarks are the property of their respective owners.
