Fouga CM 170 Magister - Comprehensive Technical Documentation Collection
This extensive digital collection brings together the essential technical manuals for the iconic Fouga CM 170 Magister jet trainer. Whether you're a restorer, aviation historian, researcher, or Magister enthusiast, this archive provides authentic documentation that guided pilots, maintenance crews, and technicians throughout the aircraft's distinguished service life.
What's Included:

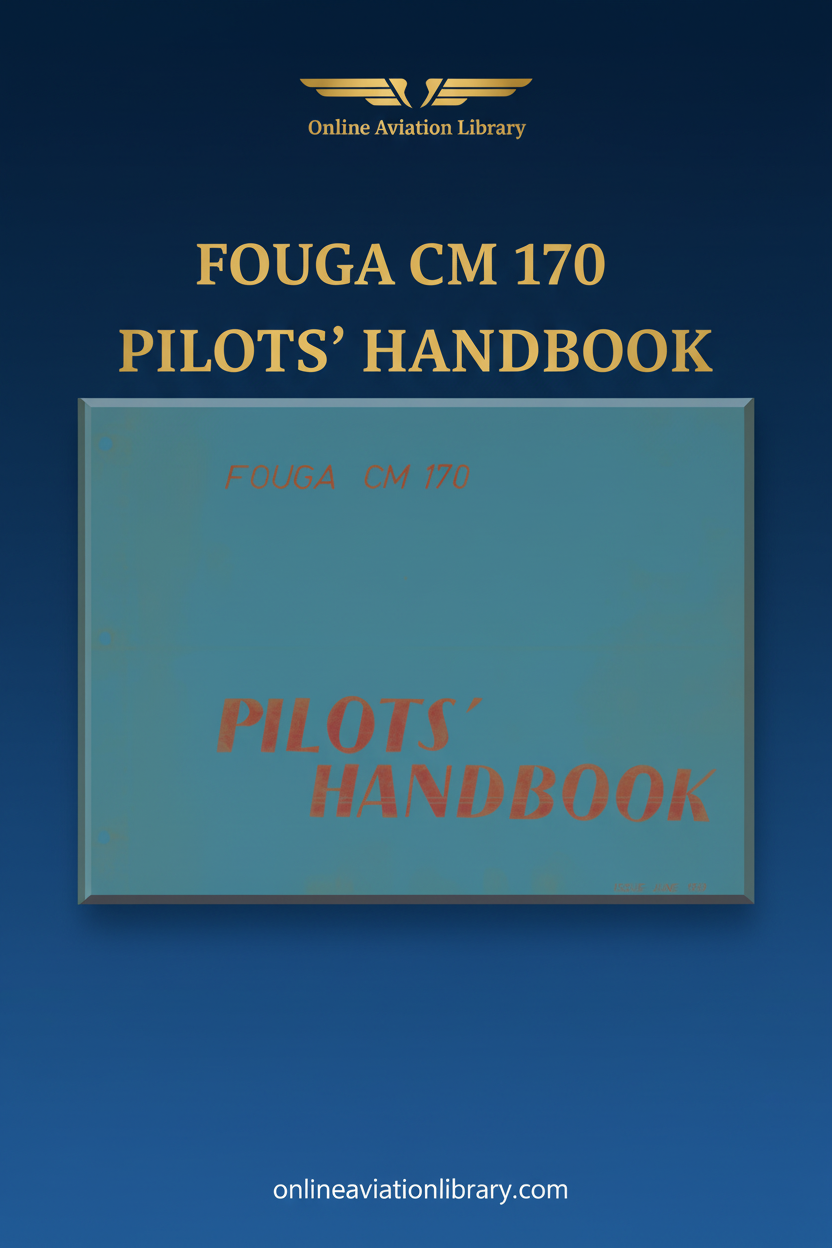

- Pilot's Handbooks - Flight operations, procedures, and aircraft systems (multiple editions including English and French versions)

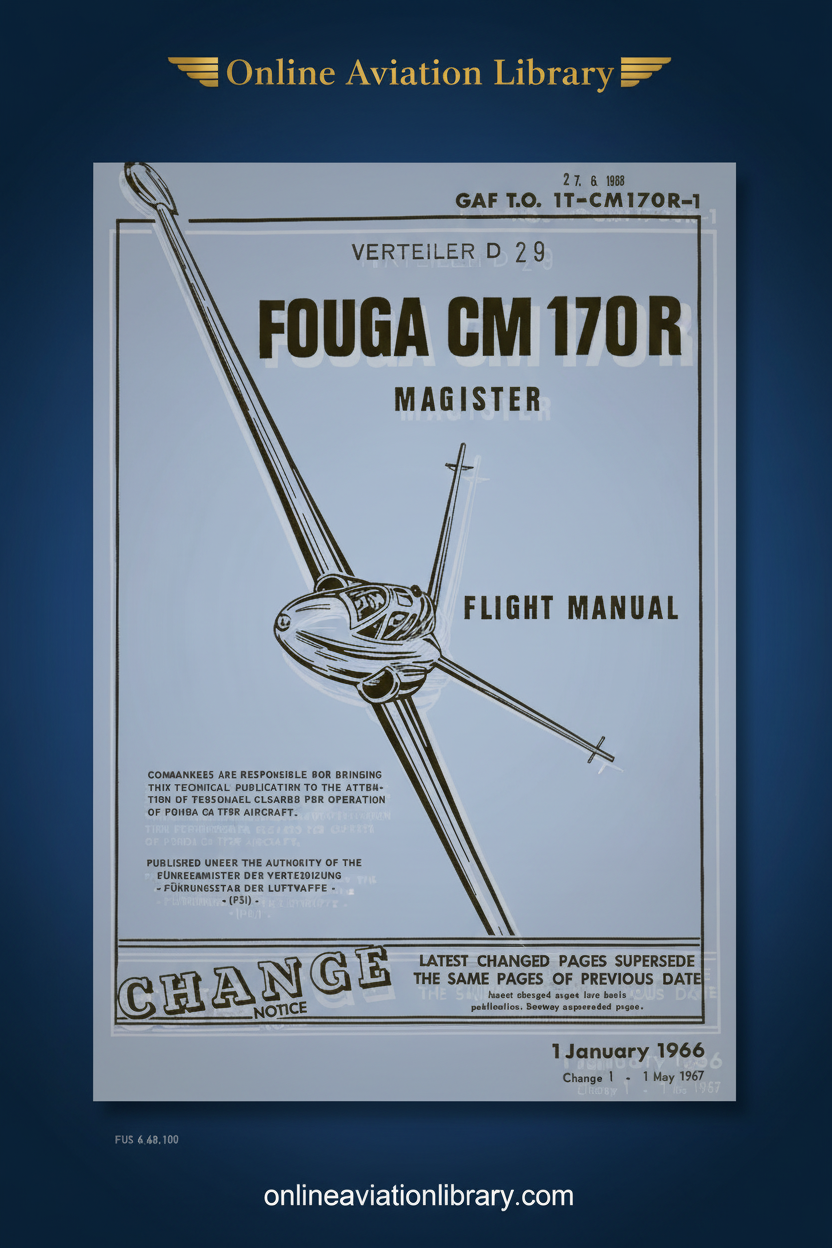

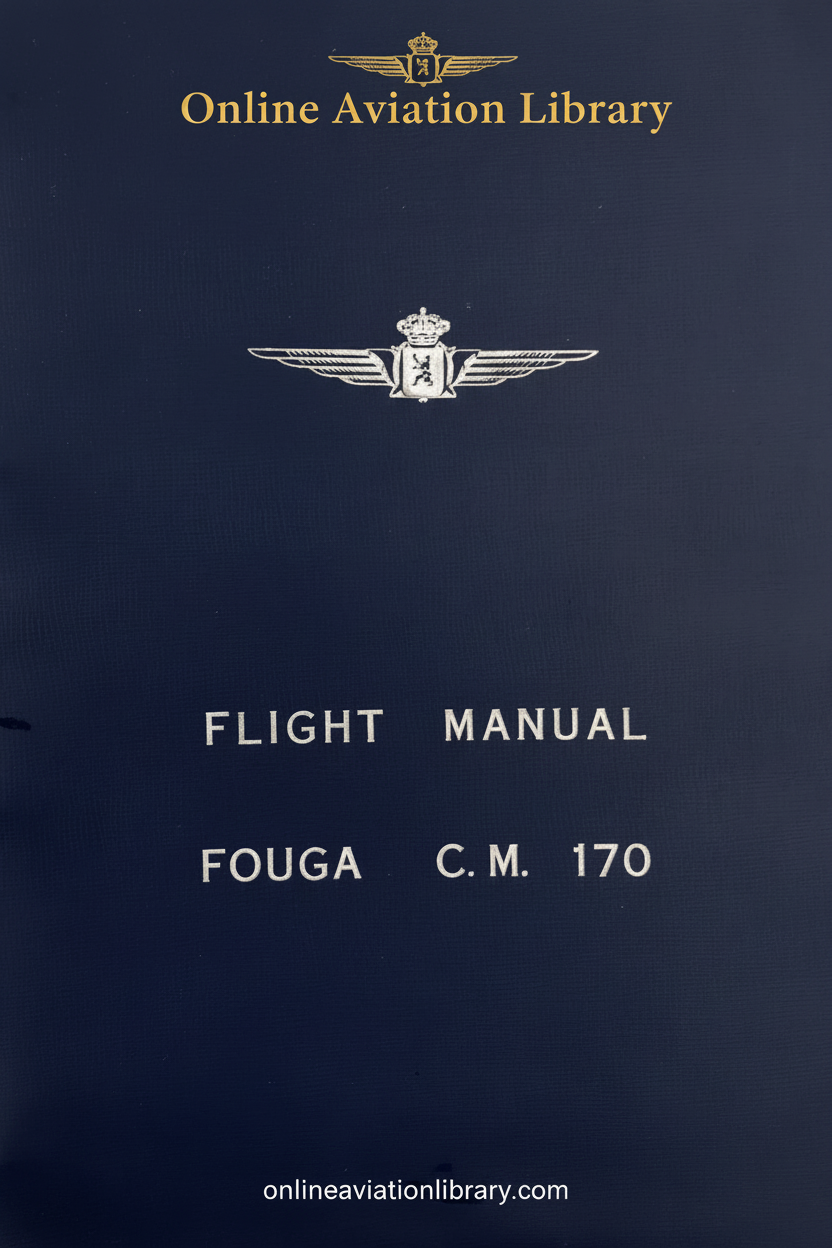

- Flight Manuals - Operational procedures for various air forces including German Air Force (GAF) editions

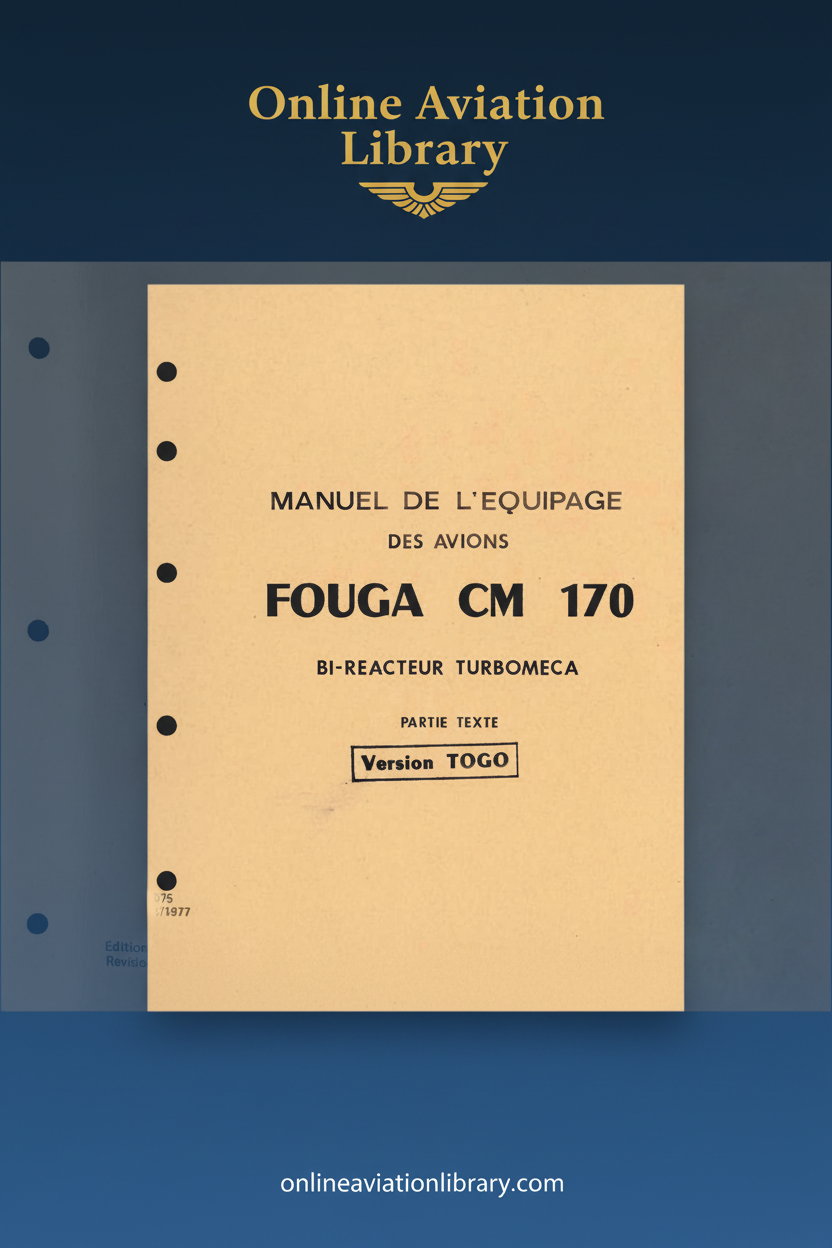

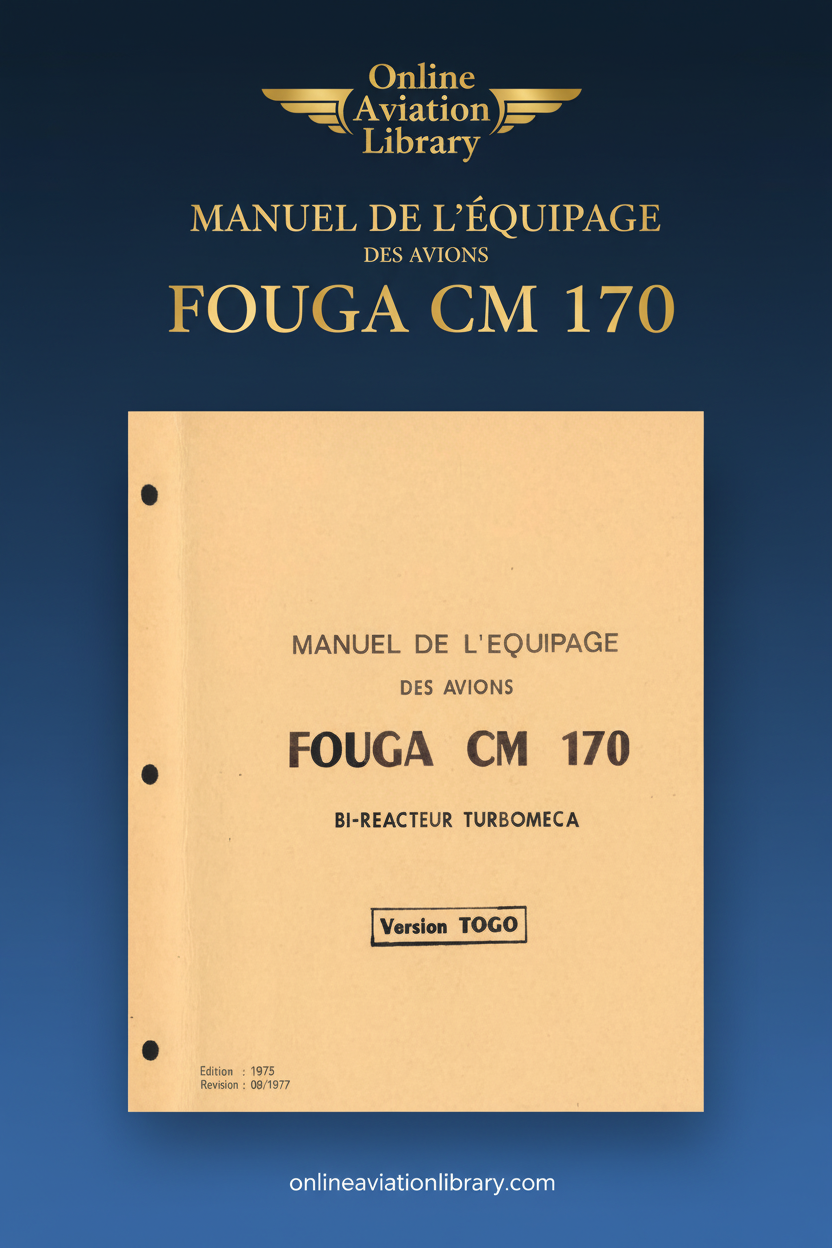

- Manuel de l'Equipage des Avions - Crew manual with text and illustrations (Version TOGO, Edition 1975, Revision 1977)

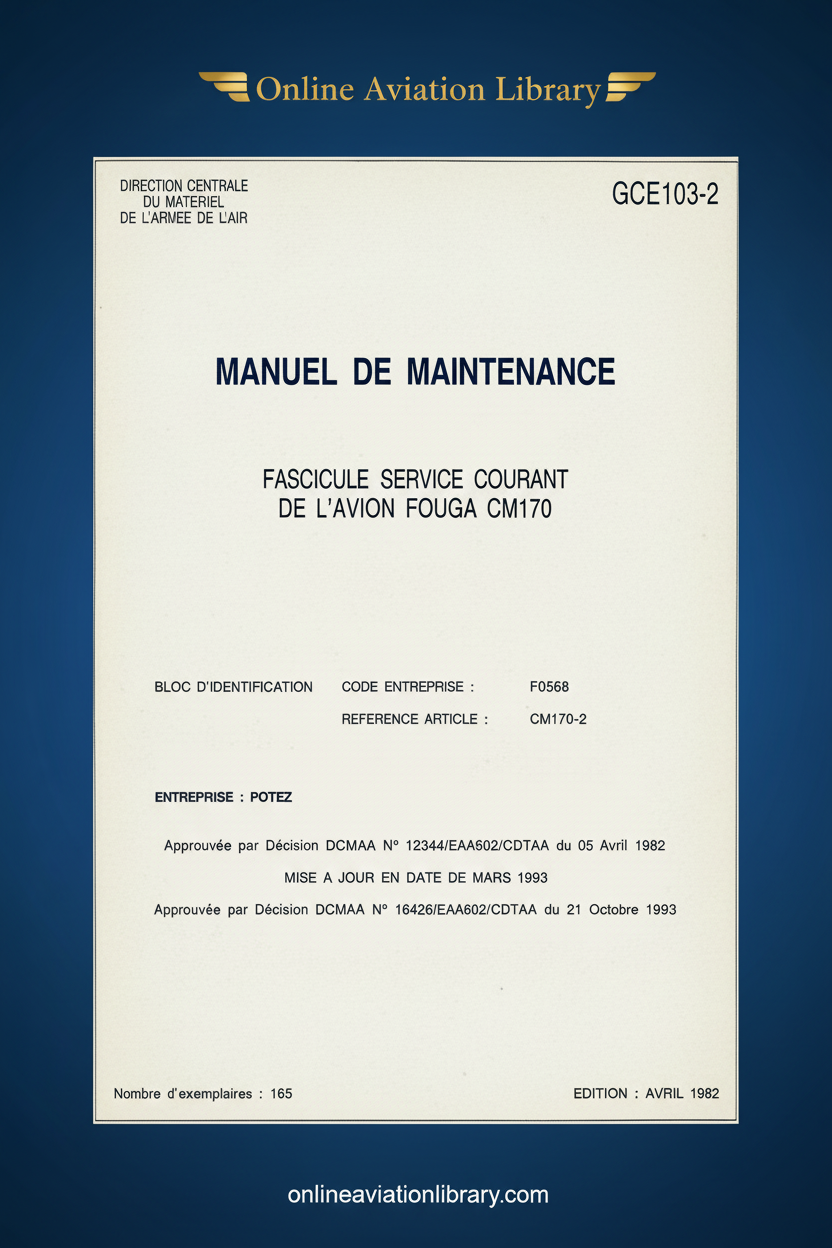

- Manuel de Maintenance - Maintenance manual covering routine servicing (POTEZ, Edition 1982, Updated 1993)

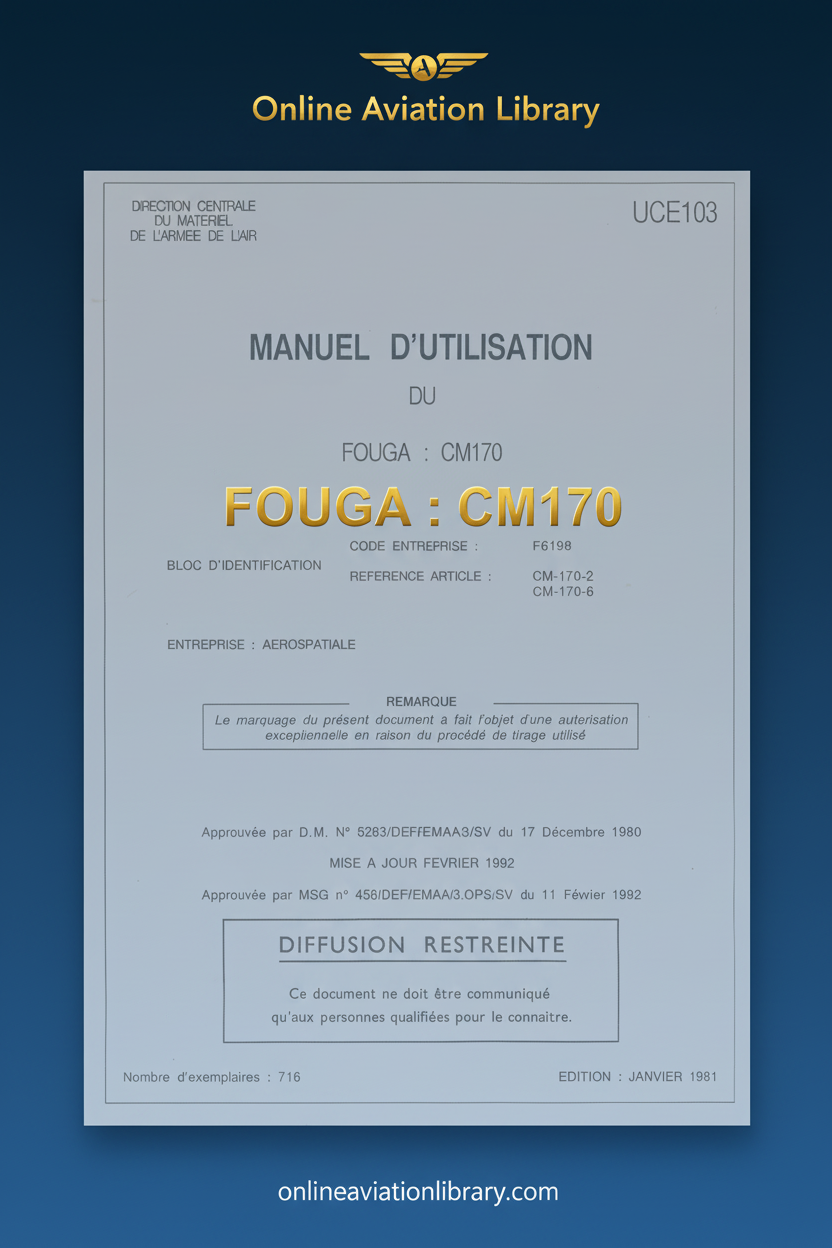

- Manuel d'Utilisation - Utilization manual (AEROSPATIALE, Edition 1981, Updated 1992)

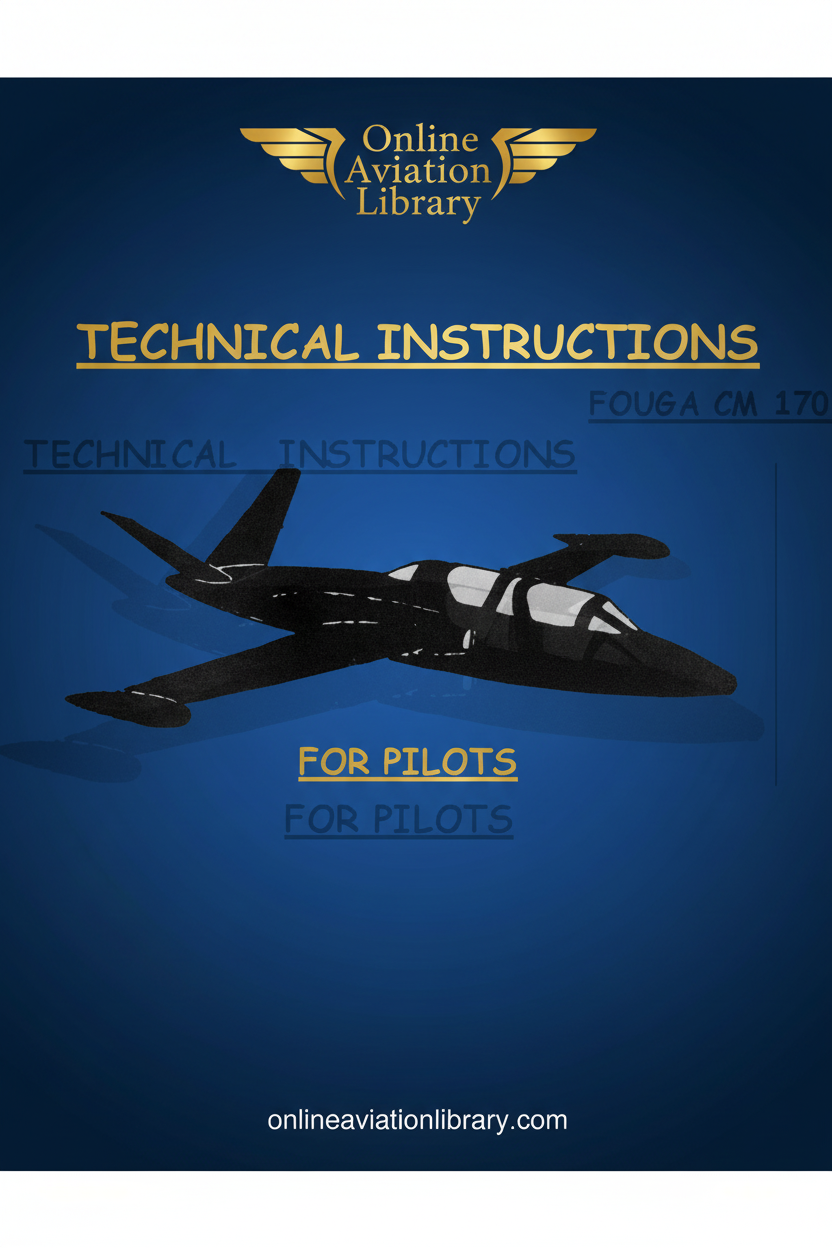

- Technical Instructions for Pilots - Detailed technical guidance and procedures

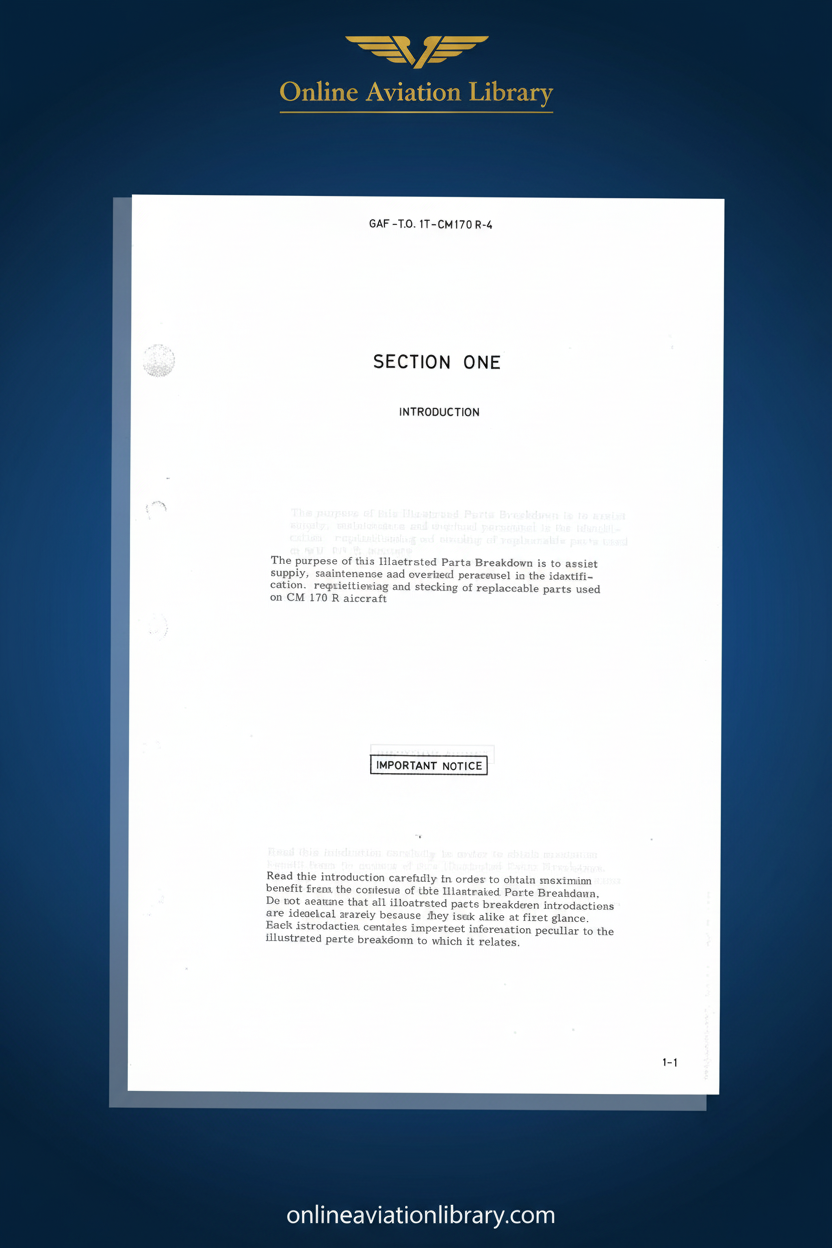

- Illustrated Parts Breakdown - Section One Introduction (GAF T.O. 1T-CM170 R-4)
- Modifications Documentation - Martin-Baker Mk. GZ4 Ejection Seats installation (MB-124)
Historical Note:
The Fouga CM 170 Magister holds a distinguished place in aviation history as one of the world's most successful and widely-used jet trainers. Designed by French aircraft manufacturer Fouga (later Potez-Air-Fouga, then Aérospatiale), the Magister first flew on 23 July 1952 and entered service with the French Air Force in 1956.
What made the Magister revolutionary was its role as the first purpose-built jet trainer to be widely adopted internationally. Its distinctive V-tail configuration, side-by-side seating arrangement, and docile handling characteristics made it an ideal platform for transitioning pilots from piston-engine aircraft to jets. The aircraft's forgiving flight characteristics and relatively low operating costs contributed to its popularity with air forces around the world.
During its production run from 1952 to 1962, approximately 929 Magisters were built, serving with over 25 air forces across Europe, the Middle East, Africa, Asia, and South America. The aircraft saw extensive service as an advanced trainer, light attack aircraft, and aerobatic display platform. Notable operators included France, West Germany, Israel, Belgium, Ireland, and many others. The Israeli Air Force famously used armed Magisters in combat during the Six-Day War in 1967.
Beyond military training, the Magister gained international recognition through its use by the renowned Patrouille de France aerobatic team from 1964 to 1980, thrilling millions of spectators with precision formation flying. The aircraft's elegant lines and graceful performance made it a favorite at air shows worldwide.
Post-military service, many Magisters found new life in civilian hands, becoming popular warbirds for collectors and enthusiasts. The aircraft's reliability, relatively simple systems, and availability of parts have made it one of the most accessible vintage jets for private ownership. Today, Magisters continue to delight crowds at air shows and remain active in private collections around the world.
These original technical manuals represent authentic documentation used throughout the Magister's service life by air forces including France, Germany, and various international operators. The collection spans multiple decades of the aircraft's operational history, from early 1960s editions through updates in the 1990s, reflecting the evolution of maintenance practices, modifications, and operational procedures. For restorers working to return these elegant jets to flight, historians researching Cold War-era training programs, or enthusiasts seeking to understand every system of this iconic aircraft, this documentation provides invaluable primary-source technical information.
Perfect For:
- Aircraft restorers and maintainers working on Fouga Magister projects
- Aviation historians researching jet trainer development and Cold War military aviation
- Warbird owners and operators seeking authentic technical reference material
- Military aviation researchers studying international training programs
- Scale modelers seeking accurate technical details for authentic builds
- Flight simulator enthusiasts developing accurate Magister simulations
- Aviation collectors building comprehensive technical libraries
- Aerospace engineering students studying classic jet trainer design
Format & Delivery:
Digital download in PDF format - Instant access upon purchase. High-quality scans preserving all technical illustrations, diagrams, and specifications from the original documentation.
