Comprehensive Northrop YB-49 Flying Wing Technical Documentation

This digital collection assembles authentic technical manuals for one of aviation's most revolutionary and visionary aircraft designs. The Northrop YB-49 Flying Wing represented a radical departure from conventional bomber design, pioneering concepts that would influence aviation for decades to come. These original documents provide detailed specifications and procedures used by Air Force crews and maintenance personnel during this groundbreaking aircraft's test and evaluation program.

Historical Note

The Northrop YB-49 Flying Wing emerged in 1947 as a jet-powered evolution of the earlier YB-35 piston-engine flying wing bomber. Designed by aviation visionary Jack Northrop, who had pursued the flying wing concept since the 1920s, the YB-49 represented the culmination of decades of research into tailless aircraft design. Northrop believed that eliminating the fuselage and tail surfaces would reduce drag, increase efficiency, and create an aircraft with unprecedented range and performance.

The YB-49 was created by converting two YB-35 airframes, replacing the original four piston engines with eight Allison J35 turbojet engines mounted in four paired nacelles along the wing's trailing edge. This conversion transformed the aircraft's performance, increasing speed from around 390 mph to over 520 mph while maintaining the flying wing's promised efficiency advantages. The massive aircraft had a wingspan of 172 feet and could carry up to 16,000 pounds of bombs in internal bays.

The flying wing configuration offered several theoretical advantages: reduced drag meant greater range and fuel efficiency, while the blended wing-body design provided enormous internal volume for fuel and weapons without the weight penalty of a conventional fuselage. The aircraft's smooth, uninterrupted surfaces also promised reduced radar cross-section—a concept that would prove prophetic decades later with stealth technology.

However, the YB-49 faced significant challenges. The tailless design created stability and control difficulties, particularly in the yaw axis. Without a vertical tail, the aircraft relied on split ailerons and drag rudders for directional control—a system that proved less effective than conventional rudders. Pilots reported that the YB-49 was demanding to fly, requiring constant attention and offering limited stability compared to conventional bombers like the B-29 or B-50.

The YB-49's test program achieved several notable milestones. On February 5, 1949, a YB-49 flew from California to Washington D.C. in just over four hours, demonstrating impressive cross-country speed. The aircraft also conducted bombing trials and long-range endurance flights that validated some of Jack Northrop's theories about flying wing efficiency. Test pilots praised the aircraft's smooth ride and impressive performance at altitude.

Despite these achievements, the YB-49 program was cancelled in 1950. The Air Force cited several factors: handling difficulties made the aircraft unsuitable as a bombing platform, the lack of a pressurized crew compartment limited operational altitude, and maintenance of eight engines proved complex and expensive. Additionally, the conventional Convair B-36 offered greater payload and range, while the new jet-powered B-47 Stratojet provided better performance with more conventional handling characteristics.

The cancellation proved controversial and remains debated by aviation historians. Jack Northrop believed political factors influenced the decision, though official records cite technical and operational concerns. Only two YB-49s were completed, with one lost in a fatal crash during testing in 1948. The surviving aircraft was scrapped in 1950, and the flying wing concept appeared dead.

However, Jack Northrop's vision ultimately proved prescient. Decades later, advances in computer-controlled fly-by-wire systems solved the stability problems that plagued the YB-49. In the 1980s, Northrop's company developed the B-2 Spirit stealth bomber—a flying wing that vindicated Jack Northrop's lifelong belief in the concept. Before his death in 1981, the elderly Northrop was shown classified models of the B-2, reportedly moved to tears seeing his vision finally realized.

Today, the Northrop YB-49 is remembered as a bold experiment that pushed the boundaries of aviation technology. While it failed to enter production, the aircraft demonstrated concepts that would eventually revolutionize military aviation. The YB-49 stands as a testament to innovative thinking and the courage to challenge conventional design—qualities that define aviation progress.

What's Included

This collection contains essential technical references for the Northrop YB-49:

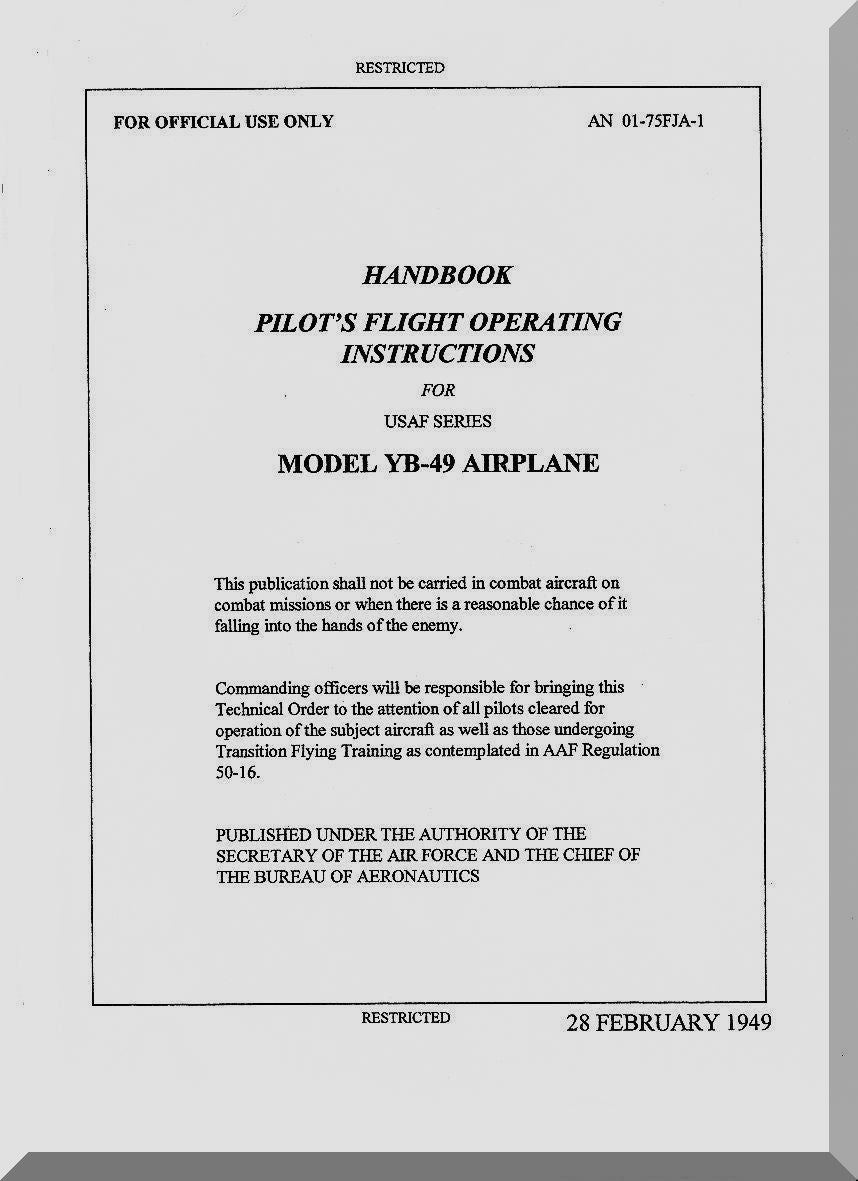

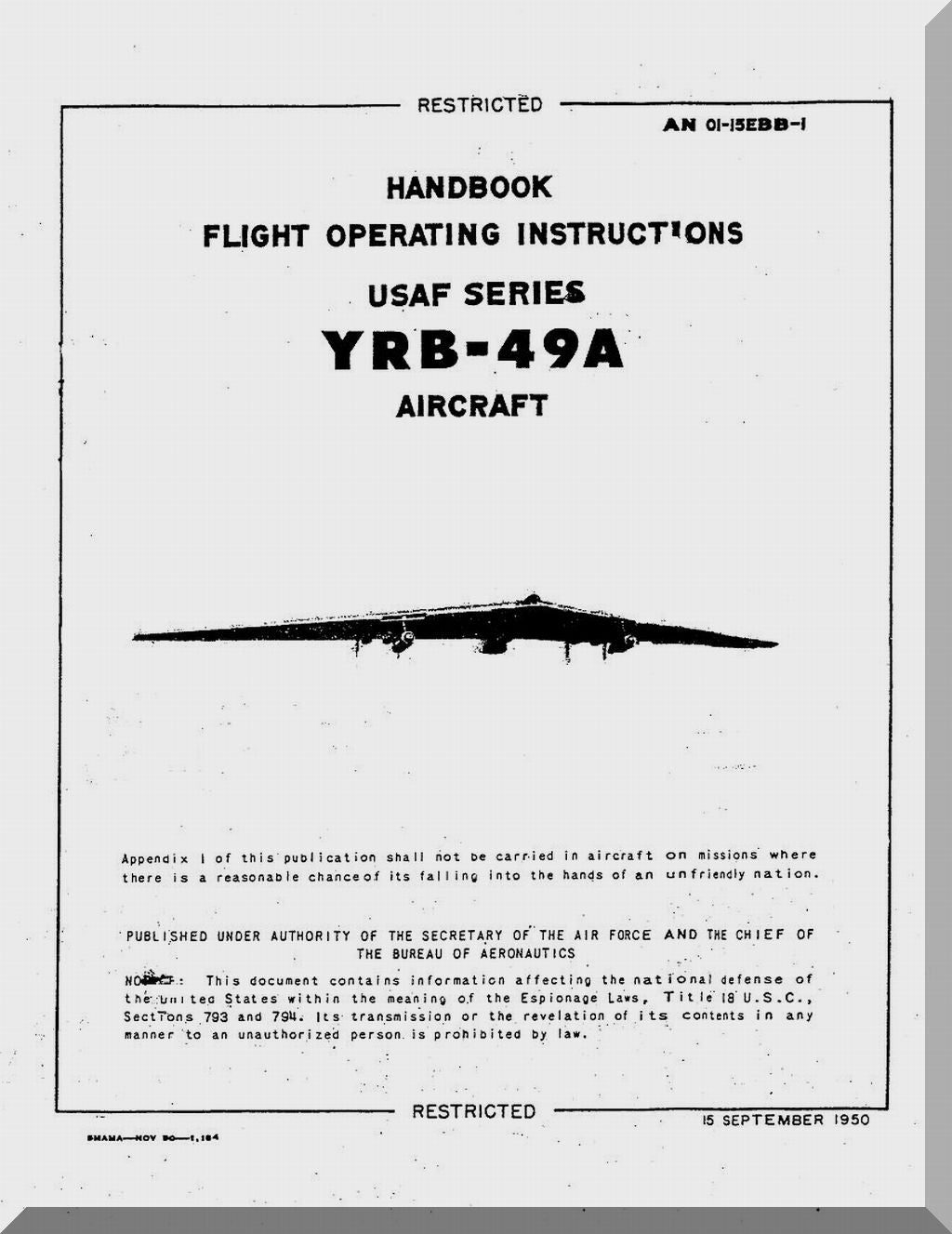

• Flight Operating Manuals – Complete pilot procedures, flying wing handling characteristics, performance data, and emergency protocols
• Maintenance Instructions – Detailed servicing procedures, inspection schedules, and troubleshooting guides

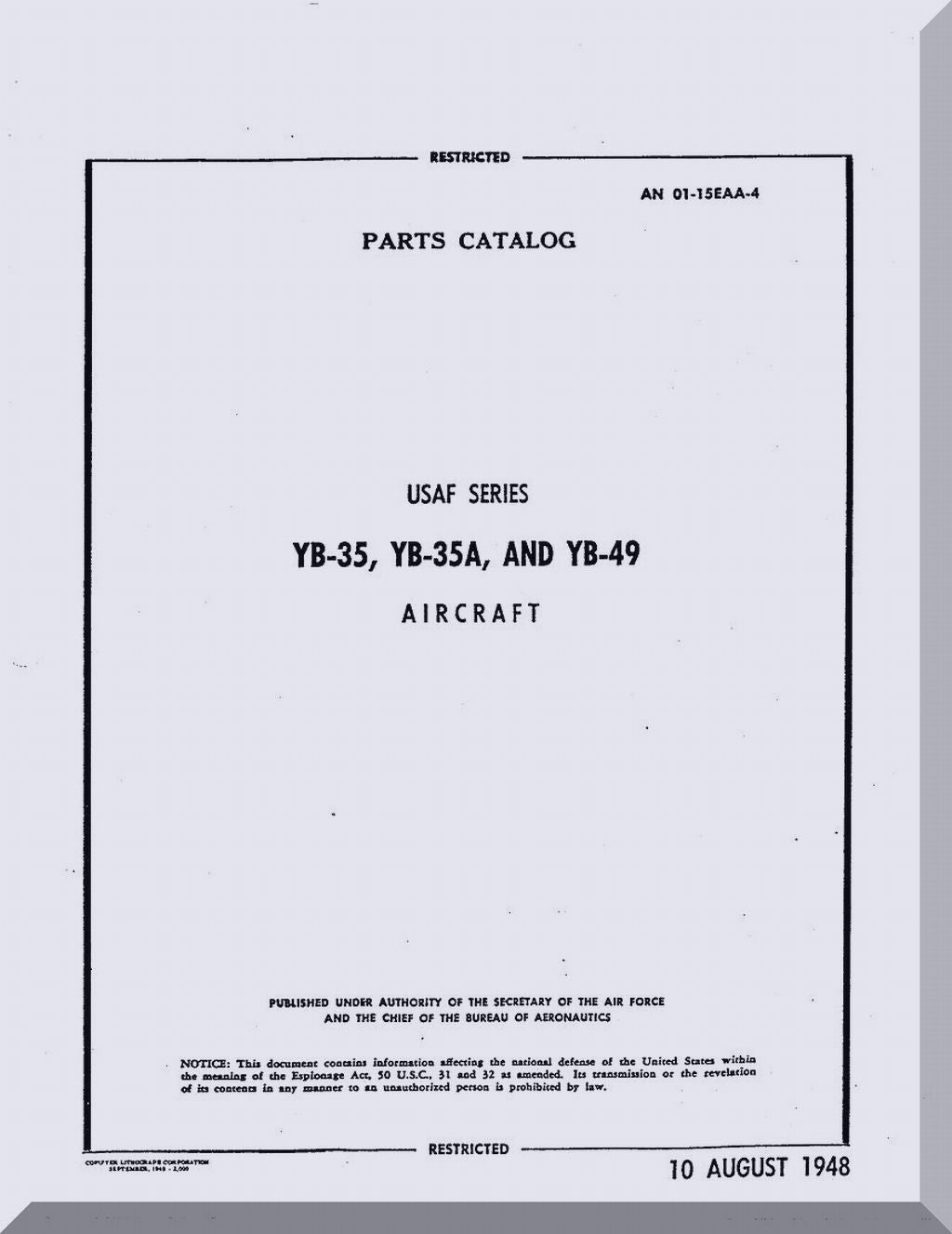

• Parts Catalogs – Illustrated parts breakdowns with nomenclature and part numbers
• Technical Orders – Official modifications, updates, and service bulletins
• Structural Repair Manuals – Airframe repair procedures and specifications
• Systems Documentation – Powerplant, flight control, hydraulic, and electrical systems
• Test Reports – Flight test data and evaluation documentation

Digital Delivery

All manuals are delivered as high-resolution PDF files, optimized for both screen viewing and printing. Download immediately after purchase and access your files anytime from your account. Perfect for reference, research projects, or building your aviation library.

Format: PDF (Digital Download)
Delivery: Instant access after purchase
Compatibility: All devices and operating systems

Disclaimer: Sold for historical and reference purposes only. These original or reproduced manuals and blueprints are transferred to electronic format from active-duty archives. Not intended for current certification or repair work. Ideal for scholars, collectors, modelers, and aviation enthusiasts. We provide civil manuals and blueprints on obsolete aircraft, engines, and helicopters for proprietary reasons. Information is for reference only; completeness and accuracy are not guaranteed.
