Comprehensive Northrop P-61 Black Widow Technical Documentation

This digital collection assembles authentic technical manuals for America's first purpose-built night fighter. The Northrop P-61 Black Widow served with distinction during World War II and beyond, pioneering radar-equipped nocturnal interception. These original documents provide detailed specifications and procedures used by Army Air Forces crews and maintenance personnel during the aircraft's operational service.

Definitive Collection with Free Lifetime Updates: This is a living collection that we continuously expand and refine. As we acquire additional P-61 Black Widow documentation, technical bulletins, or variant-specific materials, we update this collection and provide free lifetime updates to all purchasers. Your one-time purchase guarantees access to all future additions and improvements to this collection.

Historical Note

The Northrop P-61 Black Widow entered U.S. Army Air Forces service in 1944 as America's first aircraft designed from the outset as a radar-equipped night fighter. Developed in response to British combat experience showing the critical need for specialized night interceptors, the P-61 represented a radical departure from conventional fighter design—a large, twin-engine, twin-boom aircraft optimized for hunting enemy bombers in total darkness.

Powered by two Pratt & Whitney R-2800 Double Wasp radial engines producing 2,000 horsepower each, the Black Widow was surprisingly agile for its size. The aircraft's three-man crew (pilot, radar operator, and gunner) worked in close coordination from a spacious central nacelle, with the radar operator managing the sophisticated SCR-720 airborne intercept radar that gave the P-61 its night-fighting capability. This radar could detect enemy aircraft at ranges up to four miles, allowing interception in complete darkness or adverse weather.

The P-61's armament was formidable: four 20mm cannons mounted in the belly and a dorsal turret with four .50 caliber machine guns (though the turret was deleted on some variants due to buffeting issues). This heavy firepower, combined with radar guidance, made the Black Widow a deadly nocturnal hunter. The aircraft's distinctive twin-boom configuration housed the engines and landing gear while providing excellent fields of fire and radar coverage.

Black Widows saw combat in both the European and Pacific theaters during the final year of World War II. In Europe, P-61 squadrons protected Allied bomber streams and ground forces from German night intruders, while also conducting offensive night intruder missions over enemy territory. In the Pacific, Black Widows hunted Japanese bombers attempting night raids on American bases and shipping, achieving considerable success despite the relatively small numbers deployed.

The P-61's versatility extended beyond pure night fighting. The aircraft proved effective in ground attack roles, using its heavy armament and ability to carry bombs or rockets under the wings. Some Black Widows were modified for night photo reconnaissance, while others served as night intruders, attacking enemy airfields, transportation, and supply lines under cover of darkness.

One of the P-61's most famous missions occurred on August 14, 1945—the last night of World War II—when a Black Widow crew shot down a Japanese aircraft just hours before the ceasefire took effect, scoring one of the war's final aerial victories. This symbolic achievement highlighted the Black Widow's role in maintaining air superiority even in the conflict's final moments.

Following World War II, the P-61 (redesignated F-61 in 1948) continued serving with the newly independent U.S. Air Force, Air National Guard units, and in specialized roles. The unarmed F-15 Reporter photo reconnaissance variant, developed from the P-61 airframe, served through the Korean War era. Some Black Widows remained in service until 1954, an impressive longevity for a World War II-era design.

The P-61 also contributed to meteorological research, with several aircraft modified as high-altitude weather reconnaissance platforms. These aircraft conducted important atmospheric research during the late 1940s and early 1950s, demonstrating the Black Widow's adaptability beyond its original combat role.

Today, the Northrop P-61 Black Widow is remembered as a pioneering night fighter that validated the concept of radar-equipped interception and influenced postwar all-weather fighter development. Only four examples survive, with one undergoing restoration to flying condition—a testament to the enduring fascination with this distinctive and historically significant aircraft.

Manuals Included in This Collection

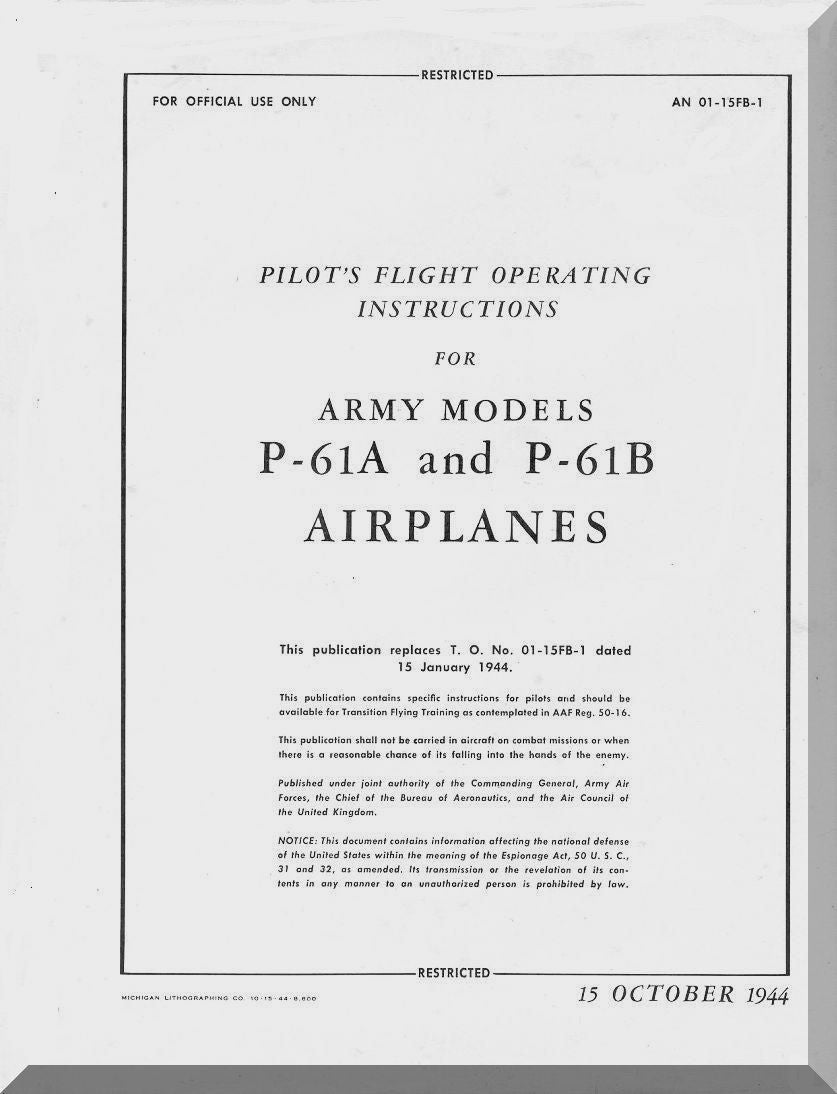

• Northrop P-61 A, B Aircraft Pilot's Flight Operating Instructions Manual - T.O. 01-15FB-1, 1944

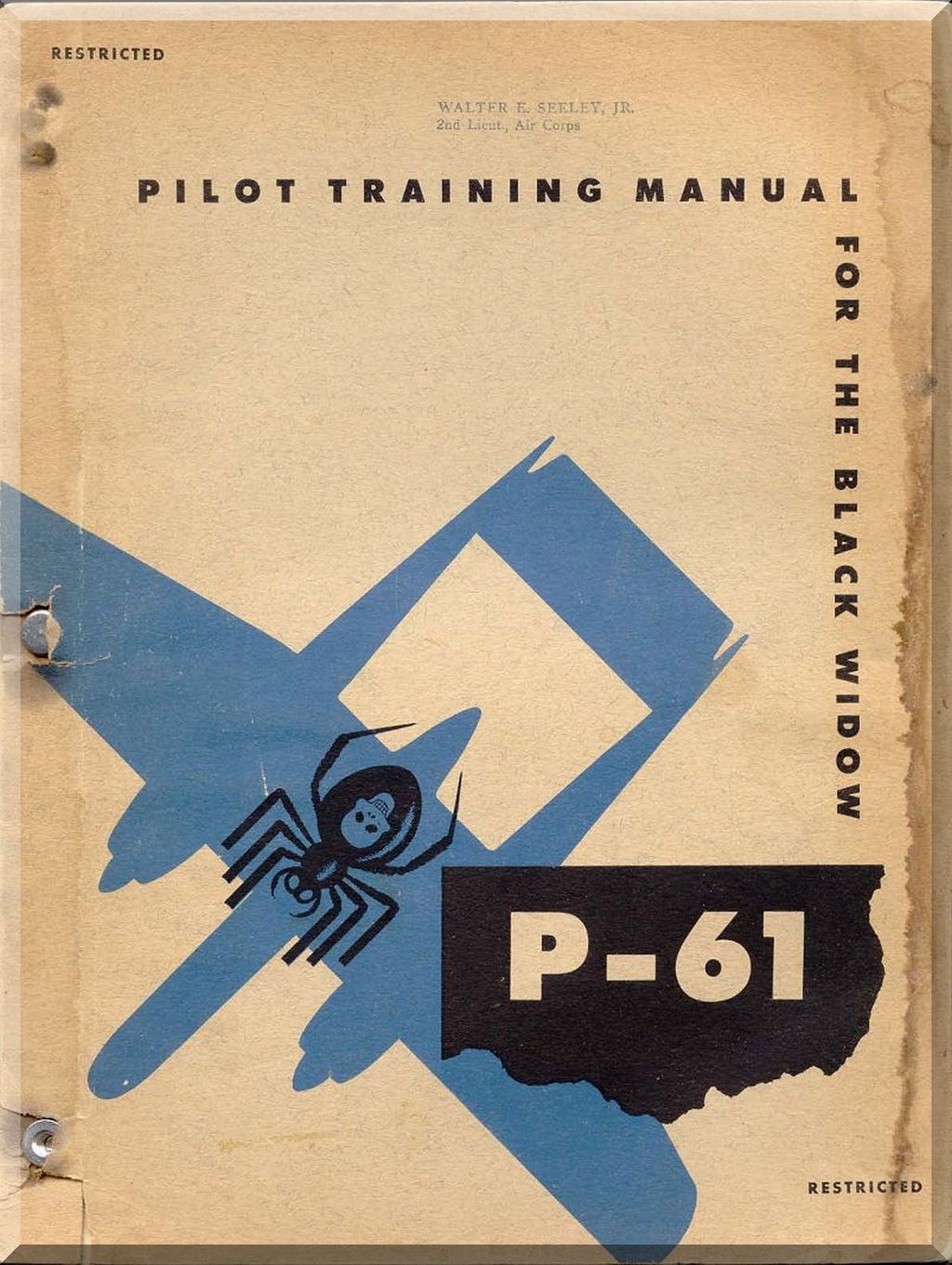

• Northrop P-61 Pilot Training Manual - 1944

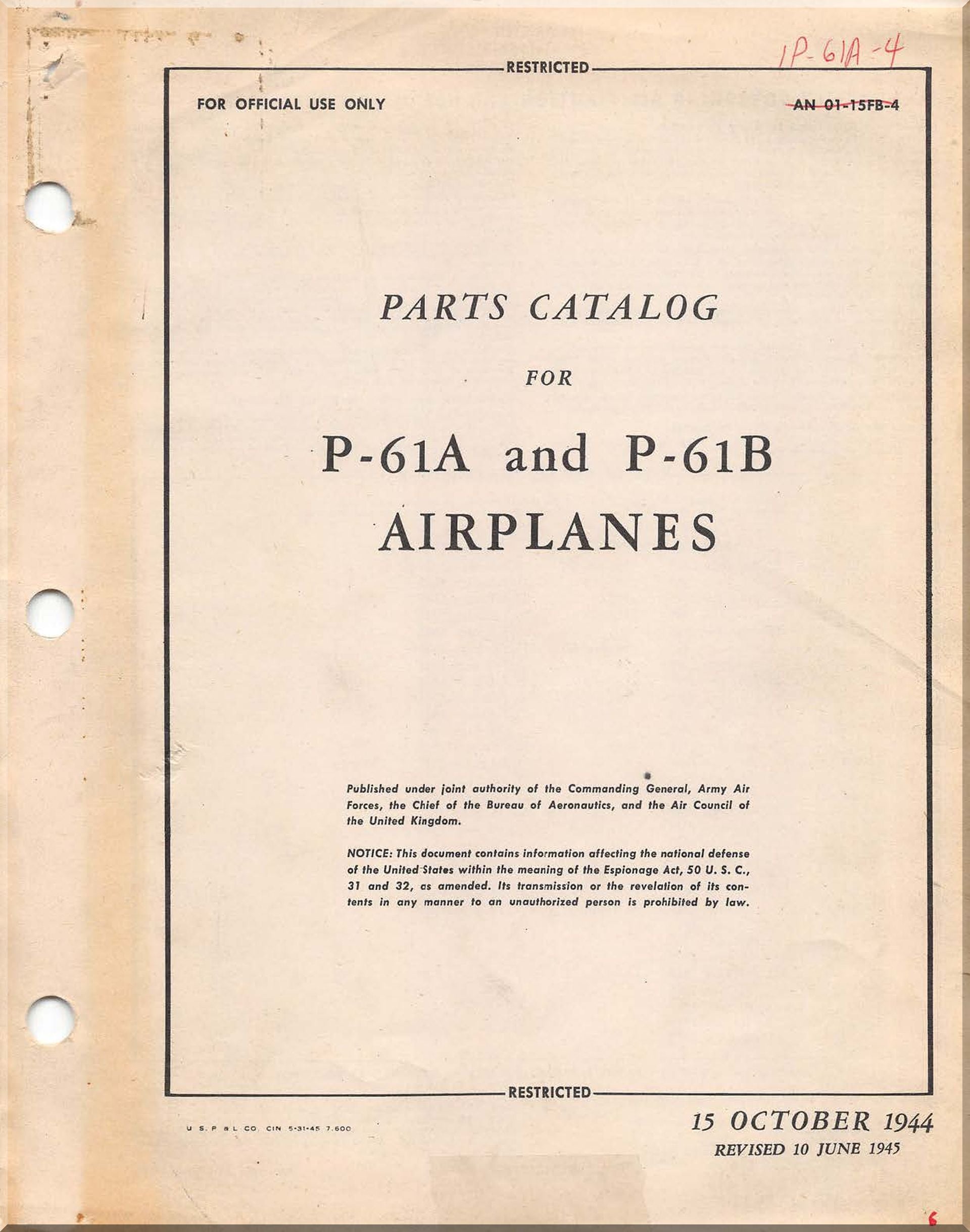

• Northrop P-61 A, B Aircraft Parts Catalog Manual - 01-15FB-4 - 1P-61A-4 - 1944

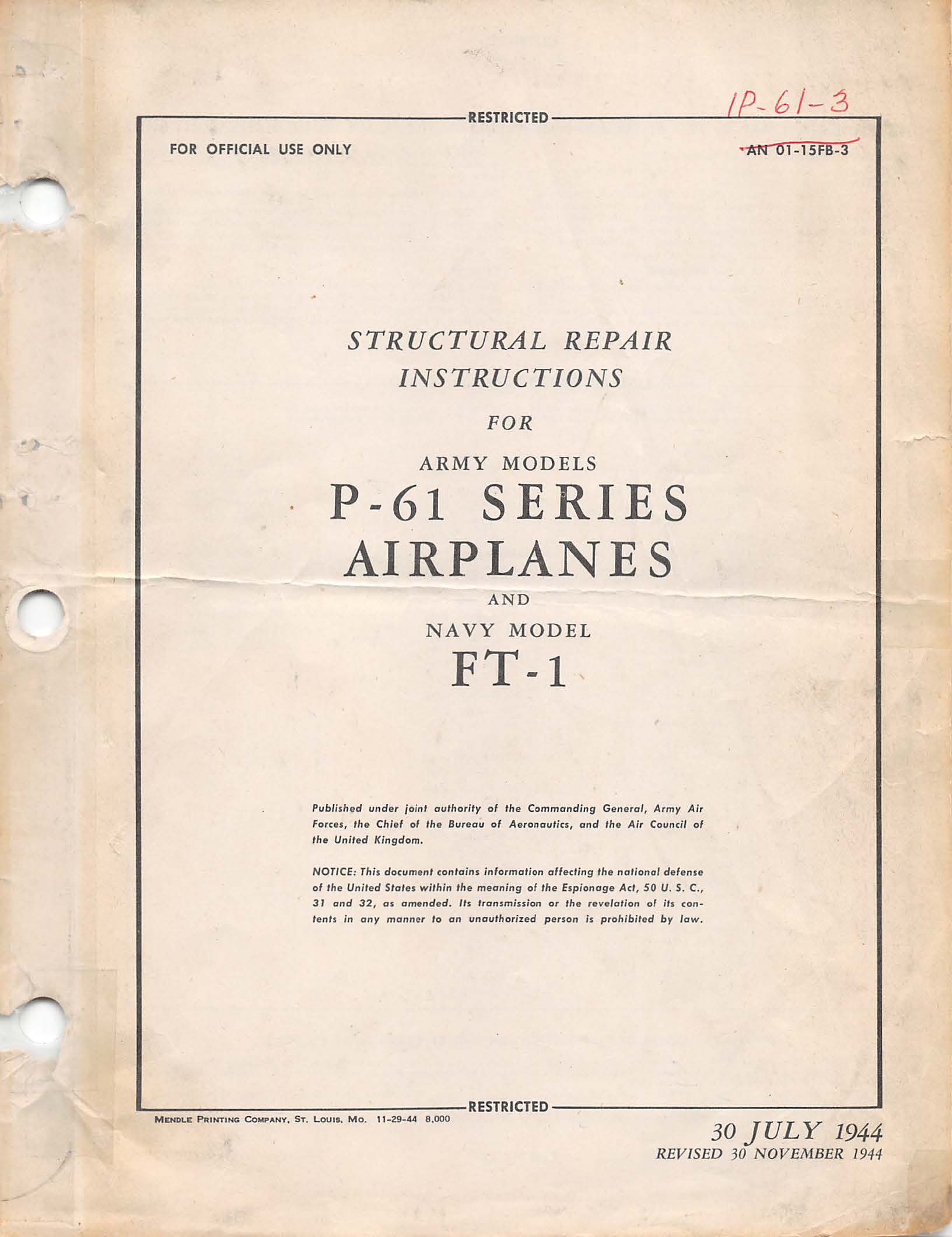

• Northrop P-61 FT-1 Aircraft Structural Repair Manual - 01-15FB-3 - 1P-61-3 - 1944

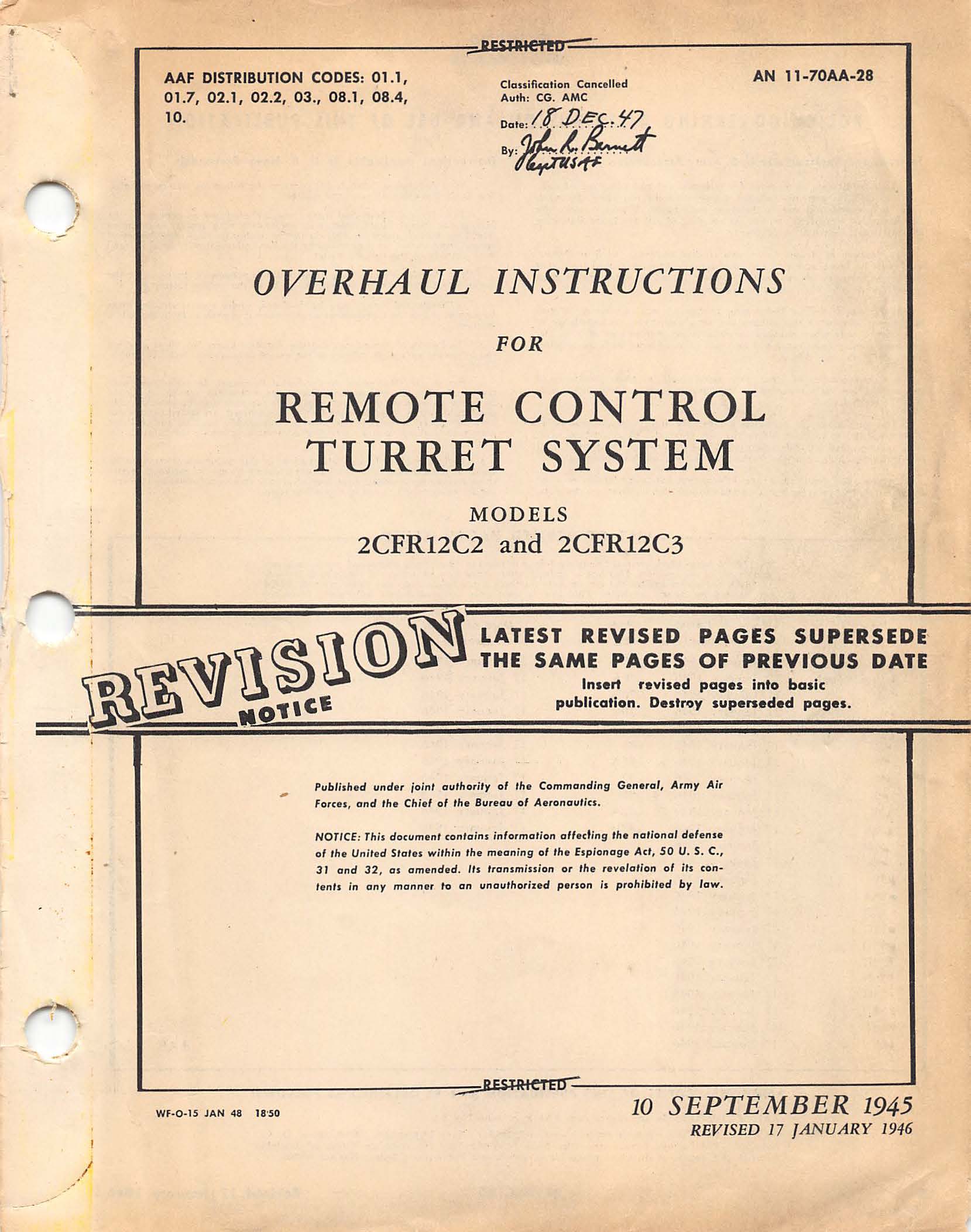

• Northrop P-61 Aircraft Remote Control Turret System Overhaul Manual - 01-70AA-28 - 1945

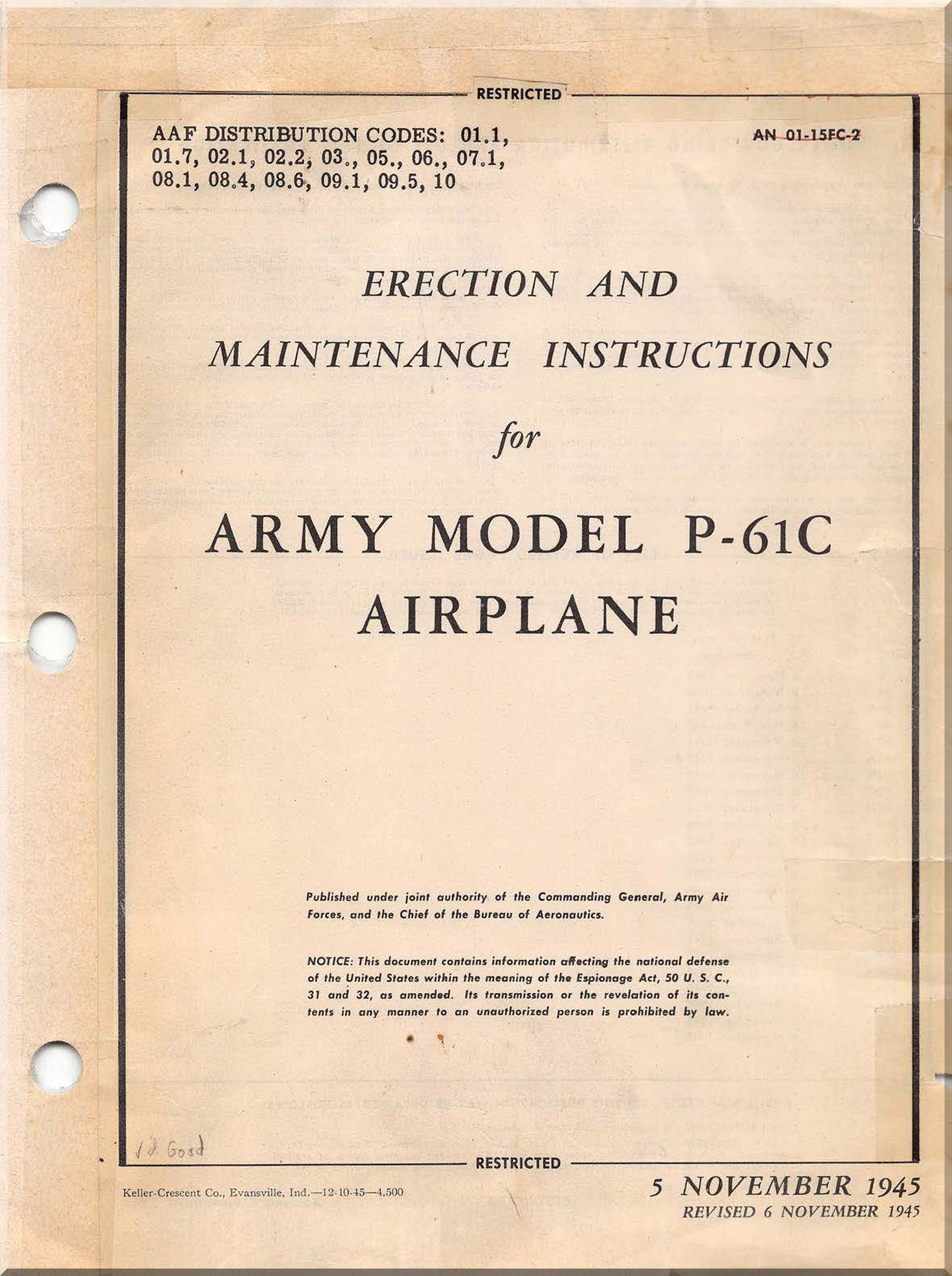

• Northrop P-61 C Aircraft Erection and Maintenance Manual - 01-15FC-2 - 1945

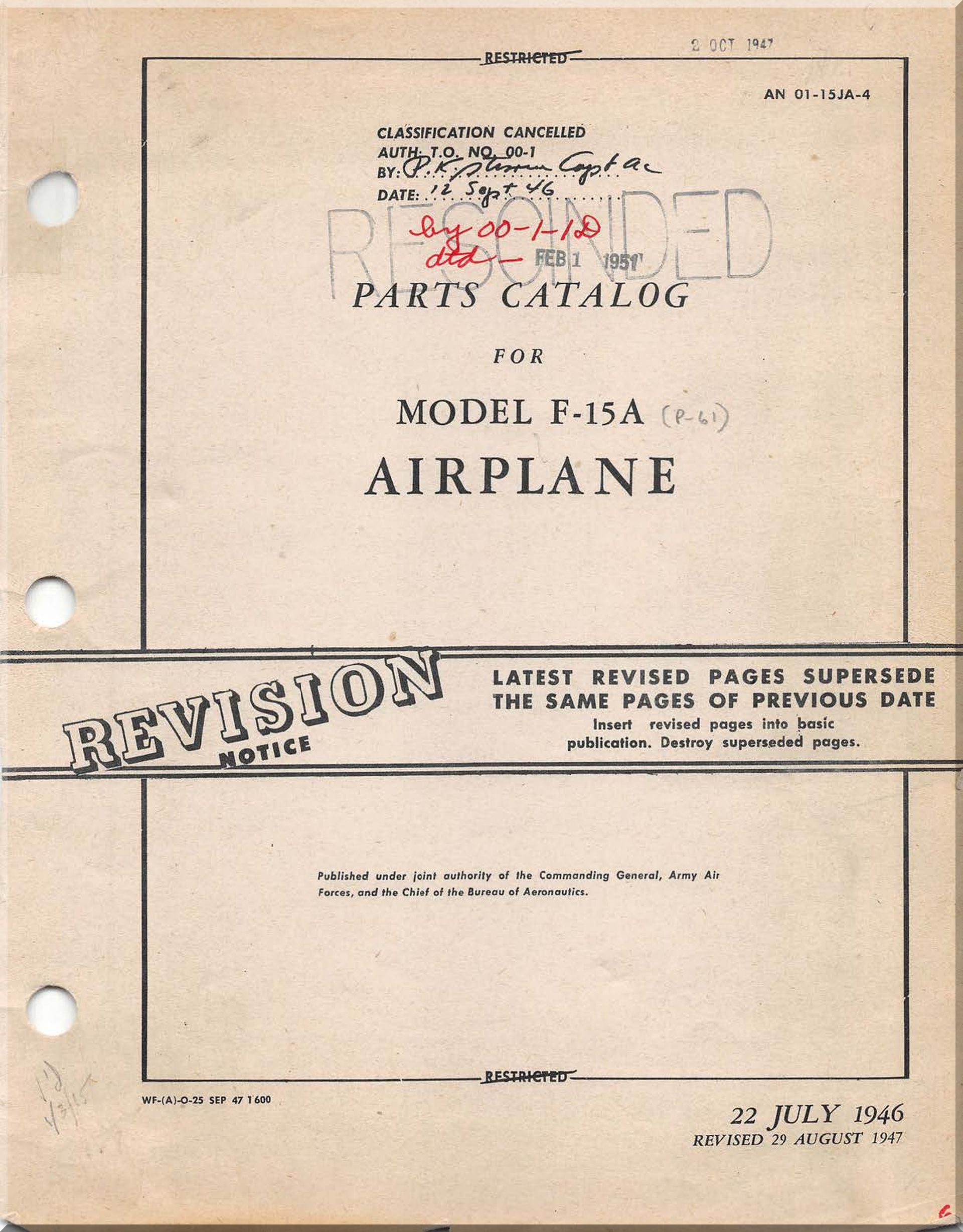

• Northrop F-15 A (P-61) Aircraft Parts Catalog Manual - 01-15JA-4 - 1946

This collection provides comprehensive coverage of P-61A, P-61B, and P-61C variants, plus the F-15A Reporter photo reconnaissance derivative. Documentation spans flight operations, pilot training, structural repair, parts identification, turret systems, and maintenance procedures—everything needed for serious research, restoration reference, or historical study of this pioneering night fighter.

Engineering Norms and Standards

These manuals reflect U.S. Army Air Forces engineering standards and military specifications from the World War II era, including AN (Army-Navy) standards, military specification documents (MIL-SPEC), and Northrop Aircraft engineering practices from the 1940s. The documentation demonstrates the rigorous technical requirements for radar-equipped night fighters and the integration of complex electronic systems with conventional aircraft structures.

Format and Delivery

All manuals are delivered as high-resolution PDF files, optimized for both screen viewing and printing. Download immediately after purchase and access your files anytime from your account. Perfect for reference, restoration projects, or building your aviation library.

Format: PDF (Digital Download)
Delivery: Instant access after purchase
Compatibility: All devices and operating systems
