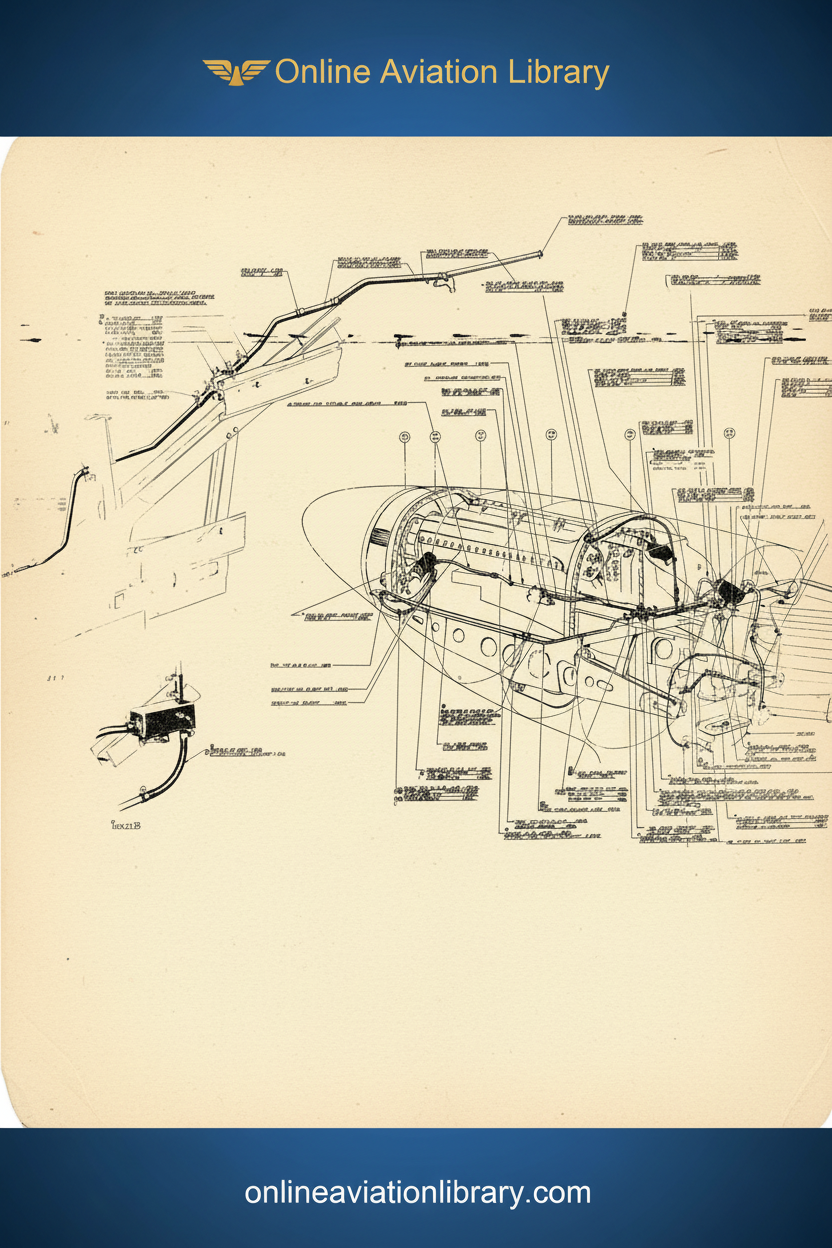

North American P-51 Mustang — Airframe Engineering Drawings

24 Microfilm Rolls (A–Z) · T.O. No. 01-60J-13 · Army Air Forces · 1 April 1945

This archival collection presents the complete Index of Drawings on Microfilm for the Model P-51 Series Aircraft, issued as Technical Order No. 01-60J-13 by authority of the Commanding General, Army Air Forces, dated 1 April 1945. The microfilm set is correct to December 1944 and supersedes T.O. 01-60J-13 dated 1 September 1944.

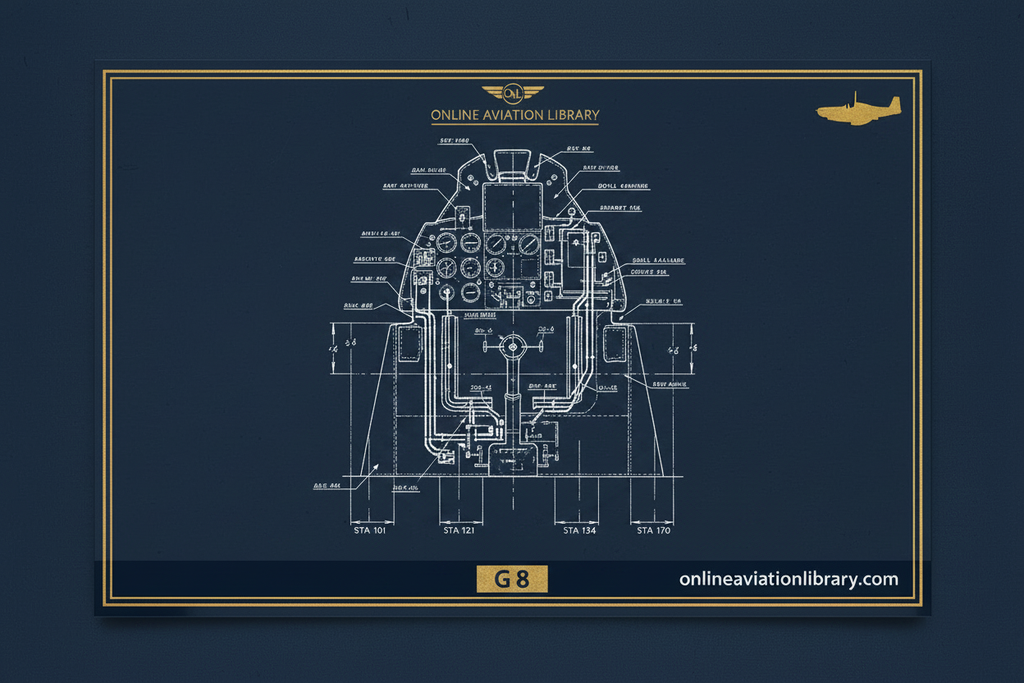

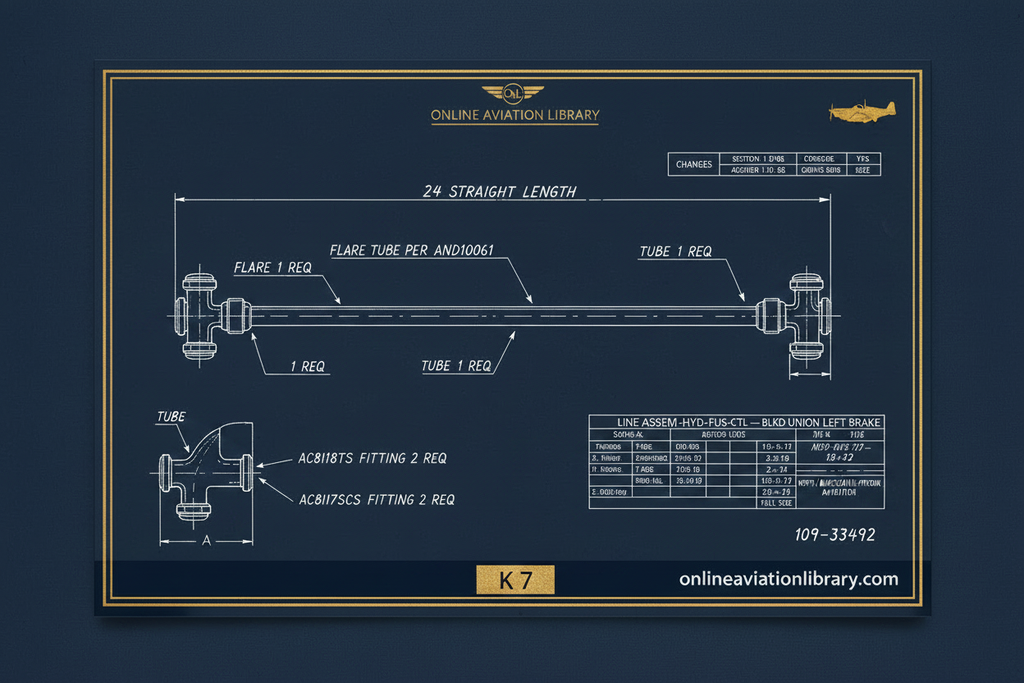

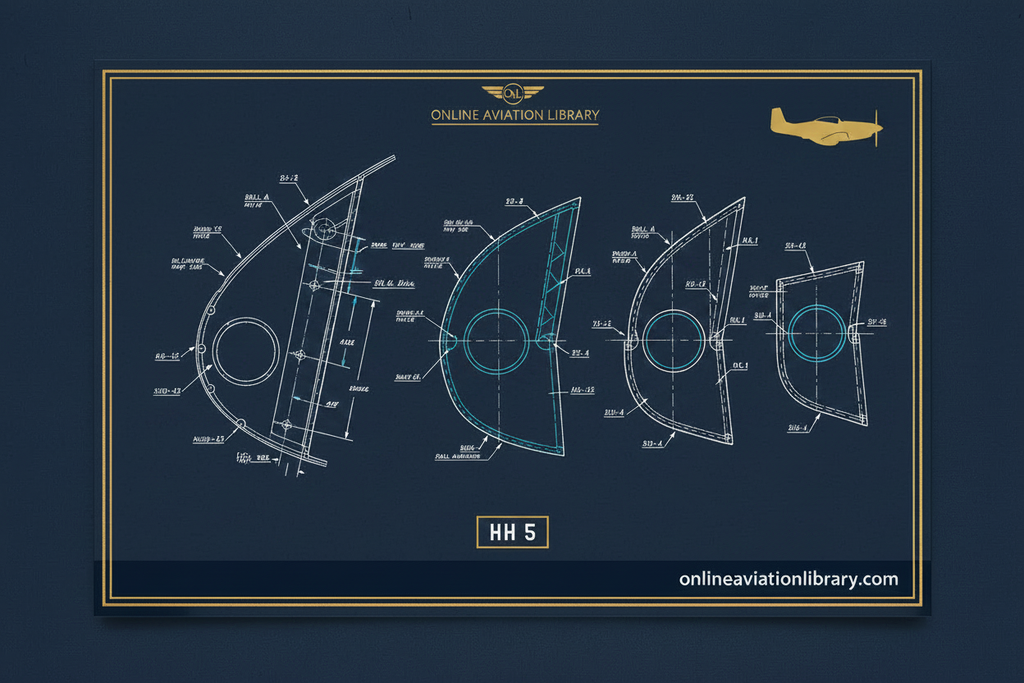

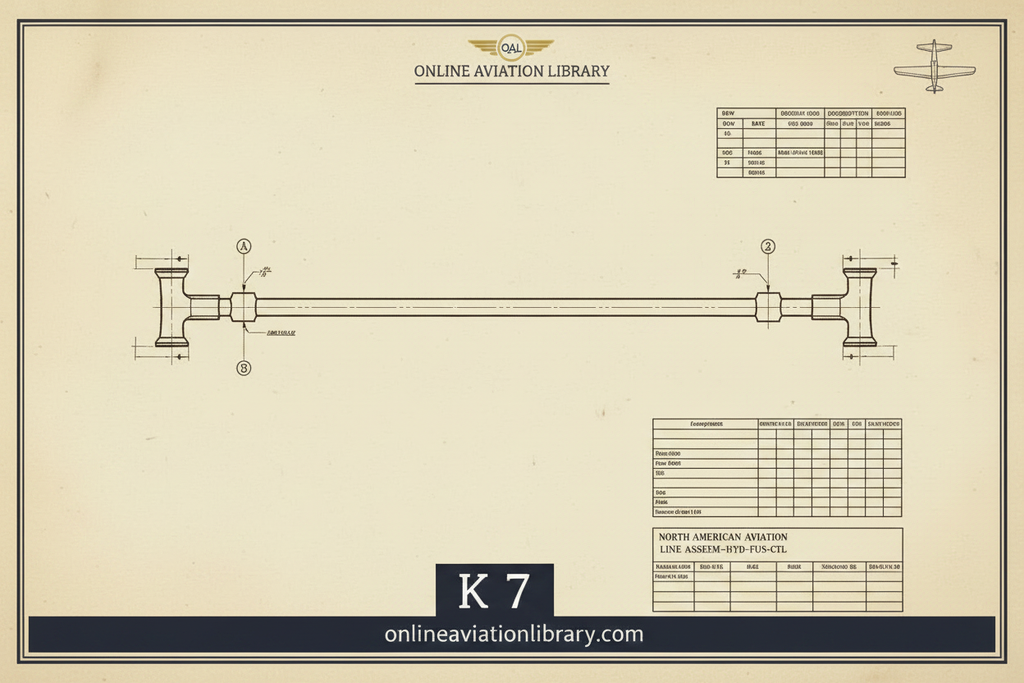

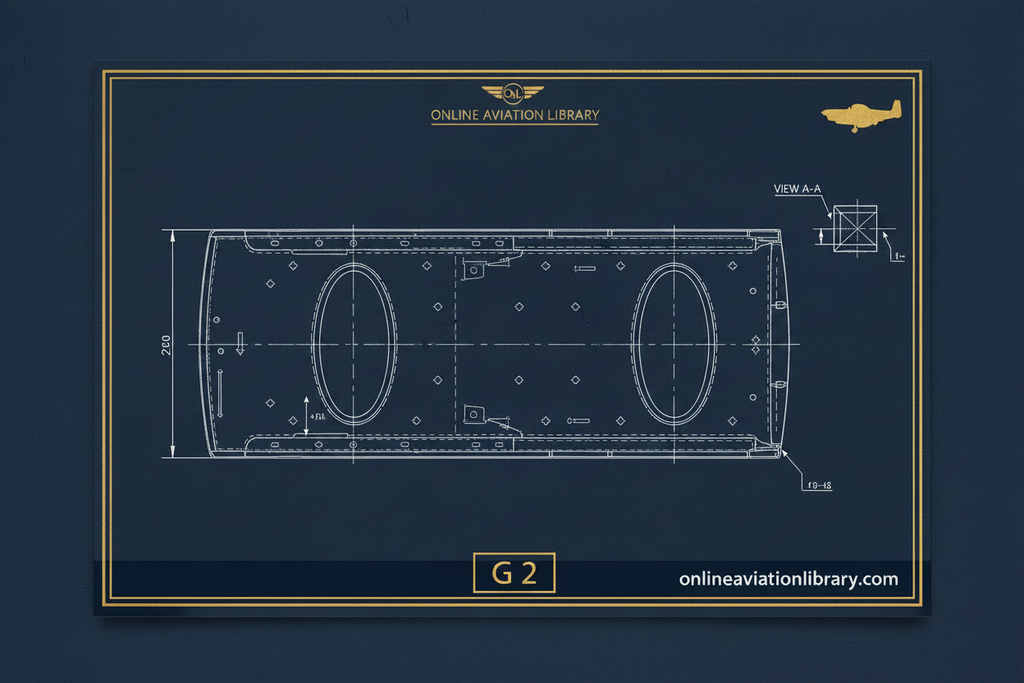

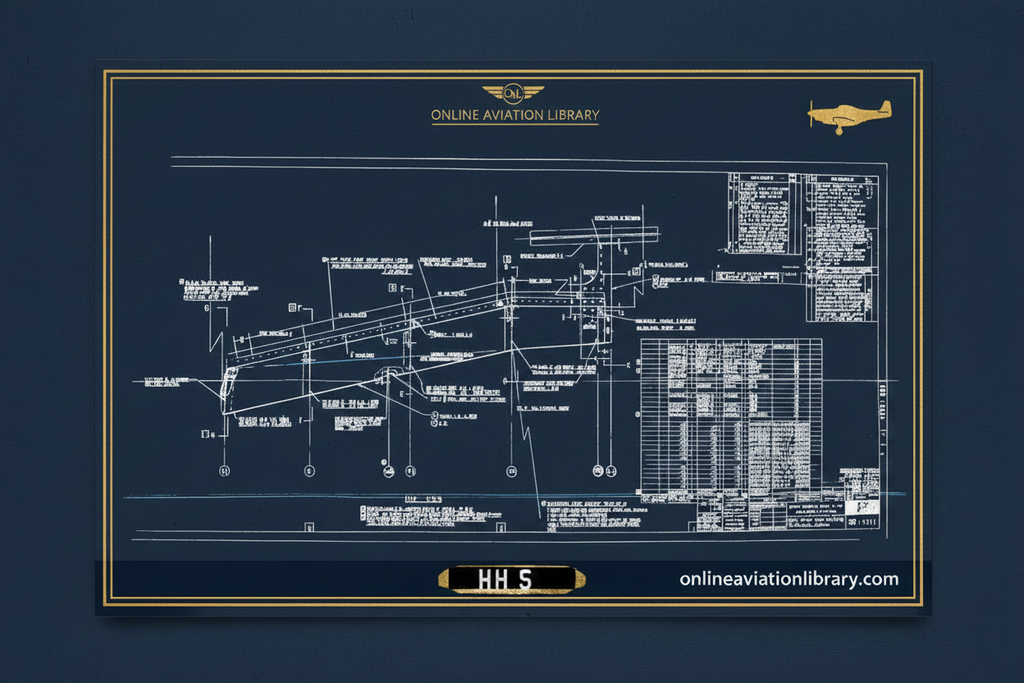

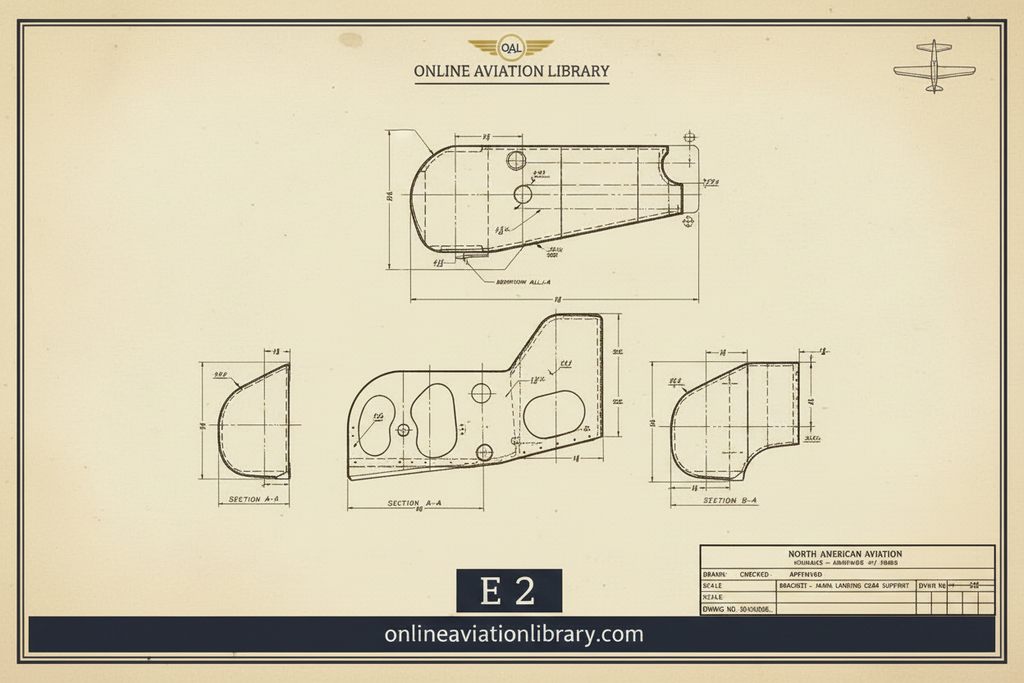

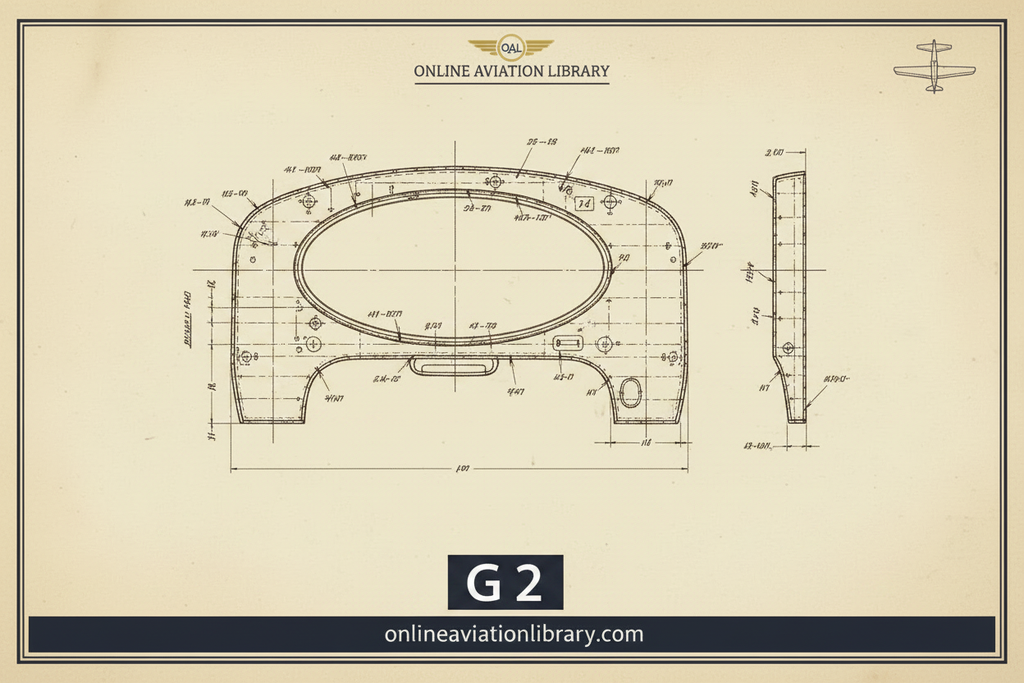

The collection spans 24 microfilm rolls: A, B, C, D, E, F, G, H, J, K, L, M, N, P, Q, R, S, T, U, V, W, X, Y, and Z — covering the full P-51 series airframe from wing spar to empennage, powerplant to fixed equipment.

The index is organised both alphabetically by part name and numerically by drawing number, with film index numbers indicating the roll and position of each drawing.

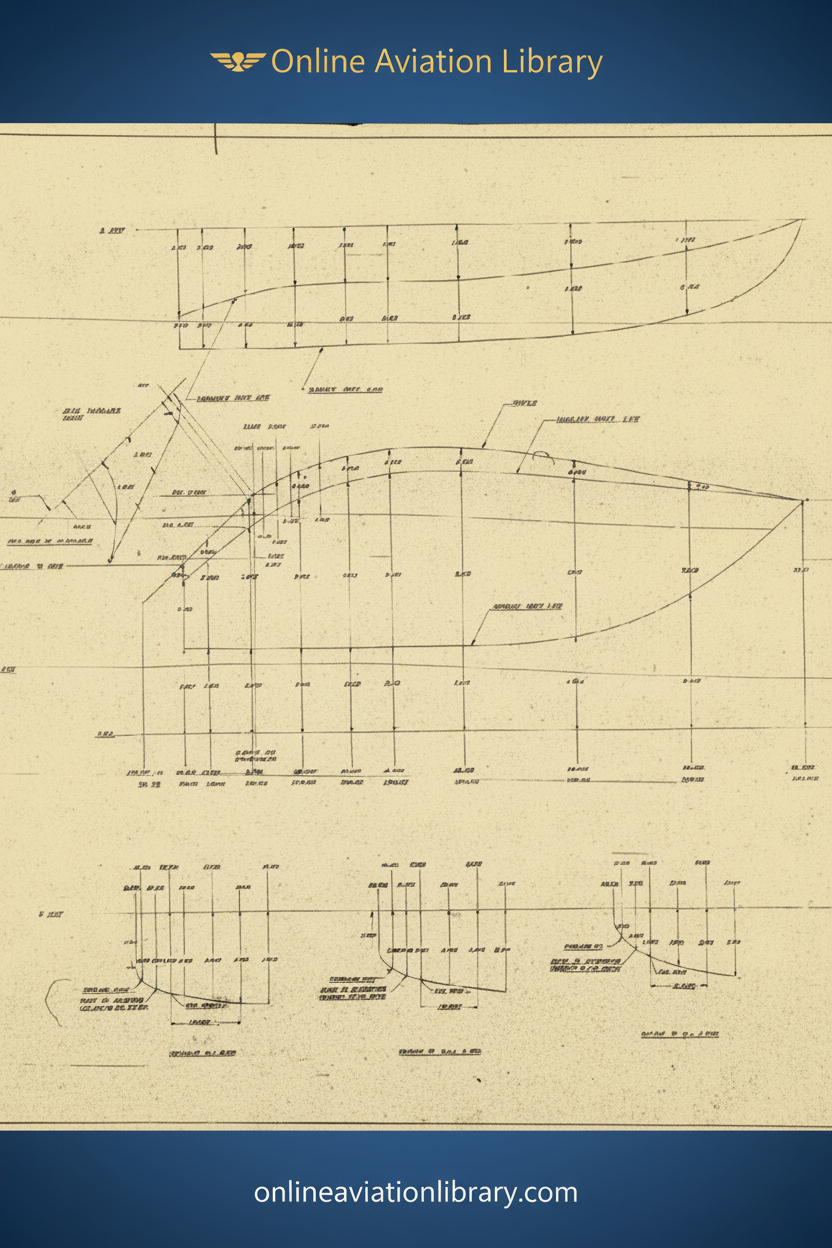

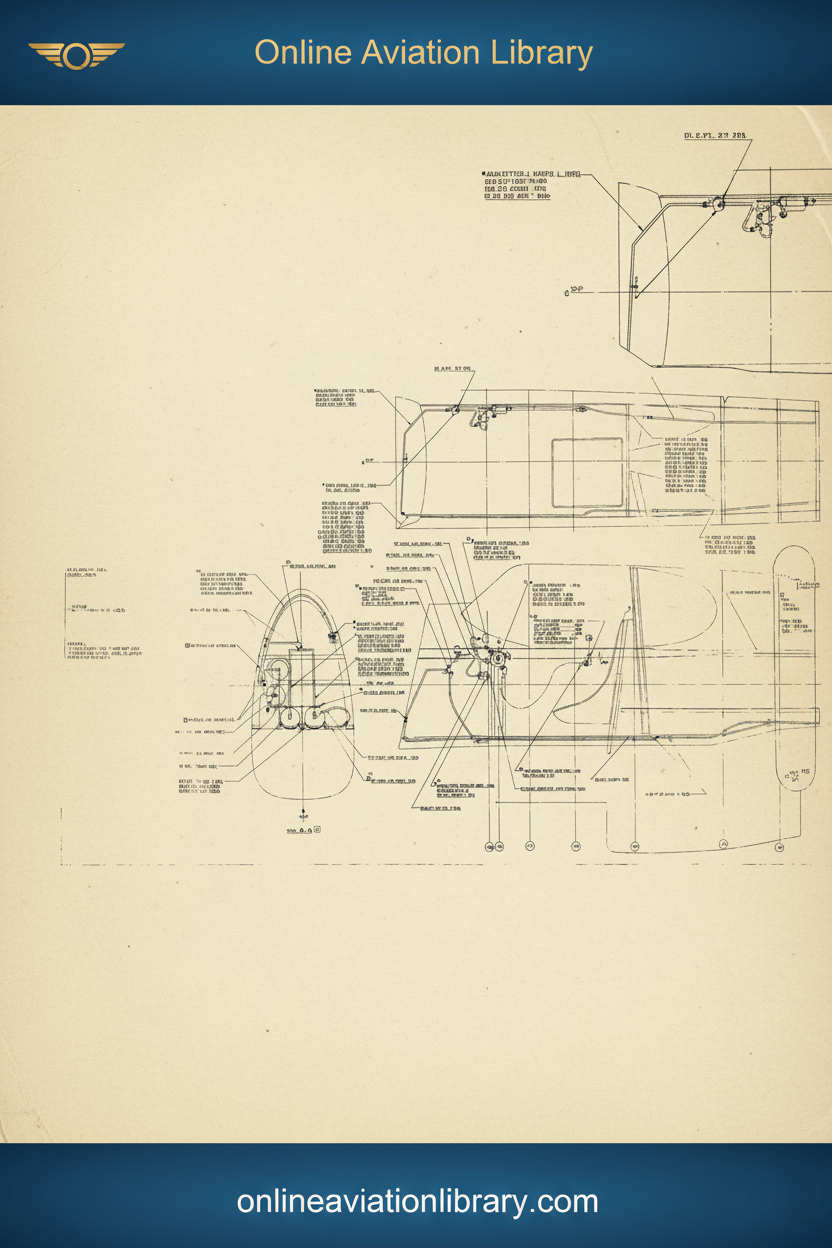

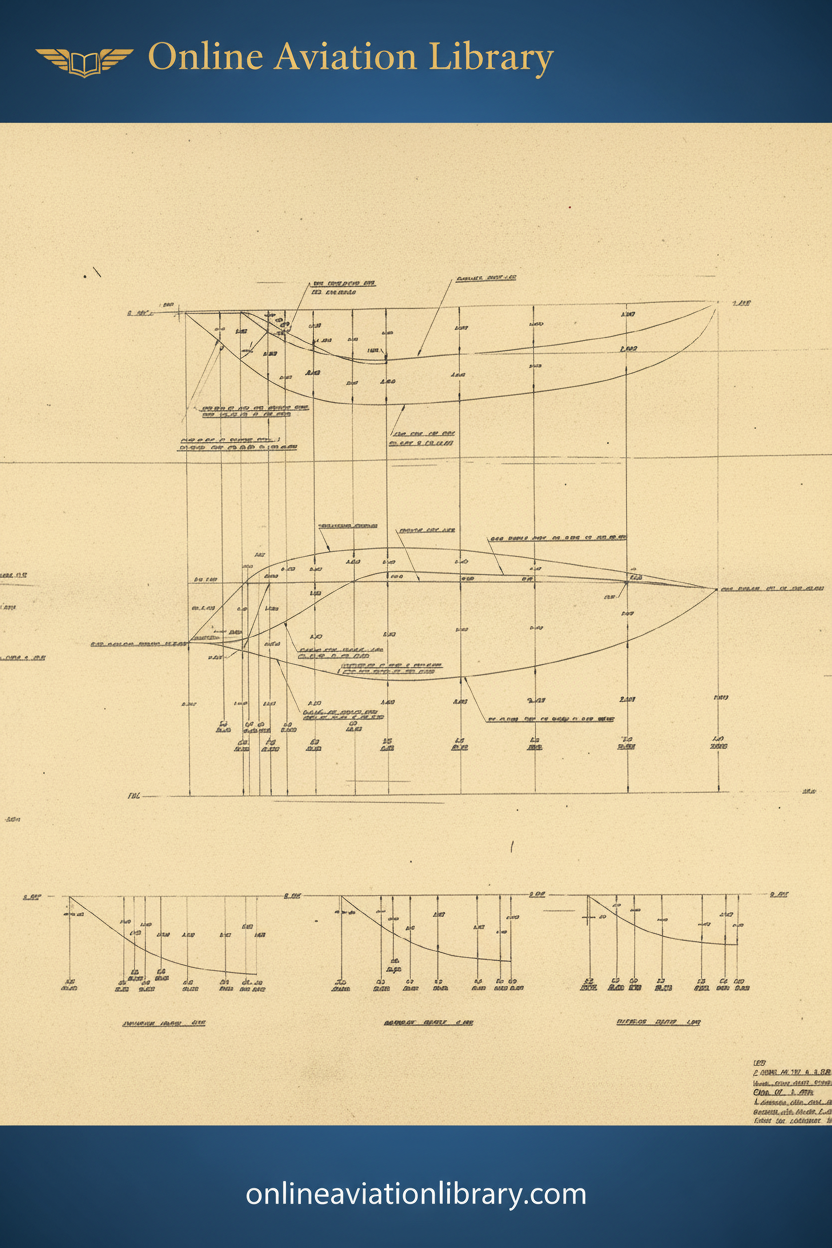

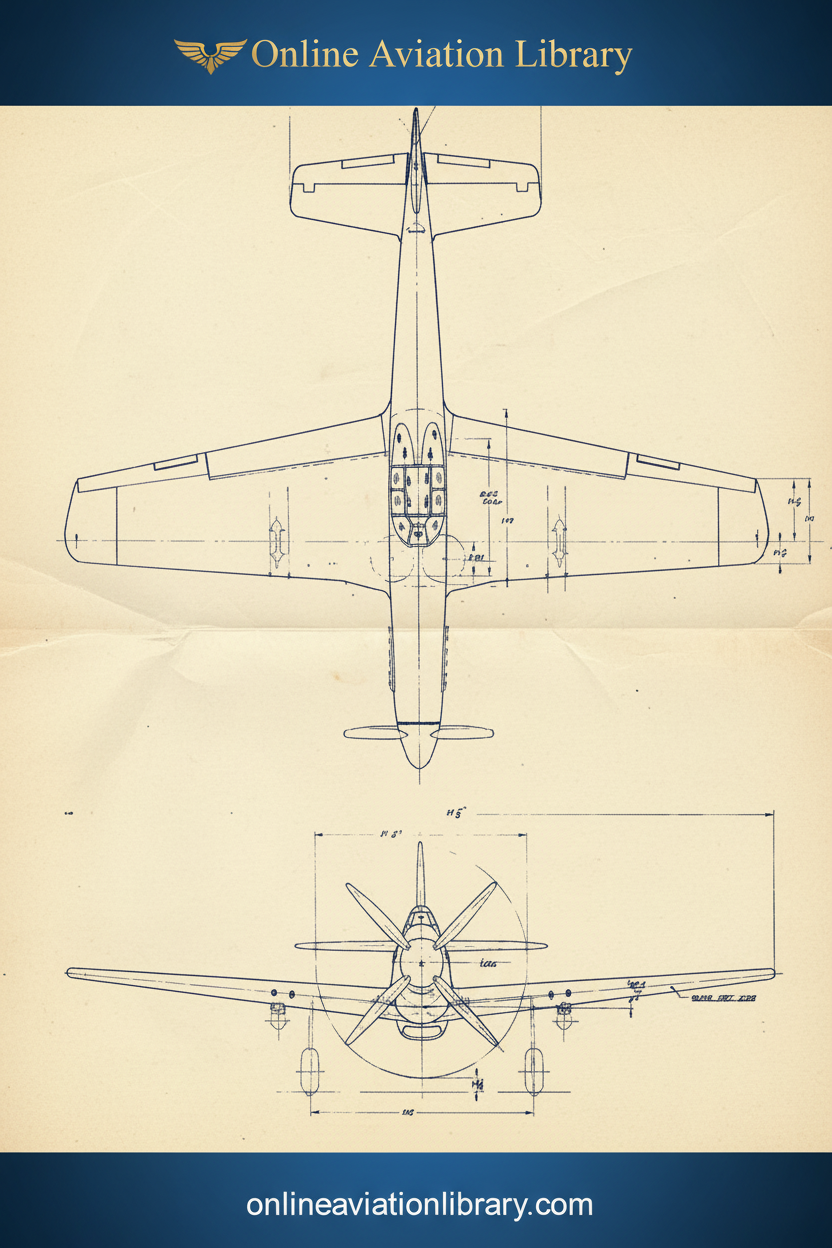

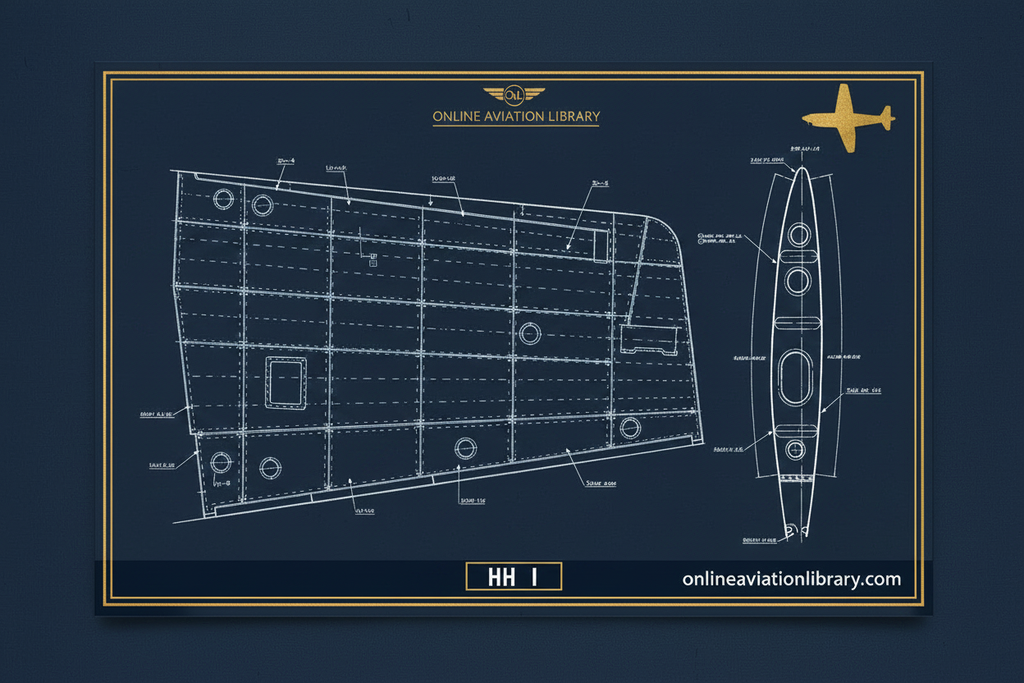

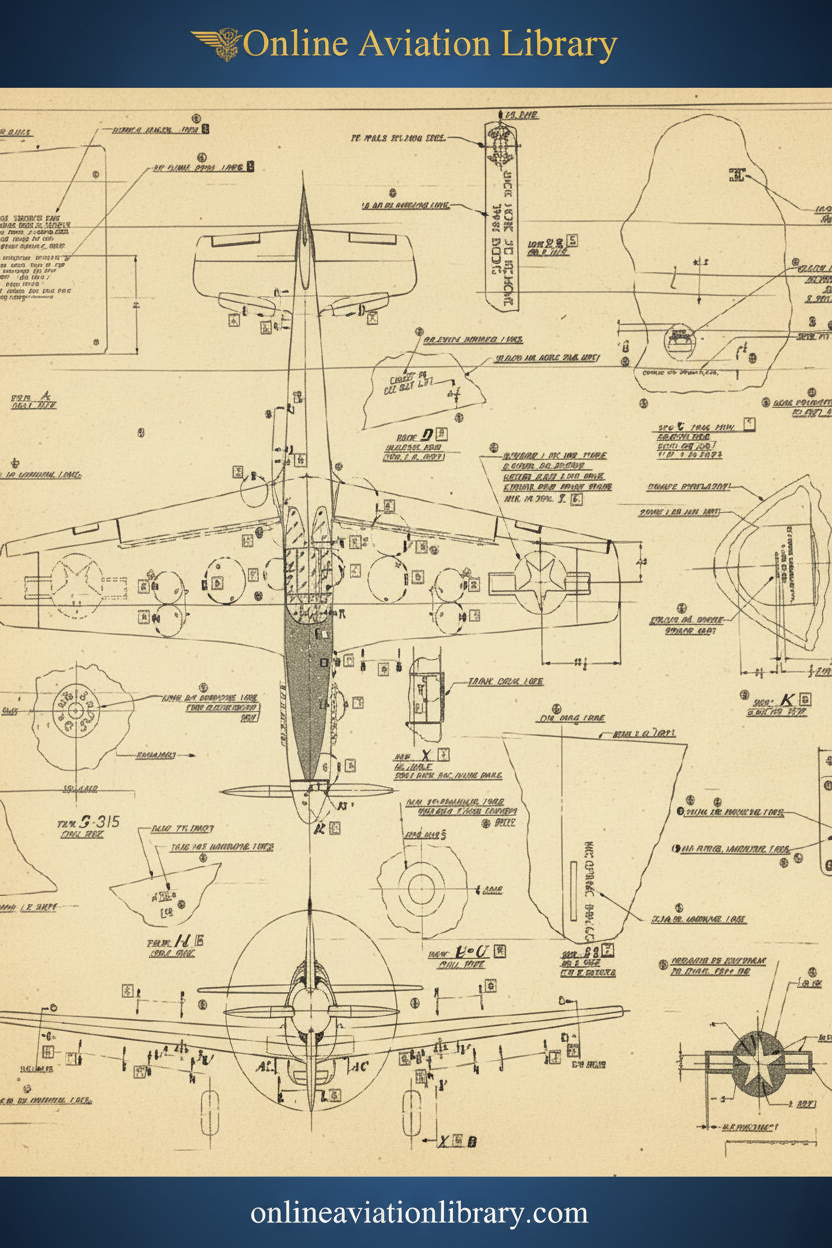

Aerodynamic Design & Airframe Engineering

The P-51 Mustang's defining aerodynamic achievement was its NAA/NACA 45-100 laminar flow wing profile — a low-drag section placing the thickest point further aft than conventional wings to sustain extended laminar boundary layers and dramatically reduce skin friction drag. Wind tunnel testing documented a violent suction region over the P-51D bubble canopy compared to the flatter P-51B fuselage line. Manufacturing tolerance reports confirm that even minor skin ripples or paint imperfections trigger early turbulent boundary-layer transitions, negating the laminar drag advantage — a testament to the precision demanded by these drawings.

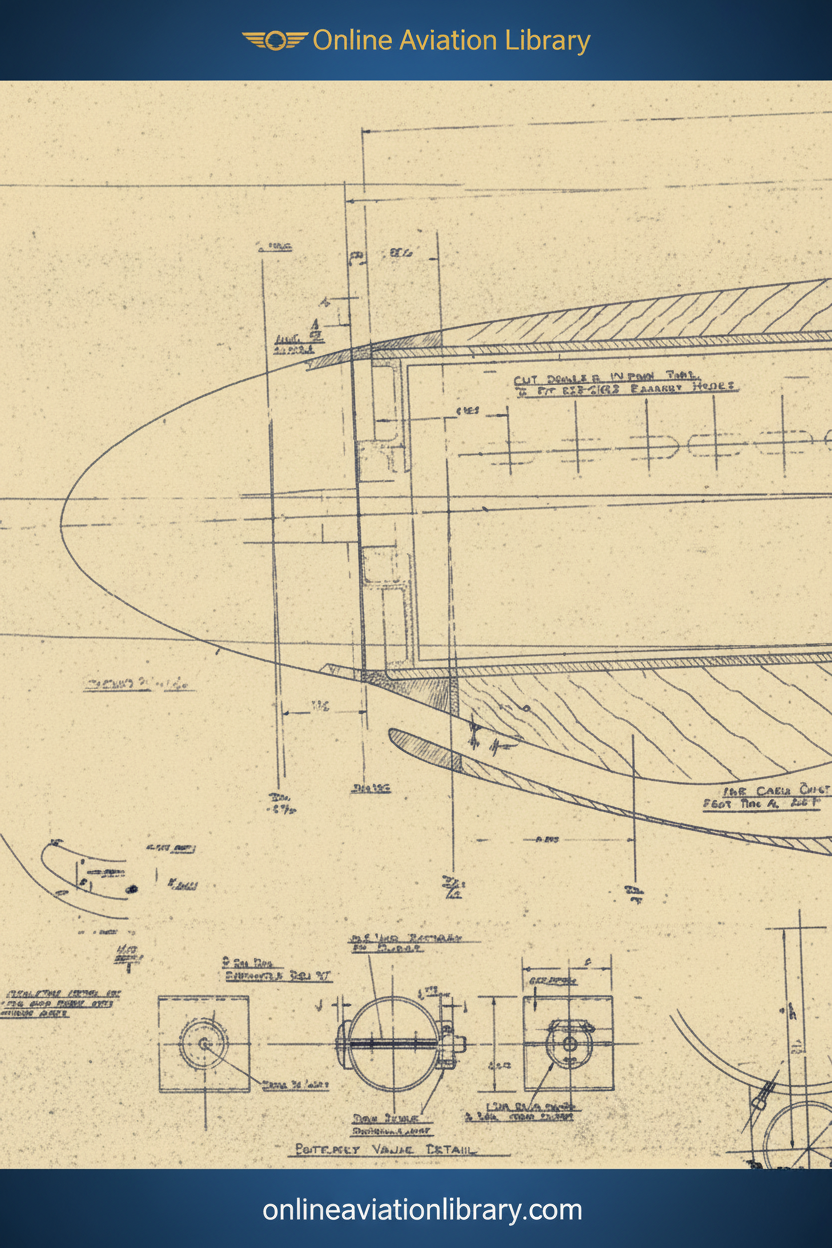

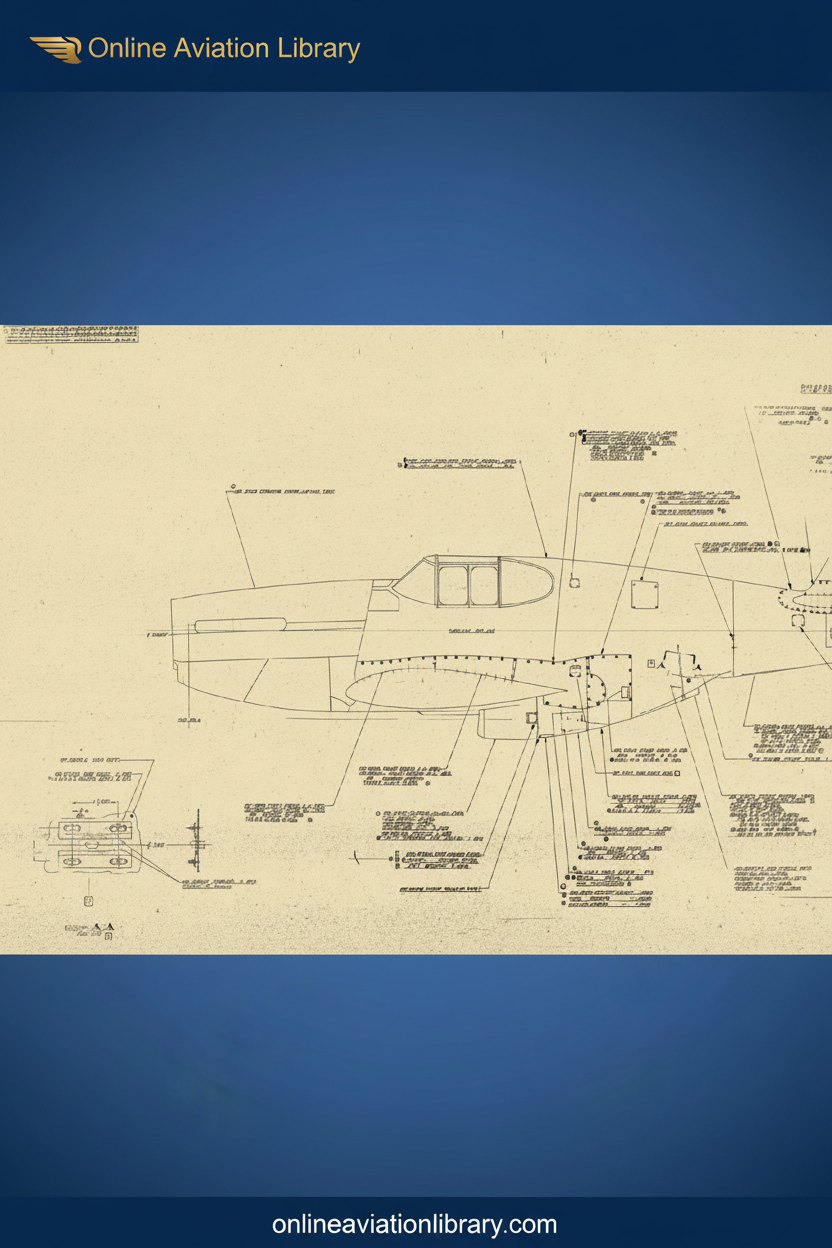

The belly-mounted radiator scoop employs the Meredith Effect: expanding hot air passing through the radiator generates usable forward thrust, virtually neutralising cooling drag at high speed — an elegant thermodynamic solution documented in the engineering archive.

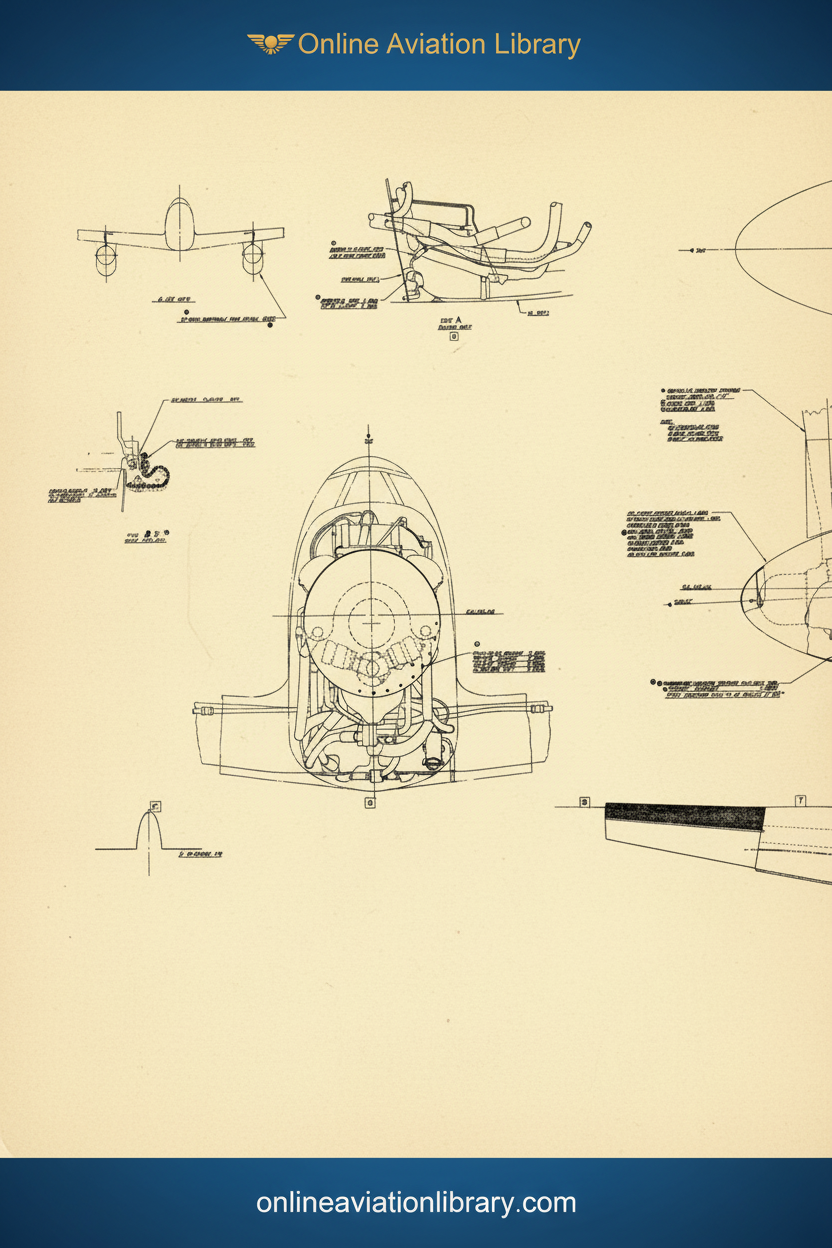

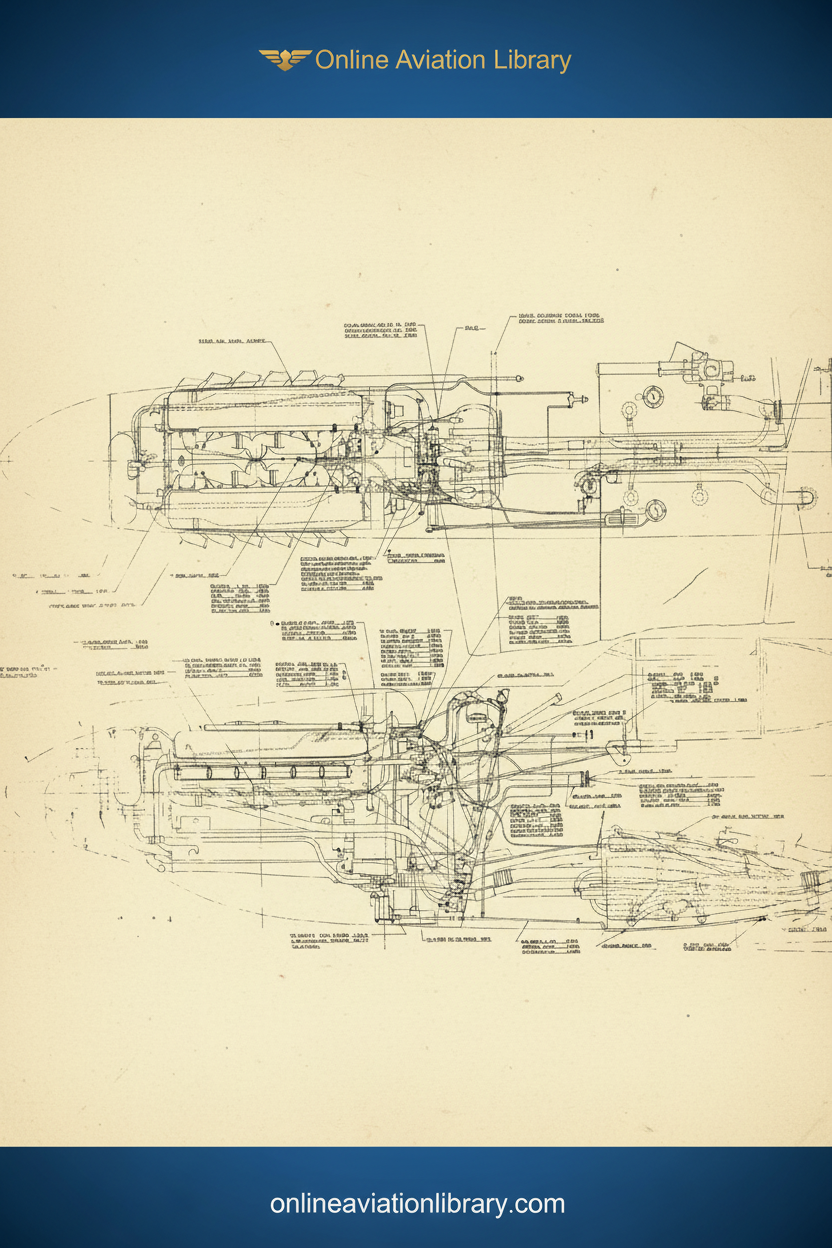

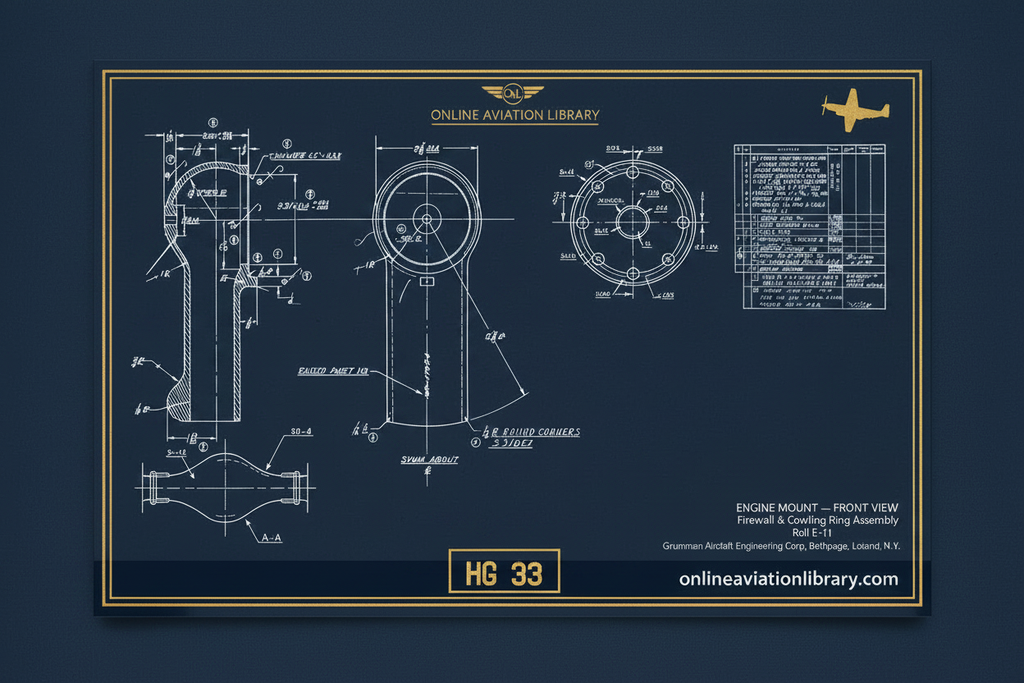

Engine Technical Notes — Packard V-1650 Merlin

The P-51 series was powered by the liquid-cooled, 12-cylinder Packard V-1650 Merlin — a licence-built derivative of the Rolls-Royce Merlin delivering 1,490 hp to over 1,700 hp under emergency war boost. An automatic barometrically controlled, two-speed, two-stage supercharger optimises manifold pressure across altitude ranges. Balancing the massive Merlin engine block against aft fuel tanks required highly restrictive fuel management strategies to prevent extreme tail-heavy centre-of-gravity conditions — a critical engineering constraint documented throughout the technical orders.

Handling & Stability Studies

Flight test documentation reveals that power-on conditions alter pitching moment curves, compromising longitudinal stability under sudden full-throttle application. The optional 85-gallon fuselage fuel tank located directly behind the pilot shifts the centre of gravity rearward, causing severe static instability requiring gentle handling until the tank is burned off. Early variants experienced weak directional stability at speed, addressed by a tail fin fillet on late P-51D variants and a 7-inch fin extension on the lightweight P-51H. High-speed dives cause significant control surface stiffening, particularly inflating rudder trim correction forces.

Performance Data — P-51D

Source: WWII Aircraft Performance archives; Grumman Aircraft Engineering Corporation flight test data.

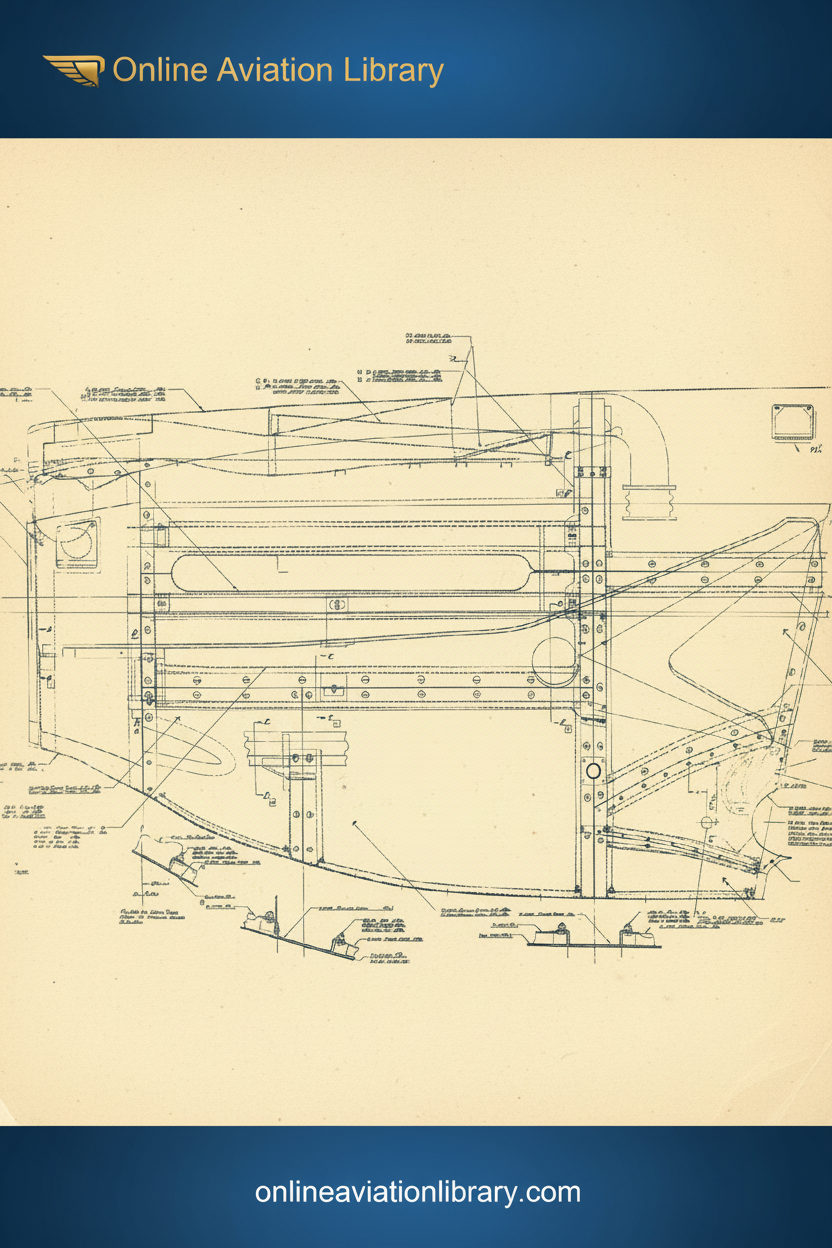

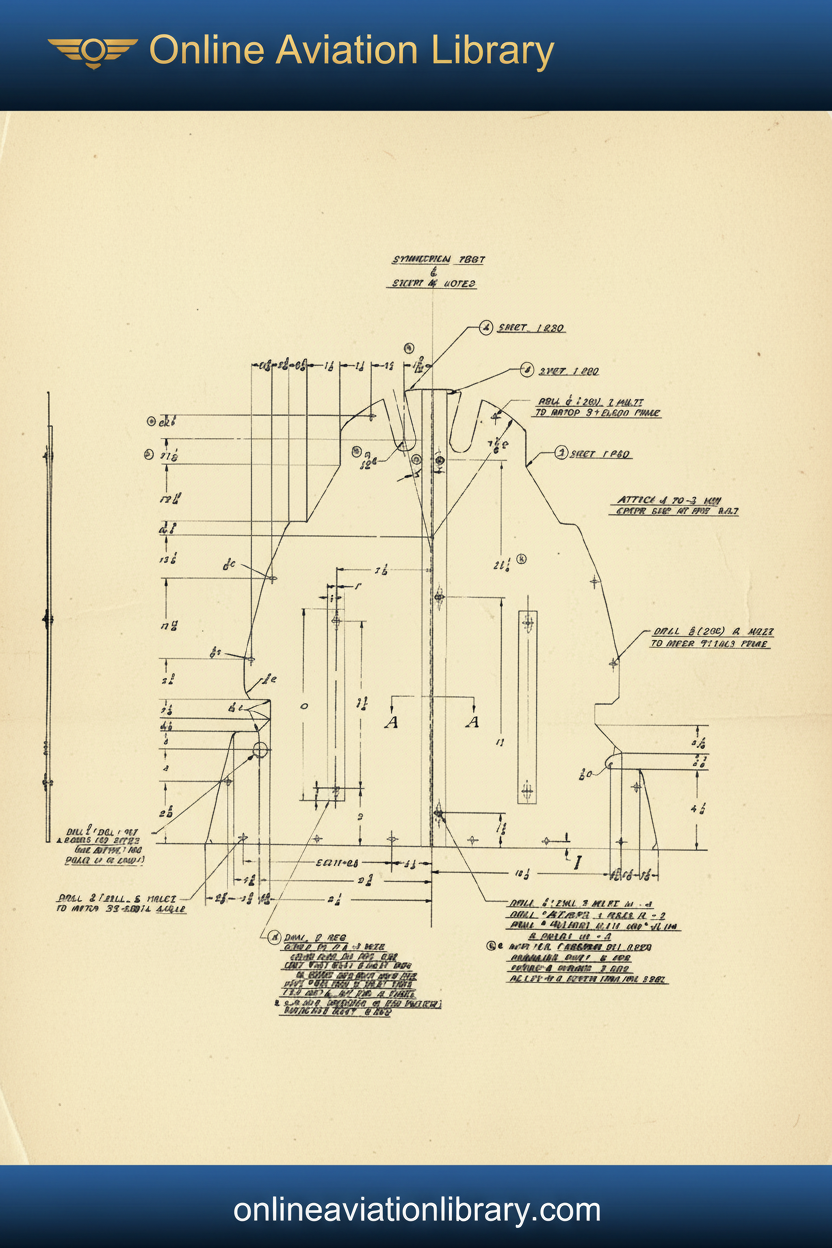

Engineering Bulletins & Technical Orders

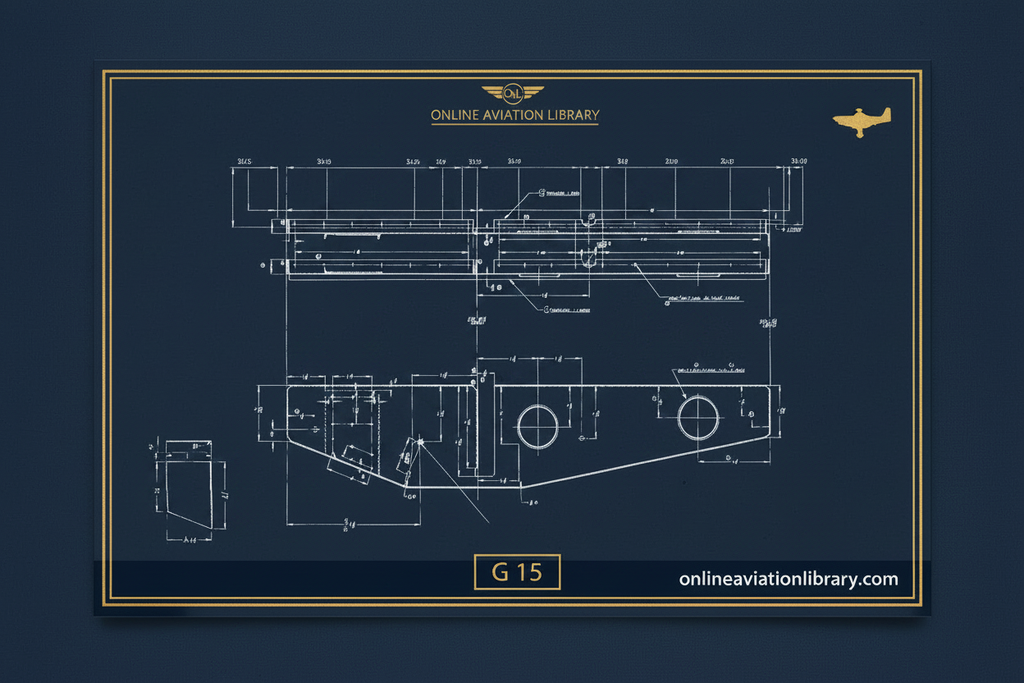

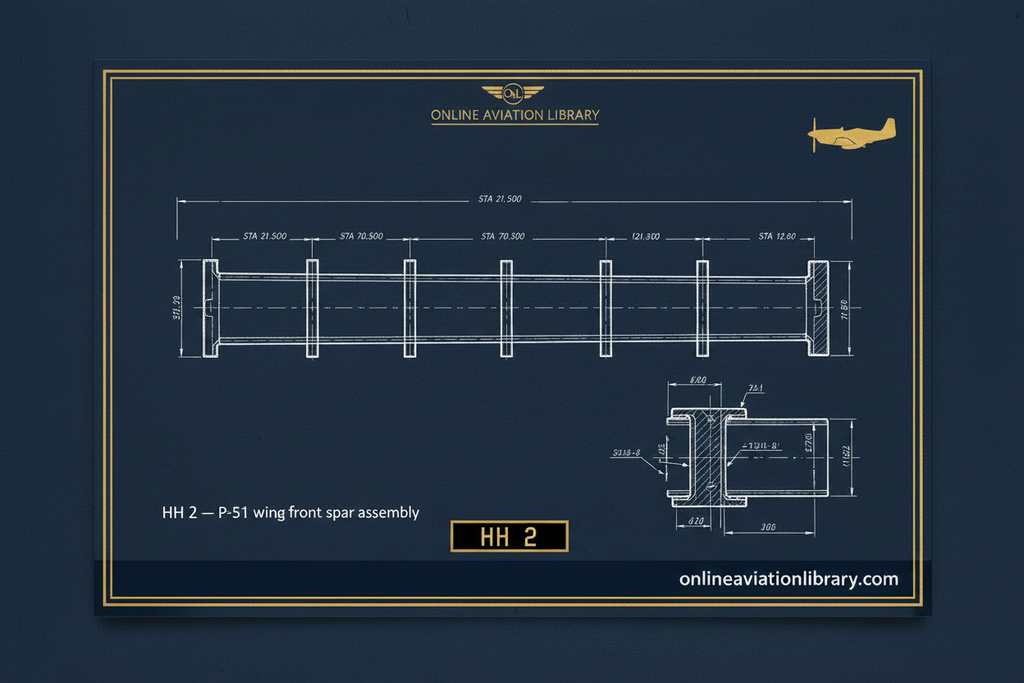

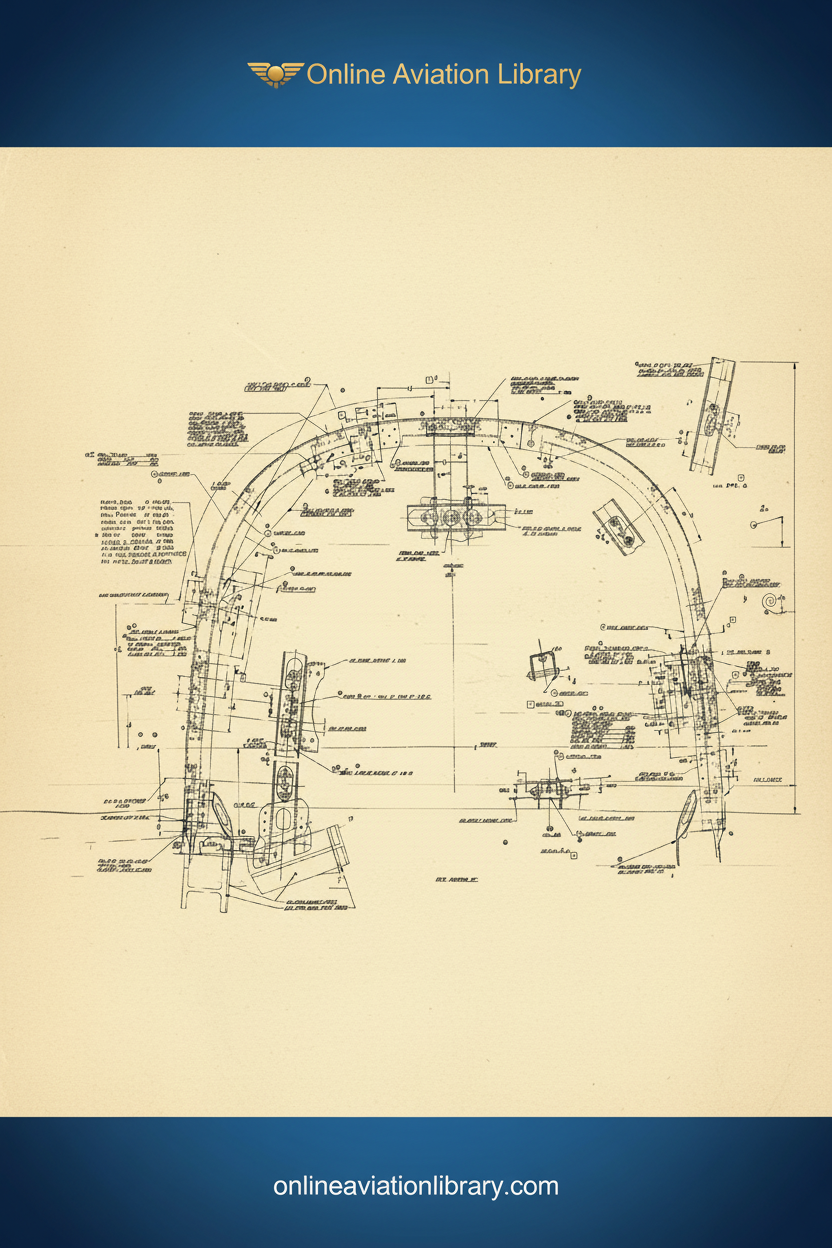

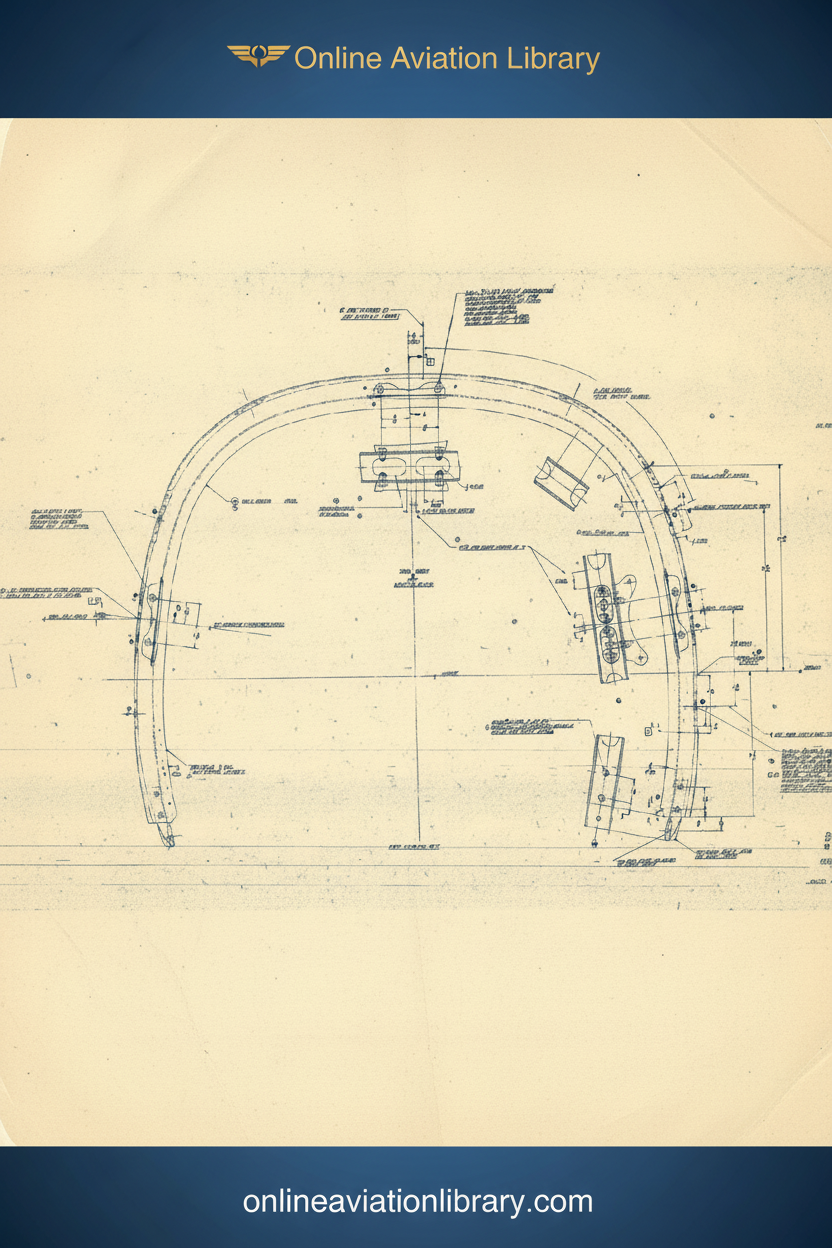

T.O. 01-60-100 mandates exact specifications for inner structural shims using 2024-T3 aluminium alloy sheet at .063-inch thickness to maintain wing spar attachment stiffness. Mandatory Service Bulletins (e.g. P51-001) reference structural modifications to mitigate stress fractures during civilian air racing and airshow operations. The structural framework remains documented via thousands of original North American Aviation assembly files preserved in the microfilm archive.

Production History & Surviving Aircraft

A total of 15,586 North American P-51 Mustangs were built during World War II. Today, approximately 150 airworthy examples remain flying worldwide, maintained by museums, private collectors, and warbird organisations such as the Commemorative Air Force.

The original wartime unit cost was approximately $50,000 per aircraft (equivalent to roughly $700,000–$1,000,000 in modern currency). Post-war surplus models sold to civilians for as little as $1,250–$3,500 in 1946–1950. Today, a fully restored airworthy P-51 commands $2,000,000 to $4,500,000 on the warbird market, with rare or historically significant examples exceeding $5,000,000. Annual operating costs exceed $50,000 for insurance, hangar, and inspections alone — with engine overhauls required every 800 flight hours.

The engineering drawings in this collection represent the factory-level technical foundation of every one of those 15,586 aircraft.

This is an archival, static-copy edition fixed at its original publication date. Intended for historical reference, flight simulation, museum restoration, and educational use only. Not approved for active airworthiness maintenance under FAA 14 CFR § 43.13, EASA Part-M, or equivalent international regulations. Operators of active aircraft must use current, revision-controlled publications from the Type Certificate holder or an authorised distributor.

⚠️ Regulatory Notice: Under FAA 14 CFR § 43.13 and EASA Part-M, any mechanic performing maintenance on an active aircraft must use current, manufacturer-approved revision-controlled data. This archival document does not satisfy that requirement.
