This comprehensive digital archive represents the definitive technical documentation collection for the legendary North American P-51 Mustang fighter aircraft, covering all major variants from the early A-36 Apache dive bomber through the lightweight P-51H, plus post-war F-51 designations, international operators, and civil conversions.

Definitive Collection with Free Lifetime Updates: This is a living collection that we continuously expand and refine. As we acquire additional P-51 Mustang documentation, technical bulletins, variant-specific materials, or international operator manuals, we update this collection and provide free lifetime updates to all purchasers. Your one-time purchase guarantees access to all future additions and improvements to this collection.

Copyright Registration

P-51 Compendium – All Models A-K
Includes Flight Manuals, Pilot Training Manuals, Erection & Maintenance Manuals, Illustrated Parts Catalogs, and Engineering Drawings (Blueprints).

• Registration Number: 1038255
• Author: James H. Kindelberger
• Owner: Sicuro Publishing
• Registration Date: May 4, 2006

Important: This copyright registration protects the compilation, organization, indexing, and presentation of this comprehensive P-51 Mustang documentation collection. The individual historical factory manuals from the 1940s-1960s are public domain or historical documents; our copyright covers the added value we provide through careful curation, structured organization, variant-specific indexing, and professional presentation of these materials as a cohesive archival collection.

Historical Note

The North American P-51 Mustang stands as one of the most significant fighter aircraft in aviation history. Originally designed in 1940 to meet a British purchasing commission requirement, the Mustang evolved from a capable low-altitude fighter into the war's premier long-range escort fighter following the installation of the Packard-built Rolls-Royce Merlin engine in the P-51B variant.

The P-51's combat record speaks for itself: American Mustang pilots claimed 4,950 enemy aircraft destroyed in air-to-air combat, more than any other Allied fighter in the European theater. The aircraft's exceptional range—up to 1,650 miles with drop tanks—allowed it to escort heavy bombers deep into Germany, fundamentally changing the strategic bombing campaign. P-51s flew 213,873 sorties and lost 2,520 aircraft to all causes, achieving a remarkable combat effectiveness ratio.

Over 15,000 Mustangs were produced between 1940 and 1945 across multiple variants: the Allison-powered A-36, P-51, and P-51A; the Merlin-powered P-51B/C that transformed the type; the definitive bubble-canopy P-51D (the most-produced variant with 8,156 built); the similar P-51K; and the lightweight P-51H that arrived too late for combat. The aircraft served with the USAAF, US Navy (as PBJ-1J), Royal Air Force (as Mustang I through IV), Royal Canadian Air Force, Royal Australian Air Force (including Australian-built CAC CA-17/CA-18 variants), and numerous other air forces worldwide.

Post-war, the Mustang continued serving with air forces globally, seeing combat in Korea where it was redesignated F-51D. The type remained in frontline service with some air forces into the 1980s. In civilian hands, the P-51 became a dominant unlimited air racer and remains one of the most sought-after warbirds, with hundreds still flying today. The Cavalier Aircraft Corporation produced civilian conversions and rebuilt military Mustangs through the 1970s, extending the type's operational life and creating unique documentation requirements.

Manuals Included in This Collection

This archive includes authentic technical documentation spanning the entire Mustang family, organized by variant and operator:

Multi-Variant Reference Manuals

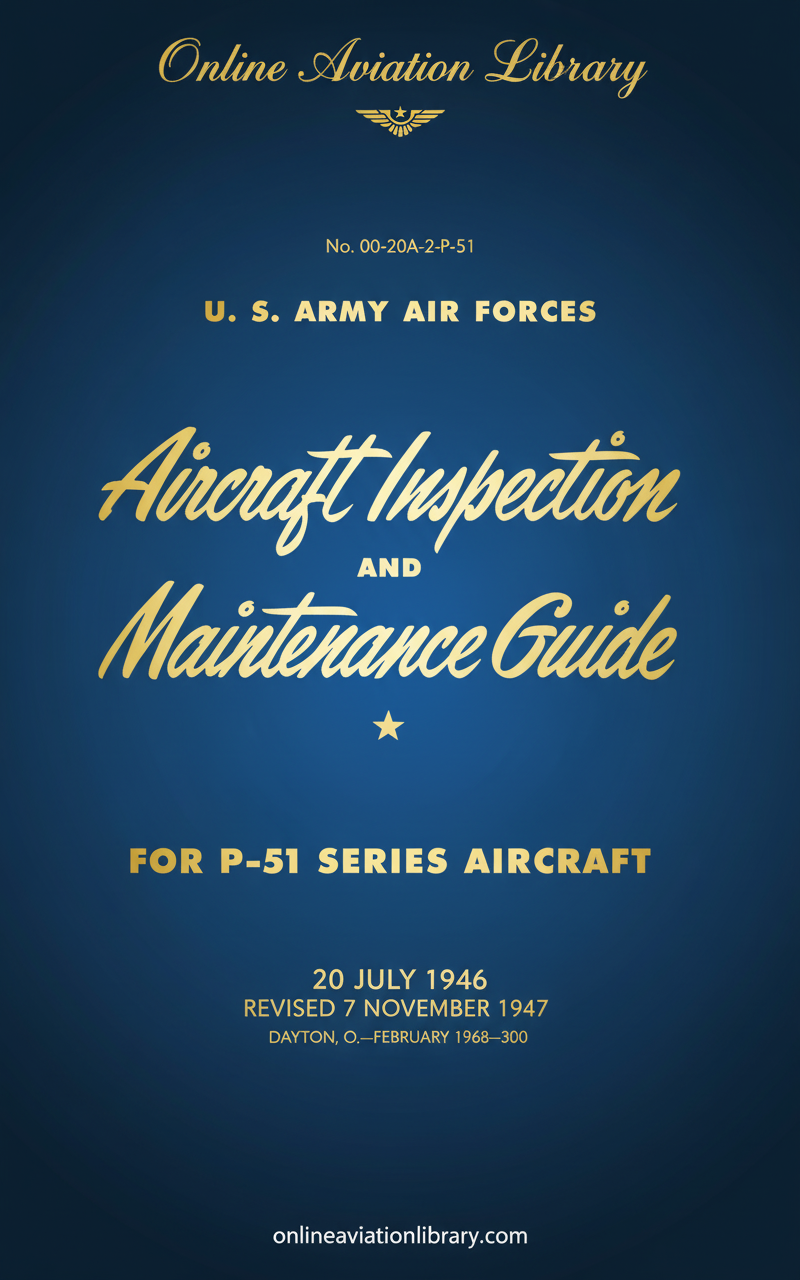

• Aircraft Inspection and Maintenance Guide - NO. 00-20A-2P-541918 (1948) - Covers A-36, P-51 A/B/C/D/K/M, F-6 B/C/D, TF-51D, and British Mustang models
• Aircraft Structural Repair Instructions - TO 01-60-3 (1944) - Comprehensive structural repair procedures for all major variants

A-36 Apache Dive Bomber Manuals

• A-36A-1-NA Pilot's Flight Operating Instructions - TO 01-60HB-1 (1943)
• A-36A Erection and Maintenance Manual - TO 01-60HB-2 (1943)
• A-36A-1 Illustrated Parts Catalog - TO 01-60HB-4 (1943)

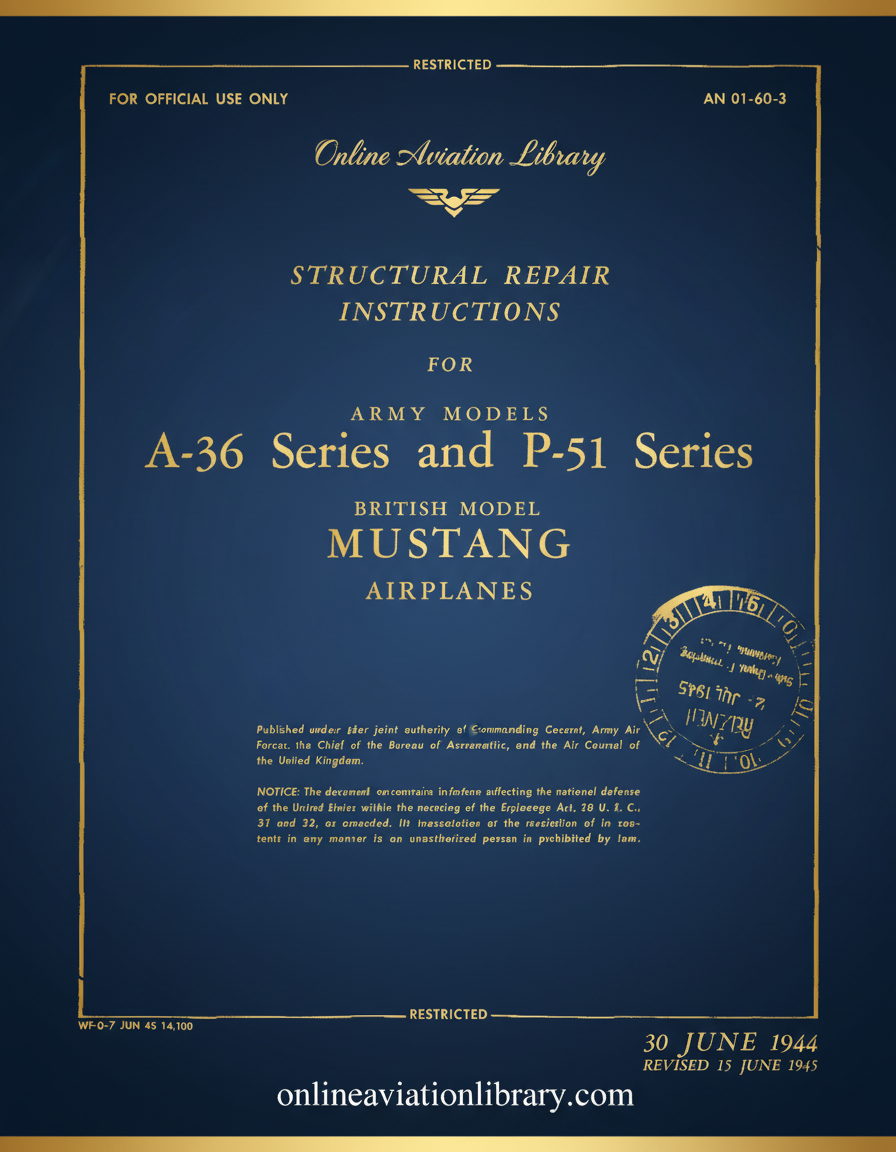

• A-36 / P-51 Structural Repair Instructions - TO 01-60-3 (1944)

P-51A Mustang Manuals

• P-51A Maintenance Manual - NA5629 (1943)
• P-51A Flight Manual - NA-5740 (1943)
• P-51A Illustrated Parts Catalog - TO 01-60J-C4 (1943)
• P-51A-1, A-2, A-5, A-10 British Mustang II Pilot's Flight Operating Instructions - TO 01-60JE-1 (1943)

P-51B/C Mustang Manuals (Merlin-Powered Variants)

• P-51B-1 British Mustang III Pilot's Flight Operating Instructions - TO 01-60JD-1 (1943)
• P-51B/C Flight Manual - NA-5742
• P-51B/C Structural Repair Manual - NA5742 (1943)

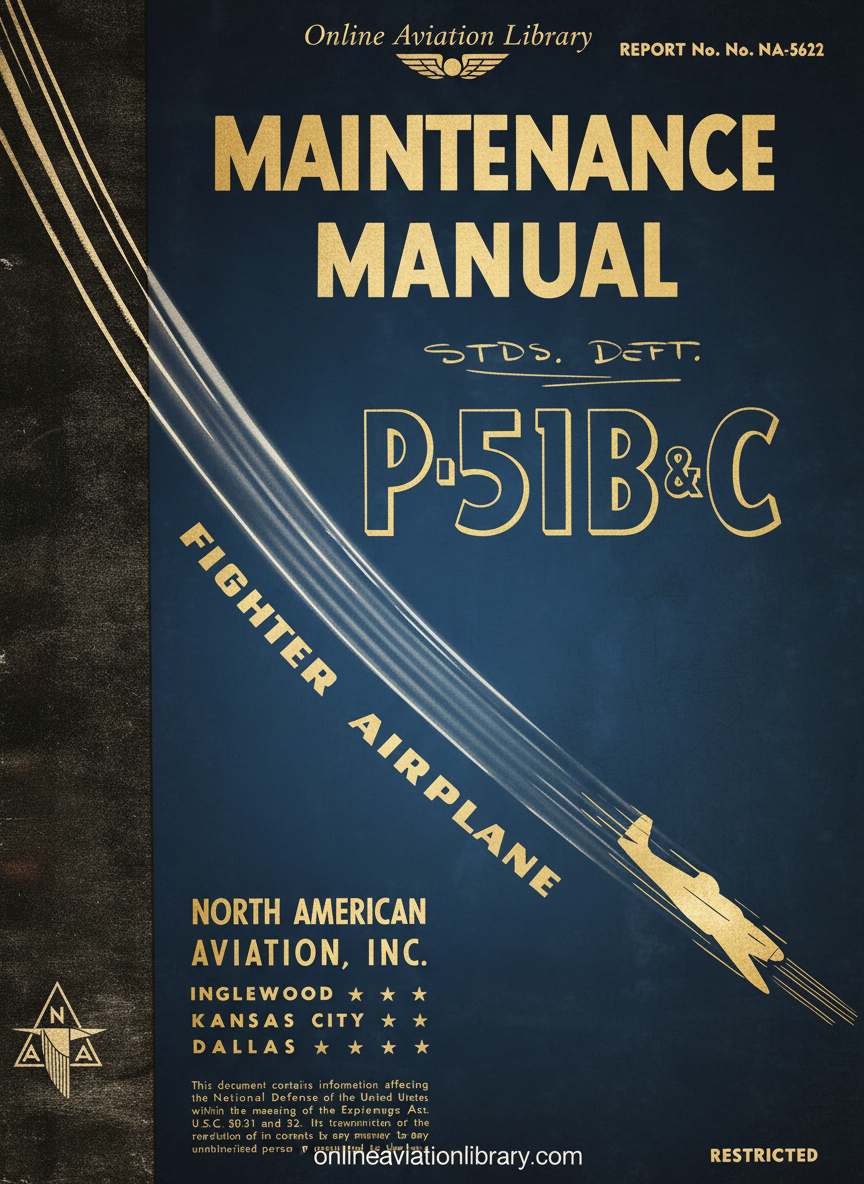

• P-51B/C Maintenance Manual - NA5692 (1944)

P-51D Mustang Manuals (Most Produced Variant)

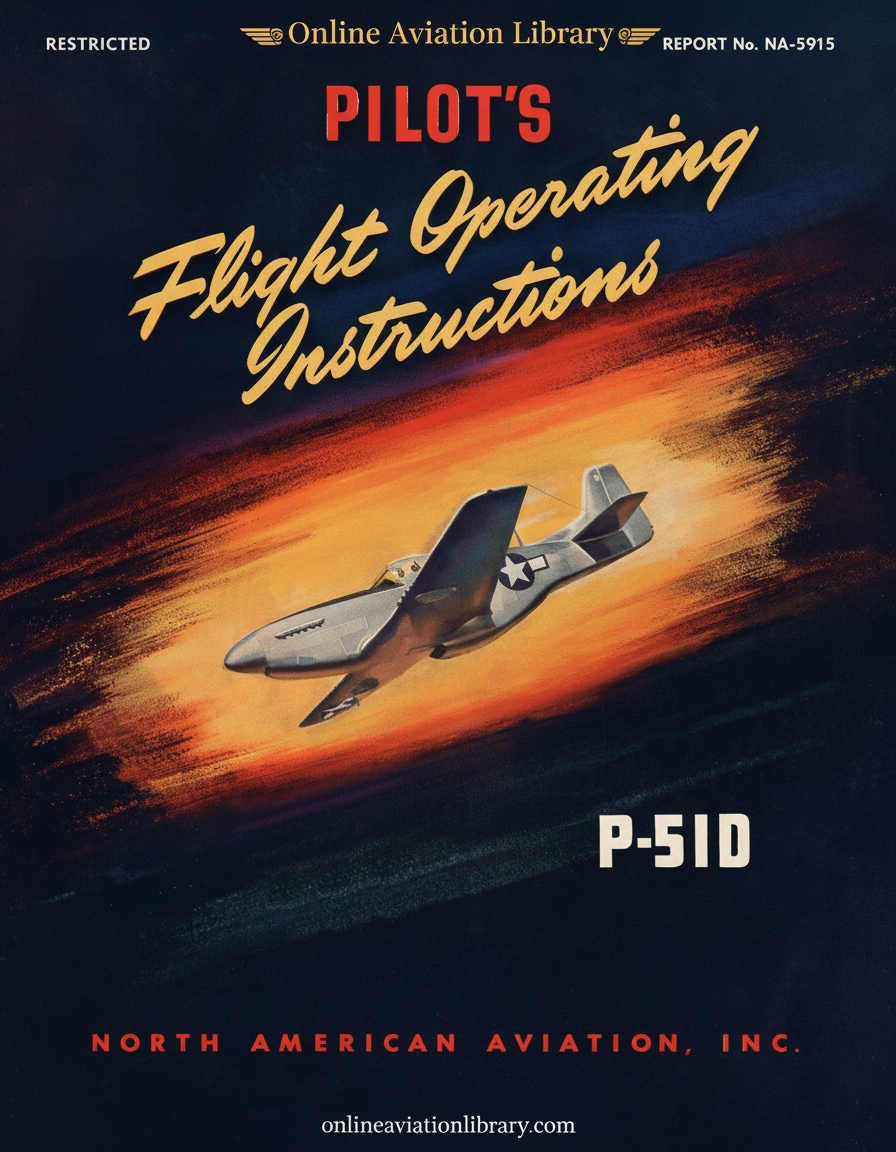

• P-51D Flight Manual - NA-5914 (1945)
• P-51D Maintenance Manual - NA-5865C (March 22, 1944)
• P-51D Preliminary Parts Catalog (April 29, 1944)

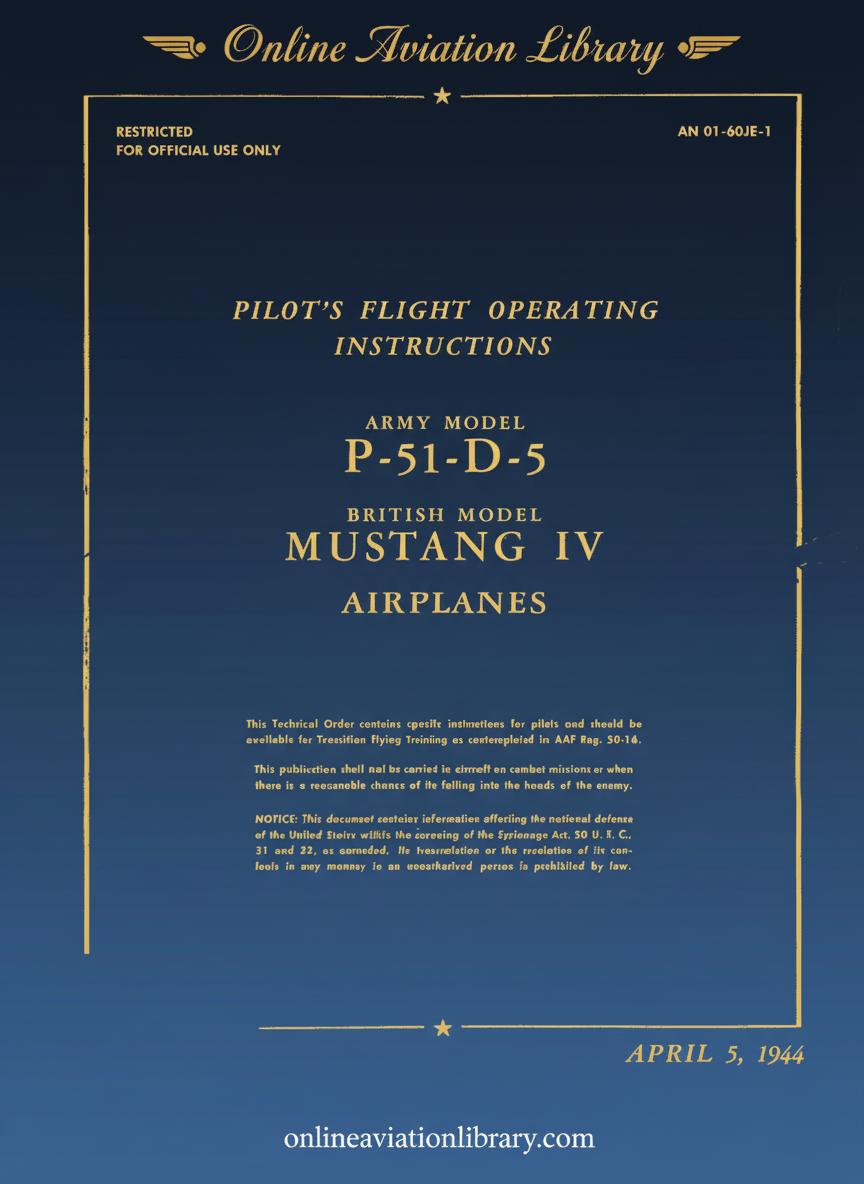

• P-51D-5 British Mustang IV Pilot's Flight Operating Instructions - TO 01-60JE-1 (1944)

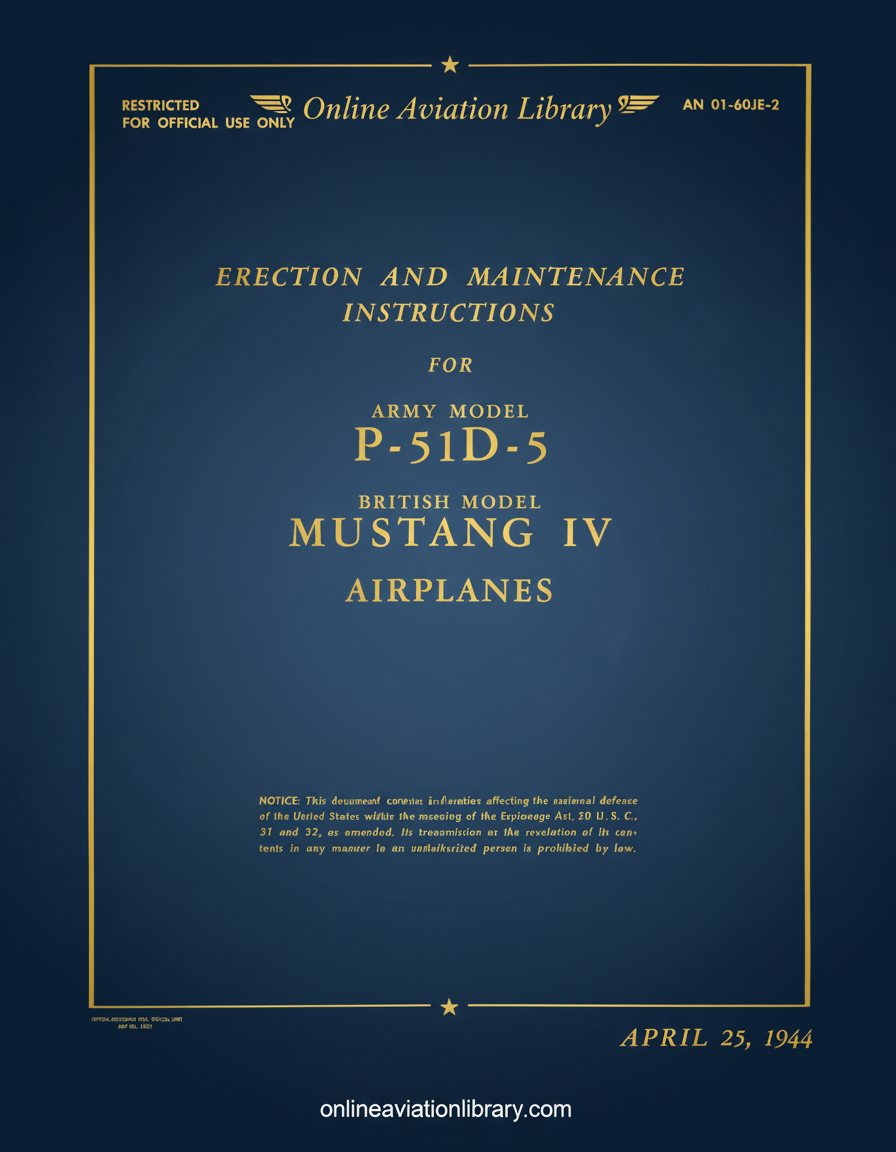

• P-51D-5 British Mustang IV Erection and Maintenance Instructions - AN 01-60JE-2 (1944)

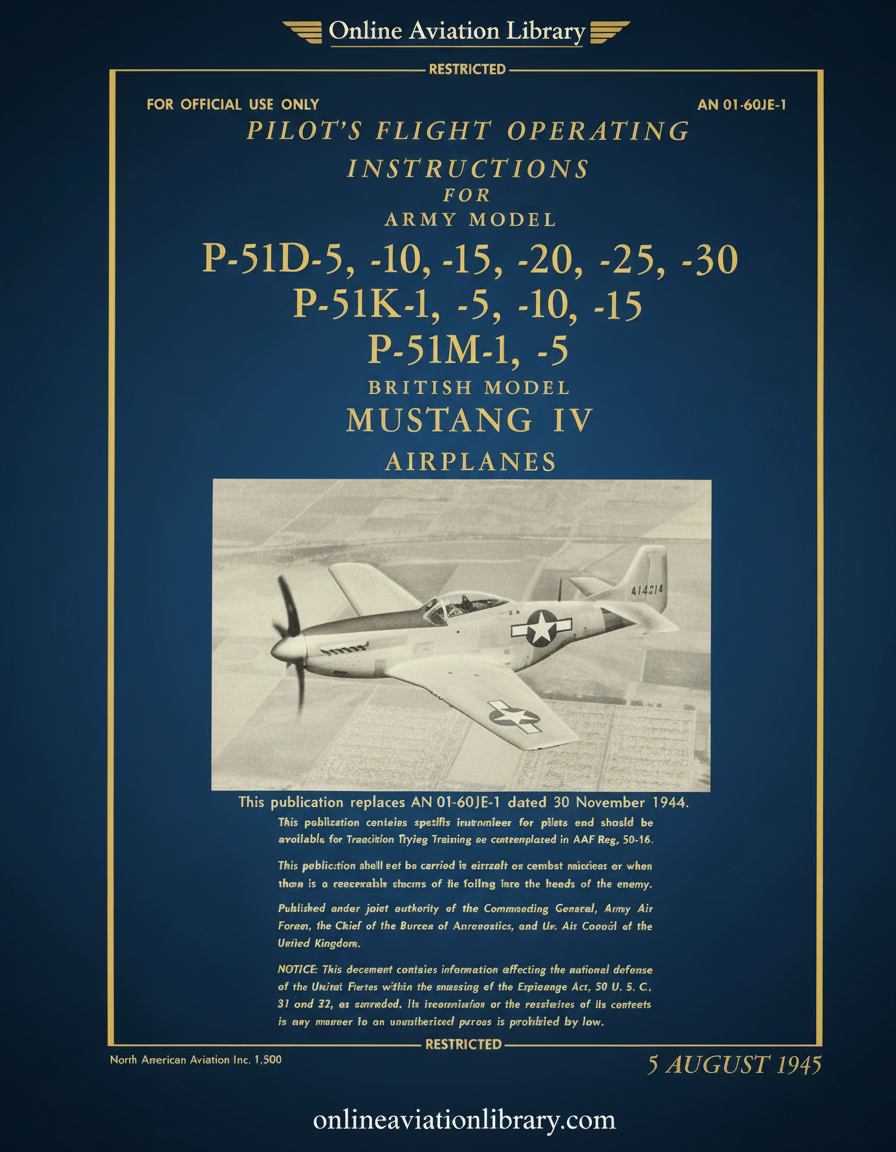

• P-51D-5, -10, -15, -20, -25 / P-51K-1, -5, -10, -15 British Mustang IV Erection and Maintenance Instructions - TO 01-60JE-2 (1945)

P-51D/K Combined Manuals

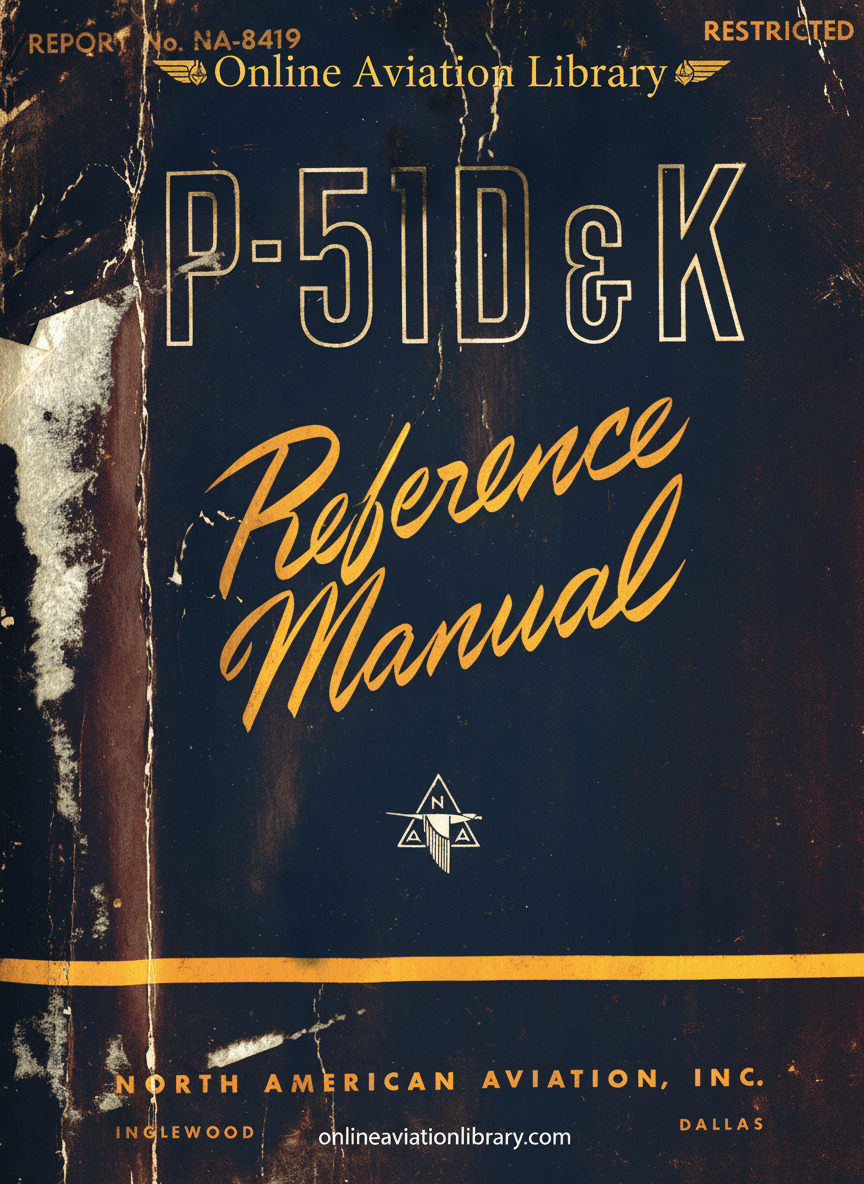

• P-51D/K Reference Manual - NA-2419
• P-51D/K Maintenance Manual - NA-5865 (1945)

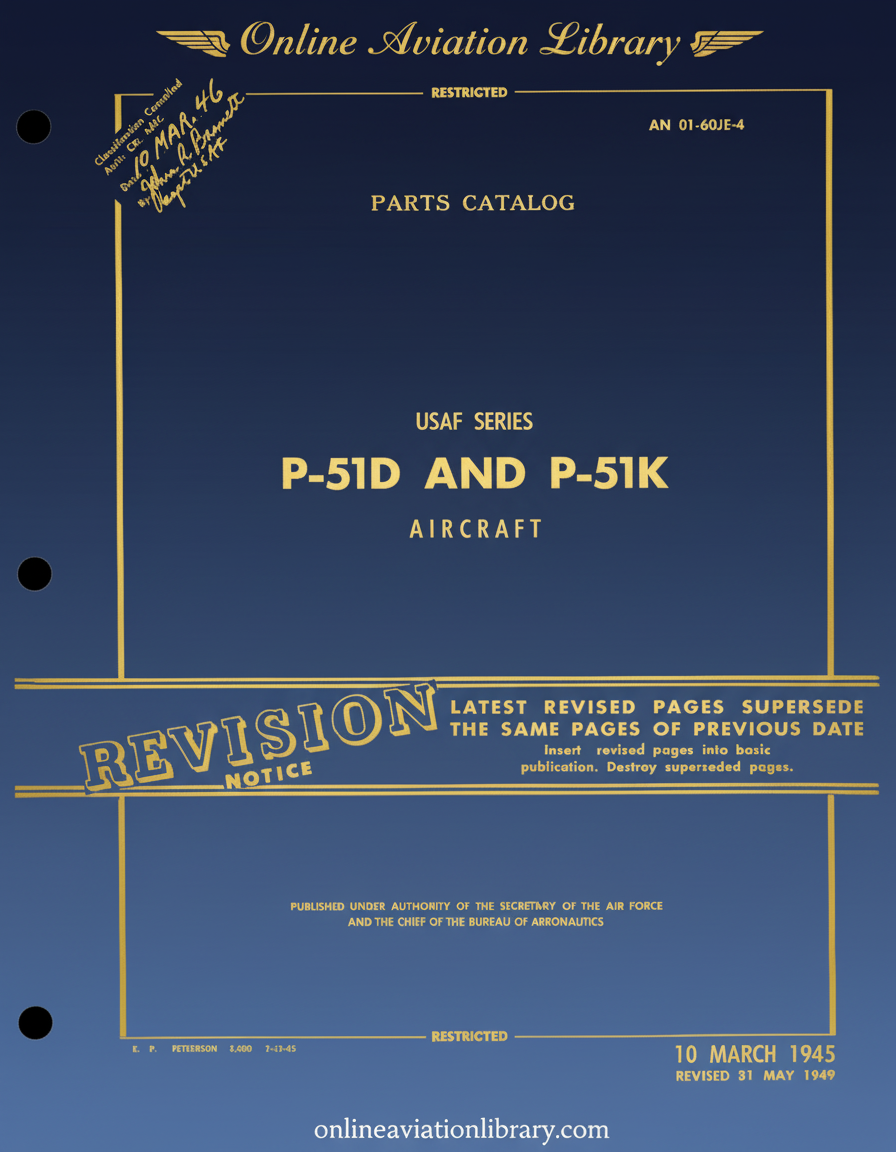

• P-51D/K Parts Catalog - TO 1-60JE-4 (1945)
• P-51D/K Handbook Flight Operating Instructions - TO 1-60JE-1 (1945)

F-51D Post-War Designation Manuals

• F-51D, TF-51D, F-51K Parts Catalog - TO 01-60-3 (1945)
• F-51D Flight Handbook - TO 0F-51D-1 (1954)
• F-51D Cavalier Flight Handbook - TO 0F-51D-1 (1957) - Rare civilian conversion manual
• F-51D Flight Handbook - TO 0F-51H-1 (1954)

P-51H Lightweight Fighter Manuals

• P-51H Erection and Maintenance Manual - AN 01-60JF-2 (1945)
• P-51H Preliminary Parts Catalog - NA-8434 (1945)

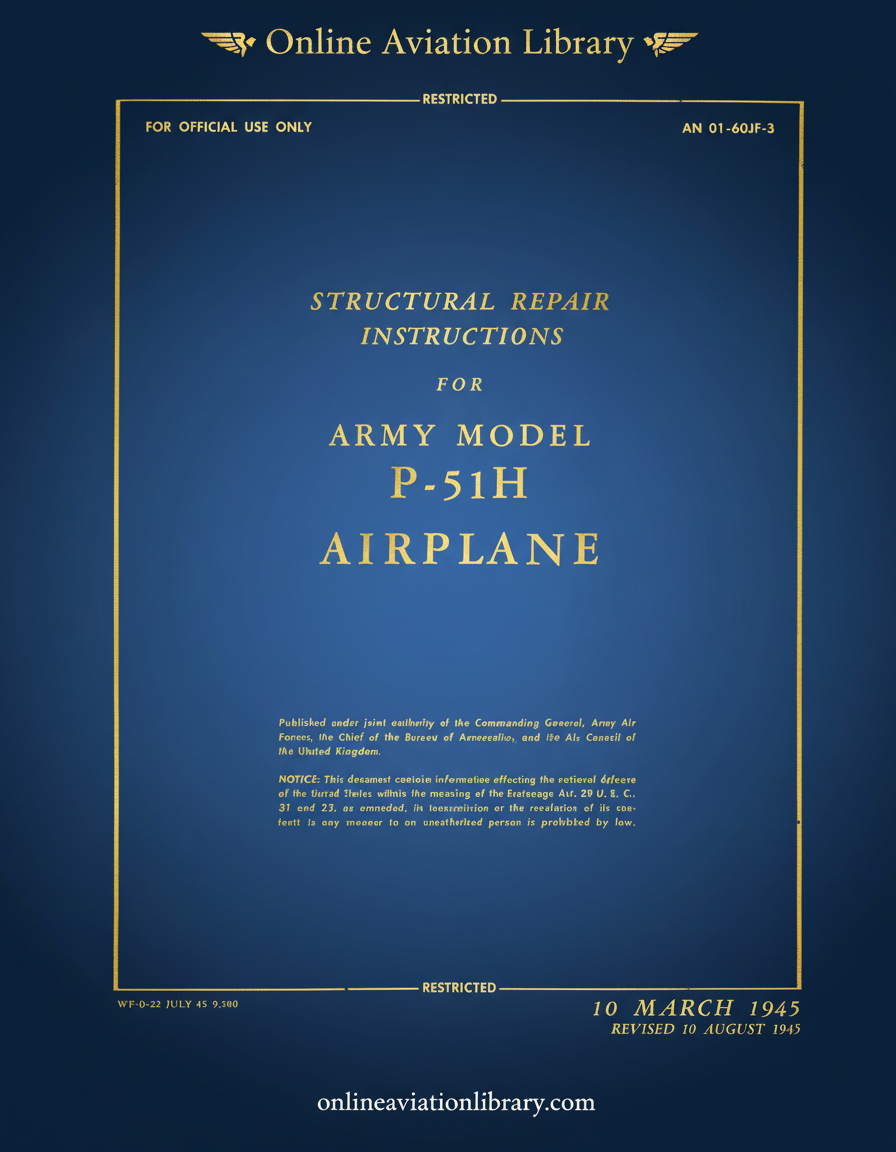

• P-51H Structural Repair Instructions - AN 01-60JF-3 (1945)
• P-51H Preliminary Parts Catalog - AN 0160JF-4 (1945)

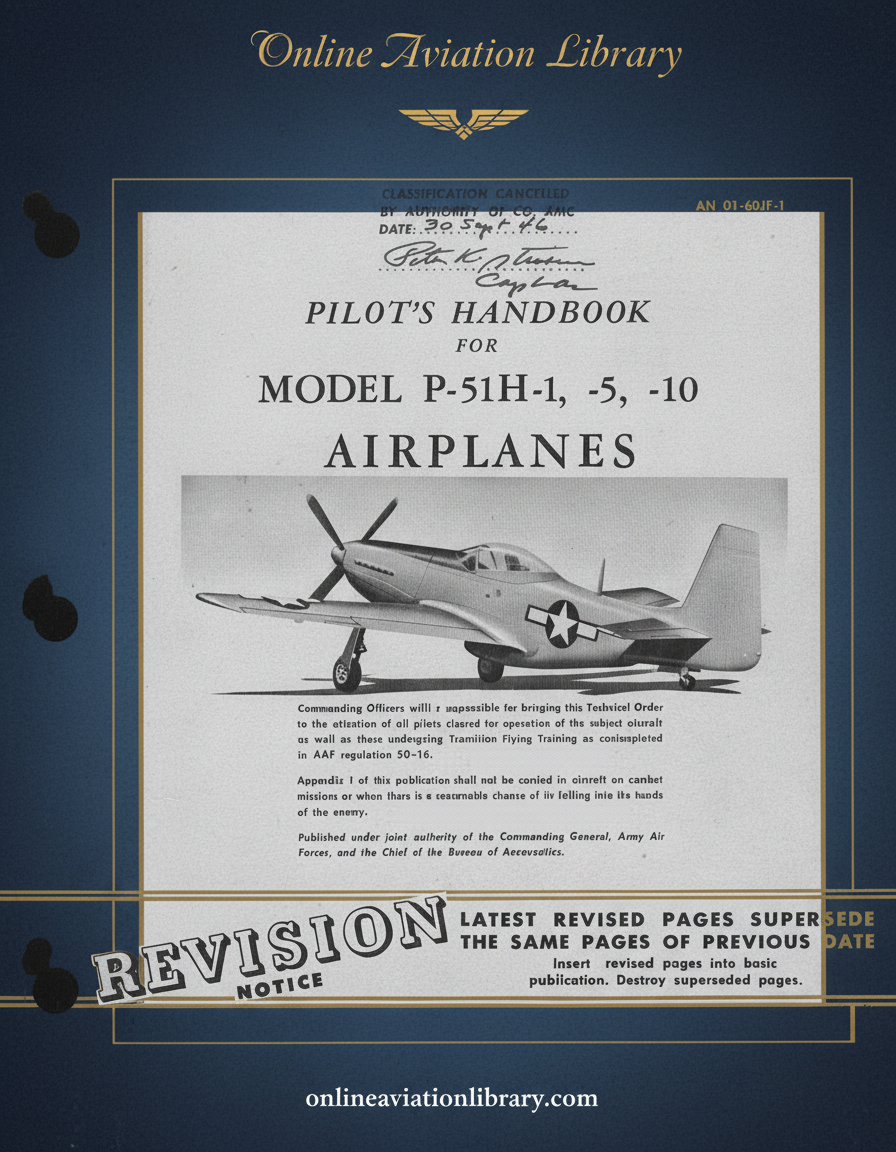

• P-51H-1, -5, -10 Pilot's Handbook - TO 01-60JF-1 (1945)
• P-51H-1, -5, -10 Erection and Maintenance Manual - AN 01-60JF-2 (1945)

XP-51J Experimental Lightweight Fighter

• XP-51J Pilot's Handbook of Flight Operating Instructions - NA-8057 (1946) - Rare experimental variant documentation
• XP-51J Specification Manual - NA-1620 (1942)

British RAF Mustang Manuals

• Mustang I with Allison V-1710-3 Pilot's Notes
• Mustang I with Allison V-1710 Pilot's Notes - Air Publication 2025A

Royal Canadian Air Force (RCAF) Manuals

• P-51D Pilot's Operating Instructions - EO 05-55C-1 (1951) - RCAF
• P-51D Maintenance Manual - EO 05-55C-2 (1955) - RCAF
• P-51D Part List - EO 05-55C-4 (1949) - RCAF

Royal Australian Air Force (RAAF) CAC Mustang Manuals

• CAC/NAA P-51 CA-17 Pilot's Notes - RAAF No. 780 (English Language, 1945) - Australian-built Mustang

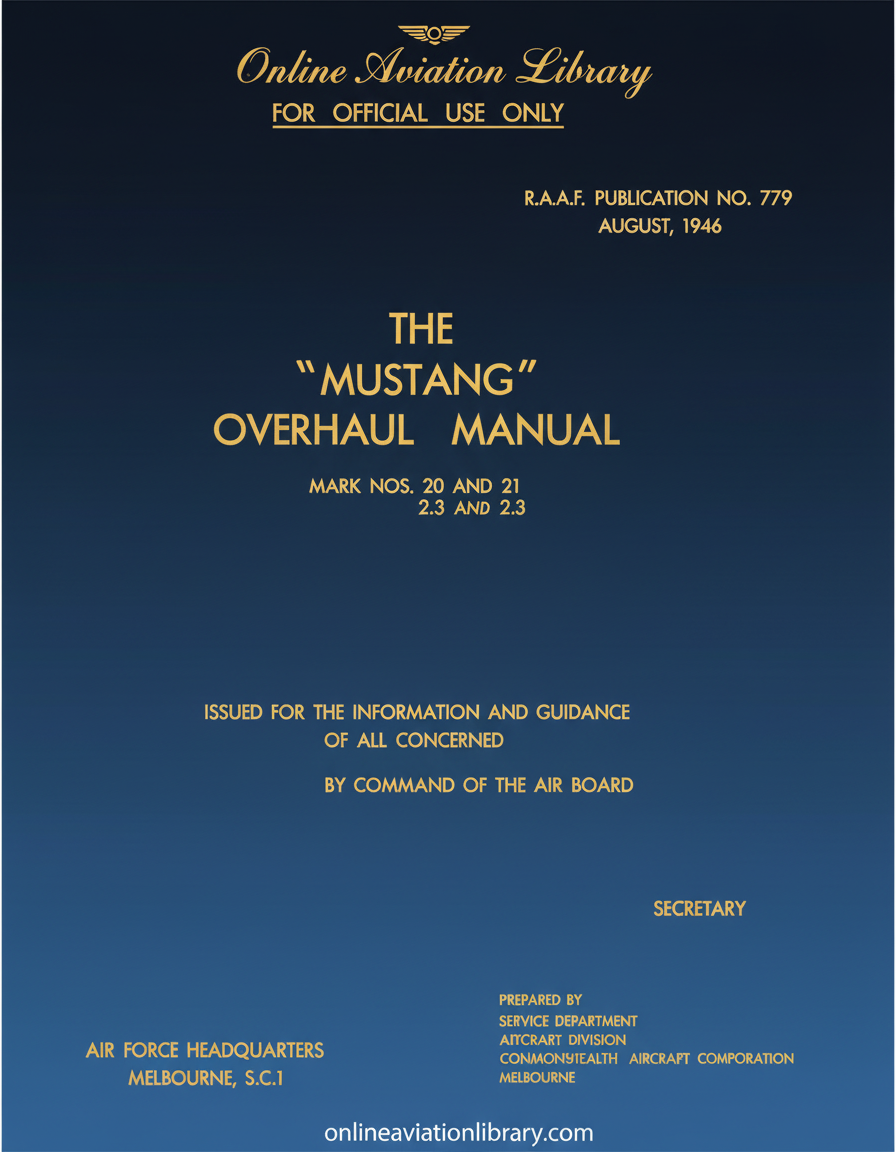

• CAC/NAA P-51 CA-17 Overhaul Manual - RAAF No. 779 (English Language, 1957)

Italian Air Force (Aeronautica Militare) Manuals - Complete Series

• P-51D Istruzioni per i Piloti (Pilot Instructions - Italian Language) - Aeronautica Militare
• P-51D Montaggio e Regolazione Vol. 1 - Dimensioni Parti Speciali (Assembly and Adjustment Vol. 1 - Special Parts Dimensions - Italian Language, 1951)
• P-51D Montaggio e Regolazione Vol. 2 - Velivolo (Assembly and Adjustment Vol. 2 - Aircraft - Italian Language, 1951)
• P-51D Montaggio e Regolazione Vol. 4 - Strumenti di Bordo (Assembly and Adjustment Vol. 4 - Instruments - Italian Language, 1951)
• P-51D Montaggio e Regolazione Vol. 5 - Impianto Elettrico (Assembly and Adjustment Vol. 5 - Electrical System - Italian Language, 1951)
• P-51D Montaggio e Regolazione Vol. 6 - Impianto Radio (Assembly and Adjustment Vol. 6 - Radio System - Italian Language, 1951)
• P-51D Montaggio e Regolazione Vol. 7 - Armamento (Assembly and Adjustment Vol. 7 - Armament - Italian Language, 1951)

Civil Aviation Documentation

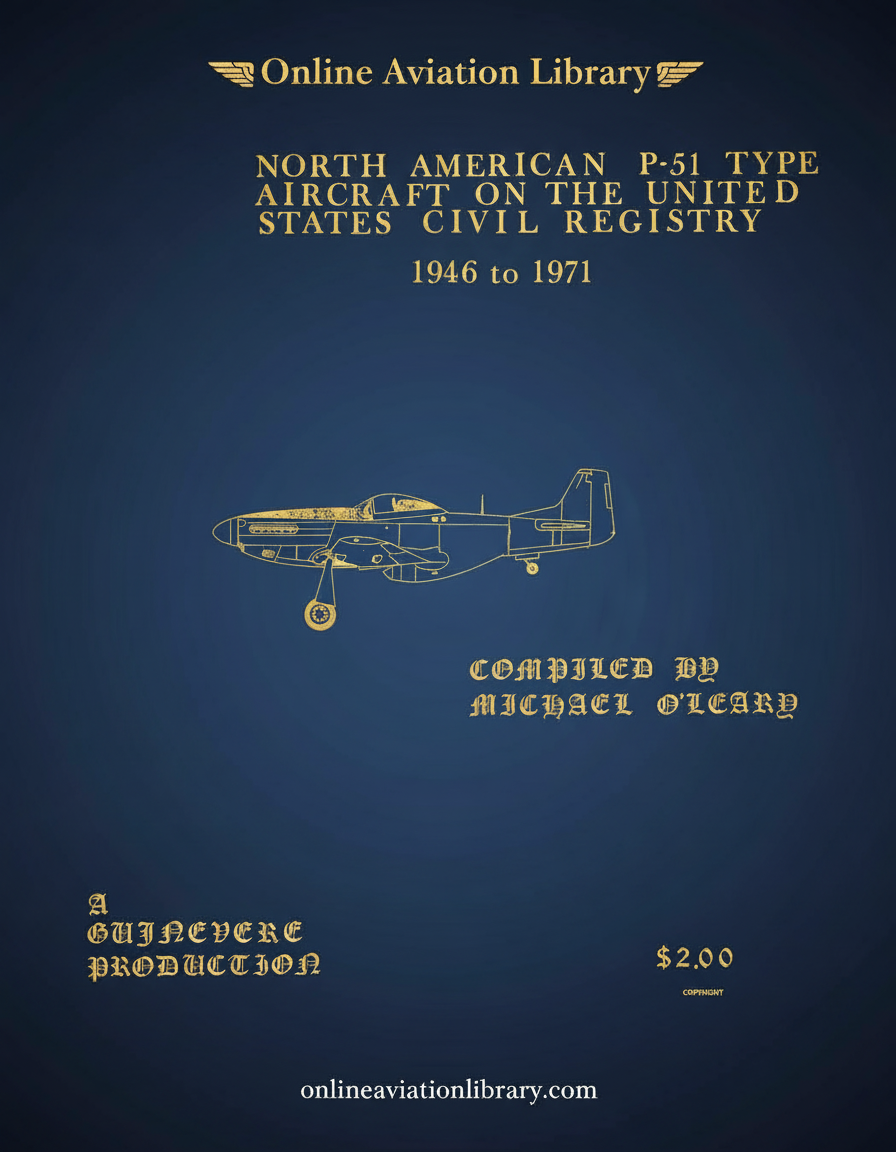

• P-51 1946 to 1971 Civil Registry Manual - Comprehensive civil registration and ownership records

Additional Documentation (Under Verification)

• Approximately 17 additional manuals including multiple versions of Weight and Balance documentation and North American Aviation technical documents

This collection provides comprehensive coverage of flight operations, maintenance procedures, parts identification, structural repair, and variant-specific technical data across the entire P-51/F-51 Mustang family, including rare international operator documentation and post-war civilian conversion materials.

Engineering Norms and Standards

The P-51 Mustang's reputation as one of the most effective fighters of World War II was built on stringent engineering standards and innovative design, particularly in aerodynamics, structural integrity, and propulsion integration.

Structural and Material Standards

• Airframe Design: Semi-monocoque, all-metal structure constructed with aluminum alloy, prioritizing high-speed, long-range performance
• Wing Structure: Two-piece full cantilever structure joined at the centerline, utilizing specialized NACA 6-series laminar flow airfoils (66-109 root, 66-213 tip) to drastically reduce drag
• Manufacturing Tolerances: The laminar flow wing demanded extremely tight tolerances, including flush-riveting and specialized filling/sanding to maintain surface smoothness, as imperfections could negate performance gains
• Armor/Protection: Armor plates designed to protect the pilot from front and rear, along with bullet-resistant glass in the windshield

Propulsion and Performance Specifications

• Engine: Packard V-1650-7 (license-built Rolls-Royce Merlin), 12-cylinder liquid-cooled V-12 engine, equipped with two-speed, two-stage supercharger
• Propeller: Hamilton Standard four-blade Hydromatic constant-speed propeller, typically 11 ft 2 in diameter
• Cooling System: Integrated radiator/oil cooler scoop, utilizing the "Meredith Effect" where heated air exiting the radiator produced slight forward thrust
• Power Output: 1,490 hp at takeoff (normal rating), with 1,720 hp available under War Emergency Power
• Speed: Maximum speed approximately 440 mph (708 km/h)
• Operating Ceiling: 41,900 ft (12,771 m)

Flight Control and Handling

• Load Factors: Designed for +8 to -4 Gs
• Control Surfaces: Metal-framed, fabric-covered elevators and rudders, equipped with trim tabs
• Wing Loading: Approximately 44.7 lb/sq ft (at 10,500 lb gross weight)
• Flight Limits: Never Exceed Speed (VNE) of 505 mph

Weights and Capacities

• Empty Weight: Approximately 7,635 lbs
• Normal Takeoff Weight: 10,100 lbs
• Maximum Takeoff Weight: Approximately 12,100 lbs (with full internal fuel, ammunition, and drop tanks)
• Fuel Capacity: 184 gallons (internal) plus provision for 2 x 75 or 110-gallon drop tanks

Armament Standards

• Machine Guns: Six 0.50-caliber (12.7 mm) Browning M2 machine guns, generally with 1,840 total rounds
• Ordnance: Hardpoints for up to 2,000 lbs (907 kg) of bombs, or ten 5-inch rocket launchers

Design Philosophy

• Combat-Driven: The P-51 was among the first aircraft designed entirely based on lessons learned from early combat experience
• Modular Assembly: Designed for efficient manufacturing in large numbers (over 15,000 produced)

Restoration & Operational Considerations

The North American P-51 Mustang remains one of the most iconic and actively flown warbirds in the world, with a passionate global community of owners, restorers, racers, and enthusiasts. Understanding the current operational landscape is essential for anyone working with these legendary aircraft:

Current Airworthy Fleet

• Global Airworthy Population: Approximately 150 to 160 P-51 Mustangs are currently in airworthy condition worldwide
• Active Restoration Projects: Over 50 additional P-51s are currently undergoing restoration to airworthy status, representing significant ongoing investment in preserving these historic aircraft
• Total Survivors: Approximately 300+ P-51 Mustangs survive today, including airworthy aircraft, restoration projects, static museum displays, and stored examples
• Production Context: Of the over 15,000 P-51 family aircraft produced (all variants combined), the surviving population represents roughly 2% of total production—a remarkable preservation rate for a WWII combat aircraft
• United States Concentration: The majority of airworthy P-51s are based in the United States, though flying examples operate globally including in Europe, Australia, New Zealand, and South America
• Variant Distribution: The P-51D bubble-canopy variant represents the majority of airworthy survivors, with smaller numbers of P-51B/C, P-51K, and rare P-51H examples still flying

Operational Activities

• Airshow Circuit: P-51 Mustangs are among the most popular warbird performers at airshows worldwide, often flying solo aerobatic displays or in formation with other WWII fighters
• Air Racing: The P-51 dominates the unlimited air racing category, particularly at the Reno Air Races, where highly modified racing Mustangs regularly exceed 500 mph. Famous racing Mustangs include "Voodoo," "Strega," "Rare Bear" (modified F8F), and "September Fury"
• Heritage Flights: P-51s regularly participate in military heritage flight programs, flying alongside modern military jets to demonstrate the evolution of air power
• Film and Media: P-51s frequently appear in film productions, documentaries, and commemorative flights due to their iconic status and relatively large airworthy population
• Private Ownership: Many P-51s are privately owned and operated by collectors and warbird enthusiasts, representing significant financial and technical commitments

Restoration Considerations

• Parts Availability: While some original parts remain available through specialized suppliers, many components require fabrication, remanufacturing, or STC-approved substitutions. The active warbird community supports a network of parts suppliers and fabrication shops
• Engine Support: The Packard V-1650 Merlin engine (license-built Rolls-Royce Merlin) requires specialized overhaul facilities. Several shops worldwide specialize in Merlin engine rebuilds, though costs are substantial
• Propeller Overhaul: Hamilton Standard four-blade constant-speed propellers require certified overhaul facilities with specific expertise in vintage propeller systems
• Structural Integrity: Long-term corrosion monitoring, wing spar inspections, fuselage stress point examinations, and control surface integrity checks are critical for aircraft that may have 80+ years of service history
• Laminar Flow Wing Maintenance: Maintaining the critical surface smoothness of the NACA laminar flow wing requires specialized knowledge and meticulous attention to rivet flush-mounting and surface finishing
• Variant Identification: Proper identification of specific variants (P-51B vs. P-51C, P-51D-5 vs. P-51D-25, P-51K differences) is essential for correct parts application, performance expectations, and maintenance procedures
• Documentation Requirements: FAA and international civil aviation authorities require comprehensive maintenance records, logbooks, and adherence to type certificate data sheets for airworthiness certification
• Historical Authenticity vs. Modern Upgrades: Restorers must balance period-correct restoration with modern safety improvements (upgraded brakes, modern avionics, improved fuel systems) and operational practicality
• Racing Modifications: Racing Mustangs undergo extensive modifications including engine upgrades, aerodynamic refinements, weight reduction, and cooling system improvements—creating unique documentation and engineering challenges

Operational Challenges

• Operating Costs: P-51 Mustangs are among the most expensive warbirds to operate, with high fuel consumption (100+ gallons per hour), costly engine overhauls (exceeding $200,000), and specialized maintenance requirements
• Pilot Qualification: Operating a P-51 requires significant pilot experience, typically including tailwheel endorsement, high-performance aircraft experience, and warbird-specific training. Insurance requirements are stringent
• Cooling System Management: The liquid-cooled Merlin engine requires careful management of coolant temperatures, particularly during ground operations and high-power climbs
• Ground Handling: The narrow-track landing gear and powerful engine require careful ground handling and taxi procedures to prevent ground loops

Community and Resources

• P-51 Mustang Pilot's Association: Active organization of P-51 owners, pilots, and enthusiasts providing technical support, operational guidance, and community networking
• Warbird Owner Forums: Online communities share practical operational knowledge, parts sourcing information, maintenance tips, and troubleshooting advice
• Type-Specific Restoration Shops: Specialized facilities focus exclusively on P-51 restoration and maintenance, offering expertise unavailable elsewhere
• Racing Community: The unlimited air racing community maintains extensive knowledge of high-performance Mustang modifications and engine tuning

This collection provides the foundational technical documentation essential for anyone involved in P-51 Mustang restoration, maintenance, racing, or operation. The manuals represent the authentic engineering standards and procedures used throughout the aircraft's military and civilian service life, offering invaluable reference material for maintaining these legendary fighters to airworthy standards.

Specialized Documentation

Beyond the standard flight and maintenance manuals, this collection includes over 100 supplemental technical documents essential for understanding the P-51's operational history and ongoing airworthiness requirements:

Service Bulletins, Airworthiness Directives, and Technical Orders

This archive includes an extensive compilation of Service Bulletins (SBs), Airworthiness Directives (ADs), Service Letters (SLs), and Technical Orders (TOs) issued by North American Aviation, the US Air Force, and international operators. These documents cover field modifications, component replacements, inspection requirements, and operational updates spanning from 1943 through the 1960s.

Examples include:

• Technical Order 60-14 (16 February 1965) - Replacement of fuel hose from selector valve to shutoff valve for P-51B, P-51D, and P-51H
• Technical Order 60E-43 (30 January 1951) - Replacement of range receiver RC-1206 with radio receiver RC-458-B for F-51D and TF-51D equipped with SCR-522C1
• Numerous additional modification instructions, parts replacement bulletins, and field service updates

These supplemental documents are invaluable for restoration projects, historical research, and understanding the evolution of P-51 configurations throughout the aircraft's operational life.

Cavalier Mustang and Civil Conversion Documentation

The collection includes rare documentation for Cavalier Aircraft Corporation conversions and civilian P-51 operations, reflecting the type's continued evolution beyond military service.

Where to Find Additional Documentation

For owners and operators of airworthy P-51 Mustangs, additional resources are available through multiple channels:

Official Support

Current Type Certificate holders and organizations supporting P-51 airworthiness include various STC holders for modifications, engine conversions, and avionics upgrades. The FAA maintains Type Certificate Data Sheets for civil P-51 variants.

Historical Archives

• P-51 Mustang Pilot's Association - Active community of warbird owners and operators
• American Aviation Historical Society - Extensive P-51 documentation and research materials
• Warbird owner forums and type clubs - Practical operational knowledge and parts sourcing

Specialty Vendors

Organizations like Online Aviation Library and similar documentation providers offer comprehensive archival collections, supplementing official sources with historical materials and international operator documentation.

Format and Delivery

All documents are provided in high-resolution PDF format, preserving original formatting, technical diagrams, and specifications. The collection is organized in a logical folder structure by variant and document type for easy navigation. Files are delivered via secure digital download. For large collections, cloud-based delivery links may be provided.

Disclaimer

This item is sold for historical and reference purposes only. These are either original or copies of manuals and technical documents used when these aircraft were in active military and civil service, now transferred into electronic format.

These manuals and technical documents are not meant to be used for current update material for certification or repair of airworthy aircraft, but make an excellent reference for historians, researchers, restorers, collectors, modelers, and aviation enthusiasts. For airworthy P-51 aircraft, always consult current Type Certificate Data Sheets, Airworthiness Directives, and approved maintenance procedures from appropriate aviation authorities.

For proprietary reasons, we provide both military and civil documentation on the P-51/F-51 Mustang family. The information is for reference only, and we do not guarantee the completeness, accuracy, or currency of all materials for current airworthiness compliance.

This digital compilation, structure, indexing, and presentation are © Sicuro Publishing.

Reference herein to any specific commercial products by trade name, trademark, manufacturer, or otherwise, is not meant to imply or suggest any endorsement by, or affiliation with that manufacturer or supplier. All trade names, trademarks, and manufacturer names are the property of their respective owners.
