This structured digital collection provides comprehensive technical documentation for the Messerschmitt Me 323 Gigant, the largest land-based transport aircraft of World War II and one of the most remarkable aircraft ever built. With 14 manuals covering the D and G variants, this is the definitive reference library for serious restorers, historians, and researchers working with this extraordinary six-engine transport.

Definitive Collection with Free Lifetime Updates: This is a living collection that we continuously expand and refine. As we acquire additional Messerschmitt Me 323 documentation, technical bulletins, or variant-specific materials, we update this collection and provide free lifetime updates to all purchasers. Your one-time purchase guarantees access to all future additions and improvements to this collection.

Historical Note

The Messerschmitt Me 323 Gigant (Giant) stands as the largest land-based transport aircraft of World War II and one of the most remarkable aircraft ever built. Developed from the massive Me 321 Gigant glider, the Me 323 was created to address the Luftwaffe's critical need for heavy transport capacity, particularly for supplying forces in North Africa and on the Eastern Front where conventional transport aircraft proved inadequate.

The Me 321 glider, first flown in March 1941, was itself an extraordinary aircraft with a wingspan of 180 feet and the ability to carry 200 troops or a Panzer IV tank. However, towing such a massive glider proved problematic—it required either three Bf 110 heavy fighters in a special "Troika-Schlepp" formation or a single Heinkel He 111Z Zwilling (a unique twin-fuselage variant created by joining two He 111 bombers). These towing arrangements were complex, dangerous, and inefficient, leading to the decision to create a powered version.

The Me 323 was born from this necessity. Engineers at Messerschmitt added six French Gnome-Rhône 14N radial engines (each producing 1,140 hp, captured in large quantities after the fall of France) mounted on a strengthened wing, along with a reinforced undercarriage featuring eleven wheels per side (22 wheels total) to handle the aircraft's massive weight on unprepared airfields. The first Me 323 flew in 1942, and despite its ungainly appearance, it proved capable of carrying extraordinary loads.

The Me 323 could transport up to 130 fully equipped troops, or 23,000 pounds of cargo including vehicles, artillery pieces, fuel drums, ammunition, and supplies. The cavernous cargo hold, accessed through massive clamshell doors in the nose, measured approximately 36 feet long, 10 feet wide, and 11 feet high. This capacity made the Me 323 invaluable for supplying isolated garrisons and moving heavy equipment that no other transport aircraft could carry. Some missions saw Me 323s transporting entire Panzer III tanks, 88mm Flak guns, or multiple Kubelwagen vehicles in a single flight.

However, the Gigant's impressive cargo capacity came with severe limitations. The aircraft was slow (maximum speed only 136 mph, cruise speed around 110 mph), extremely vulnerable to fighter attack due to its size and lack of maneuverability, and difficult to handle, particularly on one or two engines. The fabric-covered fuselage and wooden wing structure made it highly flammable, earning it the grim nickname "Leukoplastbomber" (adhesive tape bomber) among crews. Defensive armament varied but typically included up to five 13mm MG 131 machine guns and several 7.92mm MG 15 or MG 34 machine guns, though these proved inadequate against determined fighter attacks.

The Me 323 saw its most intensive use supplying Axis forces in North Africa during 1942-1943. Large formations of Me 323s, escorted by fighters, made regular supply runs across the Mediterranean from Sicily and southern Italy to Tunisia. These missions were extremely hazardous—on April 22, 1943, a formation of 21 Me 323s escorted by fighters was intercepted by Allied P-40 Warhawks and Spitfires, resulting in the destruction of 14 Gigants in what became known as the "Palm Sunday Massacre." This disaster highlighted the aircraft's vulnerability and led to increased fighter escort requirements and night operations.

The Me 323 D-series represented the primary production variant, with several sub-variants (D-1 through D-6) featuring different defensive armament configurations and minor equipment changes. The Me 323 E-series introduced more powerful Gnome-Rhône 14R engines and improved defensive armament, though few were completed. The Me 323 G variant, mentioned in this collection's documentation, likely referred to proposed or limited-production variants with enhanced capabilities.

Production of the Me 323 was limited to approximately 198 aircraft built between 1942 and 1944 at the Zeppelin works in Friedrichshafen and Leipheim. The aircraft served primarily with Transportgeschwader 5 (TG 5) and saw action in North Africa, the Mediterranean, the Eastern Front, and in the final defense of Germany. Despite their vulnerabilities, Me 323s continued flying supply missions until the war's end, with some aircraft making desperate flights to evacuate wounded soldiers and refugees from collapsing fronts.

The Me 323's operational challenges were numerous: the six engines required constant maintenance and frequently failed, the massive size made it difficult to conceal from enemy reconnaissance, fuel consumption was enormous (limiting range to about 680 miles), and the low speed made it easy prey for fighters. Crews developed tactics to mitigate these vulnerabilities, including flying at extremely low altitude to avoid radar detection, operating primarily at night or in poor weather, and flying in large formations with heavy fighter escort when daylight operations were unavoidable.

Today, no complete Me 323 aircraft survive, though fragments and components exist in museums worldwide. The aircraft represents a fascinating example of wartime improvisation and the extreme measures taken to address logistical challenges. Its massive size, unique configuration, and operational history make it one of the most distinctive aircraft of World War II. For aviation historians and researchers, the Me 323 Gigant stands as a testament to both German engineering ambition and the practical limitations of creating such an enormous, vulnerable aircraft in a hostile combat environment.

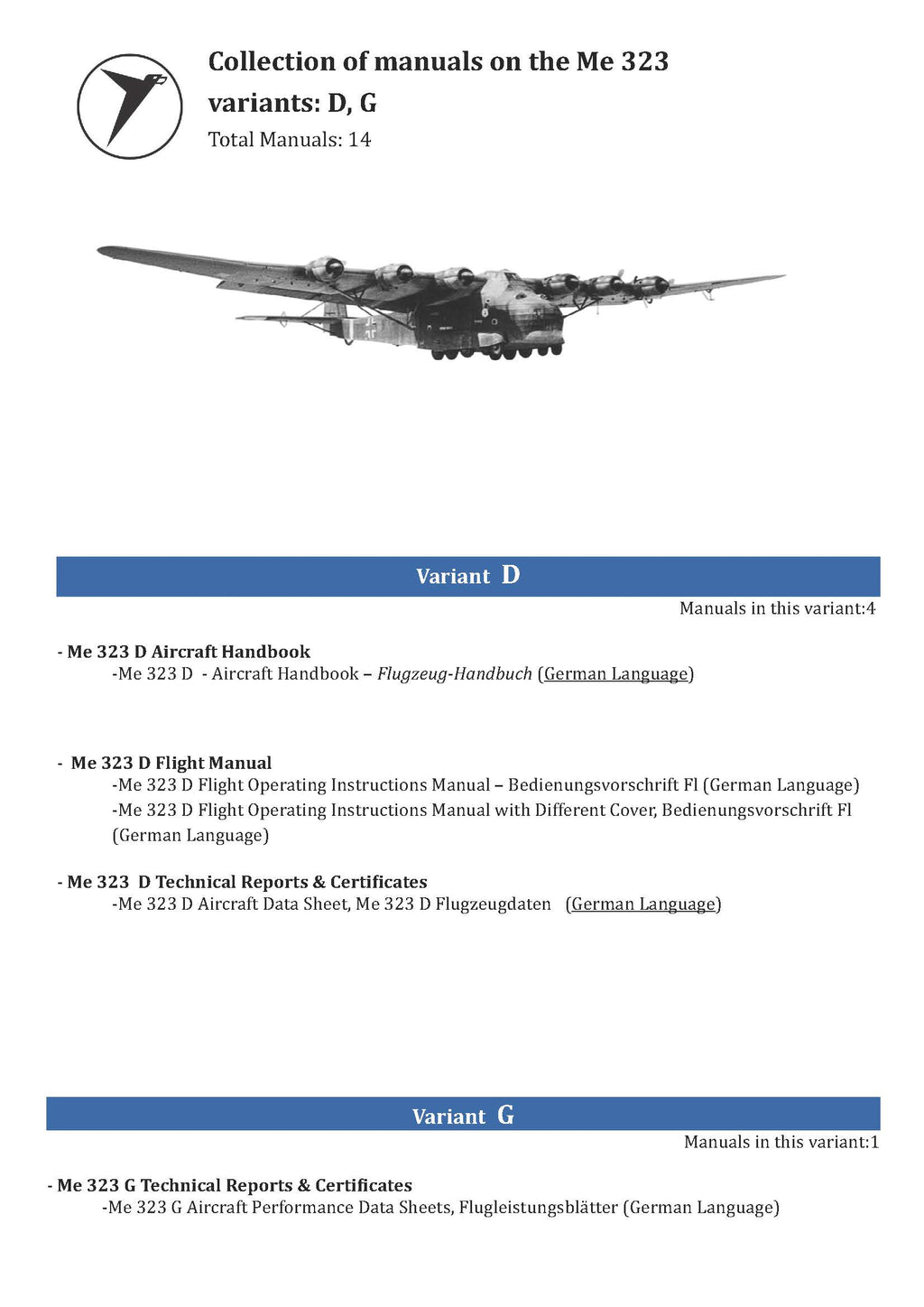

Manuals Included in This Collection

Me 323 Variant D Documentation (4 manuals):

• Me 323 D Aircraft Handbook - Me 323 D Aircraft Handbook, Flugzeug-Handbuch (German Language)
• Me 323 D Flight Manual:
  • Me 323 D Flight Operating Instructions Manual, Bedienungsvorschrift Fl (German Language)
  • Me 323 D Flight Operating Instructions Manual with Different Cover, Bedienungsvorschrift Fl (German Language)
• Me 323 D Technical Reports & Certificates - Me 323 D Aircraft Data Sheet, Me 323 D Flugzeugdaten (German Language)

Me 323 Variant G Documentation (1 manual):

• Me 323 G Technical Reports & Certificates - Me 323 G Aircraft Performance Data Sheets, Flugleistungsblätter (German Language)

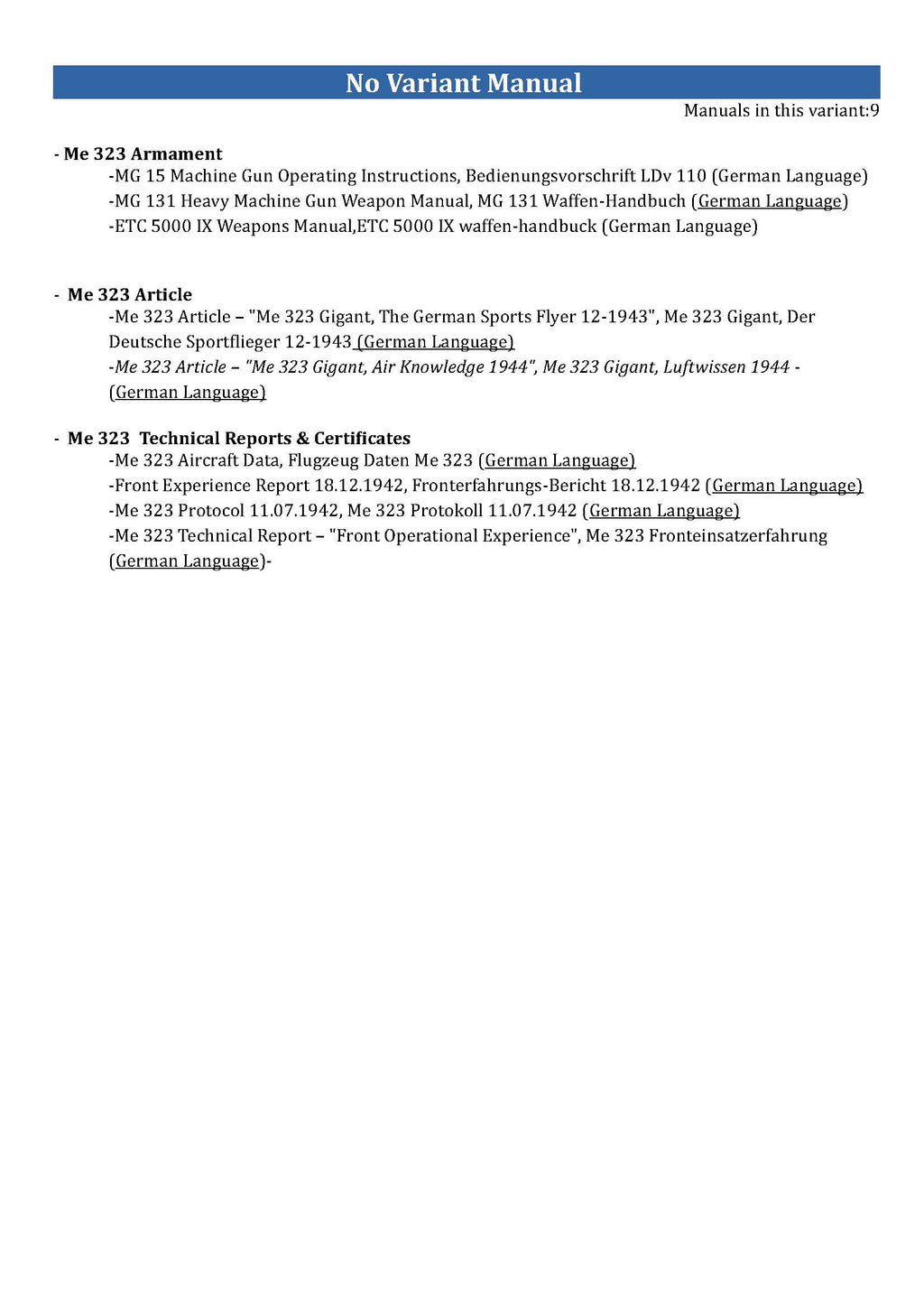

Me 323 Non-Variant Manuals (Applicable Across Series - 9 manuals):

• Me 323 Armament:
  • MG 15 Machine Gun Operating Instructions, Bedienungsvorschrift LDv 110 (German Language)
  • MG 131 Heavy Machine Gun Weapon Manual, MG 131 Waffen-Handbuch (German Language)
  • ETC 5000 IX Weapons Manual, ETC 5000 IX waffen-handbuck (German Language)
• Me 323 Article:
  • Me 323 Article - "Me 323 Gigant, The German Sports Flyer 12-1943", Me 323 Gigant, Der Deutsche Sportflieger 12-1943 (German Language)
  • Me 323 Article - "Me 323 Gigant, Air Knowledge 1944", Me 323 Gigant, Luftwissen 1944 (German Language)
• Me 323 Technical Reports & Certificates:
  • Me 323 Aircraft Data, Flugzeug Daten Me 323 (German Language)
  • Front Experience Report 18.12.1942, Fronterfahrungs-Bericht 18.12.1942 (German Language)
  • Me 323 Protocol 11.07.1942, Me 323 Protokoll 11.07.1942 (German Language)
  • Me 323 Technical Report - "Front Operational Experience", Me 323 Fronteinsatzerfahrung (German Language)

This collection provides comprehensive coverage of the Messerschmitt Me 323 Gigant across the D and G variants. The documentation spans aircraft handbooks, flight operating instructions, performance data sheets, armament manuals (MG 15, MG 131, ETC 5000 bomb rack), contemporary magazine articles from 1943-1944, and critical front-line operational experience reports from actual combat use. These front experience reports are particularly valuable, documenting the aircraft's performance, vulnerabilities, and operational challenges as reported by crews in North Africa and on the Eastern Front. This represents the most comprehensive Me 323 technical reference library available, offering researchers and historians structured access to authentic period documentation for the largest land-based transport aircraft of World War II.

Engineering Norms and Standards

The Messerschmitt Me 323 Gigant was designed and manufactured to unique engineering standards that addressed the unprecedented challenges of creating the world's largest land-based transport aircraft:

• Mixed Construction Methods: The Me 323 employed a hybrid construction approach combining steel tube framework for the fuselage, wooden wing structure with plywood and fabric covering, and metal components for critical load-bearing elements. This mixed construction was necessitated by wartime material shortages and the need to utilize non-strategic materials wherever possible. The fabric covering, while lightweight, contributed to the aircraft's vulnerability to fire and battle damage.
• Messerschmitt Engineering Standards: Despite its unconventional origins as a powered glider, production followed Messerschmitt A.G. engineering norms adapted for the aircraft's unique requirements. These standards governed structural load calculations for the massive cargo capacity, stress analysis for the multi-wheel landing gear system, and quality control procedures for the fabric-covered surfaces.
• RLM Specifications: The Me 323 adhered to Reichsluftfahrtministerium (RLM) specifications for military transport aircraft, including material standards, inspection procedures, and acceptance testing requirements. However, the aircraft's unprecedented size and configuration required new RLM standards for cargo loading procedures, center-of-gravity calculations, and multi-engine operation protocols.
• Gnome-Rhône Engine Standards: Powerplant installation and maintenance followed French Gnome-Rhône specifications adapted for German military use. The six-engine configuration required detailed procedures for engine synchronization, fuel distribution across multiple tanks, and emergency procedures for multi-engine failures. Maintenance standards addressed the challenges of servicing six engines with limited spare parts availability.
• Heavy Cargo Loading Standards: The Me 323's ability to carry vehicles, artillery, and heavy equipment required specialized loading procedures and structural standards. Engineering norms governed cargo tie-down points, floor loading limits (distributed and concentrated loads), center-of-gravity envelope calculations for various cargo configurations, and procedures for loading/unloading through the nose clamshell doors.
• Multi-Wheel Landing Gear: The unprecedented 22-wheel landing gear system (11 wheels per side) required unique engineering standards for tire pressure management, shock absorber maintenance, and operation on unprepared surfaces. Standards addressed the challenges of replacing damaged wheels in field conditions and managing the complex brake system.

These engineering standards represent the specialized quality control framework developed for Me 323 production across approximately 198 aircraft built from 1942 through 1944. For restorers and researchers, understanding these unique manufacturing practices, material specifications, and operational standards provides invaluable insight into the engineering challenges of creating and operating the largest land-based transport aircraft of World War II under combat conditions and severe material constraints.

Format and Delivery

• Format: Digital download (PDF)
• Language: German (original period documentation)
• Total Manuals: 14 comprehensive documents
• Variant Coverage: D (primary production variant), G (enhanced variant)
• Quality: High-resolution scans of original factory manuals, Luftwaffe technical orders, and front-line operational reports
• Organization: Structured folder hierarchy with variant-specific and general documentation clearly separated
• Delivery: Instant digital download upon purchase
• Updates: Free lifetime updates as additional documentation is acquired and added to the collection
