Messerschmitt Bf 109 G-K Aircraft Engineering Blueprints Collection

Collection of original Messerschmitt factory engineering drawings for the Bf 109 G and K variants — approximately 1,100 drawing sheets covering one of the most produced fighter aircraft in history, with over 33,000 units built.

Continuously Expanding Historical Collection — Free Lifetime Updates

This is a living collection that we continuously expand and refine. As we acquire additional authentic Bf 109 G/K documentation, we update this collection and provide free lifetime updates to all purchasers. Your one-time purchase guarantees permanent ownership and access to all future additions.

What's Included

• High-resolution reproductions of original Messerschmitt factory engineering drawings (approx. 1,100 sheets)
• Structural manufacturing drawings covering numerous aircraft assemblies and components
• Original dimensions, production notes and engineering details where present in the surviving documents
• Digitally restored PDF files suitable for research, study and reference

Document Provenance

This collection draws from three distinct primary-source streams, each with its own historical significance:

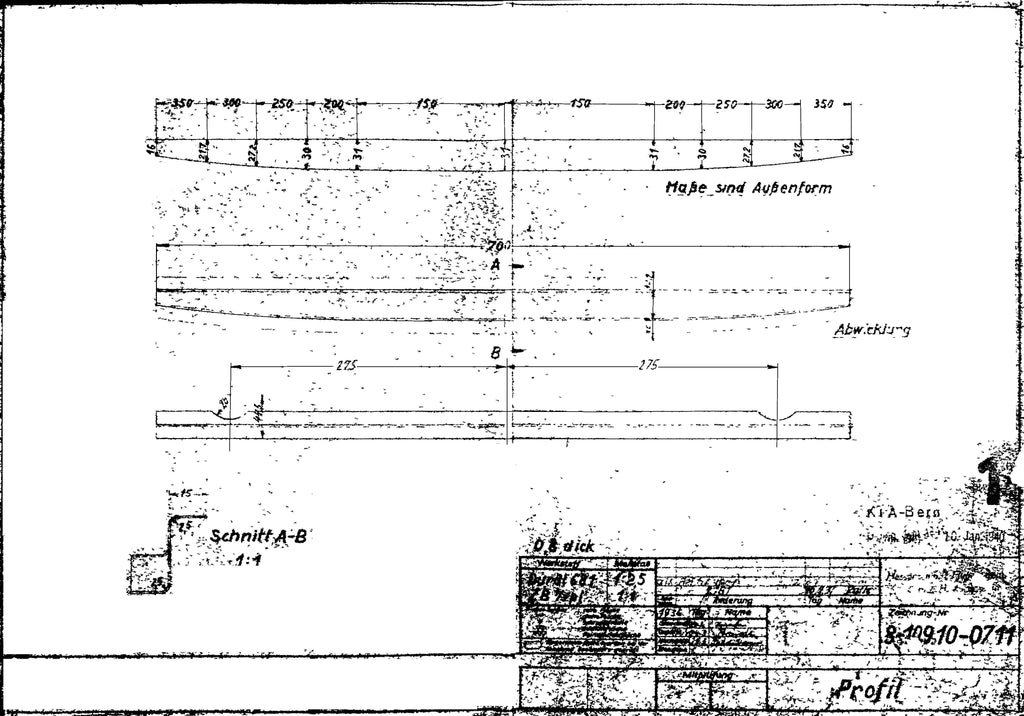

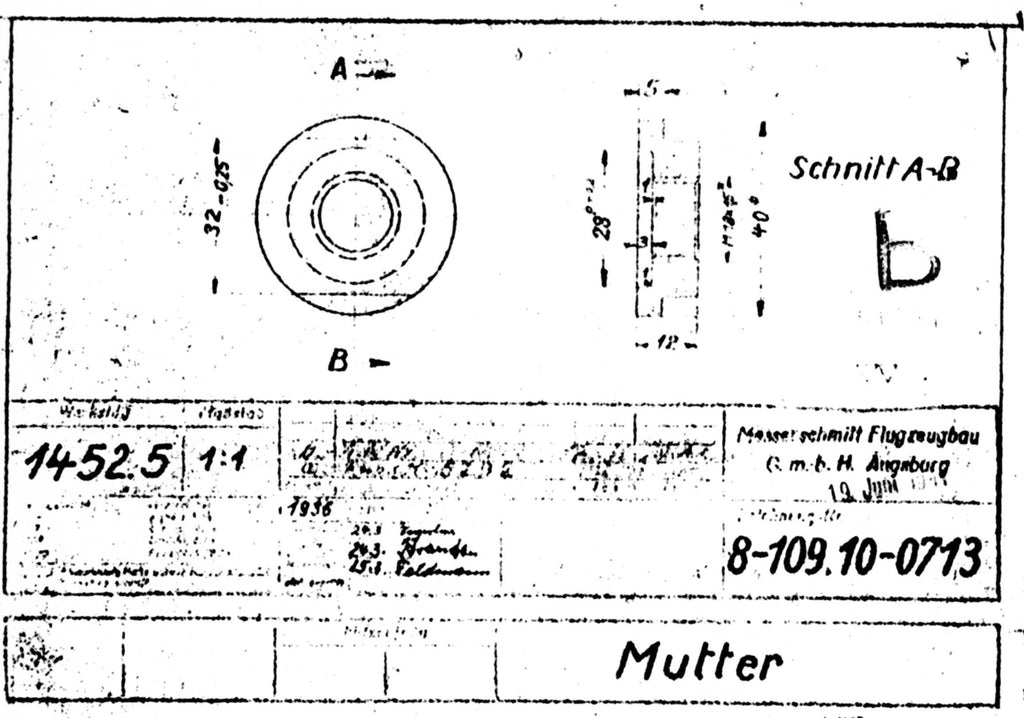

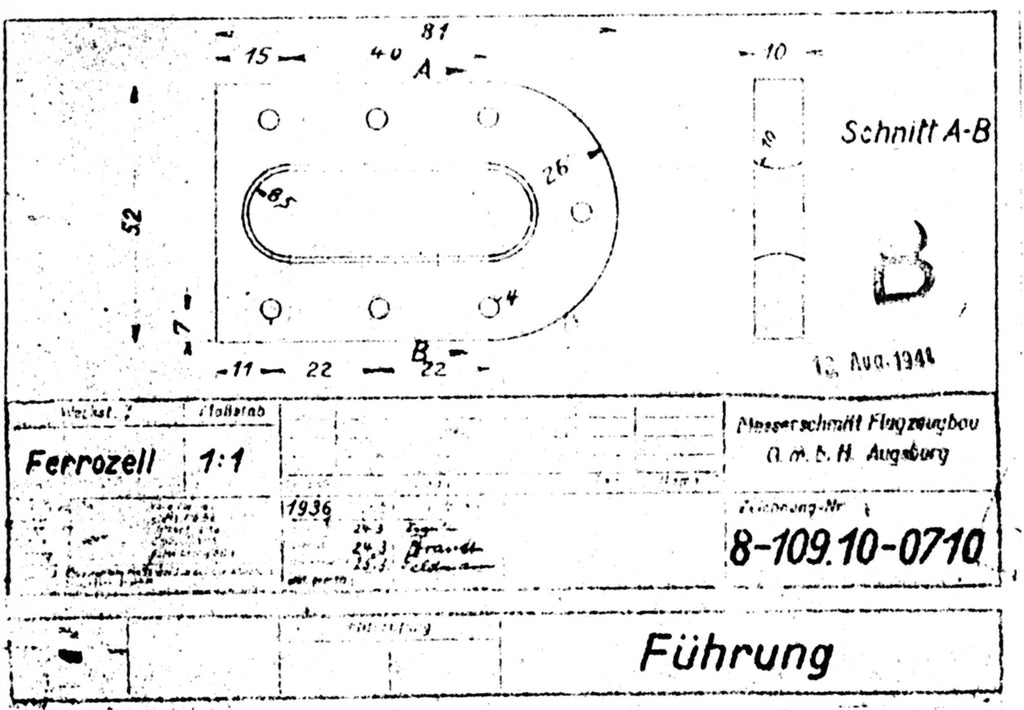

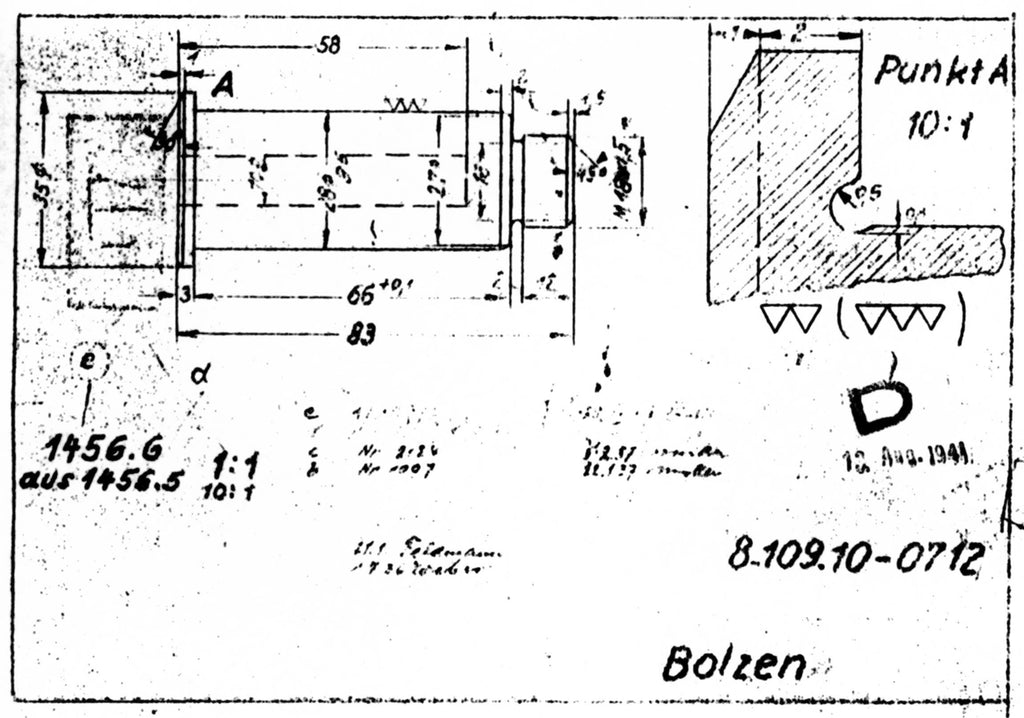

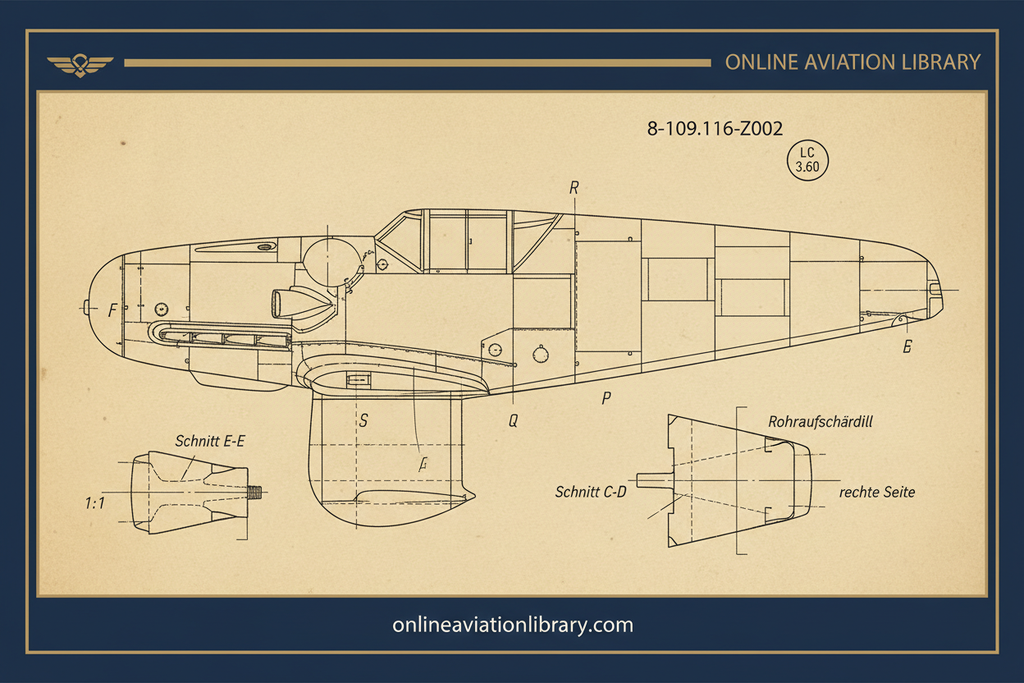

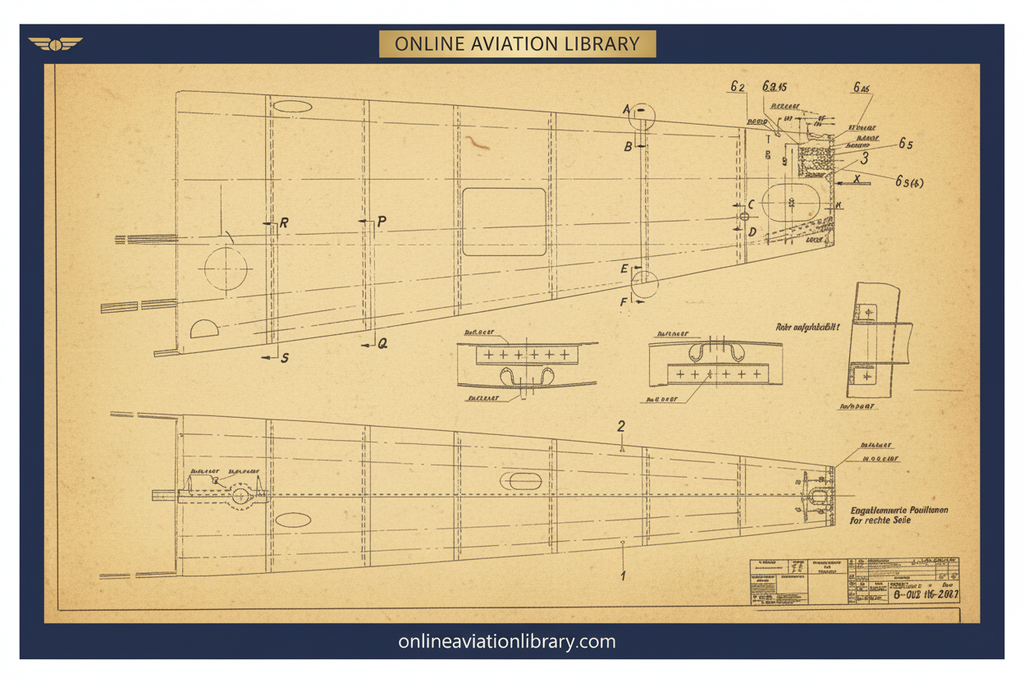

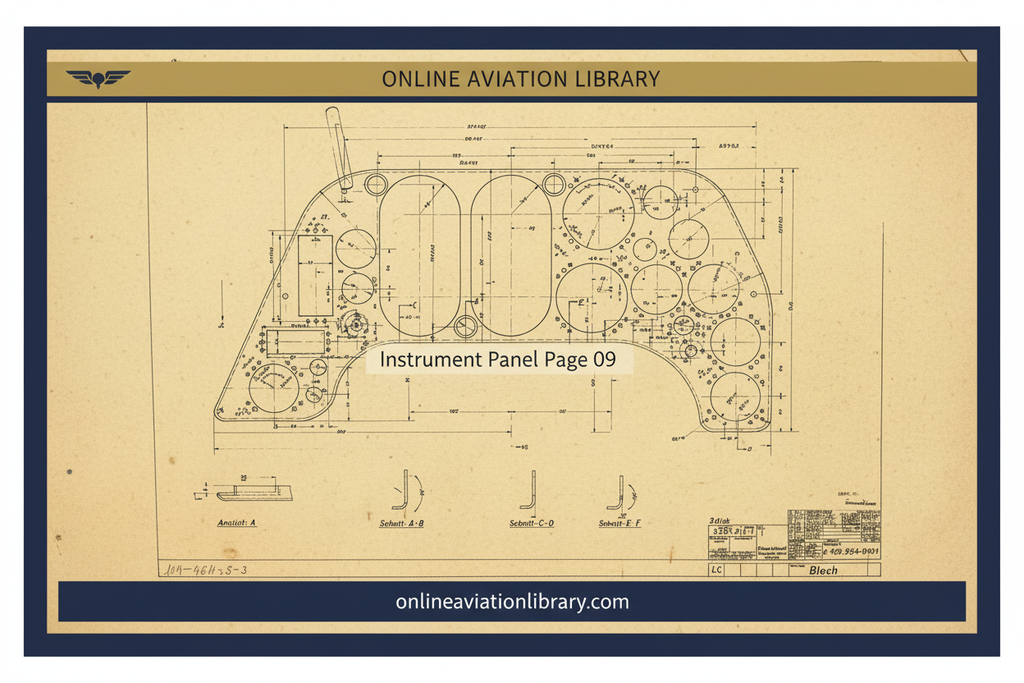

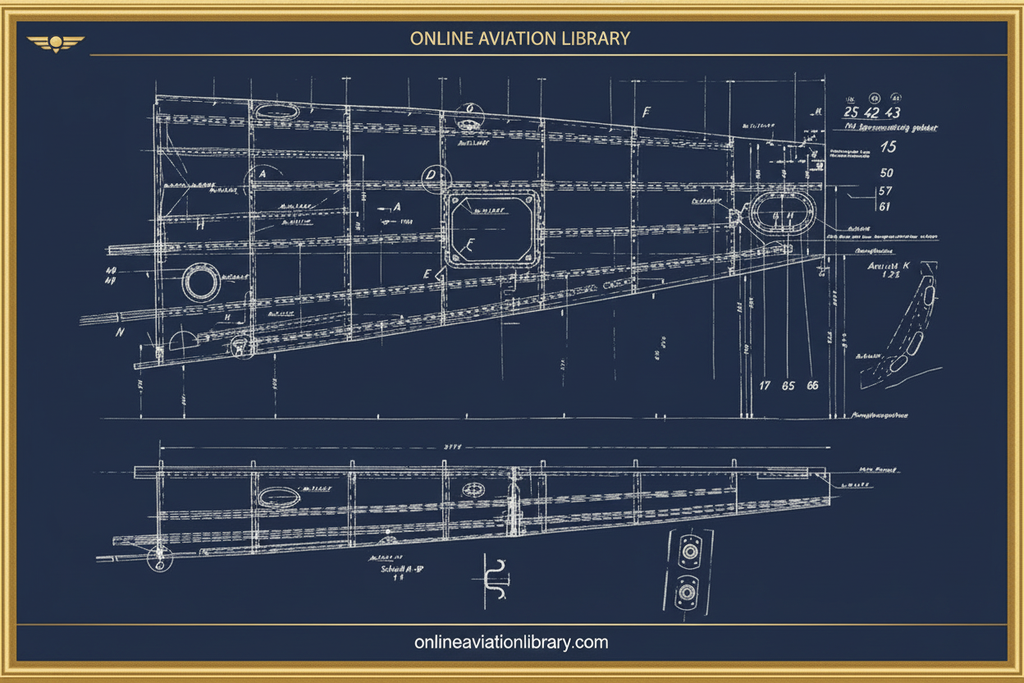

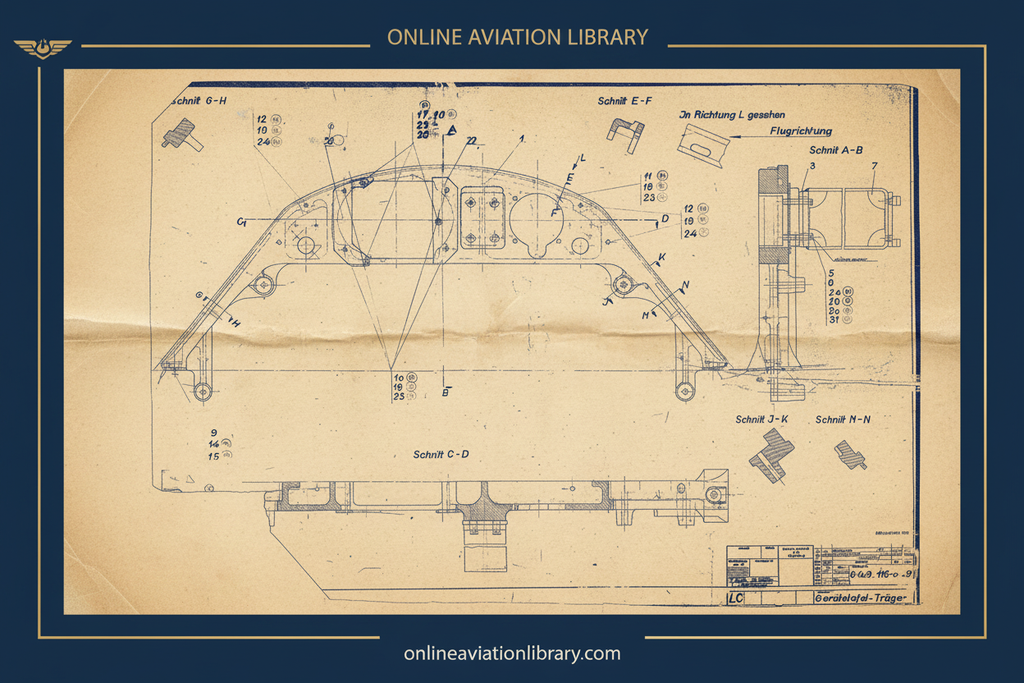

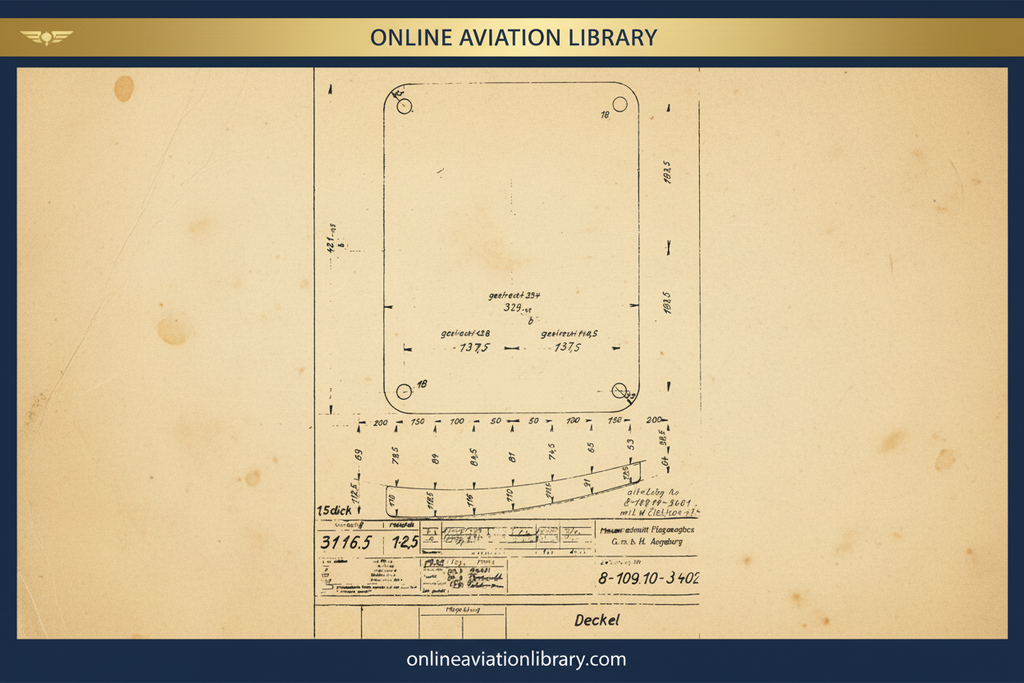

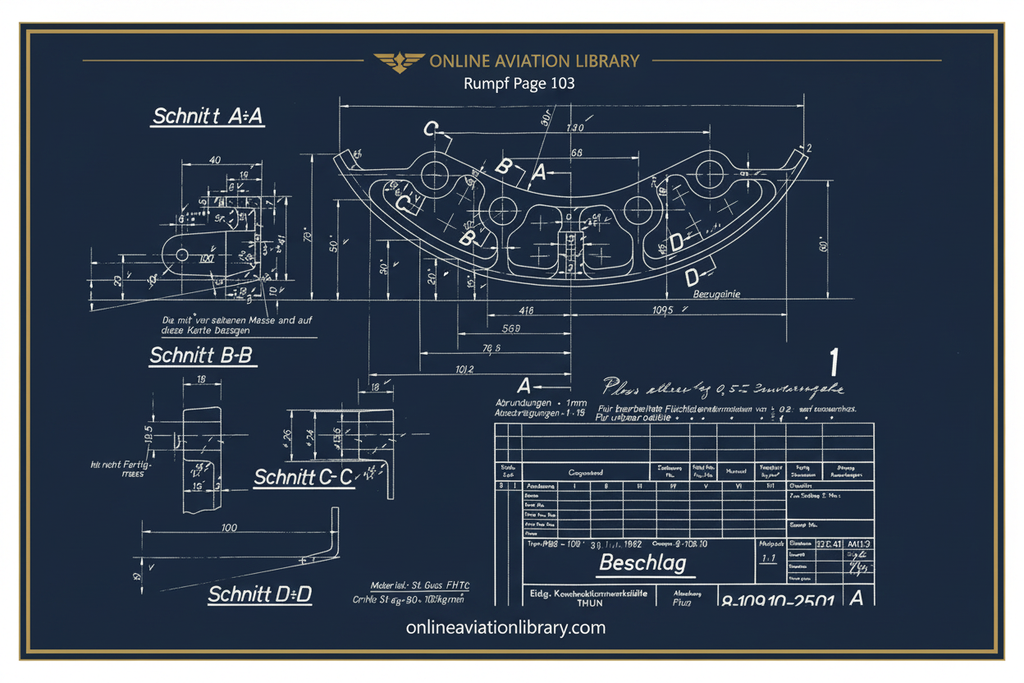

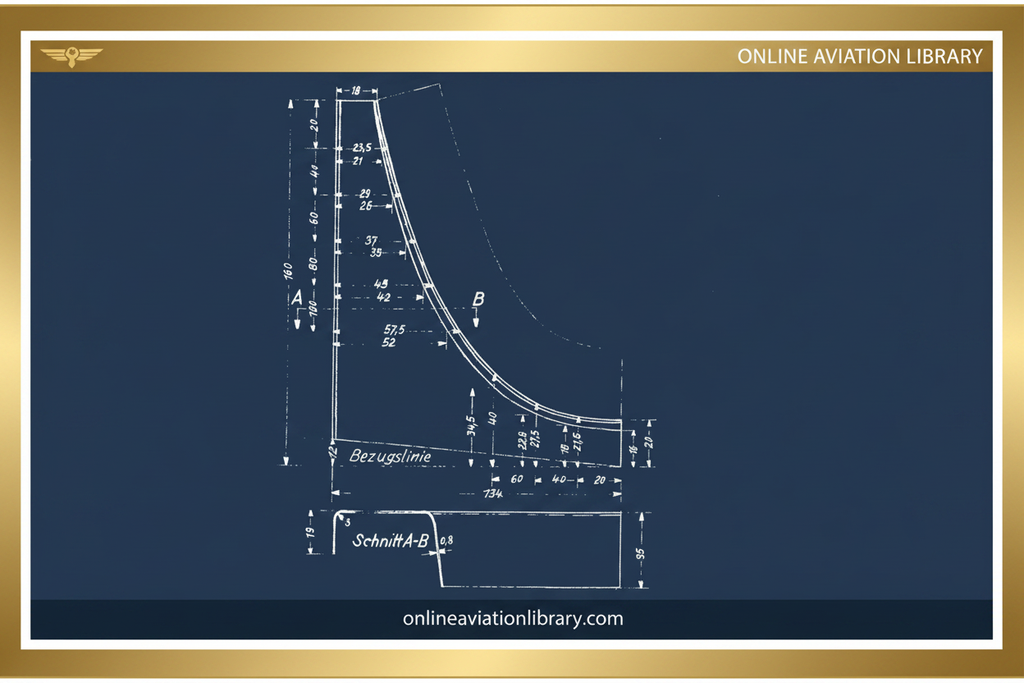

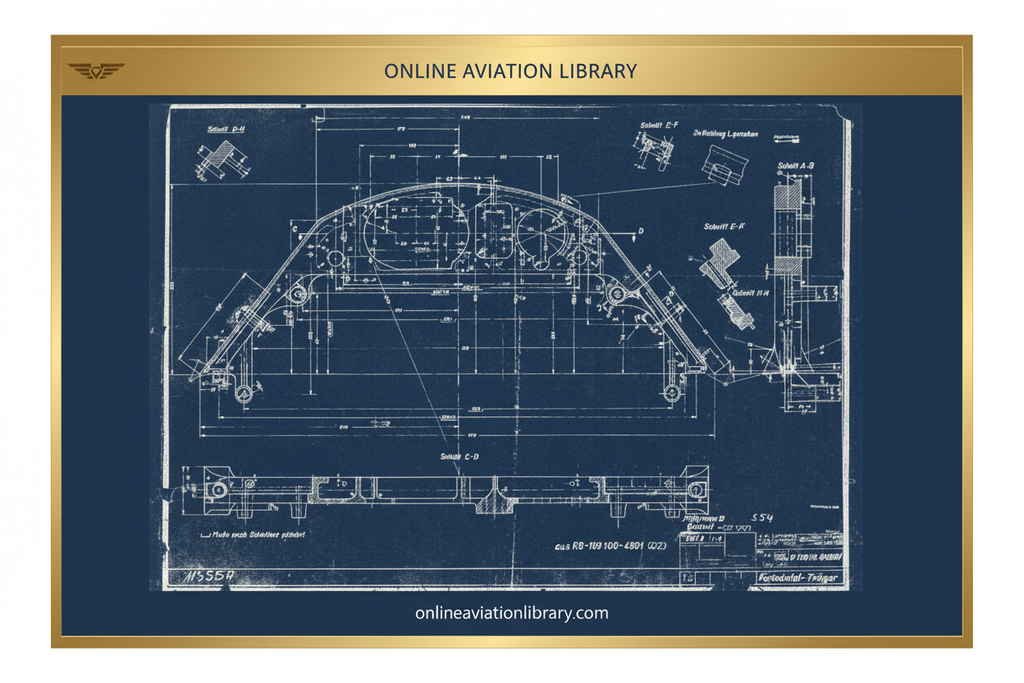

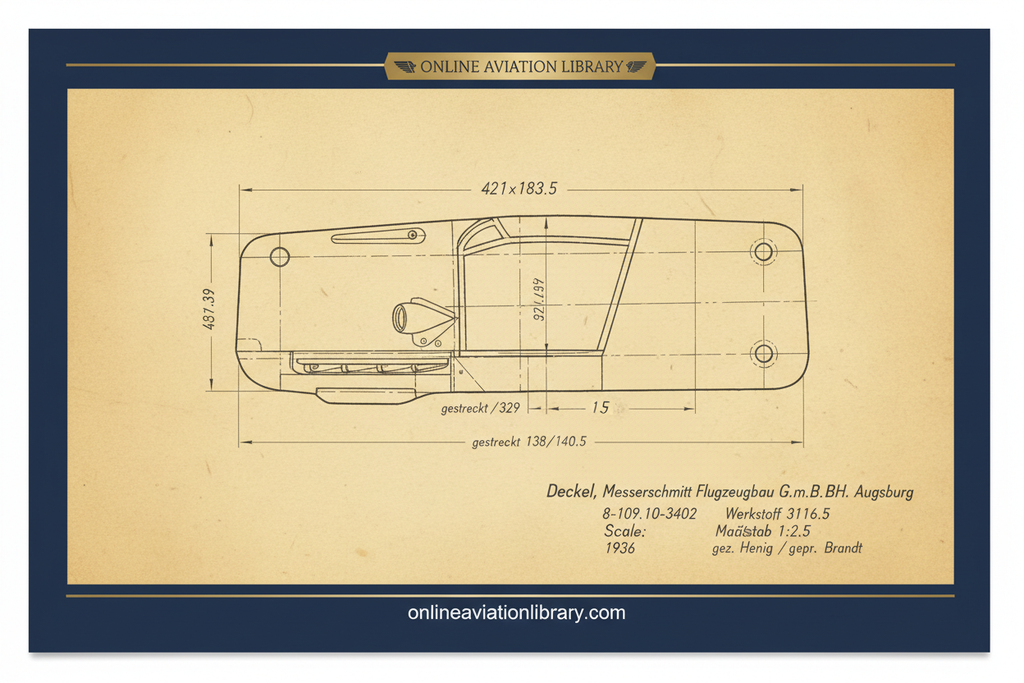

• Messerschmitt Flugzeugbau G.m.b.H., Augsburg — Original factory engineering drawings produced at the Messerschmitt works, stamped, signed, and dated by the original draughtsmen. These are the definitive manufacturing documents of the Bf 109 G/K programme, covering fuselage structure (Rumpf), canopy assemblies, instrument panels, and major airframe components.

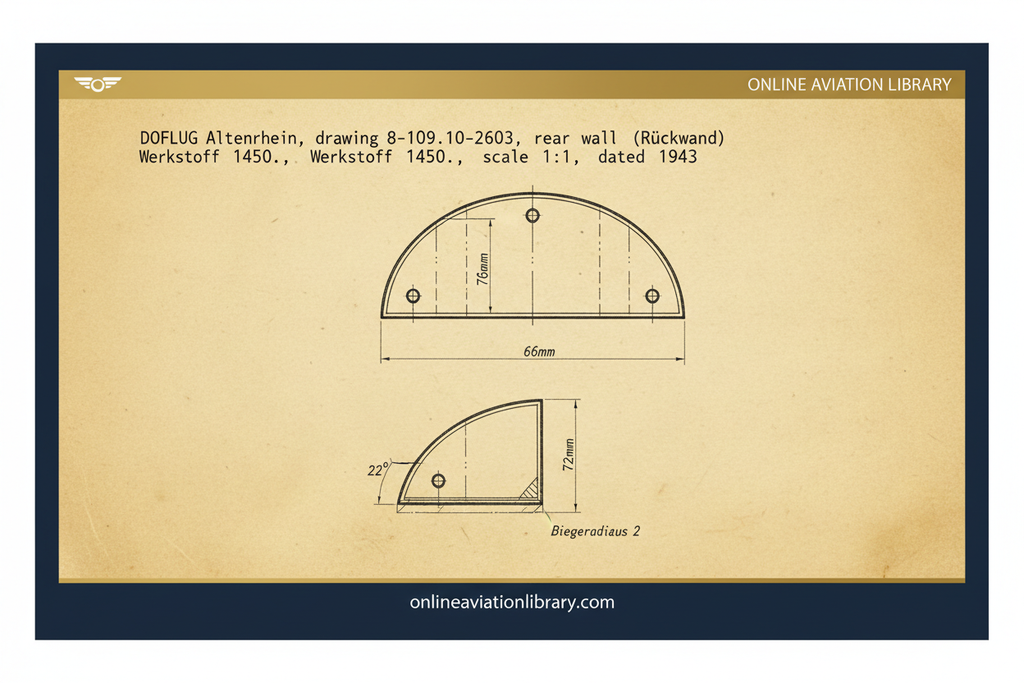

• Dornier-Werke A.G., Altenrhein (Switzerland) — DOFLUG — Subcontractor drawings produced by Dornier's Swiss facility under the DOFLUG designation for specific Bf 109 components. These documents carry the Dornier eagle stamp and full Swiss production traceability, dated 1943.

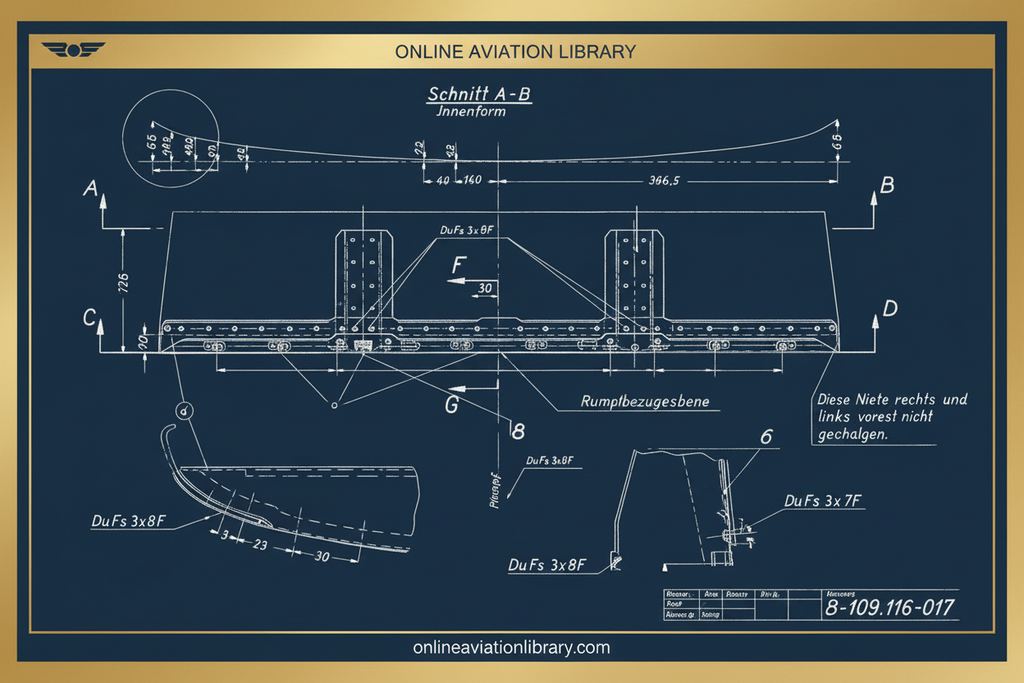

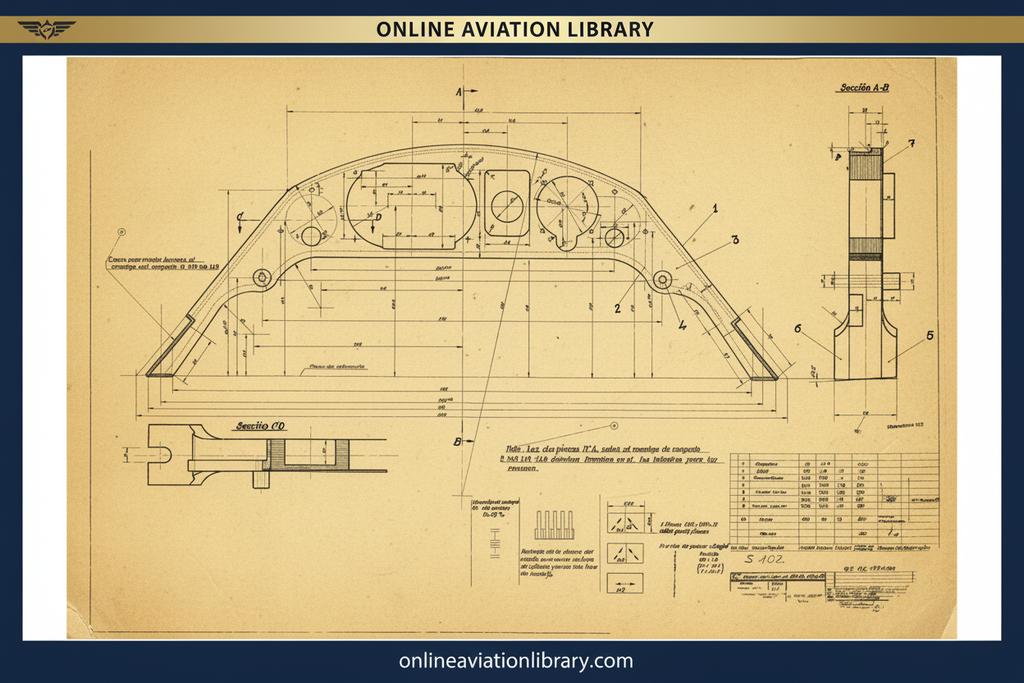

• La Hispano Aviación S.A., Sevilla (Spain) — A rare and historically significant stream: engineering drawings produced by the Spanish licensed manufacturer of the Bf 109, post-war. These sheets carry Spanish-language title blocks, Hispano Aviación drawing numbers (e.g. 8-109.116-1L9H005), and are dated 1946 — documenting the continued production of the Bf 109 design under Spanish licence as the HA-1109/HA-1112 Buchón series.

Perfect For

• Aviation historians and WWII researchers
• Aircraft restoration specialists
• Scale modellers building accurate Bf 109 replicas
• Engineering students studying vintage aircraft design
• Museums and educational institutions
• Messerschmitt enthusiasts and collectors

Format and Delivery Digital download via secure cloud link. Adobe PDF files compressed in RAR format for efficient download. Extraction Instructions: Files are compressed in RAR format. Free extraction software available at rarlab.com

Important Note for Scale Modellers Original factory manufacturing drawings do not always include complete aircraft lofting information, fuselage station diagrams or former geometry. Where such original documentation has not survived or is unavailable, it cannot be included in the collection. Any newly acquired original material is supplied free of charge to all previous purchasers.

Nature of the Collection This collection reproduces surviving historical Messerschmitt factory documentation. As with many WWII archives, some original drawings, lofting data, station diagrams or manufacturing records may no longer exist or may not yet have been located. The collection reflects the documentation currently available and is expanded whenever additional authentic material becomes available.

Our Editorial Philosophy Preservation before reconstruction. Authenticity before completeness. Original evidence before modern interpretation.

Our mission is to collect, structure, preserve and publish surviving original aviation documentation — not to reconstruct or invent engineering data that no longer exists.

Documentation reference for restoration research.

Legal Notice

This documentation is provided by Online Aviation Library, operated by Sicuro Publishing, under a structured licensing framework. Sicuro Publishing does not distribute controlled content—we provide documentation structuring, compliance architecture, and publishing systems for content legally owned by our clients and licensing partners.

These materials are sold for historical reference and research purposes only. Your purchase grants permanent ownership of this structured collection with free lifetime updates.

The compilation, structure, indexing, and presentation are © Sicuro Publishing, registered in the Canadian Copyright Database. Underlying historical factory materials remain the property of their original creators or successor entities.

Information is for reference only, and we do not guarantee completeness, accuracy, or currency of any materials.

Reference to commercial products, trade names, or manufacturers does not imply endorsement or affiliation. All trademarks are the property of their respective owners.

Living Collections with Free Lifetime Updates — Please review our Disclaimer and Export Notice before purchasing.
