Comprehensive Macchi Castoldi M.C. 202 Folgore Technical Documentation

This digital collection assembles authentic technical manuals for one of World War II's most elegant and effective fighters. The Macchi Castoldi M.C. 202 Folgore (Thunderbolt) represented a quantum leap in Italian fighter capability, combining exceptional performance with outstanding handling characteristics. These original documents provide detailed specifications and procedures used by Regia Aeronautica pilots and maintenance crews during the aircraft's combat service.

Historical Note

The Macchi Castoldi M.C. 202 Folgore entered service with the Regia Aeronautica in 1941 as a transformative development of the earlier M.C. 200 Saetta. Designed by Mario Castoldi, the Folgore retained the excellent airframe of its predecessor while replacing the underpowered Italian radial engine with a German Daimler-Benz DB 601 inline engine (license-built by Alfa Romeo as the RA.1000 RC.41 Monsone). This single change transformed the aircraft from adequate to outstanding.

Powered by the 1,175-horsepower DB 601 engine, the M.C. 202 achieved a maximum speed of 370 mph—nearly 60 mph faster than the M.C. 200. The sleek inline engine installation gave the Folgore elegant, streamlined proportions that made it one of the most beautiful fighters of World War II. Pilots praised the aircraft's harmonious handling characteristics, excellent visibility, and responsive controls that made it a joy to fly and a formidable opponent in combat.

The M.C. 202's armament typically consisted of two 12.7mm Breda-SAFAT machine guns in the nose, with some variants adding two additional 7.7mm machine guns in the wings. While this firepower remained light compared to heavily-armed German and American fighters, the Folgore's exceptional maneuverability and stable gun platform characteristics allowed skilled pilots to make the most of their weapons. The aircraft could out-turn most Allied fighters and hold its own against the best opponents of 1941-1943.

The Folgore saw extensive combat across multiple theaters, becoming the backbone of Italian fighter squadrons in North Africa, the Mediterranean, and the defense of Italy itself. In the North African desert, M.C. 202s proved superior to the Hurricane and competitive with the Spitfire Mk V, earning respect from Allied pilots who faced them. The aircraft's performance at altitude, combined with its agility, made it particularly effective as an escort fighter and interceptor.

Over Malta, Folgores engaged in some of the war's most intense air battles, escorting Italian and German bombers attacking the besieged island while dueling with RAF Spitfires. Italian pilots flying M.C. 202s achieved notable successes, with several aces scoring multiple victories in the type. The aircraft's reliability and ease of maintenance proved valuable when operating from primitive desert airstrips far from major repair facilities.

In the defense of Italy, M.C. 202s intercepted Allied bombers and fought against increasingly numerous and powerful Allied fighters. While the Folgore remained competitive through 1942, by 1943 it faced newer Allied types like the P-51 Mustang and Spitfire Mk IX that outperformed it. Nevertheless, the aircraft continued serving effectively when flown by experienced pilots who exploited its superior maneuverability.

Approximately 1,500 M.C. 202s were produced between 1941 and 1943, making it the most numerous Italian fighter of the mid-war period. The type equipped numerous squadrons and served as the Regia Aeronautica's primary fighter until the more powerful M.C. 205 Veltro entered service in late 1943. Production was limited by the availability of German engines, which remained in short supply throughout the war.

Following Italy's September 1943 armistice, M.C. 202s served with both the Italian Co-Belligerent Air Force fighting alongside the Allies and the Aeronautica Nazionale Repubblicana supporting German forces in northern Italy. The aircraft continued flying combat missions until the war's end, testament to its effectiveness and the skill of Italian pilots who flew it.

Allied pilots who evaluated captured M.C. 202s praised its handling characteristics, build quality, and performance. Many considered it one of the finest fighters Italy produced during the war—an aircraft that would have been even more formidable with heavier armament. The Folgore demonstrated that Italian aeronautical engineering could produce world-class fighters when provided with adequate powerplants.

Today, the Macchi Castoldi M.C. 202 Folgore is remembered as one of World War II's most elegant and capable fighters—an aircraft that combined beauty with effectiveness and earned the respect of friend and foe alike. Only one complete example survives, making documentation of this exceptional fighter particularly valuable for aviation historians and enthusiasts.

What's Included

This collection contains essential technical references for the Macchi Castoldi M.C. 202 Folgore:

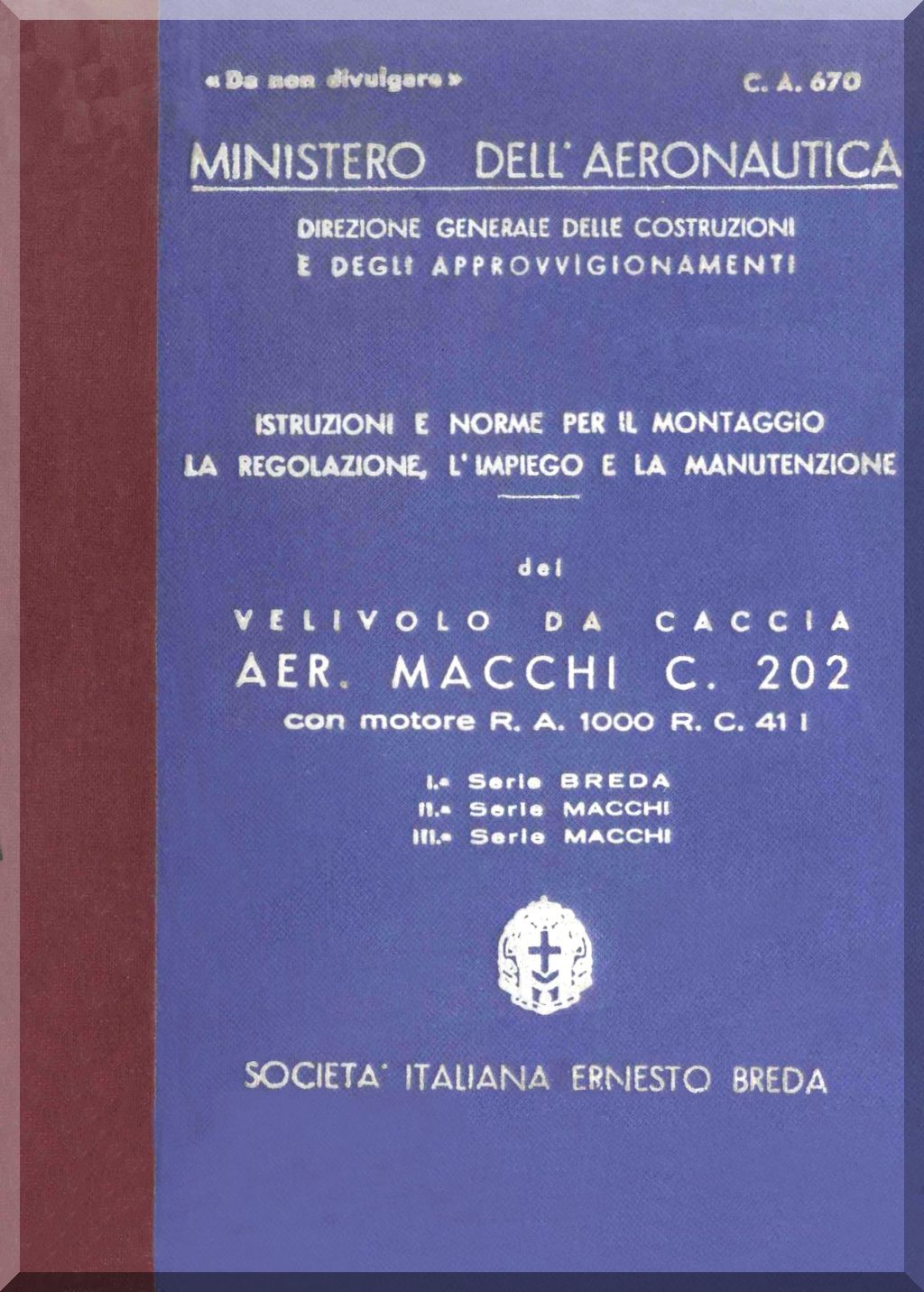

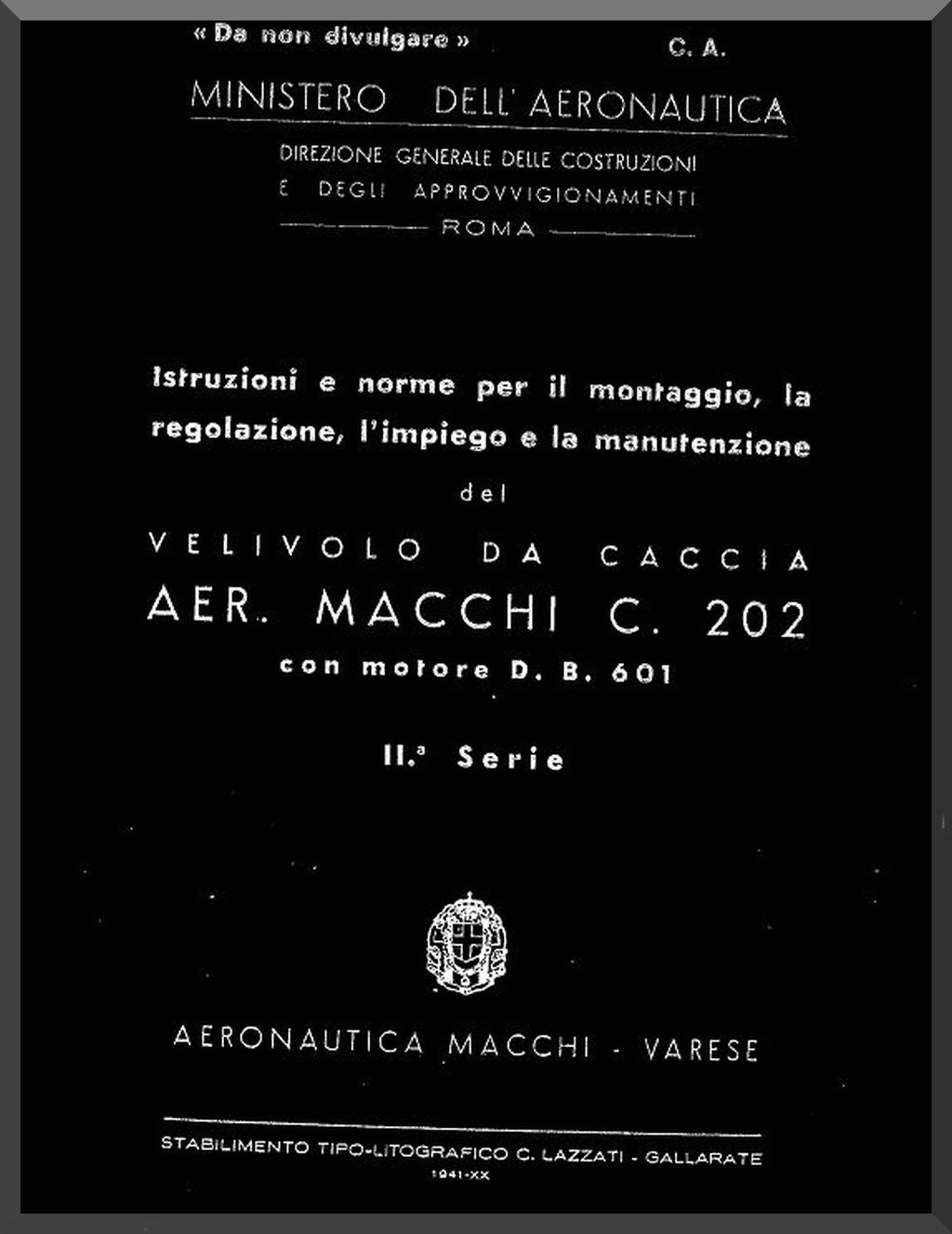

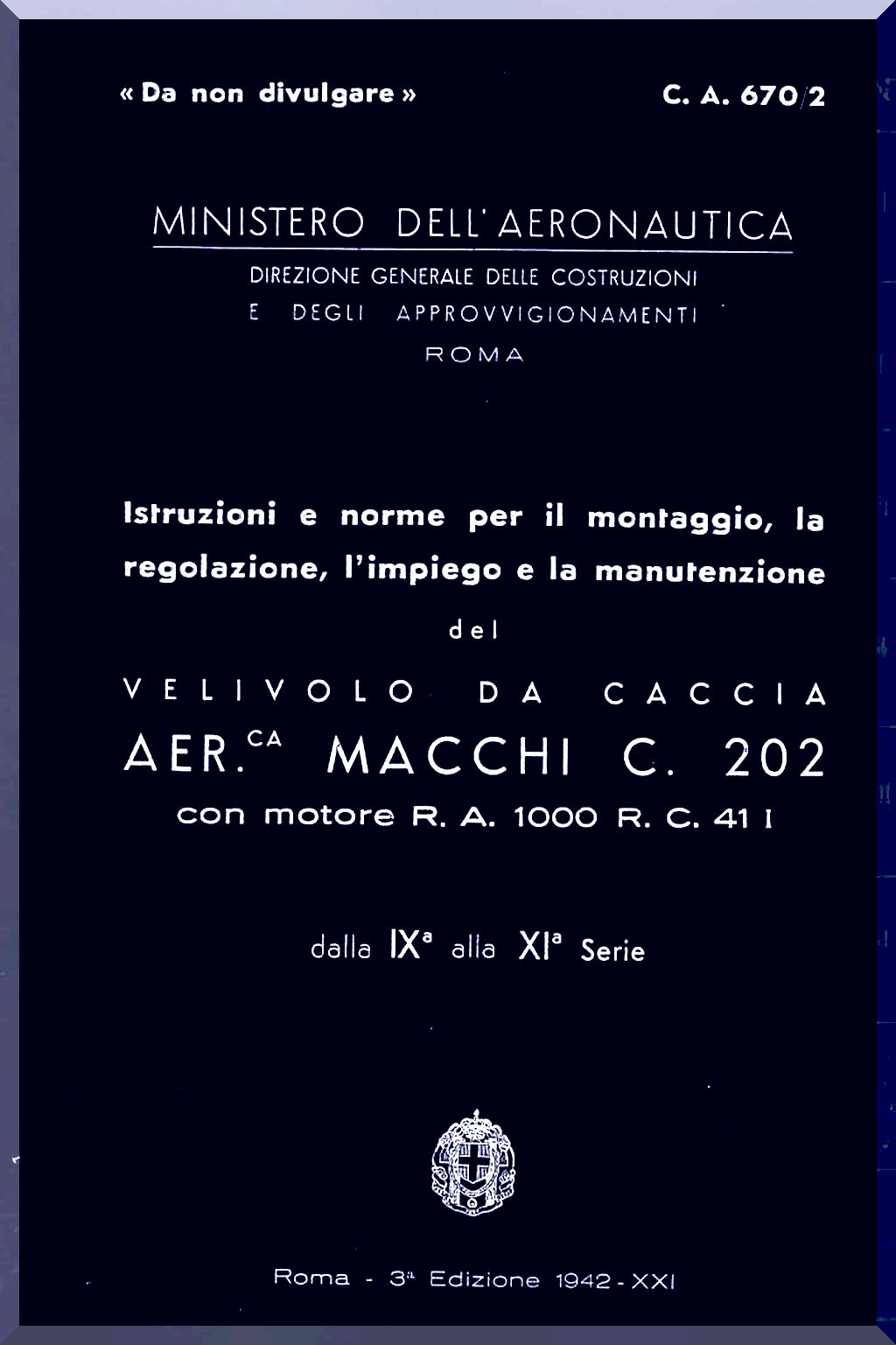

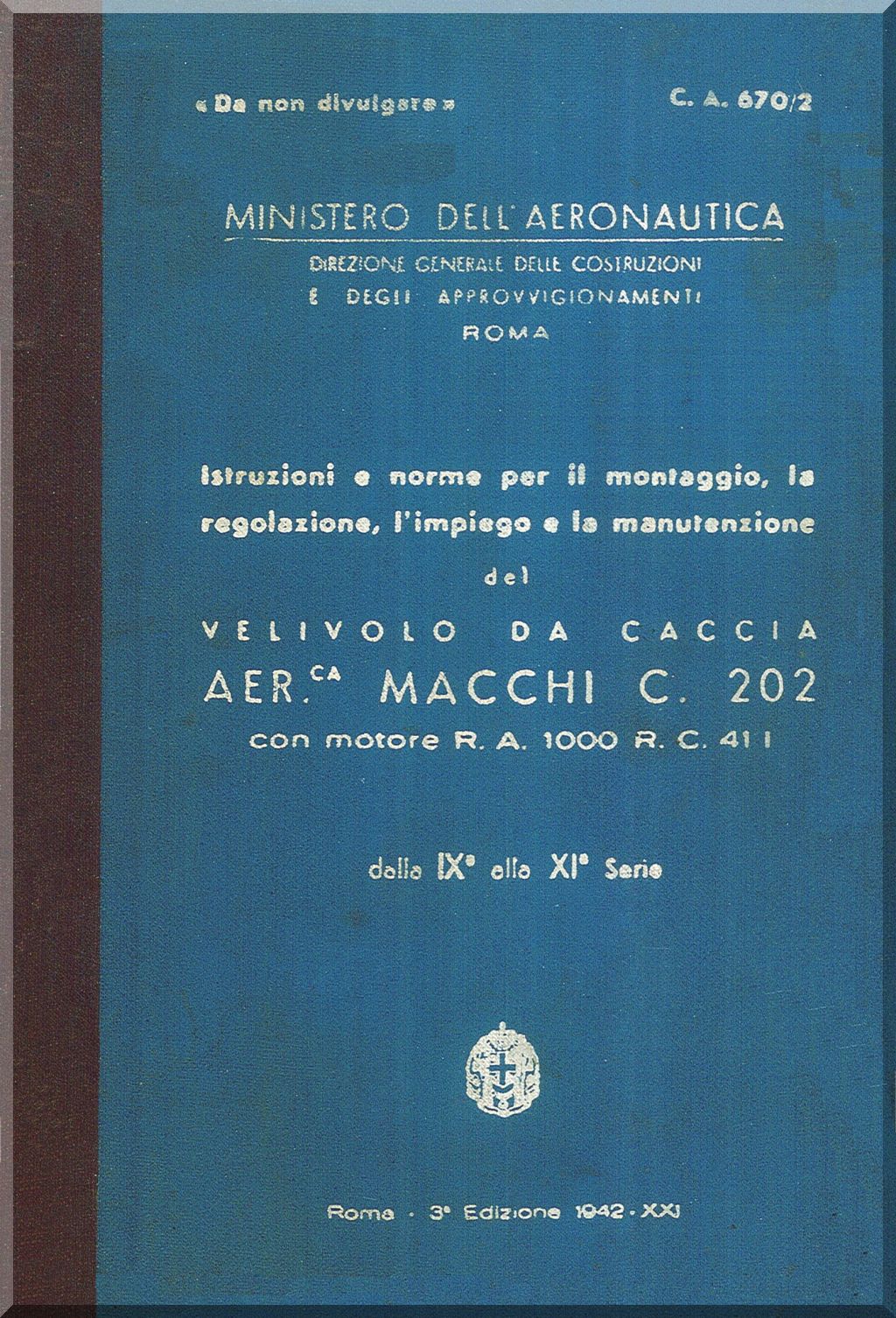

• Pilot Operating Handbooks – Complete flight procedures, performance data, and emergency protocols
• Maintenance Instructions – Detailed servicing procedures, inspection schedules, and troubleshooting guides

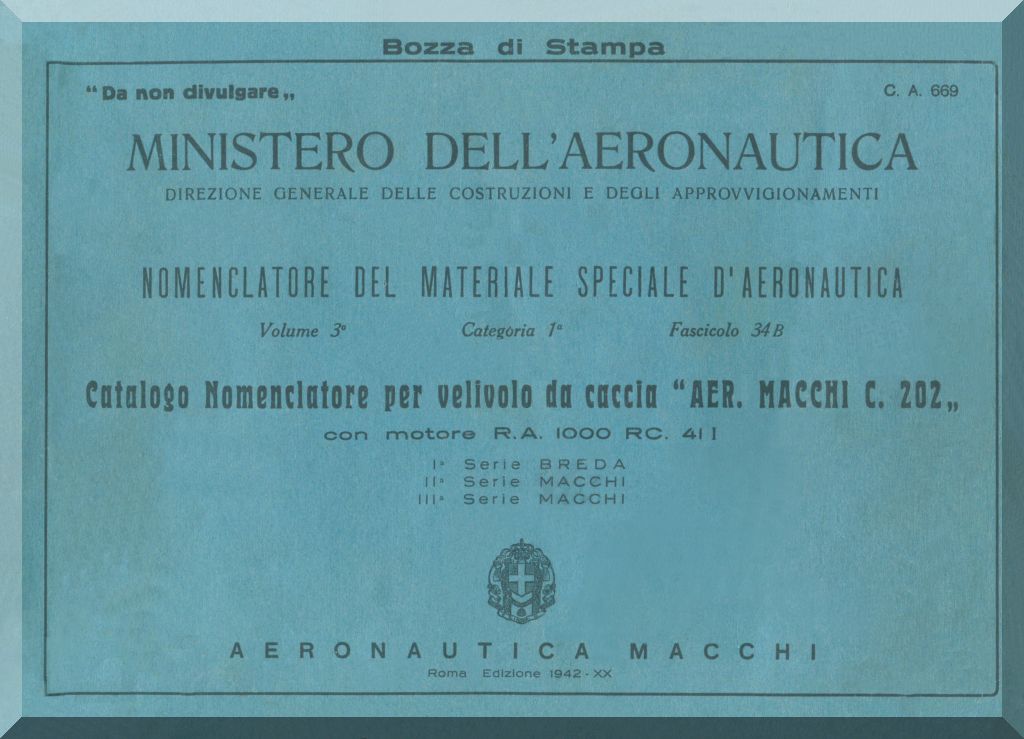

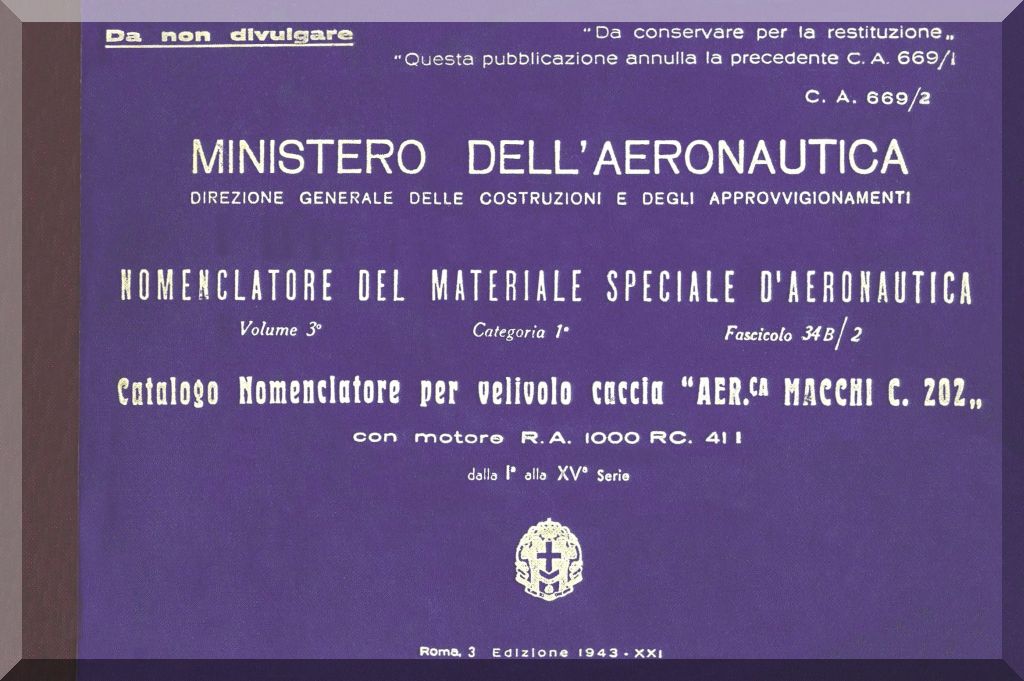

• Parts Catalogs – Illustrated parts breakdowns with nomenclature and part numbers
• Technical Orders – Official modifications, updates, and service bulletins
• Structural Repair Manuals – Airframe repair procedures and specifications
• Systems Documentation – Powerplant (DB 601/RA.1000), armament, hydraulic, and control systems
• Armament Documentation – Weapons systems operation and maintenance procedures
• Engineering Drawings – Technical diagrams and specifications

Digital Delivery

All manuals are delivered as high-resolution PDF files, optimized for both screen viewing and printing. Download immediately after purchase and access your files anytime from your account. Perfect for reference, restoration projects, or building your aviation library.

Format: PDF (Digital Download)
Delivery: Instant access after purchase
Compatibility: All devices and operating systems

Disclaimer: Sold for historical and reference purposes only. These original or reproduced manuals and blueprints are transferred to electronic format from active-duty archives. Not intended for current certification or repair work. Ideal for scholars, collectors, modelers, and aviation enthusiasts. We provide civil manuals and blueprints on obsolete aircraft, engines, and helicopters for proprietary reasons. Information is for reference only; completeness and accuracy are not guaranteed.
