Comprehensive Macchi Castoldi M.C. 200 Saetta Technical Documentation
This digital collection assembles authentic technical manuals for one of Italy's most important World War II fighters. The Macchi Castoldi M.C. 200 Saetta (Lightning) served as the backbone of the Regia Aeronautica's fighter force during the early war years, seeing action across multiple theaters. These original documents provide detailed specifications and procedures used by Italian pilots and maintenance crews during the aircraft's combat service.
Historical Note
The Macchi Castoldi M.C. 200 Saetta entered service with the Regia Aeronautica in 1939 as Italy's first modern all-metal monoplane fighter with retractable landing gear and an enclosed cockpit. Designed by Mario Castoldi—the brilliant engineer behind Macchi's record-breaking seaplanes of the 1930s—the M.C. 200 represented a significant technological leap from the biplane fighters that had dominated Italian aviation through the mid-1930s.
Powered by a Fiat A.74 RC.38 radial engine producing 870 horsepower, the Saetta featured clean aerodynamic lines and a robust structure that made it exceptionally maneuverable. The aircraft's relatively light weight and low wing loading gave it outstanding turning ability—a characteristic that would prove valuable in combat. However, the decision to use an Italian radial engine rather than more powerful inline engines limited top speed to around 312 mph, making it slower than many contemporary fighters.
The M.C. 200's armament of two 12.7mm Breda-SAFAT machine guns mounted in the upper fuselage was considered light even by 1940 standards, though the weapons' reliability and the aircraft's stable gun platform characteristics partially compensated for the limited firepower. Some pilots initially resisted the enclosed cockpit, preferring the better visibility of open cockpits, leading to field modifications that removed the rear canopy section on many aircraft.
Despite these limitations, the Saetta proved to be an effective fighter when flown by skilled pilots who exploited its excellent maneuverability. The aircraft saw extensive combat across multiple theaters including North Africa, the Mediterranean, the Balkans, and the Eastern Front. M.C. 200s participated in the Battle of Britain (in limited numbers), fought over Malta, supported Axis operations in Greece and Yugoslavia, and served with the Italian expeditionary force in Russia during 1941-1942.
In North Africa, the Saetta became the workhorse of Italian fighter squadrons, engaging British Hurricanes, Tomahawks, and Kittyhawks in the desert air war. Italian pilots praised the aircraft's rugged construction, which allowed it to absorb battle damage and continue flying—a critical quality in the harsh desert environment far from repair facilities. The M.C. 200's wide-track landing gear also proved advantageous when operating from rough desert airstrips.
On the Eastern Front, M.C. 200s operated in the demanding conditions of the Russian winter, demonstrating remarkable reliability despite extreme cold and primitive operating conditions. Italian pilots flying Saettas achieved notable successes against Soviet aircraft, with the type proving effective against I-16s and early model Yak fighters, though it struggled against more modern Soviet types that appeared later.
Over 1,150 M.C. 200s were produced between 1939 and 1942, making it one of the most numerous Italian fighters of World War II. The type equipped numerous squadrons and served as the Regia Aeronautica's primary fighter until more advanced designs like the M.C. 202 Folgore (powered by German inline engines) entered service in significant numbers during 1942.
Following Italy's September 1943 armistice, M.C. 200s served with both the Italian Co-Belligerent Air Force in the south and the Aeronautica Nazionale Repubblicana in the north, though by this stage the type was increasingly relegated to training and secondary roles as more modern fighters became available. Some Saettas continued flying until the war's end, testament to the aircraft's durability and the affection pilots felt for its handling characteristics.
Today, the Macchi Castoldi M.C. 200 Saetta is remembered as an important transitional design in Italian aviation—a fighter that introduced modern construction techniques while retaining the emphasis on maneuverability that characterized Italian fighter philosophy. While it lacked the speed and firepower of the best Allied and German fighters, the M.C. 200 served honorably across multiple theaters and provided the foundation for the more capable M.C. 202 and M.C. 205 that followed. No complete examples survive, making documentation of this historically significant fighter particularly valuable.

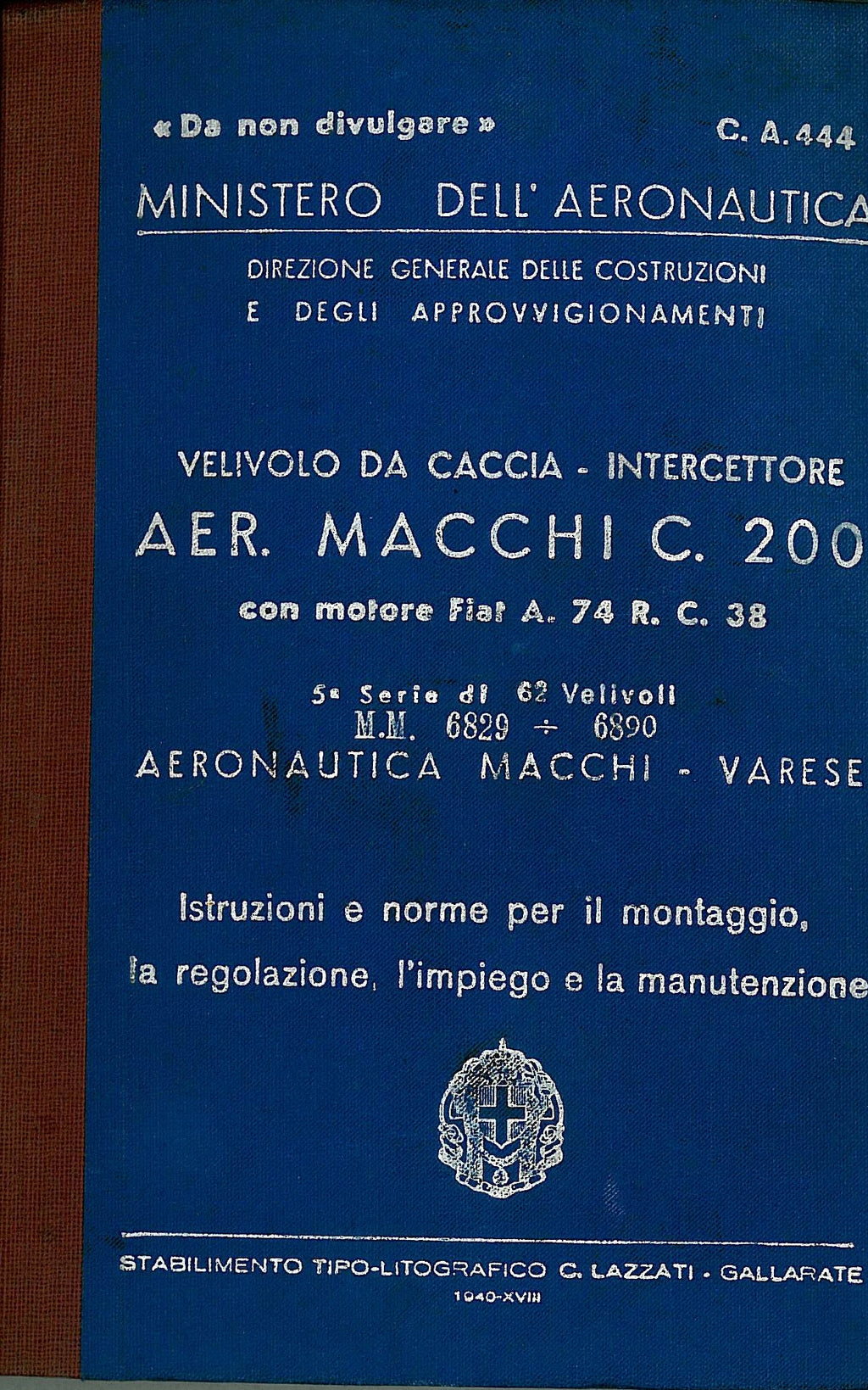

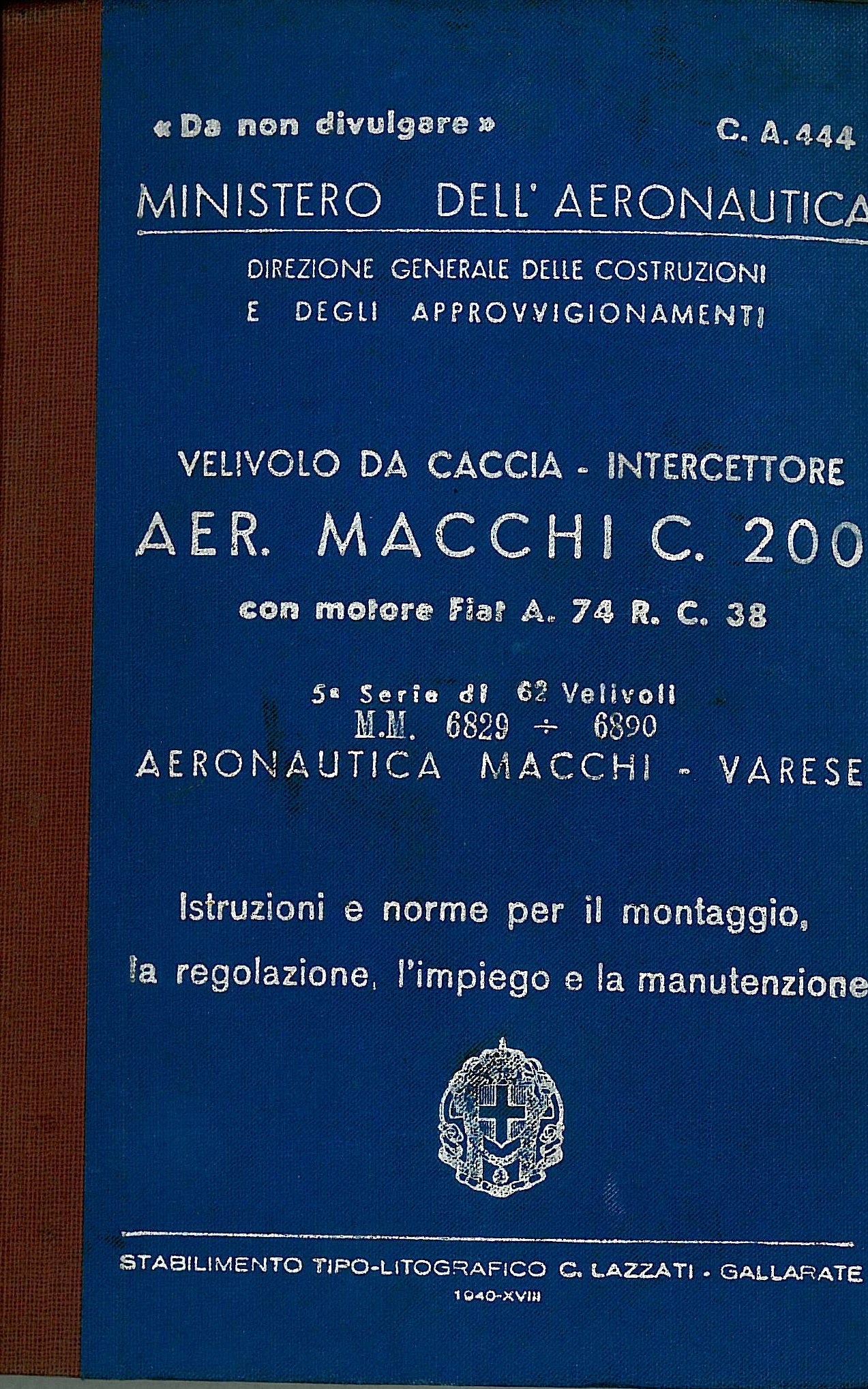

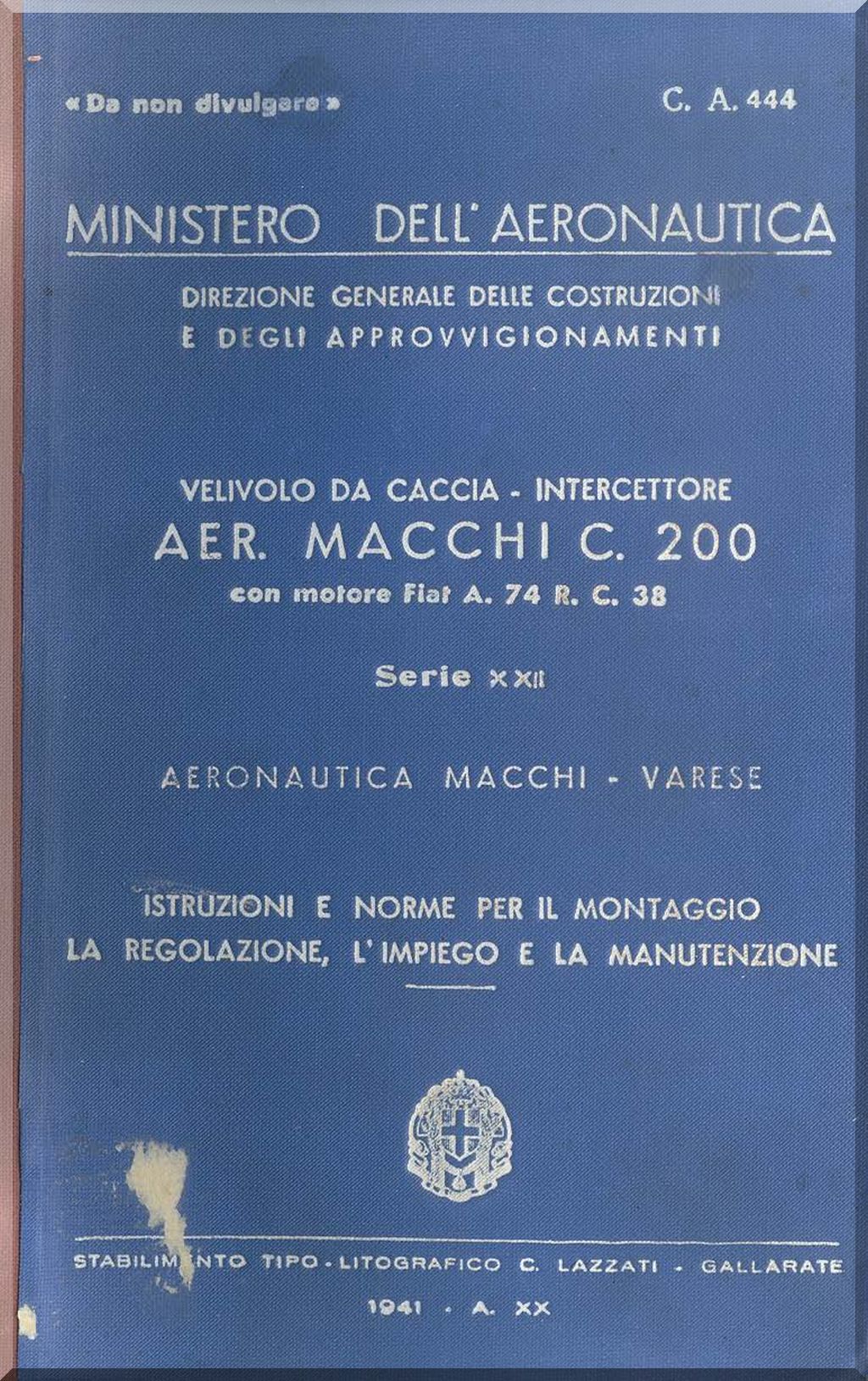

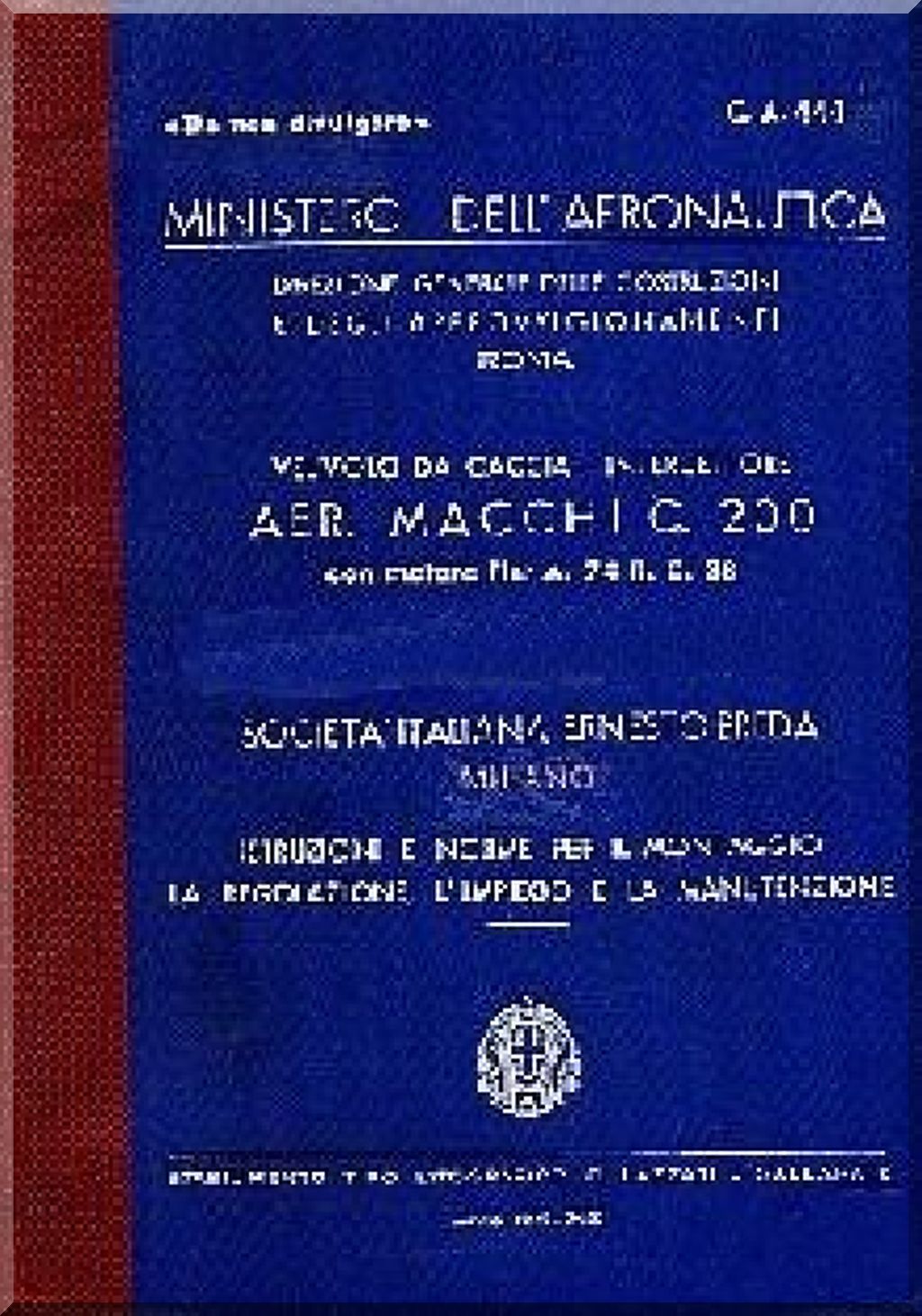

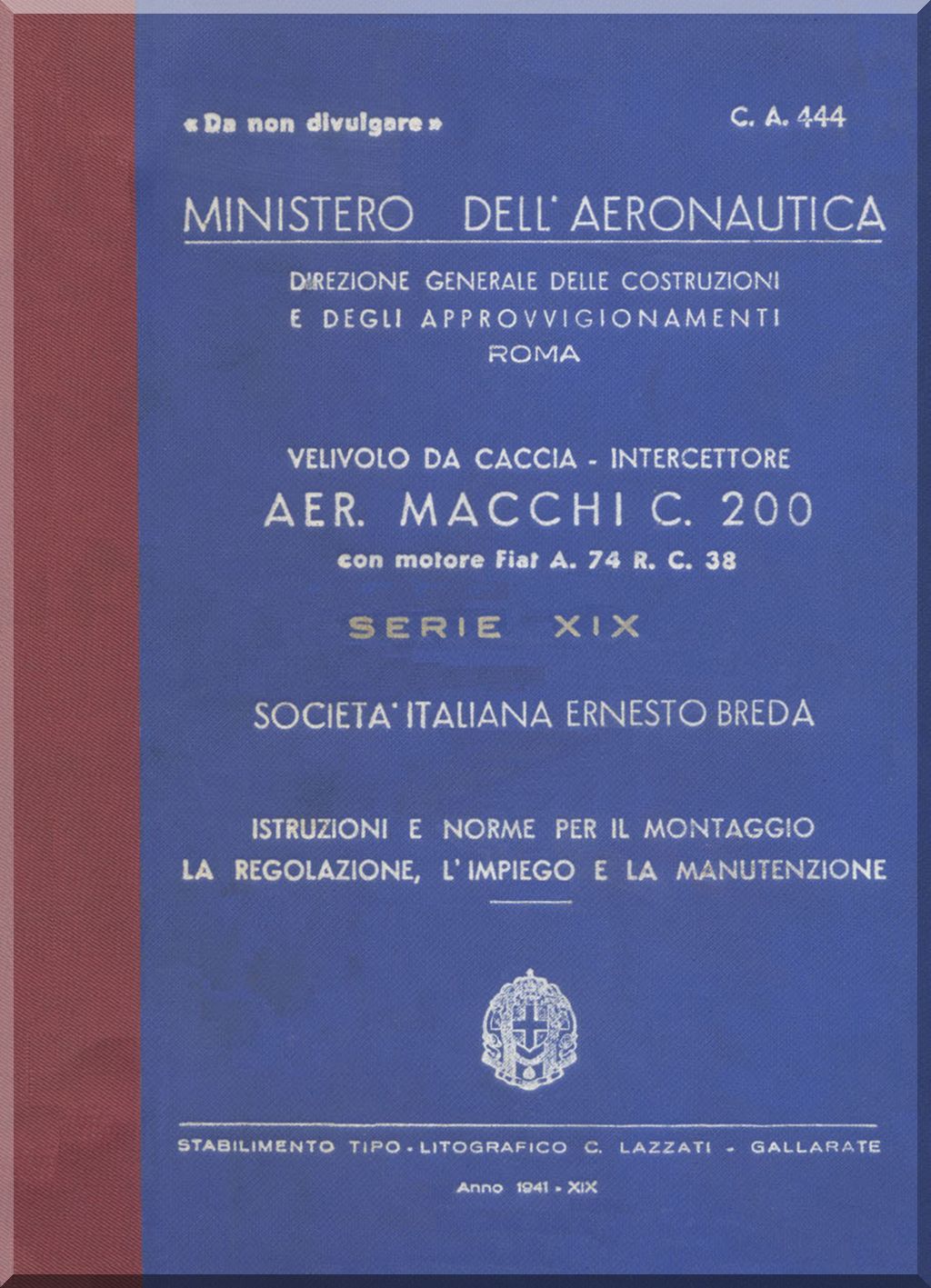

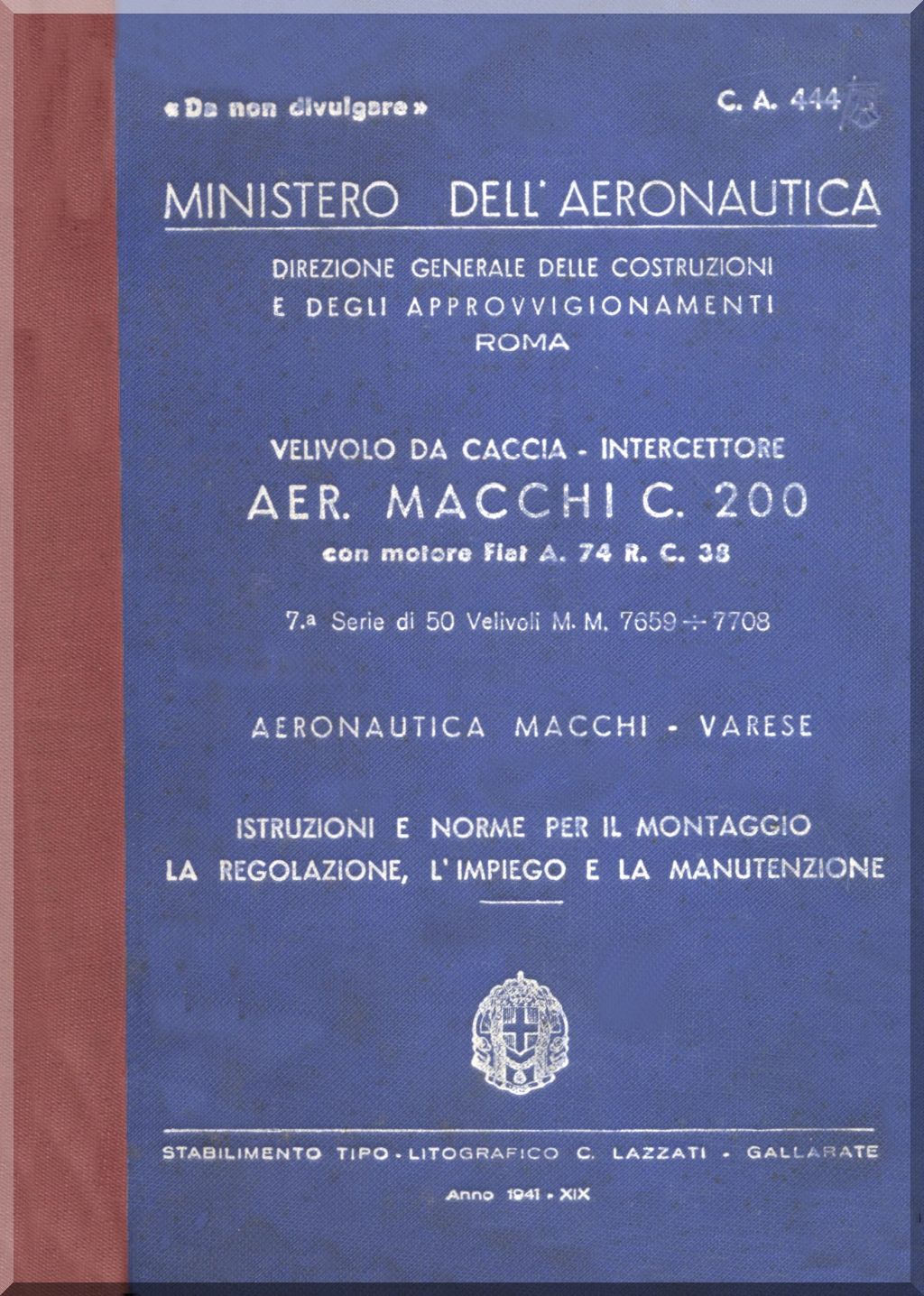

What's Included
This collection contains essential technical references for the Macchi Castoldi M.C. 200 Saetta:
- Pilot Operating Handbooks – Complete flight procedures, performance data, and emergency protocols
- Maintenance Instructions – Detailed servicing procedures, inspection schedules, and troubleshooting guides

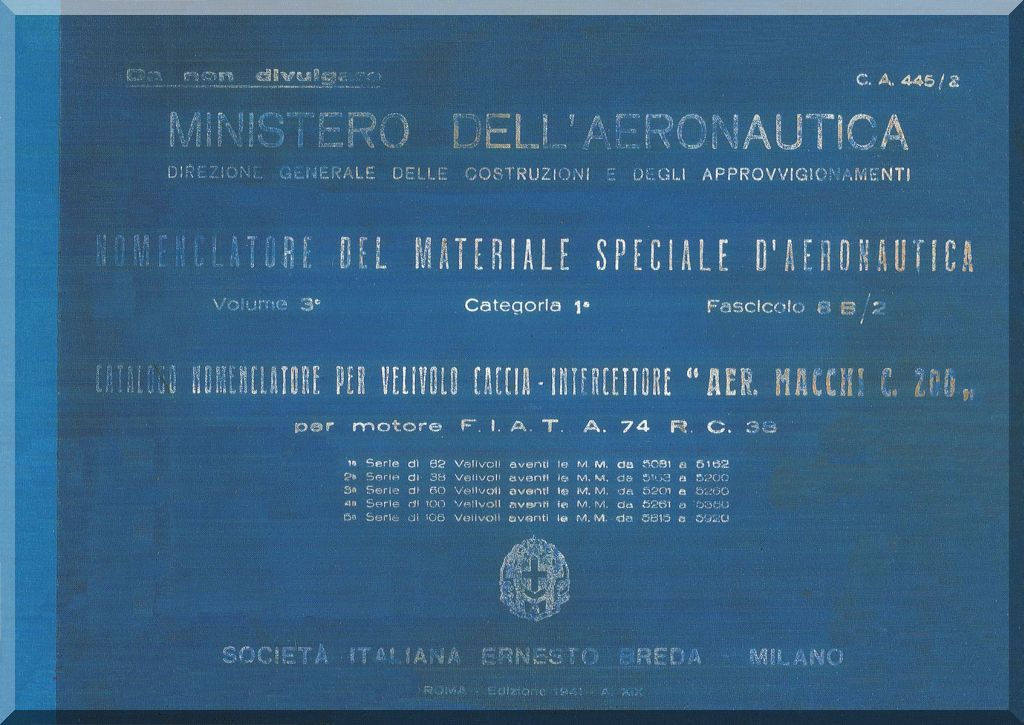

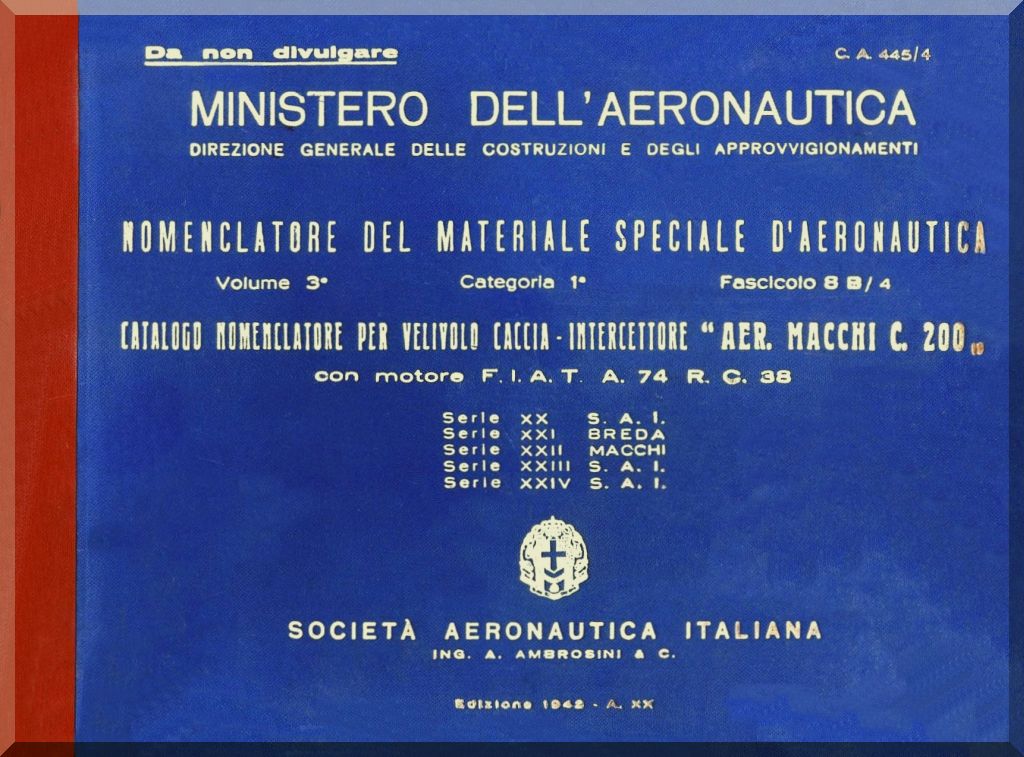

- Parts Catalogs – Illustrated parts breakdowns with nomenclature and part numbers
- Technical Orders – Official modifications, updates, and service bulletins
- Structural Repair Manuals – Airframe repair procedures and specifications
- Systems Documentation – Powerplant, armament, hydraulic, and control systems
- Engineering Drawings – Technical diagrams and specifications
Digital Delivery
All manuals are delivered as high-resolution PDF files, optimized for both screen viewing and printing. Download immediately after purchase and access your files anytime from your account. Perfect for reference, restoration projects, or building your aviation library.
Format: PDF (Digital Download)
Delivery: Instant access after purchase
Compatibility: All devices and operating systems
Disclaimer: Sold for historical and reference purposes only. These original or reproduced manuals and blueprints are transferred to electronic format from active-duty archives. Not intended for current certification or repair work. Ideal for scholars, collectors, modelers, and aviation enthusiasts. We provide civil manuals and blueprints on obsolete aircraft, engines, and helicopters for proprietary reasons. Information is for reference only; completeness and accuracy are not guaranteed.
