Lockheed P/F-80 Shooting Star — Primary-Source Documentation Archive
The engineering, aerodynamic, and performance data for the Lockheed F-80 (P-80) Shooting Star represents America's transition into the jet age. This archival collection compiles original flight manuals, structural repair handbooks, erection and maintenance instructions, illustrated parts breakdowns, inspection guides, service bulletins, and NACA test reports — the definitive primary-source record of the first operational American jet fighter.
1. Aerodynamic Reports
The F-80 features a distinct low-wing, straight laminar-flow profile designed to minimize drag at high subsonic speeds.
- Wing Profile: NACA 65-213 airfoil at the root, tapering to NACA 65-210 at the tip — a specialized laminar-flow design maintaining smooth boundary-layer flow across a broader wing chord.
- Wing Configuration: Straight wings with flush riveting and smooth skin to reduce parasitic drag. Aspect ratio 6.37, maximizing structural rigidity under high-G maneuvering loads.
- Compressibility Control: Hydraulically actuated dive recovery flaps beneath the fuselage counteract the severe nose-down pitching moment caused by shock-wave formation during high-Mach dives.
- Intake Interaction: High-speed wind tunnel testing revealed localized flow separation near the wing-root air intakes, remedied by boundary-layer splitter plates.
2. Engine Technical Notes
The operational F-80 fleet was powered by the Allison J33 turbojet — a mass-production derivative of the centrifugal-flow General Electric I-40.
| Parameter | F-80A (Allison J33-A-9/11) | F-80C (Allison J33-A-35) |
|---|---|---|
| Compressor Type | Centrifugal-flow, single-stage | Centrifugal-flow, single-stage |
| Maximum Thrust | 3,850 lbf | 4,600 lbf (5,400 lbf w/ injection) |
| Water-Alcohol Injection | Not equipped | Equipped (hot-and-high performance) |
| Engine RPM | ~11,500 RPM | ~11,750 RPM |
- Combustion Assembly: 14 interconnected can-type combustion chambers fed by dual side intakes flanking the cockpit.
- Throttle Response: Mechanical linkages on early J33 engines suffered from lag — rapid throttle advance at altitude routinely provoked compressor stalls or hot starts.
3. Handling and Stability Studies
NACA flight tests under report series AN 01-75F mapped the flying qualities of the F-80A.
- Longitudinal Stability: Strong static longitudinal stability in clean, power-on configurations. High elevator control forces during high-speed maneuvering required significant pilot effort prior to hydraulic boost integration.
- Lateral and Directional Dynamics: Directional stability met baseline AAF requirements. Above Mach 0.75, high-speed “snaking” (yaw oscillations) degraded effectiveness as a gun platform.
- Wing-Tip Tank Hazards: 165- or 230-gallon wing-tip tanks introduced negative lateral stability, generating severe roll inertia and accelerating asymmetric stall tendencies during hard turns.
4. Performance Data
Standardized data from the USAF F-80 Series Flight Manual (T.O. 1F-80A-1):
- Maximum Level Velocity: 594 mph (Mach 0.78) at sea level · 543 mph at 25,000 ft
- Initial Climb Rate: ~5,200 ft/min at sea level
- Time to 30,000 ft: 7.5 minutes
- Service Ceiling: 46,800 ft
- Takeoff Ground Run (14,000 lb GW): 2,850 ft · Over 50-ft obstacle: 4,200 ft
- Landing Ground Roll: 2,100 ft
5. Engineering Bulletins
Lockheed and the Air Materiel Command issued structural bulletins targeting vulnerabilities identified during deployment.
- Fuselage Structural Integrity: High-stress maneuvers caused distortion at the transport joint (tail detach point for engine swaps) — reinforcement splices mandated across production lines.
- Fuel Plumbing Revisions: Tank pressurization systems modified to prevent vapor lock during rapid high-altitude climbs.
- Aileron Boost Backlash: Strict maintenance tolerances introduced for hydraulic control valves to eradicate aileron buzz caused by loose mechanical play at high airspeeds.
Document Manifest — Collection Contents

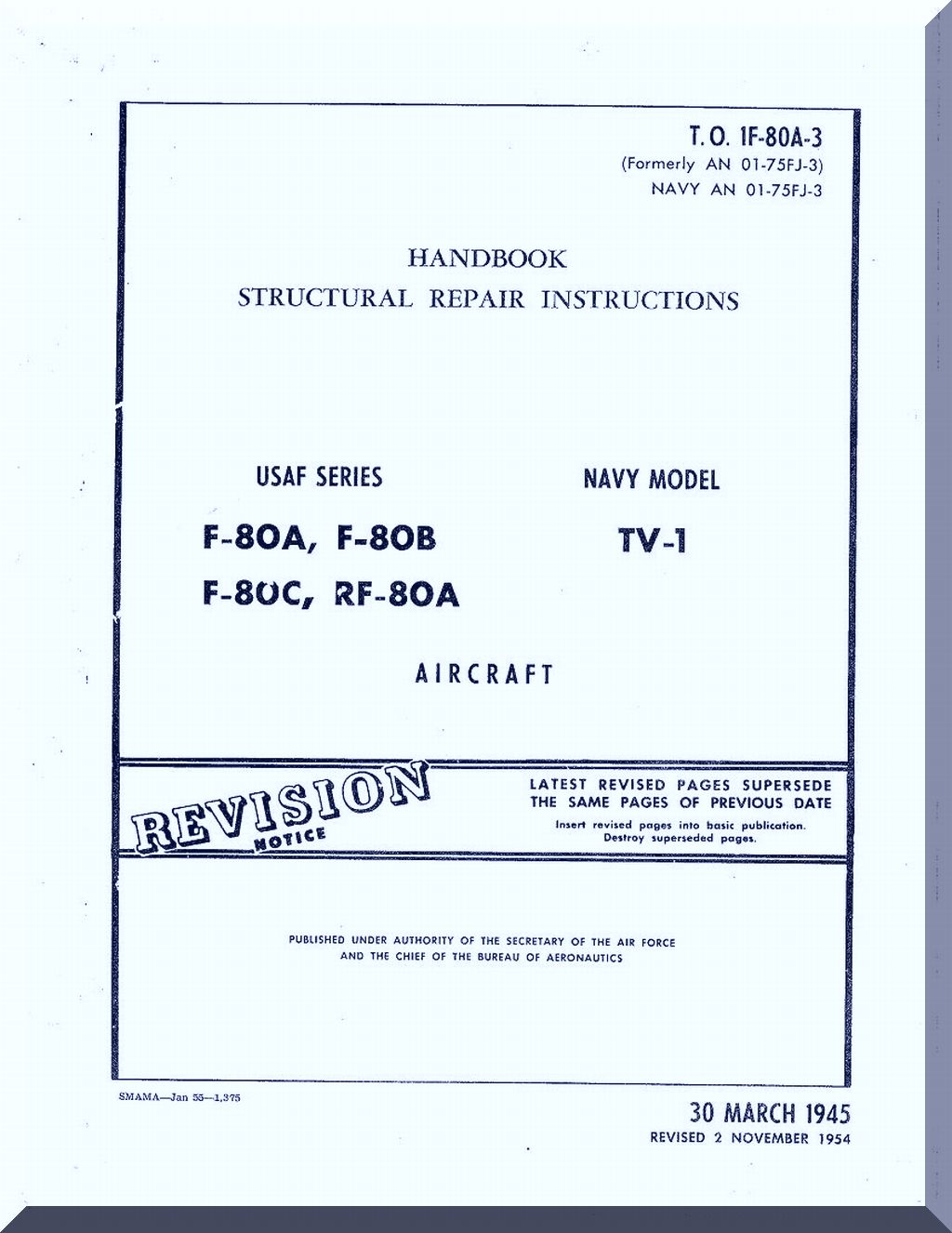

- T.O. 1F-80A-3 (formerly AN 01-75FJ-3 / Navy AN 01-75FJ-3) — Handbook Structural Repair Instructions · USAF F-80A, F-80B, F-80C, RF-80A / Navy TV-1 · 30 March 1945, Revised 2 November 1954

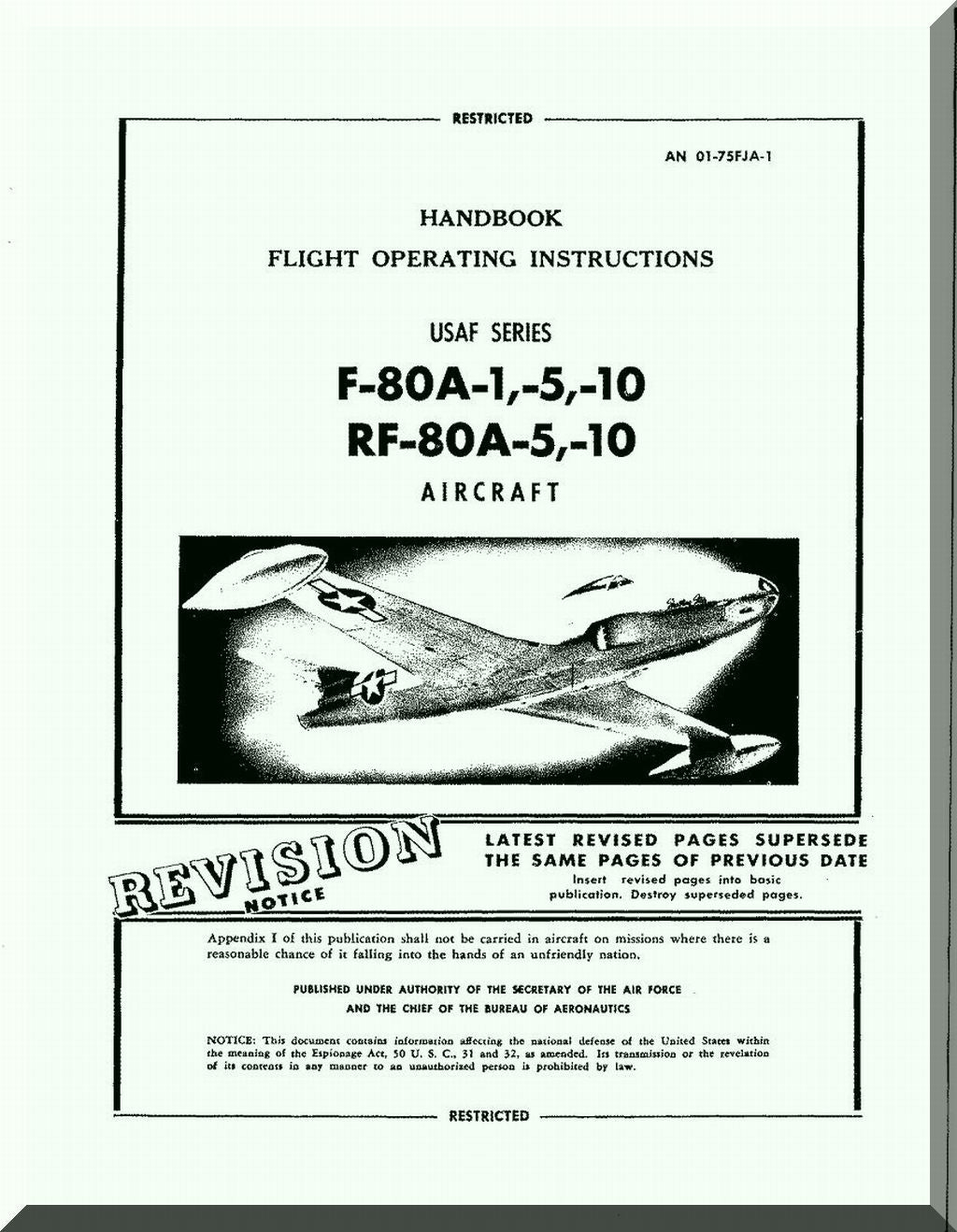

- AN 01-75FJA-1 — Handbook Flight Operating Instructions · USAF F-80A-1, -5, -10 / RF-80A-5, -10 · [early edition, undated on cover]

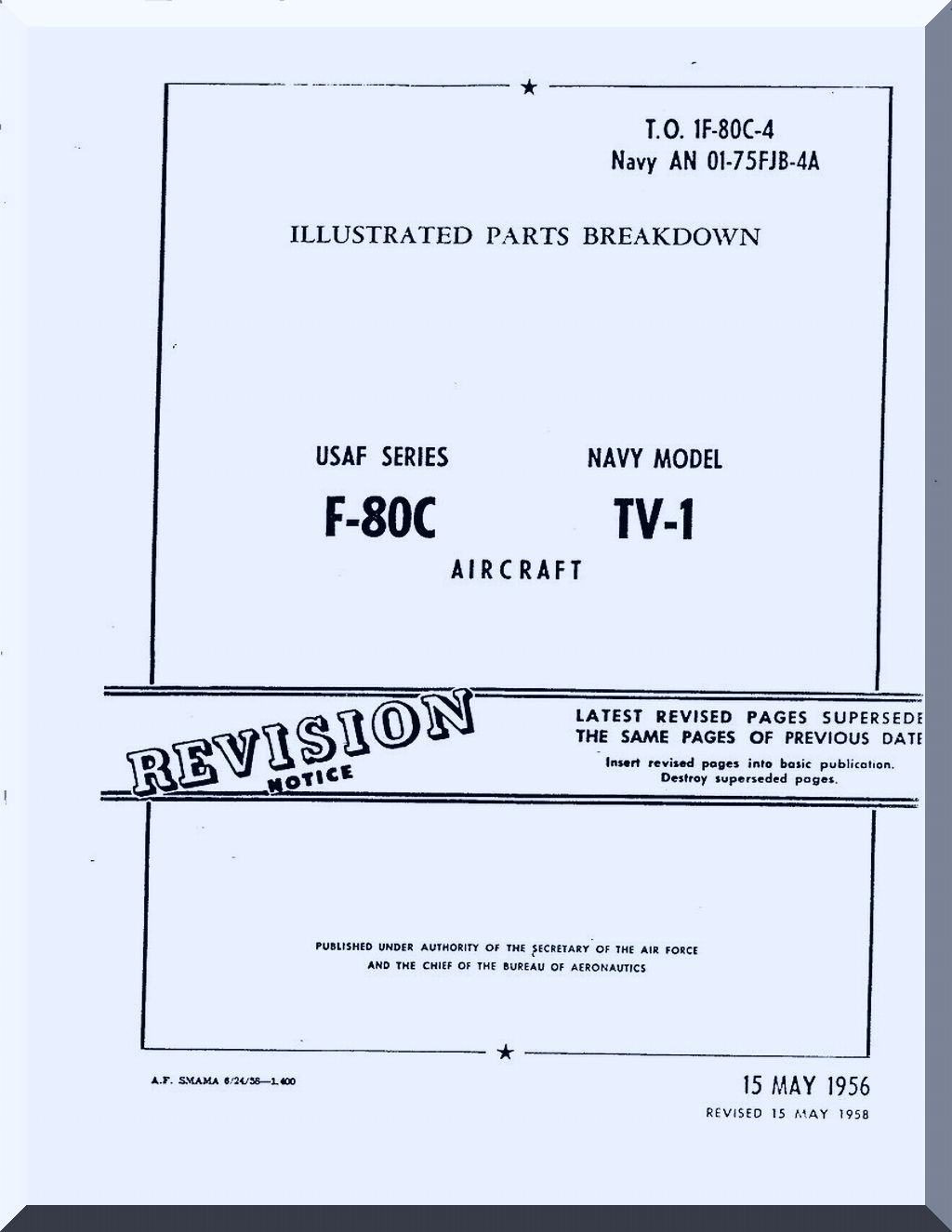

- T.O. 1F-80C-4 / Navy AN 01-75FJB-4A — Illustrated Parts Breakdown · USAF F-80C / Navy TV-1 · 15 May 1956, Revised 15 May 1958

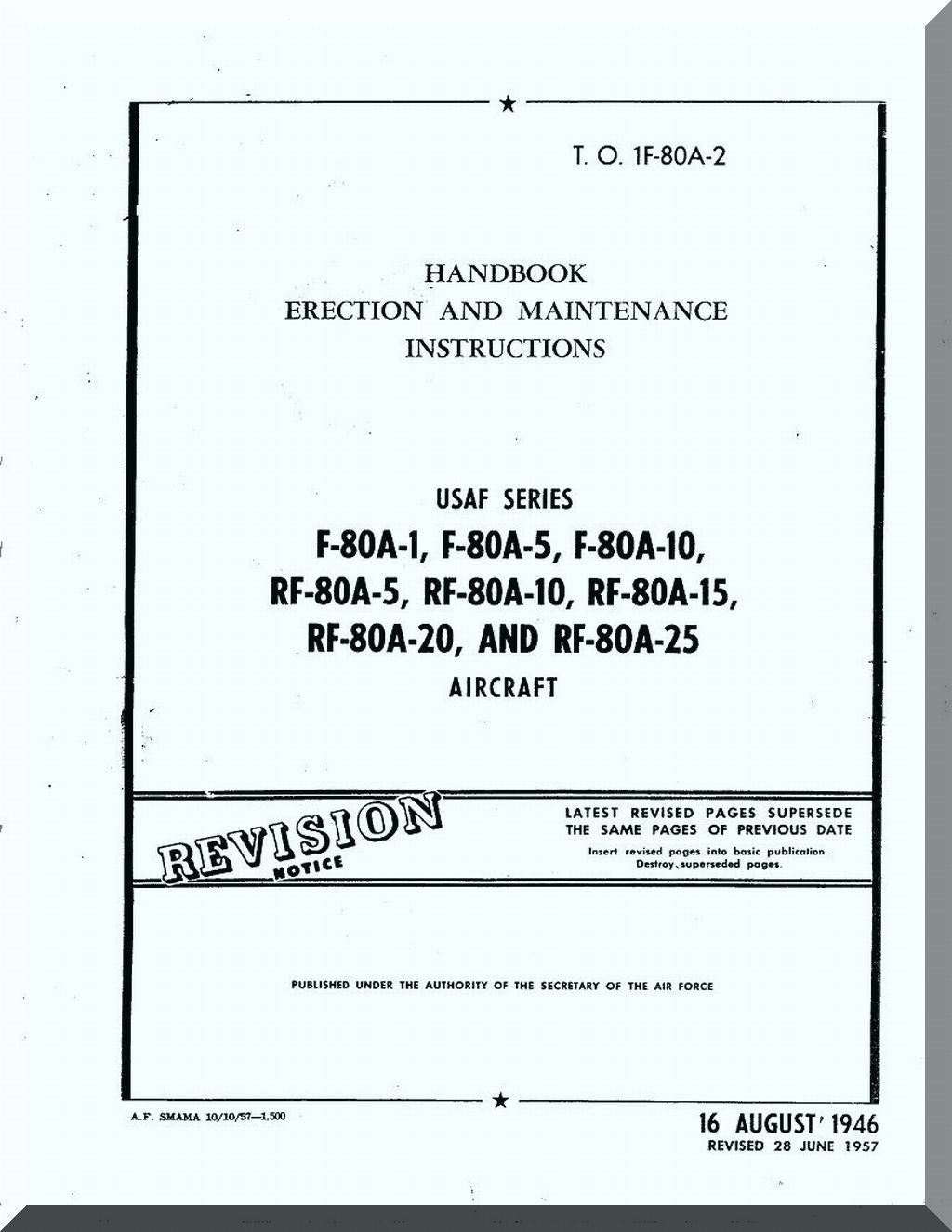

- T.O. 1F-80A-2 — Handbook Erection and Maintenance Instructions · USAF F-80A-1, -5, -10 / RF-80A-5, -10, -15, -20, -25 · 16 August 1946, Revised 28 June 1957
- AN 01-75FJA-1 — Handbook Flight Operating Instructions · USAF F-80A-1, -5, -10 / RF-80A-5, -10, -15, -20, -25 · 4 June 1947, Revised 15 March 1953

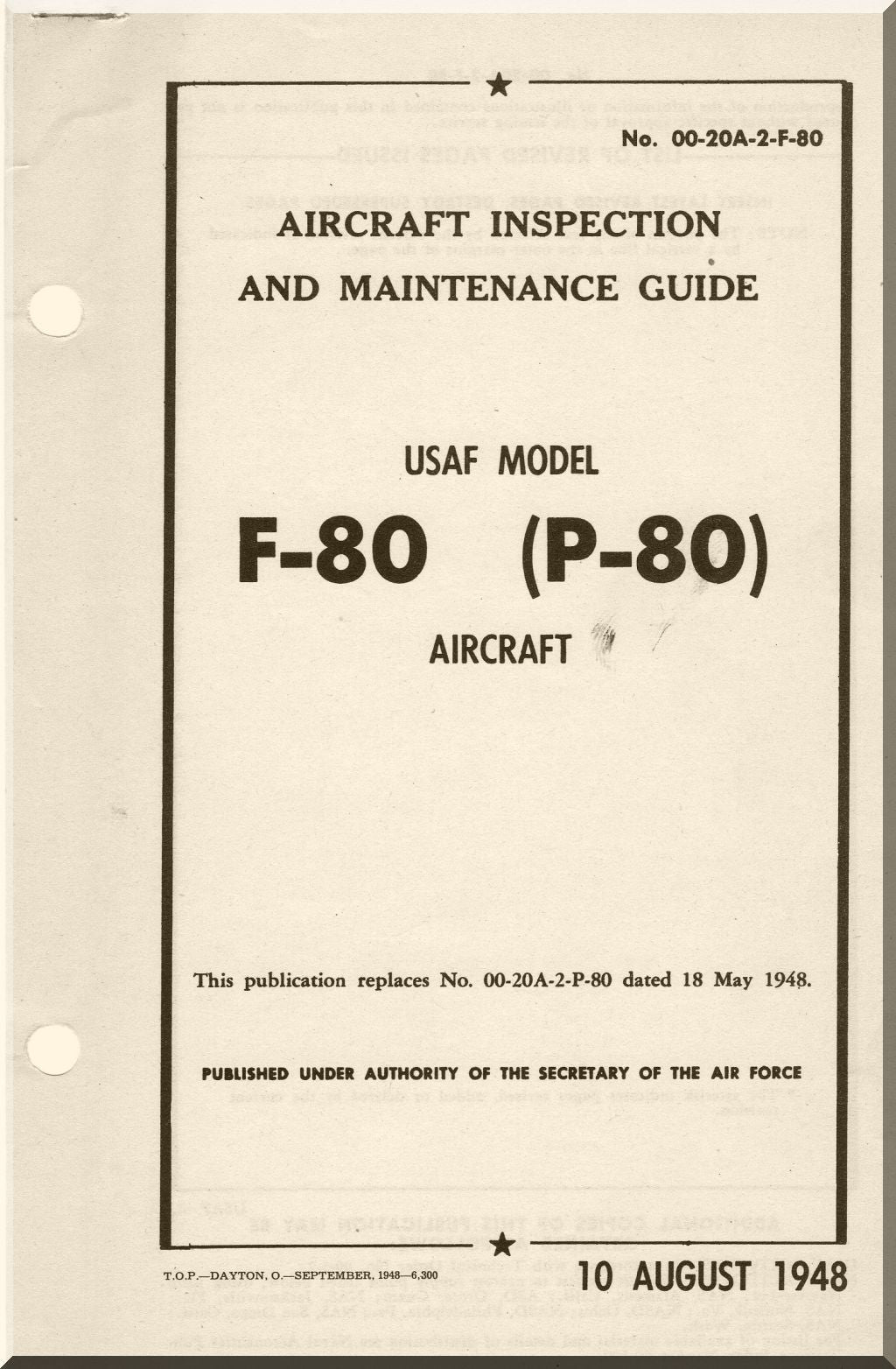

- No. 00-20A-2-F-80 — Aircraft Inspection and Maintenance Guide · USAF F-80 (P-80) · 10 August 1948
- Parts Catalog — USAF Series F-80A / RF-80A

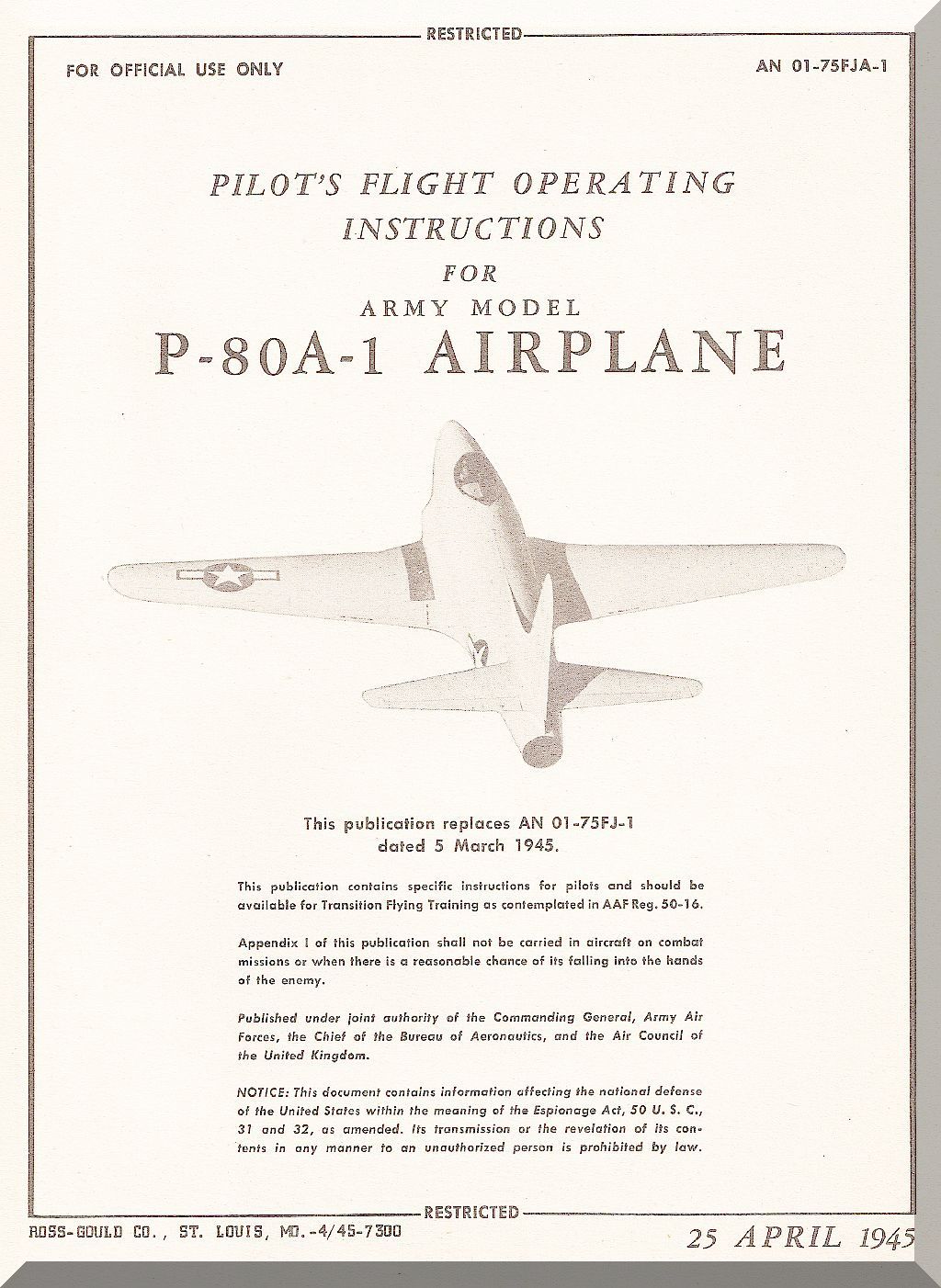

- P-80A-1 Flight Manual
- T-33 / F-80 Service Bulletins

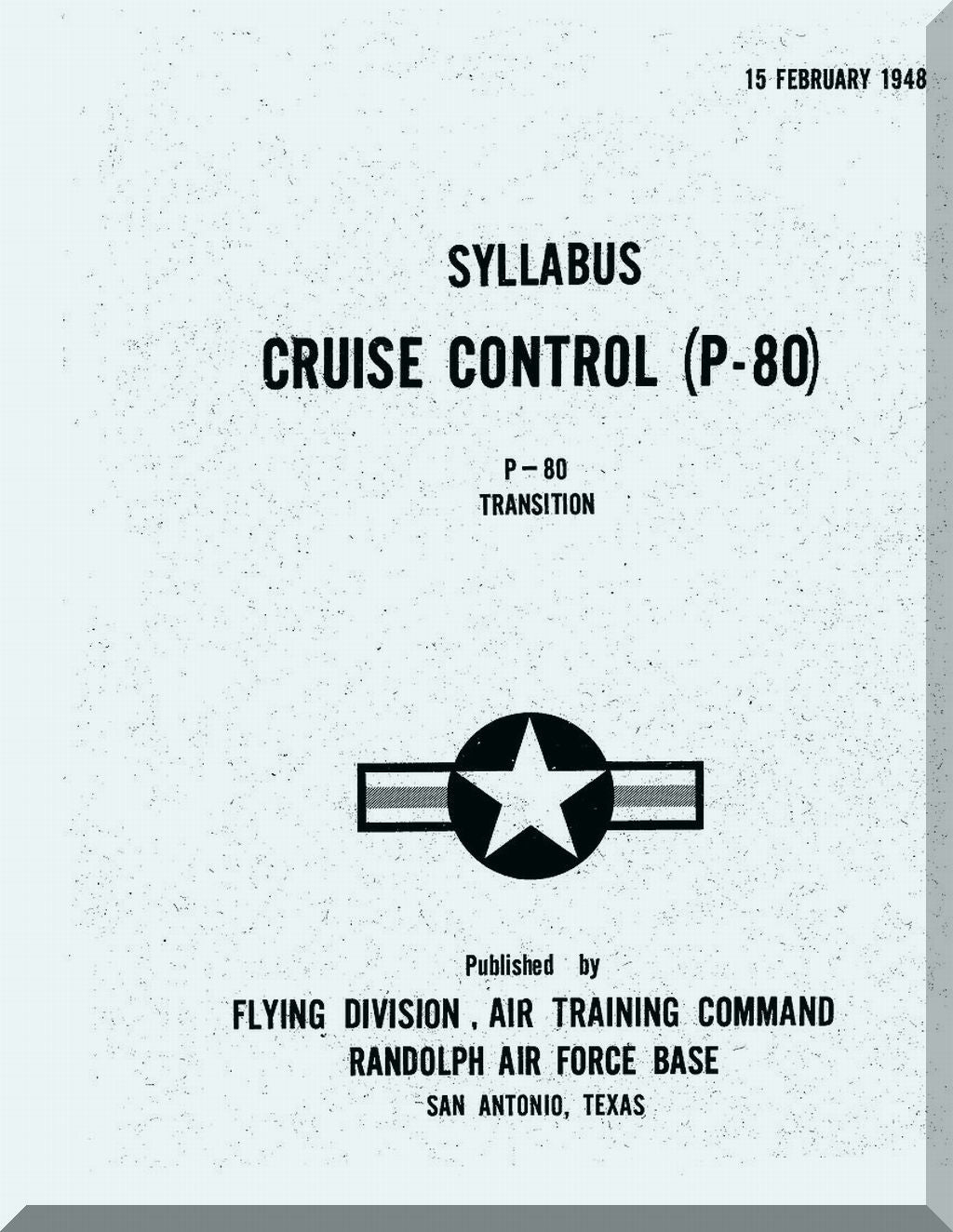

- Syllabus — Cruise Control P-80
This collection contains 10 unique documents — Living Collection, additional documents added as they enter the archive.
This is an archival, static-copy edition fixed at its original publication date. Intended for historical reference, flight simulation, museum restoration, and educational use only. Not approved for active airworthiness maintenance under FAA 14 CFR § 43.13, EASA Part-M, or equivalent international regulations. Operators of active aircraft must use current, revision-controlled publications from the Type Certificate holder or an authorized distributor.
