Electra & Electra Junior Aircraft Manuals Collection — Eight Primary-Source Documents

In 1934, Lockheed changed the course of commercial aviation with a single design decision: build small, build fast, build all-metal. The Model 10 Electra was the result — a twin-engine, low-wing monoplane that made the fabric-and-wire biplanes of the previous decade look like relics overnight. The Model 12 Electra Junior followed as a scaled-down executive and military variant, faster and more agile, adopted by air forces on both sides of the Atlantic before the war began. This collection brings together eight original factory and military documents covering the full family: L-10, L-12, C-40, C-40A, and C-40B — from the drawing boards of Kelly Johnson to the flight lines of the USAAF.

The Eight Documents

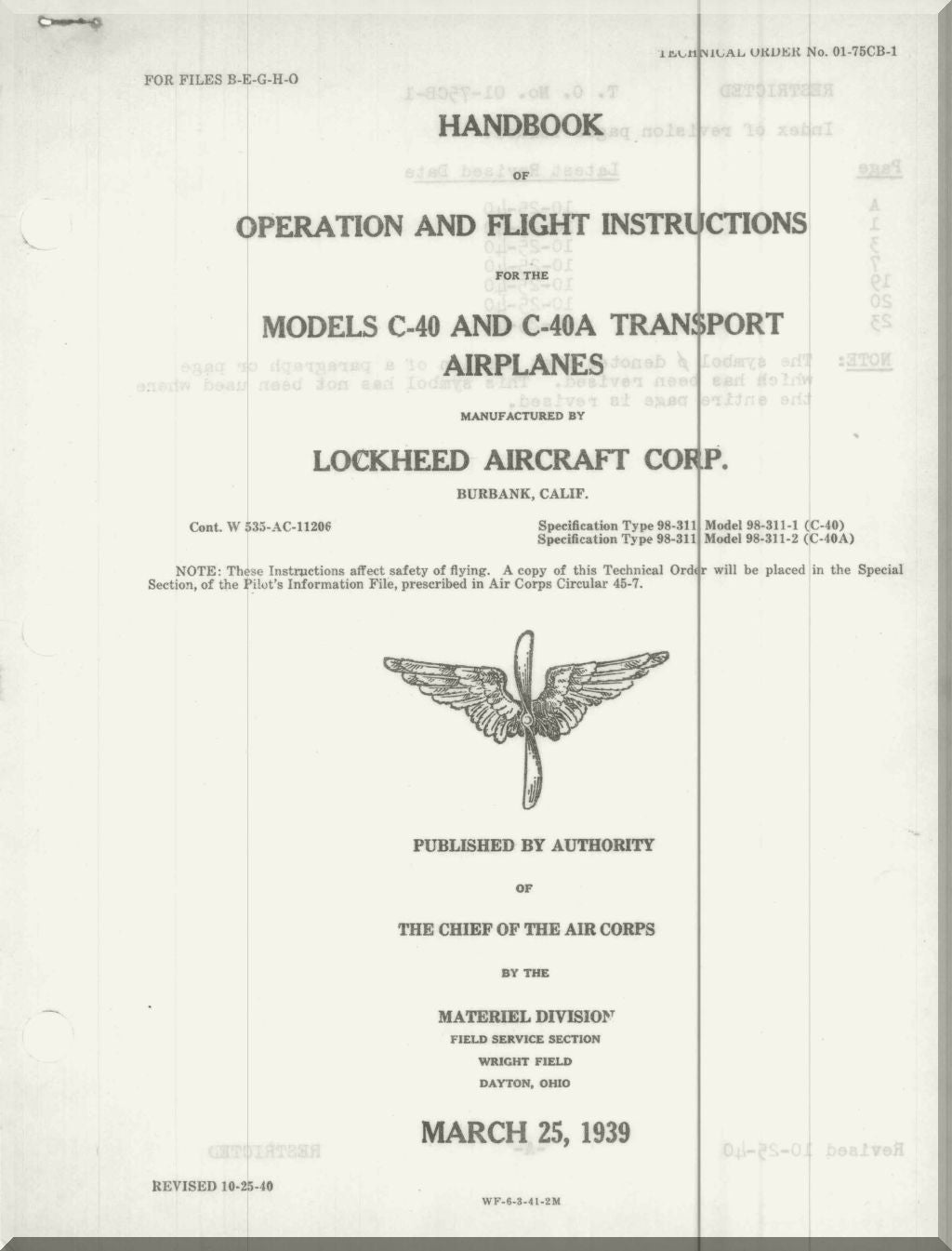

• Handbook of Operation and Flight Instructions — Models C-40 and C-40A Transport Airplanes · T.O. No. 01-75CB-1 · March 25, 1939 (Revised October 25, 1940)
  Lockheed Aircraft Corp., Burbank, California. Published by authority of the Chief of the Air Corps, Materiel Division, Field Service Section, Wright Field, Dayton, Ohio. Contract W 535-AC-11206. Specification Type 98-311, Models 98-311-1 (C-40) and 98-311-2 (C-40A). The primary military flight reference for the C-40 series.

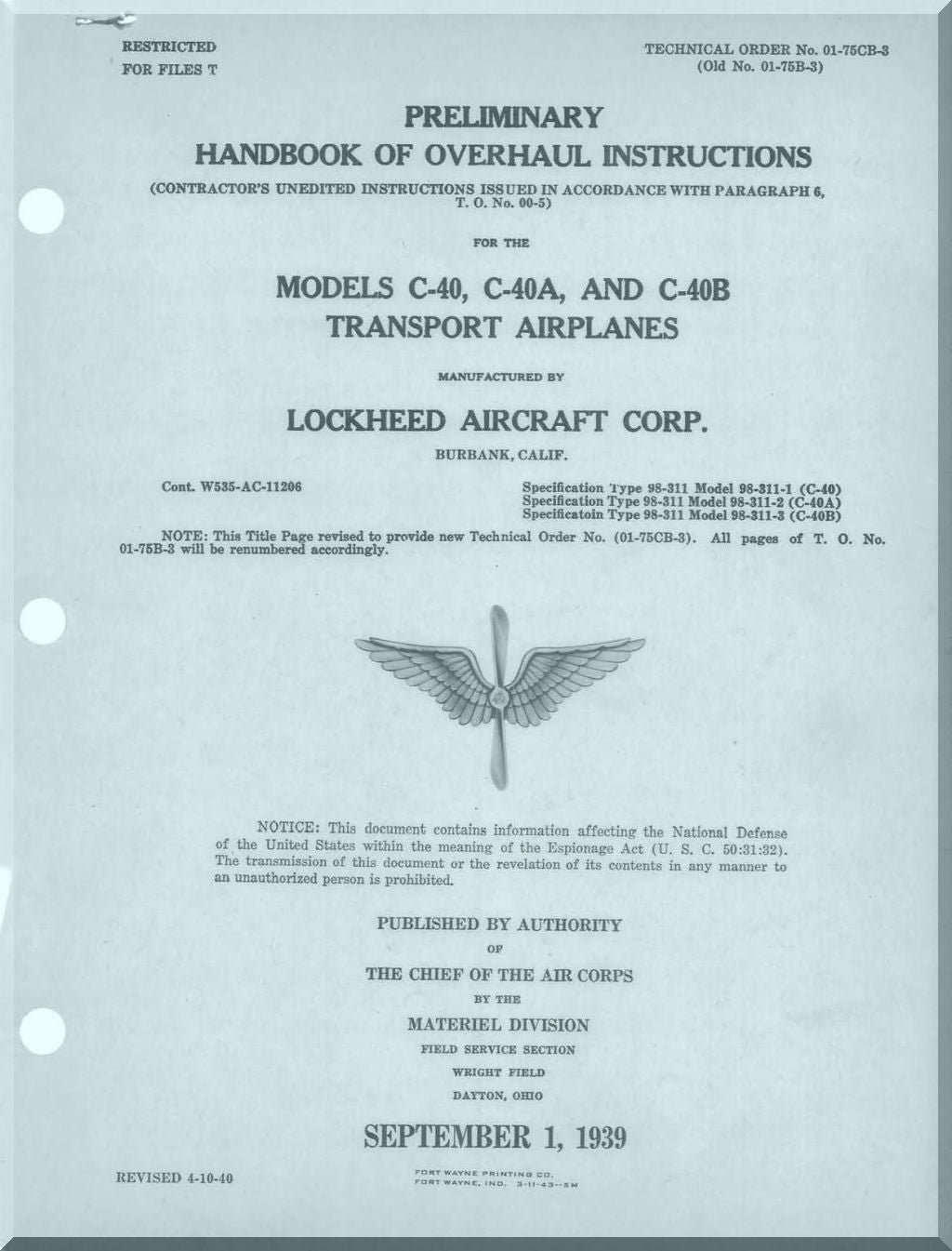

• Preliminary Handbook of Overhaul Instructions — Models C-40, C-40A, and C-40B Transport Airplanes · T.O. No. 01-75CB-3 (formerly 01-75B-3) · September 1, 1939 (Revised April 10, 1940)
  Restricted — For Official Use Only (declassified archival copy)
  Lockheed Aircraft Corp., Burbank, California. Contractor's unedited instructions issued in accordance with Paragraph 6, T.O. No. 60-5. Covers C-40, C-40A, and C-40B airframes. Published by the Chief of the Air Corps, Materiel Division, Wright Field. Printed by Fort Wayne Printing Co. A rare wartime overhaul reference covering all three C-40 sub-variants.

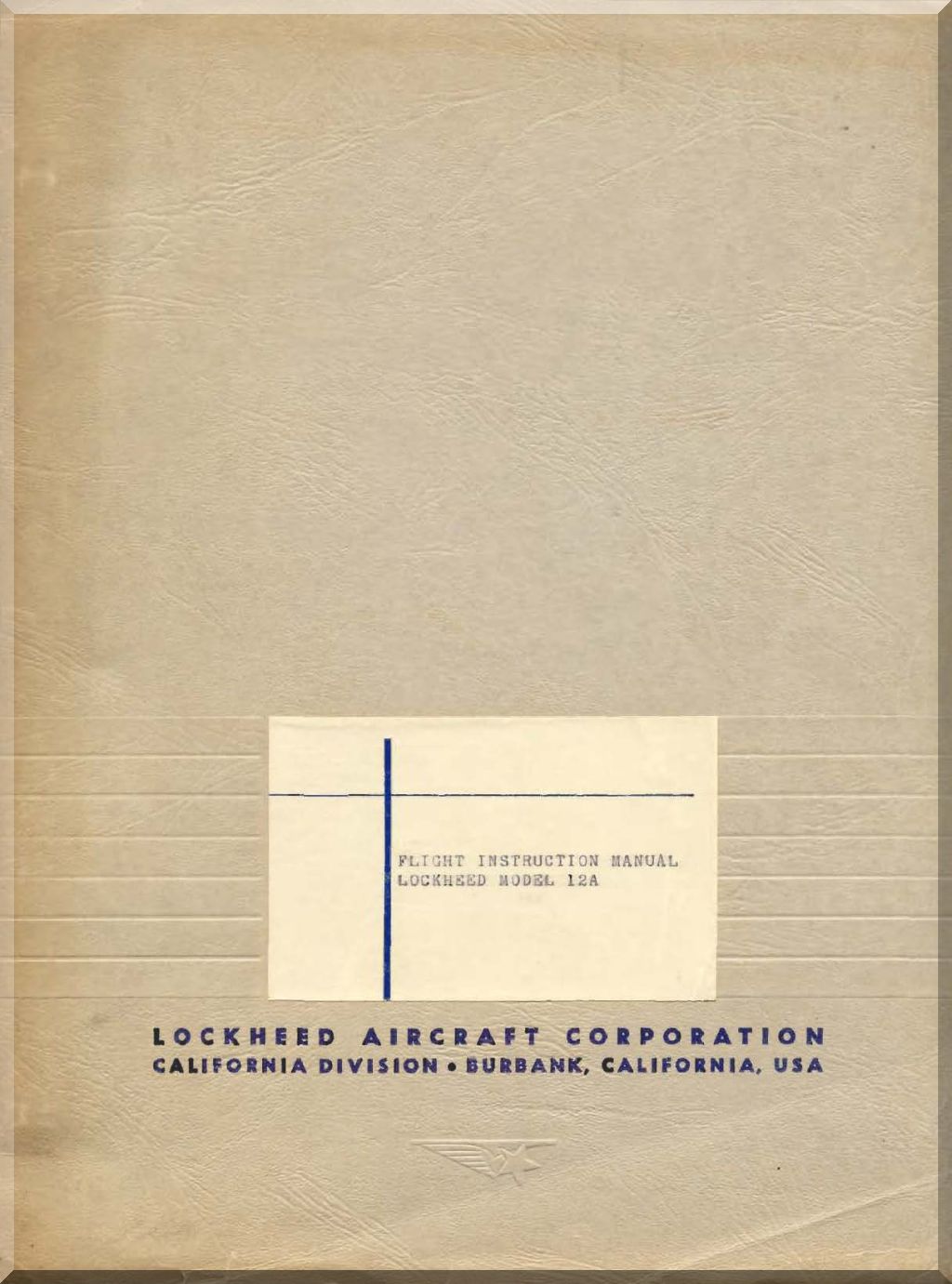

• Flight Instruction Manual — Model 12A
  Lockheed Aircraft Corporation, California Division, Burbank, California. The original factory pilot's handbook for the civil Model 12A Electra Junior, covering normal and emergency procedures, performance limitations, and systems operation.

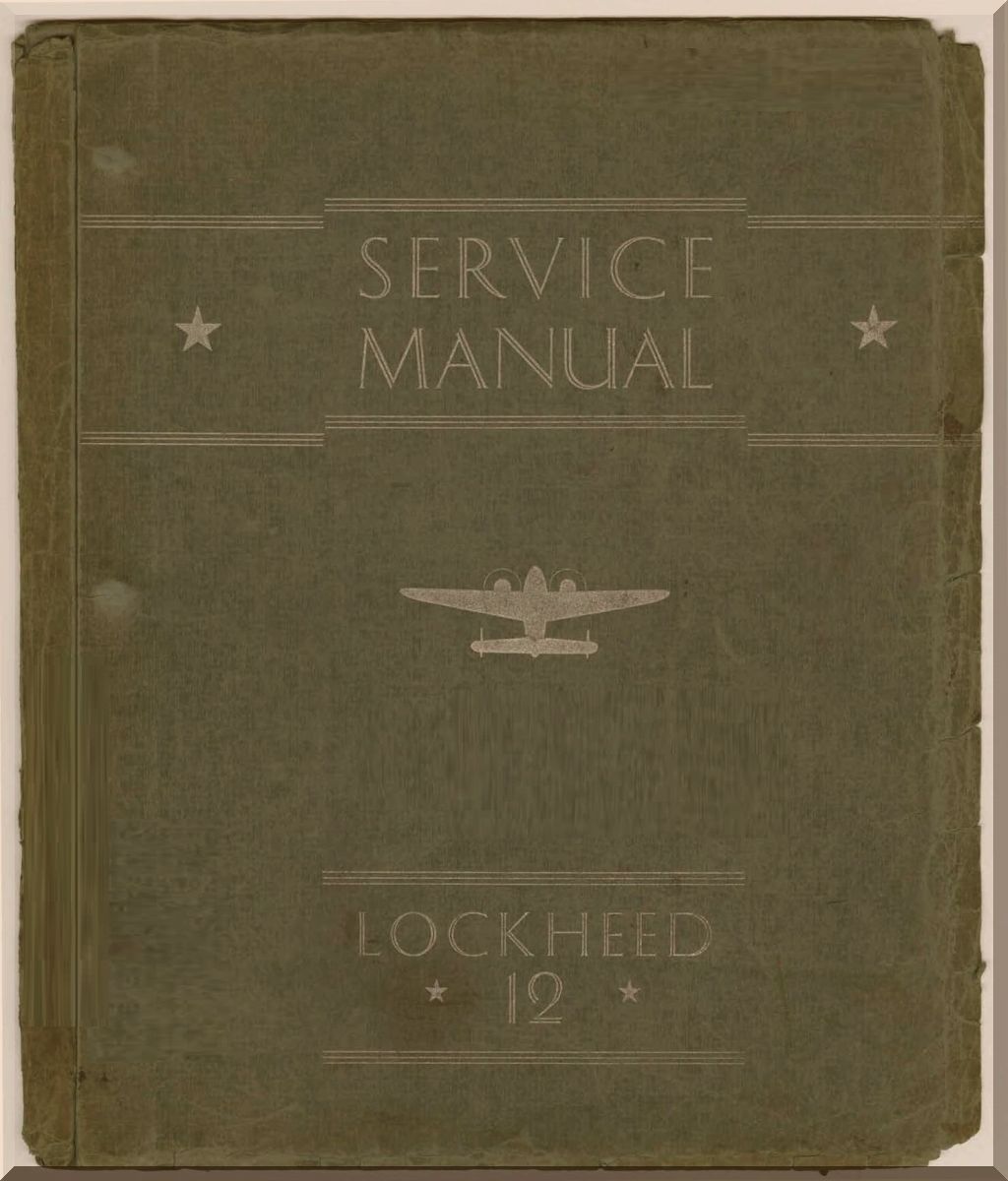

• Service Manual — Model 12
  Lockheed Aircraft Corporation. The original factory service manual in its distinctive olive-green cloth binding — a period artifact in its own right. Covers scheduled maintenance, lubrication, systems servicing, and inspection procedures for the Model 12 series.
• Model 12-A / 12-B — Service Department Copy
  Lockheed Aircraft Corporation. Internal service department log copy with aircraft serial number, engine numbers, engine make, and license number fields — a working document from active operator use. Covers Models 12-A and 12-B.

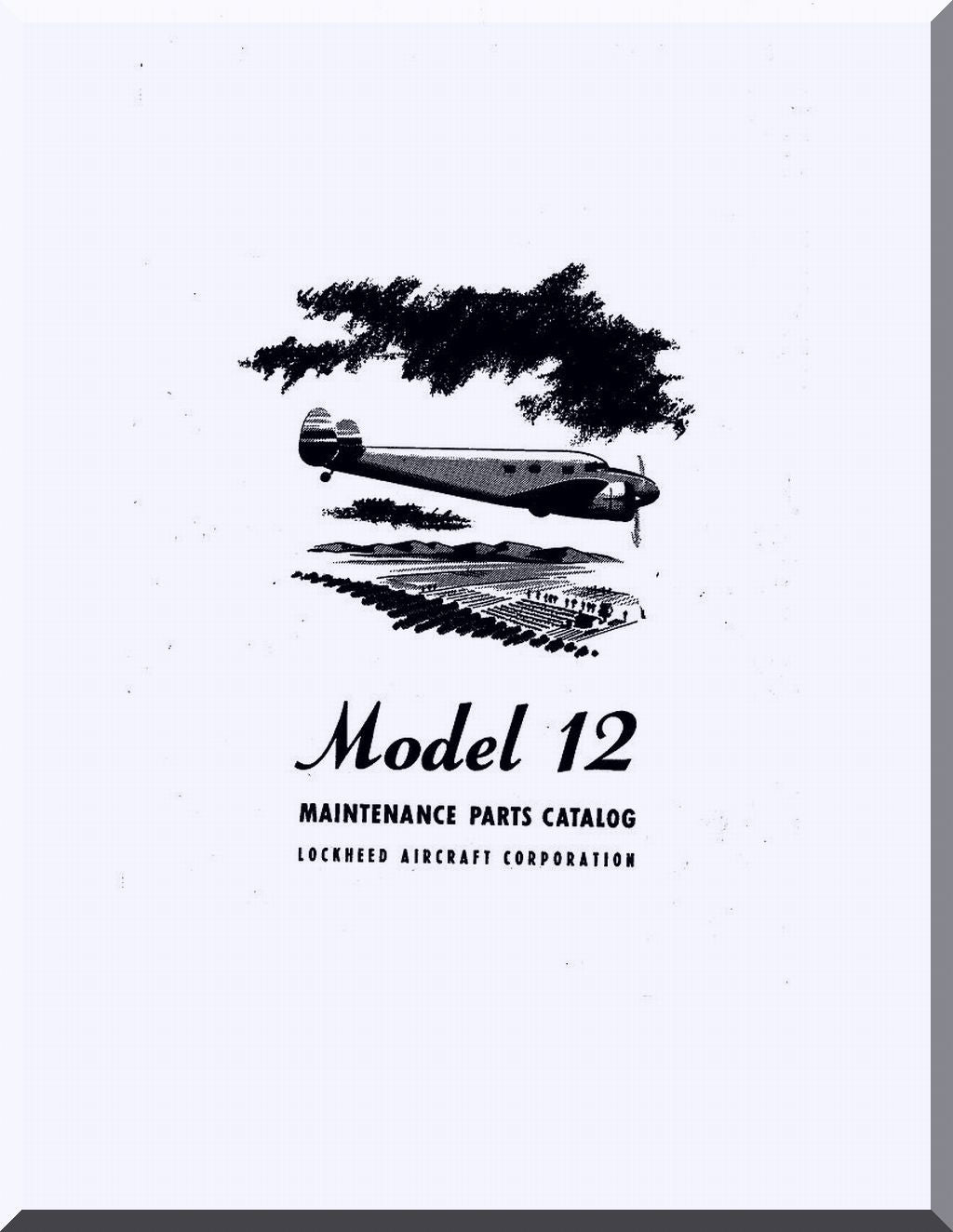

• Model 12 — Maintenance Parts Catalog
  Lockheed Aircraft Corporation. Illustrated parts reference for the Model 12 series, with assembly diagrams and part number identification. This copy carries the MacDonald Aircraft Library provenance stamp — a documented institutional archive origin.
• Model 10 Electra — Maintenance Parts Catalog

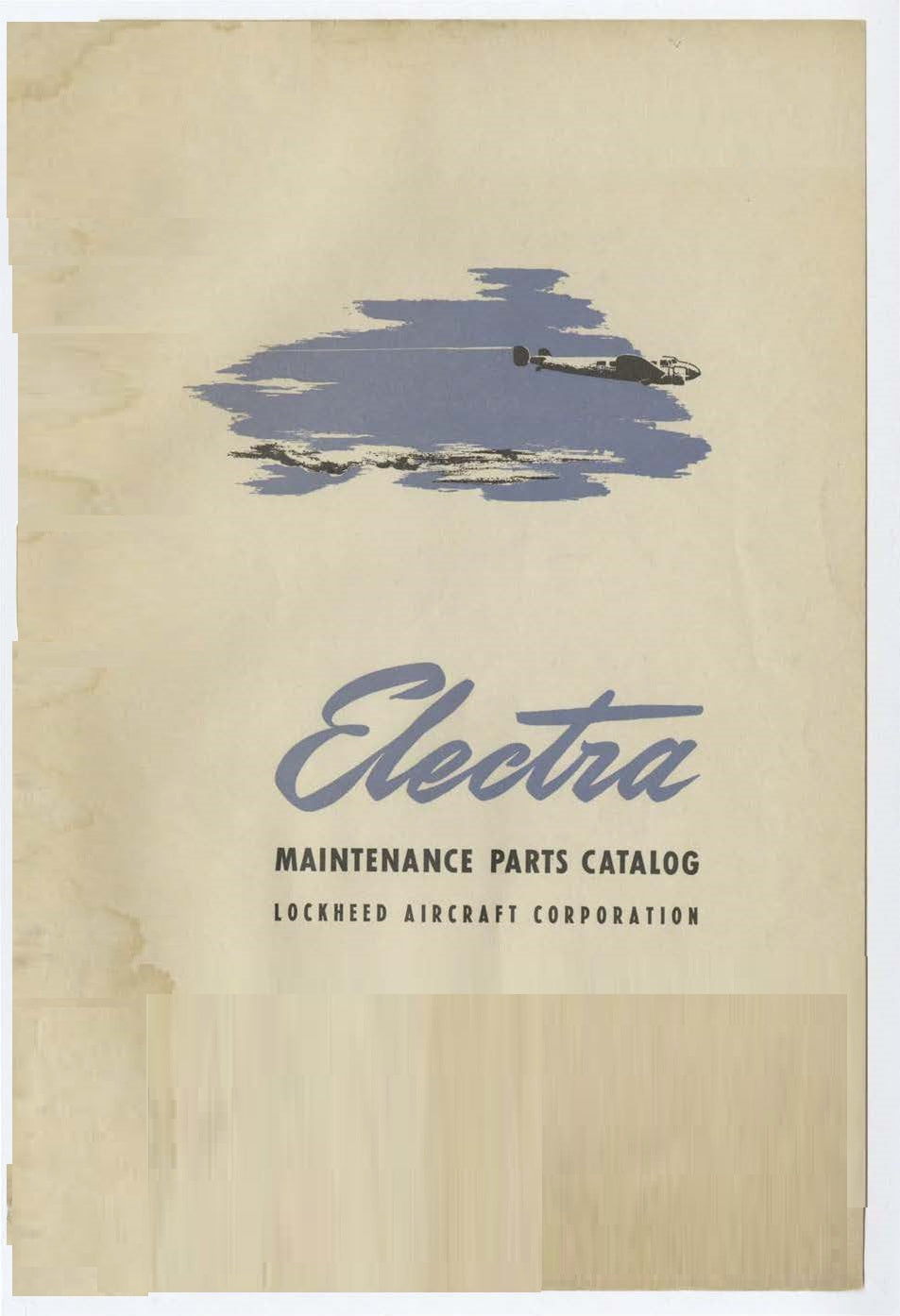

  Lockheed Aircraft Corporation. The factory illustrated parts and maintenance catalog for the Model 10 Electra, covering airframe systems, components, and part number breakdowns for the full L-10 series.

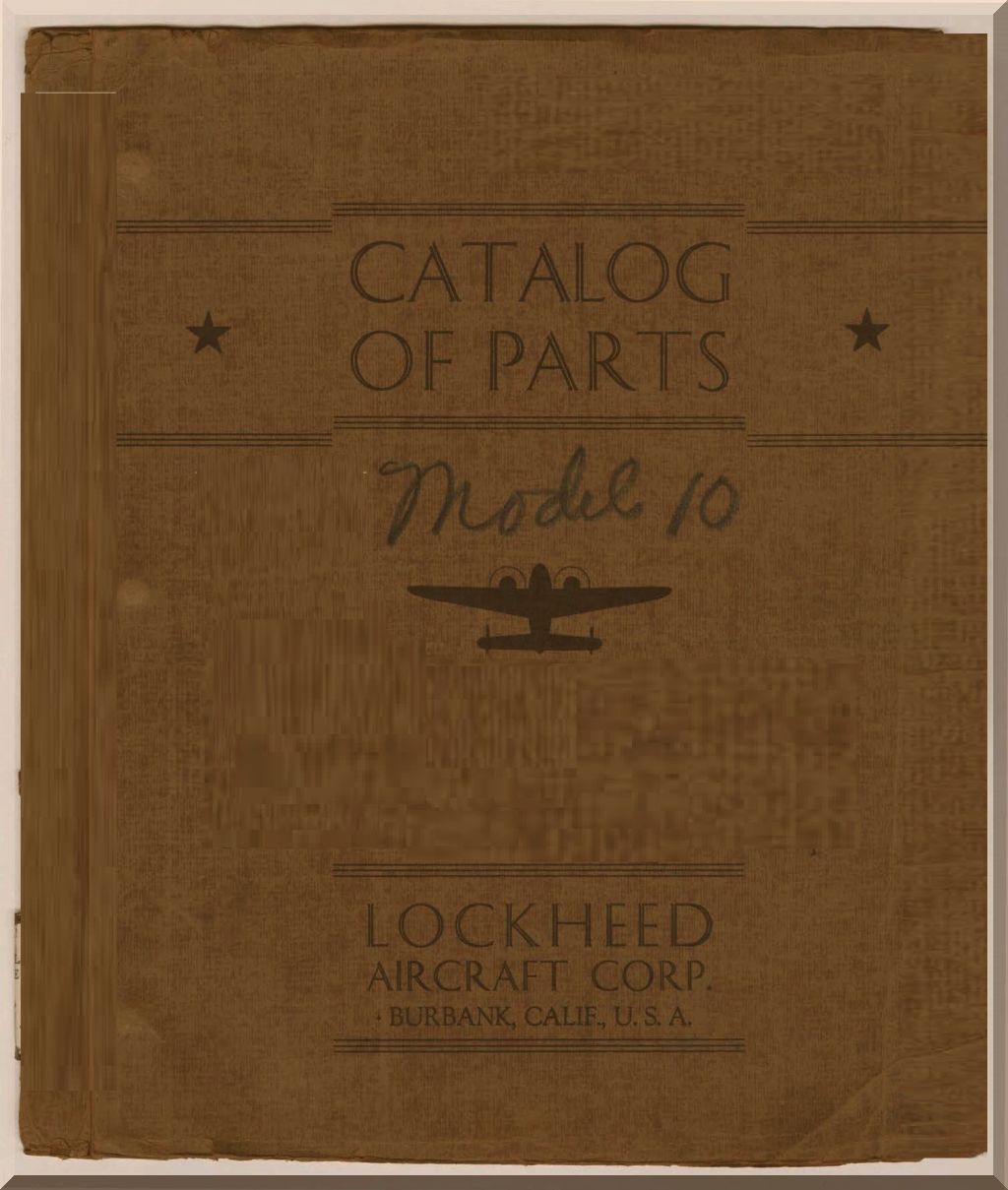

• Model 10 Electra — Illustrated Parts Catalog
  Lockheed Aircraft Corporation. Dedicated illustrated parts catalog for the L-10 series, with detailed component diagrams and part number references for depot-level maintenance and restoration work.

1. Aerodynamic Development & Design History

• Wind Tunnel Origins: Early scale models tested at the University of Michigan initially featured a single vertical stabilizer — and failed directional stability tests.
• Kelly Johnson's Twin-Tail Solution: Engineer Clarence "Kelly" Johnson identified serious directional instability and redesigned the empennage into the twin-fin and rudder configuration that became Lockheed's iconic design signature.
• Drag Reduction: Wing-to-fuselage fillets were removed and the forward-raked windshield modified to achieve a clean, unbraced cantilever wing — a significant aerodynamic advance for its era.
• Historic Engineering Reference: The Kelly Johnson and W. C. Nelson 1936 Aerodynamic Report (Lockheed Report 487) remains in use today to model the long-range flight dynamics of Amelia Earhart's modified Model 10E.

2. Engine Technical Notes

• Powerplants: Pratt & Whitney R-985 Wasp Junior — 9-cylinder, air-cooled, supercharged radial engines producing 400–450 hp at 2,300 rpm for takeoff.
• Propellers: Hamilton-Standard two-bladed controllable-pitch or constant-speed metal propellers with synchronous mechanical linkages to balance thrust across the twin-engine configuration.
• Fuel & Oil Systems: Service schematics cover main fuel cell routing, cross-feed valve handling, auxiliary tank transfers, and engine priming profiles for radial engine startups.

3. Handling & Stability Studies

• Asymmetric Thrust Control: The twin-tail empennage was engineered to counter high yawing moments during single-engine operations, providing acceptable handling margins on engine failure.
• Centre of Gravity Sensitivity: The main wing spar passes directly through the cabin floor on the Model 12. Strict loading schedules were mandated to keep pitching and short-period oscillations stable across varying passenger and fuel weights.
• Stall Characteristics: The cantilever low-wing geometry produced a clean stall with no artificial stall warning system — requiring strict adherence to operational airspeed limits on approach.

4. Performance Data

5. Engineering & Service Bulletins

• Military Technical Orders: T.O. No. 01-75CB-1 (Operation and Flight Instructions, C-40 series) · T.O. No. 01-75CB-3 (Overhaul and Structural Repair, C-40 / C-40A / C-40B).
• Airframe Airworthiness: Retroactive structural mandates cover NDT updates for landing gear mechanisms, corrosion mitigation for early aluminium monocoque skin sections, and pressure testing for vintage fuel lines.

Ideal For

• Restoration teams working on surviving Electra and Electra Junior airframes
• Aviation historians researching the Golden Age of commercial aviation and WWII transport operations
• Museums and institutions preserving pre-war American aviation heritage
• Researchers studying Amelia Earhart's Model 10E and its flight dynamics
• Warbird collectors and flight simulation researchers requiring primary-source data

⚠️ Regulatory Notice: Under FAA 14 CFR § 43.13 and EASA Part-M, any mechanic performing maintenance on an active aircraft must use current, manufacturer-approved revision-controlled data. This archival document does not satisfy that requirement.

This is an archival, static-copy edition fixed at its original publication date. Intended for historical reference, flight simulation, museum restoration, and educational use only. Not approved for active airworthiness maintenance under FAA 14 CFR § 43.13, EASA Part-M, or equivalent international regulations. Operators of active aircraft must use current, revision-controlled publications from the Type Certificate holder or an authorized distributor.
