Lockheed F-104  Technical Manuals Collection

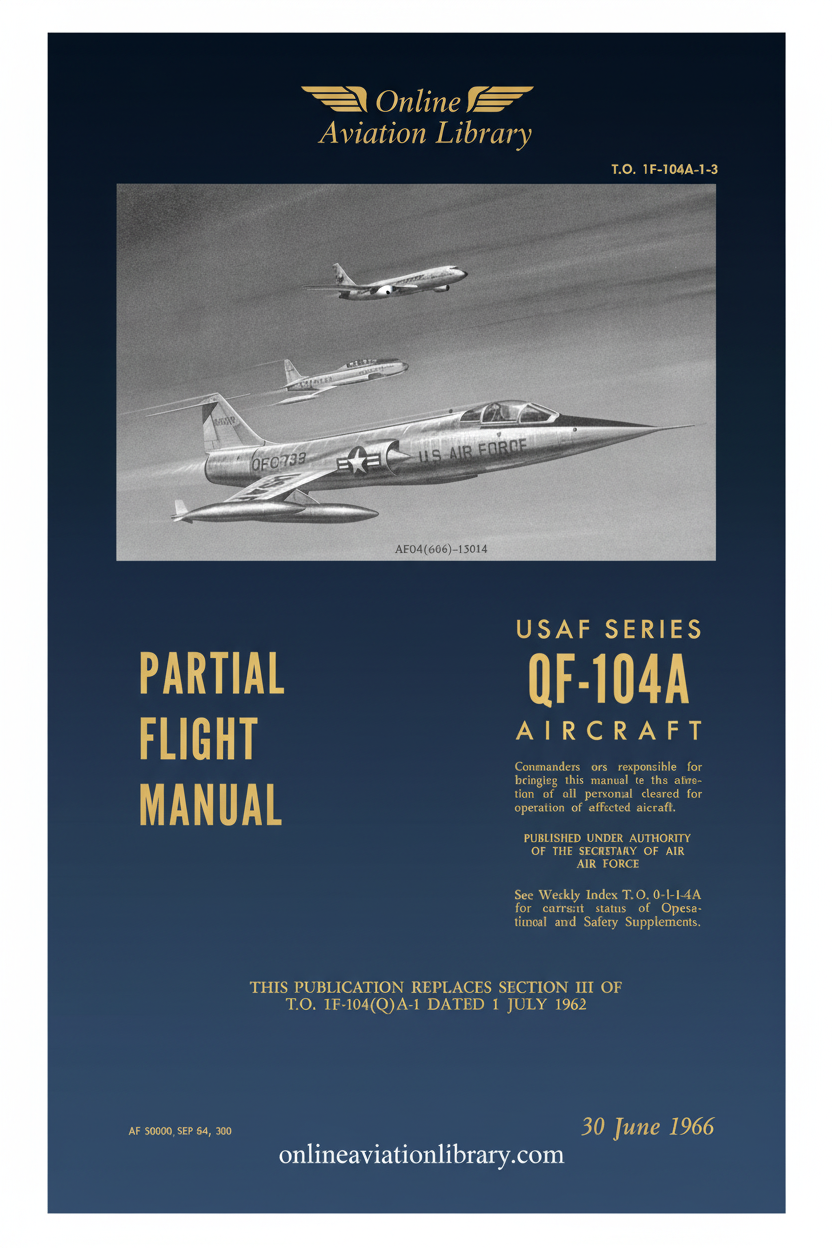

This comprehensive digital archive contains authentic technical documentation for the legendary Lockheed F-104 Starfighter supersonic interceptor. The collection includes flight manuals, maintenance handbooks, illustrated parts breakdowns, structural repair guides, systems documentation, and specialized technical reports covering multiple variants including the F-104A, F-104B, F-104C, F-104D, F-104G, RF-104G, and TF-104G.

Collection Contents

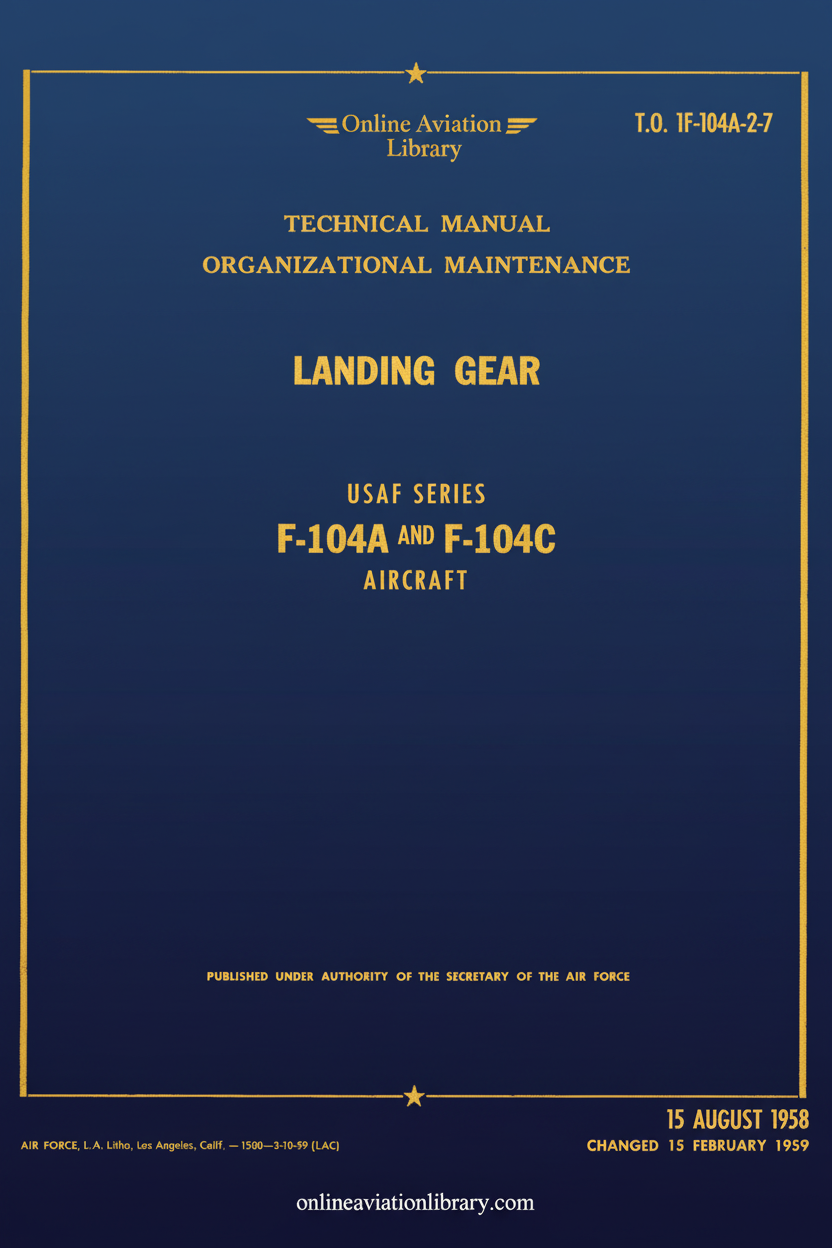

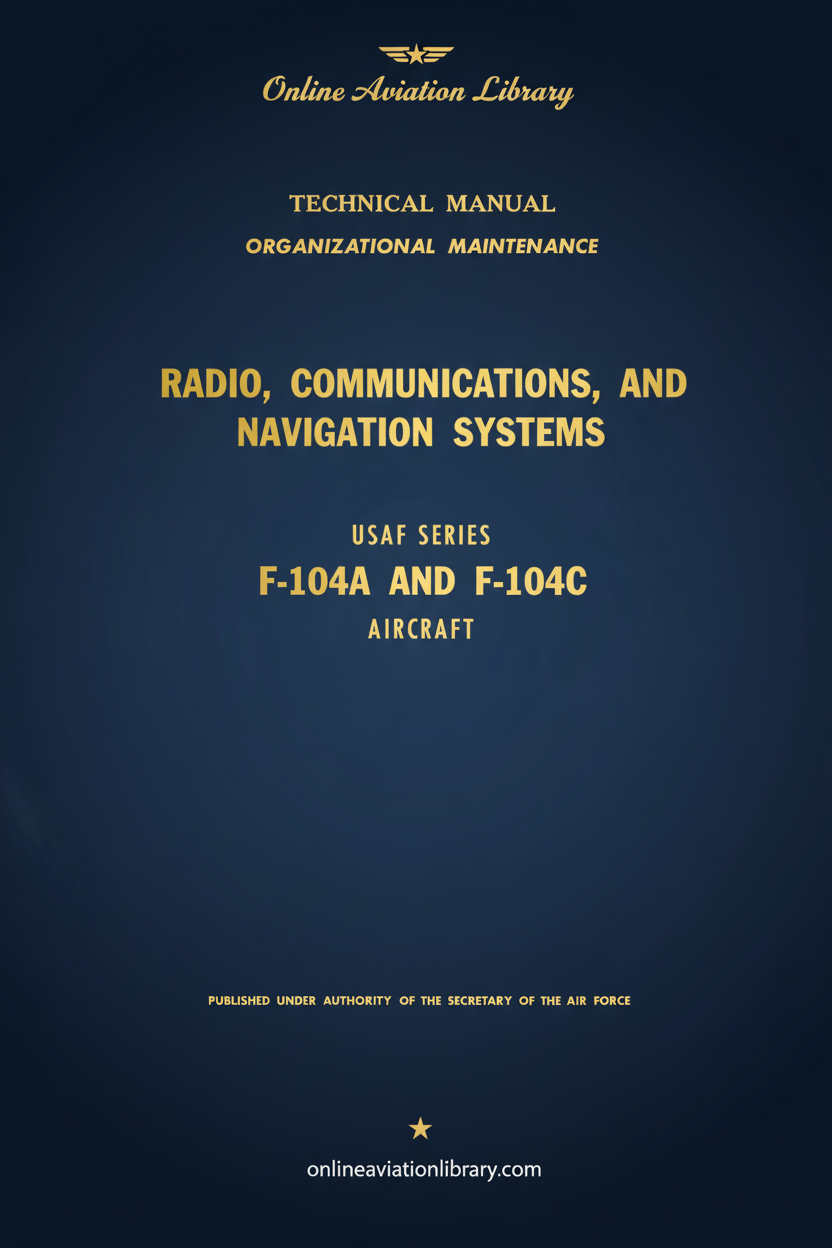

This extensive archive includes original USAF Technical Orders, German Luftwaffe GAF manuals, NATO consortium documentation, and Lockheed engineering reports. Coverage spans fuel systems, hydraulic systems, landing gear, radio and navigation equipment, instruments, bleed air systems, structural repair procedures, illustrated parts catalogs, and specialized equipment including the Magnaghi Napoli wing pylon fuel tanks and IFF transponder systems.

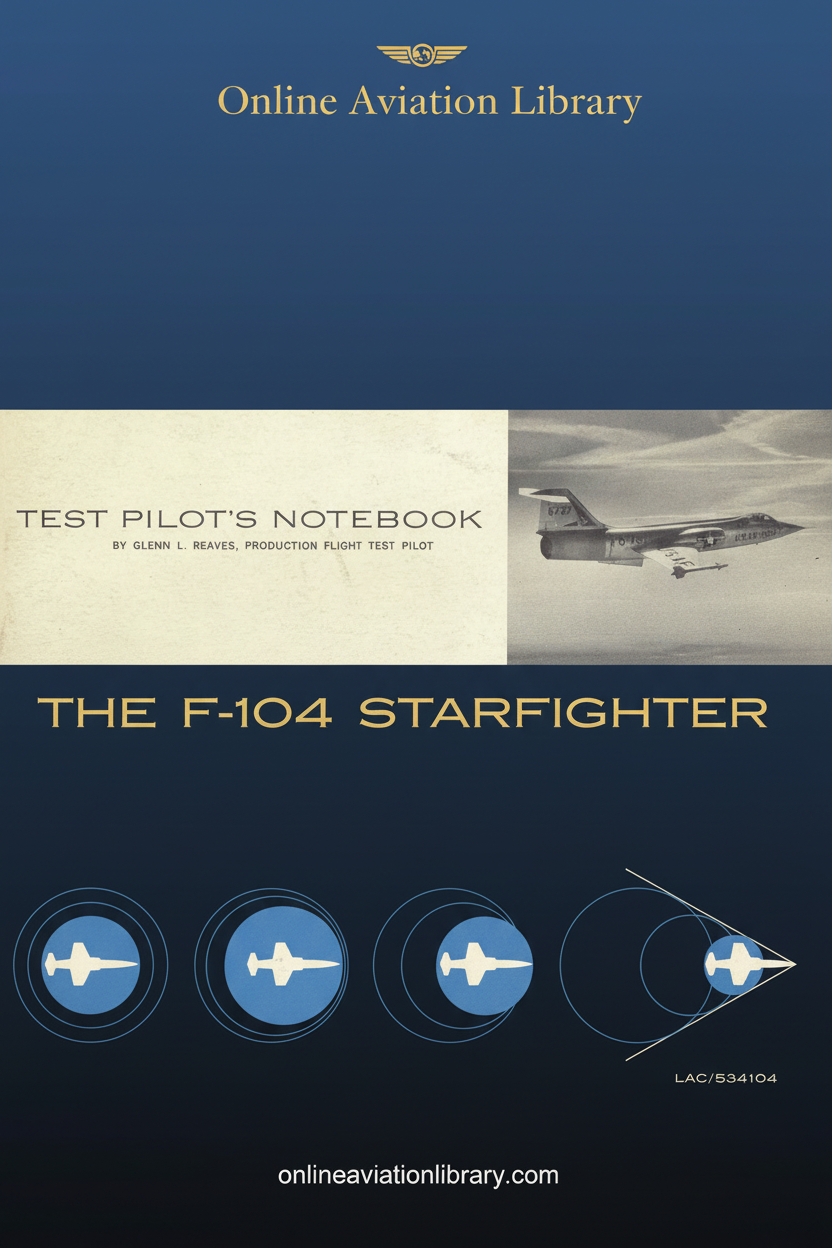

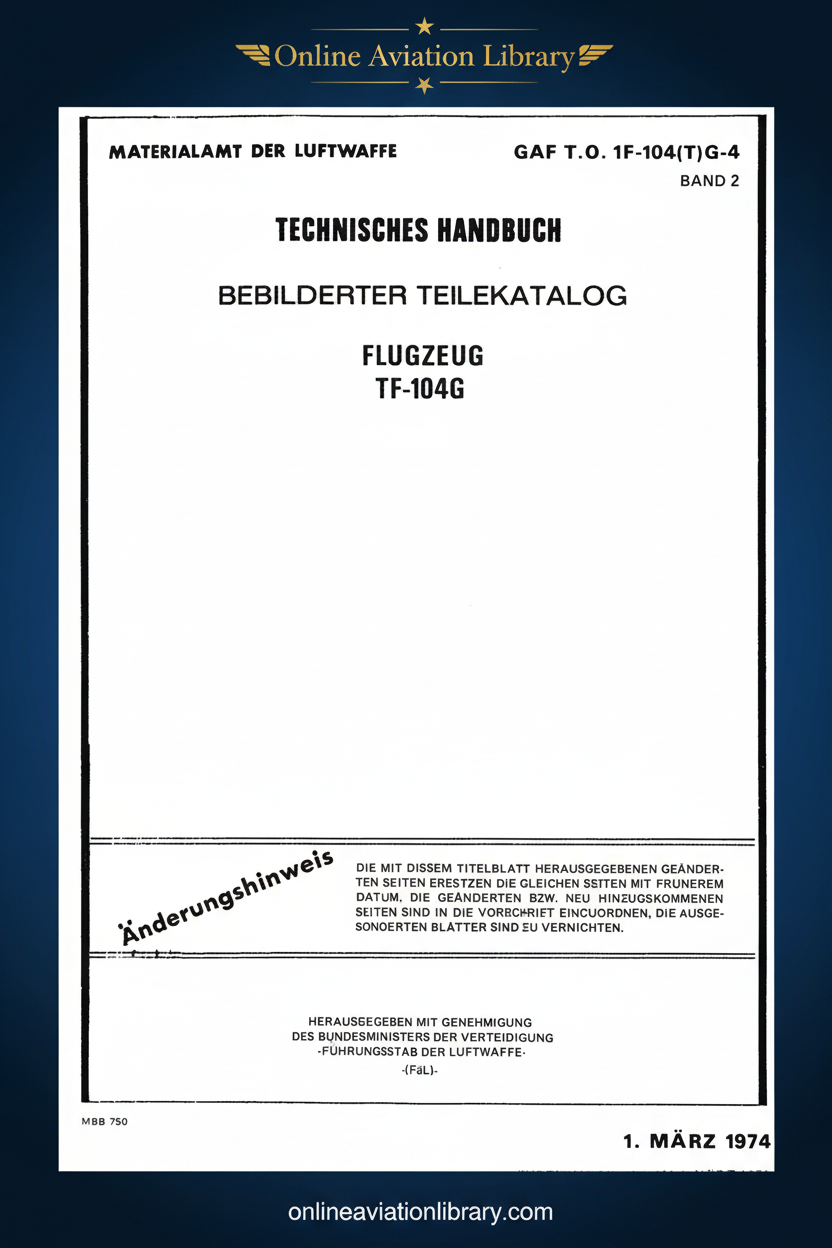

Documentation includes materials from multiple air forces and production programs, featuring both English and German-language technical manuals, reflecting the F-104's widespread international service. Special reports include the SURE Project analysis and the Test Pilot's Notebook by Glenn L. Reaves, providing unique insights into the aircraft's development and operational characteristics.

Historical Note

The Lockheed F-104 Starfighter holds a distinguished place in aviation history as one of the most iconic supersonic fighters of the Cold War era. Designed by legendary aircraft engineer Clarence "Kelly" Johnson and his Lockheed Skunk Works team, the F-104 first flew on February 7, 1954, and entered service with the USAF in 1958. Its radical design philosophy prioritized speed and climb performance above all else, earning it the nickname "the missile with a man in it."

With its distinctive razor-thin wings, T-tail configuration, and powerful General Electric J79 turbojet engine, the F-104 became the first operational fighter capable of sustained Mach 2 flight and could reach altitudes exceeding 100,000 feet. The aircraft set numerous world records, including absolute speed and altitude records that demonstrated American technological superiority during the height of the Cold War.

While initially designed as a high-performance air superiority fighter for the USAF, the F-104's greatest operational success came through the international consortium program. West Germany, Italy, the Netherlands, Belgium, Canada, Japan, and other allied nations selected the Starfighter as their primary interceptor and strike aircraft, leading to licensed production programs across multiple continents. The German Luftwaffe alone operated over 900 F-104Gs, making it one of the largest F-104 operators worldwide.

The F-104 served in diverse roles throughout its operational life, from high-altitude interception and tactical strike missions to reconnaissance (RF-104G variant) and advanced training (TF-104G two-seat trainer). During the Vietnam War, F-104s flew combat missions, and the type saw action in various conflicts including the Indo-Pakistani Wars. NASA also operated F-104s extensively as chase planes and high-speed research aircraft, supporting programs from the X-15 to the Space Shuttle.

Production continued from 1954 through 1983, with approximately 2,580 aircraft built across all variants by Lockheed and international licensees including Canadair, Fiat, Fokker, Messerschmitt, and Mitsubishi. The F-104 remained in active military service with some air forces into the 21st century, with the Italian Air Force retiring its last Starfighters in 2004, marking fifty years of operational service.

These original technical manuals represent authentic primary-source documentation used throughout the F-104's distinguished service life by maintenance crews, pilots, and engineers across multiple air forces. They provide invaluable technical information for aviation historians, restorers working on preserved examples, researchers studying Cold War aviation technology, and enthusiasts of this legendary supersonic fighter.

Product Details

Format: High-quality digital download (PDF)
Coverage: Multiple F-104 variants (A, B, C, D, G, RF-104G, TF-104G)
Documentation Type: Flight manuals, maintenance handbooks, parts catalogs, structural repair guides, systems documentation, technical reports
Language: English and German
Origin: USAF, German Luftwaffe, NATO consortium, Lockheed Corporation
Delivery: Instant download upon purchase
