Lockheed EC-121, WV-121, RC-121 Warning Star Aircraft Manuals Collection
Access the comprehensive technical documentation for the legendary Lockheed EC-121 Warning Star—the airborne sentinel that stood watch over America during the Cold War. This digital collection includes essential flight manuals, maintenance guides, parts catalogs, wiring diagrams, and technical orders covering the EC-121, WV-121, and RC-121 variants of this remarkable early warning aircraft.
What's Included

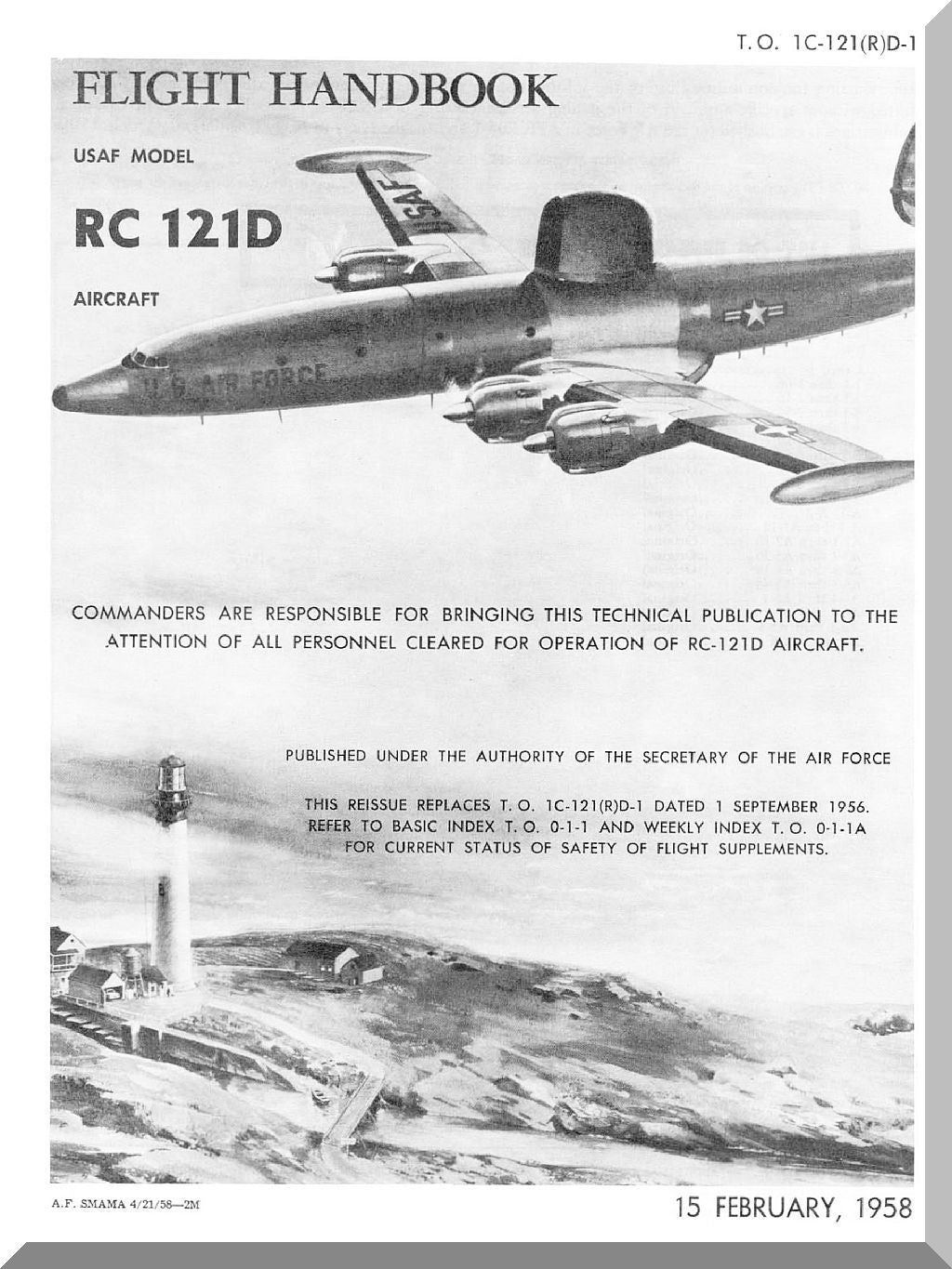

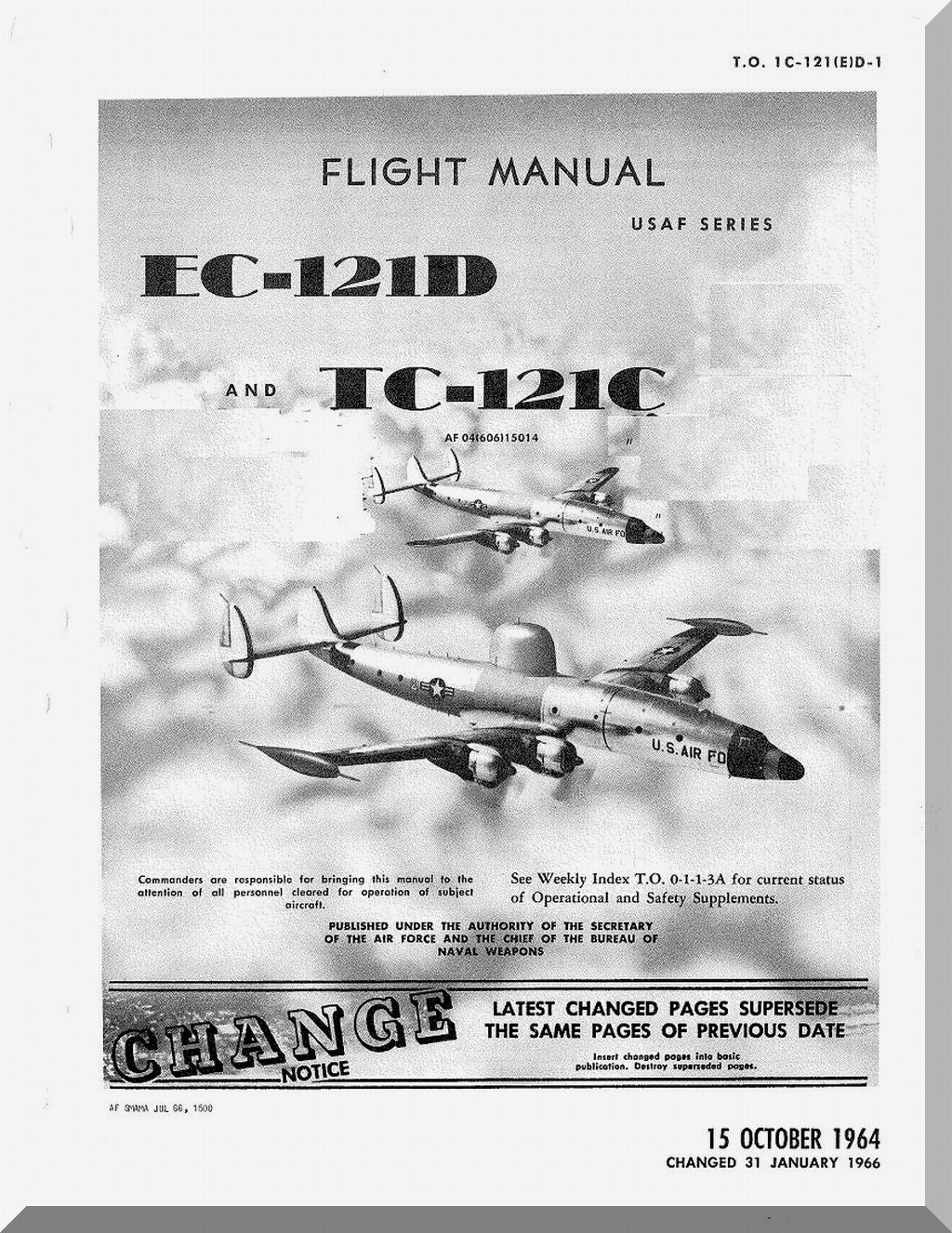

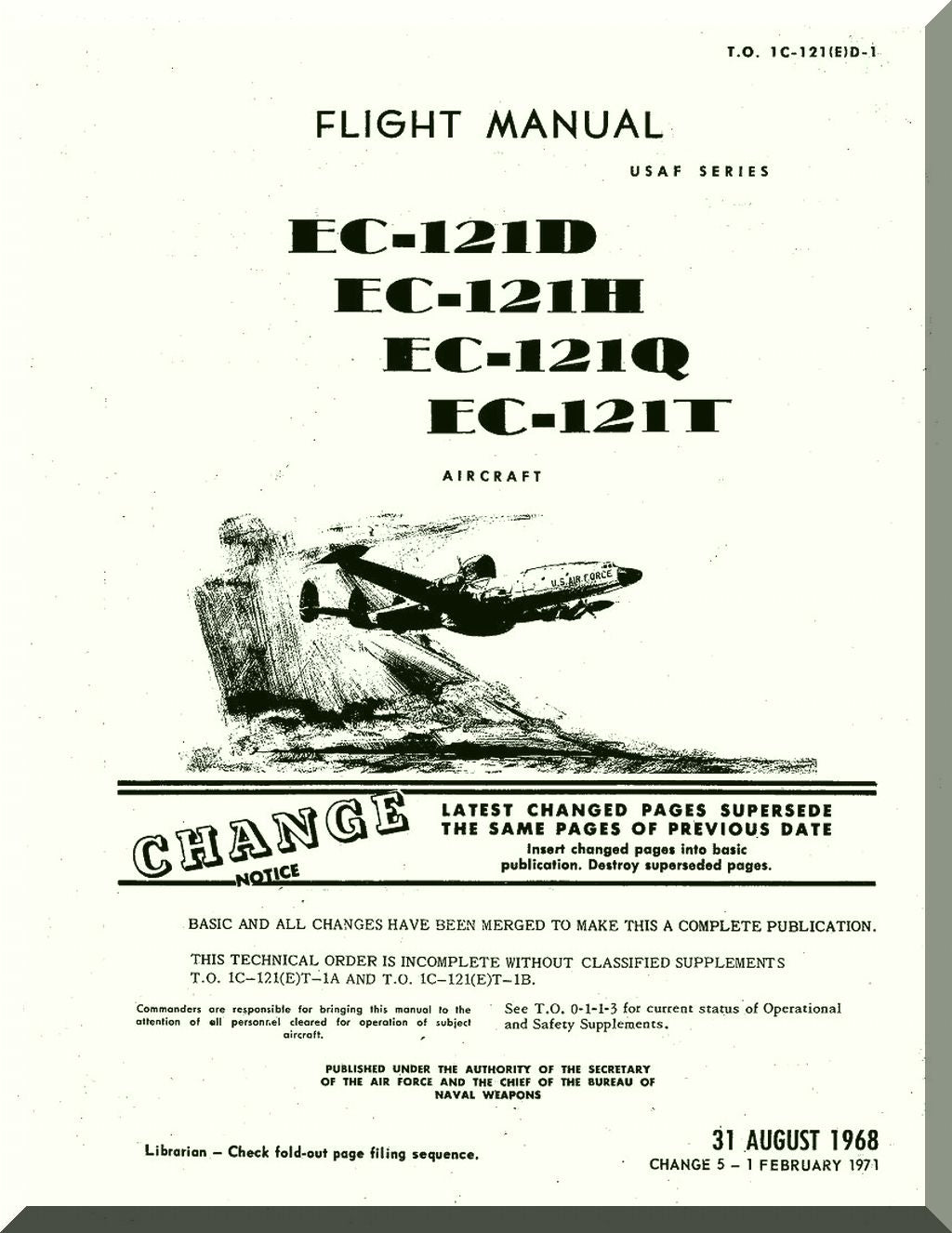

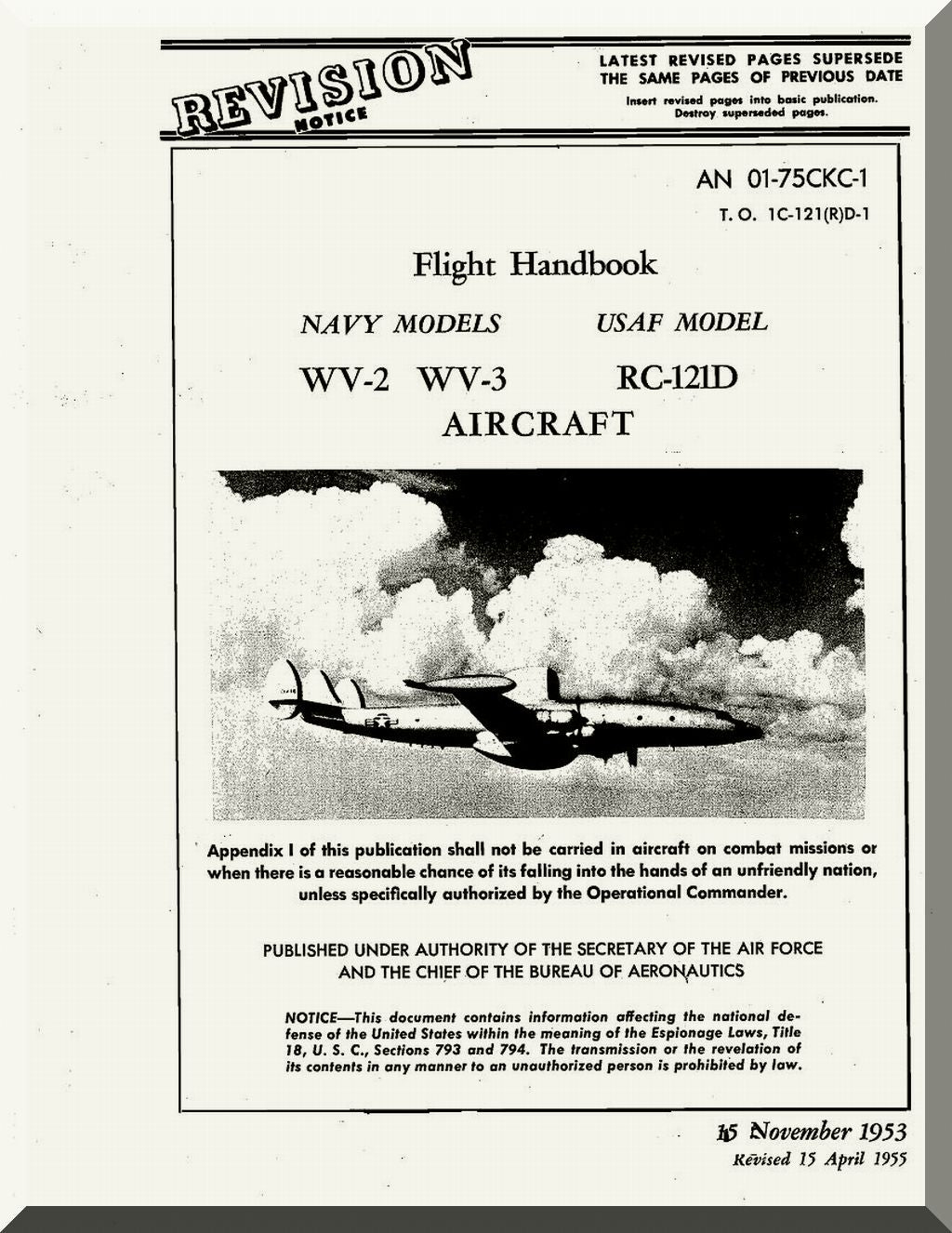

- Flight Manuals: Comprehensive pilot operating handbooks with performance charts, procedures, and operational limitations for EC-121, WV-121, and RC-121 variants

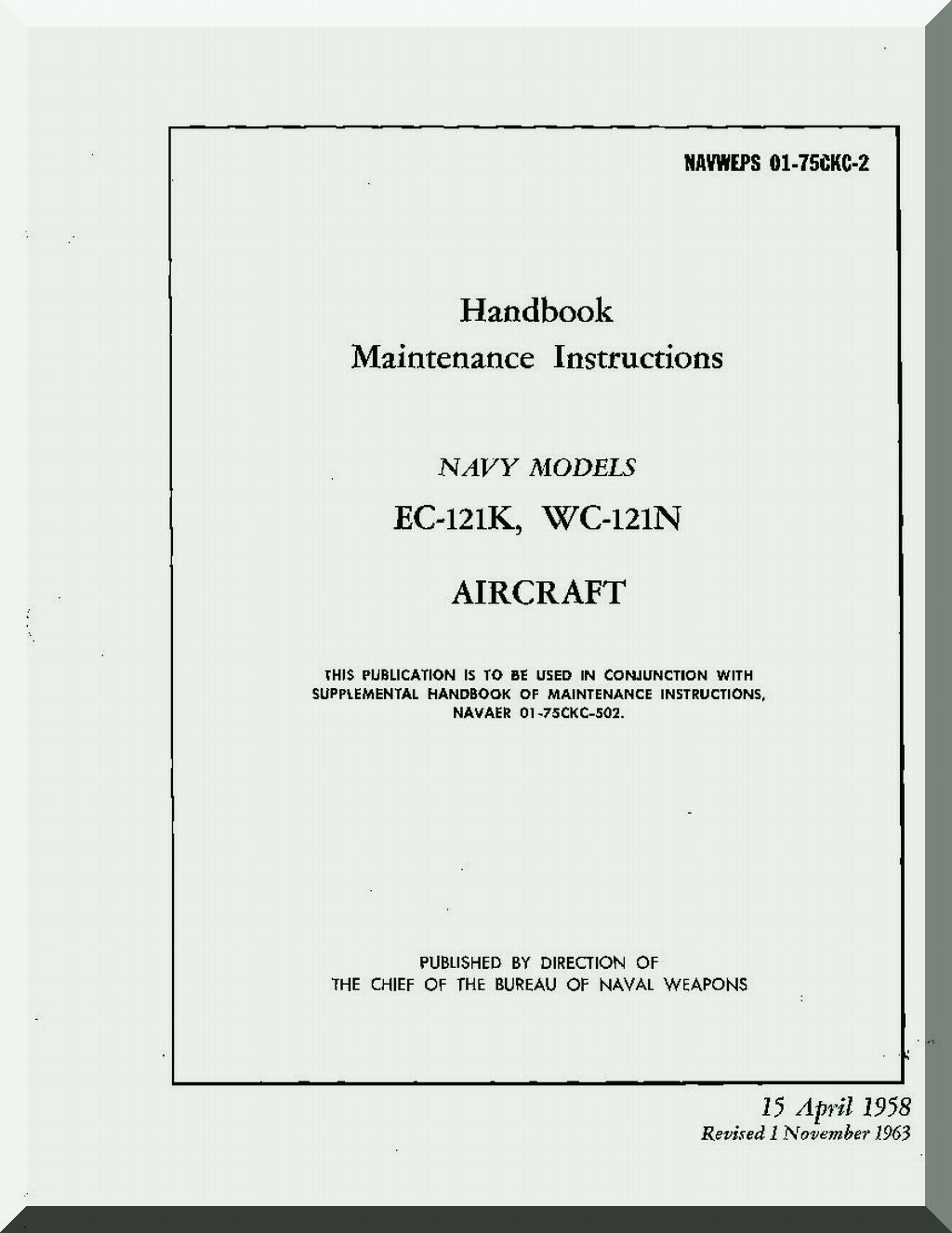

- Maintenance Documentation: Detailed service instructions, inspection schedules, and overhaul procedures

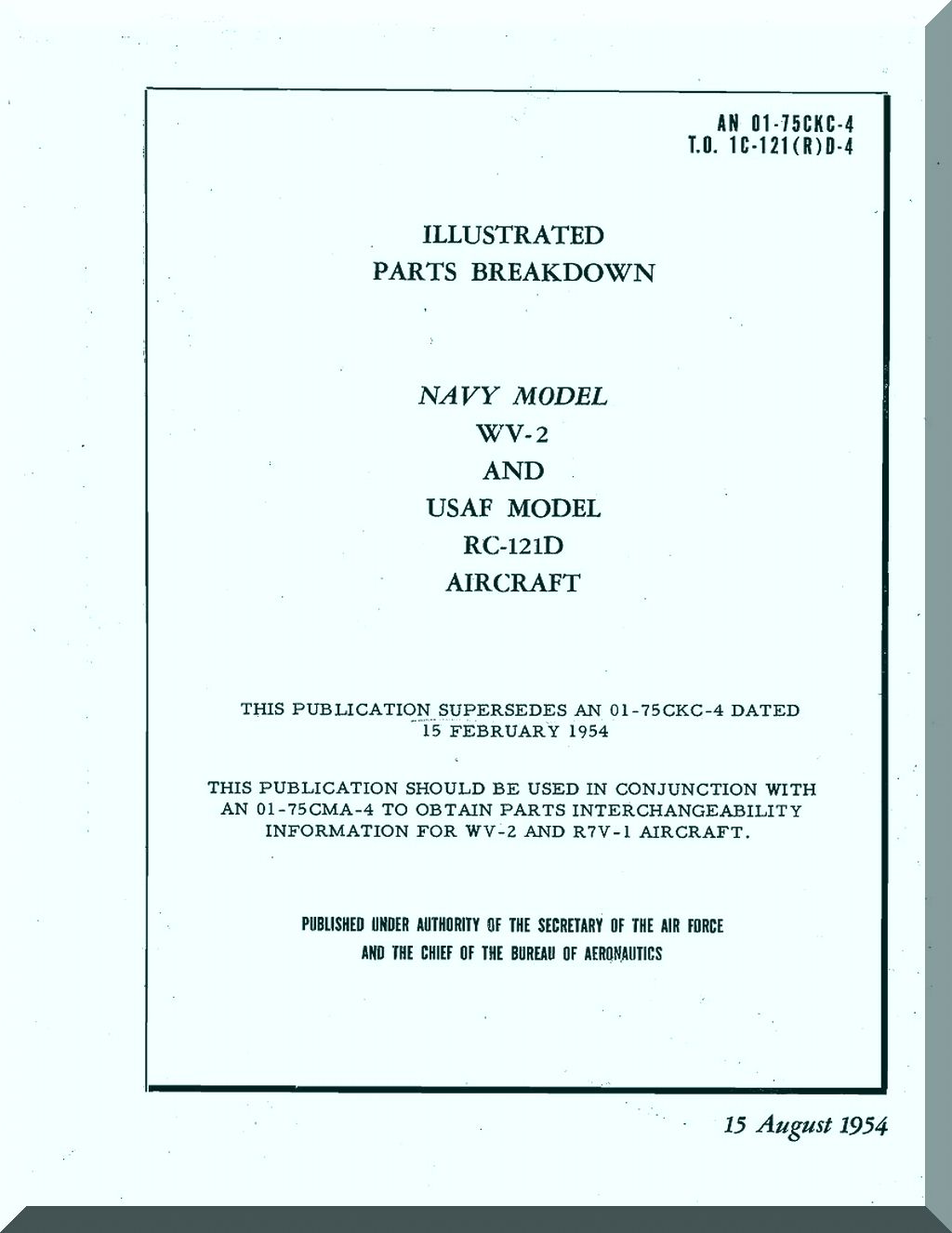

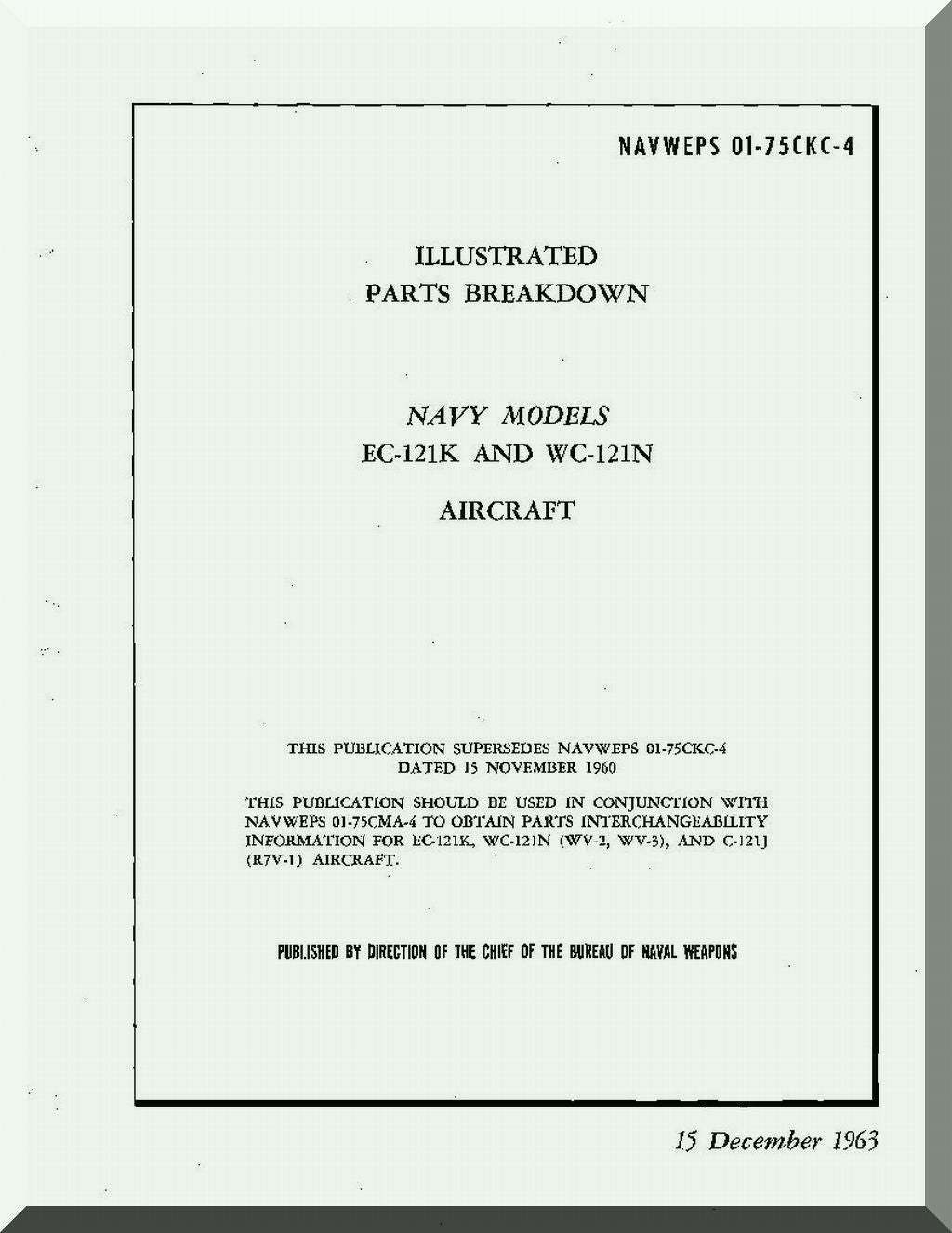

- Parts Catalogs: Illustrated parts breakdowns with part numbers and assembly diagrams
- Wiring Diagrams: Electrical system schematics and troubleshooting guides for complex radar and electronics systems
- Technical Orders: Military specifications, modifications, and service bulletins
Historical Significance
The Lockheed EC-121 Warning Star represents one of the most critical yet often overlooked aircraft of the Cold War era. Born from the elegant Super Constellation airliner, the Warning Star was transformed into a flying radar station that provided America's first line of defense against potential Soviet bomber attacks.
Development began in the late 1940s when the U.S. Navy recognized the need for airborne early warning capabilities to protect carrier battle groups and coastal approaches. The Navy's WV-1 (later WV-121) Warning Star, first flown in 1949, featured massive radar domes mounted above and below the fuselage, housing powerful AN/APS-20 search radar systems. These distinctive "guppy" modifications gave the aircraft its unmistakable profile and the ability to detect aircraft at ranges exceeding 100 miles.
The U.S. Air Force adopted the concept with the RC-121 (later EC-121) variants, deploying them as part of the continental air defense network. Operating from bases in Alaska, Iceland, and along both coasts, EC-121s maintained constant radar surveillance, filling gaps in ground-based radar coverage and providing early warning of potential bomber threats. These aircraft flew grueling 12-hour missions, often in harsh weather conditions, maintaining America's defensive shield 24 hours a day.
During the Vietnam War, the EC-121 found a new mission. Operating under the call sign "College Eye" and "Disco," Warning Stars provided airborne command and control, radar coverage over the Gulf of Tonkin, and early warning of North Vietnamese MiG fighters. EC-121s directed countless air-to-air intercepts and helped protect strike packages heading into heavily defended North Vietnamese airspace. Tragically, on April 15, 1969, a Navy EC-121 was shot down by North Korean fighters, killing all 31 crew members—the largest single loss of American aircrew during the Cold War.
The Warning Star's crew complement typically included 26-31 personnel, including pilots, navigators, radar operators, electronic warfare specialists, and maintenance technicians. The aircraft's interior was packed with radar scopes, communications equipment, and electronic warfare systems, creating a cramped but highly capable airborne command center.
Between 1949 and 1958, over 230 Warning Stars were produced in various configurations. The aircraft served with distinction until the late 1970s, when they were finally replaced by the Boeing E-3 Sentry AWACS. Today, surviving EC-121s are treasured museum pieces, honored for their critical role in defending America during the Cold War and supporting combat operations in Southeast Asia.
Perfect For
- Aircraft restoration projects and vintage military aircraft maintenance
- Aviation historians researching Cold War aviation and early warning systems
- A&P mechanics working on Warning Star airframes and complex electronics systems
- Museums and educational institutions preserving Cold War aviation heritage
- Collectors of military aircraft and electronic warfare documentation
- Warbird enthusiasts and vintage aircraft operators
Digital Download Benefits
Receive instant access to your manuals as high-quality PDF files. Search, bookmark, and reference critical technical information whenever you need it. Print specific sections for hangar use or keep the entire collection on your tablet for easy field access.
Preserve aviation history. Support your restoration. Download your Lockheed EC-121 Warning Star manuals today.
