Henschel Hs 129 - Comprehensive Technical Documentation Collection

This definitive digital archive contains authentic technical documentation for the Henschel Hs 129, Germany's only purpose-designed ground-attack aircraft of World War II and one of the most specialized—and controversial—combat aircraft ever built. These original Luftwaffe manuals, operating instructions, armament documentation, parts catalogs, and technical publications covering the A and B variants represent the actual  documentation used by pilots, ground crews, armament specialists, and maintenance personnel during the aircraft's operational service on the Eastern Front, North Africa, and other theaters from 1942 through 1945.

Definitive Collection with Free Lifetime Updates: This is a living collection that we continuously expand and refine. As we acquire additional Henschel Hs 129 documentation, technical bulletins, armament manuals, or operational records, we update this collection and provide free lifetime updates to all purchasers. Your one-time purchase guarantees access to all future additions and improvements to this collection.

Historical Note

The Henschel Hs 129 holds a unique, fascinating, and controversial place in aviation history as Germany's only purpose-designed ground-attack aircraft (Schlachtflugzeug) of World War II—an aircraft that represented both remarkable specialization and significant engineering compromises. Conceived in response to the devastating effectiveness of Soviet armored formations on the Eastern Front, the Hs 129 embodied a radical design philosophy: maximum armor protection and heavy armament at the expense of almost everything else, including pilot comfort, visibility, performance, and conventional aerodynamic refinement.

The Hs 129's development began in 1937 when the Reichsluftfahrtministerium (RLM) issued a specification for a heavily armored ground-attack aircraft capable of destroying enemy tanks and fortifications while surviving intense anti-aircraft fire. Henschel's response, designed by Friedrich Nicolaus, was an aircraft unlike anything previously attempted—a design that prioritized survivability and firepower over speed, range, and handling characteristics.

The result was an aircraft with a remarkably narrow fuselage dictated by the need to minimize frontal area while maximizing armor protection around the pilot. The cockpit was extraordinarily cramped—so small that larger pilots literally could not fit, and even average-sized pilots found the workspace claustrophobic. Visibility was severely restricted by the heavy armor plating surrounding the cockpit. The instrument panel was minimal, with critical gauges crammed into whatever space remained after armor installation. Pilots described the cockpit as feeling like sitting inside an armored bathtub with a small window.

From an aerodynamic perspective, the Hs 129 presented significant challenges. The narrow fuselage, twin-engine configuration with Gnome-Rhône 14M radial engines (captured French engines pressed into German service), and heavy armor created a design with marginal stability characteristics and demanding handling qualities. The aircraft was nose-heavy, required constant trim adjustments, and exhibited poor single-engine performance—a critical deficiency for a low-altitude aircraft operating in intense anti-aircraft environments. Modern stability and control analysis would reveal derivative stability issues that made the aircraft challenging to fly, particularly in combat conditions.

Yet despite these significant engineering compromises—or perhaps because of the single-minded focus on its specialized mission—the Hs 129 became one of the most effective tank-destroying aircraft of World War II. The first prototype flew in 1939, but the initial A-0 variant with Argus As 410 engines proved so underpowered and unsatisfactory that production was halted after only a few aircraft. The definitive B-series, powered by Gnome-Rhône 14M engines producing 700 horsepower each, entered service in 1942.

The Hs 129B's armament was devastating. Standard armament included two 7.92mm MG 17 machine guns and two 20mm MG 151/20 cannons. However, the aircraft's true tank-killing capability came from centerline-mounted heavy weapons: the 30mm MK 101 cannon with armor-piercing ammunition capable of penetrating Soviet tank armor, the improved 30mm MK 103 cannon with higher rate of fire, and in some variants, the massive 75mm BK 7,5 anti-tank gun—essentially a modified PaK 40 anti-tank gun adapted for aircraft installation, firing tungsten-core armor-piercing rounds that could destroy any Allied tank of the period.

The Hs 129 saw extensive combat service from 1942 onwards, primarily on the Eastern Front where it earned a fearsome and well-deserved reputation as a tank destroyer (Panzerknäcker). During major engagements including the Battle of Kursk in July 1943—the largest tank battle in history—Hs 129 units achieved remarkable success against Soviet armor. Pilots developed specialized tactics: approaching at very low altitude to avoid detection, identifying targets (preferably from the vulnerable rear or side), diving to attack angle, firing short bursts from the heavy cannon, and immediately breaking away at minimum altitude to avoid ground fire.

The aircraft's heavy armor proved its worth repeatedly. Hs 129s returned to base with extensive battle damage—armor plating dented and penetrated by ground fire, control surfaces riddled with holes, engines damaged—yet still flying. The armored cockpit saved countless pilots' lives, absorbing hits that would have been fatal in unarmored aircraft. This survivability, combined with devastating firepower, made the Hs 129 highly valued by ground-attack units despite its numerous shortcomings.

However, the aircraft's weaknesses remained problematic throughout its service life. The Gnome-Rhône engines were chronically unreliable, particularly in the harsh conditions of the Eastern Front. Dust, extreme temperatures, and poor-quality fuel caused frequent failures. Maintenance was challenging, spare parts were scarce (the engines being of French origin), and operational readiness rates were often disappointing. The cramped cockpit caused pilot fatigue on longer missions. Poor visibility made formation flying and navigation difficult. The aircraft's modest performance—maximum speed of only 407 km/h (253 mph)—made it vulnerable to enemy fighters, requiring fighter escort for most missions.

The Hs 129 also saw limited service in North Africa with Luftwaffe units supporting the Afrika Korps, where it operated against British armor. The desert environment proved particularly challenging for the temperamental engines, and sand ingestion caused additional reliability problems. Some aircraft served on the Western Front and in Italy, though the Eastern Front remained the primary theater of operations where the aircraft's specialized anti-tank capability was most needed.

Production totaled approximately 870 aircraft across all variants between 1942 and 1944: the unsuccessful A-0 pre-production aircraft, B-0 initial production variant, B-1 standard production version with MK 101 cannon, and B-2 improved variant with enhanced armament options and equipment. Each variant incorporated lessons learned from combat operations, with progressive improvements to armament installation, armor configuration, and operational equipment.

Comparing the Hs 129 to other ground-attack aircraft reveals its unique position. Unlike the Messerschmitt Me 410—a sleek, fast, multi-role aircraft with excellent performance and handling—the Hs 129 sacrificed everything for its specialized mission. The modern Fairchild A-10 Thunderbolt II, designed decades later for the same tank-killing role, shows how the mission requirements remained constant while technology evolved: both aircraft feature heavy armor, devastating cannon armament (the A-10's GAU-8 Avenger being a direct conceptual descendant of the Hs 129's heavy cannon), and acceptance of modest performance in exchange for survivability and firepower. The A-10's superior engines, aerodynamics, and systems demonstrate how far ground-attack aircraft design advanced, yet the fundamental mission and design philosophy established by the Hs 129 remained valid.

Henschel Flugzeugwerke's engineering approach with the Hs 129 represented extreme specialization—designing an aircraft for a single mission and accepting significant compromises in other areas. This philosophy produced an aircraft that was difficult to fly, uncomfortable for pilots, mechanically unreliable, and aerodynamically challenged, yet remarkably effective at its intended purpose. The Hs 129 proved that specialized design, despite engineering imperfections, could achieve combat effectiveness when employed in its intended role.

Today, the Henschel Hs 129 is remembered by aviation historians, engineers, and enthusiasts as one of the most specialized and controversial combat aircraft of World War II. The aircraft represents both the possibilities and limitations of extreme design specialization, the engineering compromises inherent in wartime development, and the effectiveness of purpose-built weapons systems despite significant shortcomings. These original technical manuals represent authentic primary-source documentation used throughout the Hs 129's development and operational service, providing invaluable insights into the construction, operation, armament systems, and maintenance procedures associated with this remarkable and unique ground-attack aircraft.

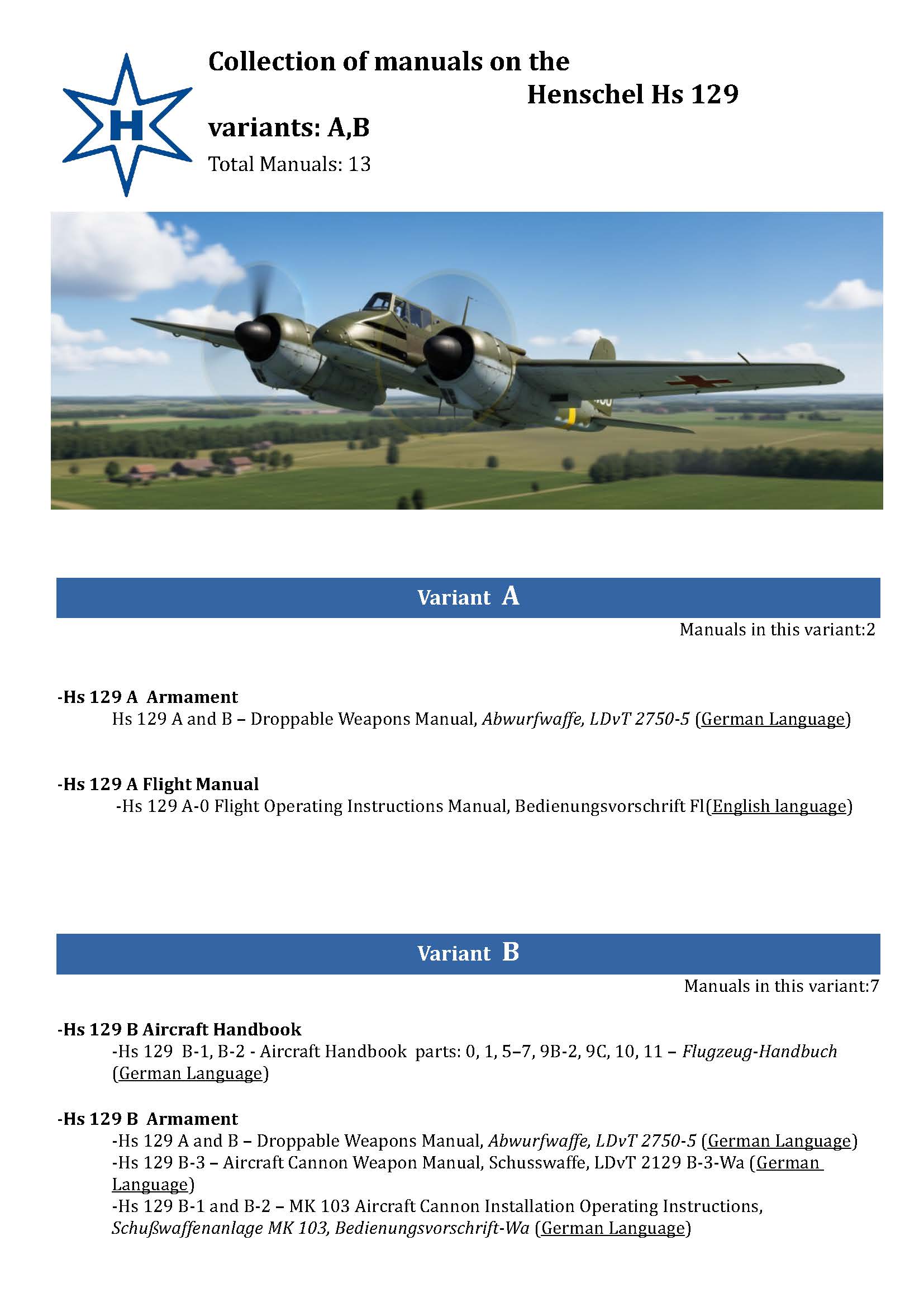

Manuals Included in This Collection

Variant A (2 manuals):

• Hs 129 A-0 - Flight Operating Instructions Manual - Bedienungsvorschrift FI - Operating manual for the initial Argus As 410-powered variant documenting the unsuccessful pre-production aircraft
• Hs 129 A and B - Droppable Weapons Manual - Abwurfwaffe LDvT 2750-5 - Comprehensive documentation for bomb loading, operation, and maintenance applicable to both A and B variants

Variant B (7 manuals):

• Hs 129 B-1, B-2 - Aircraft Handbook parts 0, 1, 5-7, 9B-2, 9C, 10, 11 - Flugzeug-Handbuch - Comprehensive aircraft handbook covering multiple systems and equipment sections for B-1 and B-2 production variants
• Hs 129 A and B - Droppable Weapons Manual - Abwurfwaffe LDvT 2750-5 - Bomb systems documentation applicable to both variants
• Hs 129 B-3 - Aircraft Cannon Weapon Manual - Schusswaffe LDvT 2129 B-3-Wa - Armament manual for the B-3 variant's heavy cannon installation
• Hs 129 B-1 and B-2 - MK 103 Aircraft Cannon Installation Operating Instructions - Schusswaffenanlage MK 103 - Detailed operating instructions for the 30mm MK 103 cannon installation
• Hs 129 B-0 - Flight Operating Instructions Manual - Bedienungsvorschrift FI - Operating manual for the initial Gnome-Rhône-powered production variant
• Hs 129 B-1, B-2 - Flight Operating Instructions Manual - Bedienungsvorschrift FI - Comprehensive flight operating procedures for standard production variants
• Hs 129 B-0, B-1 - Flight Training Cards Manual - Fliegerschule - Training documentation and procedures used at Luftwaffe flight schools for Hs 129 pilot training

Armament Documentation (6 manuals):

• MG 17 Machine Gun Operating Instructions Part 1 - MG 17 Teil 1 - Operating instructions for the 7.92mm MG 17 machine gun armament
• MK 101 Aircraft Cannon Weapon Manual - MK 101 Waffen-Handbuch - Complete documentation for the 30mm MK 101 anti-tank cannon including ballistics, ammunition, and employment
• Revi C-12 C Reflex Viewfinder Operating Instructions - Bed.-Vorschrift LDv 108a - Operating instructions for the Revi reflector gunsight used for gunnery and bombing
• Description of the ETC 50/VIII b and d Bomb Release Device - ETC 50-VIII b,d LDv 167 - Technical description and operating procedures for bomb rack systems

Maintenance and Technical Documentation (2 items):

• Hs 129 Aircraft Illustrated Spare Parts Catalog Manual - Construction Groups 8 and 9 - Ersatzteilliste Konstr.-Gruppen 8 und 9 - Detailed parts catalog with illustrations for equipment and systems groups
• The Henschel Hs 129 fighter-bomber - Das Schlachtflugzeug Henschel Hs 129 - Technical publication providing comprehensive overview of the aircraft's design, systems, and operational employment

This collection provides comprehensive technical coverage of the Henschel Hs 129, documenting both the unsuccessful A-0 variant and the operational B-series aircraft. The manuals span from 1941 to 1944, capturing the aircraft's development, operational refinement, and armament evolution. The extensive armament documentation (including the devastating MK 101 and MK 103 cannons) provides detailed insight into the weapons systems that made the Hs 129 an effective tank destroyer. The documentation includes detailed specifications for airframe structure, Gnome-Rhône powerplant operation, armor installation, armament systems (from machine guns to heavy anti-tank cannons), bomb systems, training procedures, and parts information—essential reference material for understanding the complete technical and operational scope of this unique and specialized ground-attack aircraft.

Engineering Norms and Standards

The Henschel Hs 129 was designed and constructed in accordance with German military aviation engineering standards and Luftwaffe technical requirements of the late 1930s and early 1940s, while simultaneously pioneering new standards for heavily armored ground-attack aircraft. The aircraft was developed under the specifications of the Reichsluftfahrtministerium (RLM), which governed military aviation development, certification, and operational standards.

Key engineering standards and practices reflected in these manuals include:

• Luftwaffe Ground-Attack Aircraft Specifications: Specialized requirements for Schlachtflugzeug (ground-attack aircraft) emphasizing armor protection, heavy armament capability, and survivability in intense anti-aircraft environments
• Armor Protection Standards: Pioneering standards for cockpit armor installation, ballistic protection design, and integration of heavy armor plating with aircraft structure—representing unprecedented levels of pilot protection
• Heavy Armament Integration Standards: Engineering practices for installing and operating heavy cannon (30mm MK 101/103, 75mm BK 7,5) in aircraft—including recoil management, ammunition feed systems, and structural reinforcement
• Henschel Engineering Practices: Company-specific design standards emphasizing mission specialization and acceptance of performance compromises in exchange for combat effectiveness
• Captured Engine Integration: Adaptation procedures for Gnome-Rhône 14M French engines to German aircraft and systems—reflecting wartime expedience and resource constraints
• Luftwaffe Documentation Standards: Military technical documentation formats (L.Dv., D.(Luft)T. designations) ensuring standardized technical communication

These technical manuals reflect both the engineering innovation and the significant compromises inherent in the Hs 129's design. The extensive armament documentation demonstrates the sophisticated weapons integration required for effective anti-tank operations. The aircraft represents an extreme example of design specialization—accepting aerodynamic, ergonomic, and performance limitations in pursuit of maximum effectiveness in a specific combat role.

For researchers, historians, engineers, and technical enthusiasts, these documents represent authentic primary sources for understanding the design philosophy, engineering trade-offs, armament systems, and operational realities of purpose-built ground-attack aircraft during World War II.

Format and Delivery

Format: High-resolution PDF digital download
Languages: German (original Luftwaffe documentation); English operating manual for A-0 variant
Delivery: Instant download link provided upon purchase
Compatibility: All devices and PDF readers
Organization: Clearly labeled files organized by variant and document type
