A comprehensive collection of original technical manuals for the Heinkel He 45, the iconic German reconnaissance and light bomber biplane of the 1930s. This structured collection covers maintenance, repair, construction, operating instructions, and specialized systems documentation — spanning both variant-specific and general aircraft manuals, including rare German-language originals.
Definitive Collection with Free Lifetime Updates: This is a living collection that we continuously expand and refine. As we acquire additional He 45 documentation, technical bulletins, or variant-specific materials, we update this collection and provide free lifetime updates to all purchasers. Your one-time purchase guarantees access to all future additions and improvements to this collection.
Historical Note
The Heinkel He 45 was developed in 1930 by Ernst Heinkel Flugzeugwerke as a conventional single-bay biplane intended for reconnaissance and light bombing roles. Its structure combined a welded tubular steel fuselage with all-wooden, fabric-covered wings — a robust and proven configuration for the era. Powered by the BMW VI 7.3 V-12 liquid-cooled engine producing 750 hp, the He 45 offered a maximum speed of 290 km/h and a range of 1,200 km, making it a capable platform for its intended missions.
The aircraft saw extensive operational service during the Spanish Civil War, where it was deployed by the Condor Legion under the designation "Pavo" (Turkey). By 1937–1938, however, it was considered obsolete in the fighter-bomber role and was progressively replaced by the Henschel Hs 126. Despite this, the He 45 continued to serve as a training aircraft within the Luftwaffe and the Deutsche Verkehrsfliegerschule (DVS), valued for its stable handling characteristics — essential for pilot instruction. Several variants were produced, including the He 45b (fitted with a four-blade propeller) and the He 45c/C (equipped with the 750 hp BMW VI 7.3 variant). The type also saw limited early World War II service before being fully retired from front-line duties.
For further historical context, visit our dedicated article: Heinkel He 45 — The Versatile Training Biplane Valued Worldwide.
Manuals Included in This Collection
Variant D
- He 45 D Maintenance Manual

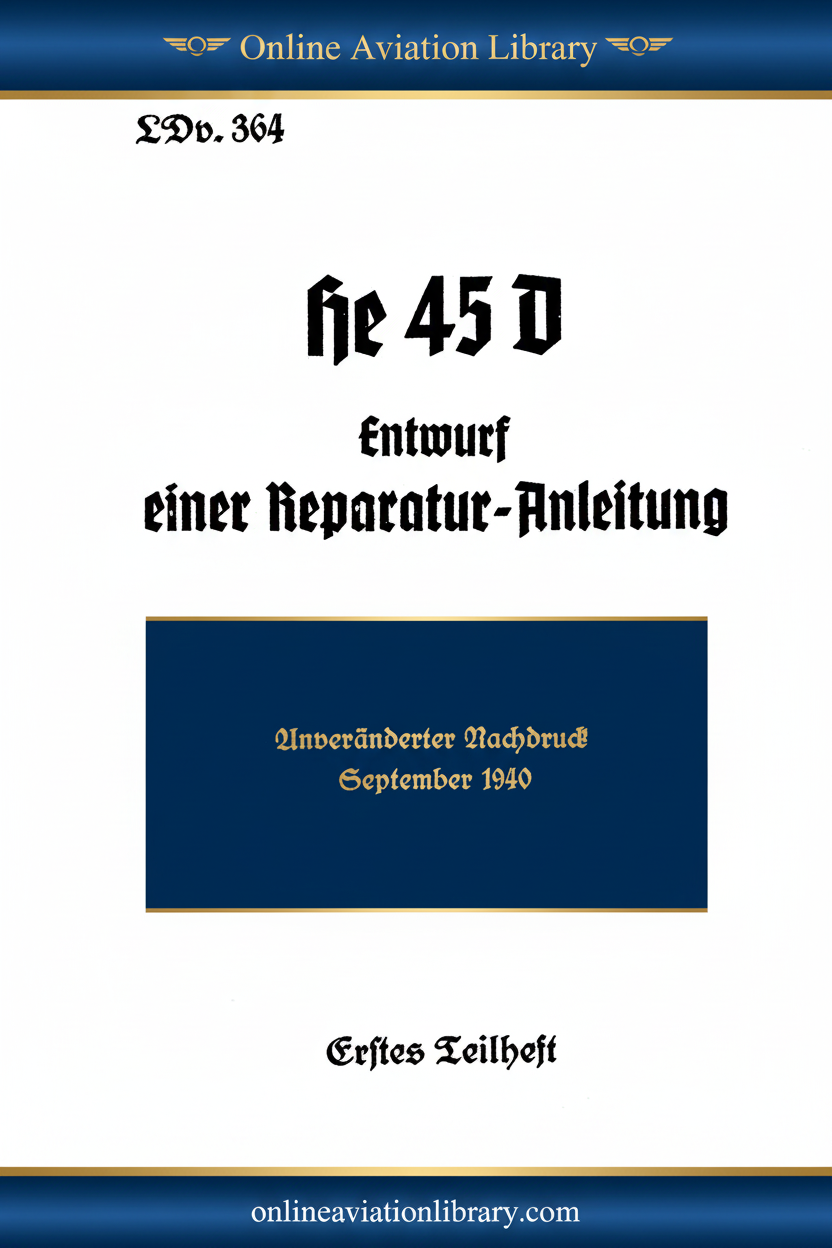

- He 45 D Aircraft Repair Instructions Manual — Reparaturanleitung LDv 364 (German Language)
General / No Variant
- He 45 Construction Manuals

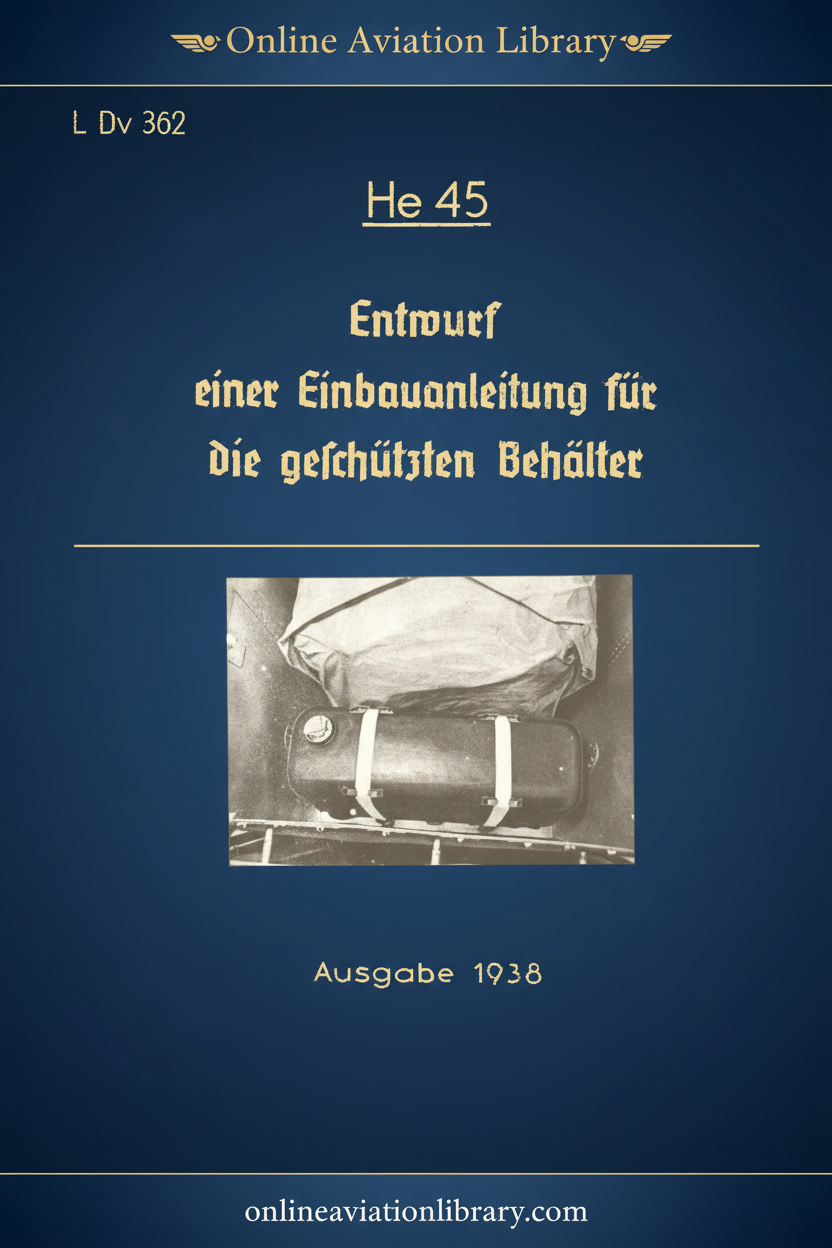

- He 45 Aircraft Installation of Protected Container Technical Manual — He 45 Einbau geschützter Behälter (German Language)
- He 45 Operating Instructions

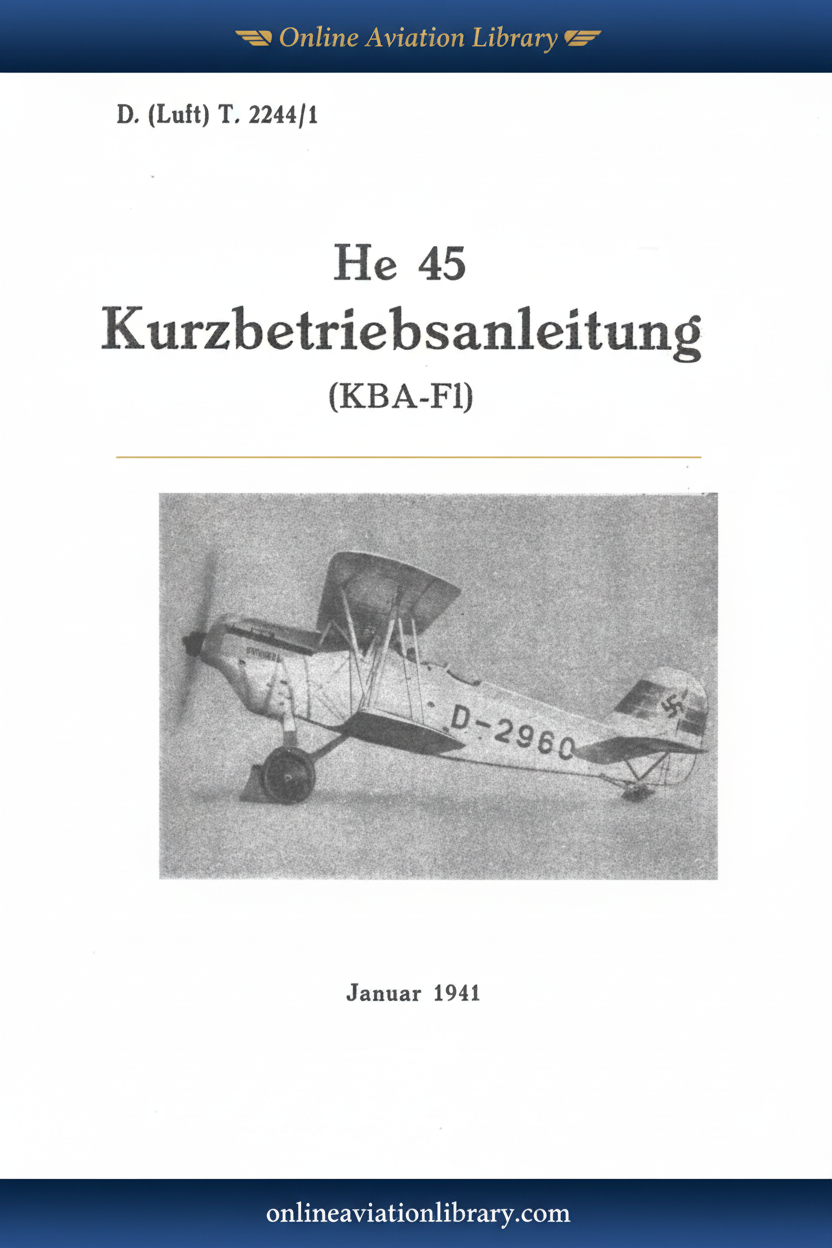

- He 45 Aircraft Short Operating Instructions — Kurz-Betriebsanweisung (German Language)

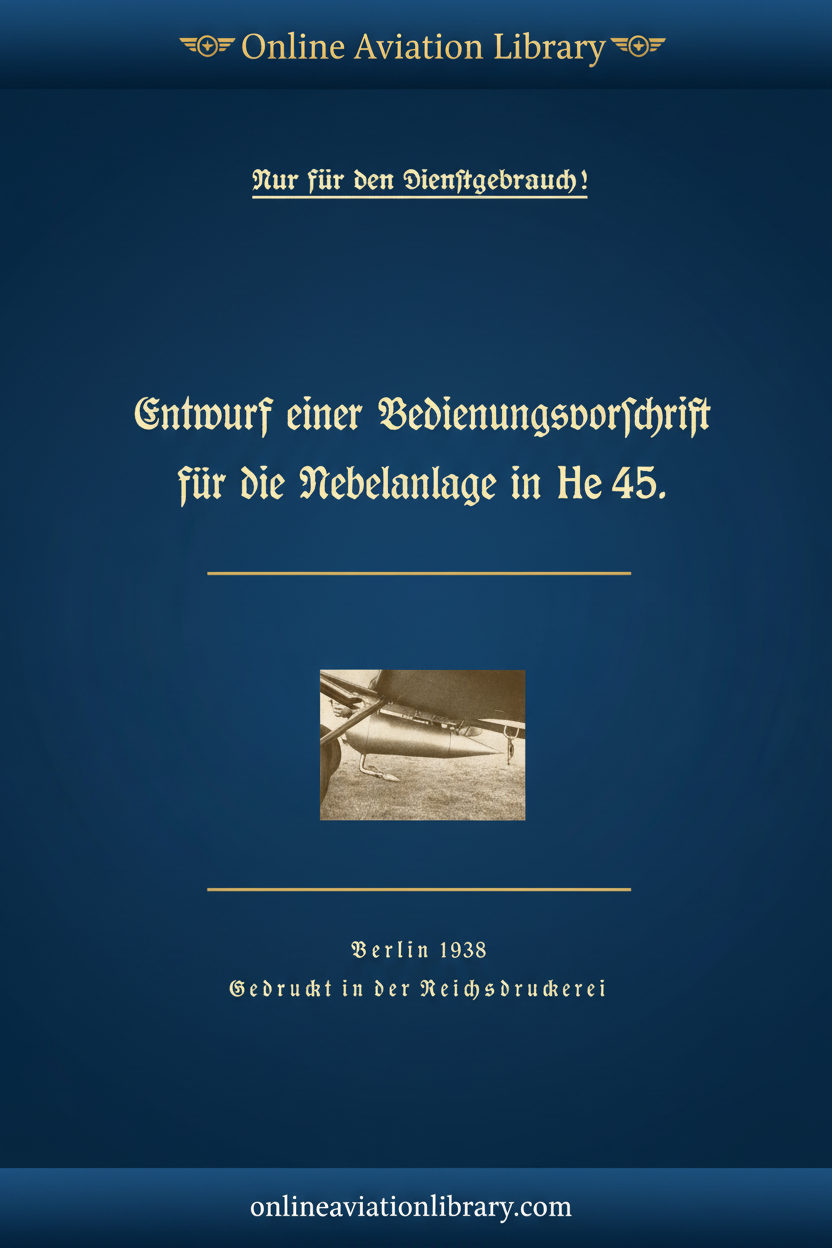

- He 45 Aircraft Smoke System Technical Manual — He 45 BDV Nebelanlage (German Language)

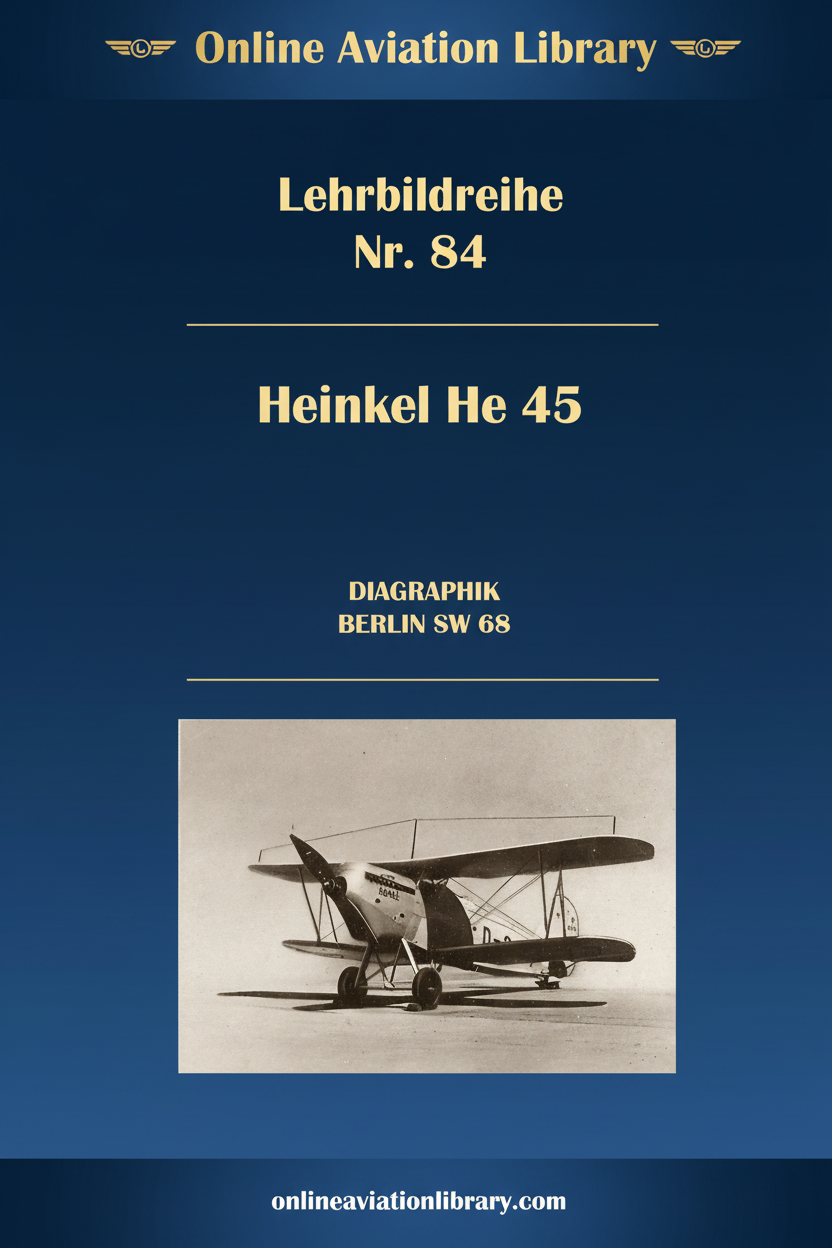

- He 45 Aircraft Instructional Image Series — Lehrbildreihe (German Language)

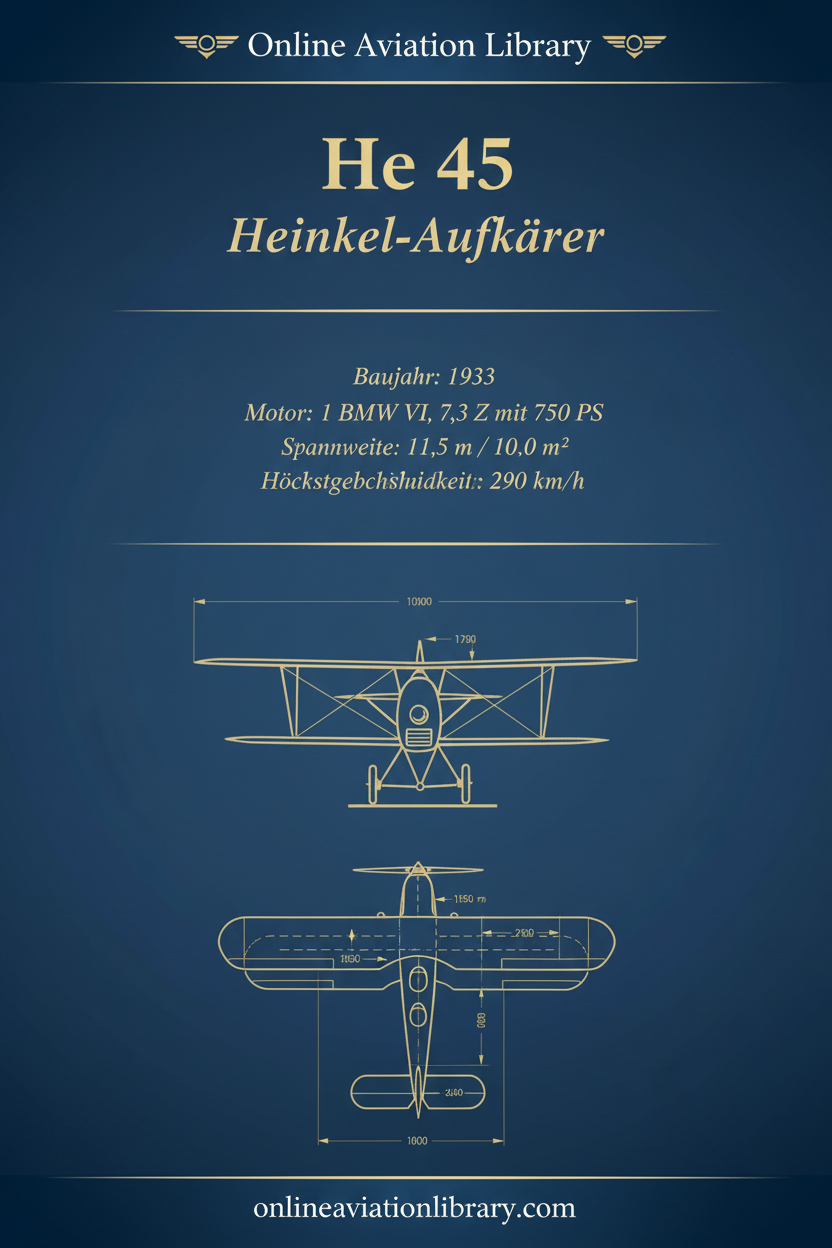

- He 45 Technical Drawing and Photo Sheets — Typenblatt (German Language)
This collection spans 6 manuals across Variant D and general aircraft documentation, covering the full maintenance, repair, construction, operational, and systems lifecycle of the He 45. German-language originals are included as digitized scans, preserving the authentic technical language of the period.
Engineering Norms and Standards
The He 45 was designed and maintained in accordance with German military aviation standards of the early 1930s, including Luftwaffe technical order (LDv — Luftdienstvorschrift) documentation protocols. The LDv 364 series governed repair and maintenance procedures for the type. Construction followed RLM (Reichsluftfahrtministerium) engineering directives, with structural specifications reflecting the mixed-material construction norms of the era: welded steel tube primary structure, wooden secondary structure, and fabric covering. Engine maintenance followed BMW VI series service standards, with propeller specifications varying by sub-variant.
Format and Delivery
All manuals are delivered as high-resolution PDF files, optimized for both screen reading and printing. Files are organized by variant and document type for easy navigation. Instant download upon purchase — no shipping required. Compatible with all PDF readers on desktop, tablet, and mobile devices.
Disclaimer
These documents are provided for historical reference and research purposes only. They do not constitute current airworthiness or maintenance authority. All trade names, designations, and technical data remain the property of their respective owners. Copyright © Sicuro Publishing.
