This comprehensive digital collection provides structured technical documentation for the powerful Grumman F7F Tigercat, the U.S. Navy's first twin-engine fighter and one of the most formidable piston-powered fighters ever built. The collection includes authentic pilot's handbooks, erection and maintenance instructions, structural repair manuals, and illustrated parts catalogs covering F7F-1, F7F-2, F7F-3, F7F-1N, F7F-2N, F7F-3N, F7F-4N, and F7F-3P variants spanning 1944 through 1947.

Definitive Collection with Free Lifetime Updates: This is a living collection that we continuously expand and refine. As we acquire additional F7F Tigercat documentation, technical bulletins, or variant-specific materials, we update this collection and provide free lifetime updates to all purchasers. Your one-time purchase guarantees access to all future additions and improvements to this collection.

Historical Note

The Grumman F7F Tigercat stands as one of the most powerful and advanced piston-engine fighters ever developed for carrier operations, representing the pinnacle of Grumman's wartime fighter design evolution. Designed during World War II to meet the U.S. Navy's need for a high-performance, long-range fighter capable of operating from the new Midway-class carriers then under construction, the Tigercat represented a bold departure from conventional single-engine naval fighter design—and became the Navy's first twin-engine fighter to reach operational status.

Development of the F7F began in June 1941 when Grumman's engineering team under chief engineer William Schwendler initiated design work on a twin-engine fighter that could provide superior performance, range, and firepower compared to existing single-engine types. The design philosophy emphasized maximum performance and combat capability, accepting the increased size and complexity of a twin-engine configuration in exchange for exceptional speed, climb rate, and payload capacity. The prototype XF7F-1 first flew on December 2, 1943, powered by two Pratt & Whitney R-2800-22W Double Wasp 18-cylinder radial engines producing 2,100 horsepower each.

The F7F was exceptionally fast for its time, capable of speeds exceeding 435 mph at altitude—making it one of the fastest American fighters of the piston era and faster than many early jet fighters. Rate of climb was equally impressive at over 4,500 feet per minute, allowing rapid interception of enemy aircraft. The aircraft's tricycle landing gear was advanced for a naval fighter of the period, improving ground handling, pilot visibility during taxiing, and reducing the tendency for ground loops that plagued tail-wheel fighters. The wide-track main gear provided excellent stability for carrier operations.

Armament was devastating: four 20mm AN/M2 cannons mounted in the wing roots with 200 rounds per gun, plus four Browning M2 .50-caliber machine guns in the nose with 300 rounds per gun—all concentrated in the forward fuselage for maximum hitting power without the dispersion issues of wing-mounted guns. Underwing hardpoints could carry two 1,000-pound bombs, eight 5-inch HVAR rockets, or a single 2,000-pound torpedo, making the Tigercat equally capable in air-to-air combat, ground attack, and anti-shipping roles. This combination of speed, firepower, and versatility made the F7F one of the most formidable fighters of its era.

Despite its impressive capabilities, the F7F arrived too late to see significant combat in World War II. The first production F7F-1 aircraft were delivered to the Marine Corps in April 1944, but operational training and squadron workup delayed combat deployment. By the time Marine squadrons VMF(N)-531 and VMF-542 were equipped and ready for combat operations, the war in the Pacific was nearing its end. A small number of F7F-2N night fighters reached Okinawa in August 1945, but Japan surrendered before they could see combat action.

The aircraft's size and weight (15,500 pounds empty, over 25,000 pounds loaded) made it unsuitable for operation from most existing Essex-class carriers, which had been designed for smaller, lighter fighters. Only the new Midway-class carriers, commissioned in 1945-1947, had deck strength and catapults powerful enough to safely operate Tigercats. This limitation restricted the F7F primarily to land-based Marine Corps squadrons, though some carrier qualification trials were conducted.

Production variants included the F7F-1 initial production model (34 built), F7F-2 single-seat fighter with increased fuel capacity (65 built), F7F-3 improved variant with stronger airframe and R-2800-34W engines (189 built), F7F-1N two-seat night fighter with AN/APS-6 radar in the nose (34 built), F7F-2N two-seat night fighter (13 built), F7F-3N two-seat night fighter with improved radar (60 built), F7F-4N final night fighter variant with enlarged tail and improved systems (13 built), and F7F-3P photo-reconnaissance variant with cameras (9 built). Total production reached 364 aircraft before the program ended in December 1946.

The Tigercat found its true calling during the Korean War (1950-1953), where Marine Corps night-fighter variants proved highly effective. VMF(N)-542 "Tigers" operated F7F-3N Tigercats from airfields in Korea and Japan, conducting nocturnal interdiction missions against enemy supply convoys, troop concentrations, and transportation networks. Flying under cover of darkness, Tigercat crews used their AN/APS-19 or AN/APS-21 radar to locate targets, then attacked with bombs, rockets, and cannon fire. The aircraft's speed, firepower, radar capability, and twin-engine reliability made it a formidable night hunter, and it earned respect from both pilots and ground crews for its rugged construction and ability to absorb battle damage and return home safely.

Tigercat night fighters also provided close air support for United Nations ground forces, responding to calls for fire support from forward air controllers and delivering devastating firepower on enemy positions. The aircraft's heavy armament and ability to loiter over the battlefield made it particularly effective in this role. Marine pilots praised the Tigercat's performance, reliability, and survivability, though its complexity and maintenance requirements were higher than single-engine fighters.

After the Korean War, Tigercats were gradually retired from Marine Corps service, with the last operational squadron deactivating in 1954. Several aircraft found civilian roles as fire-fighting aircraft, where their twin-engine reliability, heavy payload capacity (up to 1,000 gallons of fire retardant), and excellent low-altitude performance made them valuable assets in aerial firefighting operations. Sis Q Flying Services and other operators flew Tigercats on firefighting missions into the 1960s, extending the type's operational career well beyond its military service.

Today, the F7F Tigercat is highly prized by warbird collectors and aviation museums. Fewer than a dozen airworthy examples remain worldwide, with several flying at airshows where they demonstrate the raw power and distinctive sound of their twin R-2800 engines. Museums including the National Naval Aviation Museum, Smithsonian National Air and Space Museum, and the Flying Heritage & Combat Armor Museum preserve examples of this remarkable aircraft, ensuring that the legacy of Grumman's most powerful piston fighter endures as a testament to advanced wartime engineering and the "what might have been" of late-war fighter development.

Manuals Included in This Collection

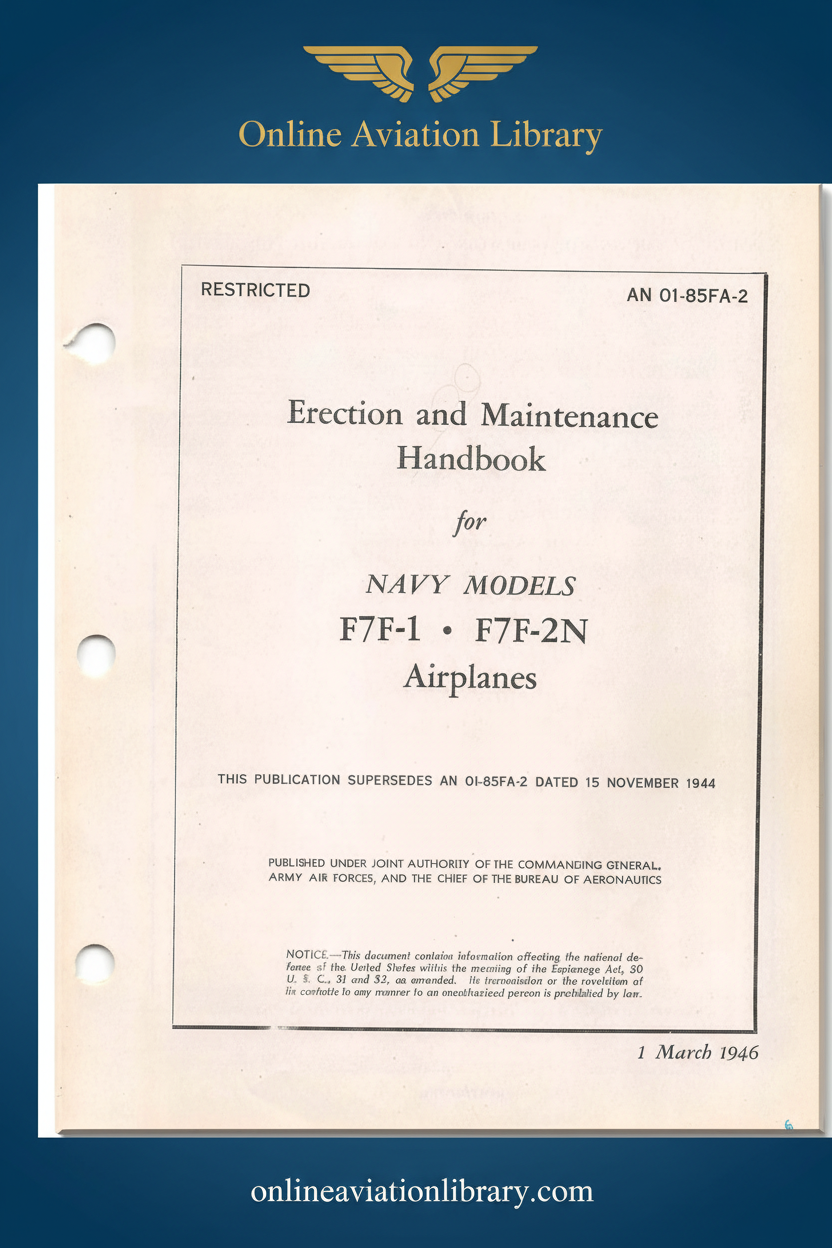

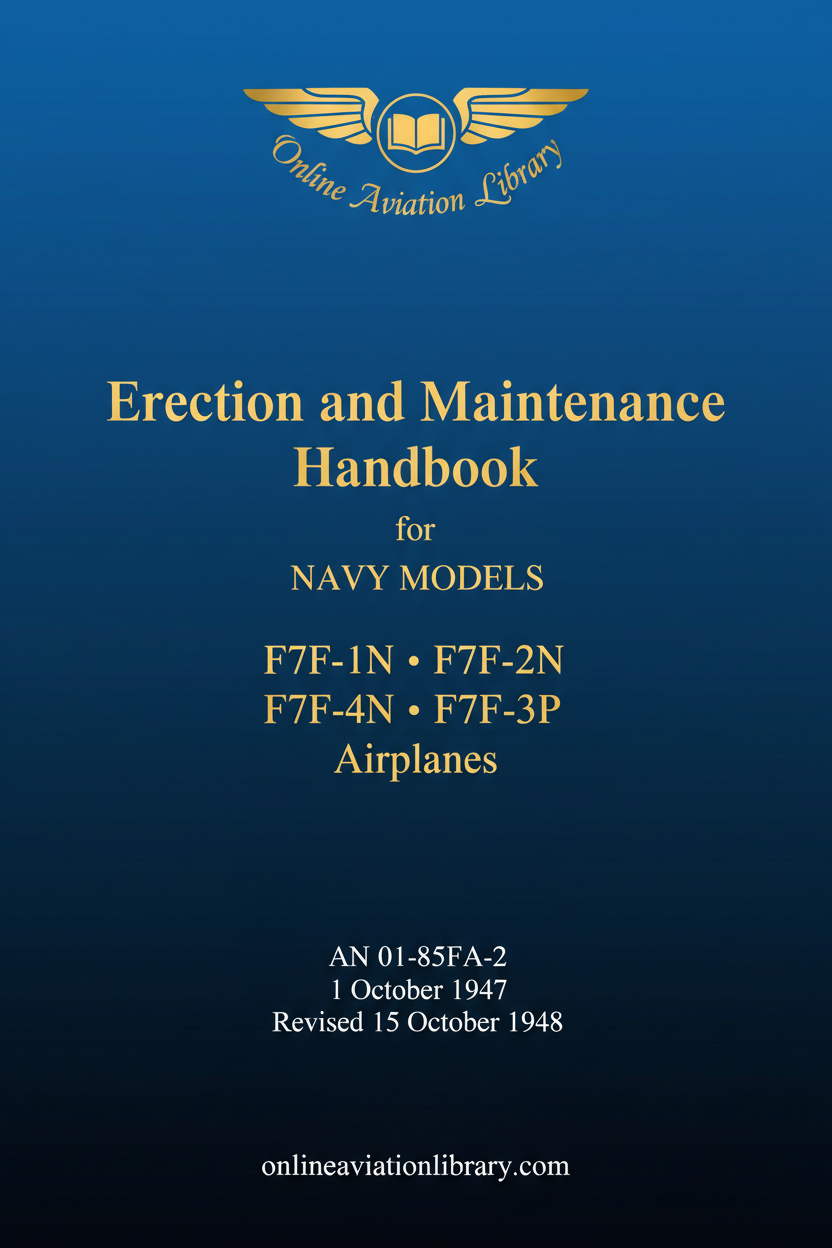

• Grumman F7F-1N, 2N, -3, -3N, -4N, -3P Aircraft Erection and Maintenance Manual - 01-85FA-2 - 1947

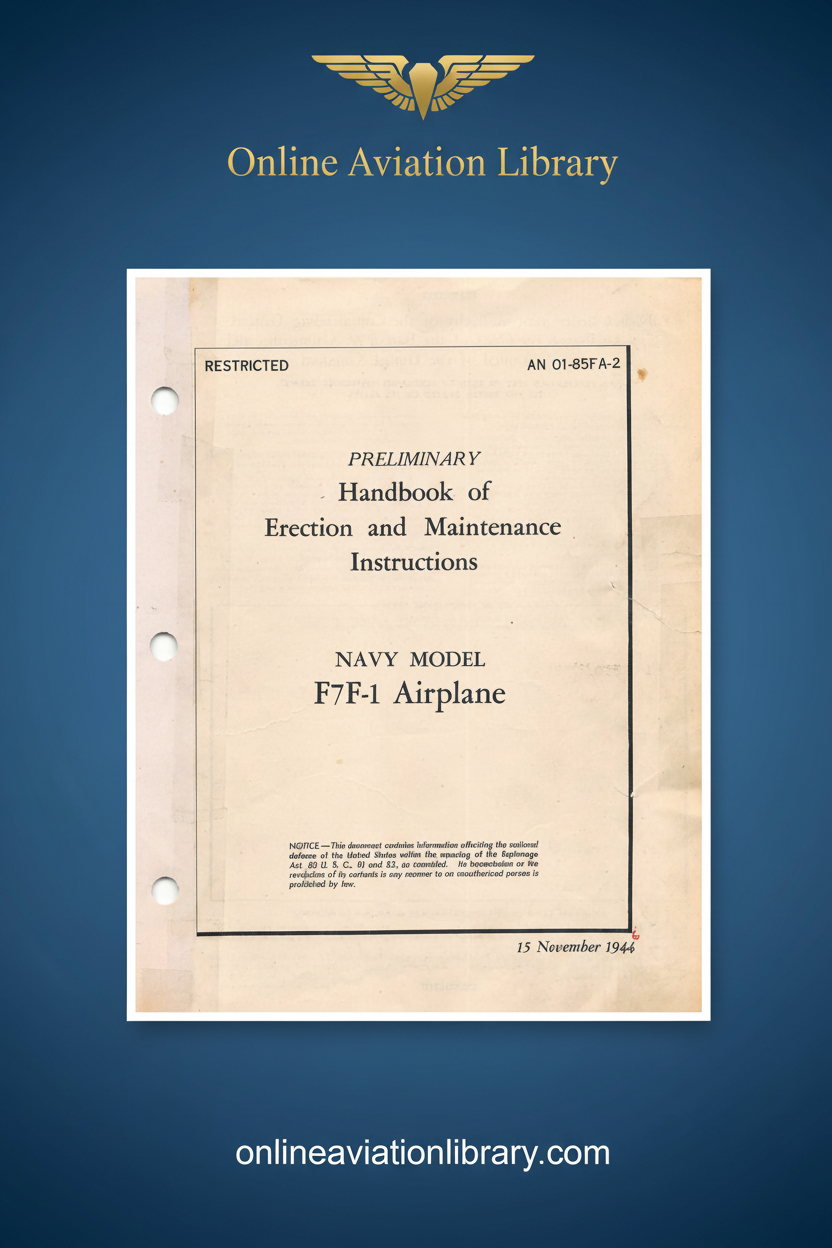

• Grumman F7F-1 Aircraft Erection Maintenance Manual - 01-85FA-2 - 1944
• Grumman F7F-1, 2 Aircraft Erection Maintenance Manual - 01-85FA-2 - 1946

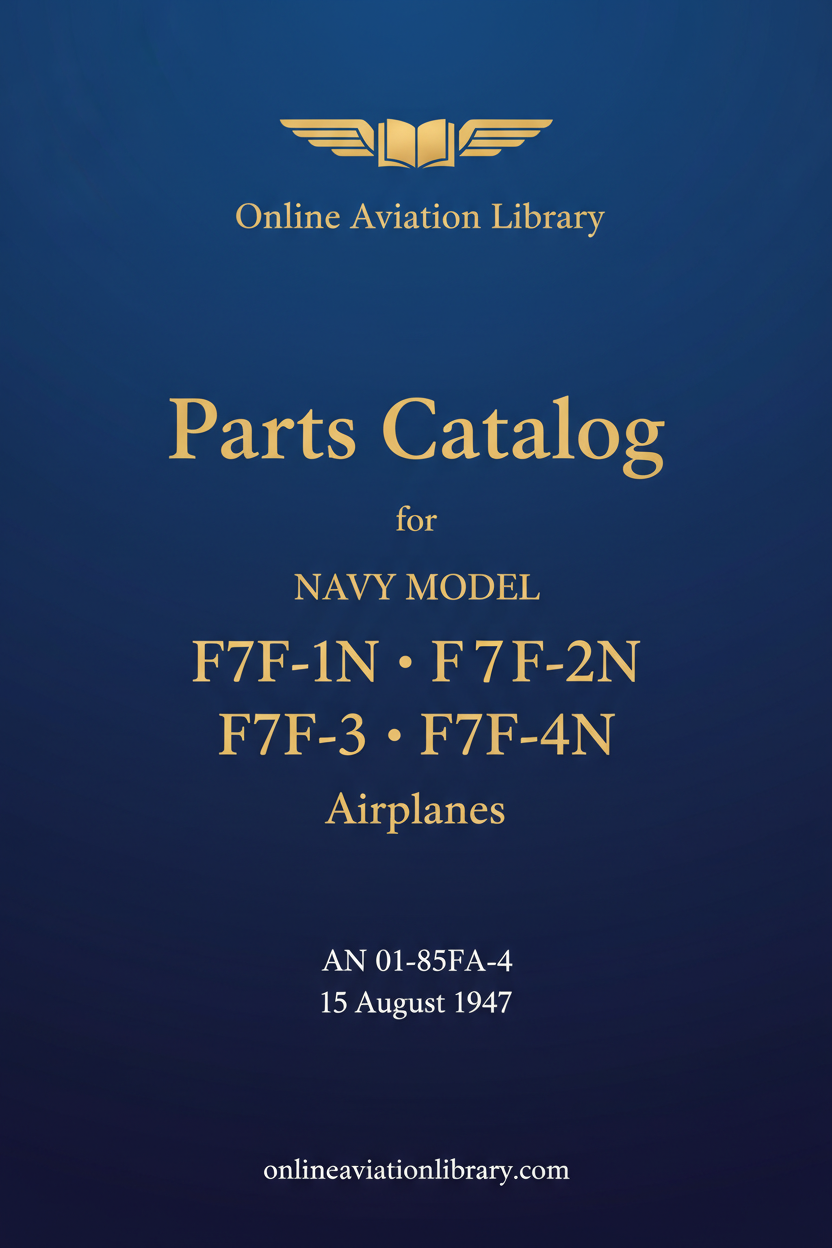

• Grumman F7F-1N, 2N, -3, -3N Aircraft Parts Catalog Manual - 01-85FA-4 - 1947
• Grumman F7F-1N, 2N, -3, -3N Aircraft Handbook of Structural Repair Manual AN 01-85FA-3, 1946

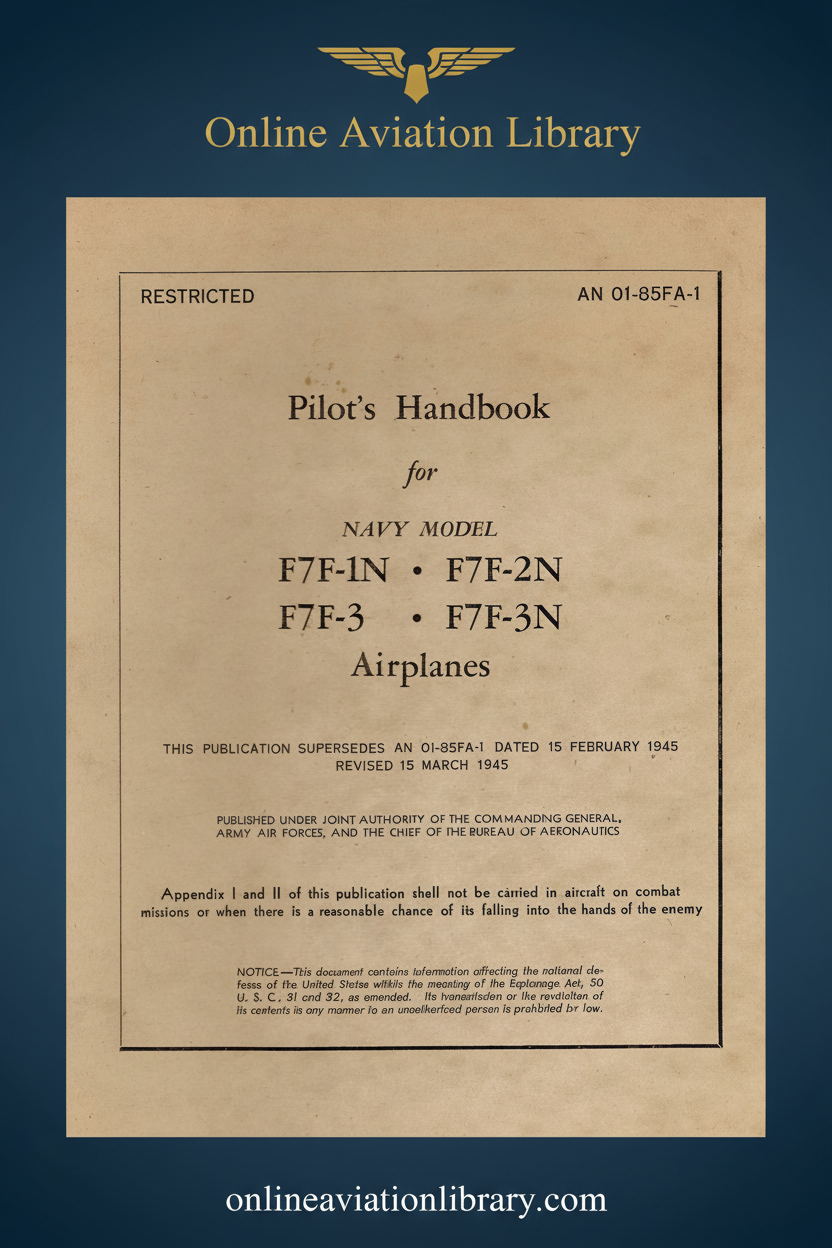

• Grumman F7F-1N, 2N, -3, -3N Pilot's Handbook of Flight Operating Instruction Manual AN 01-85FA-1, 1945

This collection provides comprehensive coverage of all major F7F Tigercat variants, including detailed flight operations, maintenance procedures, parts identification, structural repair techniques, and erection instructions. The manuals span the entire production history from initial F7F-1 variants through final F7F-4N night fighters, representing authentic documentation used by Marine Corps pilots, aircrew, and maintenance personnel during operational service.

Engineering Norms and Standards

Design and Construction: The F7F Tigercat was designed to U.S. Navy Bureau of Aeronautics specifications and certified under military airworthiness standards of the early 1940s. The aircraft featured all-metal semi-monocoque construction with Grumman's characteristic robust engineering scaled up for a twin-engine fighter. The mid-wing monoplane configuration employed a laminar-flow airfoil optimized for high-speed performance, with a total wing area of 455 square feet and a span of 51 feet 6 inches. The wing incorporated manually-folded outer panels that reduced span to approximately 24 feet for carrier storage, though the aircraft's size limited carrier operations to the largest carriers.

Twin-Engine Configuration: The F7F's twin-engine layout provided several advantages: redundancy for over-water operations (ability to return on one engine), exceptional power-to-weight ratio, superior climb performance, and the ability to mount heavy armament in the nose without synchronization gear. The engines were mounted in nacelles on the wing leading edge, with the propellers counter-rotating (left engine rotating clockwise, right engine counter-clockwise when viewed from the cockpit) to eliminate torque effects and improve handling characteristics.

Powerplant and Propulsion System: The F7F-1 and F7F-2 were powered by two Pratt & Whitney R-2800-22W Double Wasp 18-cylinder two-row radial engines producing 2,100 horsepower each for takeoff. The F7F-3 and later variants employed the R-2800-34W engines with improved performance. Each engine drove a four-blade Hamilton Standard Hydromatic constant-speed propeller with a diameter of 13 feet 1 inch. The engines featured water injection for emergency power boost, two-stage superchargers for high-altitude performance, and comprehensive cooling systems with controllable cowl flaps.

Performance Specifications: The F7F-3 achieved a maximum speed of 435 mph at 22,200 feet, with a cruise speed of 222 mph for maximum range. Service ceiling was 40,700 feet. Combat radius was approximately 810 nautical miles with internal fuel, extending to over 1,200 nautical miles with external drop tanks. Maximum takeoff weight was 25,720 pounds. Rate of climb was an exceptional 4,530 feet per minute at sea level—among the highest of any piston-engine fighter. The Tigercat could sustain 7.5g maneuvers at combat weight.

Structural Load Factors: The Tigercat airframe was designed to withstand load factors of +7.5g and -3.0g at design gross weight, with ultimate load factors of +11.25g and -4.5g (1.5 times limit load per MIL-A-8860 military specifications). The robust landing gear featured heavy-duty oleo-pneumatic shock struts designed for carrier arrested landings. The tricycle configuration with nose wheel provided excellent ground handling and eliminated the ground-loop tendency of tail-wheel fighters. Landing gear track was 20 feet 6 inches, providing exceptional stability. The arresting hook was mounted on the aft fuselage for carrier operations.

Fuel System: Total internal fuel capacity was 375 U.S. gallons in self-sealing wing tanks (increased to 455 gallons on F7F-2 and later). Two 150-gallon drop tanks could be carried on underwing hardpoints for extended-range missions, increasing total capacity to 755 gallons. All fuel tanks featured self-sealing construction and CO2 fire-suppression systems. The twin-engine configuration provided redundancy—the aircraft could return to base on one engine even with battle damage to fuel systems.

Hydraulic System: The hydraulic system operated at 1,500 psi and powered the landing gear retraction, wing folding mechanism, flaps, cowl flaps, and bomb bay doors. The system featured dual engine-driven hydraulic pumps (one per engine) for redundancy. A hand pump provided manual hydraulic pressure for emergency gear extension and wing unfolding.

Armament and Firepower: The F7F's armament was among the heaviest of any U.S. fighter: four 20mm AN/M2 cannons mounted in the wing roots with 200 rounds per gun (800 rounds total), plus four Browning M2 .50-caliber machine guns in the nose with 300 rounds per gun (1,200 rounds total). All guns were concentrated in the forward fuselage, providing devastating firepower without the convergence issues of wing-mounted guns. Underwing hardpoints could carry two 1,000-pound bombs, eight 5-inch HVAR rockets, or one 2,000-pound torpedo. Some aircraft were equipped with a centerline bomb rack for additional ordnance.

Night Fighter Equipment: Night fighter variants (F7F-1N, F7F-2N, F7F-3N, F7F-4N) featured a second crew station for the radar operator, AN/APS-6 (later AN/APS-19 or AN/APS-21) radar in the nose, special cockpit lighting compatible with night vision, flame-damping exhaust stacks, and comprehensive navigation equipment. The radar provided detection of enemy aircraft at ranges up to 5 miles, allowing effective night interception. The two-man crew configuration improved workload management during demanding night operations.

Avionics and Equipment: Standard equipment included VHF and UHF command radios, IFF transponder, radio compass, and intercom system for crew coordination (on two-seat variants). The cockpit featured comprehensive flight instruments including airspeed indicator, altimeter, rate of climb indicator, turn and bank indicator, artificial horizon, directional gyro, dual engine instruments, and magnetic compass. Night fighter variants included radar displays and specialized navigation equipment.

Manufacturing Standards: Production aircraft were built to U.S. Navy Bureau of Aeronautics specifications and military standards (MIL-SPEC) for materials, processes, and quality control. Grumman employed detailed manufacturing drawings, precision tooling, and rigorous inspection procedures. Structural components were fabricated from 2024-T3 and 7075-T6 aluminum alloys, with 4130 chromoly steel and titanium used for high-stress and high-temperature components. The complexity of the twin-engine design required more extensive manufacturing processes and quality control compared to single-engine fighters.

Specialized Documentation

Supplemental Type Certificates and Modifications: Several surviving airworthy F7F Tigercats have been modified under FAA Supplemental Type Certificates (STCs) for civilian warbird operation, including modern avionics installations, updated electrical systems, and safety modifications. Former firefighting aircraft retain modifications including retardant tank installations and reinforced structure. Restorers and operators should consult the FAA registry and applicable STCs for specific aircraft modifications and operating limitations under Experimental-Exhibition or Limited category certificates.

Service Bulletins and Technical Directives: While the F7F Tigercat is no longer supported by an active Type Certificate holder (Grumman was acquired by Northrop Grumman, and Tigercat production ended in 1946), historical Navy Technical Directives and Bureau of Aeronautics Service Bulletins remain valuable references for restoration and maintenance. The limited production run and specialized nature of the aircraft make original documentation particularly valuable for the small number of surviving examples.

Performance Profiles and Operational Procedures: This collection includes authentic pilot's handbooks with detailed performance charts, takeoff and landing data, fuel consumption tables, range profiles, night fighter operations procedures, and emergency procedures including single-engine operations. These documents provide invaluable operational insights for current warbird pilots and aviation historians studying advanced late-war fighter development and Korean War night fighter operations.

Where to Find Additional Documentation

Official Archives: The National Naval Aviation Museum in Pensacola, Florida, maintains extensive archives of F7F Tigercat documentation including technical orders, engineering drawings, and operational records. The Smithsonian National Air and Space Museum and the Cradle of Aviation Museum (Long Island, New York, near the original Grumman factory) also hold significant Tigercat technical records and historical materials.

Historical Archives: The F7F Tigercat community is supported by organizations including the Commemorative Air Force (CAF), Warbirds of America (EAA), and Tigercat-specific owner groups. Online forums such as WarbirdRegistry.org and military aviation forums provide community knowledge, restoration advice, and technical discussions. The American Aviation Historical Society (AAHS) and Naval History and Heritage Command (NHHC) maintain research archives with additional technical documentation and operational histories.

Specialty Vendors: In addition to Online Aviation Library, several specialty vendors provide F7F Tigercat historical documentation and research materials. The rarity of the aircraft (only 364 built) makes original documentation particularly valuable, and the small community of Tigercat owners and restorers maintains close communication and shares technical knowledge.

Format and Delivery

All manuals are provided as high-resolution PDF files, optimized for on-screen viewing and printing. Files are delivered via secure download link immediately upon purchase. The complete collection is organized in a logical folder structure by variant and document type for easy navigation and reference.

Disclaimer

This item is sold for historical and reference purposes only. These are either original or copies of manuals and blueprints used when these aircraft were in active duty, now transferred into electronic format. These manuals and blueprints are not meant to be used for current update material for certification/repair, but make an excellent reference for the scholar, collector, modeler, or aircraft enthusiast. For proprietary reasons, we generally only provide civil manuals and blueprints on obsolete aircraft/engines/helicopters. The information is for reference only, and we do not guarantee the completeness, accuracy, or currency of any manuals.

Reference herein to any specific commercial products by trade name, trademark, manufacturer, or otherwise, is not meant to imply or suggest any endorsement by, or affiliation with that manufacturer or supplier. All trade names, trademarks, and manufacturer names are the property of their respective owners.

This digital compilation, structure, indexing, and presentation are © Sicuro Publishing.
