Grumman C-1 Trader / S-2 Tracker Aircraft Manuals Collection
€145,00

This comprehensive digital collection provides structured technical documentation for two legendary Grumman carrier-based aircraft: the S-2 Tracker anti-submarine warfare platform and the C-1 Trader carrier onboard delivery aircraft. The collection includes authentic flight manuals, maintenance instructions, illustrated parts catalogs, structural repair handbooks, and system-specific technical documentation covering S-2A, S-2C, S-2D, S-2E, S-2F, S-2G, US-2C, US-2D, ES-2D, CS2F-2, TF-1, and C-1A variants spanning 1956 through 1975.

Definitive Collection with Free Lifetime Updates: This is a living collection that we continuously expand and refine. As we acquire additional S-2 Tracker and C-1 Trader documentation, technical bulletins, or variant-specific materials, we update this collection and provide free lifetime updates to all purchasers. Your one-time purchase guarantees access to all future additions and improvements to this collection.

Historical Note: Grumman S-2 Tracker

The Grumman S-2 Tracker holds the distinction of being the world's first purpose-built, single-airframe anti-submarine warfare (ASW) aircraft designed for carrier operations. Developed in response to the U.S. Navy's 1950 requirement for an integrated hunter-killer aircraft, the Tracker revolutionized naval ASW by combining detection and attack capabilities in one platform, replacing the previous two-aircraft hunter-killer team approach that required separate aircraft for search (hunter) and strike (killer) missions.

Designed by Grumman's engineering team under the leadership of William Schwendler, the prototype XS2F-1 first flew on December 4, 1952. The aircraft entered U.S. Navy service in February 1954 with Anti-Submarine Squadron VS-26, marking a new era in carrier-based ASW operations. The S-2's innovative design integrated a comprehensive sensor suite with a substantial weapons payload in a compact, carrier-capable airframe powered by two Wright R-1820-82WA Cyclone nine-cylinder radial engines producing 1,525 horsepower each.

The Tracker's ASW sensor suite was remarkably sophisticated for its era, including a retractable AN/APS-38 search radar in a ventral radome, a retractable Magnetic Anomaly Detector (MAD) boom extending from the tail, 16 sonobuoy dispensers in the aft fuselage, and searchlight for night surface detection. The internal weapons bay could accommodate homing torpedoes (Mk 43, Mk 44, Mk 46), conventional or nuclear depth charges, or bombs, while underwing hardpoints could carry additional rockets, bombs, or external fuel tanks. This integration of sensors and weapons made the Tracker a formidable submarine hunter during the height of the Cold War when Soviet submarine activity posed a significant threat to carrier battle groups and sea lanes.

Production variants included the S2F-1 (later redesignated S-2A) initial production model with 755 built, S2F-2 (S-2B) with enlarged weapons bay, S2F-3 (S-2C) with improved avionics, S-2D with upgraded engines and Julie/Jezebel acoustic detection system, S-2E with enlarged tail and improved ASW systems (the most numerous variant with over 250 built), S-2F with further avionics improvements, and S-2G final U.S. Navy variant with updated electronics. Specialized variants included the US-2 utility transport, ES-2 electronic warfare platform, and RS-2 photo-reconnaissance version. Total U.S. production exceeded 1,200 aircraft between 1952 and 1968.

The S-2 Tracker served the U.S. Navy from 1954 to 1976, operating from both Essex-class and modern supercarriers as well as shore bases. The aircraft participated in Cold War ASW operations worldwide, maintaining constant vigilance against Soviet submarine threats. During the Vietnam War, Trackers flew coastal patrol and surveillance missions, though their primary mission remained anti-submarine warfare in support of carrier battle groups.

Beyond American service, the Tracker achieved remarkable international success, serving with the navies of Argentina, Australia, Brazil, Canada, Italy, Japan, the Netherlands, Peru, South Korea, Taiwan, Thailand, Turkey, Uruguay, and Venezuela. The Royal Canadian Navy operated the Canadian-built CS2F variant (built under license by de Havilland Canada) from 1957 to 1990, representing one of the longest operational careers of any Tracker variant. Many nations operated the type well into the 1990s, with some aircraft converted for fire-fighting and utility roles continuing service into the 21st century. Brazilian Navy S-2T Turbo Trackers (re-engined with turboprop engines) served until 2013, marking nearly 60 years of continuous Tracker operations worldwide.

Historical Note: Grumman C-1 Trader

The Grumman C-1 Trader was developed as a carrier onboard delivery (COD) variant of the successful S-2 Tracker, designed to transport cargo, mail, and passengers between shore bases and aircraft carriers at sea. Recognizing the need for a dedicated logistics aircraft that could operate from carrier decks, Grumman adapted the proven Tracker airframe to create the TF-1 (later redesignated C-1A) Trader, which first flew on January 19, 1955.

The C-1 shared the Tracker's basic wing, tail, landing gear, and powerplant (two Wright R-1820-82WA Cyclone radial engines), but featured a completely redesigned fuselage with a larger, pressurized cabin capable of carrying nine passengers or 3,500 pounds of cargo. The fuselage was widened and heightened compared to the Tracker, with a large cargo door on the port side for efficient loading and unloading. All ASW equipment was deleted, and the internal volume was optimized for cargo and passenger transport. The result was a practical, reliable logistics aircraft perfectly suited to the demanding carrier environment.

What made the C-1 Trader essential to carrier operations was its ability to maintain the vital logistics link to carrier battle groups operating far from shore. The aircraft could deliver critical spare parts, mail, personnel, medical supplies, and high-priority cargo directly to carrier decks, ensuring operational readiness and crew morale during extended deployments. Its twin-engine reliability, carrier-capable design with folding wings, and ability to operate in adverse weather made it ideal for the demanding COD mission. The Trader could land on carriers in conditions that would ground helicopters, providing an all-weather logistics capability.

Approximately 87 C-1A Trader aircraft were produced between 1955 and 1958, serving with Fleet Logistics Support Squadrons (VR squadrons) attached to carrier air wings. The Trader served the U.S. Navy from 1955 to 1988, providing essential logistics support throughout the Cold War era, including extensive service during the Vietnam War when it maintained supply lines to carriers on Yankee Station in the Gulf of Tonkin. The aircraft participated in countless deployments worldwide, operating from carriers in the Atlantic, Pacific, and Mediterranean fleets.

The C-1 was eventually replaced by the larger Grumman C-2 Greyhound (based on the E-2 Hawkeye airframe), which offered greater cargo capacity (10,000 pounds), longer range, and turboprop power. However, the Trader's legacy lives on as an important chapter in naval aviation logistics, representing the practical engineering solutions that kept carrier operations running smoothly during a critical period in naval history.

Manuals Included in This Collection

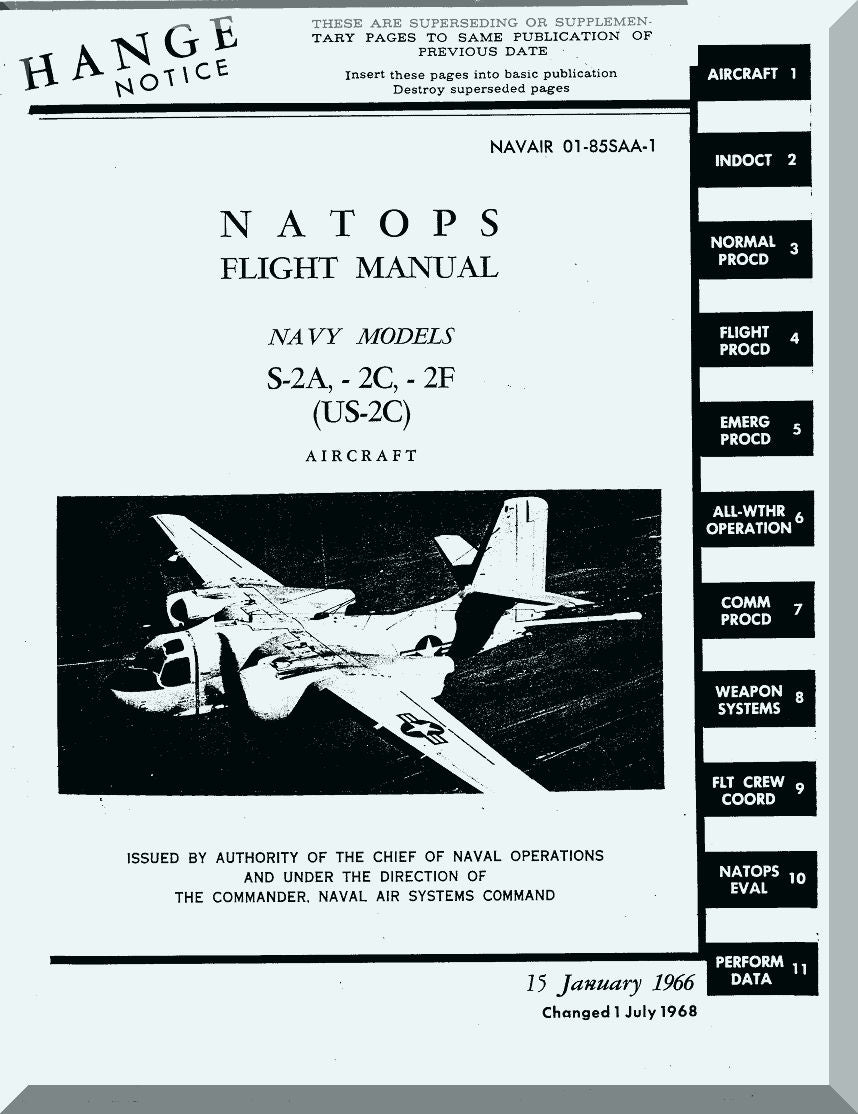

  • Grumman S-2A, -2C, -2F (US-2C) Aircraft Flight Manual — NAVAIR 01-85SAA-1 — 1966

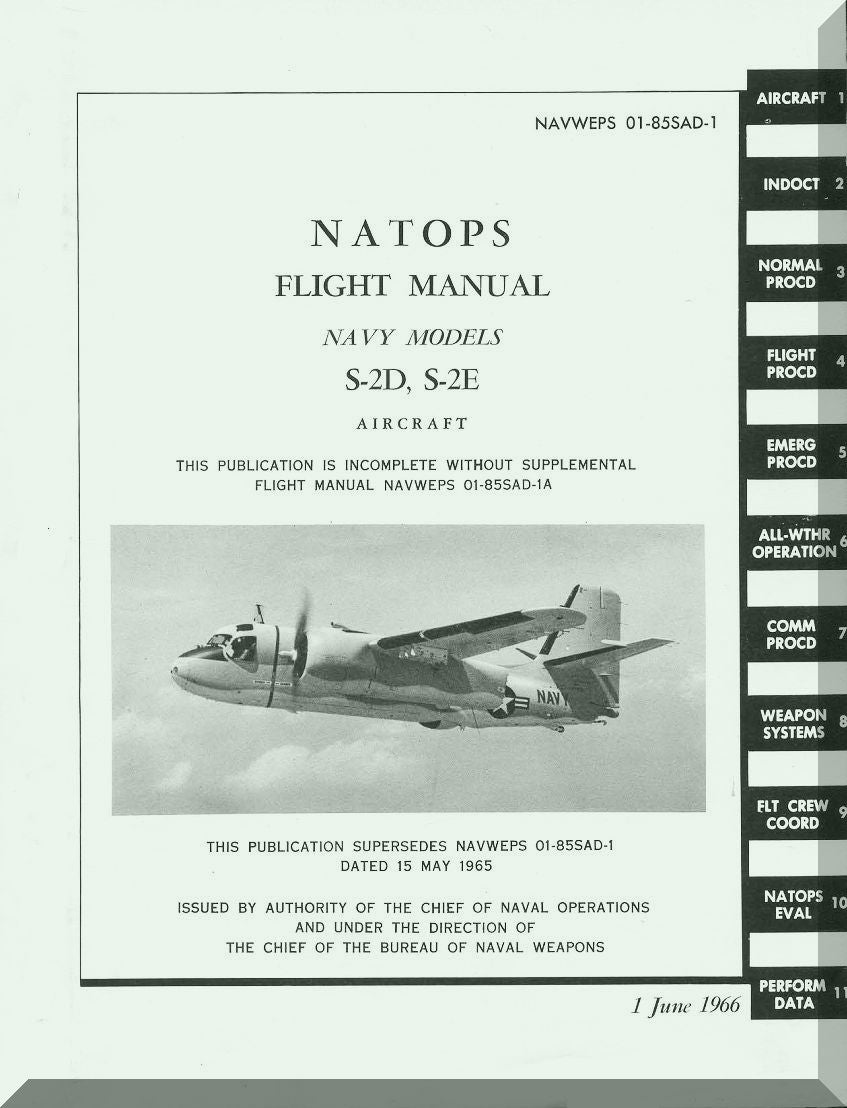

  • Grumman S-2D, S-2E Aircraft Flight Manual — 01-85SAD-1 — 1966

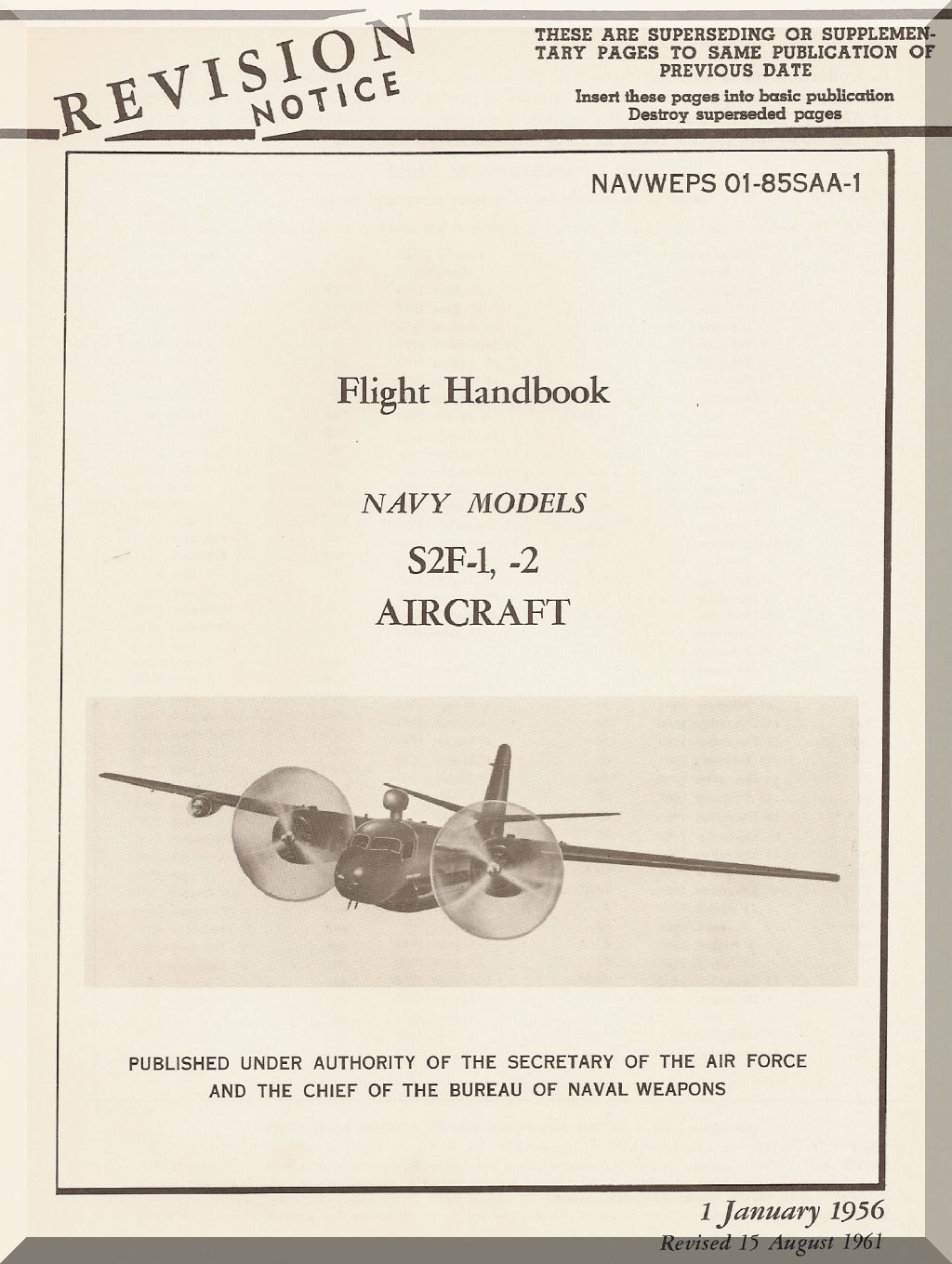

  • Grumman S2F-1, -2 Aircraft Flight Manual — 01-85SAA-1 — 1956

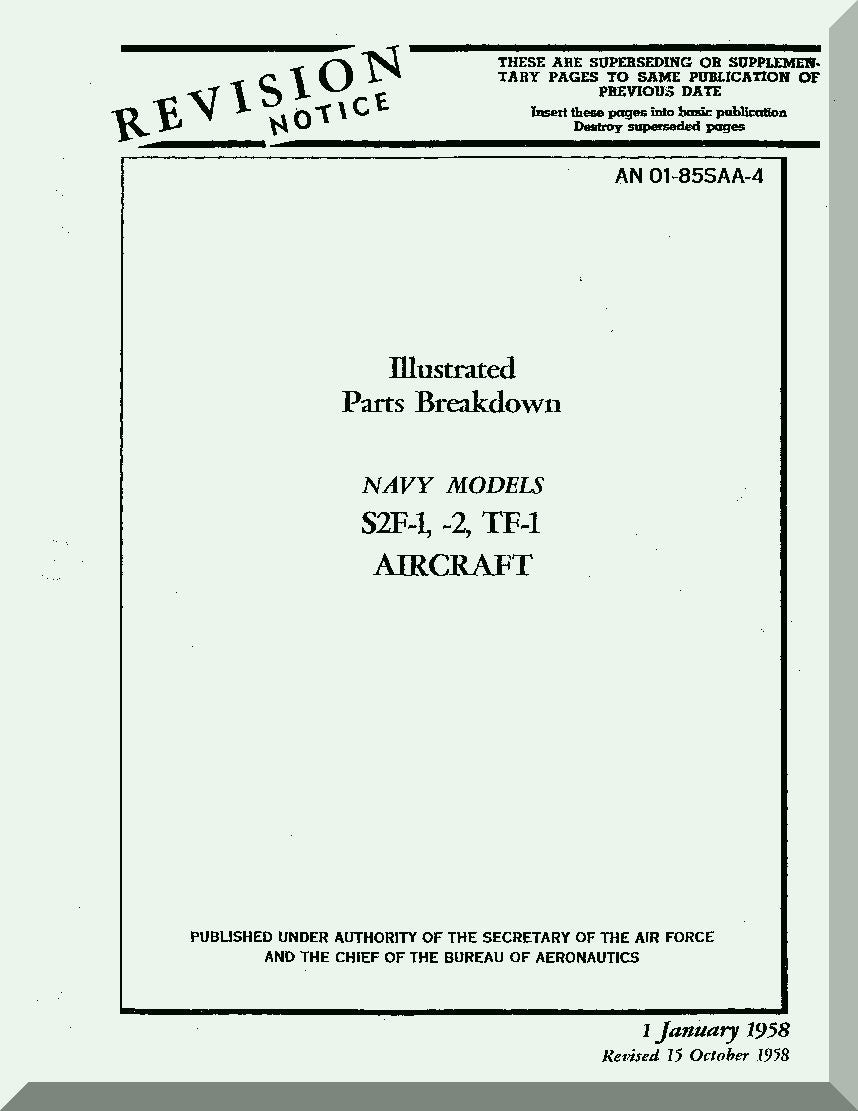

  • Grumman S2F-1, -2, TF-1 Aircraft Illustrated Parts Breakdown Manual — AN 01-85SAA-4 — 1958
  • Grumman S-2A, -2C, C-1A Aircraft Handbook Maintenance Instructions — Section 1 General Information — NAVAIR 01-85SAA-2 — 1965

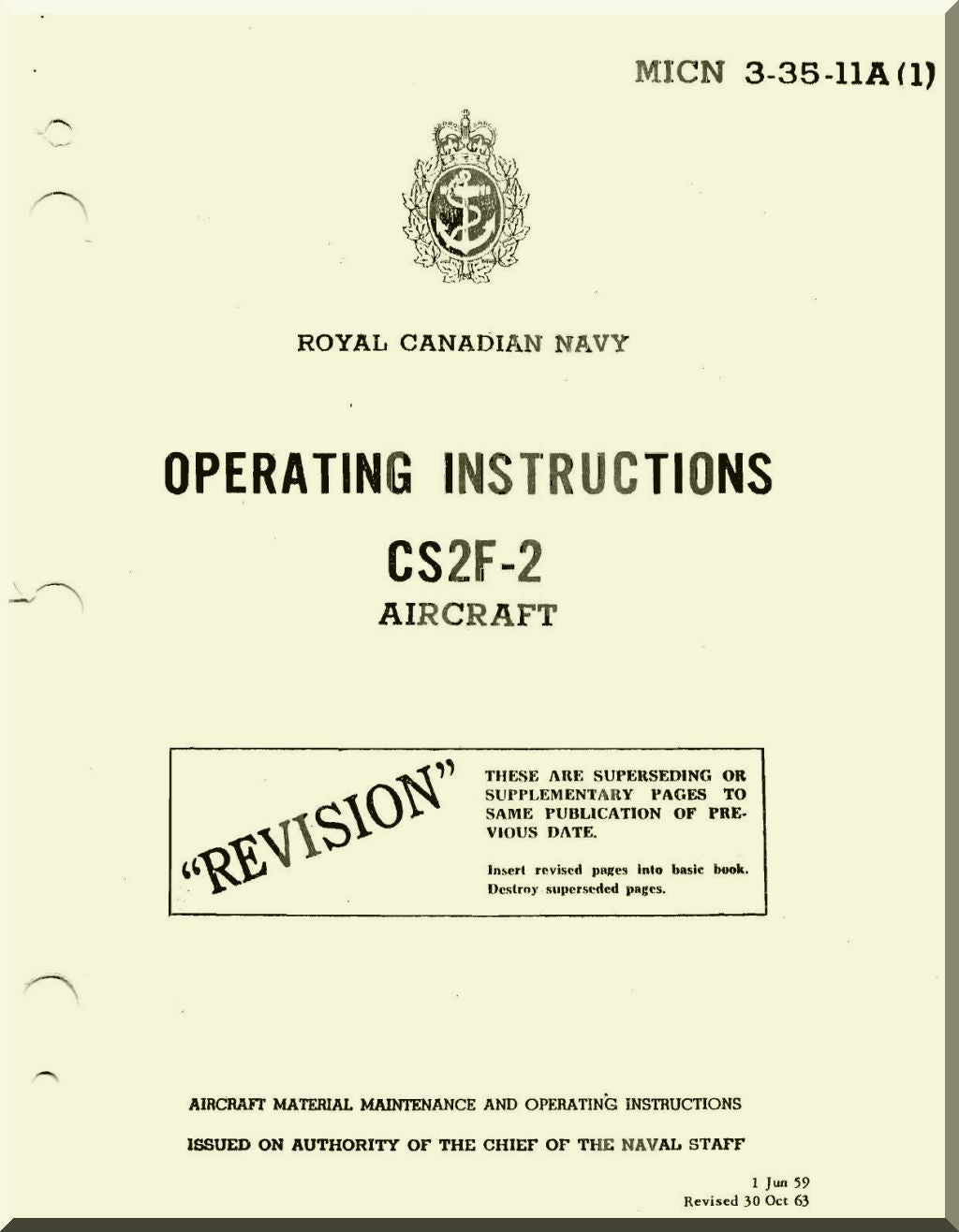

  • Grumman CS2F-2 Aircraft Operating Instructions Manual — Royal Canadian Navy — MICN 3-35-11A(1)
  • Grumman S-2D, -2E, -2G, US-2D, ES-2D Aircraft Flight Manual — 01-85SAD-1 — 1971

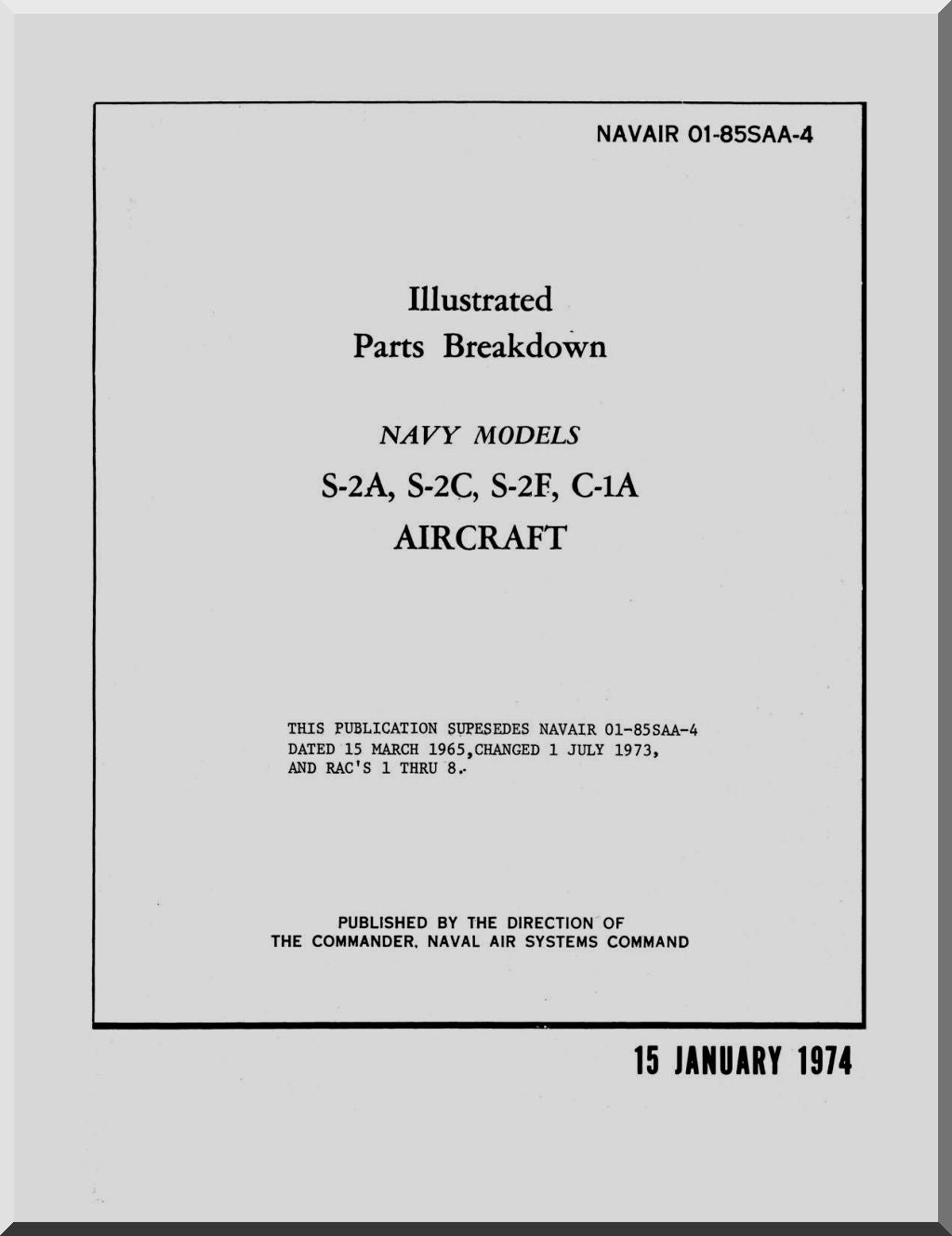

  • Grumman S-2A, S-2C, S2F, C-1A Aircraft Illustrated Parts Breakdown Manual — 01-85SAA-4 — 1974

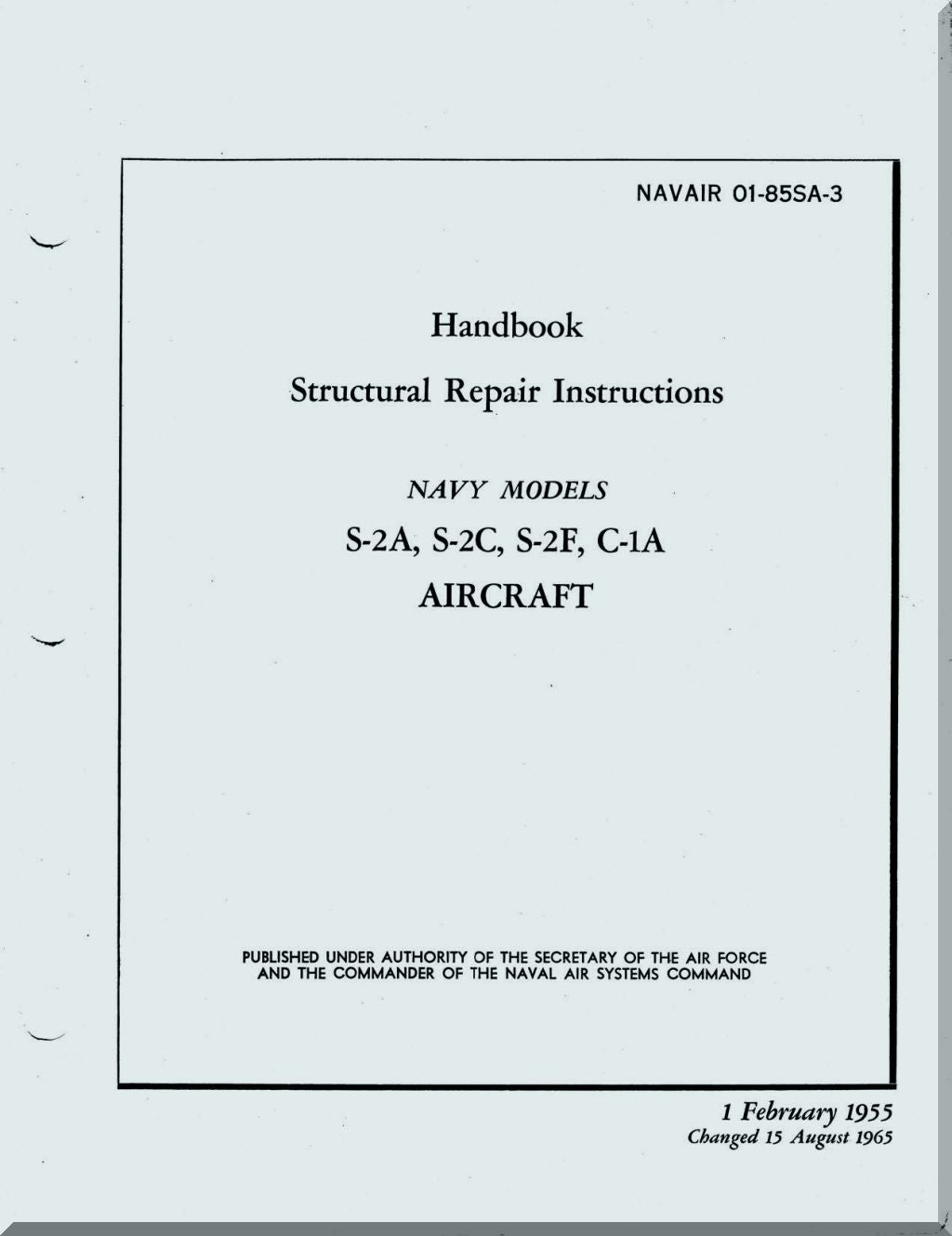

  • Grumman S-2A, S-2C, S2F, C-1A Aircraft Structural Repair Manual — 01-85SA-3 — 1965

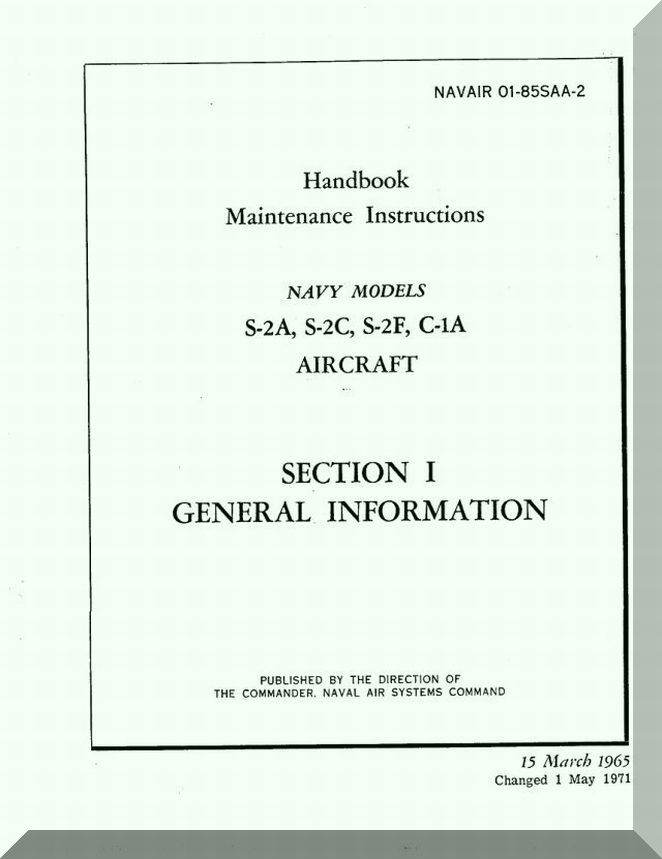

  • Grumman S-2A, S-2C, S2F, C-1A Aircraft Handbook Maintenance Instructions — General Information — 01-85SAA-2-1 — 1973
  • Grumman S-2A, S-2C, S2F, C-1A Aircraft Handbook Maintenance Instructions — Airframe Group — 01-85SAA-2 — 1973

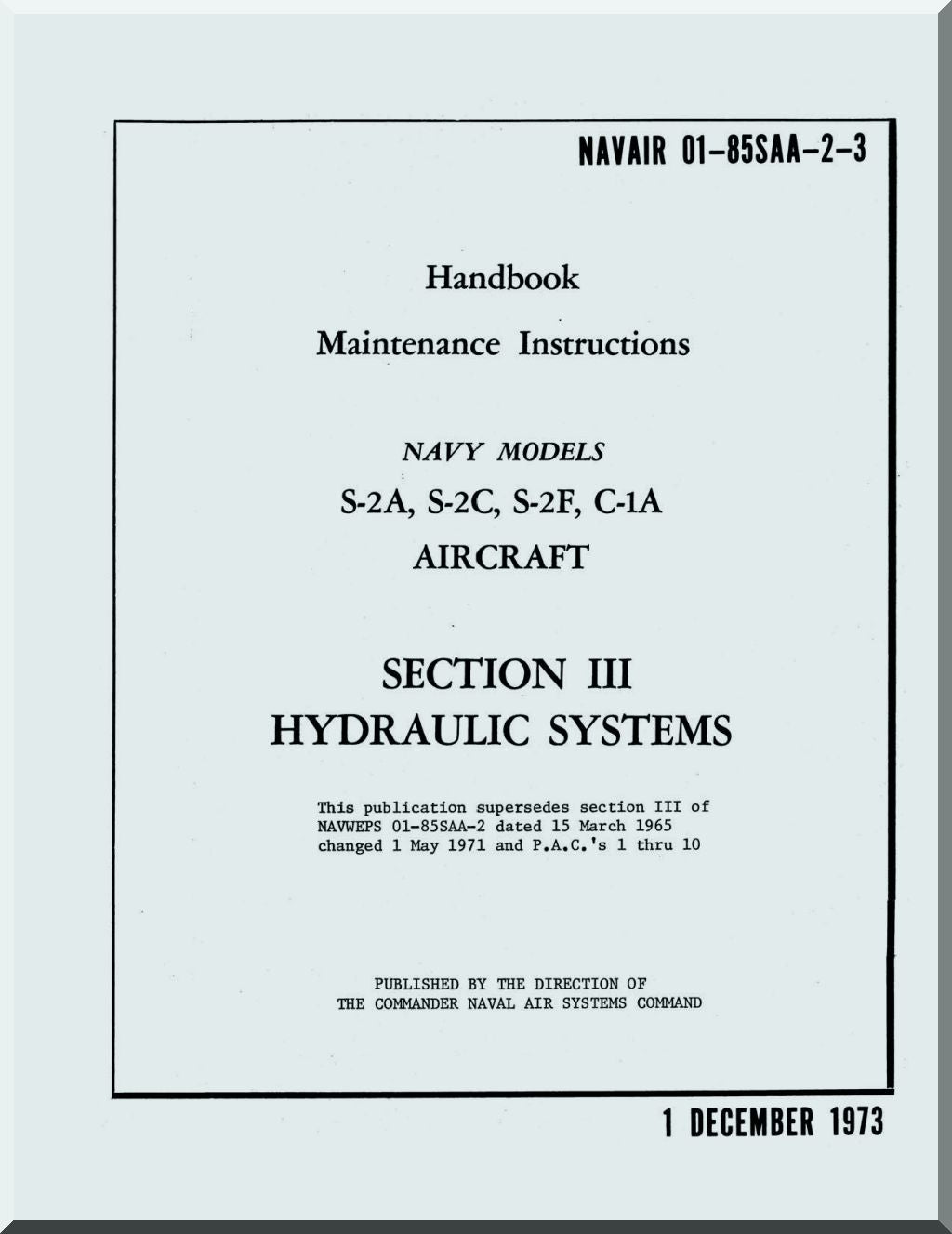

  • Grumman S-2A, S-2C, S2F, C-1A Aircraft Handbook Maintenance Instructions — Hydraulic Systems — 01-85SAA-2-3 — 1973

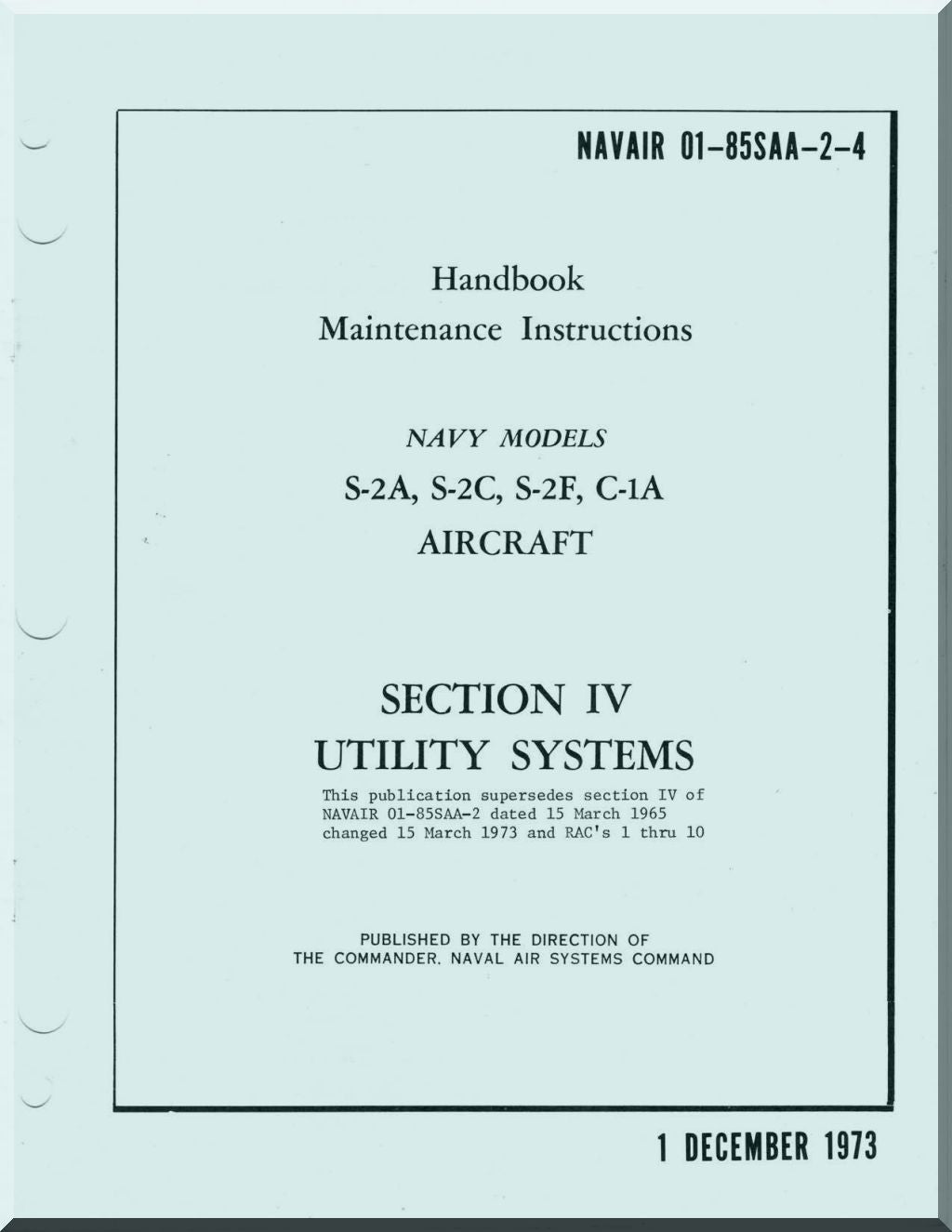

  • Grumman S-2A, S-2C, S2F, C-1A Aircraft Handbook Maintenance Instructions — Utility Systems — 01-85SAA-2-4 — 1973

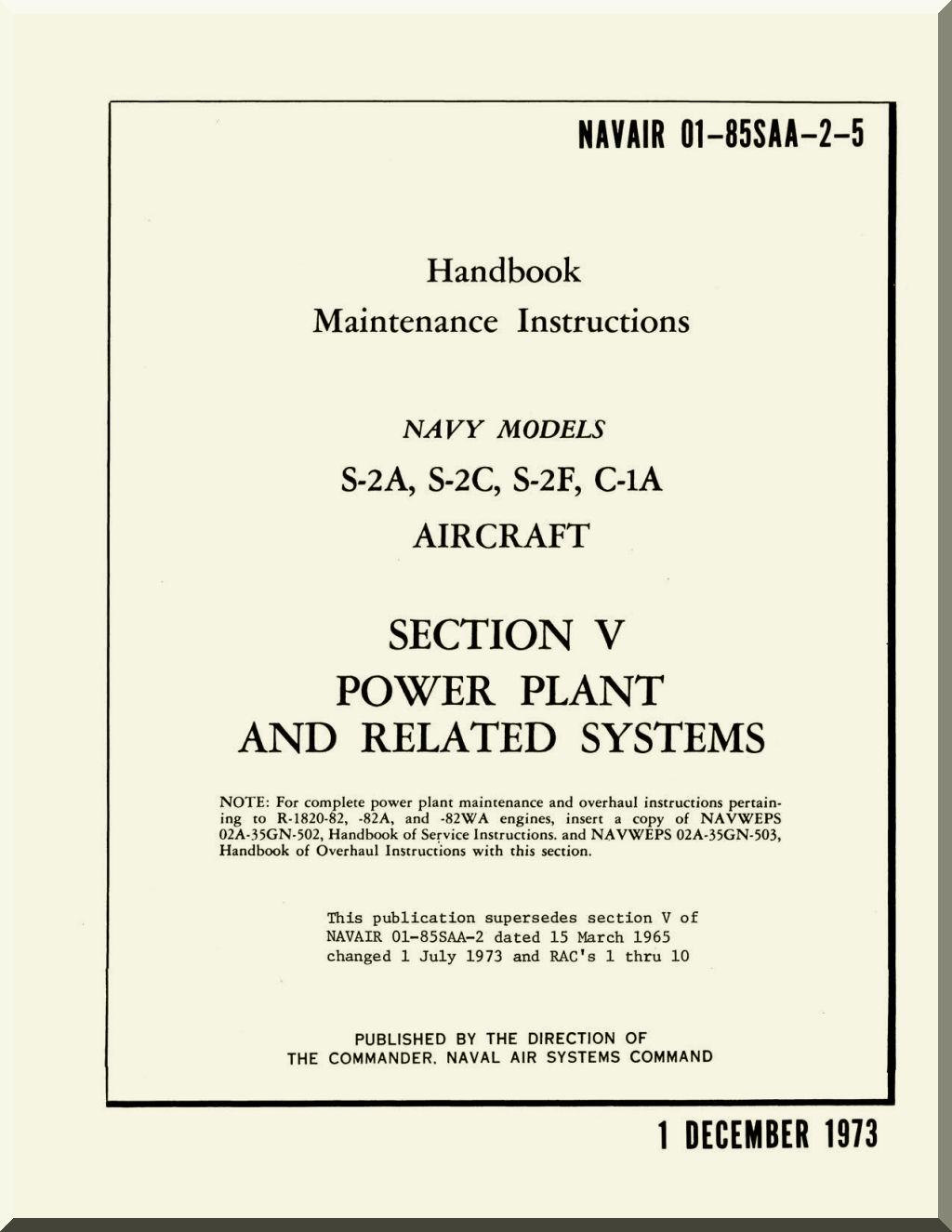

  • Grumman S-2A, S-2C, S2F, C-1A Aircraft Handbook Maintenance Instructions — Power Plant and Related Systems — 01-85SAA-2-5 — 1973

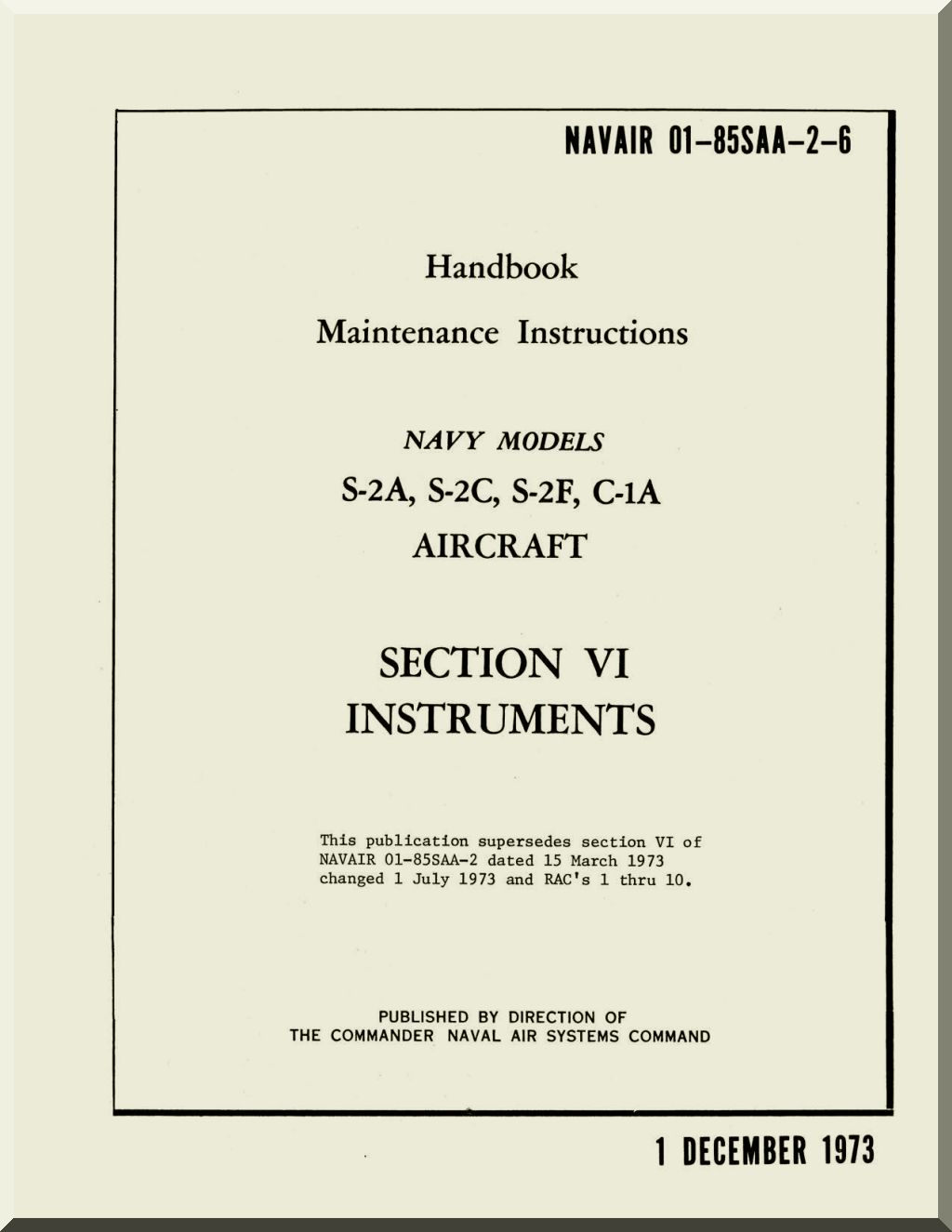

  • Grumman S-2A, S-2C, S2F, C-1A Aircraft Handbook Maintenance Instructions — Instruments — 01-85SAA-2-6 — 1973

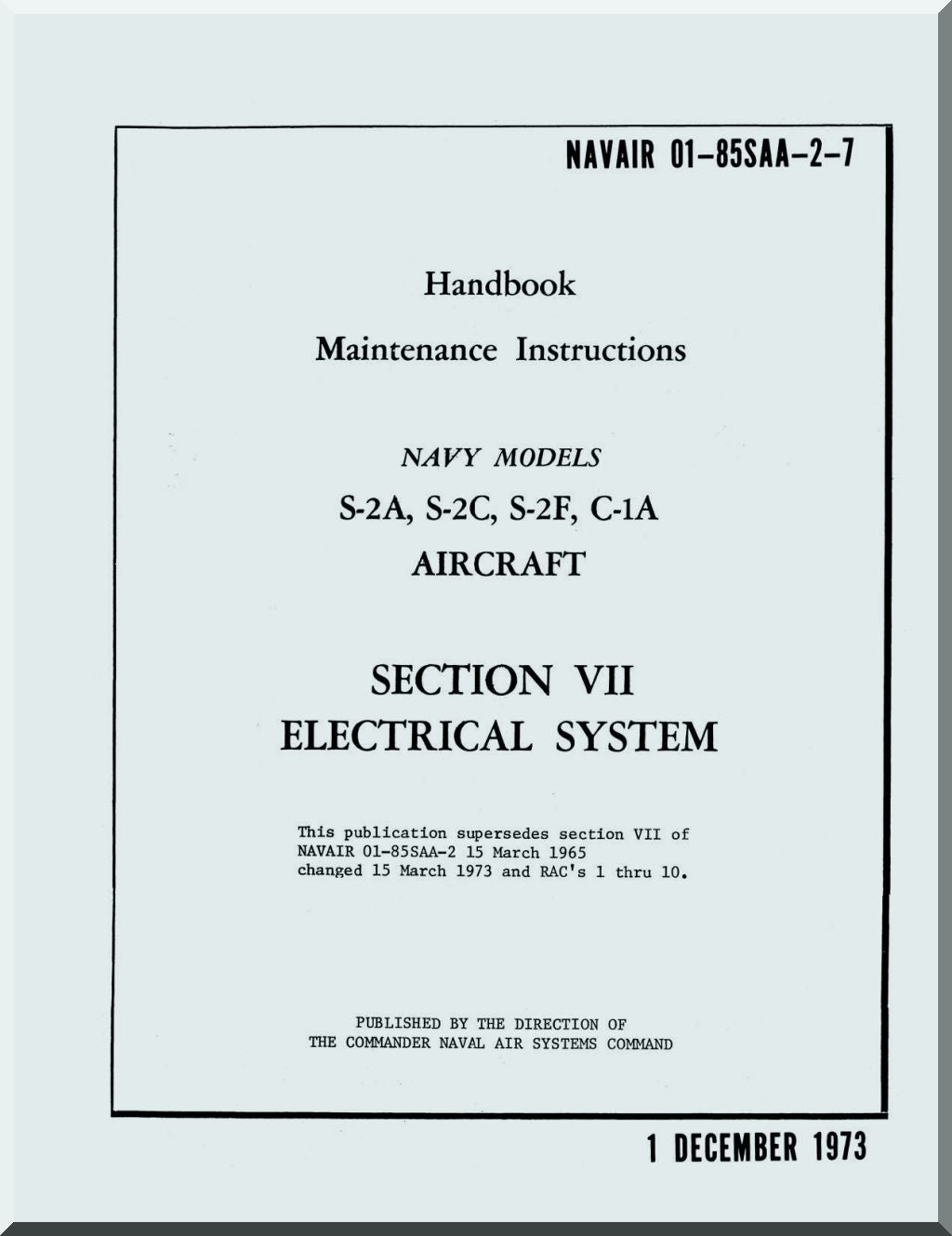

  • Grumman S-2A, S-2C, S2F, C-1A Aircraft Handbook Maintenance Instructions — Electrical Systems — 01-85SAA-2-7 — 1973
  • Grumman S-2A, S-2C, S2F, C-1A Aircraft Handbook Maintenance Instructions — Wiring Data — 01-85SAA-2-10 — 1973

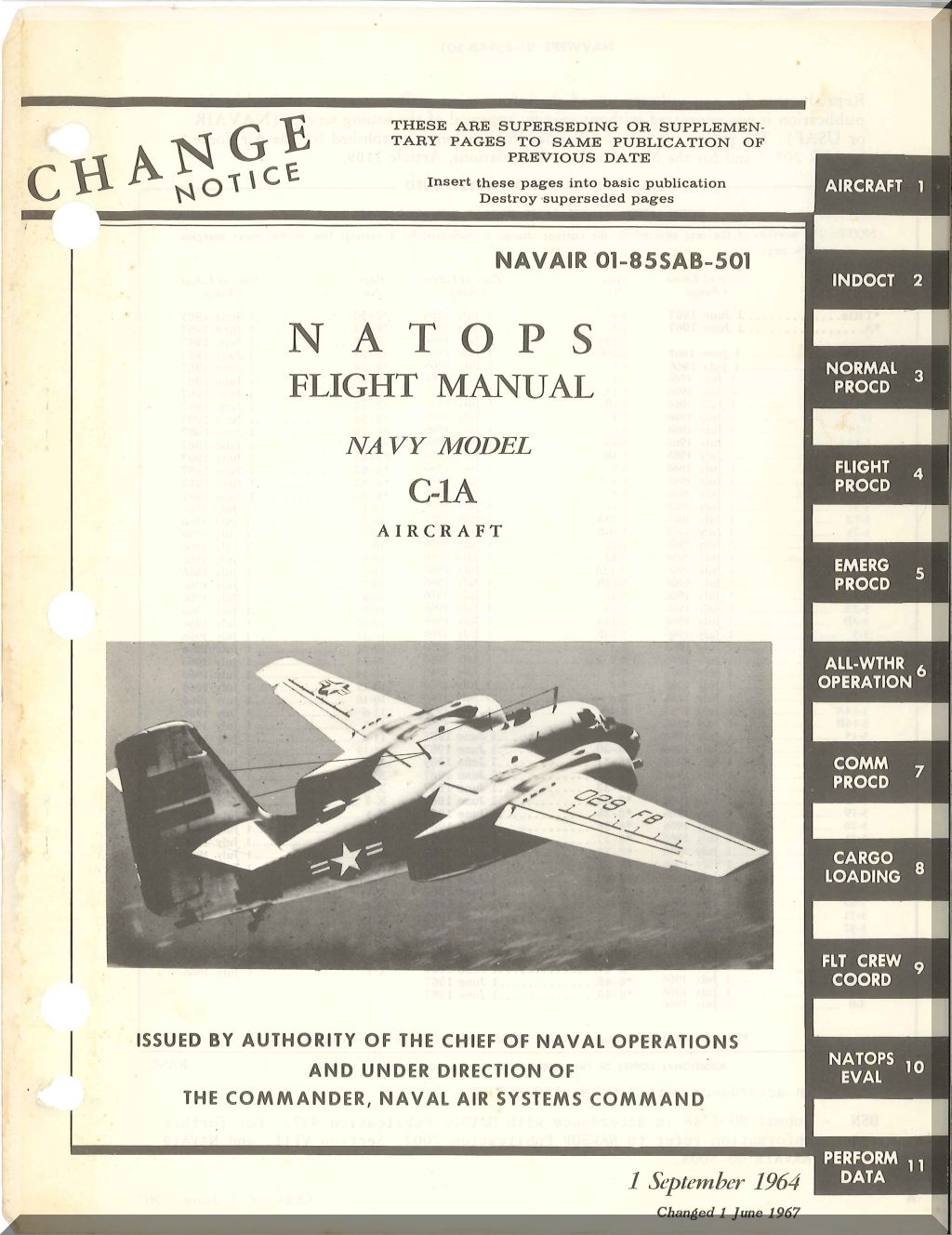

  • Grumman C-1A Aircraft Flight Manual — 01-855AB-501 — 1964

Note: Two additional documents — the Handbook Maintenance Instructions for Armament Equipment (01-85SAA-2-9) and Radio and Radar (01-85SAA-2-6) — are currently under export compliance review and will be added to this collection upon verification. All purchasers will receive these documents automatically as part of their free lifetime updates once cleared.

Export & Compliance Notice: All documents in this collection are historical NAVAER military technical publications spanning 1956 to 1975. Prior to inclusion, each document has been individually reviewed and confirmed as UNCLASSIFIED — bearing no classification markings, export control notices, or distribution restrictions on the cover page or within the document body.

These publications are already in the public domain and widely available through official repositories including DTIC (Defense Technical Information Center) and archive.org. They are reproduced here in consolidated form for the convenience of researchers, restorers, and historians.

This collection is intended solely for: historical research, aircraft restoration reference, museum documentation, and educational study. It does not enable the manufacture, modification, or operational use of any weapons system. No ITAR-controlled, EAR-restricted, or currently classified material is included.

Purchasers are responsible for compliance with the export and import regulations of their own country.

Engineering Norms and Standards

Design and Construction: The S-2 Tracker and C-1 Trader were designed to U.S. Navy Bureau of Aeronautics specifications and certified under military airworthiness standards of the early 1950s. Both aircraft featured all-metal semi-monocoque construction with Grumman's characteristic robust engineering. The high-wing monoplane configuration employed a NACA 64A-series laminar flow airfoil optimized for efficient cruise performance, with a total wing area of 485 square feet and a span of 72 feet 7 inches (69 feet 8 inches for C-1A). The wing incorporated Grumman's Sto-Wing folding mechanism, which allowed the outer wing panels to fold upward and aft alongside the fuselage, reducing the folded span to approximately 27 feet for compact carrier storage and hangar deck operations.

Structural Design Philosophy: Consistent with Grumman's "Iron Works" reputation, both the S-2 and C-1 featured exceptionally rugged structural design with heavy-gauge aluminum alloy construction, substantial structural members, and generous safety factors. The airframe was designed to withstand the severe loads of carrier arrested landings, catapult launches, and extended service in the corrosive maritime environment.

Powerplant and Engine Installation: Both aircraft were powered by two Wright R-1820-82WA Cyclone nine-cylinder single-row radial engines producing 1,525 horsepower each for takeoff, driving three-blade Hamilton Standard constant-speed propellers with a diameter of 9 feet 9 inches.

Performance Specifications — S-2 Tracker: Maximum speed 265 mph at sea level; cruise speed 150 mph for maximum endurance; service ceiling 22,000 feet; combat radius approximately 300 nautical miles; maximum takeoff weight 29,150 pounds; endurance on station exceeding 9 hours with external fuel tanks; rate of climb 1,390 feet per minute at sea level.

Performance Specifications — C-1 Trader: Maximum speed 287 mph; cruise speed 173 mph; service ceiling 22,300 feet; range with maximum payload approximately 800 nautical miles; maximum takeoff weight 27,000 pounds; rate of climb 1,460 feet per minute at sea level.

Structural Load Factors: Both aircraft were designed to withstand load factors of +6.0g and −3.0g at design gross weight, with ultimate load factors of +9.0g and −4.5g per MIL-A-8860 military specifications. The robust landing gear featured heavy-duty oleo-pneumatic shock struts designed for carrier arrested landings with sink rates up to 16 feet per second at maximum landing weight.

Fuel System: Total internal fuel capacity for the S-2 was 385 U.S. gallons distributed between wing tanks with self-sealing bladders and CO2 fire-suppression systems. Two 150-gallon external fuel tanks could be carried on underwing hardpoints, increasing total capacity to 685 gallons for extended patrol missions.

Hydraulic System: The hydraulic system operated at 1,500 psi and powered the landing gear retraction, wing folding mechanism, flaps, cowl flaps, arresting hook, bomb bay doors (S-2), and cargo door (C-1), with dual engine-driven pumps and emergency hand pump backup.

ASW Systems — S-2 Tracker: The S-2's sensor suite included the AN/APS-38 (later AN/APS-80) search radar, retractable MAD boom, 16 sonobuoy dispensers, and a 70-million candlepower searchlight. The internal weapons bay accommodated Mk 43, Mk 44, or Mk 46 homing torpedoes or up to 2,400 pounds of depth charges or bombs. Later variants incorporated the Julie/Jezebel acoustic detection system.

Cargo Systems — C-1 Trader: The pressurized cabin measured approximately 18 feet long with 650 cubic feet of usable cargo volume, configurable for nine passengers or all-cargo operations, with a large port-side cargo door for rapid loading and unloading.

Specialized Documentation

Supplemental Type Certificates and Modifications: Several S-2 examples have been registered under FAA Experimental-Exhibition or Restricted category certificates for warbird operations and aerial firefighting, including retardant tank installations and S-2T Turbo Tracker turboprop conversions. Operators should consult the FAA registry and applicable operating limitations for specific aircraft modifications.

Service Bulletins and Technical Directives: Historical Navy Technical Directives, Bureau of Aeronautics Service Bulletins, and NAVAIR technical publications remain valuable references for restoration and maintenance. International operators developed extensive maintenance documentation and modification programs that extended the type's service life well beyond original projections.

Performance Profiles and Operational Procedures: This collection includes authentic flight manuals with detailed performance charts, takeoff and landing data, fuel consumption tables, ASW patrol profiles (S-2), cargo loading procedures (C-1), and emergency procedures. The Royal Canadian Navy operating instructions provide additional operational insights from one of the most successful international Tracker operators.

Where to Find Additional Documentation

The National Naval Aviation Museum in Pensacola, Florida, maintains extensive archives of S-2 Tracker and C-1 Trader documentation. The Smithsonian National Air and Space Museum and the Cradle of Aviation Museum (Long Island, New York) also hold significant technical records. The Naval History and Heritage Command (NHHC) maintains research archives with operational histories, squadron records, and ASW tactical development documentation. The Canadian Warplane Heritage Museum maintains extensive CS2F documentation and historical records.

Format and Delivery

All manuals are provided as high-resolution PDF files, optimized for on-screen viewing and printing. Files are delivered via secure download link immediately upon purchase. The complete collection is organized in a logical folder structure by aircraft type, variant, and document type for easy navigation and reference.

Disclaimer

This item is sold for historical and reference purposes only. These are either original or copies of manuals and blueprints used when these aircraft were in active duty, now transferred into electronic format. These manuals and blueprints are not meant to be used for current update material for certification/repair, but make an excellent reference for the scholar, collector, modeler, or aircraft enthusiast. The information is for reference only, and we do not guarantee the completeness, accuracy, or currency of any manuals.

Reference herein to any specific commercial products by trade name, trademark, manufacturer, or otherwise, is not meant to imply or suggest any endorsement by, or affiliation with that manufacturer or supplier. All trade names, trademarks, and manufacturer names are the property of their respective owners.

This digital compilation, structure, indexing, and presentation are © Sicuro Publishing.
