Focke Wulf Fw 190 A-8 Aircraft Engineering Blueprints Collection
Extensive collection of over 200 authentic engineering drawings for the Focke Wulf Fw 190 A-8—one of the most formidable fighter aircraft of WWII. This collection provides detailed technical documentation of Kurt Tank's masterpiece at the peak of its development.
Definitive Collection with Free Lifetime Updates
This is a living collection that we continuously expand. As we acquire additional Fw 190 A-8 documentation or drawings, we update this collection and provide free lifetime updates to all purchasers. Your one-time purchase guarantees permanent ownership and access to all future additions.
Historical Note
The Focke Wulf Fw 190 revolutionized German fighter design when it appeared in 1941. Designed by Kurt Tank, the Fw 190 shocked Allied pilots with its superior performance, heavy armament, and exceptional handling. The radial-engine design proved faster, more maneuverable, and more heavily armed than the Spitfire Mk.V, forcing rapid Allied fighter development.
The A-8 variant, introduced in early 1944, represented the culmination of the Fw 190A series. It featured increased armor protection, improved cockpit layout, standardized weapons installations, and enhanced structural strength. The A-8 served as a versatile platform for fighter, fighter-bomber, and ground-attack roles on all fronts.
Key features included the BMW 801D-2 radial engine producing 1,700 hp, heavy armament with two 13mm MG 131 machine guns and four 20mm MG 151 cannons, and exceptional roll rate. The wide-track landing gear made it easier to operate from rough fields than the Bf 109. Over 6,600 A-8 variants were produced, making it the most numerous Fw 190A model.
The Fw 190 A-8 fought on all fronts: defending the Reich against bomber formations, supporting ground forces on the Eastern Front, and engaging Allied fighters over France. Its rugged construction, powerful armament, and excellent handling made it one of the war's most effective fighters.
Blueprints Included

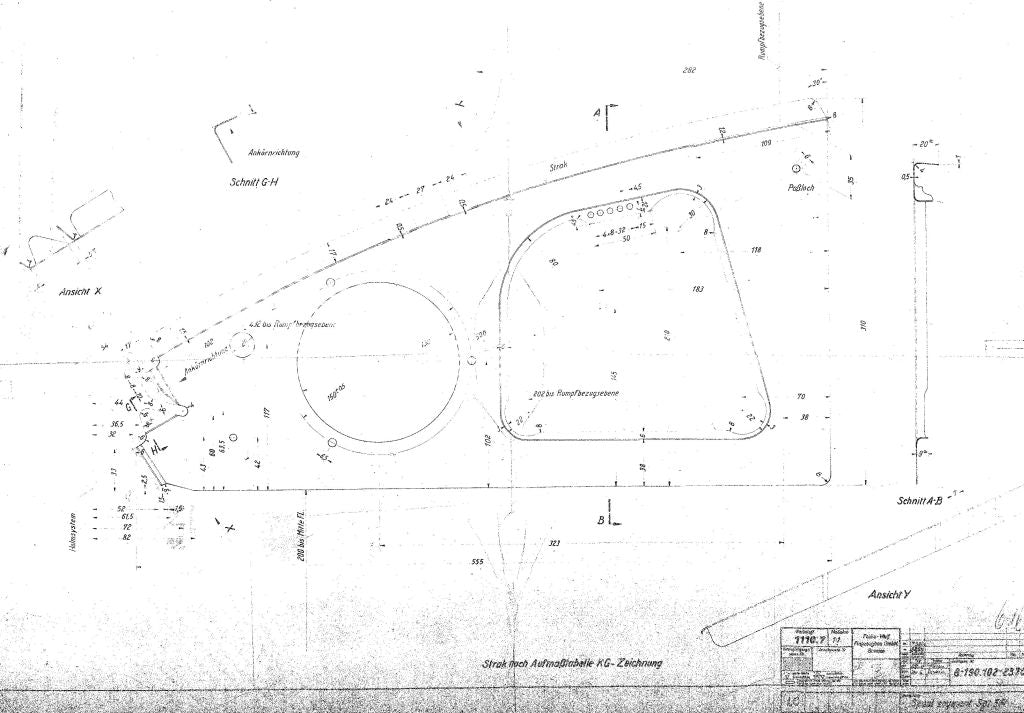

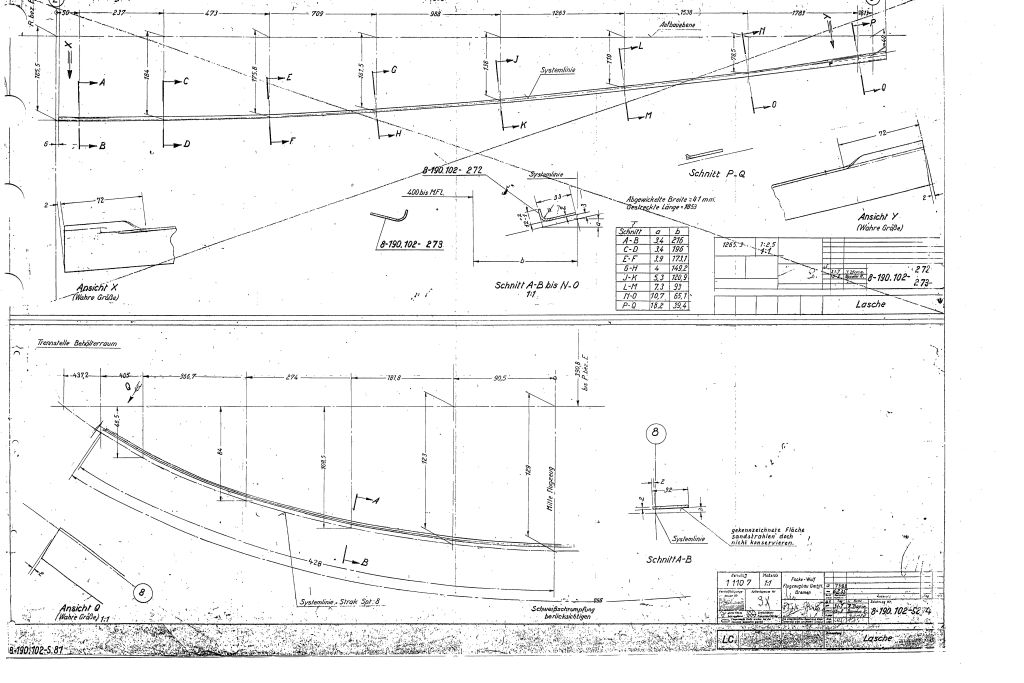

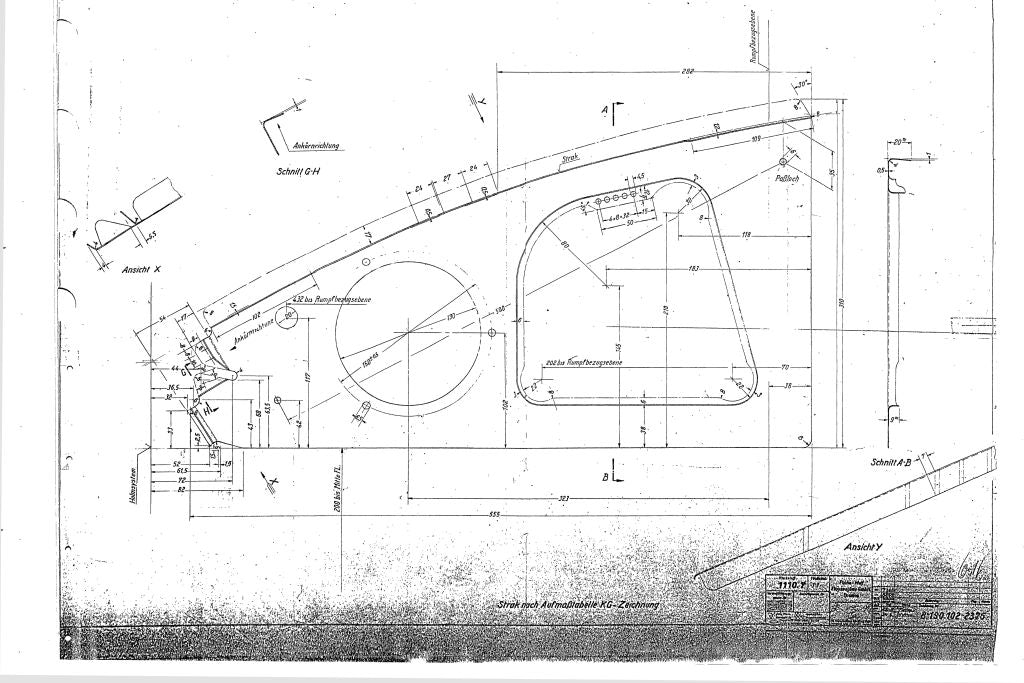

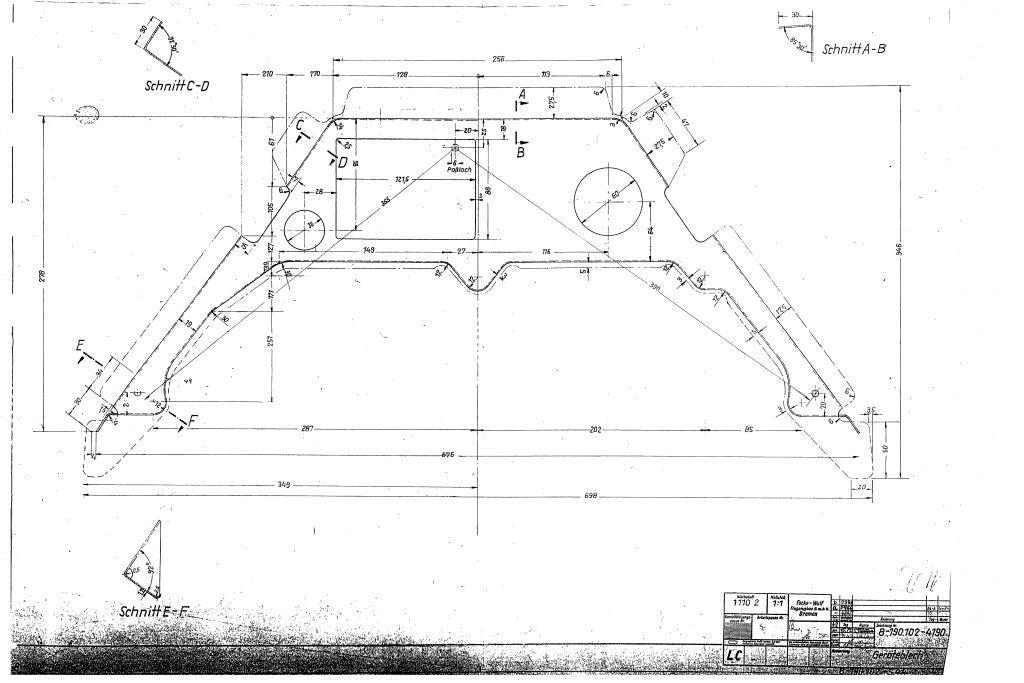

- Over 200 detailed engineering drawing sheets in high-quality format
- Comprehensive airframe blueprints covering all major assemblies
- Structural components and construction details
- Wing assemblies and control surfaces
- Fuselage frames and monocoque structure
- Landing gear assemblies and retraction mechanisms
- Engine mounting and cowling details
- Armament installations and ammunition systems
- Systems and subsystems documentation
Converted from original manufacturing archives, providing quality engineering documentation for this legendary fighter.
Engineering Standards
Documentation reflects German aviation engineering standards from 1943-1944, Focke Wulf design practices, and RLM specifications for fighter aircraft. The design emphasized combat effectiveness, ease of production, and maintainability under field conditions.
Format and Delivery
Digital download. High-quality files in structured PDF format for easy navigation and reference.
Legal Notice
Provided by Online Aviation Library (Sicuro Publishing) for historical reference and research. The Fw 190 is no longer in production. This collection serves historians, museum professionals, restoration specialists, aerospace engineers, modelers, and researchers.
Your purchase grants permanent ownership with free lifetime updates. The compilation, structure, and presentation are © Sicuro Publishing. Underlying historical materials remain property of original creators or successors.
These drawings are for reference only. We do not guarantee completeness, accuracy, or currency. Not for current certification or repair work. Trademarks are property of respective owners.
