Fiat C.R.42 Falco Fighter Aircraft

Primary Documentation Archive — 7 Manuals

The Fiat C.R.42 Falco — Falcon — was the last and finest sesquiplane fighter ever built. Designed by Celestino Rosatelli and produced by Fiat Aviazione in Turin, it entered service with the Regia Aeronautica in 1939 and flew with the air forces of Belgium, Hungary, and Sweden. Supremely agile, structurally immense, and beloved by its pilots, the Falco represented the absolute pinnacle of biplane fighter design at the moment the monoplane era overtook it. This OAL archive assembles seven primary-source documents covering the C.R.42 airframe, its Fiat A.74 R.C.38 engine, and all major illustrated parts catalogs.

📂 Archive Contents — 7 Documents

Engine Documentation — 2 Manuals

• Fiat A.74 R.C.38 S Aircraft Engine — Illustrated Parts Catalogue
  Catalogo Nomenclatore · Italian Language · Ministero dell’Aeronautica
  The official illustrated parts catalogue for the Fiat A.74 R.C.38 S radial engine as installed in the C.R.42. Covers all engine components with part numbers and nomenclature.
• Fiat A.74 R.C.38 Aircraft Engine and Derivatives — Operating Instructions
  Istruzioni per l’Uso · Italian Language · Fiat S.A. – Sezione Aviazione, Torino
  The factory operating manual for the A.74 R.C.38 and its derivatives. Covers starting procedures, power settings, supercharger operation, fuel and oil management, and engine handling limits.

Operating & Maintenance Manuals — 2 Manuals

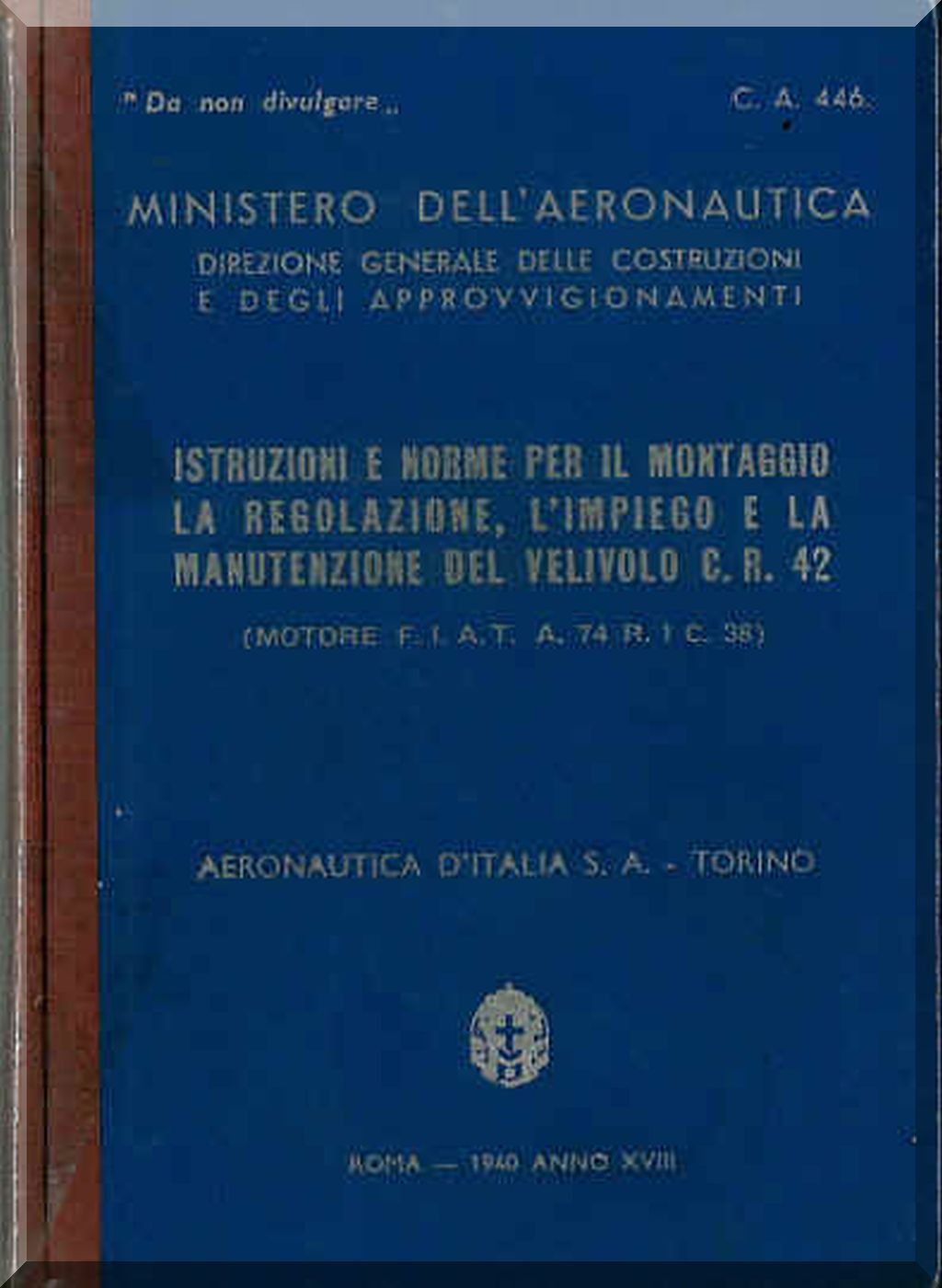

• Fiat C.R.42 Fighter Aircraft — Assembly, Rigging, Operation and Maintenance (1940)
  Istruzioni e Norme per il Montaggio, la Regolazione, l’Impiego e la Manutenzione del Velivolo
  Italian Language · C.A. 446 · Ministero dell’Aeronautica · 1940
  The primary factory maintenance and operating manual for the C.R.42, covering airframe assembly, rigging alignment, structural tolerance limits, control line tensioning, and maintenance procedures.

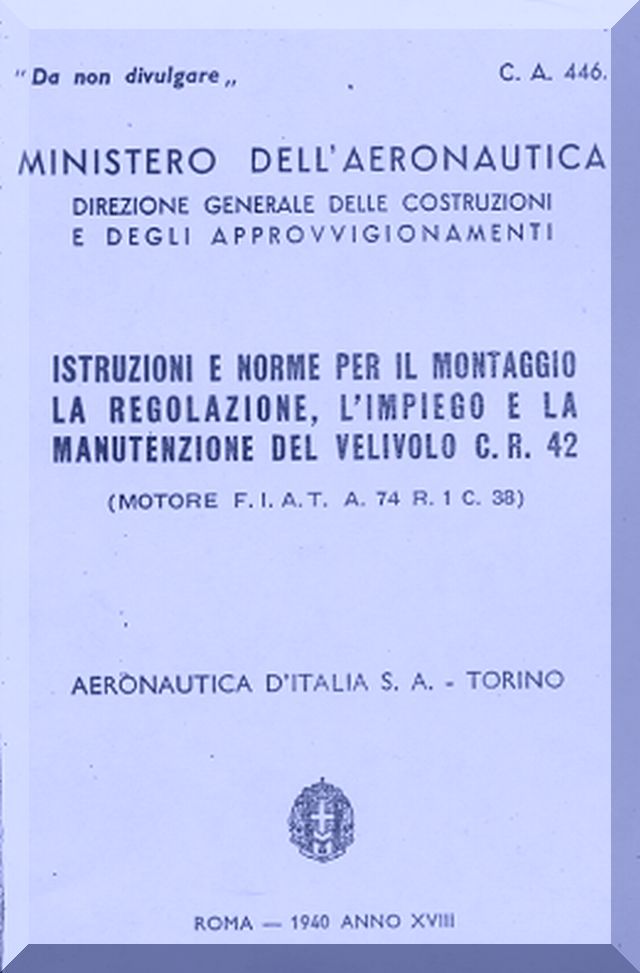

• Fiat C.R.42 Fighter Aircraft — Assembly, Rigging, Operation and Maintenance (1940) — Version 2
  Istruzioni e Norme per il Montaggio, la Regolazione, l’Impiego e la Manutenzione del Velivolo
  Italian Language · Ministero dell’Aeronautica · 1940
  A second edition of the C.R.42 maintenance manual, incorporating revised procedures and updated technical data. An essential companion to the primary edition for cross-referencing.

Illustrated Parts Catalogs — 3 Manuals

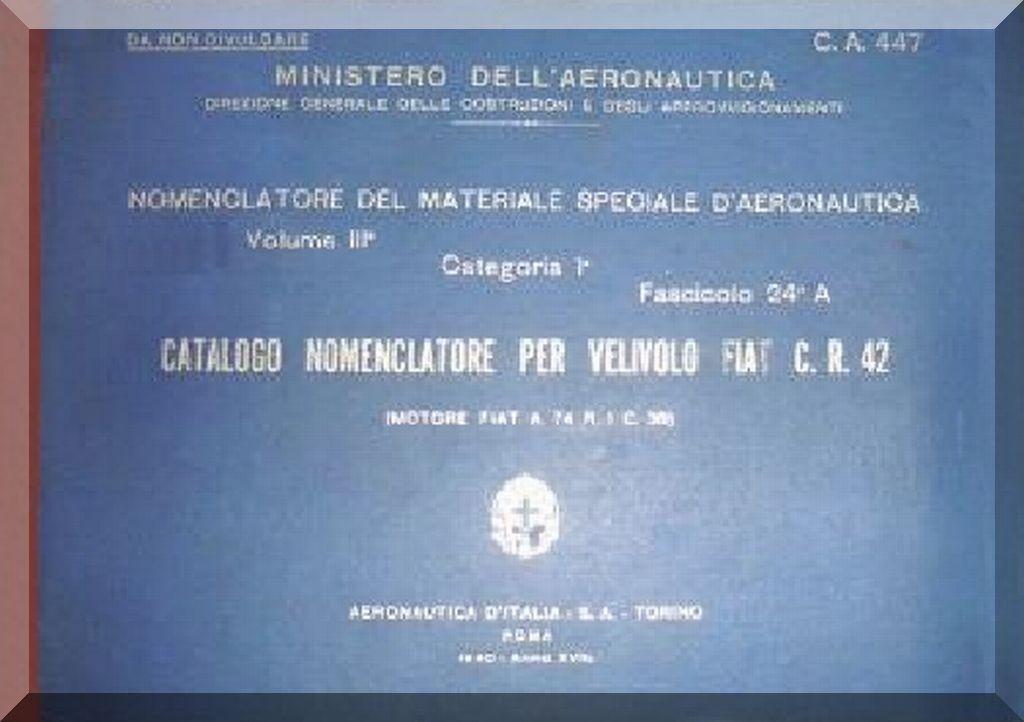

• Fiat C.R.42 Fighter Aircraft — Illustrated Parts Catalogue, Volume 3, Category 1
  Catalogo Nomenclatore · Italian Language · Ministero dell’Aeronautica
  The standard illustrated parts catalog for the C.R.42 airframe, covering all structural and system components with part numbers.

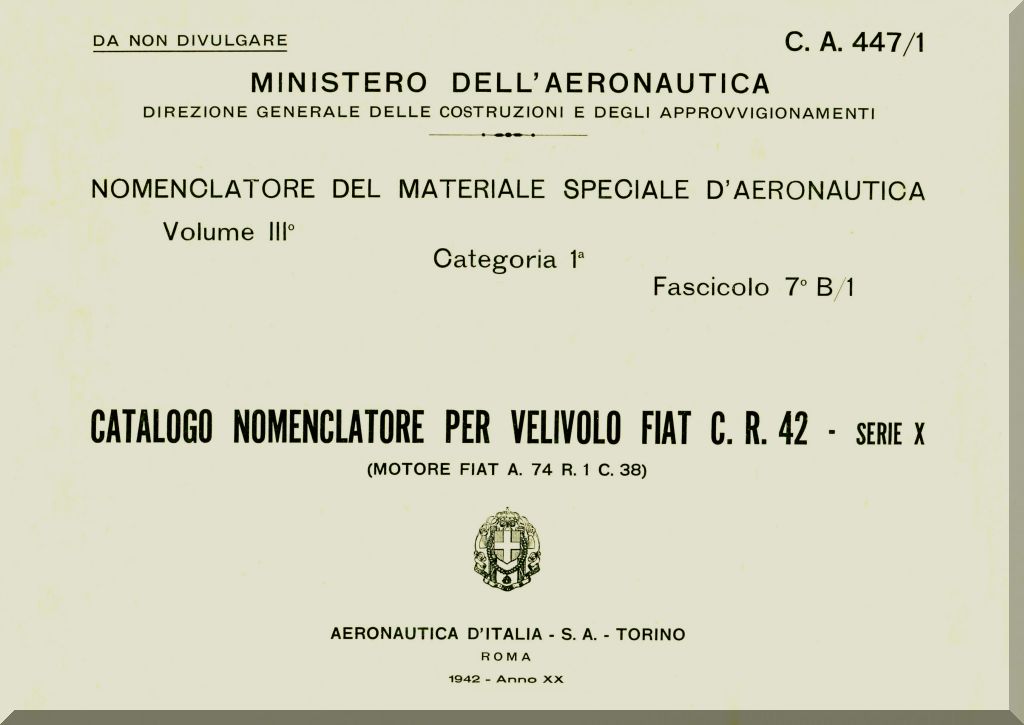

• Fiat C.R.42 Series X Fighter Aircraft — Illustrated Parts Catalogue (1942)
  Catalogo Nomenclatore · Italian Language · C.A. 447/1 · Ministero dell’Aeronautica · 1942
  The 1942 parts catalog for the C.R.42 Series X variant. Covers specialized variant components including night-fighter (C.R.42 Notturno) exhaust flame dampeners and spotlight assemblies.
• Fiat C.R.42 Series XI Fighter Aircraft — Illustrated Parts Catalogue (1942)
  Catalogo Nomenclatore per Velivolo · Italian Language · Ministero dell’Aeronautica · 1942
  The 1942 parts catalog for the C.R.42 Series XI variant, covering all component updates and modifications introduced in the final production series.

⚙️ Aerodynamic Design & Airframe Notes

Sesquiplane Layout

The C.R.42 represents the absolute pinnacle of sesquiplane (“one-and-a-half wing”) aerodynamic refinement. Designed by Celestino Rosatelli, it features a significantly larger upper wing than the lower wing, with Warren-truss rigid bracing that eliminated the drag-inducing wire rigging of earlier biplanes. Main landing gear struts were enclosed in streamlined teardrop fairings to maintain a clean exterior profile. The engine cowling used an optimised NACA profile with adjustable cooling gills to regulate thermal airflow without aerodynamic penalty.

Powerplant — Fiat A.74 R.C.38 S

The C.R.42 was powered by the Fiat A.74 R.C.38 S, a 14-cylinder, two-row, air-cooled supercharged radial engine of 31.25 litres displacement (1,906.9 cu in), with a compression ratio of 6.7:1. Fuel induction was via a single-body Zenith carburettor with automatic pressure limitation and mixture pre-heating.

Handling & Stability

British test pilot Captain Eric Brown evaluated a captured Falco (MM5701) post-war and catalogued its handling as that of an “aerob atic gem”. The aircraft was engineered with deliberately narrow longitudinal stability limits — the hallmark of an elite dogfighter — allowing immediate, effortless pitch and roll initiation. Exceptionally low wing loading produced tight turning circles and outstanding low-speed roll rates. The airframe was certified with an ultimate structural load factor of 14.0 at 5,060 lb MTOW, enabling unrestricted aerobatics and high-G dive recoveries.

📊 Performance Data

This is an archival, static-copy edition fixed at its original publication date. Intended for historical reference, flight simulation, museum restoration, and educational use only. Not approved for active airworthiness maintenance under FAA 14 CFR § 43.13, EASA Part-M, or equivalent international regulations. Operators of active aircraft must use current, revision-controlled publications from the Type Certificate holder or an authorized distributor.

⚠️ Regulatory Notice: Under FAA 14 CFR § 43.13 and EASA Part-M, any mechanic performing maintenance on an active aircraft must use current, manufacturer-approved revision-controlled data. This archival document does not satisfy that requirement.

Living Collections with Free Lifetime Updates — Please review our Disclaimer and Export Notice before purchasing.
