Comprehensive Fiat Aviazione CR.32 Technical Documentation

This digital collection assembles authentic technical manuals for one of the most successful biplane fighters of the 1930s. The Fiat CR.32 served with distinction during the Spanish Civil War and early World War II, earning a reputation as one of the finest fighter aircraft of its era. These original documents provide detailed specifications and procedures used by Regia Aeronautica pilots and maintenance crews during the aircraft's operational service.

Historical & Engineering Note

The Fiat Aviazione CR.32 entered service with the Regia Aeronautica in 1934 as a development of the earlier CR.30, designed by Celestino Rosatelli. The designation "CR" stood for Caccia Rosatelli (Rosatelli Fighter), honoring the engineer who created a series of outstanding biplane fighters for Fiat during the interwar period. The primary official engineering baseline is the Ministero dell'Aeronautica Technical Manual C.A. 351, published alongside the Istruzioni per il montaggio e la manutenzione (Assembly and Maintenance Manual).

Aerodynamic Profile & Structural Design

• Rigid Truss Design: Rosatelli bypassed traditional wire bracing for a rigid Warren truss configuration, providing exceptional strength with minimal drag.
• Sesquiplane Geometry: Upper wing spans 9.5 m; the lower wing is substantially smaller to optimize pilot visibility.
• Lift Distribution: At maximum lift (angle of 9° 30'), the airframe handles a structural limit load factor coefficient of 6.5.
• Reduced Drag: Wing area decreased from the CR.30's 27.05 m² to 22.10 m², reducing drag while boosting roll rates.
• Hybrid Skinning: Streamlined duralumin and steel fuselage skin transitioning to canvas fabric over the rear wings and tail unit.

Engine Technical Notes

• Powerplant: One Fiat A.30 R.A. bis liquid-cooled, 60° V-12 inline engine.
• Output: 600 hp (447 kW) sustained at 2,750 rpm.
• Propeller: Two-bladed metal Fiat unit with adjustable ground pitch.
• Fuel: The V-12 required a strict specialized fuel mixture, complicating field logistics in remote combat theaters.

Handling & Stability

• Exceptional longitudinal stability and crisp authority during high-G maneuvers, per Regia Aeronautica operational studies.
• Described by pilots as a "point-and-shoot" aircraft — highly responsive and forgiving near stall.
• Minimal stall threshold providing great lateral stability.
• Trade-offs: mediocre structural roll rate and poor energy retention during steep vertical climbs.

Performance Data

Engineering Bulletins & Variants

• CR.32bis (1935): Close-support update adding twin lower-wing 7.7mm Breda-SAFAT guns alongside synchronized nose 12.7mm HMGs. Field modifications frequently removed the 7.7mm guns to save weight.
• CR.32ter (1937): Bulletins detail a reinforced undercarriage shock assembly, upgraded gun-sight configuration, and revised engine plumbing.
• CR.32quater (1938): Lightened framework integrating a standard RA.100-bis radio unit for improved formation communication.
• HA-132L "Chirri": Spanish license-built production by Hispano-Aviación, keeping the type in secondary training service until 1953.

The CR.32 gained international fame during the Spanish Civil War (1936–1939), where it served with both Italian expeditionary units and Nationalist Spanish forces. Beyond Spain, Austria, Hungary, Venezuela, Paraguay, and China all purchased the type. Over 1,200 CR.32s were produced in various versions, making it one of the most successful Italian aircraft exports of the interwar period.

Document Manifest — 8 Manuals Total

CR.32 Ter Variant — 4 Manuals

• CR.32 Ter Operating and Maintenance

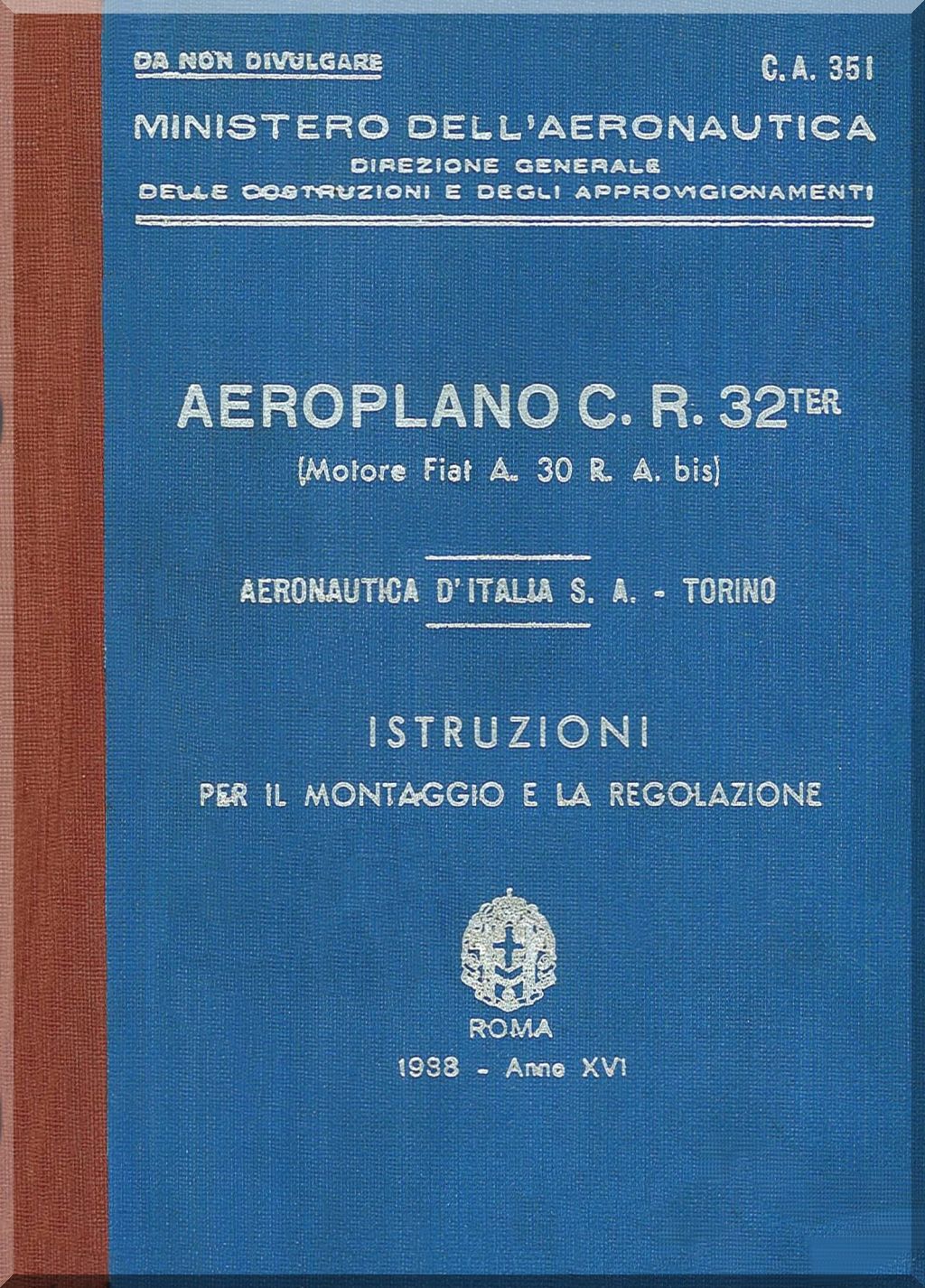

• CR.32 Ter Aircraft Assembly and Adjustment Instructions — Istruzioni per il Montaggio e la Regolazione (Italian Language)
• CR.32 Ter Spare Parts List

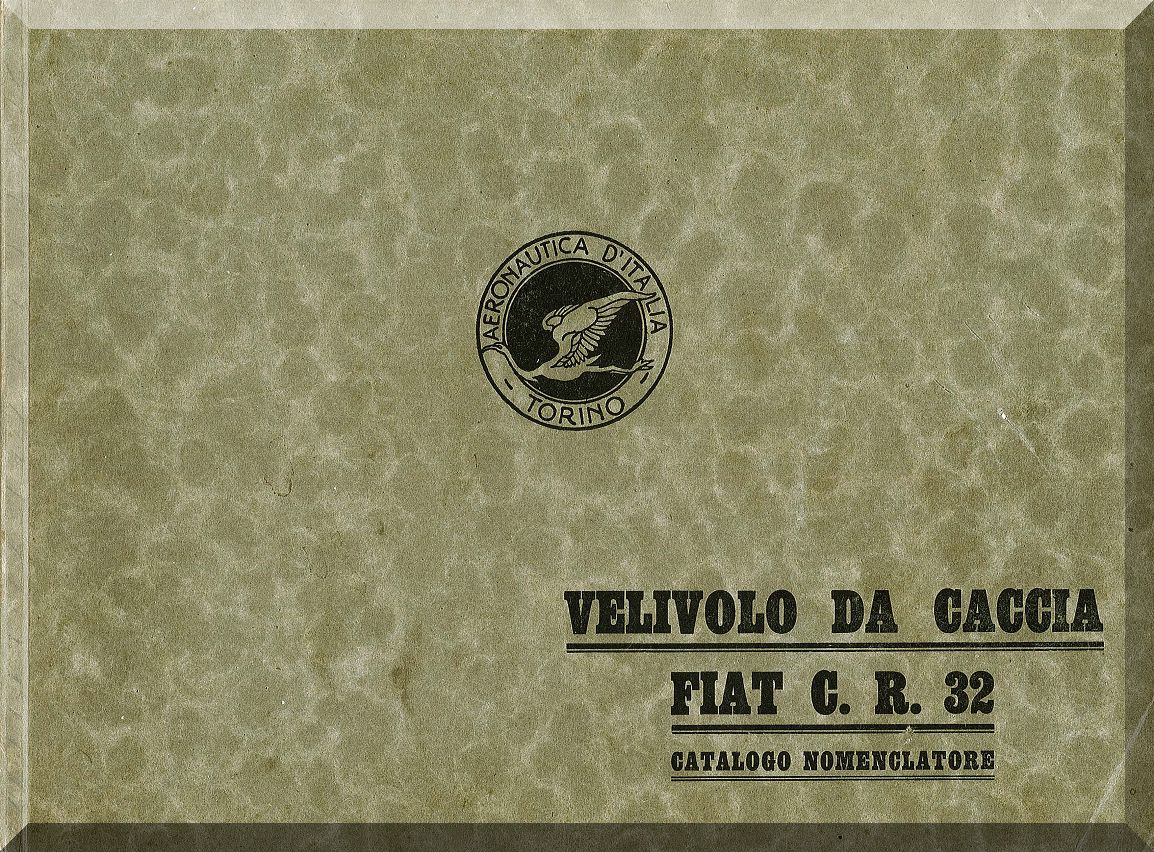

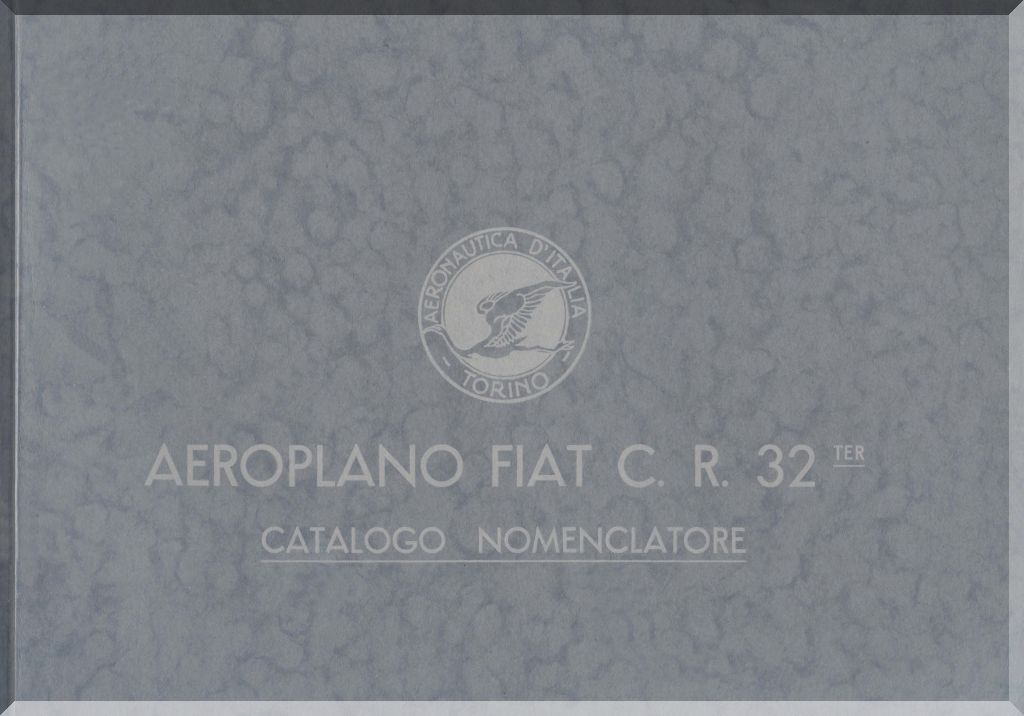

• CR.32 Ter Aircraft Illustrated Parts Catalog — Catalogo Nomenclatore (Italian Language)

CR.32 Quater Variant — 4 Manuals

• CR.32 Quater Operating and Maintenance

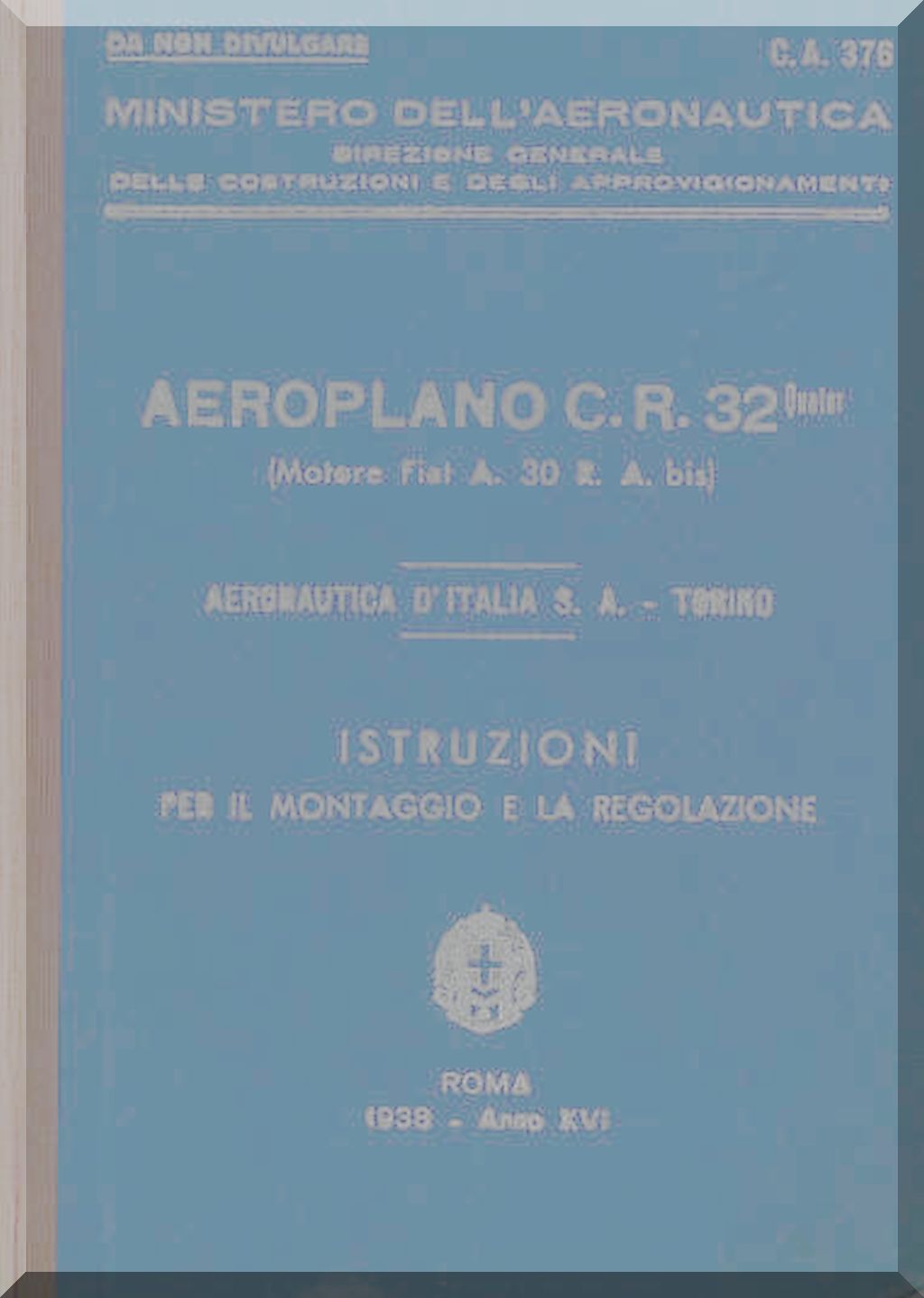

• CR.32 Quater Aircraft Assembly and Adjustment Instructions — Istruzioni per il Montaggio e la Regolazione (Italian Language)
• CR.32 Quater Spare Parts List
• CR.32 Quater Aircraft Illustrated Parts Catalog 1938 — Catalogo Nomenclatore (Italian Language)

CR.32 Base Variant (No Variant Designation) — 5 Manuals

• CR.32 Operating and Maintenance

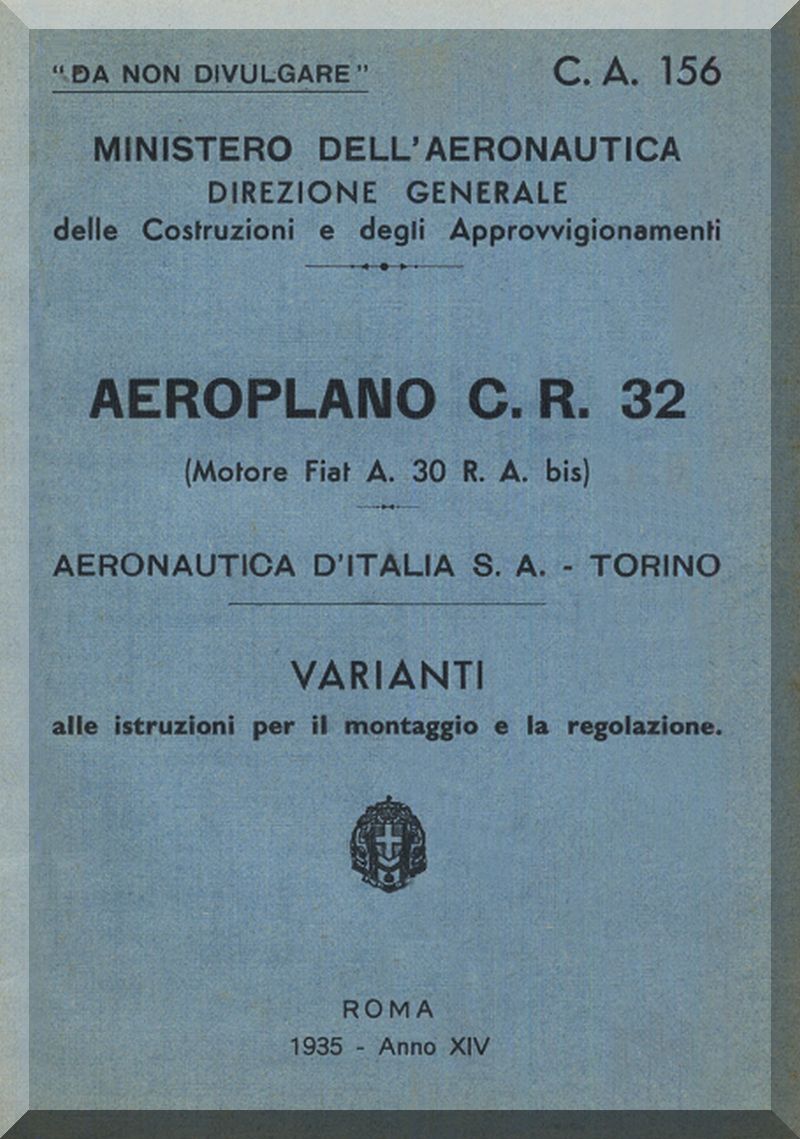

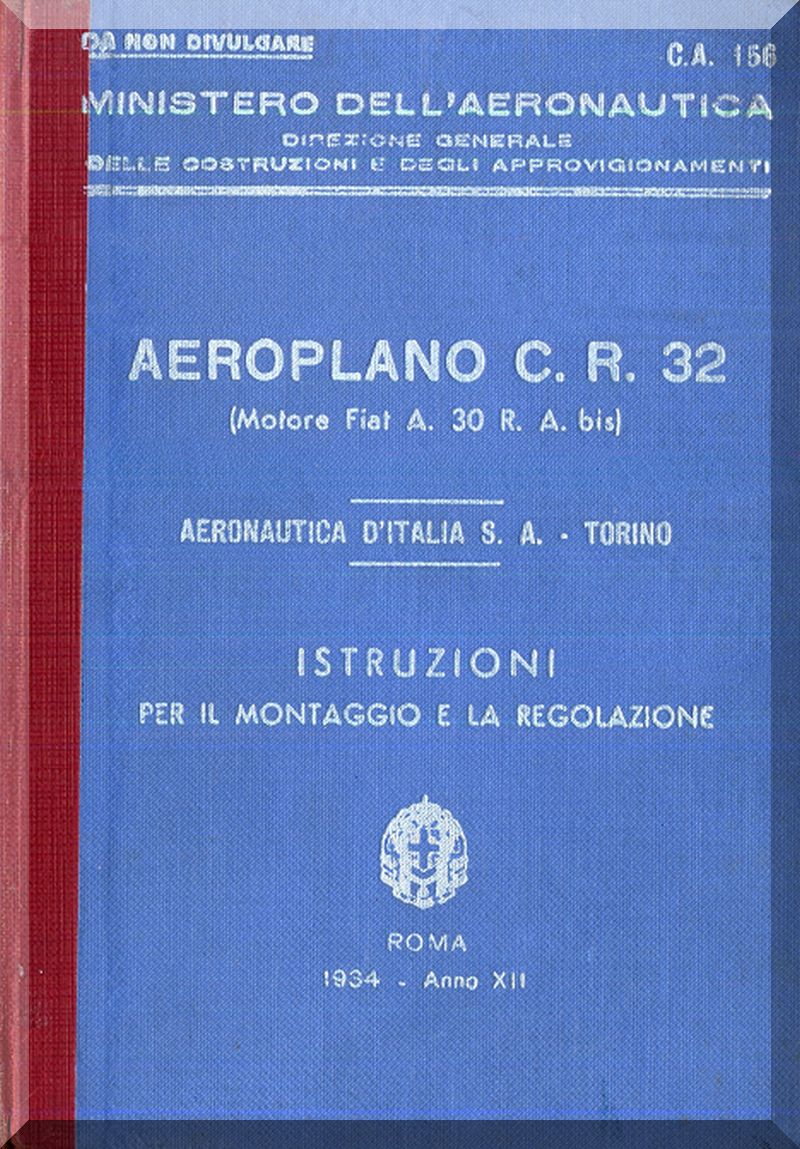

• CR.32 Aircraft Assembly and Adjustment Instructions 1934 — Istruzioni per il Montaggio e la Regolazione (Italian Language)
• CR.32 Aircraft Assembly and Adjustment Instructions 1935 — Istruzioni per il Montaggio e la Regolazione (Italian Language)
• CR.32 Spare Parts List
• CR.32 Aircraft Illustrated Parts Catalog — Catalogo Nomenclatore (Italian Language)

CR.32 Slides, Photos and Brochures

• CR.32 Photographic Collection (English Language) — Standby

Digital Delivery

All manuals are delivered as high-resolution PDF files, optimized for both screen viewing and printing. Download immediately after purchase and access your files anytime from your account. Perfect for reference, restoration projects, or building your aviation library.

Format: PDF (Digital Download)
Delivery: Instant access after purchase
Compatibility: All devices and operating systems
