Comprehensive Douglas SBD Dauntless / A-24 Banshee Technical Documentation

This digital collection assembles authentic technical manuals for one of World War II's most successful and iconic dive bombers. The Douglas SBD Dauntless (and its Army Air Forces variant, the A-24 Banshee) served with distinction throughout the Pacific War, playing a decisive role in turning the tide against Japan. These original documents provide the detailed specifications and procedures used by naval aviators, Army pilots, and maintenance crews during the aircraft's combat service.

Historical Note

The Douglas SBD Dauntless entered U.S. Navy and Marine Corps service in 1940 as a carrier-based scout and dive bomber, replacing the earlier Northrop BT-1. The designation "SBD" stood for Scout Bomber Douglas, reflecting its dual reconnaissance and attack roles. Despite being considered obsolescent by some at the outbreak of World War II, the Dauntless would prove to be one of the war's most effective and important combat aircraft.

The SBD earned immortal fame at the Battle of Midway in June 1942, where Navy dive bomber squadrons sank four Japanese aircraft carriers in a single day—Akagi, Kaga, Soryu, and Hiryu. This devastating attack turned the tide of the Pacific War and demonstrated the effectiveness of dive bombing as a precision strike tactic. Dauntless crews pressed their attacks through intense anti-aircraft fire, diving at steep angles to deliver their 1,000-pound bombs with remarkable accuracy.

Powered by a Wright R-1820 Cyclone radial engine and featuring perforated dive brakes that allowed controlled steep dives, the SBD could deliver ordnance with unprecedented precision. Its two-man crew (pilot and rear-seat radioman/gunner) worked in close coordination, with the rear gunner providing defensive fire from a flexible .30 caliber machine gun while the pilot operated two forward-firing .50 caliber guns.

The aircraft's nickname "Slow But Deadly" reflected both its modest top speed of around 250 mph and its lethal effectiveness in combat. The SBD's rugged construction, self-sealing fuel tanks, and armor protection allowed it to absorb significant battle damage and return home—a quality that endeared it to crews who flew it. Throughout the Pacific campaign, Dauntless squadrons sank more enemy shipping than any other Allied bomber type.

The U.S. Army Air Forces operated the land-based A-24 Banshee variant, which differed primarily in lacking carrier equipment such as arresting hooks and folding wings. A-24s saw action in the early Pacific campaigns and later in the Mediterranean and European theaters, though they never achieved the same prominence as their Navy counterparts.

The SBD remained in frontline service until mid-1944, when it was gradually replaced by the faster Curtiss SB2C Helldiver. However, many Marine Corps squadrons continued flying Dauntlesses until the war's end, preferring its reliability and handling characteristics over its more modern replacement. By the time production ended in 1944, over 5,900 SBDs had been built.

Today, the Douglas SBD Dauntless is remembered as one of World War II's most important aircraft—a dive bomber that helped win the Pacific War through the courage of its crews and the effectiveness of its design. Several examples remain airworthy with museums and warbird operators, preserving the legacy of this legendary combat aircraft.

What's Included

This collection contains the essential technical references used by pilots, radiomen/gunners, and maintenance personnel:

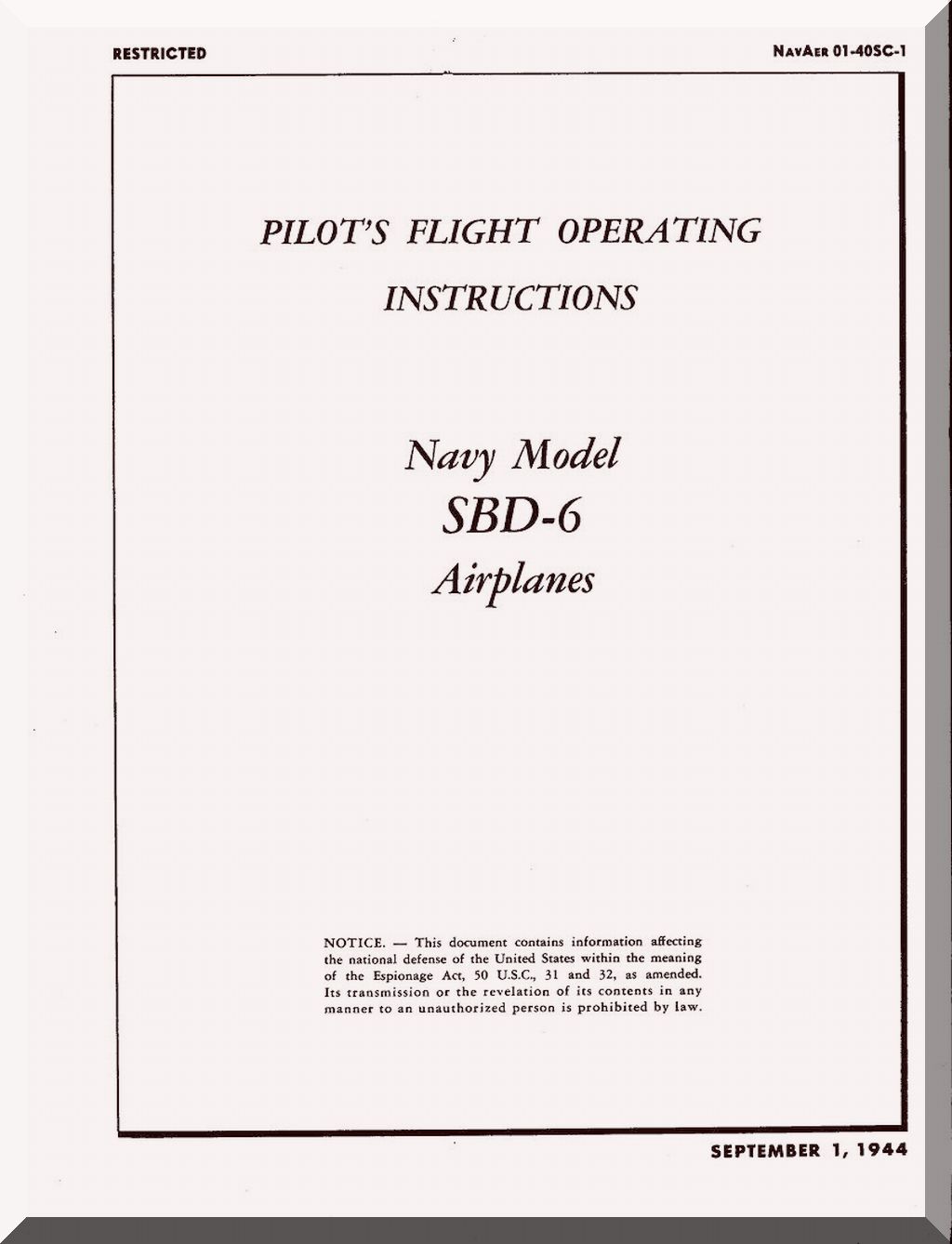

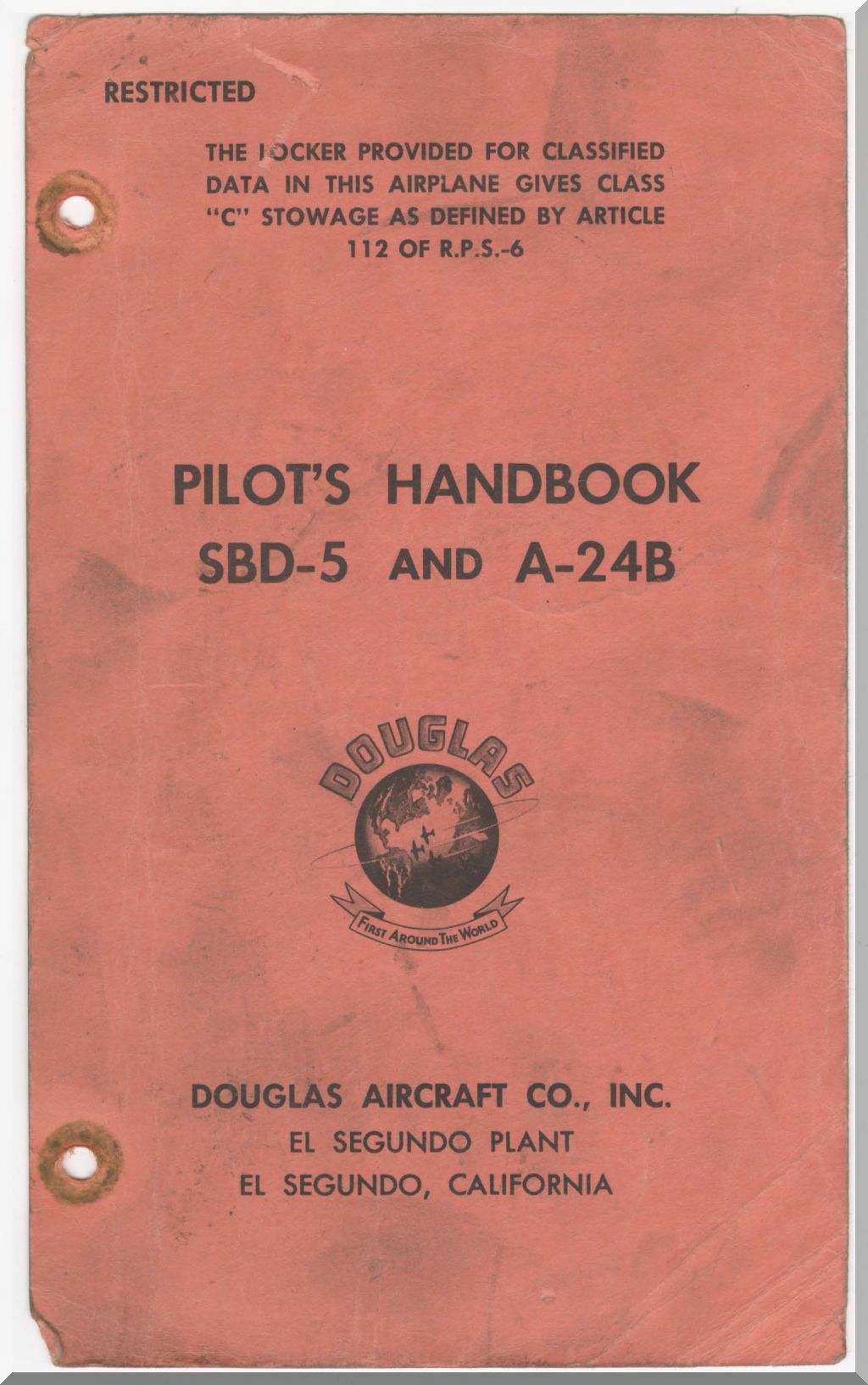

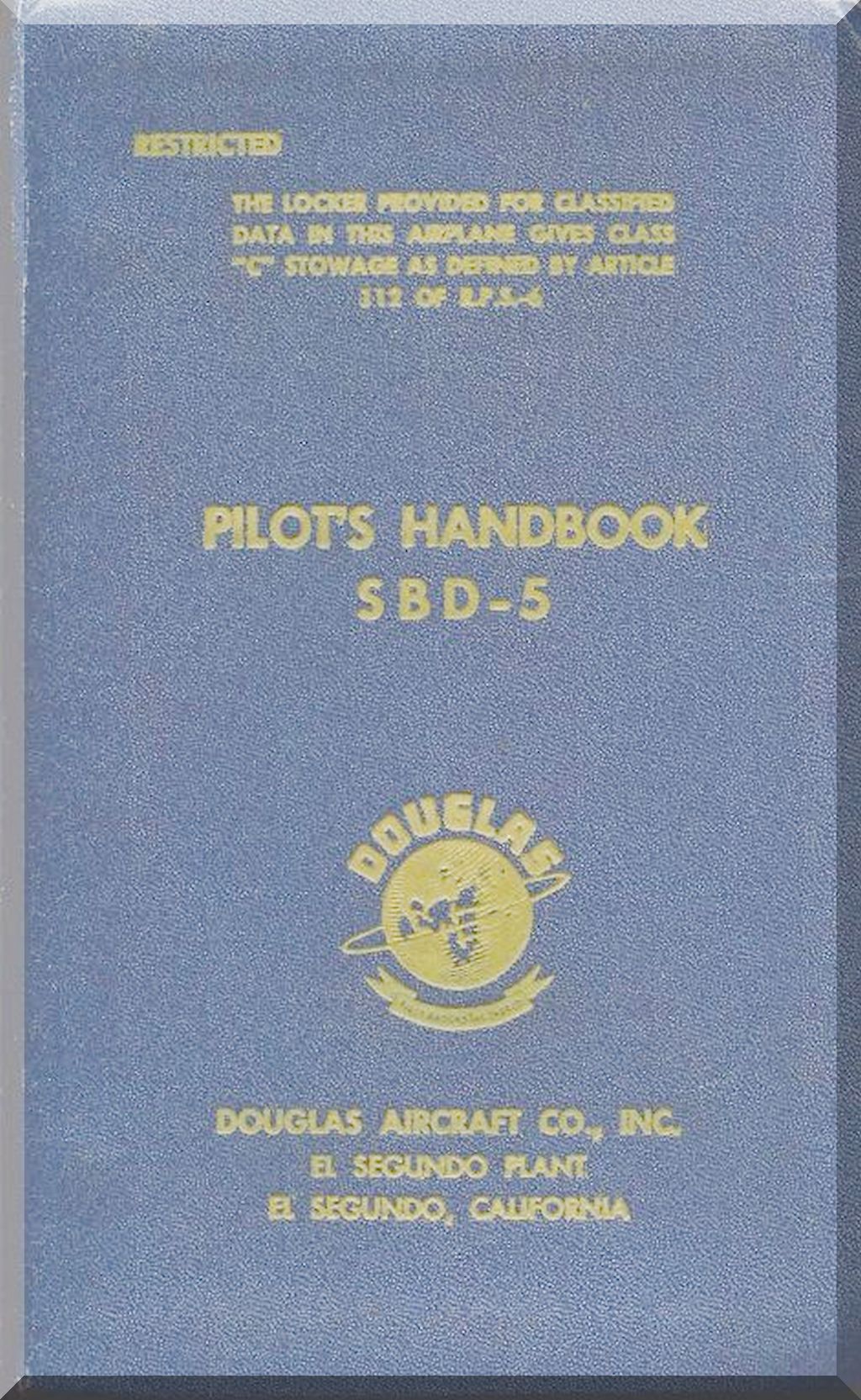

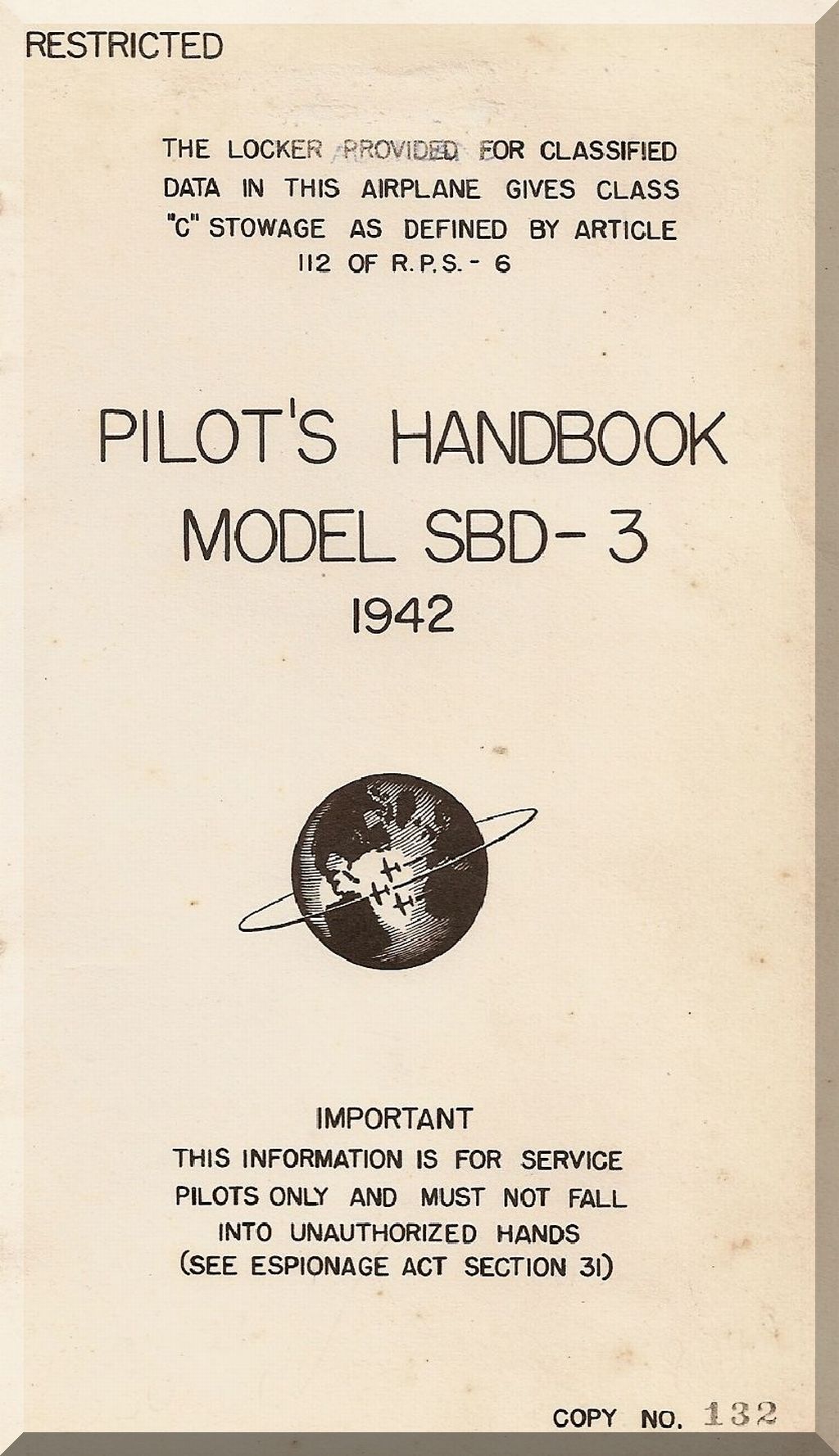

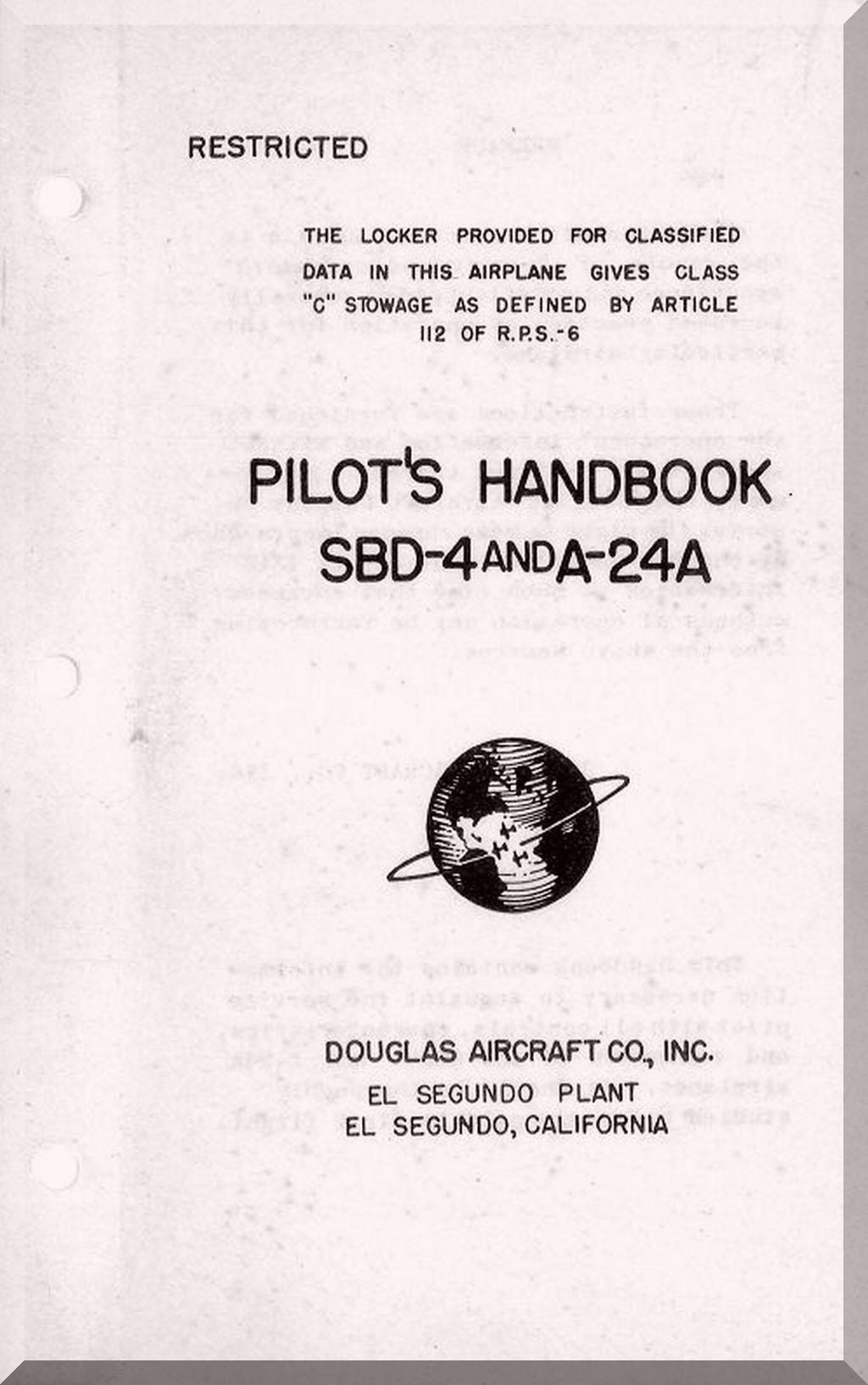

• Pilot Operating Handbooks – Complete flight procedures, dive bombing techniques, performance data, and emergency protocols
• Flight Manuals – Detailed operational procedures for both crew positions

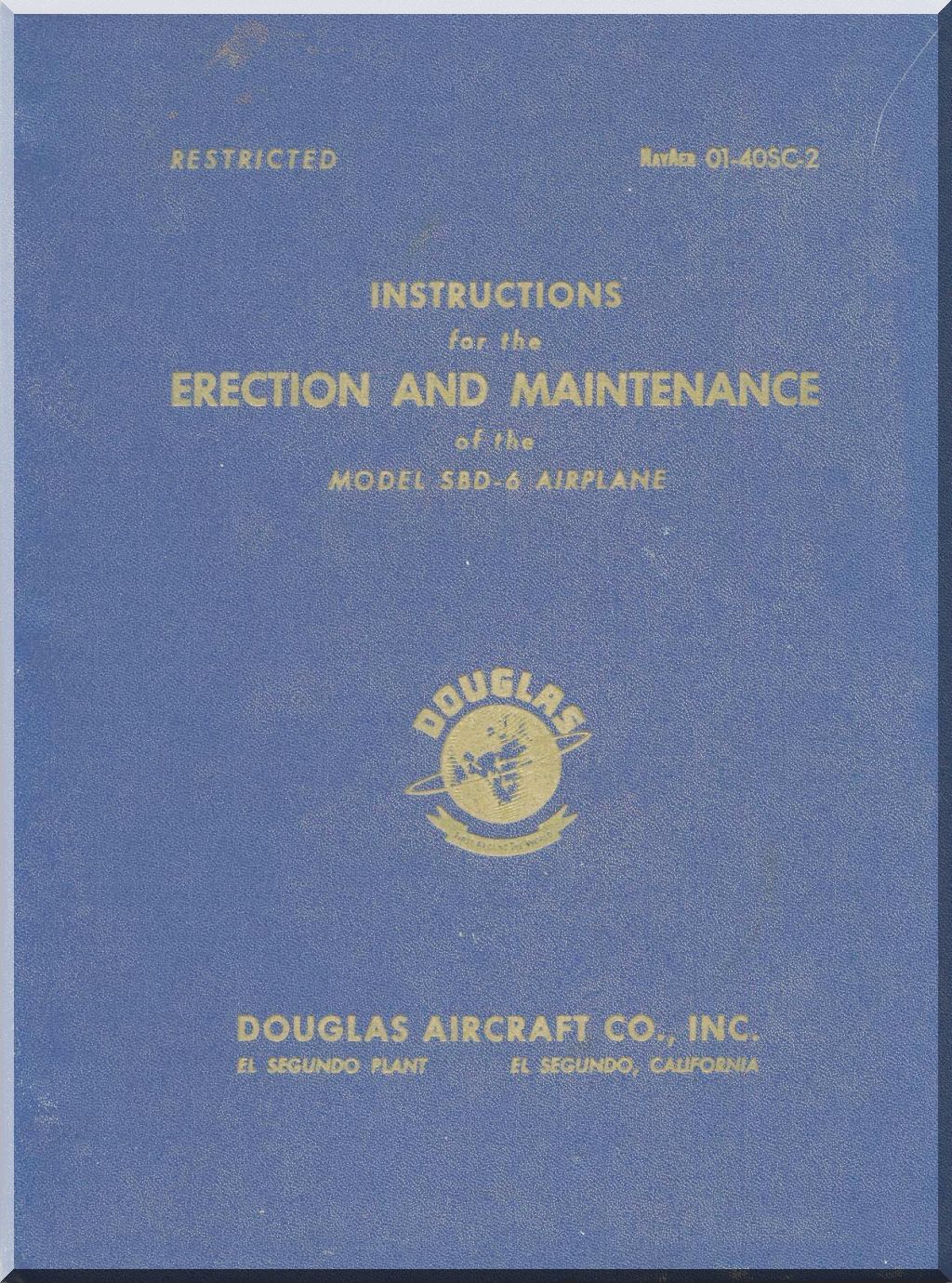

• Maintenance Instructions – Servicing procedures, inspection schedules, and troubleshooting guides
• Parts Catalogs – Illustrated parts breakdowns with nomenclature and part numbers
• Technical Orders – Official modifications, updates, and service bulletins
• Structural Repair Manuals – Airframe repair procedures and specifications
• Armament Documentation – Weapons systems operation and maintenance procedures

Digital Delivery

All manuals are delivered as high-resolution PDF files, optimized for both screen viewing and printing. Download immediately after purchase and access your files anytime from your account. Perfect for reference, restoration projects, or building your aviation library.

Format: PDF (Digital Download)
Delivery: Instant access after purchase
Compatibility: All devices and operating systems

Disclaimer: Sold for historical and reference purposes only. These original or reproduced manuals and blueprints are transferred to electronic format from active-duty archives. Not intended for current certification or repair work. Ideal for scholars, collectors, modelers, and aviation enthusiasts. We provide civil manuals and blueprints on obsolete aircraft, engines, and helicopters for proprietary reasons. Information is for reference only; completeness and accuracy are not guaranteed.
