Comprehensive Douglas F4D Skyray Aircraft Manuals Collection

This comprehensive digital collection contains essential technical documentation for the Douglas F4D Skyray, one of the most distinctive and innovative carrier-based interceptors of the 1950s. Perfect for aviation historians, restoration specialists, scale modelers, flight simulation enthusiasts, and researchers studying Cold War-era naval aviation.

What's Included:

• Flight Handbook (NAVWEPS 01-245FDB-1): Complete operational procedures, performance data, and flight characteristics

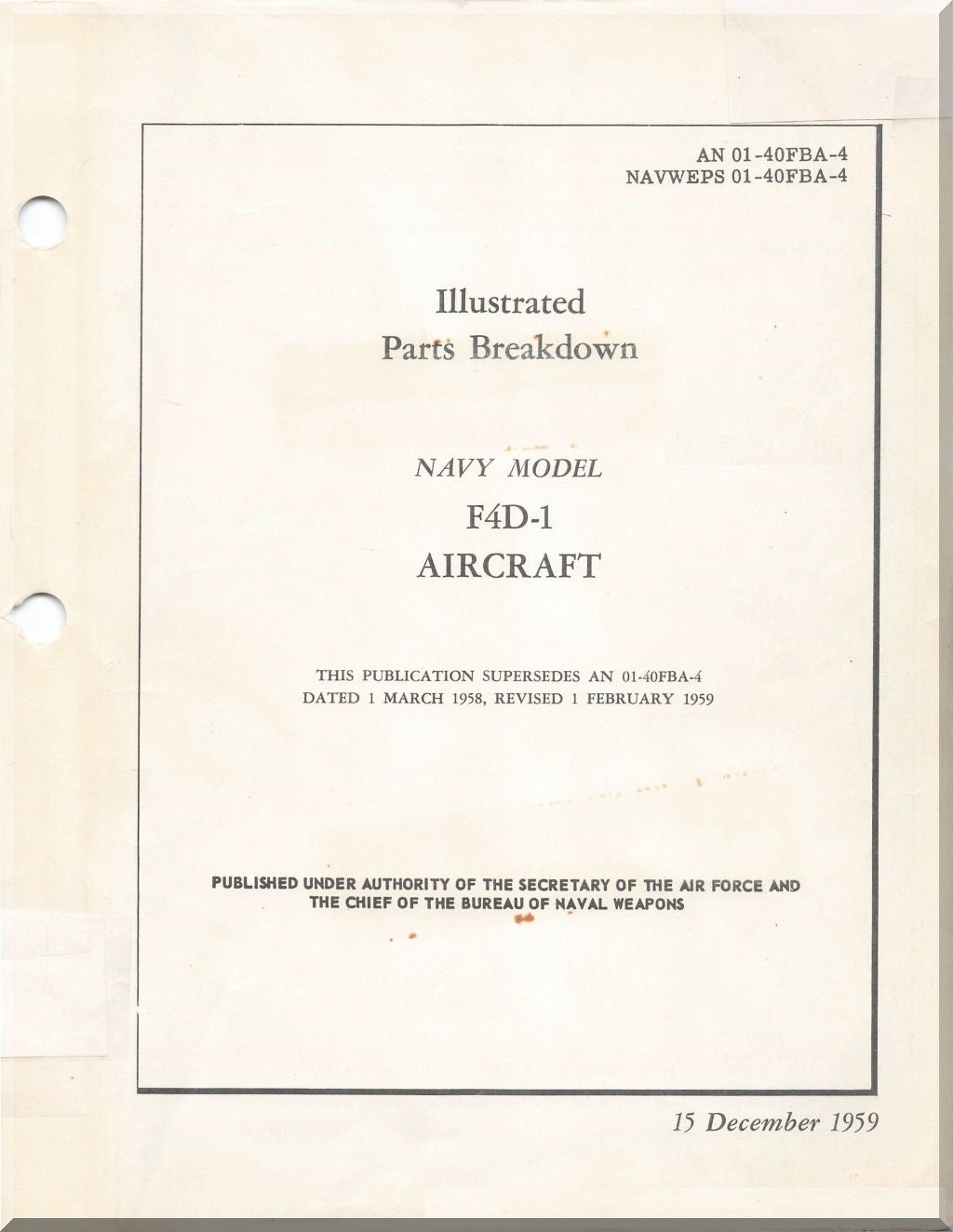

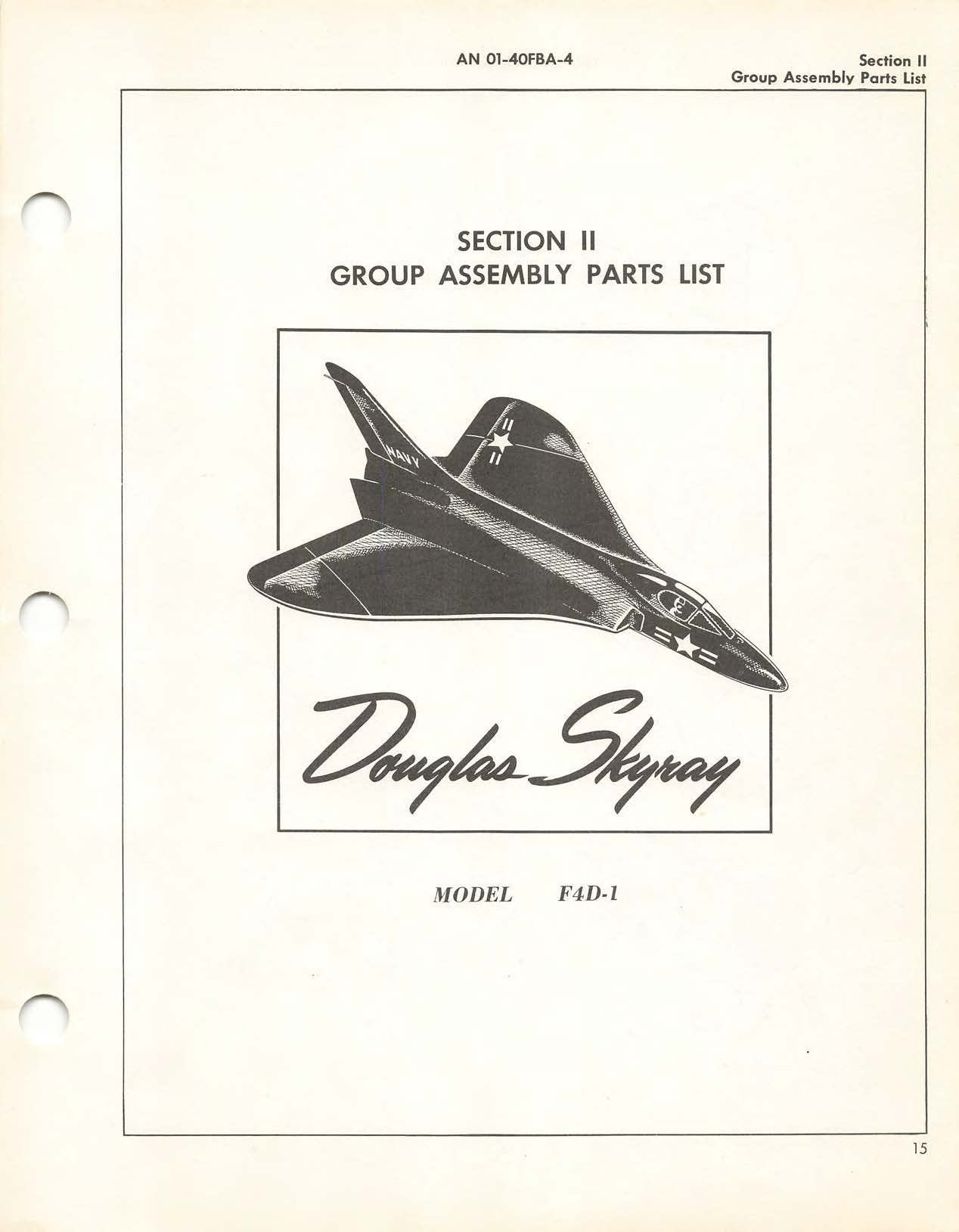

• Illustrated Parts Catalog: Detailed component breakdowns with part numbers and assembly diagrams

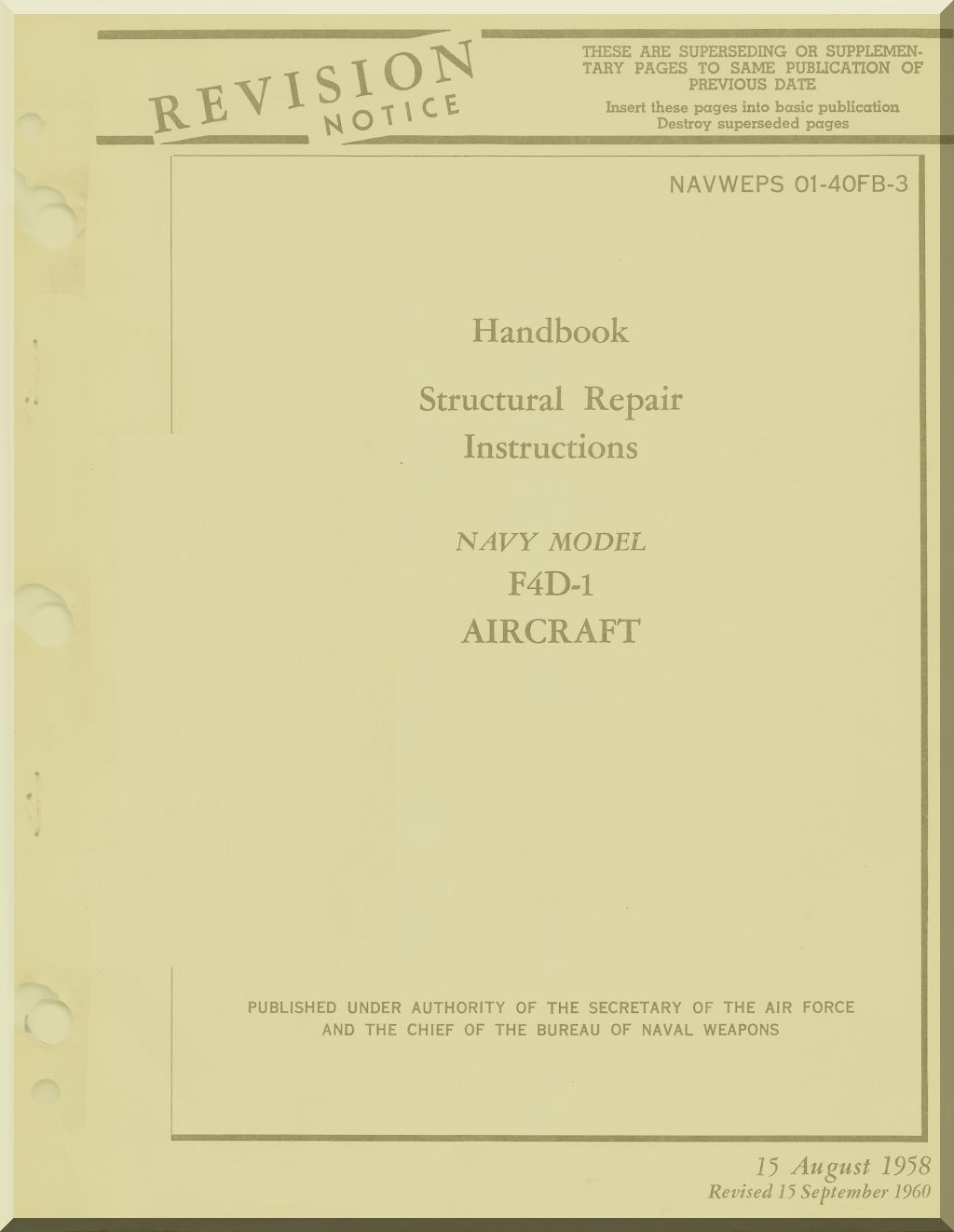

• Structural Repair Instructions: Airframe maintenance procedures and repair techniques
• Technical Documentation: Systems diagrams, engineering data, and performance charts
• Maintenance Guides: Servicing procedures and inspection requirements

Historical Note:

The Douglas F4D Skyray was one of the most radical and visually striking aircraft designs of the 1950s. Developed in response to a U.S. Navy requirement for a high-performance carrier-based interceptor, the Skyray featured an innovative delta wing planform inspired by German wartime research and refined through collaboration with aerodynamicist Alexander Lippisch. Its distinctive bat-wing shape gave the aircraft exceptional climb performance and maneuverability.

First flown in 1951 and entering service with the U.S. Navy and Marine Corps in 1956, the F4D was powered by a Pratt & Whitney J57 turbojet engine and armed with four 20mm cannons plus air-to-air missiles. The Skyray set multiple time-to-climb world records, including reaching 49,212 feet in just 2 minutes and 36 seconds—a testament to its exceptional performance. On October 3, 1953, test pilot James B. Verdin set a world absolute speed record of 753.4 mph in the F4D-1.

Despite its impressive performance, the Skyray had a relatively brief frontline career, serving primarily with Navy and Marine Corps squadrons from 1956 to 1964. Its limited range and the rapid advancement of missile technology led to its replacement by more versatile aircraft like the F-4 Phantom II. However, the F4D's innovative design influenced future delta-wing aircraft development and demonstrated the potential of unconventional aerodynamic configurations.

Today, the F4D Skyray is remembered as one of aviation's most distinctive designs, with several examples preserved in museums including the National Naval Aviation Museum and the National Air and Space Museum, where they continue to captivate visitors with their unique silhouette.

Instant Digital Access:

All manuals are delivered as high-quality PDF files immediately upon purchase. Download once and reference forever—perfect for research, restoration projects, scale modeling accuracy, or deepening your understanding of this remarkable Cold War-era interceptor.

These historical documents have been carefully preserved to maintain their technical accuracy and period detail.

Disclaimer: Sold for historical and reference purposes only. These original or reproduced manuals and blueprints are transferred to electronic format from active-duty archives. Not intended for current certification or repair work. Ideal for scholars, collectors, modelers, and aviation enthusiasts. We provide civil manuals and blueprints on obsolete aircraft, engines, and helicopters for proprietary reasons. Information is for reference only; completeness and accuracy are not guaranteed.

All trade names, trademarks, and manufacturer names are property of their respective owners. Reference to commercial products does not imply endorsement or affiliation.
