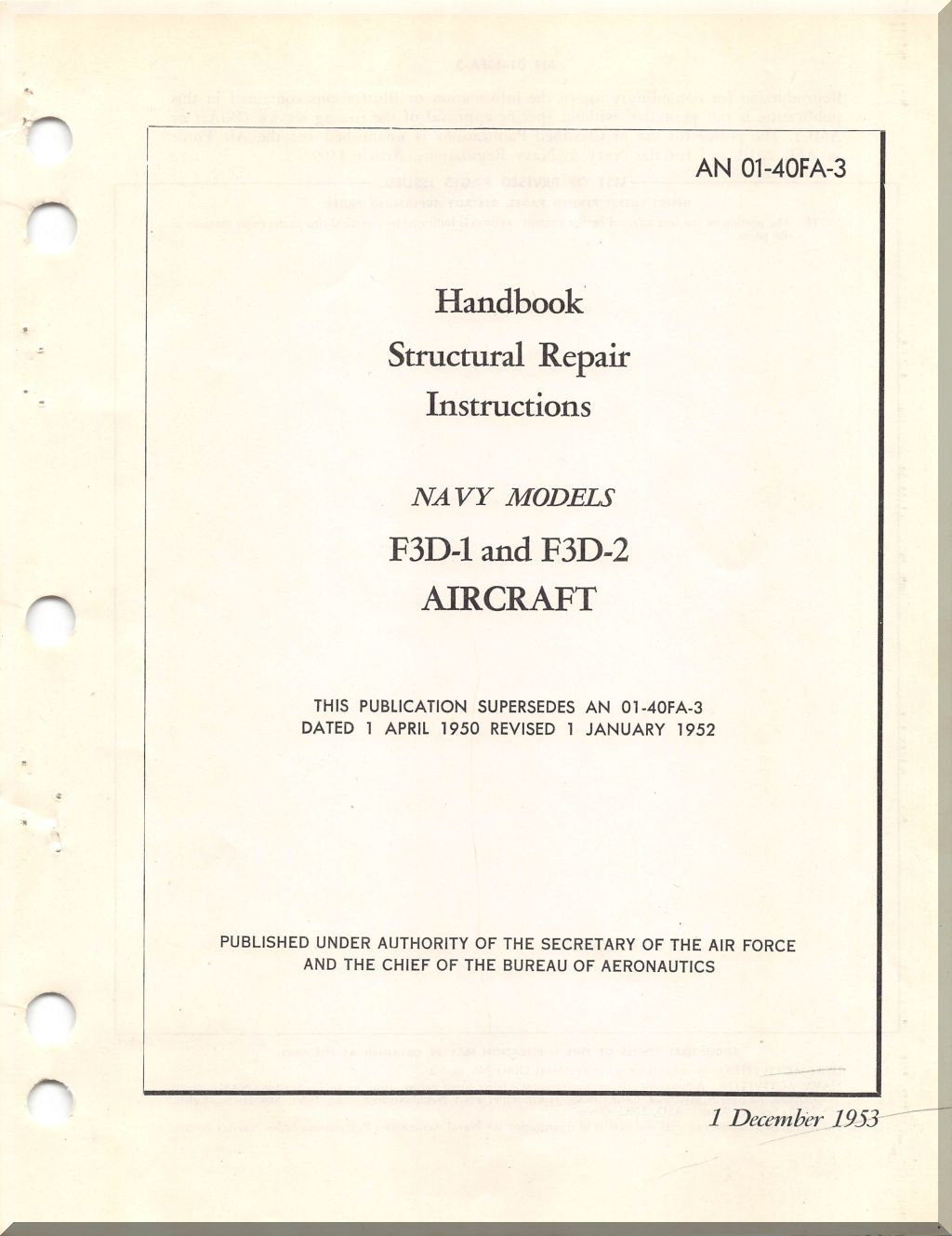

  • Douglas F3D 1, - 2 Aircraft Structural Repair Instructions Manual - 01-40FA-3 - 1953

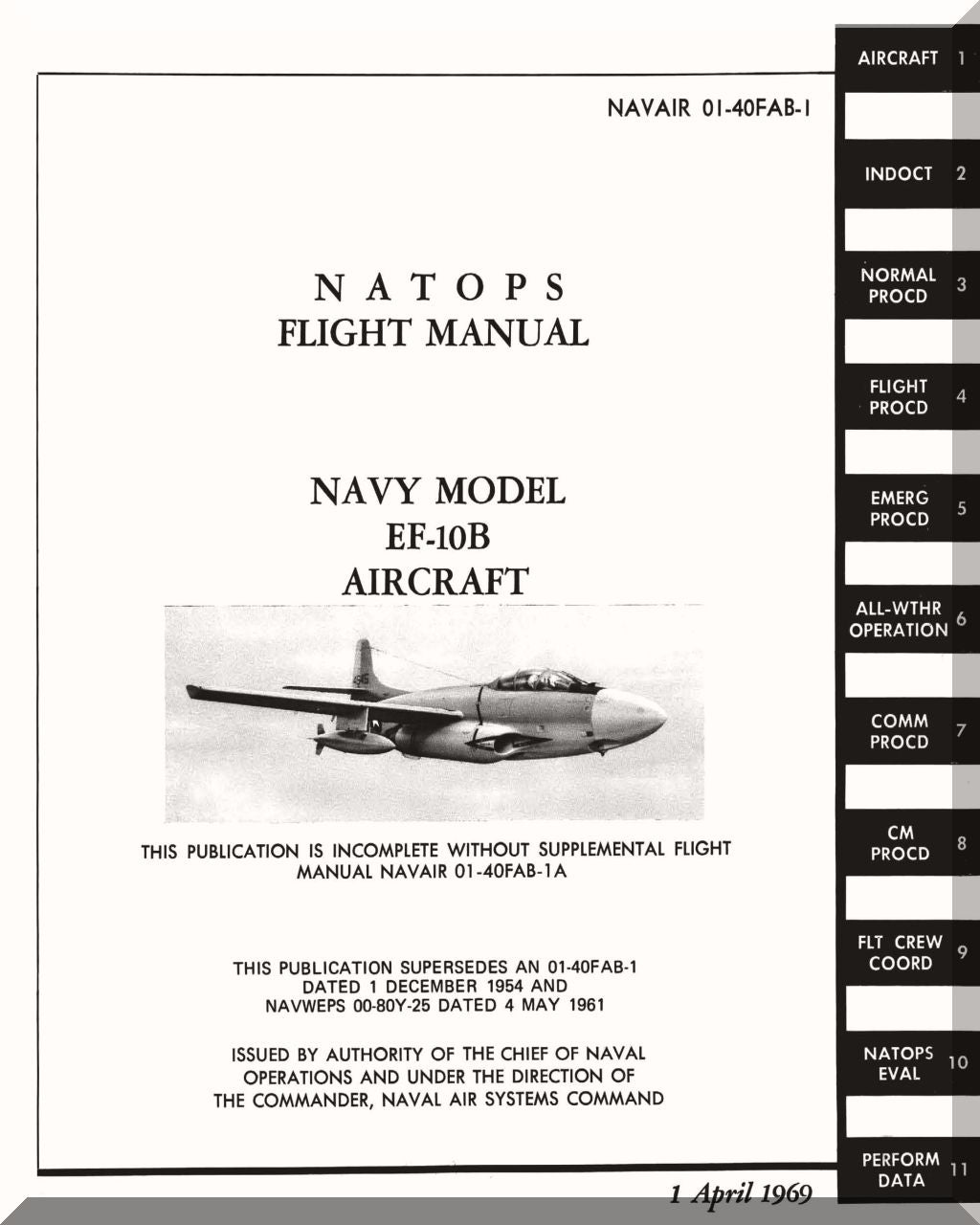

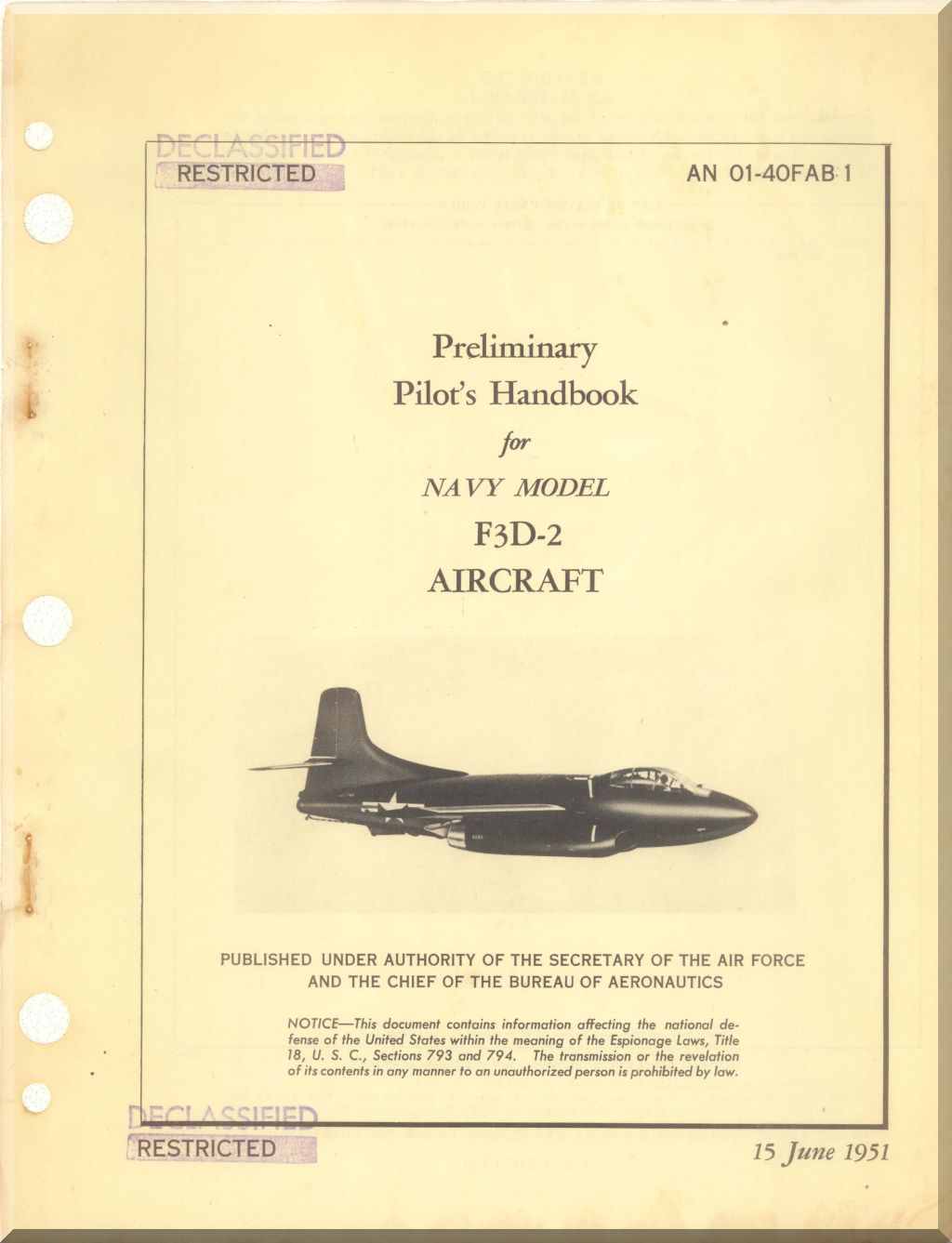

  • Douglas F3D-2, Aircraft Preliminary Pilot's Handbook Manual , AN 01-40FAB-1, 1951
  • Douglas F3D-2, Aircraft Preliminary Pilot's Handbook Manual , AN 01-40FAB-1, 1951

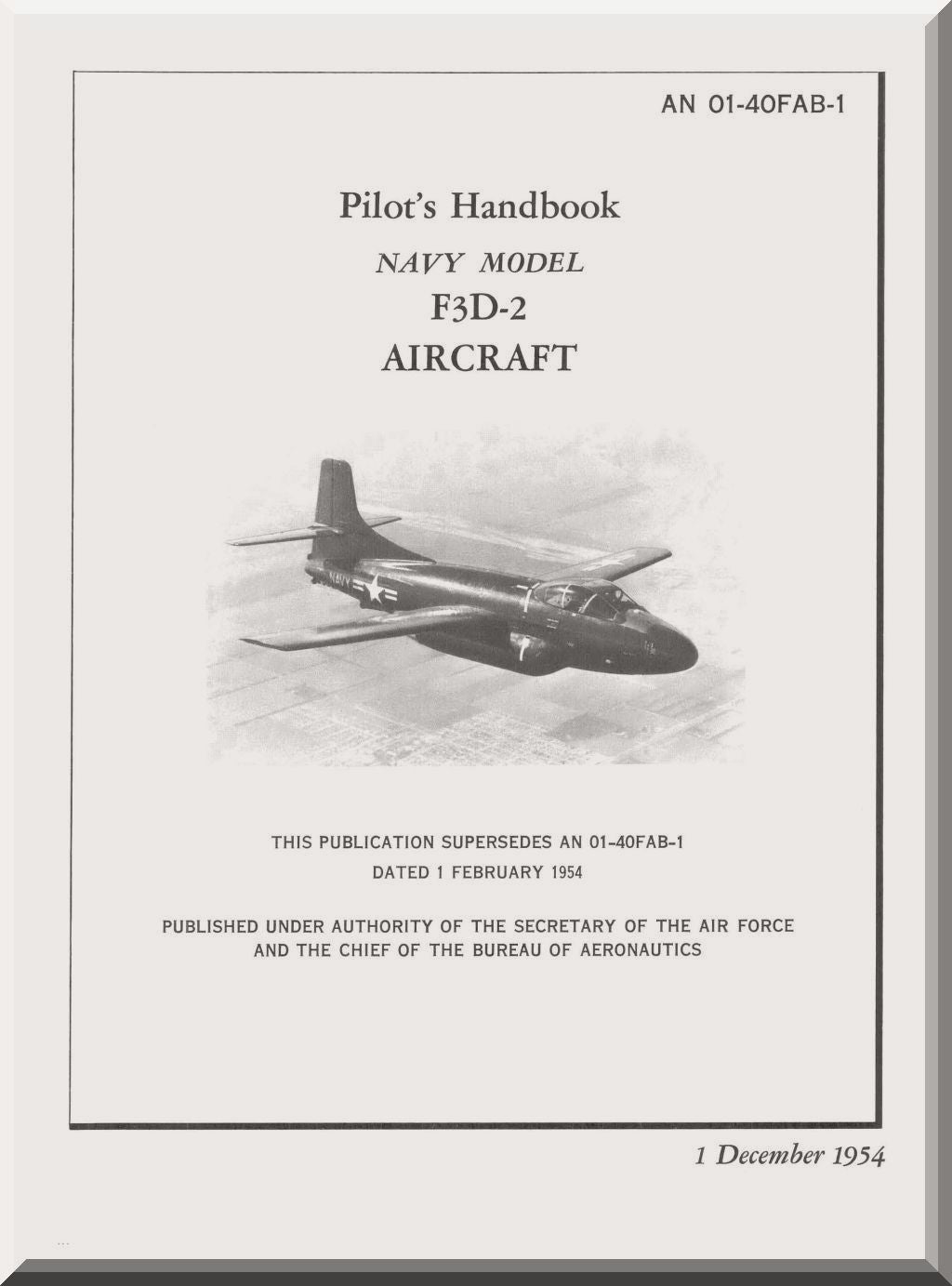

  • Douglas F3D-2, Aircraft Pilot's Handbook Manual , AN 01-40FAB-1, 1954

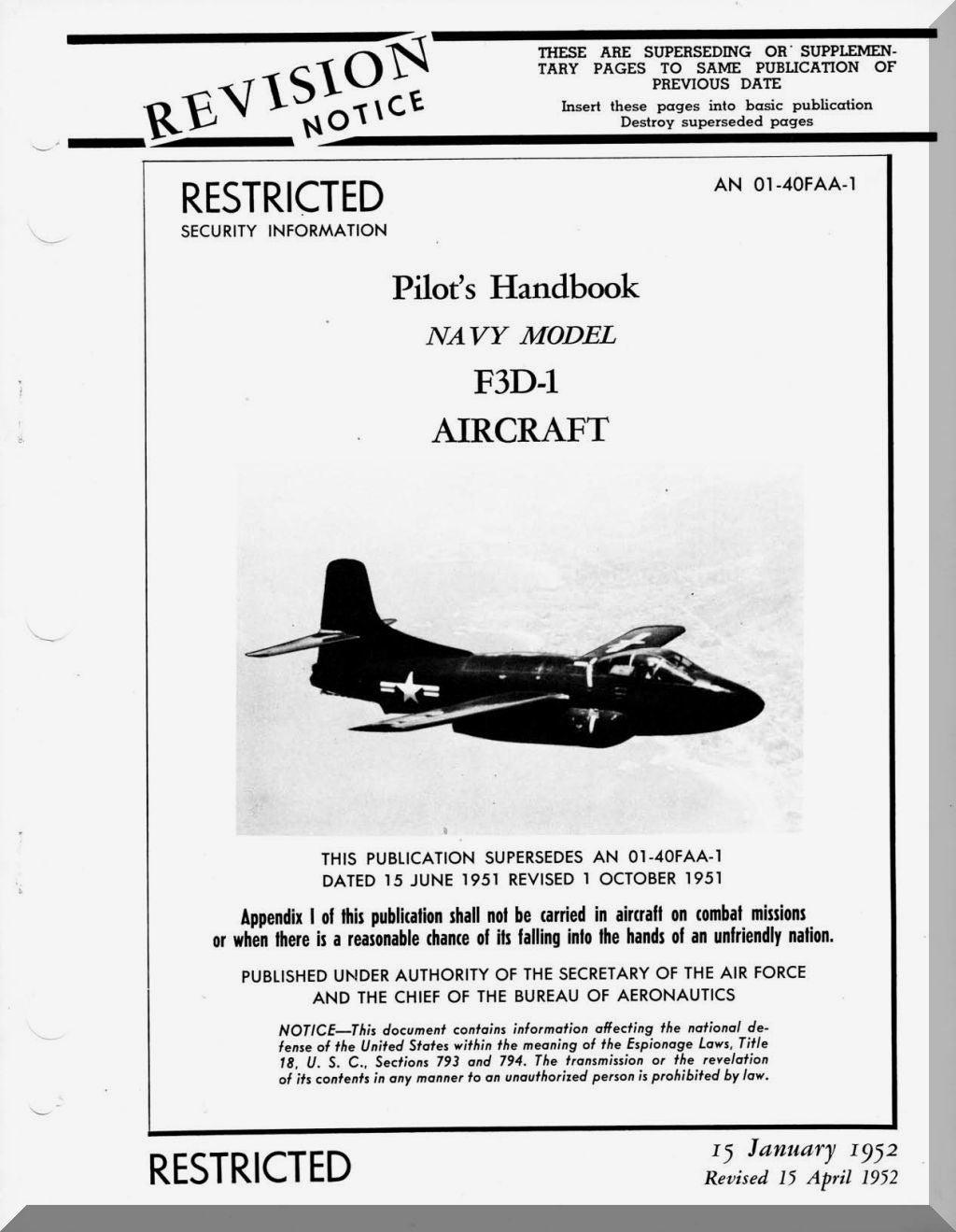

  • Douglas F3D-1 Aircraft Pilot's Handbook Manual , AN 01-40FAA-1, 1952

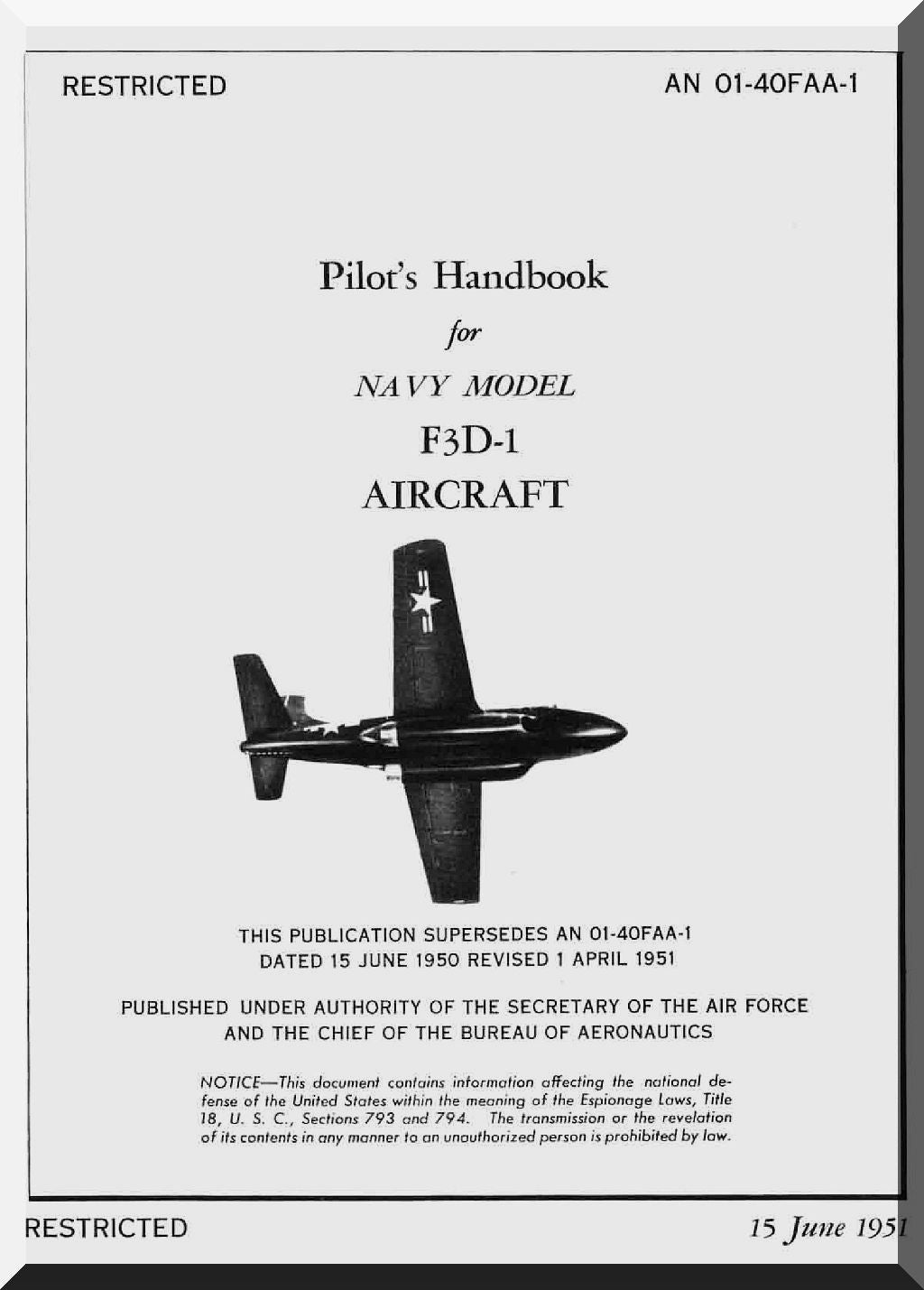

  • Douglas F3D- 1 Aircraft Flight Manual - 01-40FAA-1 -1951
  • Douglas F-3D Skynight Wide Banner
  • Douglas F-3D Skynight Facebook Banner
  • Douglas F-3D Skynight Instagram Banner
  • Douglas F3D 1, - 2 Aircraft Structural Repair Instructions Manual - 01-40FA-3 - 1953
  • Douglas F3D-2, Aircraft Preliminary Pilot's Handbook Manual , AN 01-40FAB-1, 1951
  • Douglas F3D-2, Aircraft Preliminary Pilot's Handbook Manual , AN 01-40FAB-1, 1951
  • Douglas F3D-2, Aircraft Pilot's Handbook Manual , AN 01-40FAB-1, 1954
  • Douglas F3D-1 Aircraft Pilot's Handbook Manual , AN 01-40FAA-1, 1952
  • Douglas F3D- 1 Aircraft Flight Manual - 01-40FAA-1 -1951
  • Douglas F-3D Skynight Wide Banner
Douglas F-3D / F-10 Skynight Aircraft Manuals Collection - Digital Download
€45,00

Comprehensive Douglas F-3D/F-10 Skynight Technical Documentation

This digital collection assembles authentic technical manuals for one of the U.S. Navy's first purpose-built jet night fighters. The Douglas Skynight served with distinction during the Korean War and beyond, pioneering radar-equipped all-weather interception. These original documents provide the detailed specifications and procedures used by naval aviators and maintenance crews throughout the aircraft's operational service.

Historical Note

The Douglas F-3D Skynight (later redesignated F-10 under the 1962 tri-service system) entered U.S. Navy and Marine Corps service in 1951 as America's first carrier-capable jet night fighter. Designed around the emerging technology of airborne intercept radar, the Skynight featured side-by-side seating for pilot and radar operator, allowing close crew coordination during demanding night and all-weather missions.

Powered by twin Westinghouse J34 turbojet engines mounted in the wing roots, the Skynight's portly fuselage earned it the affectionate nickname "Whale" or "Willie the Whale" among crews. Despite its ungainly appearance, the aircraft proved highly effective in combat, with Marine Corps F-3Ds scoring the first U.S. jet-versus-jet night kills during the Korean War, downing several North Korean and Chinese aircraft including MiG-15s.

The Skynight's advanced AN/APQ-35 radar system and heavy armament of four 20mm cannons made it a formidable nocturnal hunter. While too large for routine carrier operations aboard most ships, the type excelled operating from land bases and larger carriers, providing critical night air defense and intruder missions throughout the Korean conflict.

Following the Korean War, the Skynight transitioned to specialized roles including electronic warfare (EF-10B variant) and training duties. The EF-10B "Skyknight" served extensively during the Vietnam War, conducting radar jamming and electronic countermeasures missions to protect strike packages over North Vietnam. Some variants remained in service until 1970, an impressive longevity for a first-generation jet fighter.

The F-3D/F-10 Skynight holds an important place in naval aviation history as a bridge between propeller-driven night fighters and the sophisticated all-weather interceptors that followed. Its combat success validated the concept of radar-equipped jet night fighters and influenced the design of subsequent aircraft like the F-4 Phantom II.

What's Included

This collection contains the essential technical references used by pilots, radar operators, and maintenance personnel:

  • Pilot Operating Handbooks – Complete flight procedures, performance data, and emergency protocols
  • Flight Manuals – Detailed operational procedures for both crew positions
  • Radar Operating Instructions – AN/APQ-35 system operation and intercept procedures
  • Structural Repair Manuals – Airframe repair procedures and specifications
  • Maintenance Instructions – Servicing procedures, inspection schedules, and troubleshooting guides
  • Technical Orders – Official modifications, updates, and service bulletins

Digital Delivery

All manuals are delivered as high-resolution PDF files, optimized for both screen viewing and printing. Download immediately after purchase and access your files anytime from your account. Perfect for reference, research projects, or building your aviation library.

Format: PDF (Digital Download)
Delivery: Instant access after purchase
Compatibility: All devices and operating systems

Disclaimer: Sold for historical and reference purposes only. These original or reproduced manuals and blueprints are transferred to electronic format from active-duty archives. Not intended for current certification or repair work. Ideal for scholars, collectors, modelers, and aviation enthusiasts. We provide civil manuals and blueprints on obsolete aircraft, engines, and helicopters for proprietary reasons. Information is for reference only; completeness and accuracy are not guaranteed.

All trade names, trademarks, and manufacturer names are property of their respective owners. Reference to commercial products does not imply endorsement or affiliation.
