Comprehensive DFS 230 Assault Glider Technical Documentation Collection

Definitive Collection with Free Lifetime Updates: This is a living collection that we continuously expand and refine. As we acquire additional DFS 230 documentation, technical bulletins, or variant-specific materials, we update this collection and provide free lifetime updates to all purchasers. Your one-time purchase guarantees access to all future additions and improvements to this collection.

Historical Note

The DFS 230 was a primary assault glider operated by the German Luftwaffe during World War II, developed by the Deutsche Forschungsanstalt für Segelflug (DFS) with Hans Jacobs as head designer. This revolutionary aircraft was specifically designed for airborne assault operations and achieved legendary status during the audacious capture of Fort Eben-Emael in Belgium on May 10, 1940, where just 78 German paratroopers in nine DFS 230 gliders neutralized a fortress defended by over 1,200 Belgian troops.

The DFS 230 represented a breakthrough in tactical airlift capability, combining high structural strength with exceptional handling characteristics that allowed precision landings in confined spaces. Its high-wing braced monoplane configuration with tubular steel frame, fabric covering, and wooden wings using a Clark Y modified airfoil provided the stability needed for long-distance towing in instrument conditions. The innovative droppable wheel system for takeoff and central wooden-sprung skid for landing minimized weight while maximizing operational flexibility.

Production variants evolved throughout the war to meet changing tactical requirements. The initial A-1 and A-2 models established the baseline design, carrying one pilot and nine fully equipped troops or approximately 1,200 kg of cargo. The B-1 and B-2 variants introduced a rear-mounted brake parachute and improved armament to enable even shorter landing distances on restricted terrain. The experimental C-1 variant featured nose-mounted brake rockets designed to fire automatically just before impact, further reducing the landing run. The ambitious F-1 variant, intended to carry 15 soldiers, remained a single prototype. One of the most unusual modifications was the Focke-Achgelis Fa 225, which replaced the glider wings with a rotary-wing system from an Fa 223 helicopter for vertical landing capability.

The DFS 230 saw extensive combat service throughout World War II, participating in operations across multiple theaters including the invasions of Crete, the rescue of Benito Mussolini from Gran Sasso, and numerous Eastern Front operations. Its ability to deliver assault troops with pinpoint accuracy made it an invaluable tactical asset. Production continued from 1937 through 1945, with approximately 1,600 units manufactured by Gothaer Waggonfabrik and other contractors.

Manuals Included in This Collection

Variant A Documentation:

• DFS 230 A Aircraft Handbook – Flugzeug-Handbuch (German Language)

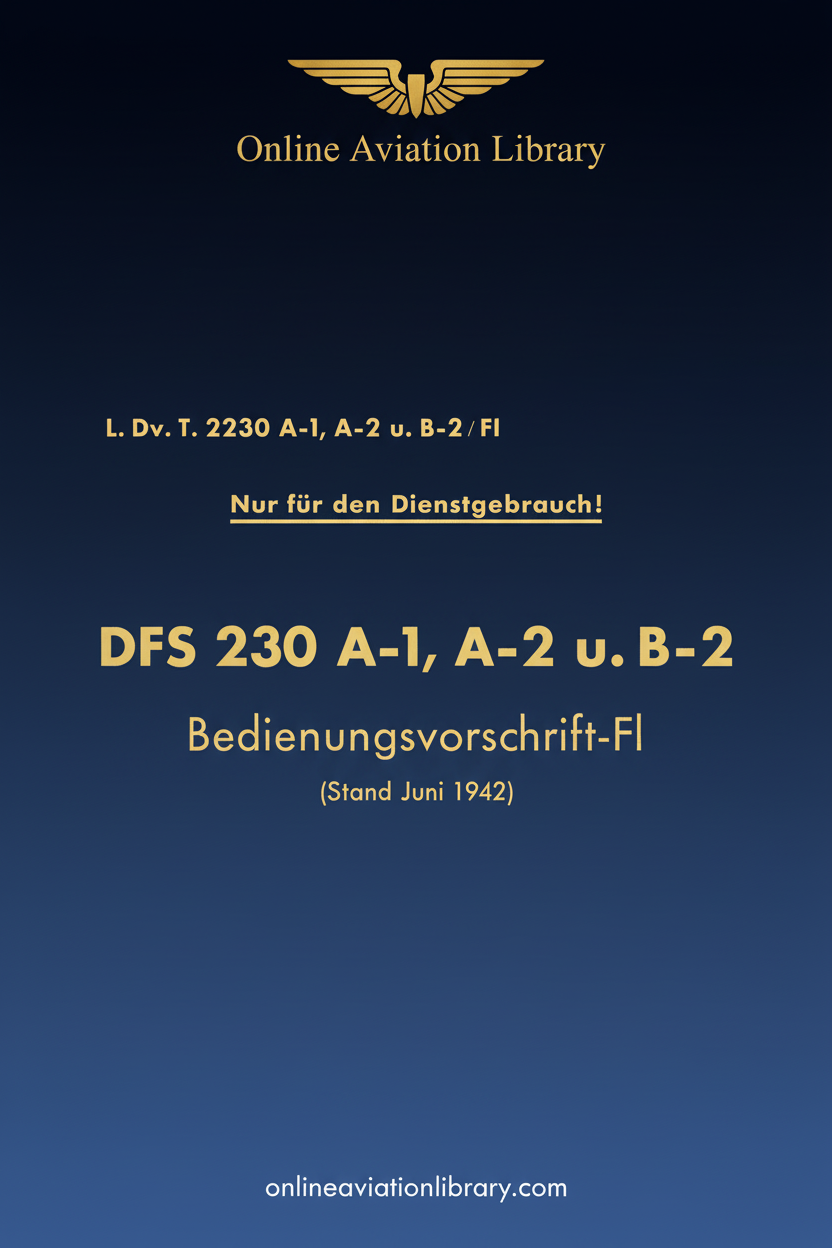

• DFS 230 A-1, A-2, B-2 Flight Operating Instructions Manual – Bedienungsvorschrift Fl (German Language, Stand Juni 1942)

Variant B Documentation:

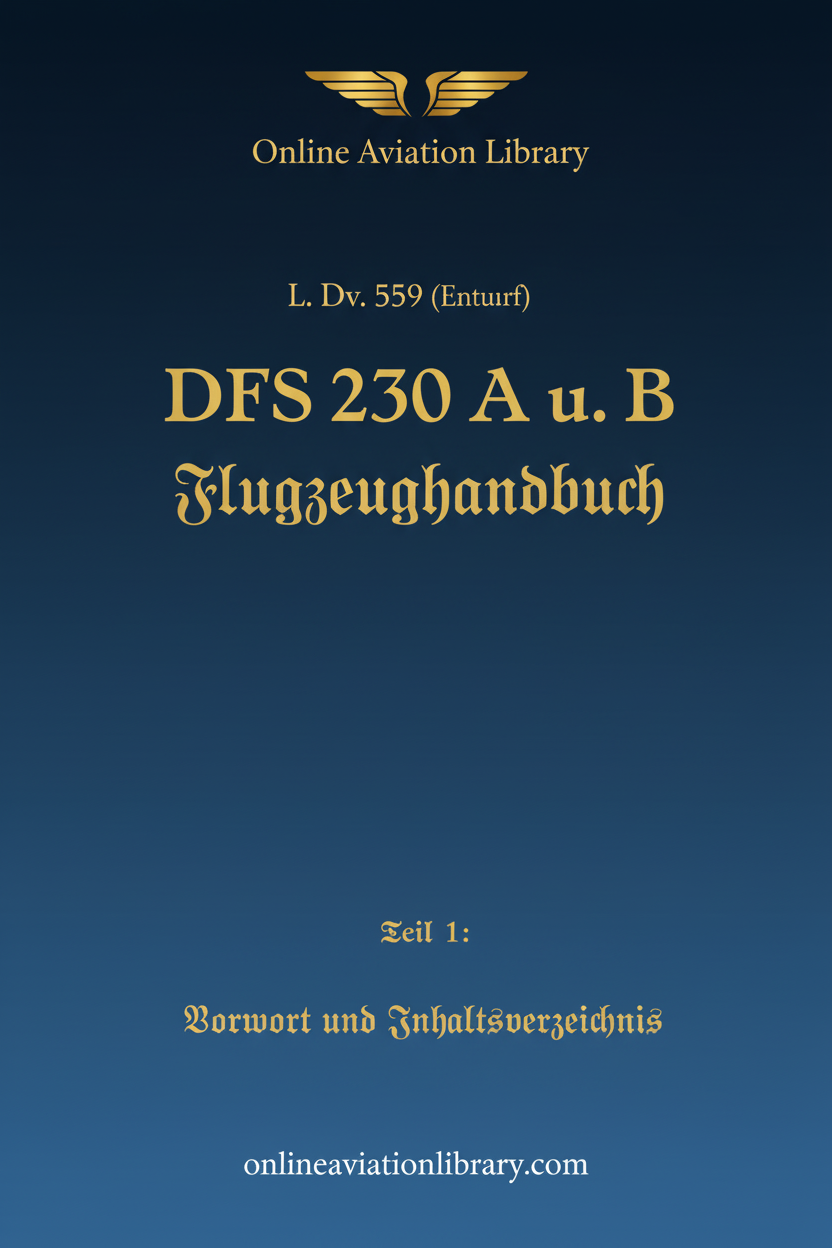

• DFS 230 A, B Aircraft Handbook – Flugzeug-Handbuch (German Language)
• DFS 230 A-1, A-2, B-2 Flight Operating Instructions Manual – Bedienungsvorschrift Fl (German Language, Stand Juni 1942)

General Documentation (All Variants):

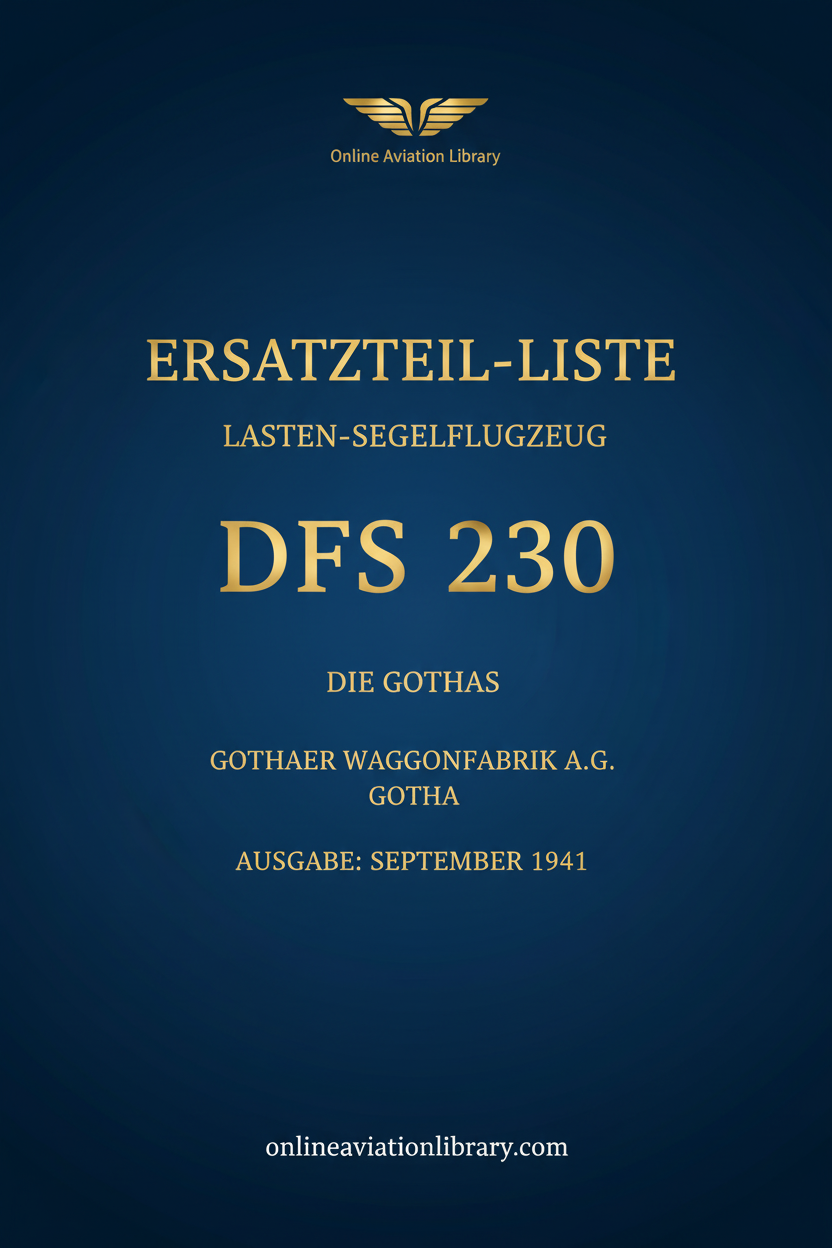

• DFS 230 Aircraft Illustrated Parts Catalog Manual – Ersatzteilliste (German Language, Ausgabe September 1941)

This collection provides comprehensive coverage of the DFS 230 A and B variants, including complete flight operations procedures, maintenance protocols, structural details, and parts identification. The documentation covers all critical systems including the droppable wheel mechanism, central skid landing system, spoiler operation for steep approaches, towing procedures with various aircraft types (Ju 52, He 111, Bf 110, Bf 109), and armament installation (MG 15 rear-facing or MG 34 forward-firing machine guns).

Engineering Norms and Standards

The DFS 230 was developed and certified under Luftwaffe technical directives (Luftwaffe Dienstvorschriften - L.Dv.) during the late 1930s and early 1940s. The documentation in this collection reflects the rigorous German military engineering standards of the period, including:

• Luftwaffe Technical Regulations: All manuals follow L.Dv. numbering and formatting standards (e.g., L.Dv. 559, L.Dv. T. 2230), ensuring consistency with broader Luftwaffe technical documentation systems
• DFS Engineering Practices: Deutsche Forschungsanstalt für Segelflug design methodologies emphasizing aerodynamic efficiency, structural optimization, and operational safety for glider operations
• Gothaer Waggonfabrik Manufacturing Standards: Production quality control and parts standardization protocols from the primary manufacturer
• Military Airworthiness Requirements: Structural load factors, flight envelope limitations, and operational restrictions for military assault glider operations
• Towing Compatibility Standards: Interface specifications and operational procedures for compatibility with multiple tug aircraft types

The technical specifications documented in these manuals include precise performance data: glide ratio of 1:18 when empty (reducing to 1:11-1:12 fully loaded), maximum towing speed of 210 km/h, normal towing speed of 180 km/h, never-exceed speed (VNE) of 290 km/h, and landing speed of 55-65 km/h. Dimensional data includes wingspan of 21.1-21.98 meters, length of 11.24-11.3 meters, empty weight of 770-860 kg, and maximum takeoff weight of 2,100 kg.
