Comprehensive De Havilland Gipsy Major Aircraft Engine Technical Manuals
Access the comprehensive technical documentation for the legendary De Havilland Gipsy Major piston engine family. This digital collection provides maintenance personnel, engineers, and aviation enthusiasts with detailed operational, maintenance, and overhaul procedures for one of the most successful and widely-produced British aircraft engines in aviation history.
What's Included:
- 8 essential technical documents covering Gipsy Major models 1-10

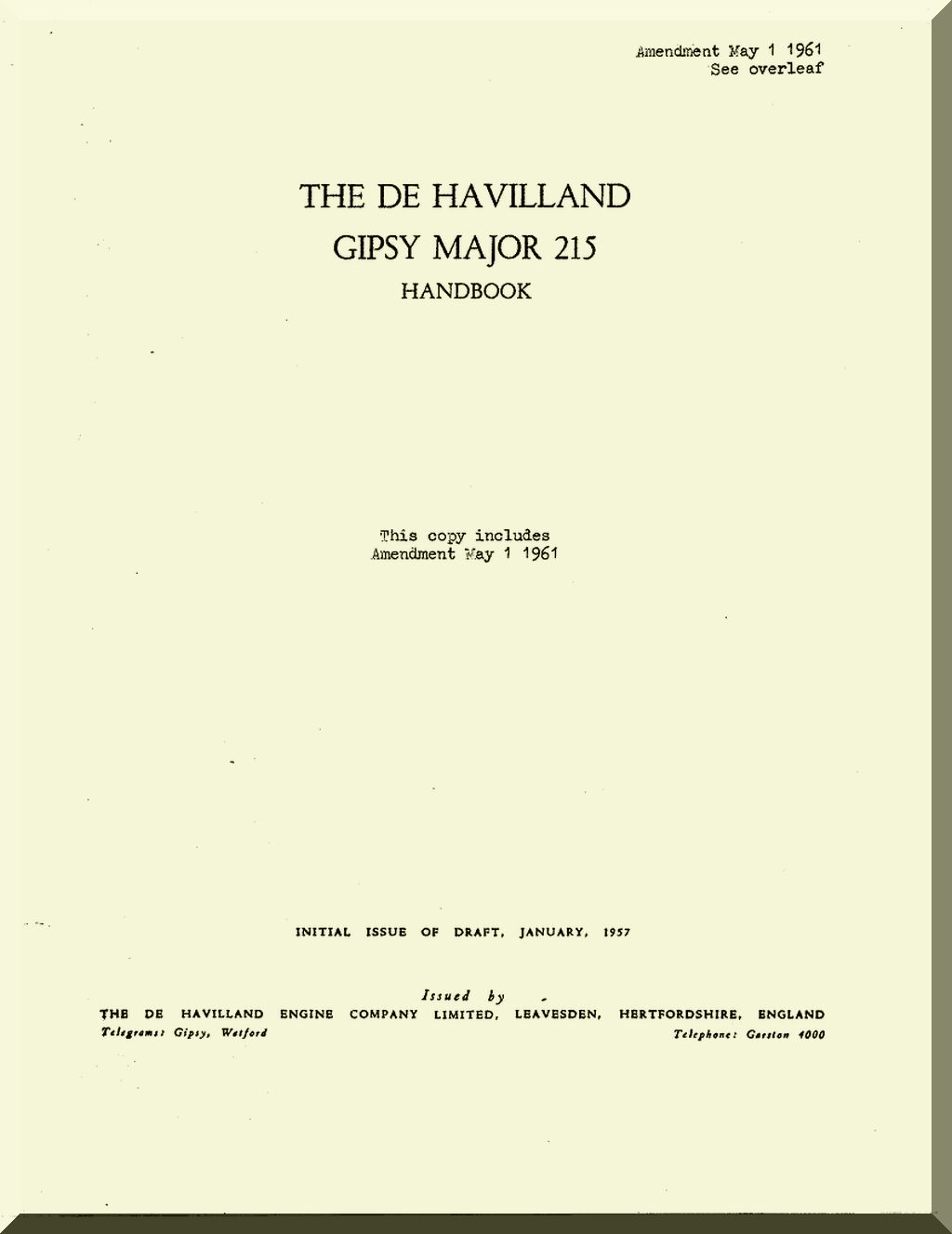

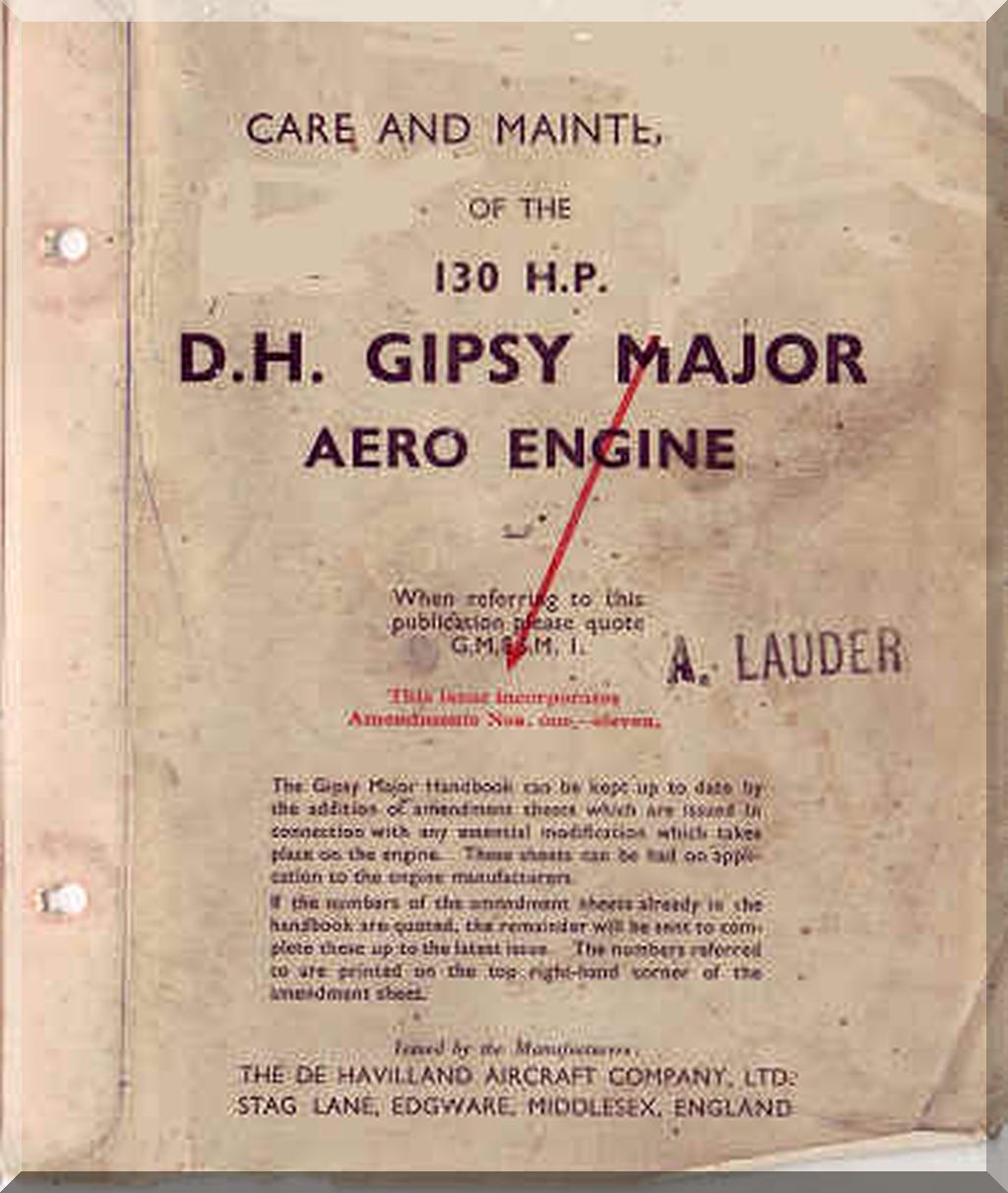

- Complete maintenance manuals with detailed procedures and specifications

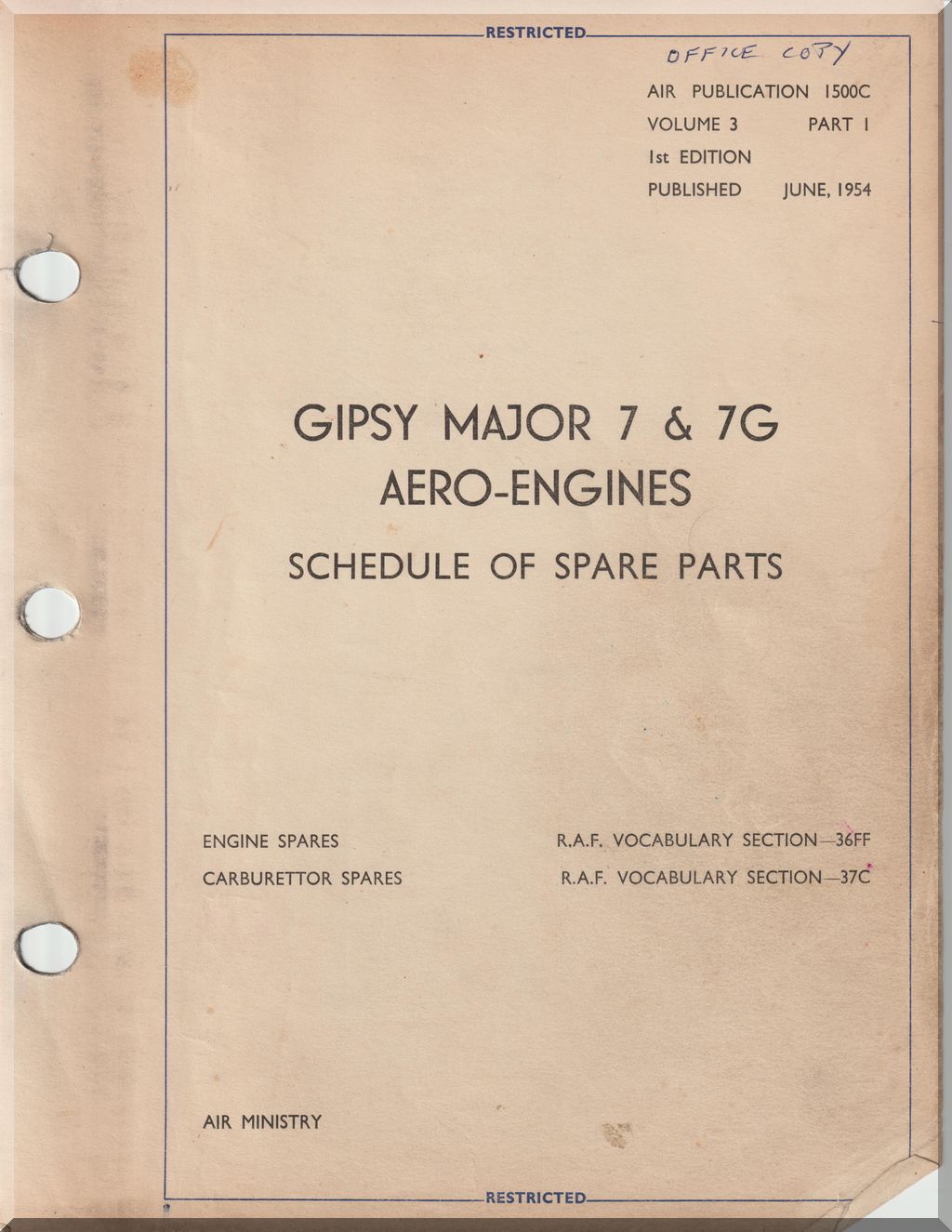

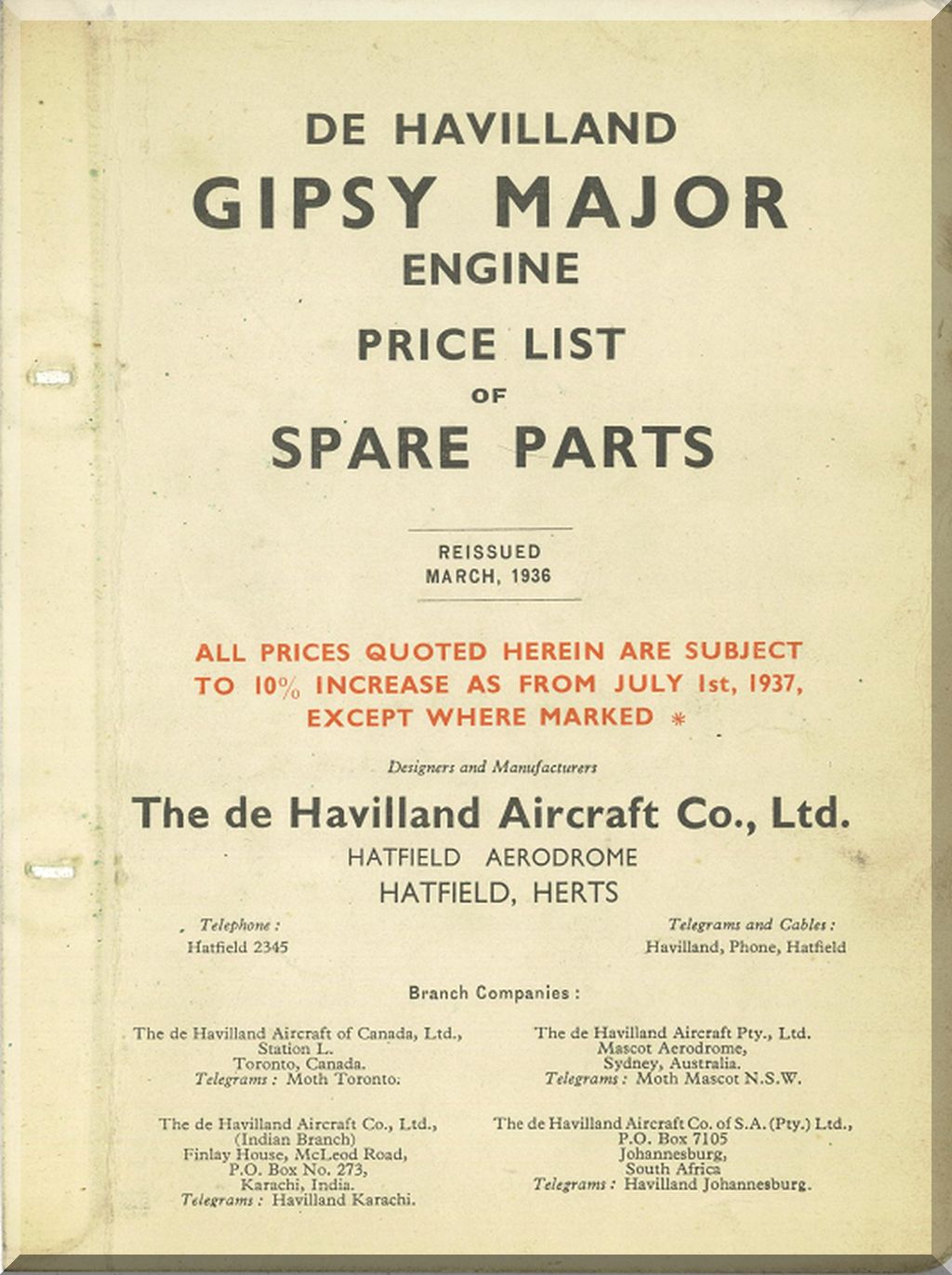

- Parts catalogs with illustrated breakdowns

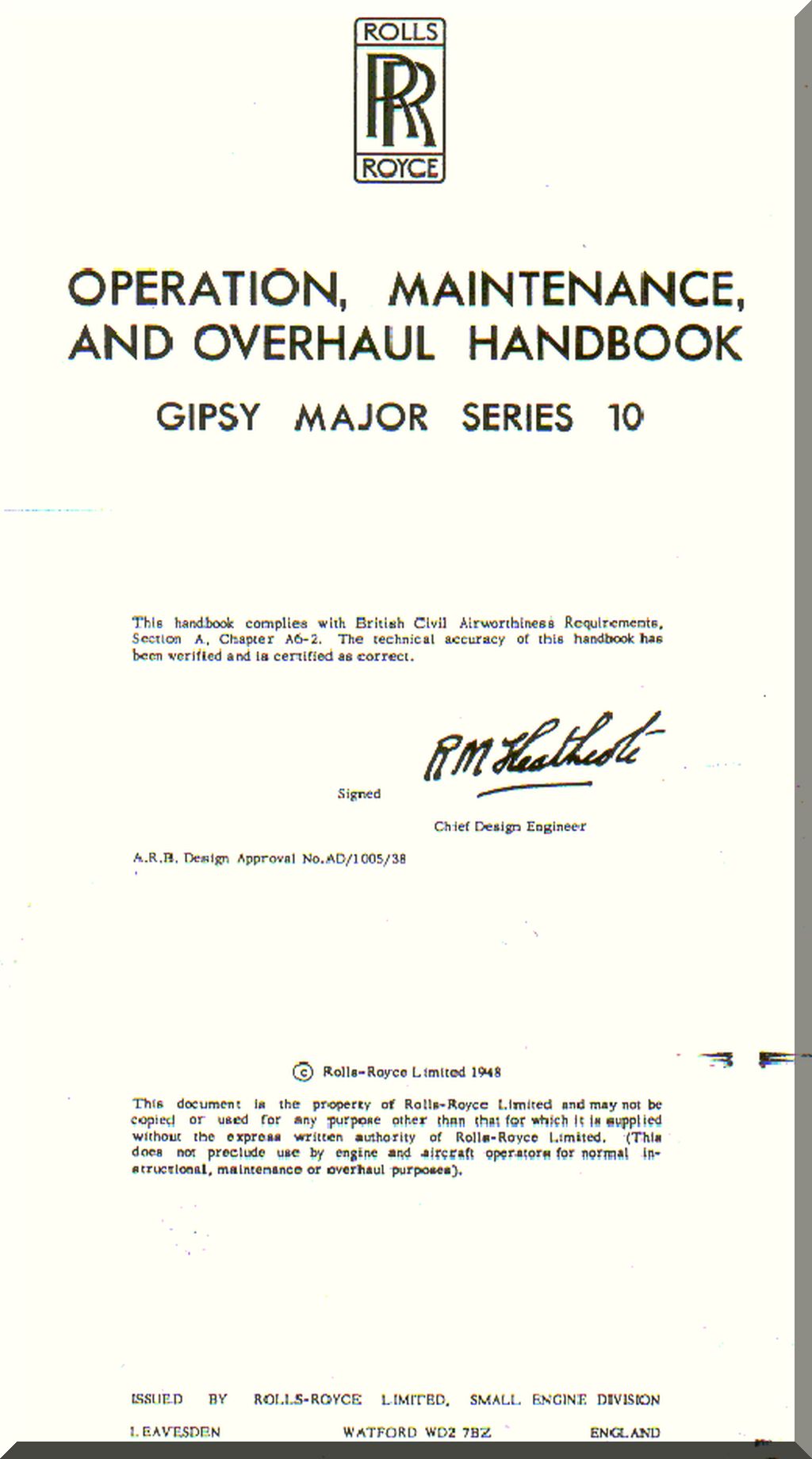

- Overhaul and repair instructions
- Performance data and operational limits
- Engineering data and technical specifications
Historical Note
The De Havilland Gipsy Major stands as one of the most successful and influential aircraft piston engines in British aviation history. Designed by Major Frank Halford and developed by the De Havilland Engine Company, the Gipsy Major first appeared in 1932 as an evolution of the earlier Gipsy III, featuring an inverted four-cylinder air-cooled inline configuration that would become iconic in British light aviation.
The engine's inverted design provided excellent pilot visibility and allowed for streamlined cowling, while its air-cooled construction offered simplicity and reliability. Initial variants produced around 130 horsepower, with later models like the Gipsy Major 10 delivering up to 145 horsepower. This power range made it ideal for training aircraft, light transports, and sport planes during the critical 1930s-1950s period.
The Gipsy Major achieved legendary status as the powerplant of the de Havilland Tiger Moth, the primary trainer for RAF pilots during World War II and one of the most famous training aircraft ever built. Over 8,000 Tiger Moths were produced, the vast majority powered by Gipsy Major engines. The engine also powered the de Havilland Chipmunk advanced trainer, which served air forces worldwide from the 1940s through the 1990s, and numerous other aircraft including the Miles Magister, Percival Prentice, and Stampe SV.4.
With over 28,000 engines produced between 1932 and the 1960s, the Gipsy Major became one of the most manufactured British aero engines. Its reputation for reliability, ease of maintenance, and smooth operation made it beloved by pilots and ground crews alike. Today, hundreds of Gipsy Major engines remain in active service powering vintage aircraft worldwide, a testament to the engine's exceptional design and enduring quality. The Gipsy Major's legacy as the engine that trained generations of pilots and powered the golden age of British light aviation remains unmatched.
Perfect For:
- Aircraft maintenance technicians and engineers
- Aviation maintenance training programs
- Vintage aircraft restoration projects
- Tiger Moth and Chipmunk owners and operators
- Aviation historians and researchers
- Technical library collections
Digital Download: Instant access to high-resolution PDF files. Lifetime access with no shipping required.
