Curtiss OX-5 Aircraft Engine - Comprehensive Technical Manuals Collection
Access the comprehensive technical documentation for the legendary Curtiss OX-5 aircraft engine, the powerplant that launched American aviation into the modern era. This curated digital collection provides essential manuals, maintenance data, and engineering specifications for historians, restorers, aviation enthusiasts, and researchers preserving this iconic piece of aviation history.
Historical Significance
The Curtiss OX-5 stands as one of the most important aircraft engines in aviation history. Developed during World War I, this 90-horsepower V-8 water-cooled engine powered the famous Curtiss JN-4 "Jenny" trainer, which trained thousands of Allied pilots during the Great War. Following the war, surplus OX-5 engines became the backbone of barnstorming aviation throughout the 1920s and early 1930s, making flight accessible to the American public and launching the careers of countless aviation pioneers.
Produced in massive quantities between 1916 and 1918, with over 12,000 units manufactured, the OX-5 became synonymous with early American aviation. Its reliability, relatively simple maintenance requirements, and widespread availability made it the engine of choice for early commercial aviation, flight schools, and air mail services. The engine powered numerous historic aircraft including the Standard J-1, the Travel Air 2000, and various Waco biplanes that defined the Golden Age of Aviation.
What's Included in This Collection

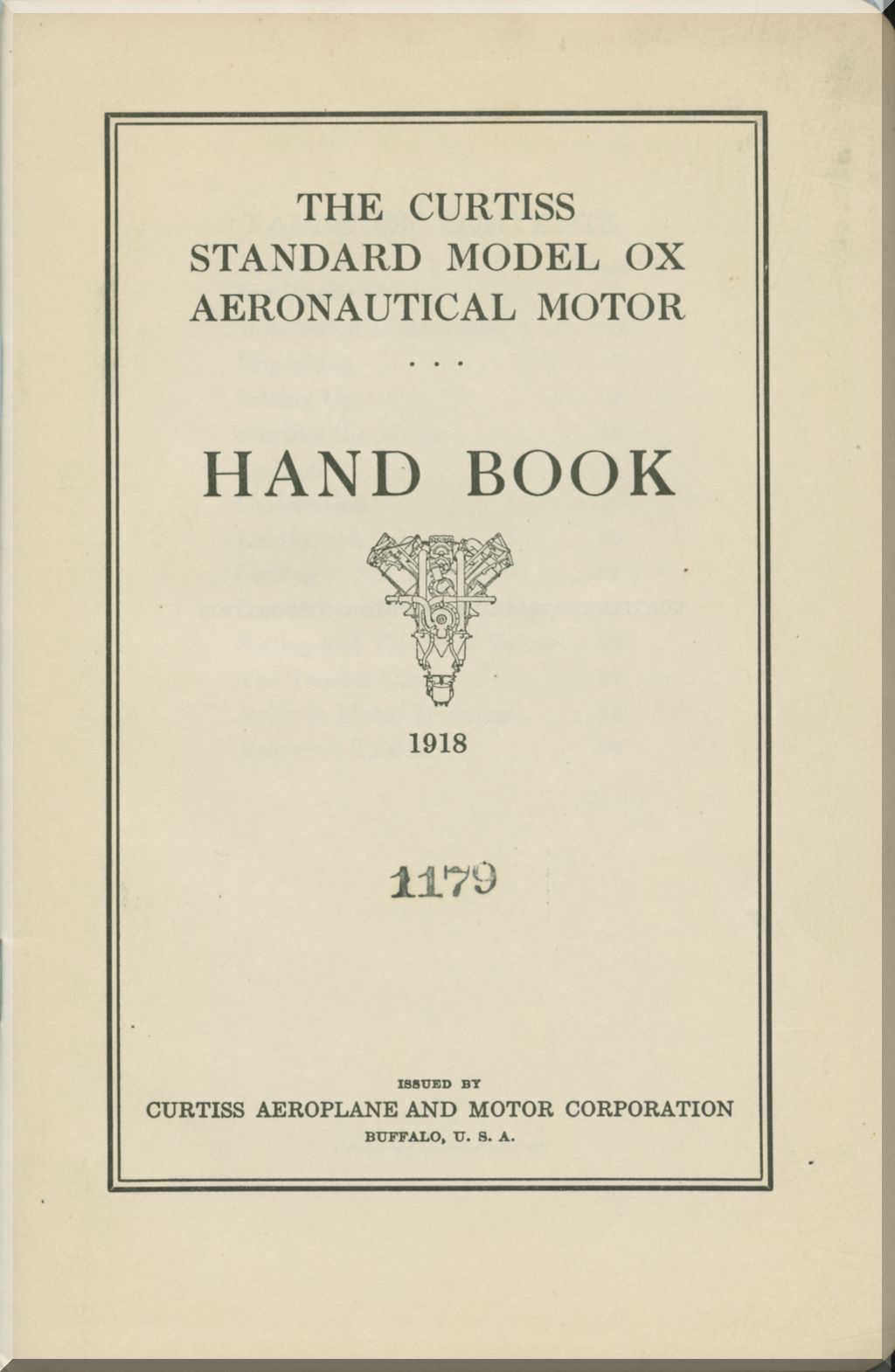

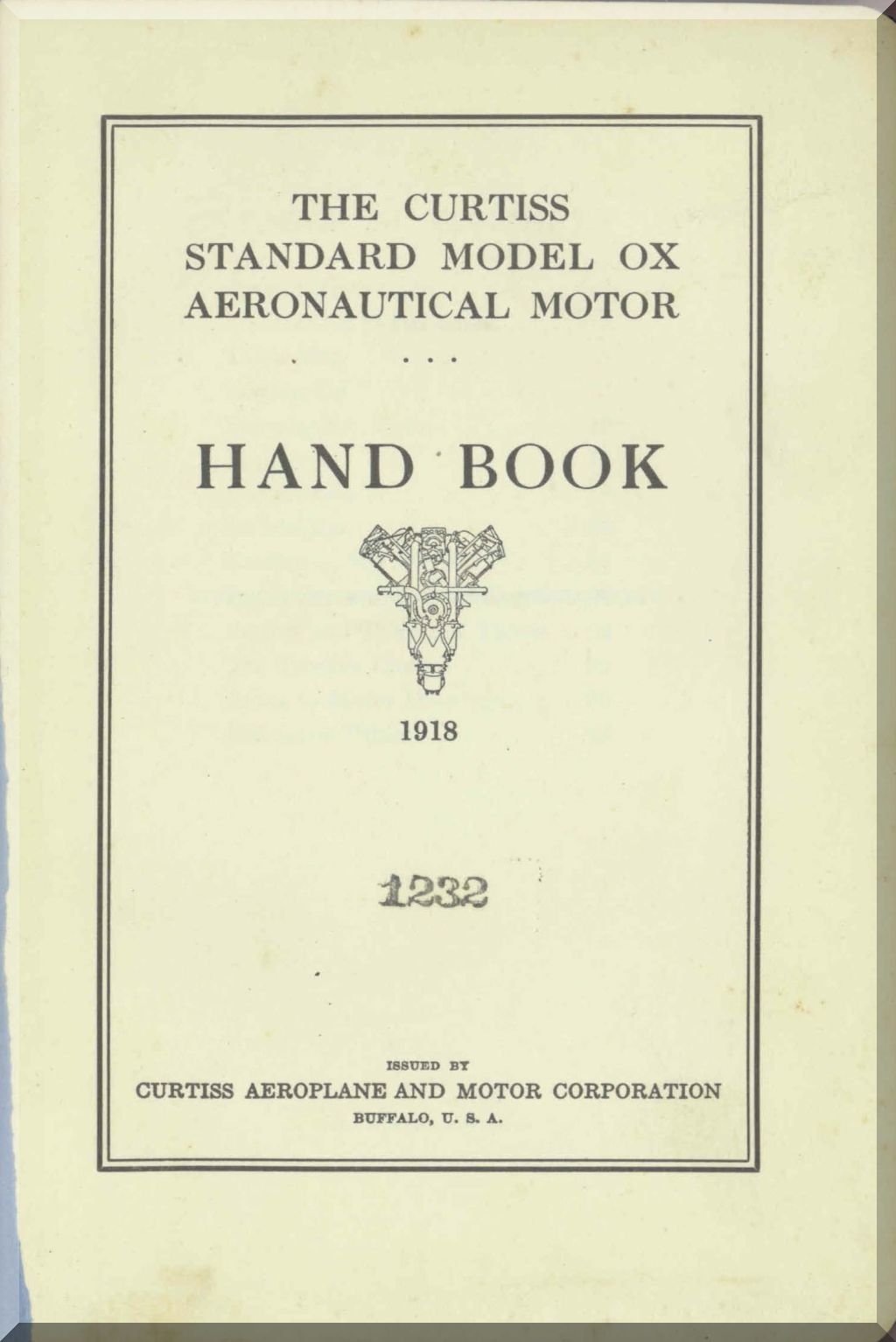

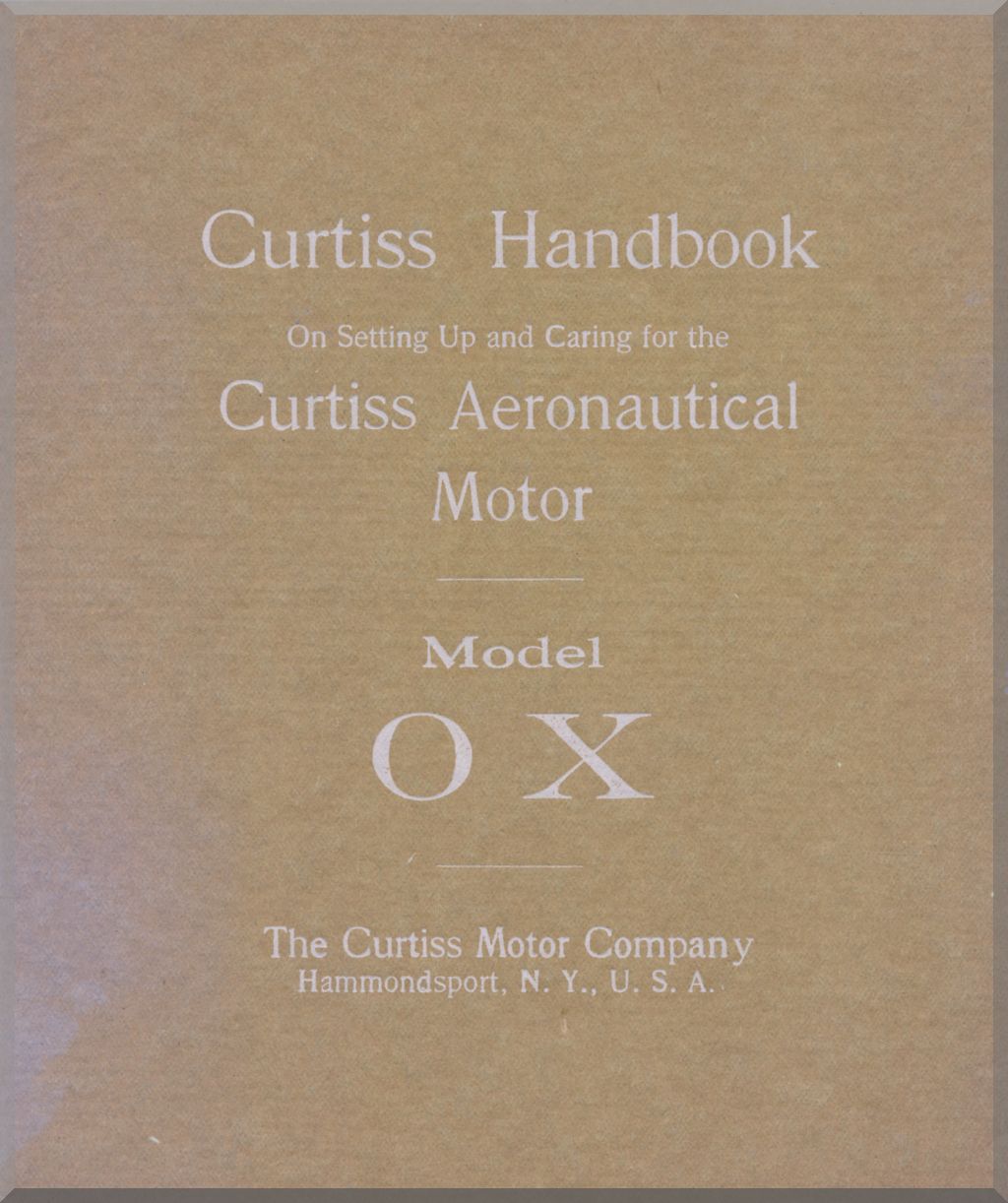

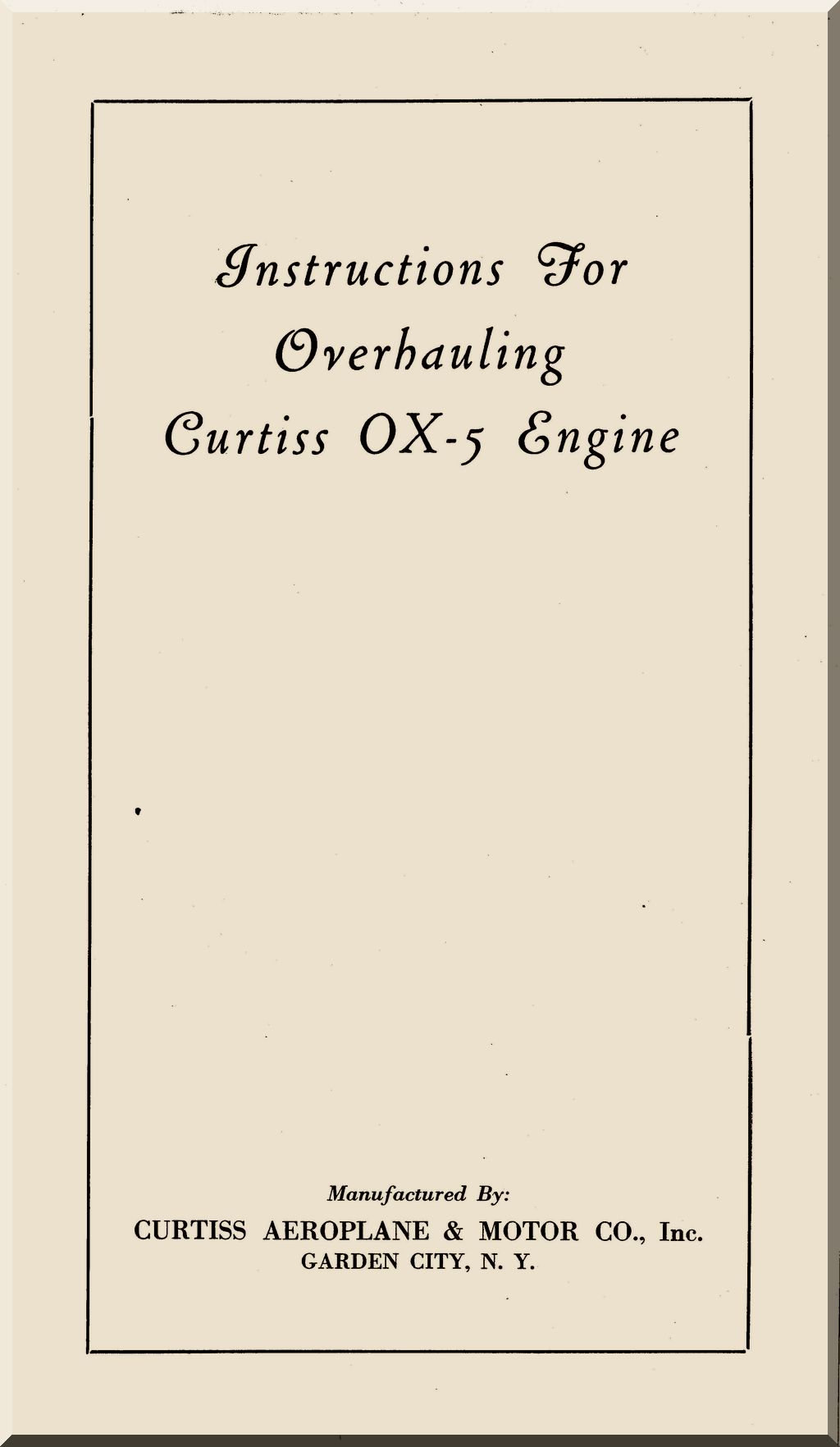

- Original Technical Manuals - Factory maintenance and overhaul procedures

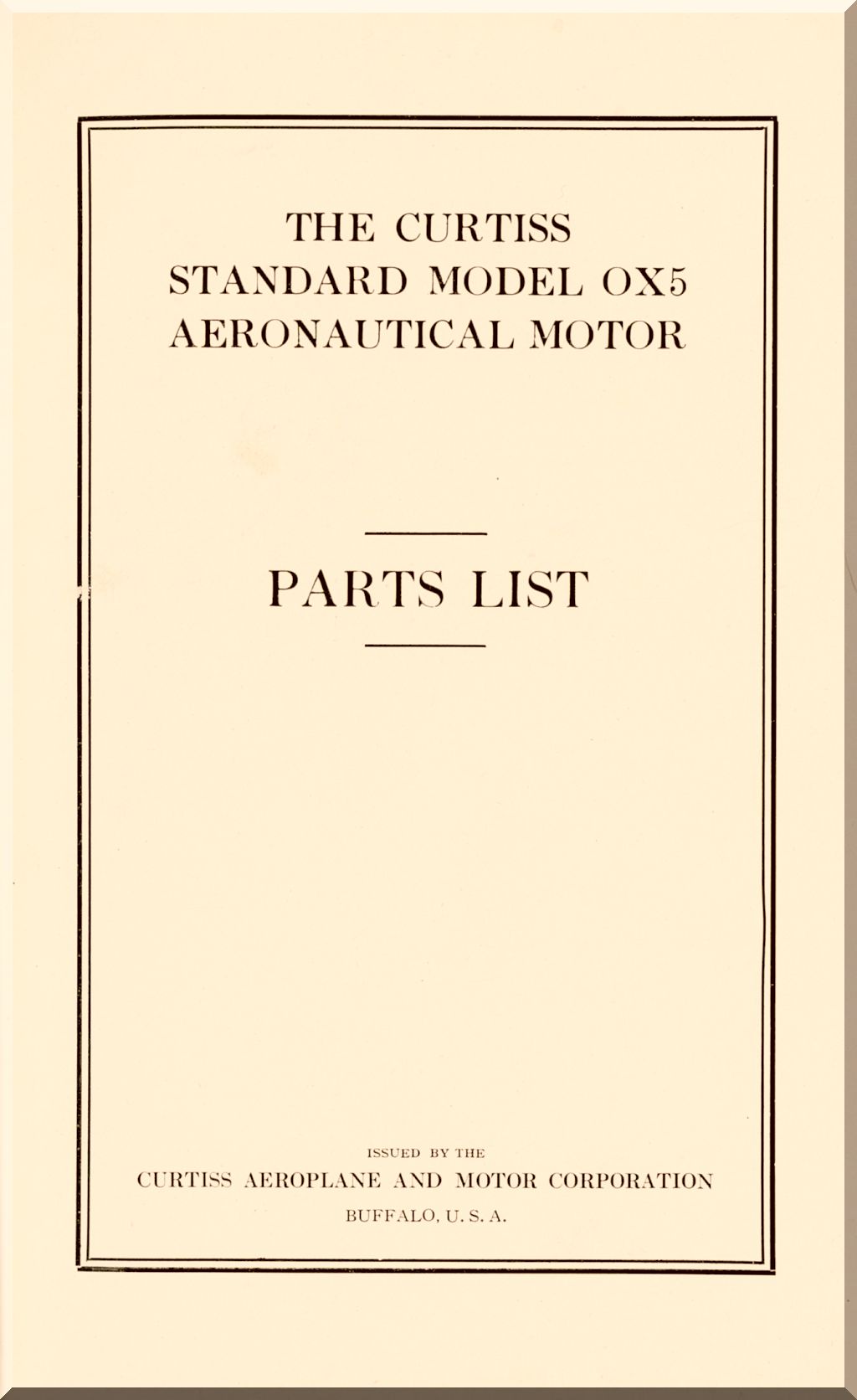

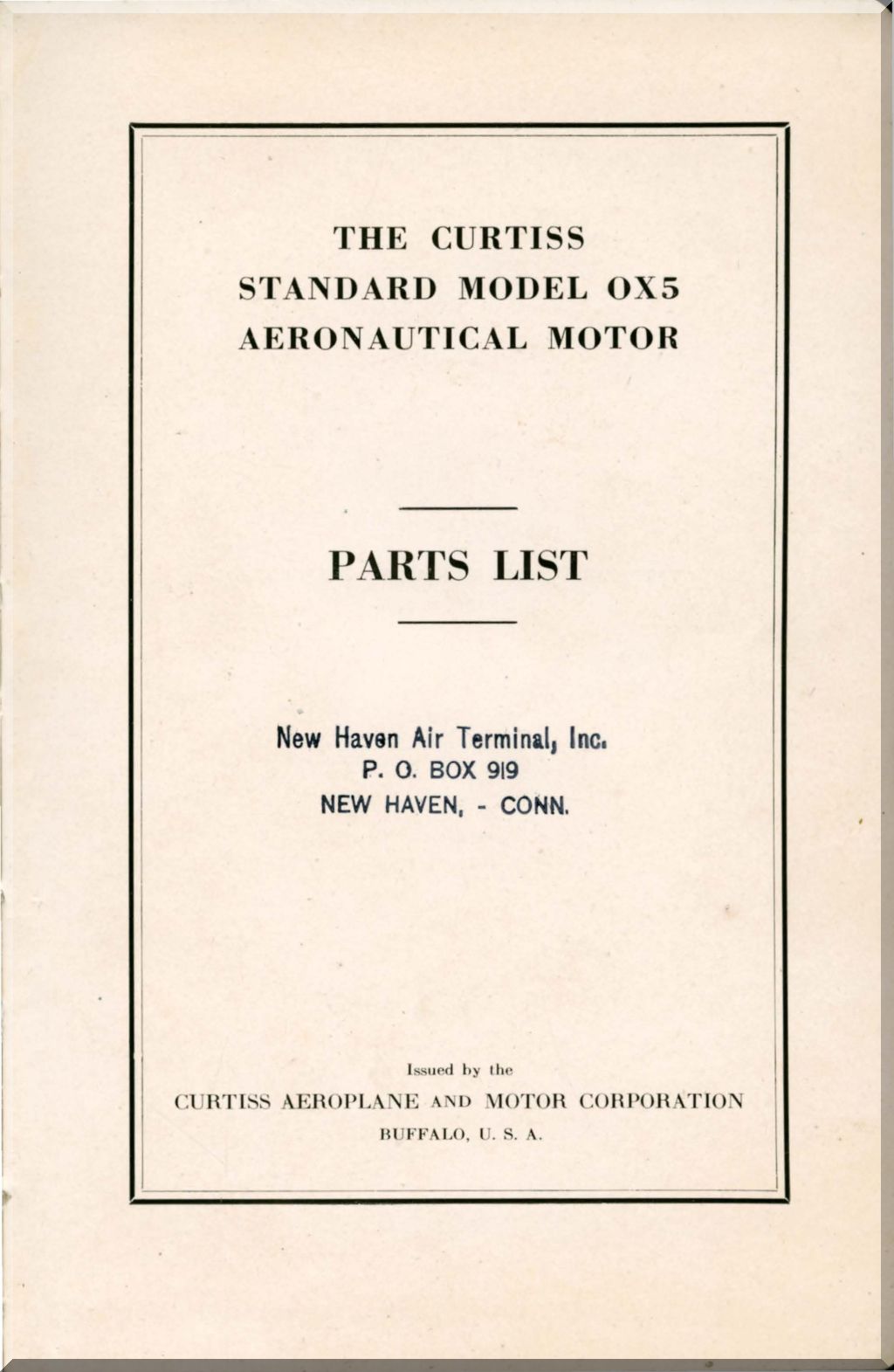

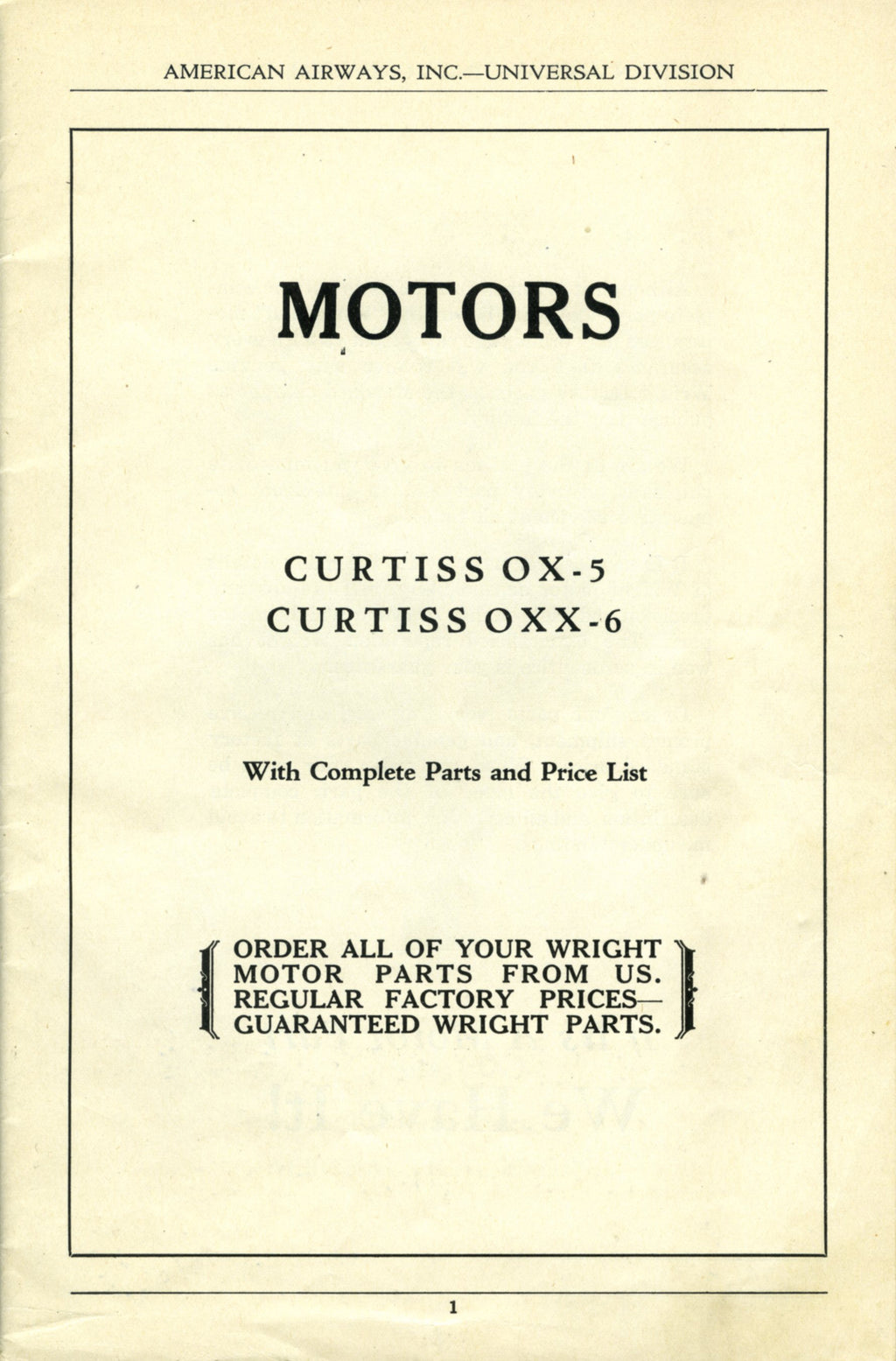

- Parts Catalogs - Comprehensive illustrated parts breakdowns and identification
- Operating Instructions - Proper operation, starting procedures, and performance data
Perfect For
- Aircraft restorers working on OX-5 powered vintage aircraft
- Aviation historians researching early American aviation technology
- Museum curators preserving WWI-era aircraft and engines
- Scale modelers seeking authentic technical details
- Aviation enthusiasts studying Golden Age powerplants
- Technical researchers documenting early engine development
Instant Digital Access
Immediate PDF Download - Access your comprehensive manuals instantly upon purchase. No shipping delays, no waiting. Download to your computer, tablet, or smartphone and reference anywhere, anytime.
Lifetime Access - Your purchase includes permanent access to all documentation. Download as many times as needed across all your devices.
Print-Ready Format - High-quality PDFs optimized for both screen viewing and printing. Create your own physical reference binder or keep digital copies for easy searching.
Technical Specifications - Curtiss OX-5
- Type: V-8 water-cooled aircraft engine
- Displacement: 503 cubic inches (8.2 liters)
- Power Output: 90 hp at 1,400 RPM
- Weight: Approximately 390 lbs
- Production Period: 1916-1918 (primary), continued use through 1930s
- Notable Aircraft: Curtiss JN-4 Jenny, Standard J-1, Travel Air 2000, Waco 9, Laird Swallow
Preserve aviation history with authentic technical documentation from the Online Aviation Library - your trusted source for comprehensive aircraft manuals and historical aviation data.
Disclaimer: Sold for historical and reference purposes only. These original or reproduced manuals and blueprints are transferred to electronic format from active-duty archives. Not intended for current certification or repair work. Ideal for scholars, collectors, modelers, and aviation enthusiasts. We provide civil manuals and blueprints on obsolete aircraft, engines, and helicopters for proprietary reasons. Information is for reference only; completeness and accuracy are not guaranteed.
All trade names, trademarks, and manufacturer names are property of their respective owners. Reference to commercial products does not imply endorsement or affiliation.
