Cessna O-1 / L-19 / OE-1 Bird Dog Comprehensive Manuals Collection

Access the comprehensive technical documentation for one of the most beloved and successful military liaison aircraft in aviation history. This digital collection provides authentic manuals from the 1950s-1970s covering all variants of the legendary Cessna Bird Dog—essential resources for operators, restorers, and aviation historians studying this iconic observation and liaison aircraft.

Historical Note

The Cessna O-1 Bird Dog stands as one of the most successful and enduring military liaison aircraft ever produced, serving with distinction in conflicts spanning four decades and earning the deep affection of the pilots who flew it. Developed in response to a U.S. Army requirement for a new observation and liaison aircraft to replace the aging Piper L-4 Grasshopper and Stinson L-5 Sentinel, the Bird Dog first flew on December 14, 1949, as the Model 305A.

What made the Bird Dog exceptional was its combination of simplicity, reliability, and outstanding short-field performance. Powered by a single Continental O-470 six-cylinder horizontally-opposed engine producing 213 horsepower, the high-wing aircraft featured tandem seating with exceptional visibility, conventional landing gear with large tires for rough-field operations, and docile handling characteristics that made it forgiving in the hands of Army aviators. The design emphasized practicality over sophistication—an approach that proved ideal for the demanding conditions of forward area operations.

The aircraft entered U.S. Army service in 1950 as the L-19 (Liaison-19), with the designation changing to O-1 (Observation-1) in 1962 when the Department of Defense unified its aircraft designation system. The U.S. Marine Corps operated the type as the OE-1 and OE-2, emphasizing its role in artillery spotting and forward air control missions. This multiplicity of designations—L-19, O-1, and OE-1—all refer to essentially the same remarkable aircraft adapted for slightly different service requirements.

The Bird Dog's combat debut came almost immediately during the Korean War (1950-1953), where it proved invaluable for artillery spotting, reconnaissance, medical evacuation, and liaison duties. Operating from short, rough airstrips near the front lines, Bird Dogs directed artillery fire, spotted enemy positions, evacuated wounded soldiers, and maintained communications between ground units. The aircraft's ability to operate from roads, rice paddies, and hastily-prepared strips made it indispensable to ground commanders.

Vietnam became the Bird Dog's defining conflict. From the early 1960s through the fall of Saigon in 1975, O-1s served as the primary forward air control (FAC) platform, with pilots flying low and slow over hostile territory to locate enemy forces and direct strike aircraft onto targets. Flying at altitudes often below 1,000 feet and speeds around 100 mph, FAC pilots in Bird Dogs marked targets with white phosphorus rockets, coordinated air strikes, conducted reconnaissance, and performed psychological operations missions.

The courage required for this mission cannot be overstated. Bird Dog pilots flew unarmed or lightly armed aircraft through intense ground fire, often spending hours over enemy-held territory. Many were shot down, yet they continued their missions with remarkable dedication. The aircraft's slow speed, which would be a liability in air combat, became an asset for FAC work—allowing pilots to maintain visual contact with ground forces and targets in ways faster aircraft could not match.

One of the most famous Bird Dog missions occurred on April 29, 1975, during the final evacuation of Saigon. South Vietnamese Air Force Major Buang-Ly, with his wife and five children aboard an O-1, flew out to the U.S. Navy aircraft carrier USS Midway. With no tailhook and the carrier deck crowded with helicopters, Major Buang dropped a note requesting the helicopters be pushed overboard to make room. Captain Larry Chambers made the extraordinary decision to comply, and Major Buang successfully landed the Bird Dog on the carrier deck—the only time a fixed-wing aircraft not designed for carrier operations landed aboard a carrier at sea. That historic O-1 is now preserved at the Naval Aviation Museum in Pensacola, Florida.

Production of the Bird Dog was substantial, with 3,431 aircraft manufactured between 1950 and 1959. Beyond U.S. service, the type was exported to numerous allied nations under the Military Assistance Program, serving with air forces in Australia, Austria, Belgium, Cambodia, Chile, Colombia, the Dominican Republic, Ethiopia, France, West Germany, Greece, Indonesia, Iran, Italy, Japan, South Korea, Laos, Lebanon, Malaysia, Morocco, Norway, Pakistan, the Philippines, Portugal, Saudi Arabia, South Vietnam, Spain, Thailand, Tunisia, Turkey, and Yugoslavia. Many nations operated Bird Dogs well into the 1980s and beyond.

Several variants were produced to meet specific requirements. The L-19A/O-1A was the standard Army version, the L-19E/O-1E featured constant-speed propeller and other improvements, the OE-1 and OE-2 served with the Marines, the TL-19D/TO-1D was an instrument trainer variant, and the XL-19B tested a Continental YO-470-11 fuel-injection engine. Each variant contributed to the type's versatility and longevity.

Following military service, hundreds of surplus Bird Dogs entered civilian ownership. The aircraft found new life as personal sport planes, patrol aircraft, glider tugs, and even agricultural sprayers. The combination of STOL performance, excellent visibility, economical operation, and classic military heritage made the Bird Dog highly desirable among warbird enthusiasts and sport pilots. Today, an active community of Bird Dog owners maintains and flies these aircraft, preserving the type's legacy.

The Cessna O-1/L-19/OE-1 Bird Dog represents more than just a successful aircraft design—it symbolizes the courage of forward air controllers, the critical importance of liaison aviation in modern warfare, and the enduring value of simple, reliable aircraft optimized for their mission. The sight and sound of a Bird Dog overhead became synonymous with close air support and the lifesaving coordination between air and ground forces. For the soldiers who depended on them and the pilots who flew them, the Bird Dog earned a permanent place in military aviation history.

What's Included

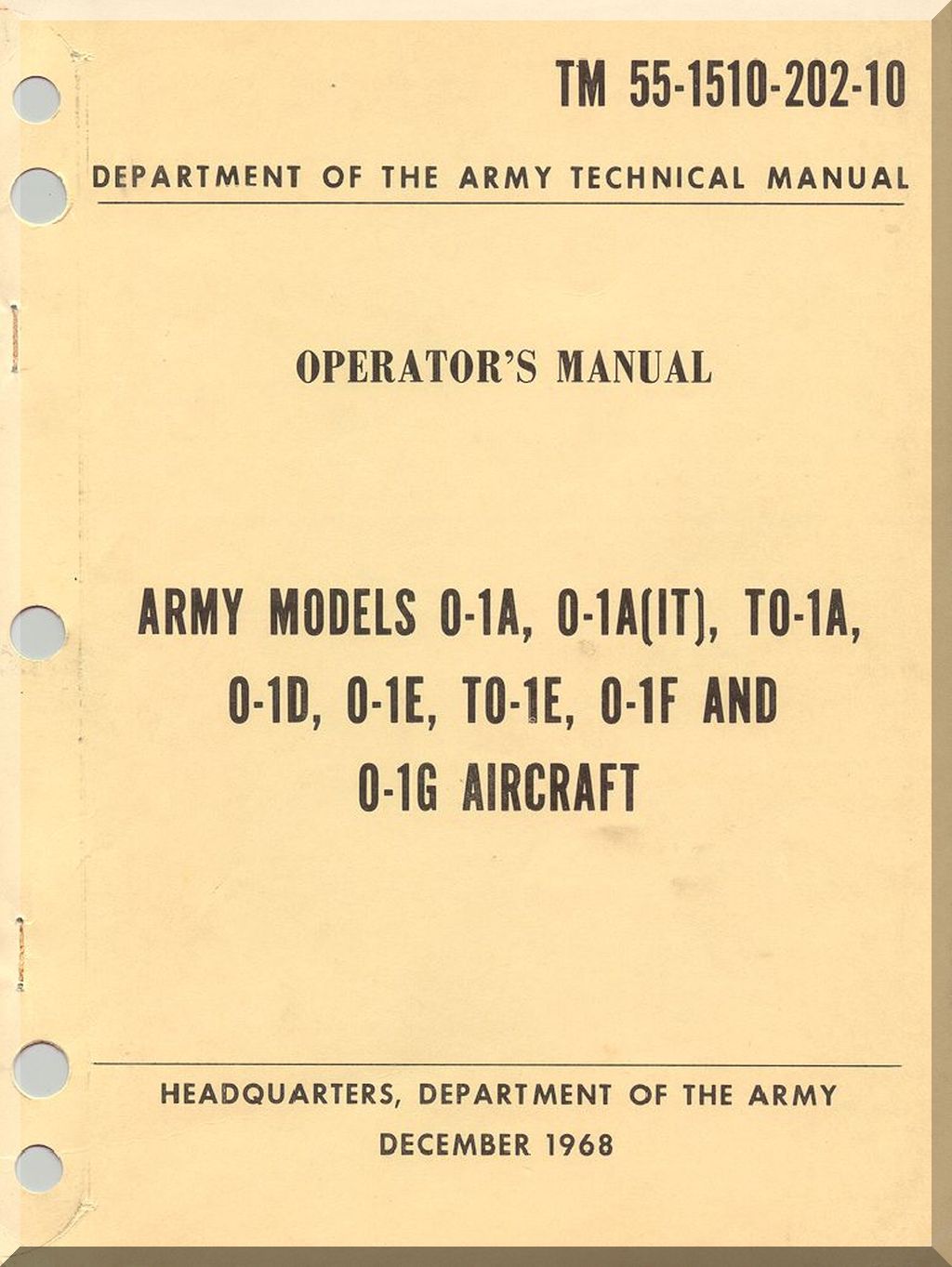

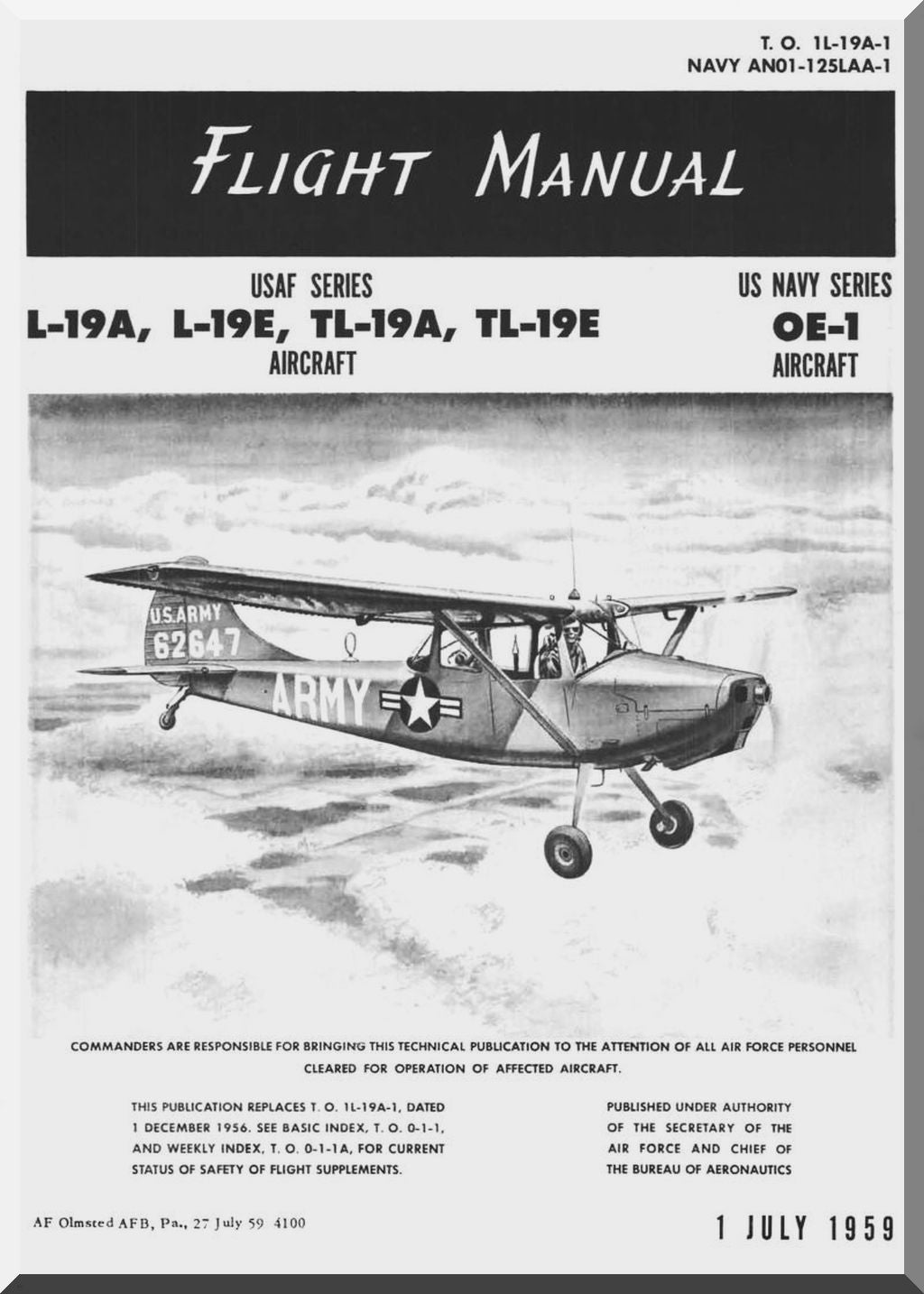

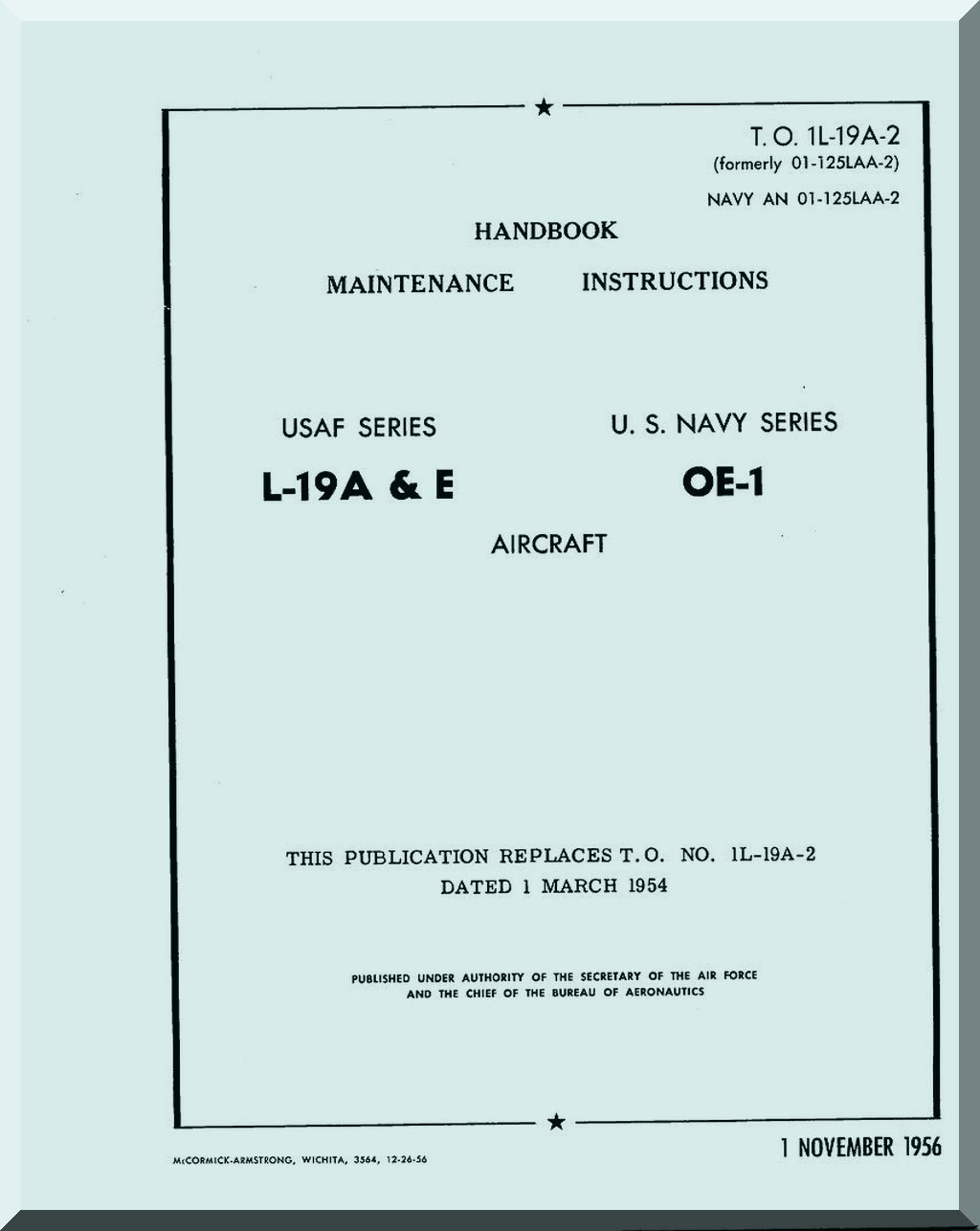

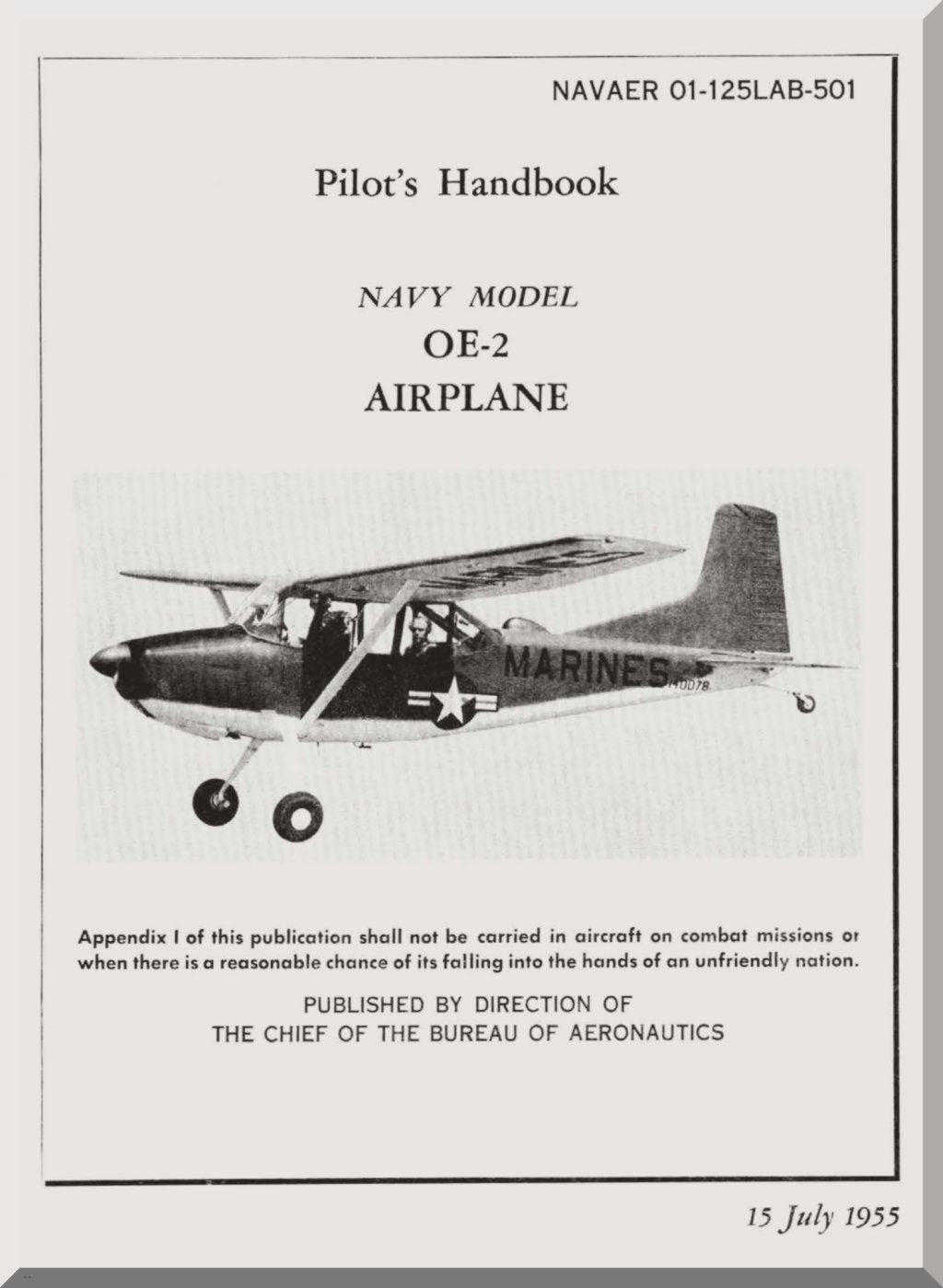

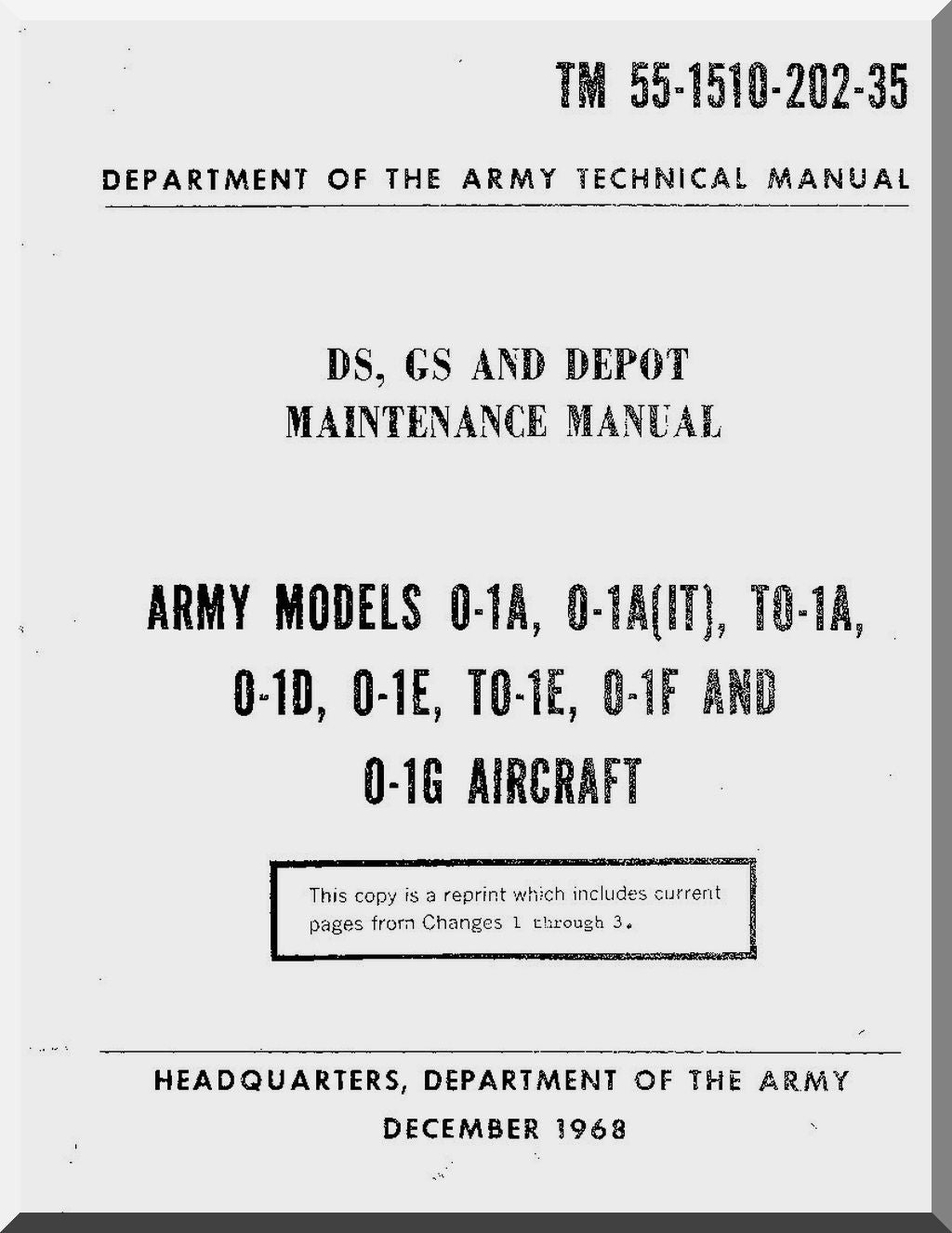

This collection contains authentic technical documentation from the 1950s-1970s covering all variants of the Cessna Bird Dog, including pilot operating handbooks, maintenance procedures, parts catalogs, structural repair, systems diagrams, and engineering specifications for L-19, O-1, and OE-1 models. Essential reference material for restoration projects, maintenance operations, flight training, and aviation scholarship focused on military liaison and observation aircraft.

Digital Download Benefits

• Instant access upon purchase—no shipping delays
• High-resolution scans preserving original detail and clarity
• Searchable PDF format for quick reference
• Permanent archive for your research library
• Print pages as needed for workshop or study use

Format: Digital PDF download
Delivery: Immediate access after purchase
Compatibility: All devices supporting PDF files

Disclaimer: Sold for historical and reference purposes only. These original or reproduced manuals and blueprints are transferred to electronic format from active-duty archives. Not intended for current certification or repair work. Ideal for scholars, collectors, modelers, and aviation enthusiasts. We provide civil manuals and blueprints on obsolete aircraft, engines, and helicopters for proprietary reasons. Information is for reference only; completeness and accuracy are not guaranteed.

All trade names, trademarks, and manufacturer names are property of their respective owners. Reference to commercial products does not imply endorsement or affiliation.
