Cessna LC-126 / 195 Aircraft Engineering Construction Drawings Blueprints - Digital Download

Exhaustive collection of 1,800 authentic engineering drawings for the legendary Cessna LC-126/195, meticulously digitized from original microfilm archives acquired from Thomson Aviation Library. This comprehensive technical documentation provides invaluable insights into one of aviation's most beloved postwar aircraft, essential for restorers, historians, scale modelers, and serious aviation enthusiasts. This is one of the most extensive Cessna 195 blueprint collections available anywhere.

Definitive Collection with Free Lifetime Updates: This is a living collection that we continuously expand and refine. As we acquire additional Cessna LC-126/195 documentation, technical bulletins, or variant-specific materials, we update this collection and provide free lifetime updates to all purchasers. Your one-time purchase guarantees access to all future additions and improvements to this collection.

Historical Note: The Cessna 195 Legacy

The Cessna 195 represents one of the most elegant and successful postwar civilian aircraft in American aviation history. Developed from the prewar Cessna Airmaster lineage, the Model 195 first flew in 1945 and entered production in 1947, continuing through 1954 with 1,180 aircraft built. Powered by the distinctive Jacobs R-755 seven-cylinder radial engine, the 195 became renowned for its smooth handling, luxurious appointments, and unmistakable radial engine sound that captivated pilots and spectators alike.

Cessna 195 in the Postwar Era

During the postwar era, the Cessna 195 business aircraft served as a premium choice, offering speed, comfort, and reliability that made it the favorite of corporate executives, wealthy private owners, and charter operators. Its all-metal construction, spacious five-seat cabin, and excellent short-field performance made it versatile enough for both business travel and recreational flying.

Military Service: The LC-126

The military variant, designated LC-126, served the United States Army and Air Force in liaison, observation, and utility roles during the late 1940s and early 1950s. These military versions proved their worth in various support missions, demonstrating the robust design and dependability that characterized all Cessna 195 variants.

Cessna 195 Restoration and Collector Value

In the decades since production ended, the Cessna 195 has achieved legendary status among vintage aircraft enthusiasts. Its classic lines, radial engine charm, and superb flying qualities have made it one of the most sought-after and meticulously restored aircraft in the warbird and classic aircraft community. Today, beautifully maintained examples command premium prices ranging from $150,000 to $350,000 depending on condition and restoration quality, and draw crowds at airshows worldwide, testament to the enduring appeal of Clyde Cessna's postwar masterpiece.

Important Note: Cessna no longer manufactures or provides factory support for the LC-126/195 models. These aircraft are considered obsolete/vintage, making historical engineering documentation like this collection particularly valuable for the restoration and preservation community.

Blueprints Included in This Collection

• 1,800 High-Resolution Engineering Drawings - Exhaustive airframe documentation
• Organized with Detailed Index - Easy navigation through the entire collection
• Digitized from Original Microfilm Archives - Sourced from Thomson Aviation Library
• Structural Components - Fuselage, wing, empennage, and control systems

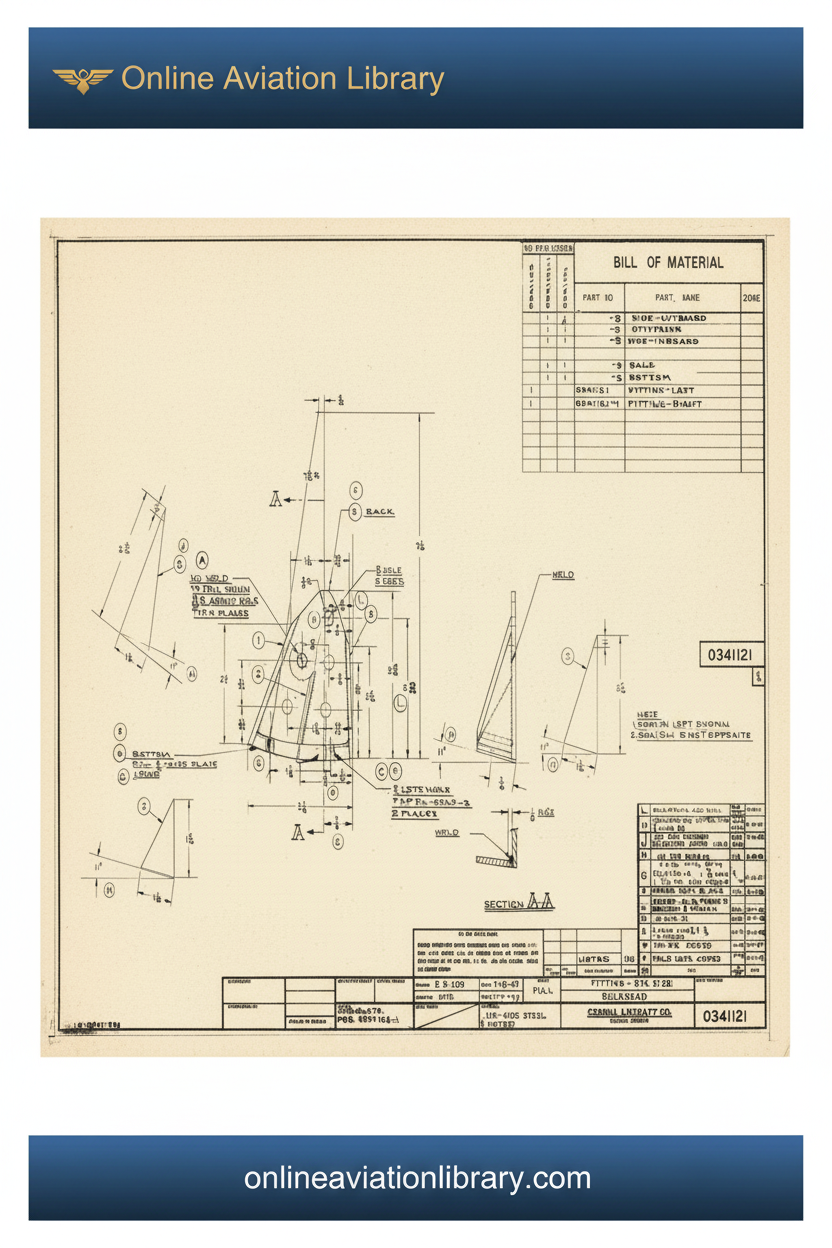

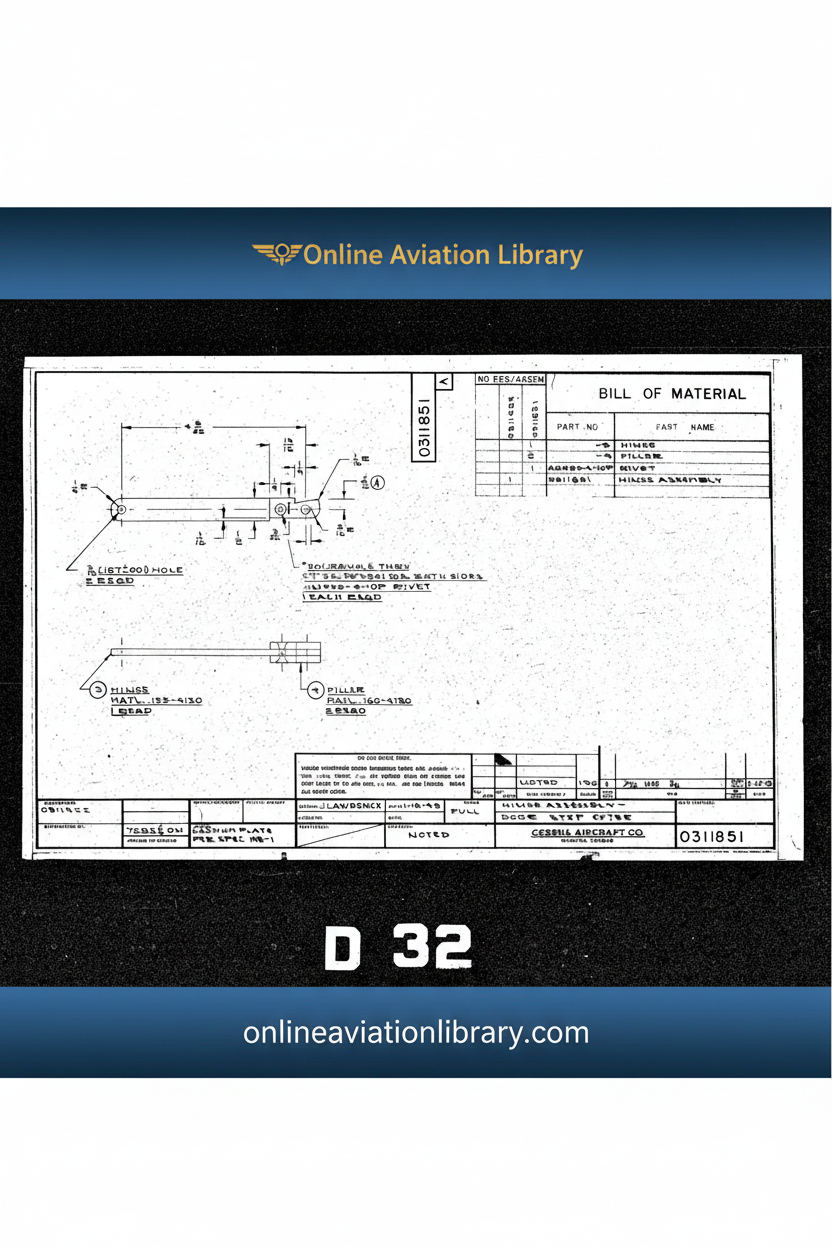

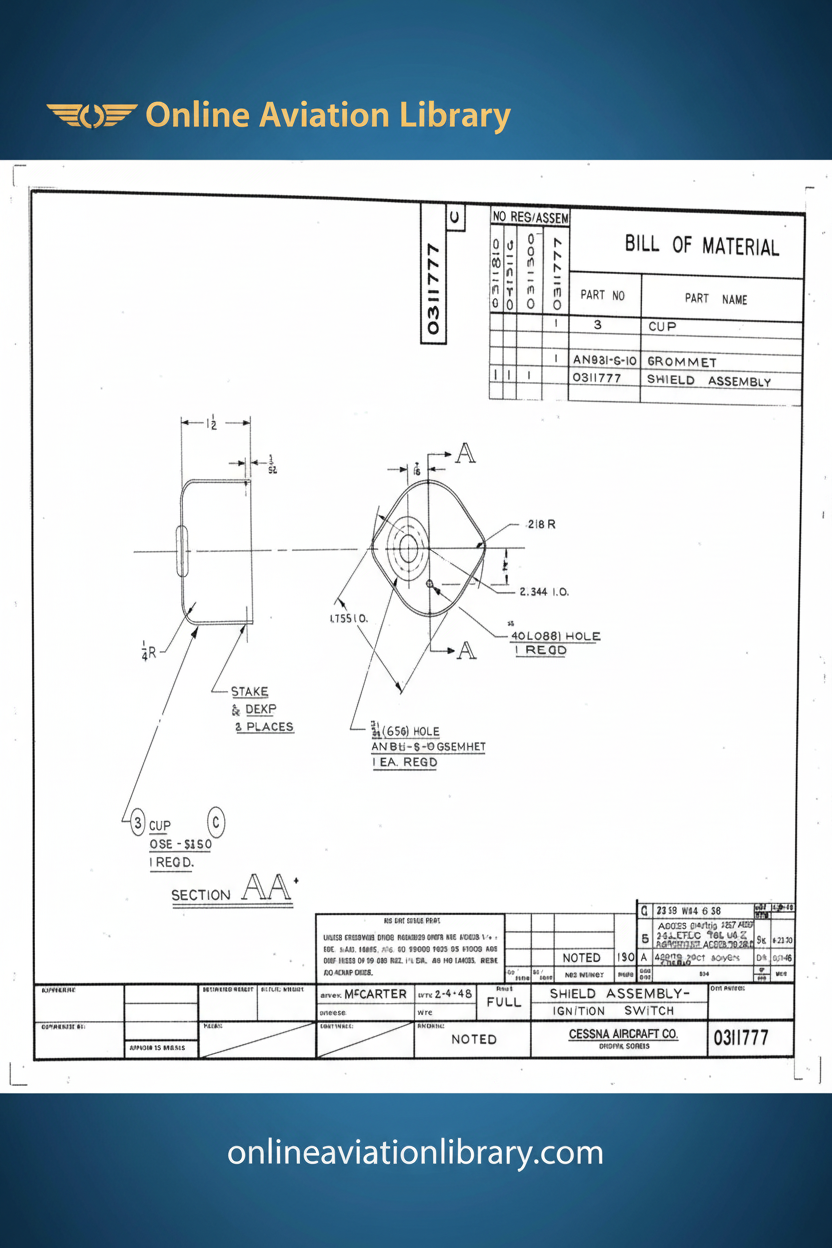

• Fittings and Assemblies - Detailed component drawings
• Construction Details - Manufacturing and assembly documentation
• Authentic Primary-Source Technical Documentation - For both Cessna LC-126 and Cessna 195 variants

This collection represents one of the most comprehensive sets of Cessna 195 engineering documentation available. Sourced from the Thomson Aviation Library archives and transferred to digital format, these drawings provide exhaustive coverage of the airframe structures, assemblies, and construction details.

Engineering Norms and Standards

The Cessna 195 was designed and certified under Civil Air Regulations (CAR 3) of the mid-1940s, representing the airworthiness standards for normal category aircraft of that era. Cessna engineering practices emphasized robust all-metal construction, reliable systems, and maintainability. Materials specifications followed contemporary standards for aircraft-grade aluminum alloys (2024-T3, 6061-T6), steel fittings, and fabric-covered control surfaces. The Jacobs R-755 radial engine installation required specialized engine mount and cowling designs that became hallmarks of the 195's distinctive appearance.

Perfect for Cessna 195 Restorers, Historians, and Modelers

These engineering blueprints represent the authentic technical documentation used throughout the aircraft's production life and subsequent service history. For restorers undertaking the challenging work of returning these magnificent aircraft to airworthy condition, these drawings provide invaluable reference material showing original factory specifications and construction details. Aviation historians will find comprehensive documentation of mid-century aircraft engineering practices, while scale modelers gain access to precise dimensional data for creating accurate scale reproductions of this iconic aircraft.

Format and Delivery

Format: Adobe PDF (compressed in RAR archive)
Delivery: Instant digital download upon purchase
Quality: High-resolution scans preserving all technical details from microfilm
Organization: Indexed for efficient reference
Coverage: Exhaustive airframe blueprints and engineering drawings
File Size: Large archive (extraction software required)

Extraction Instructions: Files are compressed in RAR format. Download free extraction software at rarlab.com

Disclaimer

This item is sold for historical and reference purposes only. These are either original or copies of manuals and blueprints used when these aircraft were in active duty, now transferred into electronic format. These manuals and blueprints are not meant to be used for current update material for certification/repair, but make an excellent reference for the scholar, collector, modeler, or aircraft enthusiast. For proprietary reasons, we generally only provide civil manuals and blueprints on obsolete aircraft/engines/helicopters. The information is for reference only, and we do not guarantee the completeness, accuracy, or currency of any manuals.

Reference herein to any specific commercial products by trade name, trademark, manufacturer, or otherwise, is not meant to imply or suggest any endorsement by, or affiliation with that manufacturer or supplier. All trade names, trademarks, and manufacturer names are the property of their respective owners.
