Cessna 190 / 195 / LC-126 / U-20 Comprehensive Manuals Collection
Access the comprehensive technical documentation for Cessna's legendary postwar radial-engine family. This digital collection provides authentic manuals from 1950-1954, including parts catalogs, maintenance procedures, and structural repair guides—essential resources for operators, restorers, and aviation historians studying these iconic civilian and military aircraft.
Historical Note
The Cessna 190 and 195 represent the pinnacle of Cessna's postwar radial-engine aircraft development, combining the rugged reliability of radial power with modern all-metal construction and elegant design. These aircraft, along with their military derivatives the LC-126 and U-20, hold a special place in aviation history as the last radial-engine aircraft produced by Cessna and among the most beloved classic aircraft ever built.
Development of the 190/195 family began in 1945 as Cessna sought to capitalize on the anticipated postwar boom in civilian aviation. The company envisioned a premium five-seat business aircraft that would appeal to corporations, air taxi operators, and affluent private owners seeking performance and comfort superior to smaller light aircraft. The design featured all-metal construction, a cantilever wing, conventional landing gear with large tires for rough-field capability, and a spacious cabin with automotive-style appointments.
What distinguished the 190/195 family was the choice of powerplant—radial engines at a time when most manufacturers were transitioning to horizontally-opposed engines. The Cessna 190 was powered by the Continental R-670 seven-cylinder radial producing 240 horsepower, while the more powerful 195 featured the Jacobs R-755 seven-cylinder radial producing 245-300 horsepower depending on variant. This radial engine configuration gave the aircraft distinctive appearance, smooth operation, and a throaty exhaust note that became their signature characteristic.
The civilian 190 and 195 entered production in 1947 and quickly established themselves as premium aircraft. The spacious cabin could accommodate five people in comfort, with large windows providing excellent visibility and plush upholstery rivaling automobile interiors of the era. Performance was impressive for the time—cruise speeds around 170 mph, range exceeding 700 miles, and the ability to operate from short, unprepared strips made these aircraft versatile tools for business and personal transportation.
The 195 became particularly popular among corporate operators and wealthy private owners. Its combination of speed, comfort, range, and classic good looks made it a status symbol in postwar America. The aircraft served executives, ranchers, oil company personnel, and anyone requiring reliable transportation across the vast distances of the American West and beyond. Many 195s were equipped with luxury appointments including custom interiors, advanced avionics, and even executive amenities unusual for aircraft of the era.
Military interest in the design led to development of the LC-126, the U.S. Air Force designation for militarized versions of the 190/195. Approximately 83 LC-126A, LC-126B, and LC-126C aircraft were produced for the USAF between 1949 and 1951, serving in liaison, utility transport, and administrative roles. The LC-126 featured military radio equipment, simplified interiors, and provisions for operating in austere conditions. These aircraft served at Air Force bases worldwide, providing essential transportation for personnel and light cargo.
The U-20 designation was applied to a small number of aircraft operated by the U.S. Army, continuing the military service of this versatile airframe. Like the LC-126, U-20s performed liaison and utility missions, demonstrating the basic design's adaptability to military requirements.
Production of the civilian 190/195 family continued until 1954, with approximately 1,180 Model 190s and 1,180 Model 195s manufactured—a total of about 2,360 civilian aircraft plus the military variants. Several sub-variants were produced, including the 195A and 195B with progressive improvements in equipment and refinements. The decision to end production in 1954 reflected changing market conditions—the radial engine was becoming obsolete, maintenance costs were higher than flat engines, and Cessna was focusing on its highly successful line of horizontally-opposed engine aircraft like the 170, 180, and the soon-to-be-introduced 172.
Following the end of production, the 190/195 family developed a devoted following among pilots and collectors. The aircraft's classic lines, radial engine character, and excellent flying qualities made them highly desirable. Many owners invested heavily in maintaining and restoring their aircraft to pristine condition, with some examples receiving extensive modifications including modern avionics, updated interiors, and even engine upgrades or conversions to horizontally-opposed powerplants (though purists generally frowned upon engine conversions).
The 190/195 became icons of the classic aircraft movement. Immaculately restored examples appear regularly at airshows and fly-ins, where their polished aluminum finishes, spinning radial engines, and graceful lines draw admiring crowds. The sound of a Jacobs or Continental radial at idle—a distinctive popping rhythm—is instantly recognizable to aviation enthusiasts and evokes the golden age of postwar aviation.
Today, several hundred Cessna 190s and 195s remain airworthy, supported by an active owner community, specialized maintenance shops, and parts suppliers dedicated to keeping these classics flying. Well-maintained examples command premium prices in the vintage aircraft market, reflecting their status as among the most desirable classic aircraft available. Type clubs provide technical support, parts sourcing assistance, and camaraderie among owners who share a passion for these magnificent machines.
The Cessna 190/195/LC-126/U-20 family represents more than just successful aircraft—they symbolize an era when aircraft were built with craftsmanship and character, when radial engines were the sound of aviation, and when flying was as much about the journey as the destination. For those fortunate enough to own or fly one, these aircraft provide a tangible connection to aviation's golden age and the enduring appeal of classic design executed to perfection.
What's Included

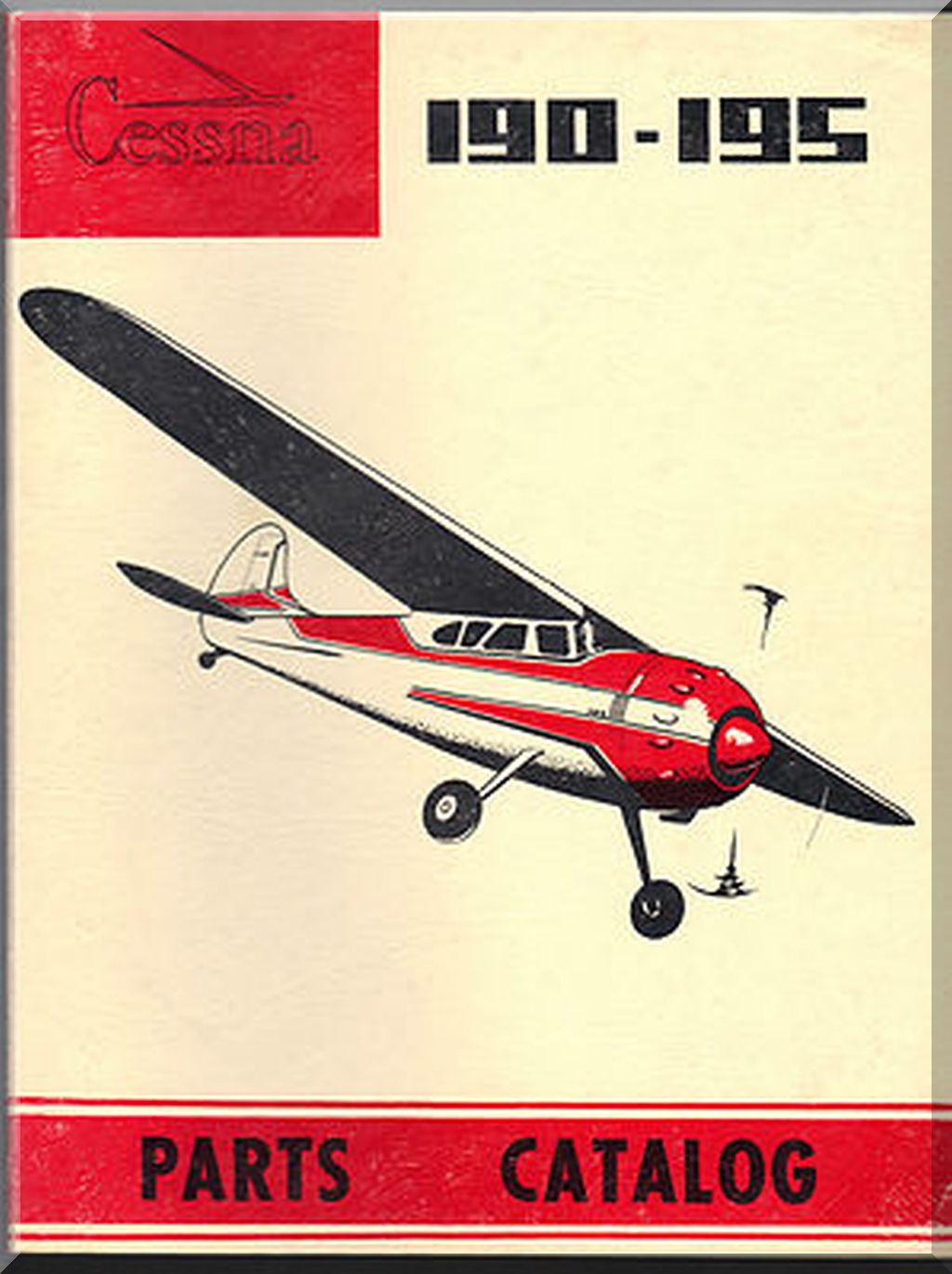

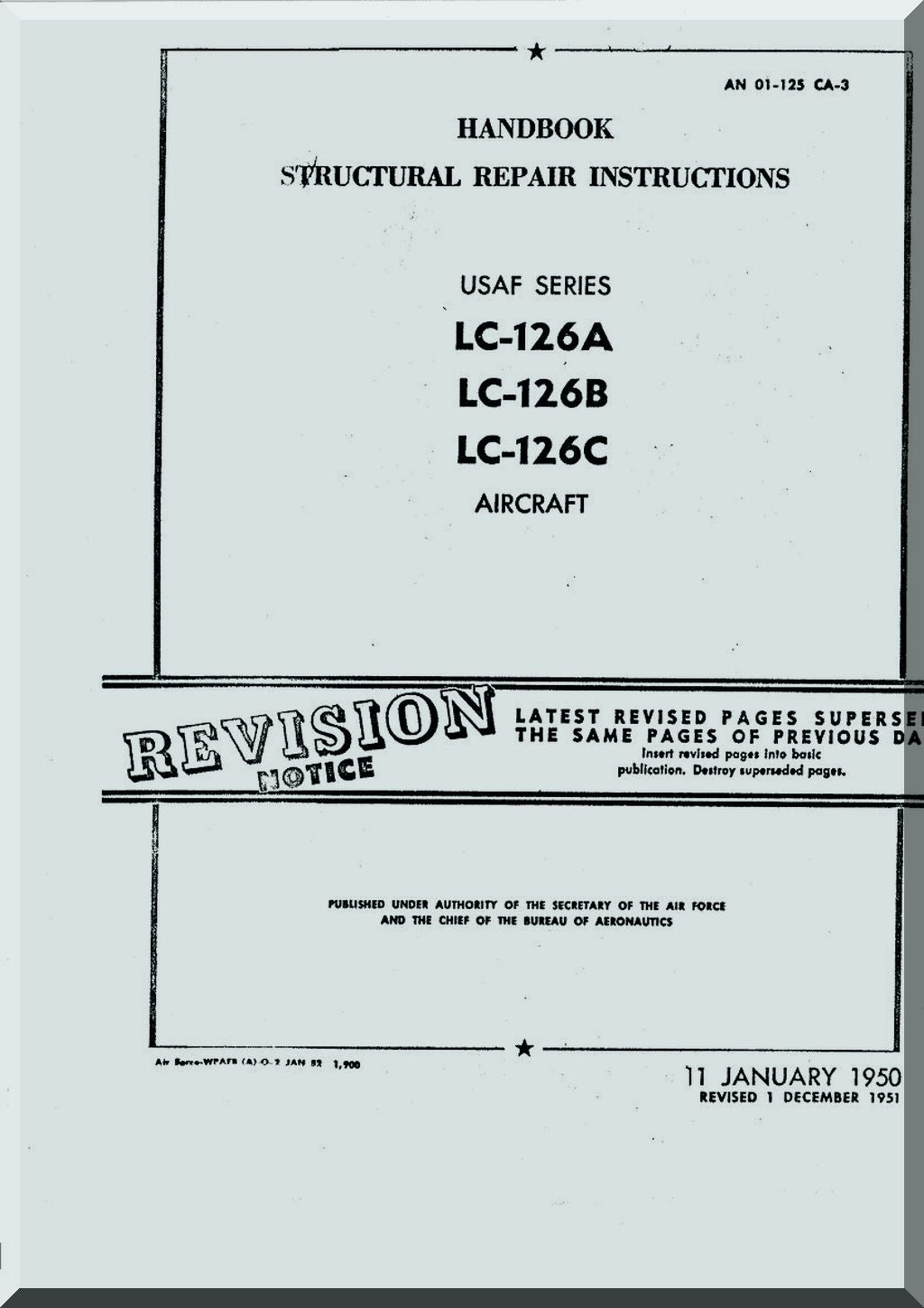

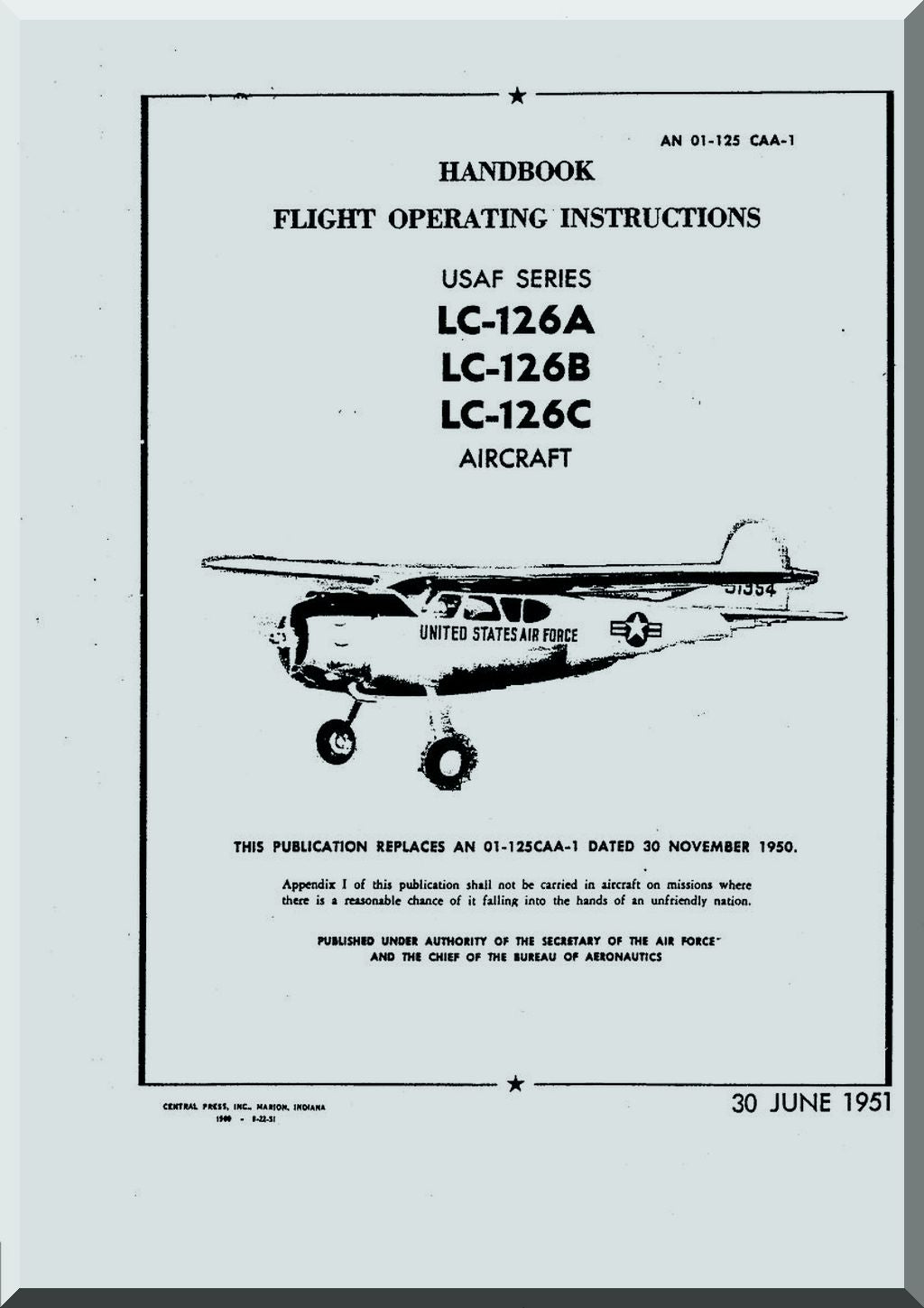

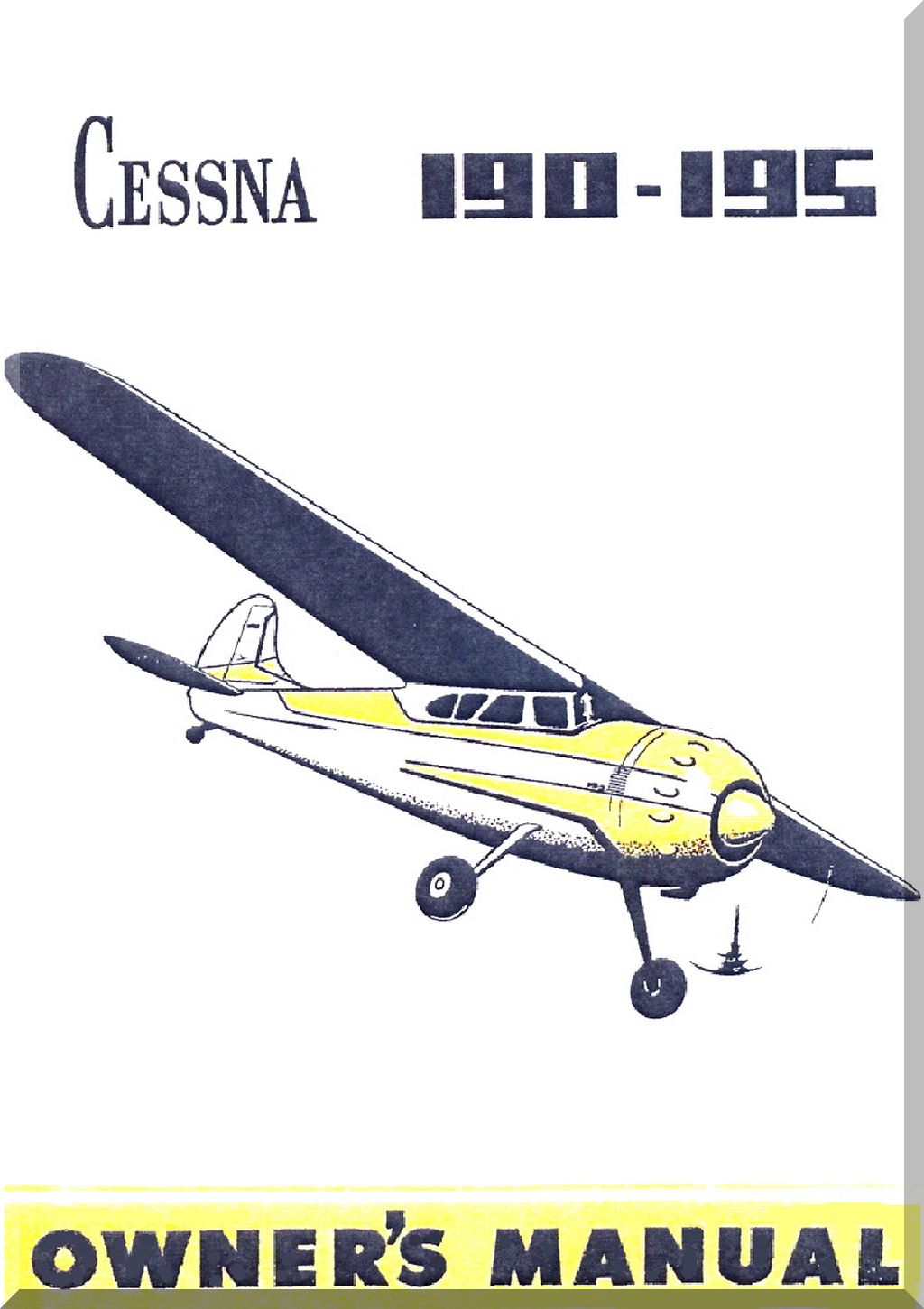

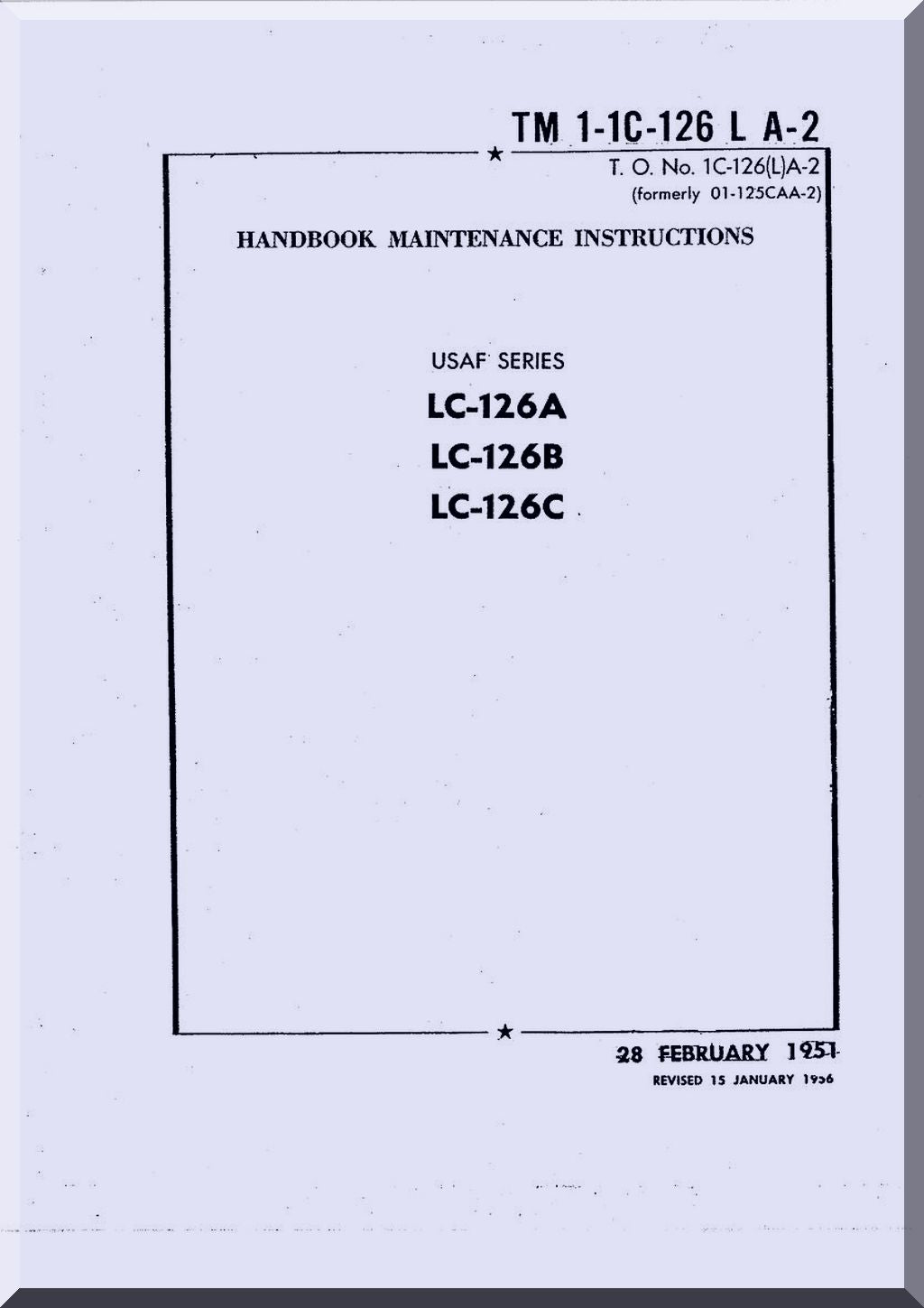

This collection contains authentic technical documents from 1950-1954 covering all variants of the Cessna 190/195 family and military LC-126/U-20 derivatives, including comprehensive parts catalogs, maintenance procedures, structural repair manuals, systems diagrams, and engineering specifications. Essential reference material for restoration projects, maintenance operations, and aviation scholarship focused on classic radial-engine aircraft.
Digital Download Benefits
- Instant access upon purchase—no shipping delays
- High-resolution scans preserving original detail and clarity
- Searchable PDF format for quick reference
- Permanent archive for your research library
- Print pages as needed for workshop or study use
Format: Digital PDF download
Delivery: Immediate access after purchase
Compatibility: All devices supporting PDF files
Disclaimer: Sold for historical and reference purposes only. These original or reproduced manuals and blueprints are transferred to electronic format from active-duty archives. Not intended for current certification or repair work. Ideal for scholars, collectors, modelers, and aviation enthusiasts. We provide civil manuals and blueprints on obsolete aircraft, engines, and helicopters for proprietary reasons. Information is for reference only; completeness and accuracy are not guaranteed.
